2-03 — CLUTCH PEDAL AND CONTROL (#175813) — 20 parça

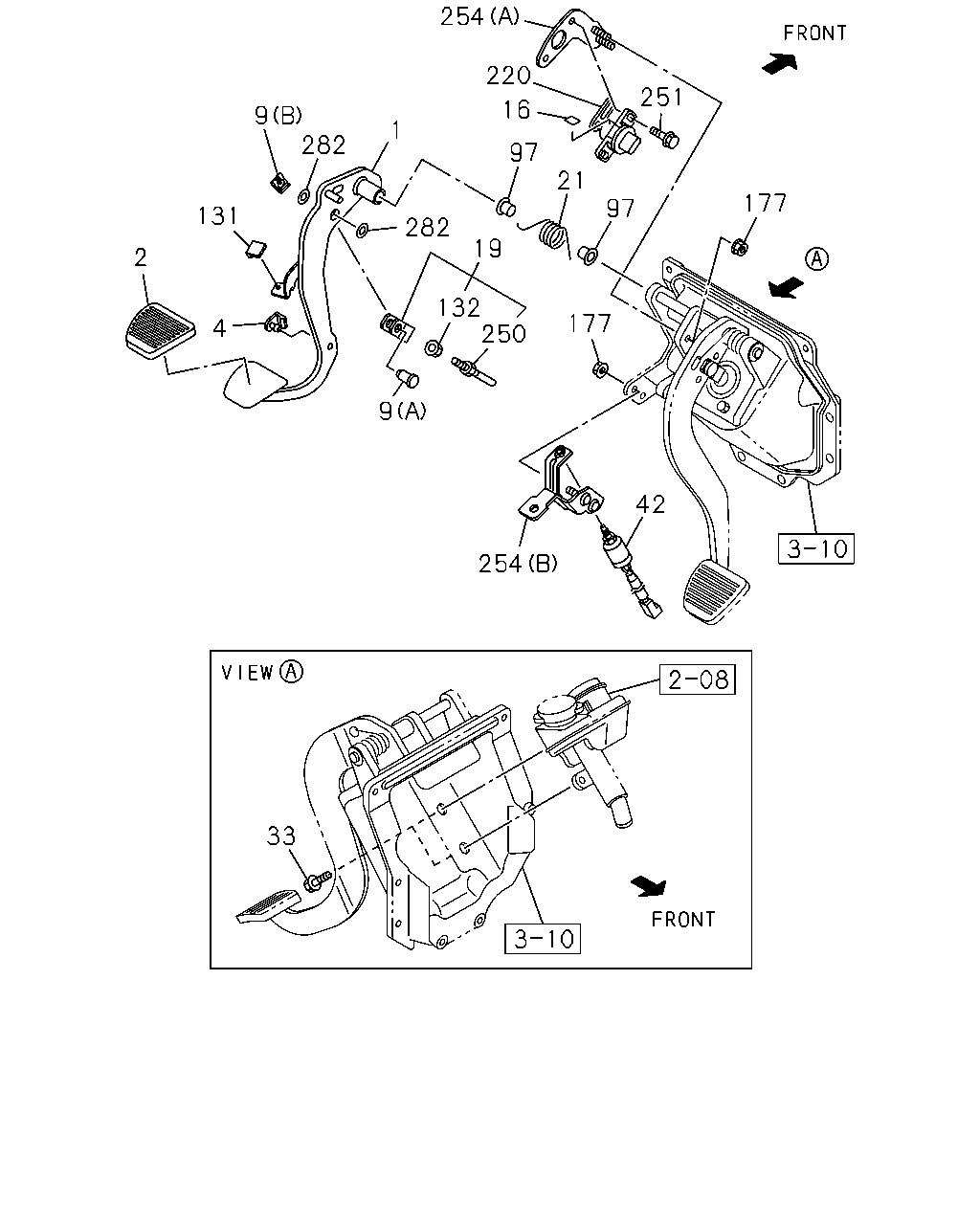

çizim 512698
42 177 97 177 251 254 220 16 1 282 282 97 21 19 132 250 9 4 2 131 33 254 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 PEDAL; CLU 8-98057-122-0 01 1 1601- ● ●
2 COVER; CLU PEDAL 8-98056-865-0 01 1 1601- ● ●
4 STOPPER; CLU PEDAL 8-98079-251-0 01 1 1601- ● ●
9 PIN; CLU PEDAL
(B) 		8-98007-161-0 01 1 1601- ● ●
9 PIN; CLU PEDAL
(A) 		8-98147-657-0 01 1 1601- ● ●
16 SEAL; CLU PEDAL
30X30 		8-98142-344-0 01 1 1601- ● ●
19 ROD ASM; PUSH,CLU 8-98021-406-1 01 1 1601- ● ●
21 SPRING; RETURN,CLU PEDAL 8-98021-560-0 01 1 1601- ● ●
33 BOLT; CLU M/CYL TO BRKT
M12X20 FLANGE 		0-28051-220-0 02 1 1601- ● ●
42 SWITCH; CLU 8-97620-841-0 01 1 1601- ● ●
97 BUSHING; CLU PEDAL SHAFT 8-94238-596-0 02 1 1601- ● ●
131 STOPPER; CLU SW 8-97302-305-0 02 1 1601- ● ●
132 NUT; LK,PUSH ROD
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
177 NUT; BRKT
M8 FLANGE 		0-91180-108-0 04 1 1601- ● ●
220 SENSOR; CLUTCH 1-80250-014-0 01 1 1601- ● ●
250 ROD; PUSH,CLU 8-97615-589-0 01 1 1601- ● ●
251 BOLT; SENSOR
M6X16 		0-52000-616-0 02 1 1601- ● ●
254 BRACKET; CLU SENSOR
(A) 		8-98021-376-1 01 1 1601- ● ●
254 BRACKET; CLU SENSOR
(B) 		8-98057-131-1 01 1 1601- ● ●
282 SPACER; CLU PEDAL 8-98070-329-0 02 1 1601- ● ●
