Sayfa 8-15 - Isuzu EPC

8-15 — FIXING PARTS; WIRING HARNESS (#17581) — 262 parça

139 38 304 304 313 304 38 150 38 139 150 313 38 139 313 139 313 139 139 38 516 377 386 139 38 386 524 219 525 294 294 47 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1510-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1510-
38	BOLT; CLIP,HARNESS (C) M8X16 FLANGE SOU	0-28050-816-0	02	1	1001-
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-1509
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-1509
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	02	1	1001-1509
38	BOLT; CLIP,HARNESS (A) M8X20 FLANGE	0-28650-820-0	01	1	1510-
38	BOLT; CLIP,HARNESS (B) M8X25 FLANGE SOU	0-28650-825-0	04	1	1001-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1001-
38	BOLT; CLIP,HARNESS (D) M8X30 FLANGE	0-28650-830-0	02	1	1001-
38	BOLT; CLIP,HARNESS (E) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	03	1	1001-1201
38	BOLT; CLIP,HARNESS (F) M8X18.5 W/PL WASHER	8-98141-255-0	03	1	1202-
47	NUT; GEN TERMINAL M8 W/LK WASHER SOU	8-94279-050-0	01	1	1409-
139	BOLT; BRKT (E) M8X12 FLANGE	0-28050-812-0	01	1	1001-
139	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
139	BOLT; BRKT (A) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	01	1	1001-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	02	1	1001-
139	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	04	1	1001-
139	BOLT; BRKT (G) M8X35 FLANGE SOU	0-28650-835-0	01	1	1001-
139	BOLT; BRKT (C) M10X25 FLANGE SOU	0-28651-025-0	02	1	1001-
139	BOLT; BRKT (F) M10X35 FLANGE SOU	0-28651-035-0	01	1	1001-
139	BOLT; BRKT (F) M10X35 FLANGE SOU	0-28651-035-0	01	1	1001-
139	BOLT; BRKT EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (D) M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1001-
150	BOLT; CLIP (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-
150	BOLT; CLIP (B) M8X25 FLANGE SOU	0-28650-825-0	02	1	1001-
184	WASHER; PL,STARTER EARTH ID=10.5 OD=22 T=2.0 SOU	1-09503-265-0	02	1	1001-
219	NUT M8 FLANGE SOU	0-91180-108-0	04	1	1001-1509
219	NUT M8 FLANGE SOU	0-91180-108-0	02	1	1510-
219	NUT M8 FLANGE SOU	0-91180-108-0	02	1	1510-
219	NUT M8 FLANGE SOU	0-91180-108-0	02	1	1510-
219	NUT M8 FLANGE SOU	0-91180-108-0	02	1	1510-
219	NUT M8 FLANGE SOU	0-91180-108-0	02	1	1001-1509
219	NUT M8 FLANGE SOU	0-91180-108-0	02	1	1001-1509
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	02	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	04	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	05	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
294	NUT (A) M8 FLANGE SOU	0-91180-108-0	01	1	1001-
294	NUT (B) M10 FLANGE SOU	0-91180-210-0	02	1	1001-
304	BOLT; ENG HARNESS CLIP (B) M8X12 FLANGE	0-28050-812-0	06	1	1001-
304	BOLT; ENG HARNESS CLIP (C) M8X16 FLANGE SOU	0-28050-816-0	05	1	1001-
304	BOLT; ENG HARNESS CLIP (A) M8X20 FLANGE	0-28050-820-0	04	1	1001-
313	BOLT; BRKT (A) M8X45 FLANGE SOU	0-28050-845-0	01	1	1001-
313	BOLT; BRKT (C) M8X25 FLANGE SOU	0-28650-825-0	01	1	1001-
313	BOLT; BRKT (D) M8X30 FLANGE	0-28650-830-0	01	1	1001-
313	BOLT; BRKT (B) M8X35 FLANGE SOU	0-28650-835-0	01	1	1001-
313	BOLT; BRKT (B) M8X35 FLANGE SOU	0-28650-835-0	01	1	1001-
377	BOLT; CAB EARTH M6X16 W/LK&PL WASHER	8-97086-823-0	02	1	1001-
386	BOLT; GRAND HARNESS (A) M8X20 W/LK&PL WASHER SOU	8-97086-825-0	02	1	1001-1202
386	BOLT; GRAND HARNESS (B) M8X18.5 W/PL WASHER	8-98141-255-0	02	1	1203-
516	BOLT; HARNESS M4X10 W/LK&PL WASHER	0-36230-410-0	01	1	1001-
524	NUT; HARNESS M6 FLANGE SOU	0-91180-106-0	04	1	1001-
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	01	1	1001-
525	NUT; CLIP M8 FLANGE SOU	0-91180-108-0	02	1	1001-

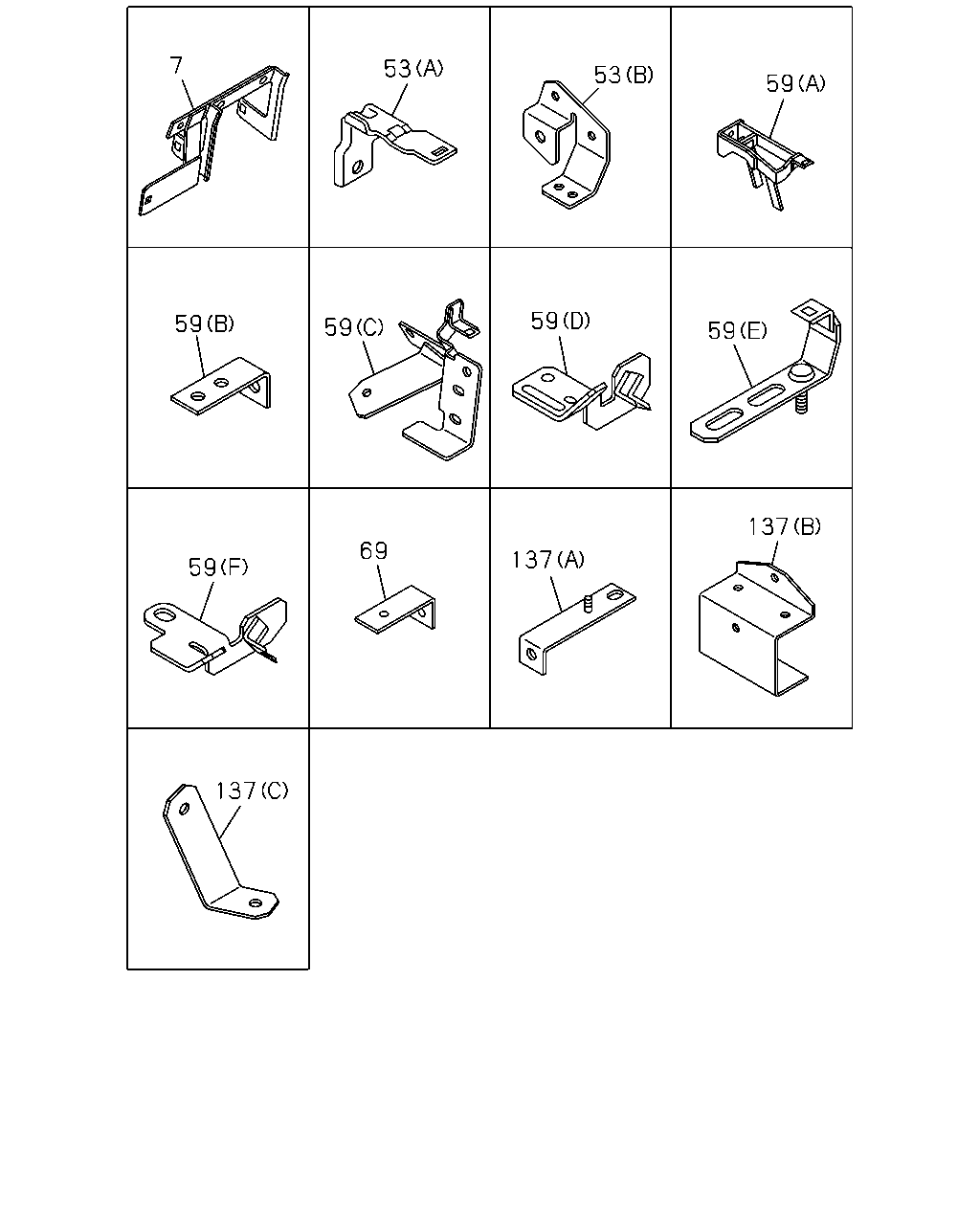

7 53 53 59 59 59 59 59 59 69 137 137 137

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	BRACKET; CONNECTOR	8-98049-798-1	01	1	1001-
53	BRACKET; HARNESS (A)	8-98052-458-0	01	1	1001-
53	BRACKET; HARNESS EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B)	8-98084-590-0	01	1	1001-
59	BRACKET; FRAME HARNESS (B) L=62	1-21464-170-2	01	1	1001-
59	BRACKET; FRAME HARNESS (A)	8-97609-264-2	01	1	1001-
59	BRACKET; FRAME HARNESS (D)	8-97616-305-0	01	1	1001-1502
59	BRACKET; FRAME HARNESS (F)	8-98254-592-0	01	1	1503-
59	BRACKET; FRAME HARNESS (E)	8-98047-730-0	02	1	1001-
59	BRACKET; FRAME HARNESS (C)	8-98107-611-0	01	1	1001-
69	BRACKET; CLIP L=55	1-47475-304-0	01	1	1001-
137	BRACKET; HARNESS CLAMP (B)	8-97609-797-1	02	1	1001-
137	BRACKET; HARNESS CLAMP (C)	8-97614-728-1	01	1	1001-
137	BRACKET; HARNESS CLAMP (A)	8-97624-013-0	01	1	1001-

308 308 308 308 335 324 428 312 312 428

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
308	BRACKET; CLIP,ENG HARNESS (A)	8-97601-310-0	02	1	1001-
308	BRACKET; CLIP,ENG HARNESS (D)	8-98021-692-1	01	1	1001-
308	BRACKET; CLIP,ENG HARNESS (B)	8-98032-178-0	01	1	1001-
308	BRACKET; CLIP,ENG HARNESS (C)	8-98075-824-0	01	1	1001-
312	BRACKET; CLIP HARNESS (B) L=55	1-47475-304-0	01	1	1001-
312	BRACKET; CLIP HARNESS (A)	8-97609-110-1	01	1	1001-
324	BRACKET; CLIP	1-47479-430-0	02	1	1001-
335	BRACKET; CONNECTOR	8-97619-097-1	01	1	1001-
428	BRACKET (A)	1-47476-658-0	01	1	1001-
428	BRACKET (B)	8-97620-514-0	01	1	1001-

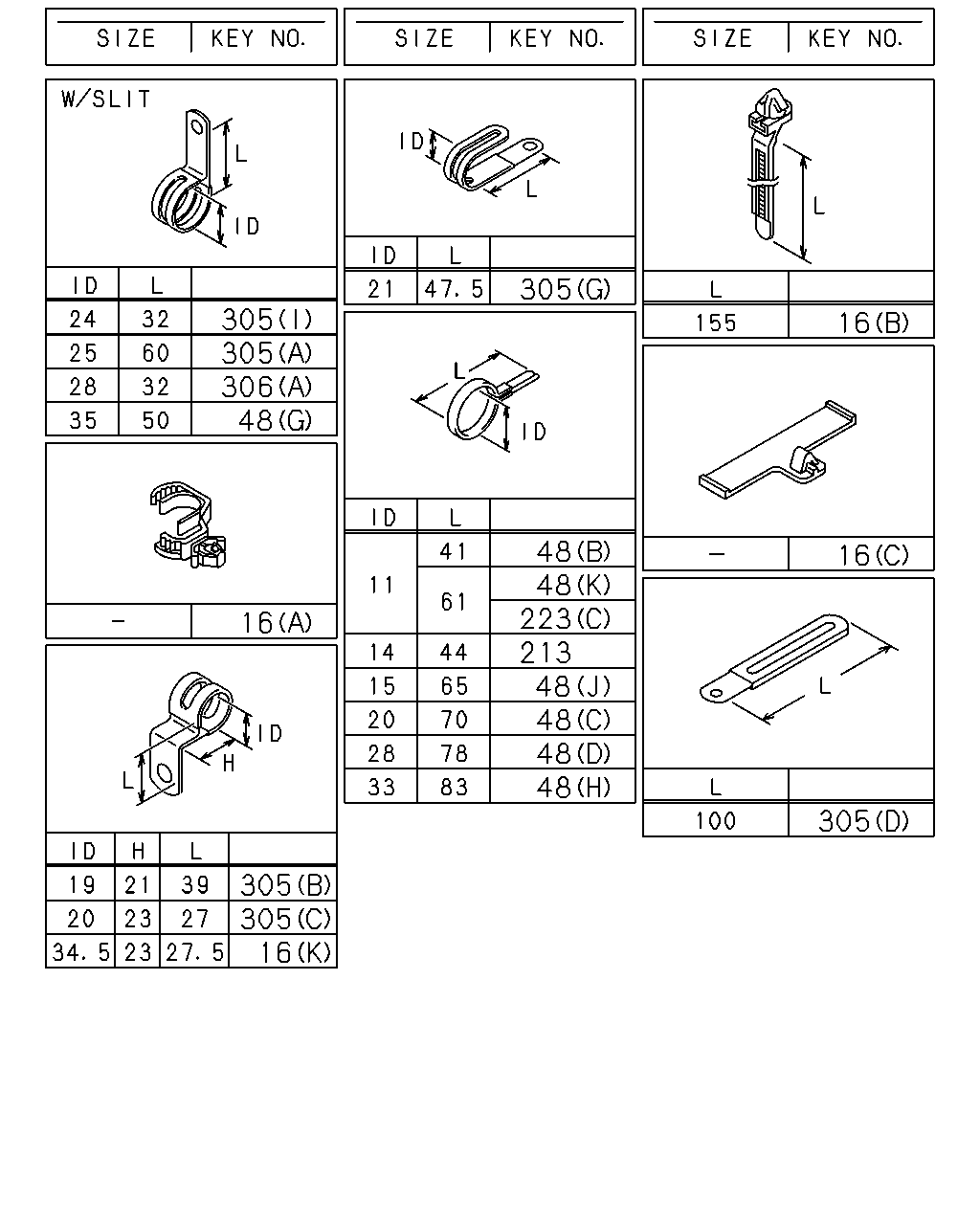

305 305 305 306 48 16 48 48 223 213 48 48 48 48 16 16 305 305 305 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (J) ID=11 L=16	0-95235-025-0	02	1	1001-
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	1001-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1001-
16	CLIP; HARNESS (I) ID=11X2 L=20	1-09700-871-0	03	1	1001-
16	CLIP; HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1001-
16	CLIP; HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1001-
16	CLIP; HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	02	1	1001-
16	CLIP; HARNESS (L) L=250 SOU	5-09707-030-1	03	1	1001-
16	CLIP; HARNESS (A) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (F) OD=9 H=6	1-09709-178-0	01	1	1001-1405
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	02	1	1001-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	24	1	1008-
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	1108-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1108-
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	03	1	1012-1102
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	03	1	1103-
48	CLIP; FRAME HARNESS (E) ID=16 L=20	0-95235-536-0	01	1	1001-
48	CLIP; FRAME HARNESS (L) ID=16 L=60	0-95235-596-0	01	1	1001-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1001-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	01	1	1001-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1001-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	04	1	1001-1011
48	CLIP; FRAME HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1012-1102
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	1001-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1001-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	03	1	1001-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	01	1	1001-
48	CLIP; FRAME HARNESS (F) L=140 SOU	5-09707-031-1	02	1	1001-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	26	1	1001-1007
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1001-
213	CLIP; END CROSS HARNESS ID=14 L=44	9-09917-427-0	03	1	1001-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1001-1011
223	CLIP; AIR TANK HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1012-1102
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-1005
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1001-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1001-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1001-
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	1001-
305	CLIP; ENG HARNESS (E) ID=24 L=27	1-09700-809-0	03	1	1001-
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1001-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1001-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1001-
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	1001-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1001-
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	1001-1310
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	02	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1001-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1001-

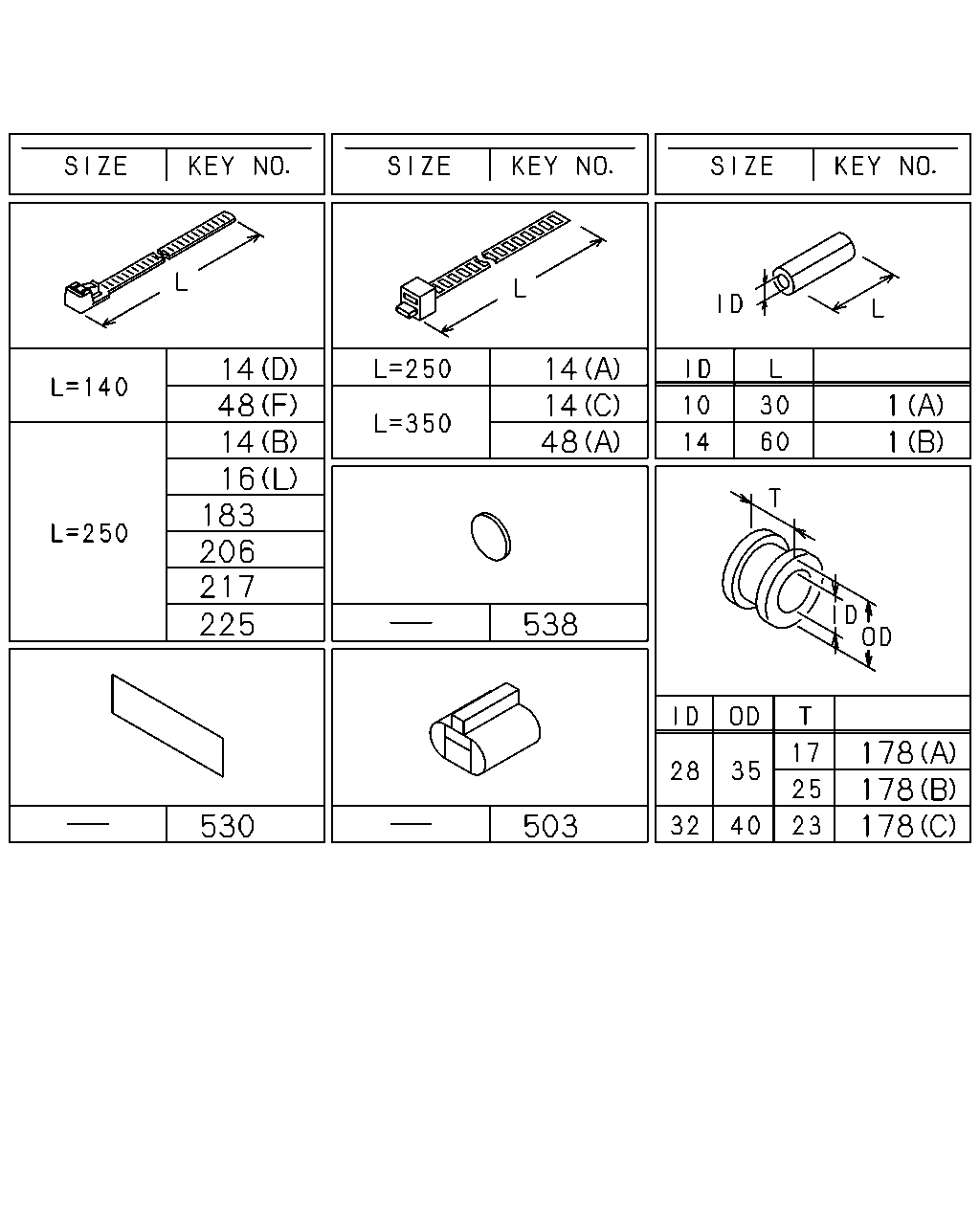

14 48 14 16 183 206 217 225 14 14 48 1 1 538 178 178 178 530 503

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SLEEVE; RUBBER (B) ID=14 OD=18 L=60	1-09337-030-0	01	1	1001-
1	SLEEVE; RUBBER (A) ID=10 OD=14 L=30	9-09956-682-0	03	1	1001-
14	CLIP; BAND,HARNESS (A) L=250	1-09707-126-0	02	1	1001-
14	CLIP; BAND,HARNESS (C) L=350	1-09707-183-0	01	1	1001-
14	CLIP; BAND,HARNESS (B) L=250 SOU	5-09707-030-1	08	1	1001-1205
14	CLIP; BAND,HARNESS (B) L=250	8-98216-430-0	08	1	1206-
14	CLIP; BAND,HARNESS (D) L=140 SOU	5-09707-031-1	01	1	1001-
16	CLIP; HARNESS (J) ID=11 L=16	0-95235-025-0	02	1	1001-
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	1001-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1001-
16	CLIP; HARNESS (I) ID=11X2 L=20	1-09700-871-0	03	1	1001-
16	CLIP; HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1001-
16	CLIP; HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1001-
16	CLIP; HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	02	1	1001-
16	CLIP; HARNESS (L) L=250 SOU	5-09707-030-1	03	1	1001-
16	CLIP; HARNESS (A) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (F) OD=9 H=6	1-09709-178-0	01	1	1001-1405
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	02	1	1001-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	24	1	1008-
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	1108-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1108-
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	03	1	1012-1102
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	03	1	1103-
48	CLIP; FRAME HARNESS (E) ID=16 L=20	0-95235-536-0	01	1	1001-
48	CLIP; FRAME HARNESS (L) ID=16 L=60	0-95235-596-0	01	1	1001-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1001-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	01	1	1001-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1001-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	04	1	1001-1011
48	CLIP; FRAME HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1012-1102
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	1001-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1001-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	03	1	1001-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	01	1	1001-
48	CLIP; FRAME HARNESS (F) L=140 SOU	5-09707-031-1	02	1	1001-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	26	1	1001-1007
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1001-
178	GROMMET; HARNESS (B) ID=28 OD=35 T=25	1-09332-011-1	02	1	1001-
178	GROMMET; HARNESS (C) ID=32 OD=40 T=23	1-09332-112-0	01	1	1001-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	01	1	1001-
178	GROMMET; HARNESS (A) ID=28 OD=35 T=17	9-09956-256-2	02	1	1001-
183	CLIP; CONNECTOR H.S.A SYSTEM<6EP> L=250 SOU	5-09707-030-1	01	1	1001-
206	CLIP; FUEL TANK HARNESS L=250 SOU	5-09707-030-1	02	1	1001-
217	CLIP; RR BODY HARNESS L=250 SOU	5-09707-030-1	02	1	1001-
225	CLIP; AIR TANK HARNESS L=250 SOU	5-09707-030-1	04	1	1001-1011
225	CLIP; AIR TANK HARNESS L=250 SOU	5-09707-030-1	04	1	1012-1102
225	CLIP; AIR TANK HARNESS VIN MODEL YEAR 2011<VZB> L=250 SOU	5-09707-030-1	04	1	1012-1102
225	CLIP; AIR TANK HARNESS L=250 SOU	5-09707-030-1	04	1	1103-
225	CLIP; AIR TANK HARNESS L=250 SOU	5-09707-030-1	04	1	1103-
503	CONNECTOR EXC. AIR CONDITIONER MANUAL CONTROL(C60) SOU	1-82690-668-0	01	1	1001-
503	CONNECTOR EXC. AIR DRYER<PS7> SOU	1-82690-666-0	01	1	1001-1405
530	SEAL; HARNESS 180X40	1-72498-019-1	14	1	1001-1305
530	SEAL; HARNESS 180X40	1-72498-019-1	16	1	1306-
530	SEAL; HARNESS 100X40 SOU	1-72498-022-1	06	1	1001-1305
530	SEAL; HARNESS EXC. H.S.A SYSTEM<6EP> 180X40	1-72498-019-1	01	1	1306-
538	SEAL; HOLE OD=25 BLACK SOU	1-76798-019-0	01	1	1001-

16 235 48 16 305 305 48 16 16 116 306 16 81 223 305 470 48 16 223 16 305

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	CLIP; HARNESS (J) ID=11 L=16	0-95235-025-0	02	1	1001-
16	CLIP; HARNESS (G) ID=16 L=28	0-95235-556-0	02	1	1001-
16	CLIP; HARNESS (E) ID=14 H=50 L=20	1-09700-843-0	02	1	1001-
16	CLIP; HARNESS (I) ID=11X2 L=20	1-09700-871-0	03	1	1001-
16	CLIP; HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1001-
16	CLIP; HARNESS (K) ID=34.5 H=23 L=27.5	1-09700-905-0	03	1	1001-
16	CLIP; HARNESS (H) ID=5-12 L=14.5	1-09987-221-0	02	1	1001-
16	CLIP; HARNESS (L) L=250 SOU	5-09707-030-1	03	1	1001-
16	CLIP; HARNESS (A) ID=10 & 16 SOU	8-94413-325-0	01	1	1001-
16	CLIP; HARNESS EXC. AIR DRYER<PS7> (F) OD=9 H=6	1-09709-178-0	01	1	1001-1405
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (B) L=155 SOU	8-97173-307-0	18	1	1001-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (D) L=40.6	8-97229-357-0	02	1	1001-
16	CLIP; HARNESS AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-
16	CLIP; HARNESS EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> (C)	8-98052-679-0	02	1	1001-
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	02	1	1001-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	24	1	1008-
48	CLIP; FRAME HARNESS (K) ID=11 L=61	1-09700-484-0	01	1	1108-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	01	1	1108-
48	CLIP; FRAME HARNESS VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	03	1	1012-1102
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	03	1	1103-
48	CLIP; FRAME HARNESS (E) ID=16 L=20	0-95235-536-0	01	1	1001-
48	CLIP; FRAME HARNESS (L) ID=16 L=60	0-95235-596-0	01	1	1001-
48	CLIP; FRAME HARNESS (B) ID=11 L=41	1-09700-403-0	01	1	1001-
48	CLIP; FRAME HARNESS (J) ID=15 L=65	1-09700-466-0	01	1	1001-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	01	1	1001-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	04	1	1001-1011
48	CLIP; FRAME HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=20 L=70	1-09700-485-0	04	1	1012-1102
48	CLIP; FRAME HARNESS (D) ID=28 L=78	1-09700-858-0	02	1	1001-
48	CLIP; FRAME HARNESS (G) ID=35 L=50	1-09701-214-0	01	1	1001-
48	CLIP; FRAME HARNESS (H) ID=33 L=83	1-09701-291-0	03	1	1001-
48	CLIP; FRAME HARNESS (A) L=350	1-09707-183-0	01	1	1001-
48	CLIP; FRAME HARNESS (F) L=140 SOU	5-09707-031-1	02	1	1001-
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	26	1	1001-1007
48	CLIP; FRAME HARNESS (C) ID=20 L=70	1-09700-485-0	02	1	1008-1201
48	CLIP; FRAME HARNESS (C) ID=15 L=65	1-09700-466-0	02	1	1202-
48	CLIP; FRAME HARNESS (I) OD=9 H=13.5	1-09709-180-0	01	1	1001-
81	CLIP; HARNESS H.S.A SYSTEM<6EP> OD=9 H=6	1-09709-178-0	01	1	1001-1010
81	CLIP; HARNESS OD=9 H=6	1-09709-178-0	01	1	1011-
116	CLIP; ROOF HARNESS LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE SOU	1-09987-246-2	04	1	1001-
116	CLIP; ROOF HARNESS EXC. LAMPS TWO ROOF MARKER<TEC> L=20 SET=10 PIECE SOU	1-09987-246-2	03	1	1001-
223	CLIP; AIR TANK HARNESS (C) ID=11 L=61	1-09700-484-0	01	1	1001-1011
223	CLIP; AIR TANK HARNESS EXC. VIN MODEL YEAR 2011<VZB> (C) ID=11 L=61	1-09700-484-0	01	1	1012-1102
223	CLIP; AIR TANK HARNESS (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1001-1005
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (A) ID=5-12 L=14.5	1-09987-221-0	01	1	1006-
223	CLIP; AIR TANK HARNESS AIR DRYER<PS7> (B) OD=9 H=6	1-09709-178-0	01	1	1001-
235	CLIP; HARNESS,SPD SENSOR,SSPS ID=11 L=16	0-95235-025-0	02	1	1001-
305	CLIP; ENG HARNESS (J) ID=16 L=28	0-95235-556-0	02	1	1001-
305	CLIP; ENG HARNESS (H) ID=16 L=40	0-95235-576-0	01	1	1001-
305	CLIP; ENG HARNESS (I) ID=24 L=32	1-09700-766-1	01	1	1001-
305	CLIP; ENG HARNESS (E) ID=24 L=27	1-09700-809-0	03	1	1001-
305	CLIP; ENG HARNESS (C) ID=20 H=23 L=27	1-09700-861-0	01	1	1001-
305	CLIP; ENG HARNESS (B) ID=19 L=39 H=21	1-09700-972-1	01	1	1001-
305	CLIP; ENG HARNESS (A) ID=25 L=60	1-09701-041-1	01	1	1001-
305	CLIP; ENG HARNESS (F) OD=9 H=6	1-09709-178-0	01	1	1001-
305	CLIP; ENG HARNESS (G) ID=21 L=47.5	8-94178-108-0	01	1	1001-
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	01	1	1001-1310
305	CLIP; ENG HARNESS (D) L=100	8-94443-021-1	02	1	1311-
306	CLIP; HARNESS,ELEC GOV (A) ID=28 L=32	1-09701-107-1	01	1	1001-
306	CLIP; HARNESS,ELEC GOV (B) ID=28X2 L=28	1-09701-302-0	02	1	1001-
470	CLIP; HARNESS,LICENSE LAMP OD=9 H=6	1-09709-178-0	01	1	1001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
