◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11722 - FSS AUST/NZ JNLT09 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-50 - EXHAUST PIPE AND SILENCER ▶
1-50 — EXHAUST PIPE AND SILENCER (#175809) — 162 parça

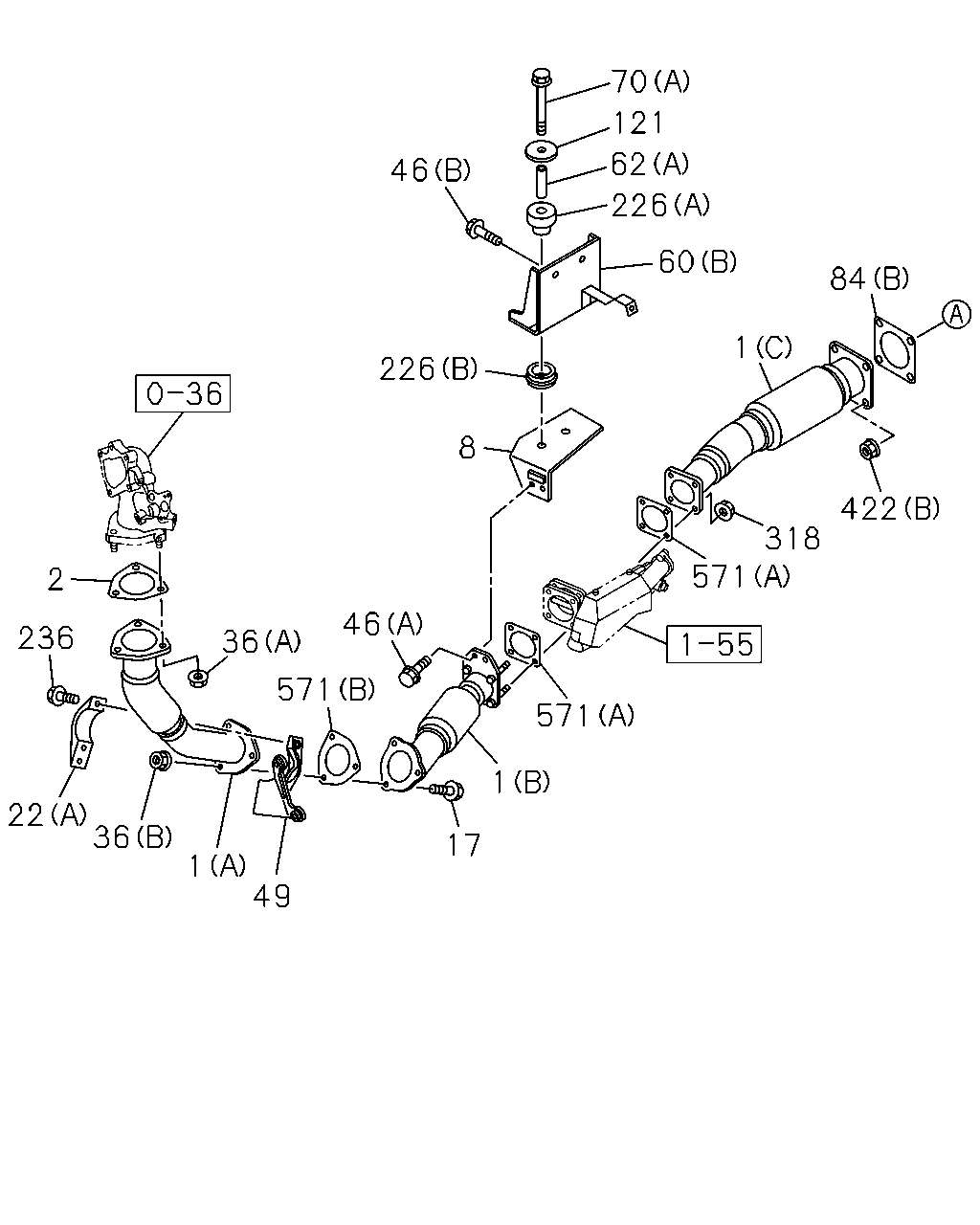

çizim 512646
2 236 22 36 49 1 36 571 17 46 571 1 571 226 8 318 422 1 84 60 226 62 121 70 46
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		8-97635-721-0 01 1 1601- ●
1 PIPE; EXH
(A) 		8-97639-030-0 01 1 1601- ● ●
1 PIPE; EXH
(B) 		8-97639-031-0 01 1 1601- ● ●
1 PIPE; EXH
(C) 		8-98322-403-0 01 1 1601- ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). ID=77.5 		8-98159-745-0 01 1 1601- ● ●
8 BRACKET; EXH PIPE 8-97640-577-0 01 1 1601- ● ●
17 BOLT; EXH PIPE
M10X35 FLANGE 		0-28051-035-0 03 1 1601- ● ●
22 CLAMP; EXH PIPE
(B) 		8-98261-505-0 02 1 1601- ● ●
22 CLAMP; EXH PIPE
POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-97639-505-0 01 1 1601- ● ●
22 CLAMP; EXH PIPE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-97639-073-0 01 1 1601- ● ●
36 NUT; EXH PIPE
(B) M10 FLANGE 		0-91180-210-0 03 1 1601- ● ●
36 NUT; EXH PIPE
(A) M10 FLANGE 		8-97096-192-1 03 1 1601- ● ●
46 BOLT; BRKT,EXH PIPE
(A) M8X30 FLANGE 		0-28650-830-0 02 1 1601- ● ●
46 BOLT; BRKT,EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 1601- ● ●
49 BRACKET; EXH PIPE TO TRANS
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97639-503-1 01 1 1601- ● ●
49 BRACKET; EXH PIPE TO TRANS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-97640-574-0 01 1 1601- ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-97647-476-0 02 1 1601- ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98322-402-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(C) 		8-97647-476-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98322-399-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98322-405-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98322-398-0 01 1 1601- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1601- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 04 1 1601- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1601- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1601- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1601- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 04 1 1601- ● ●
84 GASKET; EXH PIPE
(A) ID=85.8 		1-22116-043-0 01 1 1601- ● ●
84 GASKET; EXH PIPE
(B) ID=87 		8-94394-391-0 01 1 1601- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1601- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 04 1 1601- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1601- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 04 1 1601- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1601- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 04 1 1601- ● ●
236 BOLT; PIPE CLAMP TO BRKT
M10X30 FLANGE 		0-28051-030-0 03 1 1601- ● ●
318 NUT; EXH PIPE,FRT
M8 W/LK WASHER 		8-97581-234-0 04 1 1601- ● ●
422 NUT; PIPE
(A) M8 FLANGE 		0-91180-108-0 20 1 1601- ● ●
422 NUT; PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 1601- ● ●
571 GASKET
(A) ID=64 		8-97373-108-0 02 1 1601- ● ●
571 GASKET
(B) 		8-97614-617-0 01 1 1601- ● ●

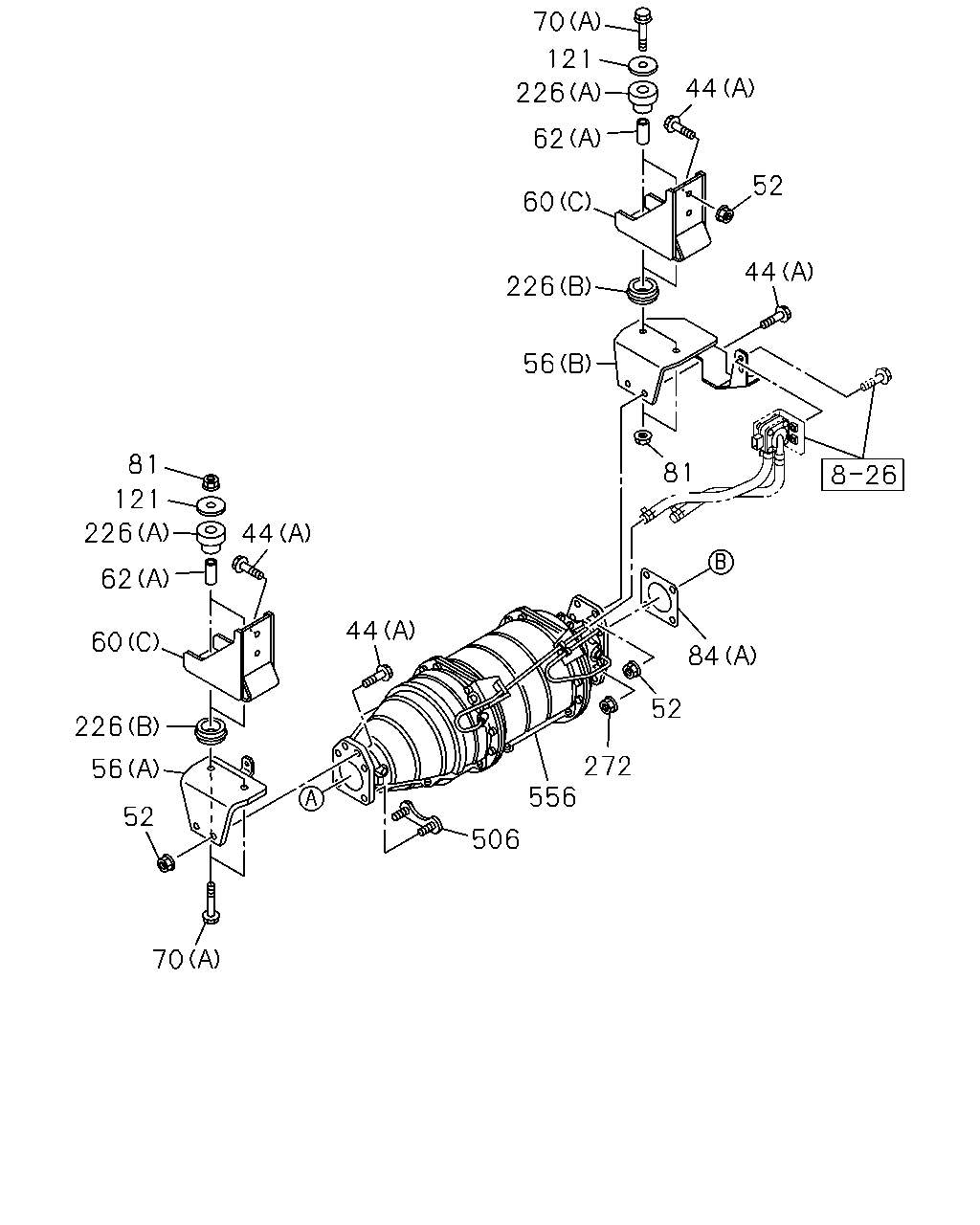

çizim 512652
70 56 226 60 62 226 121 44 52 44 81 81 121 226 62 60 226 56 52 70 44 44 506 272 556 52 84
BalonParca AdiParca NoAdetTipApplied Date A B
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1601- ●
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 06 1 1601- ● ●
44 BOLT; BRKT
(B) M10X40 FLANGE 		0-28651-040-0 02 1 1601- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 1601- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1601- ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97647-477-0 01 1 1601- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98322-400-0 01 1 1601- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98245-522-0 01 1 1601- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98322-401-0 01 1 1601- ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-98332-469-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(C) 		8-97647-476-0 02 1 1601- ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98322-402-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(C) 		8-97647-476-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98322-399-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98322-405-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98322-398-0 01 1 1601- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1601- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 04 1 1601- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1601- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1601- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1601- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 04 1 1601- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1601- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 05 1 1601- ● ●
84 GASKET; EXH PIPE
(A) ID=85.8 		1-22116-043-0 01 1 1601- ● ●
84 GASKET; EXH PIPE
(B) ID=87 		8-94394-391-0 01 1 1601- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1601- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 04 1 1601- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1601- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 04 1 1601- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1601- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 04 1 1601- ● ●
272 NUT; FLANGE
M10 FLANGE 		0-91180-210-0 04 1 1601- ● ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1601- ● ●
556 DPD ASM 8-97622-883-4 01 1 1601- ● ●

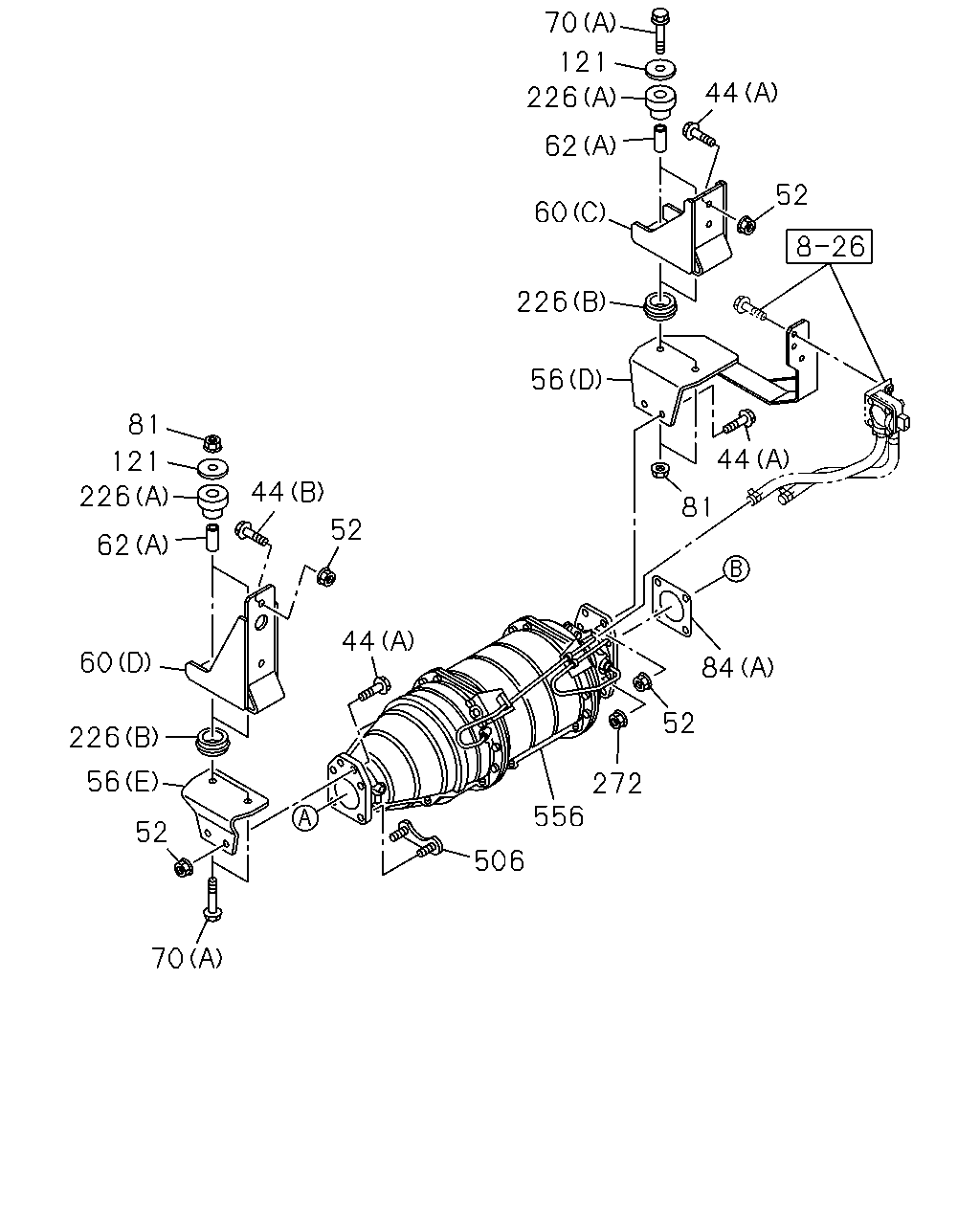

çizim 512656
81 121 226 62 60 226 56 52 70 44 44 52 506 272 556 52 84 81 44 56 226 60 62 226 121 70 44 52
BalonParca AdiParca NoAdetTipApplied Date A B
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 02 1 1601- ●
44 BOLT; BRKT
(A) M10X35 FLANGE 		0-28651-035-0 06 1 1601- ● ●
44 BOLT; BRKT
(B) M10X40 FLANGE 		0-28651-040-0 02 1 1601- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 1601- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1601- ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97647-477-0 01 1 1601- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98322-400-0 01 1 1601- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98245-522-0 01 1 1601- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98322-401-0 01 1 1601- ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-98332-469-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(C) 		8-97647-476-0 02 1 1601- ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98322-402-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(C) 		8-97647-476-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98322-399-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98322-405-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98322-398-0 01 1 1601- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1601- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 04 1 1601- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1601- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1601- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1601- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 04 1 1601- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1601- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 05 1 1601- ● ●
84 GASKET; EXH PIPE
(A) ID=85.8 		1-22116-043-0 01 1 1601- ● ●
84 GASKET; EXH PIPE
(B) ID=87 		8-94394-391-0 01 1 1601- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 02 1 1601- ● ●
121 WASHER; PL,BRKT
ID=11 OD=54 		1-09503-154-2 04 1 1601- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 02 1 1601- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 04 1 1601- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 02 1 1601- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 04 1 1601- ● ●
272 NUT; FLANGE
M10 FLANGE 		0-91180-210-0 04 1 1601- ● ●
506 BRACKET; STUD
M12X35 		1-22131-963-0 02 1 1601- ● ●
556 DPD ASM 8-97622-883-4 01 1 1601- ● ●

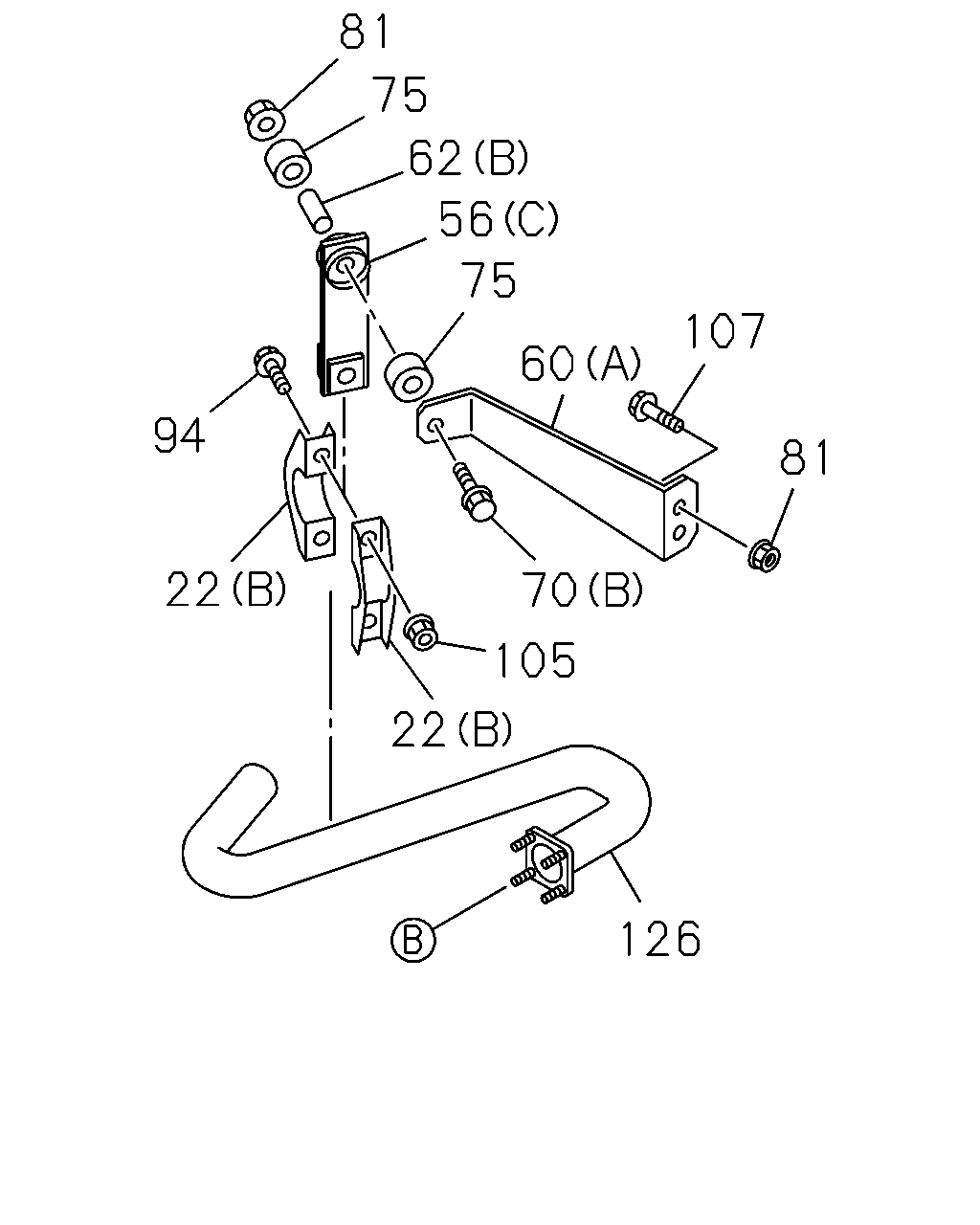

çizim 512663
81 107 60 70 105 22 22 94 126 81 62 75 56 75
BalonParca AdiParca NoAdetTipApplied Date A B
22 CLAMP; EXH PIPE
(B) 		8-98261-505-0 02 1 1601- ● ●
22 CLAMP; EXH PIPE
POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-97639-505-0 01 1 1601- ● ●
22 CLAMP; EXH PIPE
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-97639-073-0 01 1 1601- ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		8-97647-477-0 01 1 1601- ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98322-400-0 01 1 1601- ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98245-522-0 01 1 1601- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98322-401-0 01 1 1601- ●
56 BRACKET; CLAMP,EXH PIPE
(E) 		8-98332-469-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(C) 		8-97647-476-0 02 1 1601- ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98322-402-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(C) 		8-97647-476-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98322-399-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98322-405-0 01 1 1601- ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98322-398-0 01 1 1601- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 02 1 1601- ● ●
62 TUBE; DIST,BRKT
(A) L=39 		8-98060-852-0 04 1 1601- ● ●
62 TUBE; DIST,BRKT
(B) L=22 		9-22159-024-0 01 1 1601- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 1601- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 02 1 1601- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 04 1 1601- ● ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-193-0 02 1 1601- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1601- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 05 1 1601- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 1601- ● ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 1601- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 1601- ● ●
126 PIPE; EXH,RR 8-97647-386-0 01 1 1601- ● ●

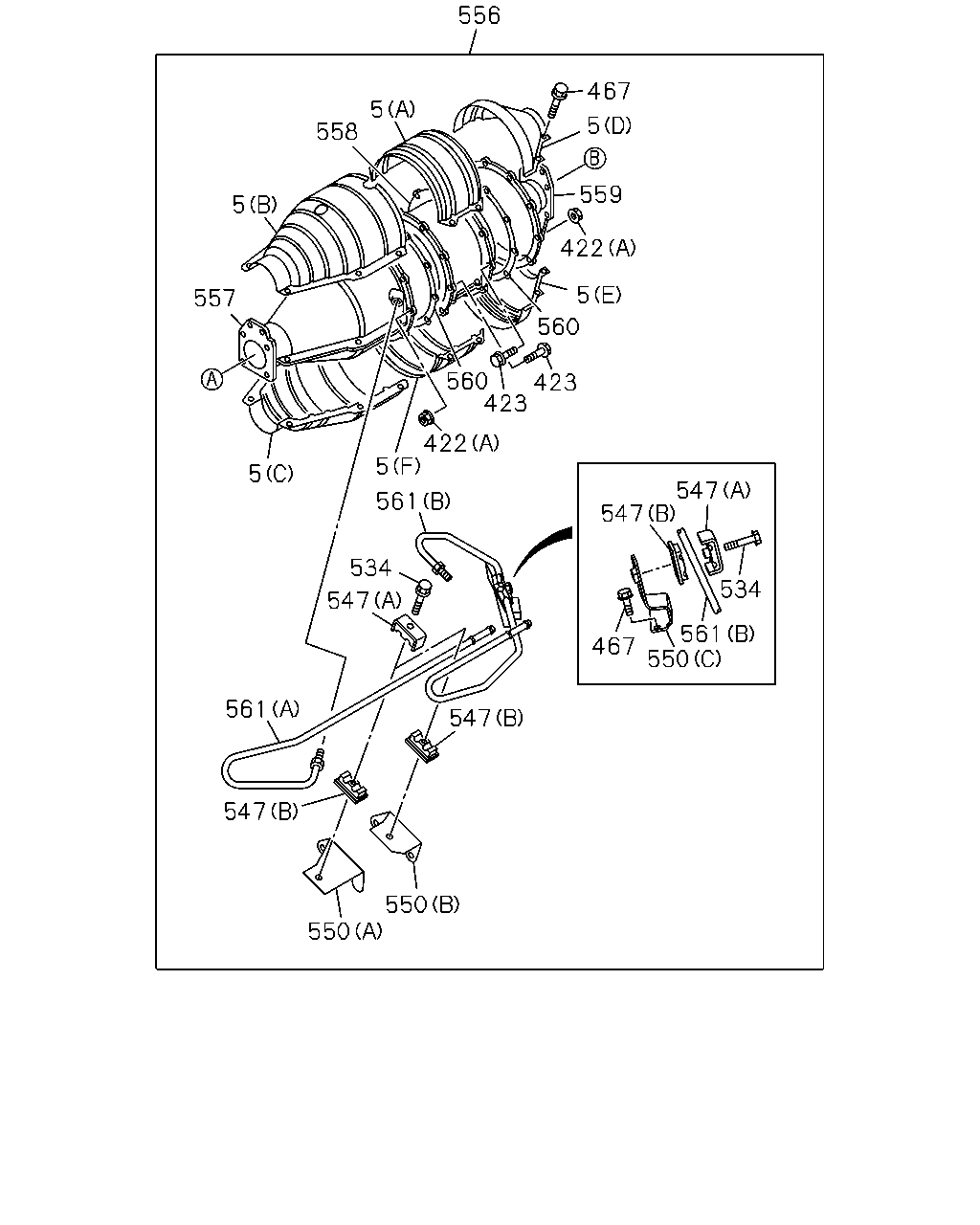

çizim 512685
467 556 5 558 5 557 5 5 561 422 560 423 423 560 5 422 559 534 547 561 547 550 550 547 467 547 550 561 547 534 5
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 1601- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 1601- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 1601- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 1601- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 1601- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 1601- ● ●
422 NUT; PIPE
(A) M8 FLANGE 		0-91180-108-0 20 1 1601- ● ●
422 NUT; PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 1601- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 1601- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 1601- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 1601- ● ●
547 CLIP; PIPE
(A) ID=7 & 7 L=22 		8-97381-635-0 03 1 1601- ● ●
547 CLIP; PIPE
(B) ID=7 & 7 L=22 		8-97381-636-0 03 1 1601- ● ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 1601- ● ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 1601- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 1601- ● ●
556 DPD ASM 8-97622-883-4 01 1 1601- ● ●
557 CATALYST ASM 8-97608-055-8 01 1 1601- ● ●
558 FILTER ASM 8-97608-057-3 01 1 1601- ● ●
559 COVER; RR 8-97622-887-0 01 1 1601- ● ●
560 GASKET; DPD 8-97611-080-0 02 1 1601- ● ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1601- ● ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1601- ● ●
