1-41 — FUEL PIPING; CHASSIS (#175807) — 155 parça

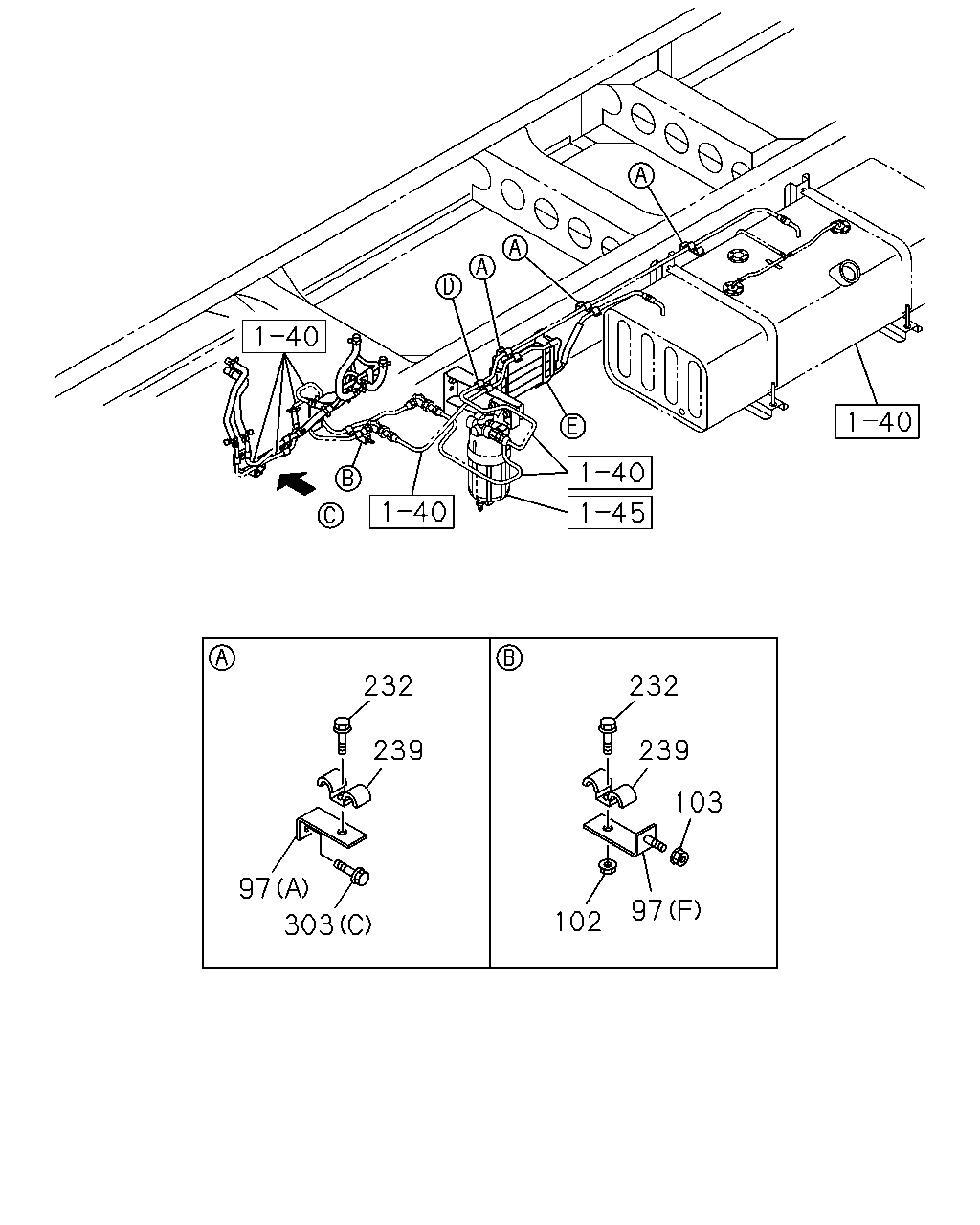

çizim 512019
232 239 97 303 232 239 97 103 102
BalonParca AdiParca NoAdetTipApplied Date A B
97 BRACKET; CLIP
(G) 		8-97635-756-0 01 1 1601- ●
97 BRACKET; CLIP
(F) 		8-98111-710-1 01 1 1601- ●
97 BRACKET; CLIP
(E) 		8-98336-616-0 01 1 1601- ●
97 BRACKET; CLIP
(A) 		8-98111-711-0 03 1 1601- ● ●
97 BRACKET; CLIP
(B) 		8-98181-613-0 01 1 1601- ● ●
97 BRACKET; CLIP
(C) 		8-98316-849-0 01 1 1601- ●
97 BRACKET; CLIP
(D) L=68 		1-47475-525-0 01 1 1601- ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 01 1 1601- ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 02 1 1601- ● ●
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1601- ●
232 BOLT; CLIP,PIPE
M8X16 FLANGE 		0-28050-816-0 01 1 1601- ●
232 BOLT; CLIP,PIPE
M8X16 FLANGE 		0-28050-816-0 03 1 1601- ● ●
239 CLIP; FUEL PIPE
ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 1601- ● ●
239 CLIP; FUEL PIPE
ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 1601- ●
239 CLIP; FUEL PIPE
ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1601- ● ●
303 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 02 1 1601- ●
303 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1601- ●
303 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 03 1 1601- ● ●
303 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1601- ● ●
303 BOLT; BRKT
(D) M10X35 FLANGE 		0-28651-035-0 02 1 1601- ● ●

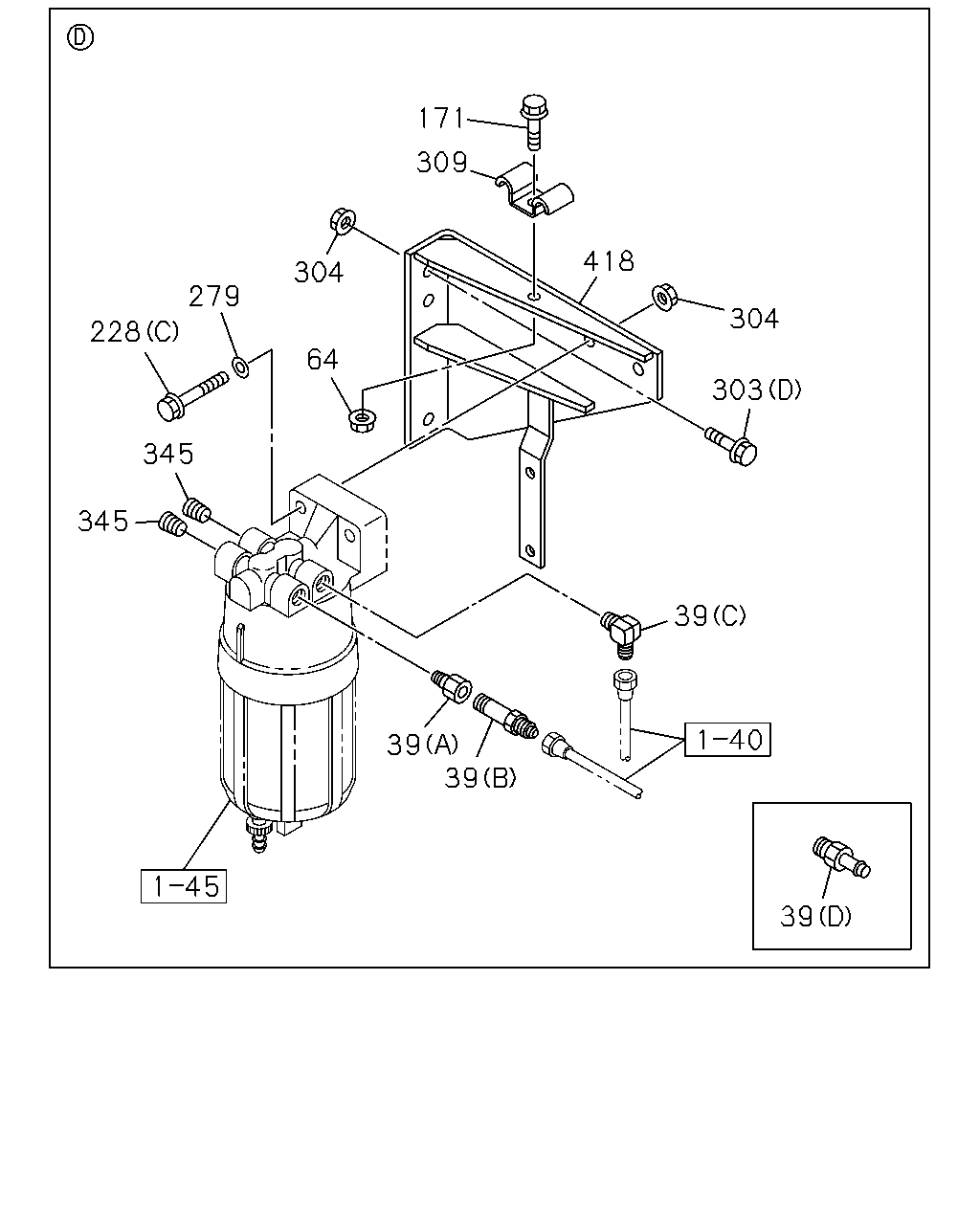

çizim 512555
228 279 345 345 64 304 171 309 418 304 303 39 39 39 39
BalonParca AdiParca NoAdetTipApplied Date A B
39 PIPE; FUEL
(B) M16 & PT3/8 STRAIGHT 		1-09650-233-1 01 1 1601- ● ●
39 PIPE; FUEL
(C) M16 & NPTF3/8 ELBOW 		1-09650-447-0 01 1 1601- ● ●
39 PIPE; FUEL
(A) NPTF3/8 & RC3/8 		1-09660-548-0 01 1 1601- ● ●
39 PIPE; FUEL
(D) NPTF3/8-18 OD=10 		8-98122-953-0 02 1 1601- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
171 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 1601- ● ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X60 FLANGE 		0-28051-060-0 02 1 1601- ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M10X20 FLANGE 		0-28651-020-0 02 1 1601- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X25 FLANGE 		0-28050-825-0 02 1 1601- ●
279 WASHER
ID=10.5 OD=26 		0-91614-710-0 02 1 1601- ● ●
303 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 02 1 1601- ●
303 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1601- ●
303 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 03 1 1601- ● ●
303 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1601- ● ●
303 BOLT; BRKT
(D) M10X35 FLANGE 		0-28651-035-0 02 1 1601- ● ●
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 1601- ●
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1601- ● ●
304 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 1601- ●
309 CLIP; PIPE
ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 1601- ● ●
345 PLUG
NPTF3/8-18 		8-97329-623-0 02 1 1601- ● ●
418 BRACKET; PRE FUEL FILTER 8-98136-381-0 01 1 1601- ● ●

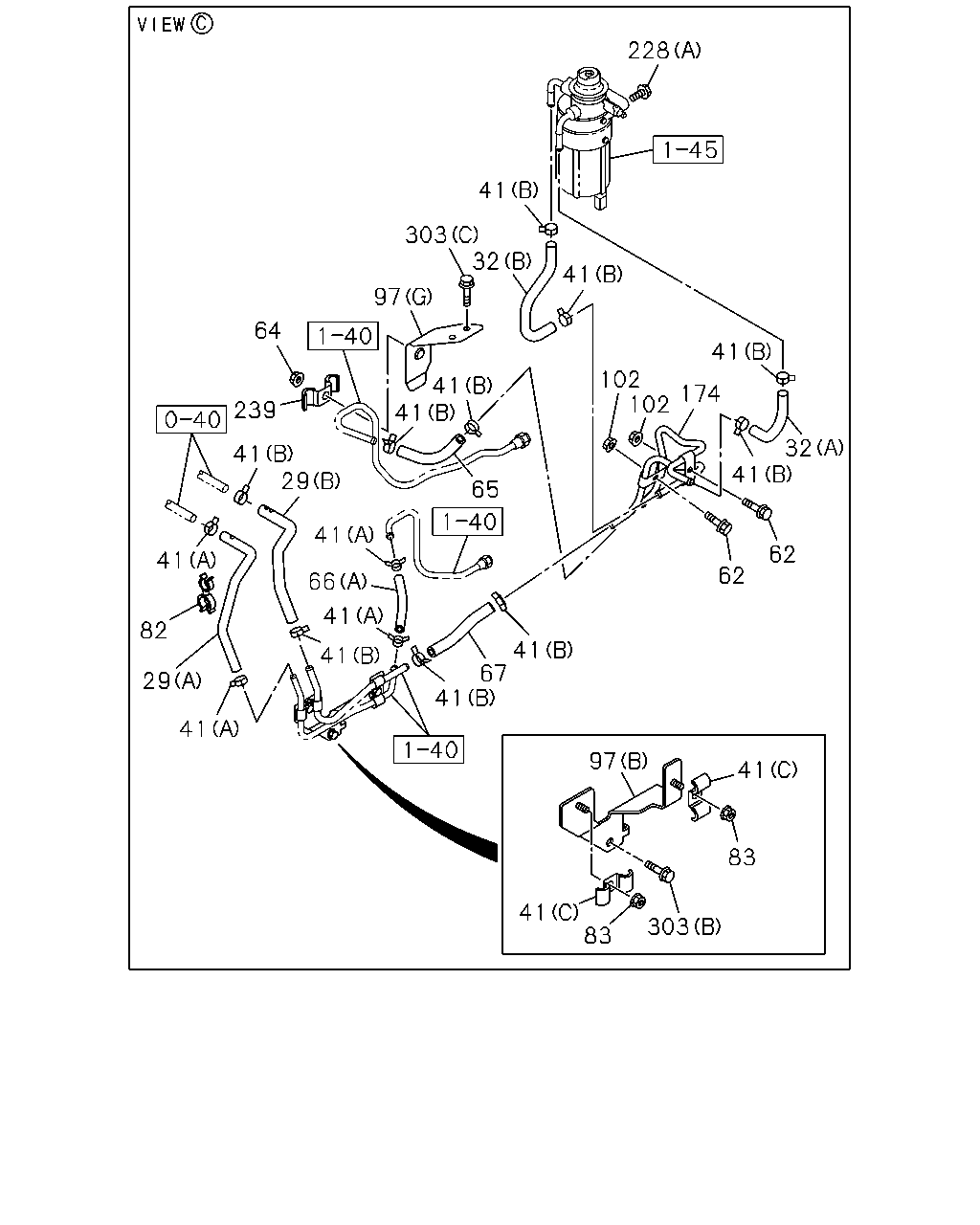

çizim 513197
228 41 303 32 41 97 41 41 64 239 41 29 41 82 29 41 41 66 41 41 65 41 67 41 102 102 174 41 32 41 62 62 97 41 83 41 83 303
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(C) L=150 SERVICED BY L=3000 		0-01558-300-0 01 1 1601- ● ●
29 HOSE; FUEL
(D) L=200 SERVICED BY L=3000 		0-01558-300-0 01 1 1601- ● ●
29 HOSE; FUEL
(A) ID=7.5 		8-98135-286-1 01 1 1601- ● ●
29 HOSE; FUEL
(B) 		8-98316-850-0 01 1 1601- ● ●
32 PIPE; DELIVERY,FUEL TANK
(C) L=320 SERVICED BY L=3000 		0-01859-300-0 01 1 1601- ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=140 SERVICED BY L=3000 		0-01859-300-0 01 1 1601- ●
32 PIPE; DELIVERY,FUEL TANK
(B) 		8-98204-102-0 01 1 1601- ●
32 PIPE; DELIVERY,FUEL TANK
(D) 		8-98316-851-0 01 1 1601- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1601- ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1601- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=16 		8-94238-568-0 04 1 1601- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=16 		8-94238-568-0 04 1 1601- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1601- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1601- ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=16 		8-94238-568-0 06 1 1601- ●
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1601- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
65 HOSE; FUEL,DELIVERY PIPE
L=120 SERVICED BY L=3000 		0-01859-300-0 01 1 1601- ●
66 HOSE; FUEL,RETURN PIPE
(A) L=130 SERVICED BY L=3000 		0-01558-300-0 01 1 1601- ●
66 HOSE; FUEL,RETURN PIPE
(B) L=240 SERVICED BY L=3000 		0-01558-300-0 01 1 1601- ●
66 HOSE; FUEL,RETURN PIPE
(C) 		8-98336-640-0 01 1 1601- ●
67 HOSE; FUEL,DELIVERY
L=120 SERVICED BY L=3000 		0-01859-300-0 01 1 1601- ●
67 HOSE; FUEL,DELIVERY
L=200 SERVICED BY L=3000 		0-01859-300-0 01 1 1601- ●
82 CLIP; FUEL HOSE
ID=13 & 16.5 		8-94169-028-0 01 1 1601- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 1601- ● ●
97 BRACKET; CLIP
(G) 		8-97635-756-0 01 1 1601- ●
97 BRACKET; CLIP
(F) 		8-98111-710-1 01 1 1601- ●
97 BRACKET; CLIP
(E) 		8-98336-616-0 01 1 1601- ●
97 BRACKET; CLIP
(A) 		8-98111-711-0 03 1 1601- ● ●
97 BRACKET; CLIP
(B) 		8-98181-613-0 01 1 1601- ● ●
97 BRACKET; CLIP
(C) 		8-98316-849-0 01 1 1601- ●
97 BRACKET; CLIP
(D) L=68 		1-47475-525-0 01 1 1601- ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 01 1 1601- ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 02 1 1601- ● ●
174 PIPE; FUEL,FEED,FRT 8-98336-539-0 01 1 1601- ●
174 PIPE; FUEL,FEED,FRT 8-98336-615-0 01 1 1601- ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X60 FLANGE 		0-28051-060-0 02 1 1601- ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M10X20 FLANGE 		0-28651-020-0 02 1 1601- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X25 FLANGE 		0-28050-825-0 02 1 1601- ●
239 CLIP; FUEL PIPE
ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 1601- ● ●
239 CLIP; FUEL PIPE
ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 01 1 1601- ●
239 CLIP; FUEL PIPE
ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 02 1 1601- ● ●
303 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 02 1 1601- ●
303 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1601- ●
303 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 03 1 1601- ● ●
303 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1601- ● ●
303 BOLT; BRKT
(D) M10X35 FLANGE 		0-28651-035-0 02 1 1601- ● ●

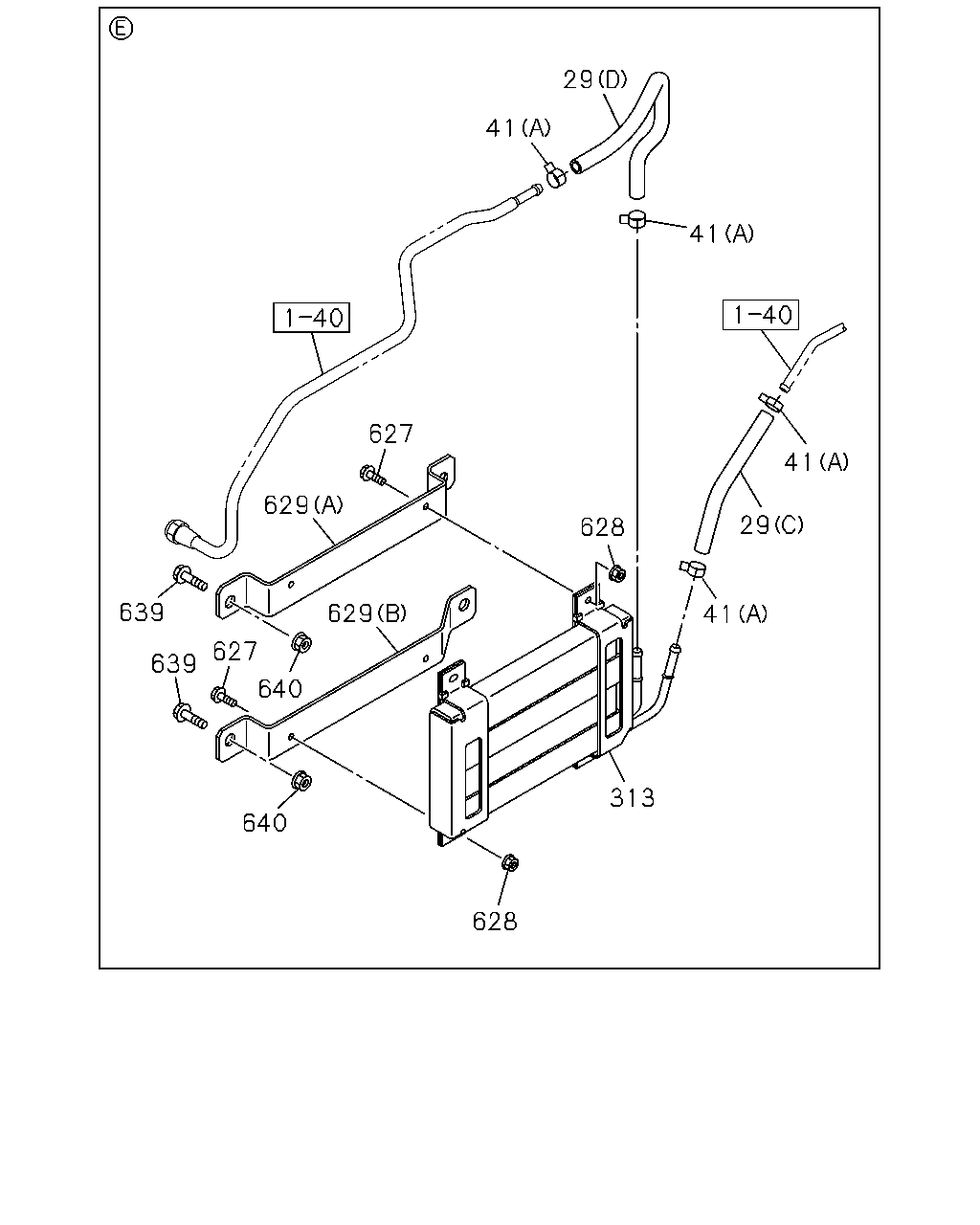

çizim 513395
41 29 41 41 29 41 628 313 628 640 640 629 627 639 639 629 627
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(C) L=150 SERVICED BY L=3000 		0-01558-300-0 01 1 1601- ● ●
29 HOSE; FUEL
(D) L=200 SERVICED BY L=3000 		0-01558-300-0 01 1 1601- ● ●
29 HOSE; FUEL
(A) ID=7.5 		8-98135-286-1 01 1 1601- ● ●
29 HOSE; FUEL
(B) 		8-98316-850-0 01 1 1601- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1601- ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1601- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=16 		8-94238-568-0 04 1 1601- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=16 		8-94238-568-0 04 1 1601- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1601- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1601- ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=16 		8-94238-568-0 06 1 1601- ●
313 COOLER ASM; FUEL 8-98227-679-1 01 1 1601- ● ●
627 BOLT; FUEL CLR
M6X25 FLANGE 		0-28650-625-0 04 1 1601- ● ●
628 NUT; FUEL CLR
M6 FLANGE 		0-91180-106-0 04 1 1601- ● ●
629 BRACKET; FUEL CLR
(A) 		8-98306-517-0 01 1 1601- ● ●
629 BRACKET; FUEL CLR
(B) 		8-98312-587-0 01 1 1601- ● ●
639 BOLT; BRKT,FUEL CLR
M10X35 FLANGE 		0-28651-035-0 04 1 1601- ● ●
640 NUT; BRKT,FUEL CLR
M10 FLANGE 		0-91180-210-0 02 1 1601- ● ●

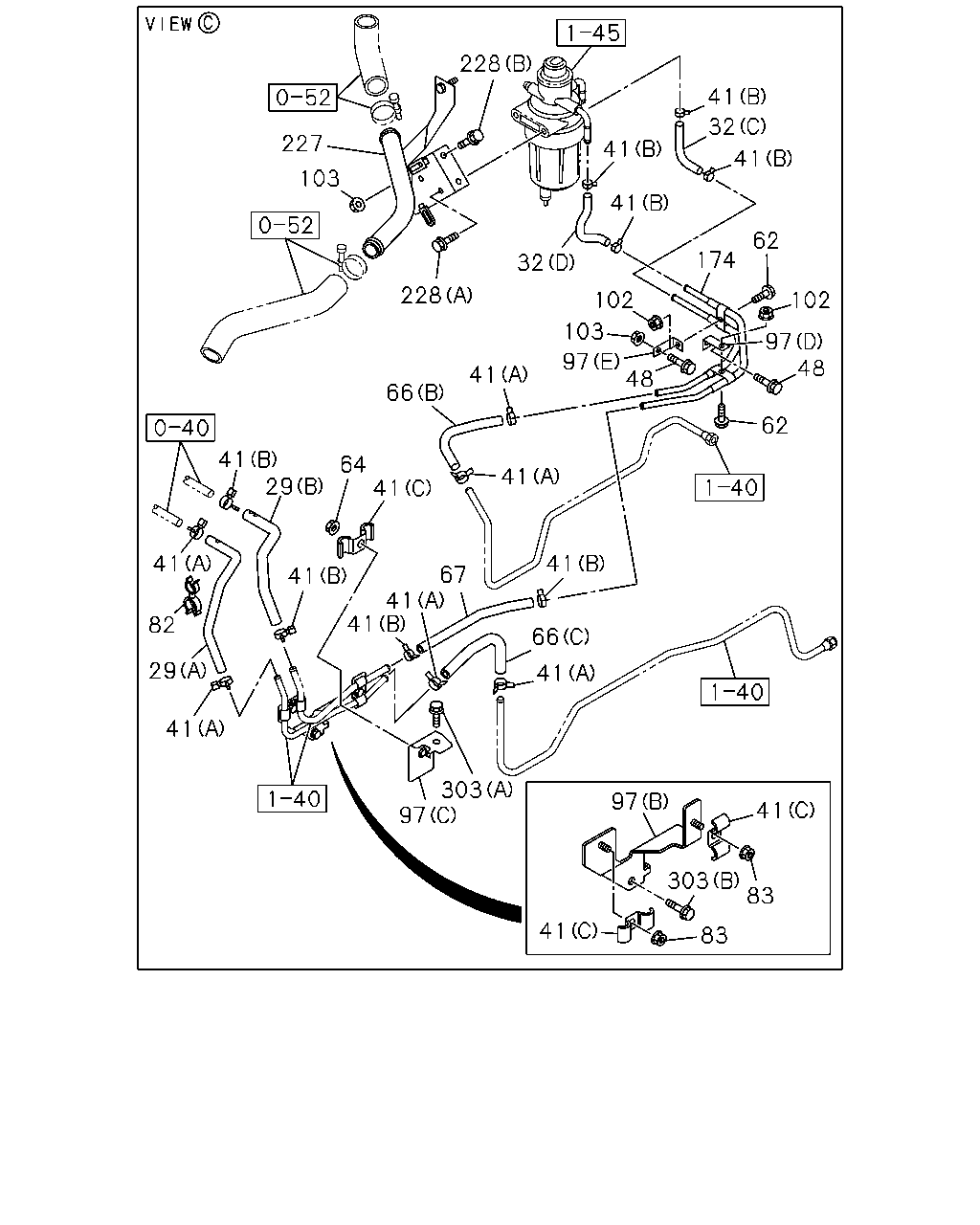

çizim 513807
228 227 103 228 32 41 41 41 32 41 62 174 102 103 97 41 66 48 102 97 48 62 41 41 29 64 41 67 41 41 82 29 41 41 41 303 97 66 41 41 97 41 303 83 41 83
BalonParca AdiParca NoAdetTipApplied Date A B
29 HOSE; FUEL
(C) L=150 SERVICED BY L=3000 		0-01558-300-0 01 1 1601- ● ●
29 HOSE; FUEL
(D) L=200 SERVICED BY L=3000 		0-01558-300-0 01 1 1601- ● ●
29 HOSE; FUEL
(A) ID=7.5 		8-98135-286-1 01 1 1601- ● ●
29 HOSE; FUEL
(B) 		8-98316-850-0 01 1 1601- ● ●
32 PIPE; DELIVERY,FUEL TANK
(C) L=320 SERVICED BY L=3000 		0-01859-300-0 01 1 1601- ●
32 PIPE; DELIVERY,FUEL TANK
(A) L=140 SERVICED BY L=3000 		0-01859-300-0 01 1 1601- ●
32 PIPE; DELIVERY,FUEL TANK
(B) 		8-98204-102-0 01 1 1601- ●
32 PIPE; DELIVERY,FUEL TANK
(D) 		8-98316-851-0 01 1 1601- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 06 1 1601- ●
41 CLIP; FUEL PIPE,FUEL TANK
(C) ID=11 & 9 L=17.5 & 17.5 		1-09700-747-0 03 1 1601- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=16 		8-94238-568-0 04 1 1601- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=16 		8-94238-568-0 04 1 1601- ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1601- ● ●
41 CLIP; FUEL PIPE,FUEL TANK
(A) ID=13 		8-94238-571-0 04 1 1601- ●
41 CLIP; FUEL PIPE,FUEL TANK
(B) ID=16 		8-94238-568-0 06 1 1601- ●
48 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1601- ●
62 BOLT; CLIP FIX
M8X20 FLANGE 		0-28650-820-0 01 1 1601- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
64 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 1601- ● ●
66 HOSE; FUEL,RETURN PIPE
(A) L=130 SERVICED BY L=3000 		0-01558-300-0 01 1 1601- ●
66 HOSE; FUEL,RETURN PIPE
(B) L=240 SERVICED BY L=3000 		0-01558-300-0 01 1 1601- ●
66 HOSE; FUEL,RETURN PIPE
(C) 		8-98336-640-0 01 1 1601- ●
67 HOSE; FUEL,DELIVERY
L=120 SERVICED BY L=3000 		0-01859-300-0 01 1 1601- ●
67 HOSE; FUEL,DELIVERY
L=200 SERVICED BY L=3000 		0-01859-300-0 01 1 1601- ●
82 CLIP; FUEL HOSE
ID=13 & 16.5 		8-94169-028-0 01 1 1601- ● ●
83 NUT; CLIP,FUEL TANK
M8 FLANGE 		0-91180-108-0 02 1 1601- ● ●
97 BRACKET; CLIP
(G) 		8-97635-756-0 01 1 1601- ●
97 BRACKET; CLIP
(F) 		8-98111-710-1 01 1 1601- ●
97 BRACKET; CLIP
(E) 		8-98336-616-0 01 1 1601- ●
97 BRACKET; CLIP
(A) 		8-98111-711-0 03 1 1601- ● ●
97 BRACKET; CLIP
(B) 		8-98181-613-0 01 1 1601- ● ●
97 BRACKET; CLIP
(C) 		8-98316-849-0 01 1 1601- ●
97 BRACKET; CLIP
(D) L=68 		1-47475-525-0 01 1 1601- ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 01 1 1601- ●
102 NUT; CLIP,FUEL PIPE
M8 FLANGE 		0-91180-108-0 02 1 1601- ● ●
103 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1601- ●
174 PIPE; FUEL,FEED,FRT 8-98336-539-0 01 1 1601- ●
174 PIPE; FUEL,FEED,FRT 8-98336-615-0 01 1 1601- ●
227 BRACKET; FUEL SEDIMENTER 8-98316-276-0 01 1 1601- ●
228 BOLT; BRKT,SEDIMENTER
(C) M10X60 FLANGE 		0-28051-060-0 02 1 1601- ● ●
228 BOLT; BRKT,SEDIMENTER
(A) M10X20 FLANGE 		0-28651-020-0 02 1 1601- ● ●
228 BOLT; BRKT,SEDIMENTER
(B) M8X25 FLANGE 		0-28050-825-0 02 1 1601- ●
303 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 02 1 1601- ●
303 BOLT; BRKT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 1601- ●
303 BOLT; BRKT
(C) M8X25 FLANGE 		0-28650-825-0 03 1 1601- ● ●
303 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 1601- ● ●
303 BOLT; BRKT
(D) M10X35 FLANGE 		0-28651-035-0 02 1 1601- ● ●
