1-40 — FUEL TANK (#175806) — 69 parça

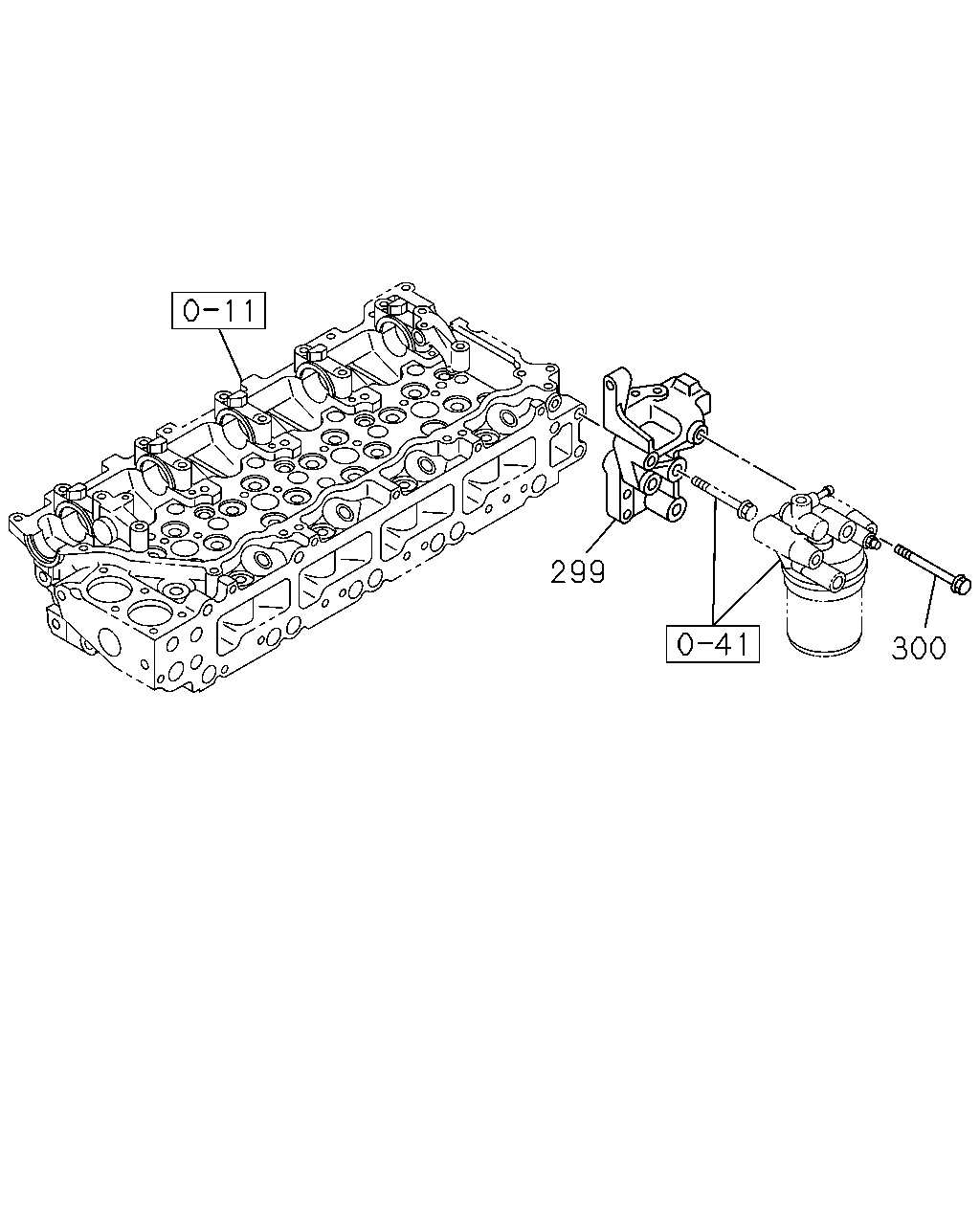

299 300

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
	299	BRACKET; FUEL FILTER	8-98092-459-3	01	1	1601-	●	●
	300	BOLT; BRKT TO BODY M10X100 FLANGE	0-28151-000-0	02	1	1601-	●	●

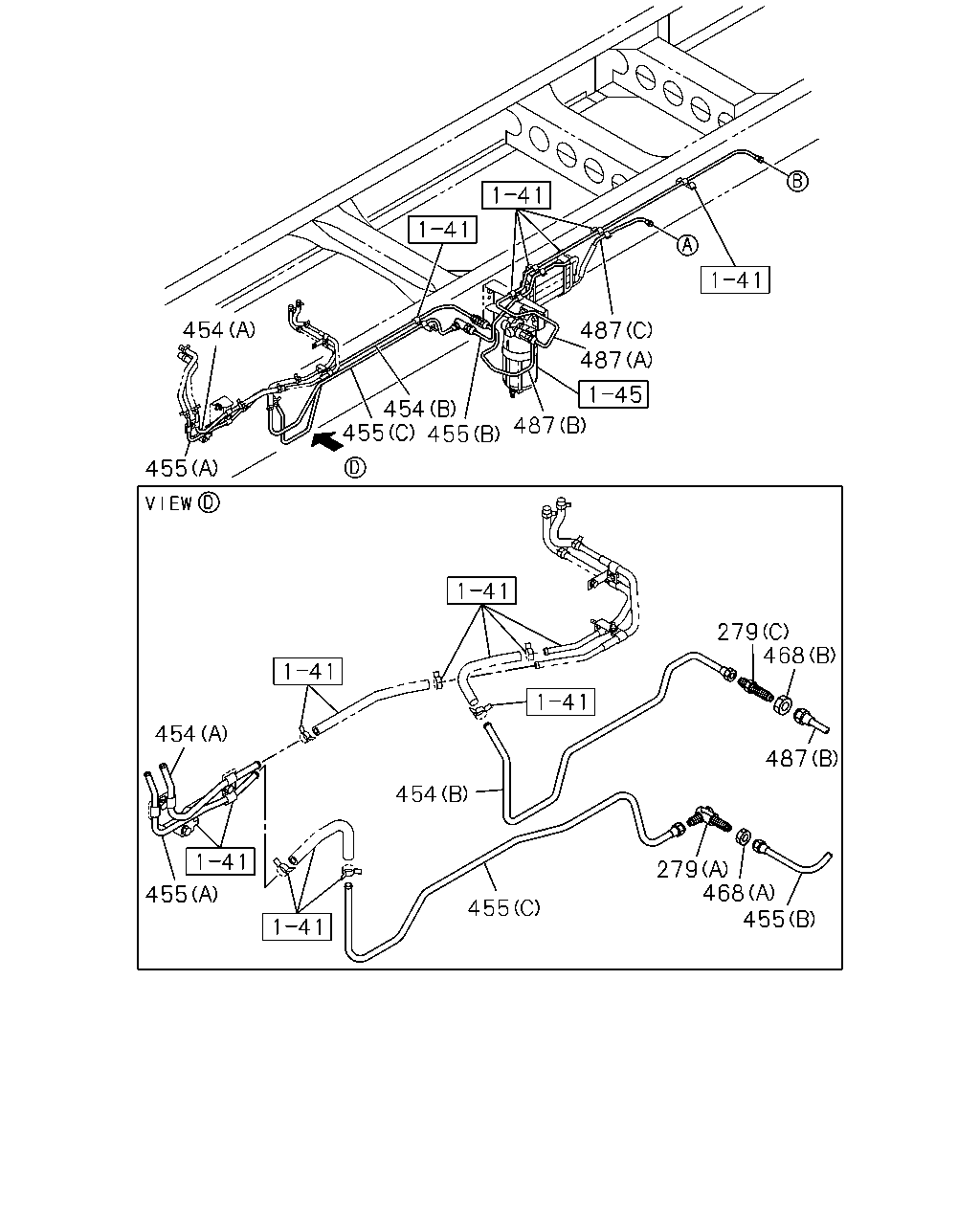

455 454 455 454 279 468 455 487 468 279 455 455 455 487 487 487 454 454

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
279	UNION; FUEL PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1601-	●
279	UNION; FUEL PIPE (A) M14 ELBOW	0-92125-208-0	01	1	1601-	●	●
279	UNION; FUEL PIPE (C) M16 L=74	0-92123-310-0	01	1	1601-		●
454	PIPE; FUEL,DELIVERY (B) L=569	8-98336-532-0	01	1	1601-	●
454	PIPE; FUEL,DELIVERY (A) L=282	8-98336-533-0	01	1	1601-	●
454	PIPE; FUEL,DELIVERY (A) L=288	8-98189-841-0	01	1	1601-		●
454	PIPE; FUEL,DELIVERY (B) L=764	8-98316-835-0	01	1	1601-		●
455	PIPE; FUEL,RETURN (A) L=352	8-98336-534-0	01	1	1601-	●
455	PIPE; FUEL,RETURN (B) L=684	8-98336-536-0	01	1	1601-	●
455	PIPE; FUEL,RETURN (C) L=320	8-98336-540-0	01	1	1601-	●
455	PIPE; FUEL,RETURN (A) L=350	8-97635-753-0	01	1	1601-		●
455	PIPE; FUEL,RETURN (C) L=651	8-98316-836-0	01	1	1601-		●
455	PIPE; FUEL,RETURN (B) L=502	8-98316-837-0	01	1	1601-		●
468	NUT (A) M14	0-91111-514-0	01	1	1601-	●	●
468	NUT (B) M16	0-91111-516-0	01	1	1601-	●	●
487	PIPE; FUEL HOSE (C) L=324	8-98336-535-0	01	1	1601-	●
487	PIPE; FUEL HOSE (A) L=1966	8-98336-537-0	01	1	1601-	●
487	PIPE; FUEL HOSE (B) L=569	8-98336-538-0	01	1	1601-	●
487	PIPE; FUEL HOSE (B) L=495	8-98316-839-0	01	1	1601-		●
487	PIPE; FUEL HOSE (A) L=1956	8-98316-840-0	01	1	1601-		●
487	PIPE; FUEL HOSE (C) L=314	8-98316-843-0	01	1	1601-		●

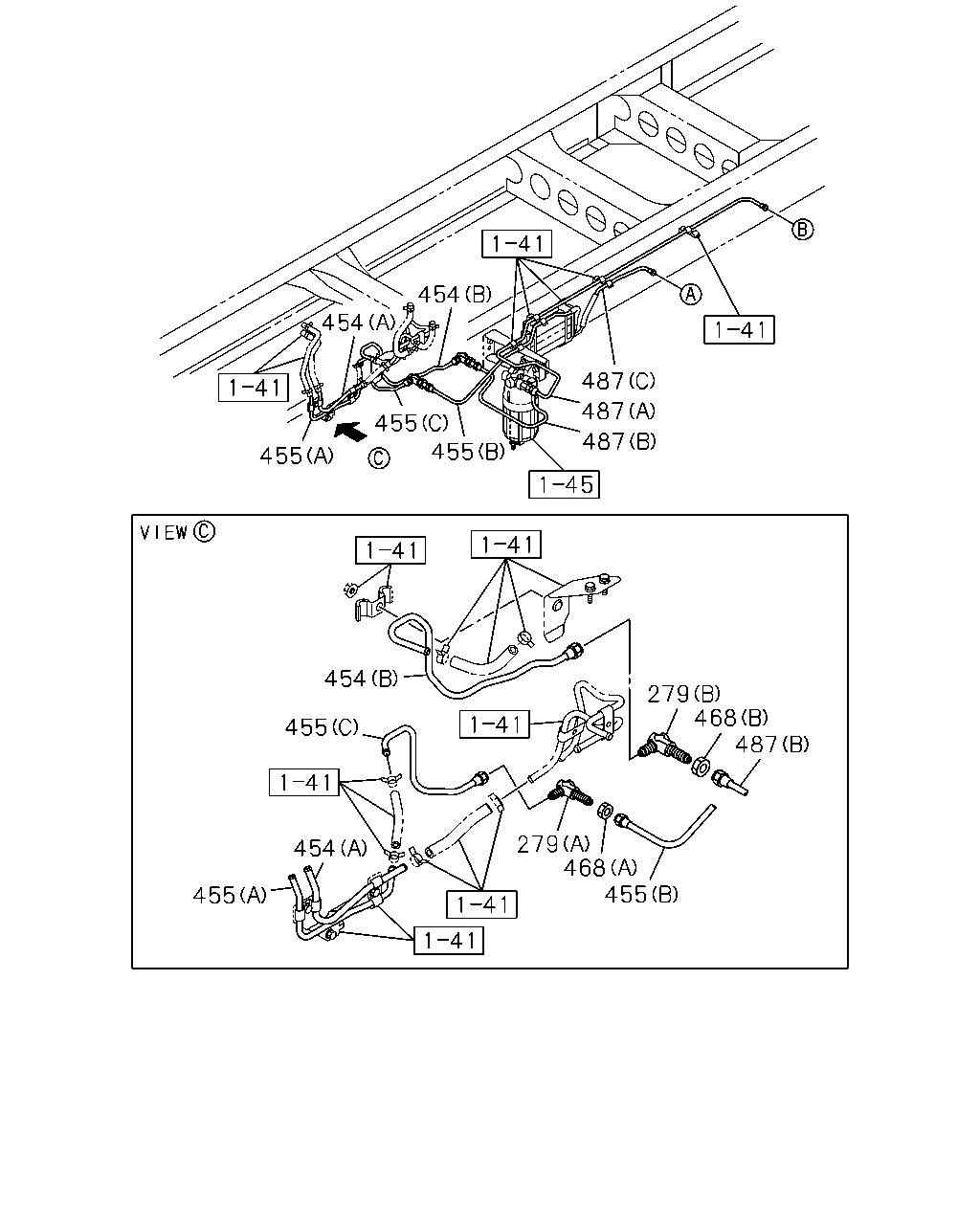

454 454 455 455 455 487 487 487 454 454 455 455 279 468 455 487 468 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
279	UNION; FUEL PIPE (B) M16 ELBOW	0-92135-210-0	01	1	1601-	●
279	UNION; FUEL PIPE (A) M14 ELBOW	0-92125-208-0	01	1	1601-	●	●
279	UNION; FUEL PIPE (C) M16 L=74	0-92123-310-0	01	1	1601-		●
454	PIPE; FUEL,DELIVERY (B) L=569	8-98336-532-0	01	1	1601-	●
454	PIPE; FUEL,DELIVERY (A) L=282	8-98336-533-0	01	1	1601-	●
454	PIPE; FUEL,DELIVERY (A) L=288	8-98189-841-0	01	1	1601-		●
454	PIPE; FUEL,DELIVERY (B) L=764	8-98316-835-0	01	1	1601-		●
455	PIPE; FUEL,RETURN (A) L=352	8-98336-534-0	01	1	1601-	●
455	PIPE; FUEL,RETURN (B) L=684	8-98336-536-0	01	1	1601-	●
455	PIPE; FUEL,RETURN (C) L=320	8-98336-540-0	01	1	1601-	●
455	PIPE; FUEL,RETURN (A) L=350	8-97635-753-0	01	1	1601-		●
455	PIPE; FUEL,RETURN (C) L=651	8-98316-836-0	01	1	1601-		●
455	PIPE; FUEL,RETURN (B) L=502	8-98316-837-0	01	1	1601-		●
468	NUT (A) M14	0-91111-514-0	01	1	1601-	●	●
468	NUT (B) M16	0-91111-516-0	01	1	1601-	●	●
487	PIPE; FUEL HOSE (C) L=324	8-98336-535-0	01	1	1601-	●
487	PIPE; FUEL HOSE (A) L=1966	8-98336-537-0	01	1	1601-	●
487	PIPE; FUEL HOSE (B) L=569	8-98336-538-0	01	1	1601-	●
487	PIPE; FUEL HOSE (B) L=495	8-98316-839-0	01	1	1601-		●
487	PIPE; FUEL HOSE (A) L=1956	8-98316-840-0	01	1	1601-		●
487	PIPE; FUEL HOSE (C) L=314	8-98316-843-0	01	1	1601-		●

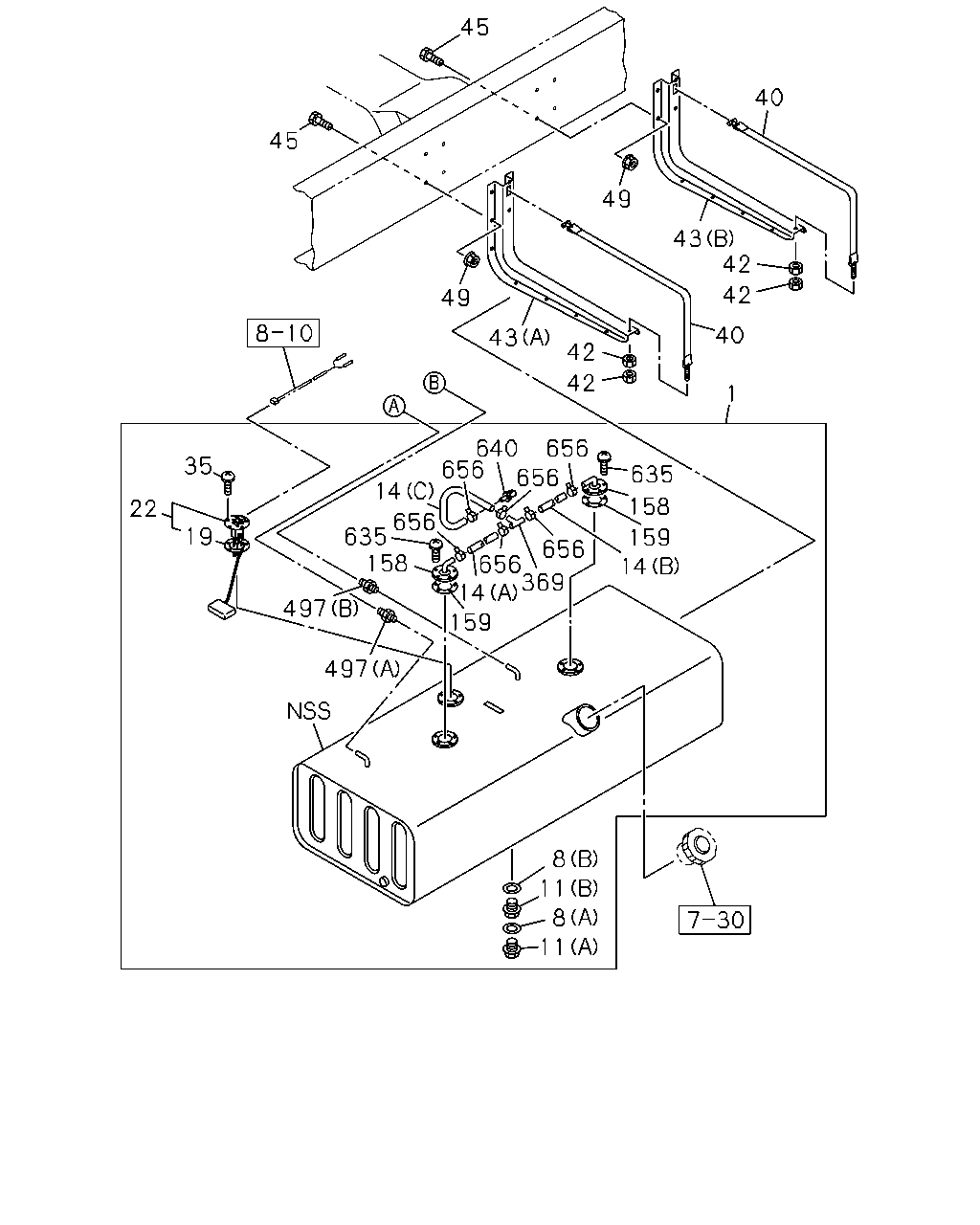

45 45 35 22 19 497 497 158 635 656 14 656 640 656 656 656 14 159 369 656 635 158 159 14 42 42 43 49 49 43 40 42 42 40 1 8 11 8 11

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TANK; FUEL FUEL PIPE STEEL<E2N> 1345X532X322 200L	8-98307-003-0	01	1	1601-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=30	8-98067-041-0	01	1	1601-	●	●
8	GASKET; DRAIN PLUG,FUEL TANK FUEL PIPE STEEL<E2N> (A) ID=18.2 OD=26.0	9-09571-418-0	01	1	1601-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL PIPE STEEL<E2N> (B) M30	8-98067-038-0	01	1	1601-	●	●
11	PLUG; DRAIN,FUEL TANK FUEL PIPE STEEL<E2N> (A) M18	8-98068-006-0	01	1	1601-	●	●
14	HOSE; BREATHER,OUTLET FUEL PIPE STEEL<E2N> (A) L=430	8-98131-037-0	01	1	1601-	●	●
14	HOSE; BREATHER,OUTLET FUEL PIPE STEEL<E2N> (C) L=460	8-98304-414-0	01	1	1601-	●	●
14	HOSE; BREATHER,OUTLET FUEL PIPE STEEL<E2N> (B) L=90	8-98304-415-0	01	1	1601-	●	●
19	GASKET; FUEL TANK UNIT FUEL PIPE STEEL<E2N> ID=42 OD=71	5-83148-001-0	01	1	1601-	●	●
22	UNIT; FUEL TANK FUEL PIPE STEEL<E2N>	8-98099-320-0	01	1	1601-	●	●
35	SCREW; FUEL TANK UNIT FUEL PIPE STEEL<E2N> M5X12 W/LK WASHER	0-36220-512-0	05	1	1601-	●	●
40	BELT; SUPPORT,FUEL TANK FUEL PIPE STEEL<E2N> L=880	8-98042-715-1	02	1	1601-	●	●
42	NUT; SUPPORT BELT M12	0-91110-512-0	04	1	1601-	●	●
43	BRACKET; FUEL TANK FUEL PIPE STEEL<E2N> (A)	8-98088-123-0	01	1	1601-	●	●
43	BRACKET; FUEL TANK FUEL PIPE STEEL<E2N> (B)	8-98122-883-0	01	1	1601-	●	●
45	BOLT; BRKT,FUEL TANK FUEL PIPE STEEL<E2N> M10X35 FLANGE	0-28651-035-0	12	1	1601-	●	●
49	NUT; BRKT FUEL PIPE STEEL<E2N> M10 FLANGE	0-91180-210-0	12	1	1601-	●	●
158	VALVE; ROLL OVER & FLOAT FUEL PIPE STEEL<E2N>	8-98067-039-0	02	1	1601-	●	●
159	SEAL; ROLL OVER & FLOAT VALVE FUEL PIPE STEEL<E2N> ID=45 OD=67	1-83149-003-0	02	1	1601-	●	●
369	JOINT; HOSE FUEL PIPE STEEL<E2N>	8-98067-080-0	01	1	1601-	●	●
497	NIPPLE; FUEL PIPE FUEL PIPE STEEL<E2N> (A) M14 & PT1/4 STRAIGHT	1-09650-332-1	01	1	1601-	●	●
497	NIPPLE; FUEL PIPE FUEL PIPE STEEL<E2N> (B) M16 & NPTF3/8 STRAIGHT	1-09650-405-1	01	1	1601-	●	●
635	SCREW; ROLL OVER & FLOAT VALVE FUEL PIPE STEEL<E2N> M5X12 W/LK WASHER	0-36220-512-0	10	1	1601-	●	●
640	VENTILATOR; HOSE,BREATHER FUEL PIPE STEEL<E2N>	8-98092-398-0	01	1	1601-	●	●
656	CLAMP; FUEL TANK FUEL PIPE STEEL<E2N>	8-98304-416-0	06	1	1601-	●	●
