1-31 — AIR DUCT (#175804) — 133 parça

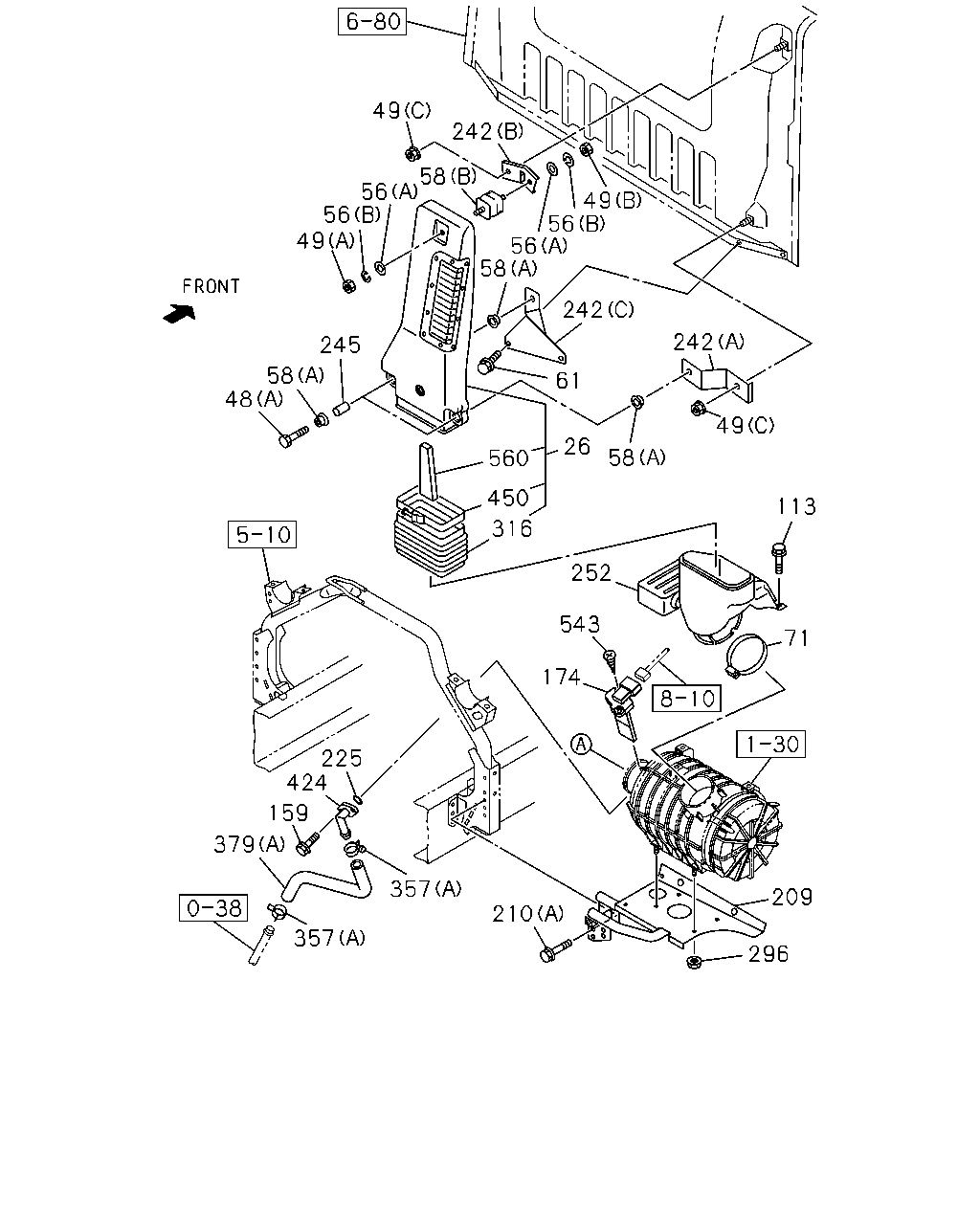

çizim 513297
49 56 58 242 56 49 245 58 48 225 424 159 379 357 357 210 174 543 252 316 560 450 26 61 58 71 113 209 49 242 242 58 56 56 49 296
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 1601-
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1601-
48 BOLT; AIR DUCT
FSS STD DBL CAB(FC**W*) (B) M10X25 FLANGE 		0-28651-025-0 06 1 1601-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1601-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1601-
49 NUT; AIR DUCT
FSS STD SGL CAB(FC**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 1601-
49 NUT; AIR DUCT
FSS STD DBL CAB(FC**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 1601-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1601-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1601-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1601-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1601-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1601-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1601-
113 BOLT; RESONATOR
FSS STD SGL CAB(FC**M*) M6X16 W/PL WASHER 		8-98094-071-0 03 1 1601-
159 BOLT; AIR PIPE
FSS STD SGL CAB(FC**M*) M6X16 FLANGE 		0-28050-616-0 02 1 1601-
174 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1601-
209 BRACKET; ACL
FSS STD SGL CAB(FC**M*) 		8-98158-448-0 01 1 1601-
209 BRACKET; ACL
FSS STD DBL CAB(FC**W*) 		8-98058-687-0 01 1 1601-
210 BOLT; ACL BRKT
FSS STD SGL CAB(FC**M*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 1601-
210 BOLT; ACL BRKT
FSS STD DBL CAB(FC**W*) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1601-
210 BOLT; ACL BRKT
FSS STD DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 02 1 1601-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1601-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD DBL CAB(FC**W*) (G) 		8-98050-679-1 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD DBL CAB(FC**W*) (D) 		8-98084-231-1 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD DBL CAB(FC**W*) (E) 		8-98157-109-0 01 1 1601-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1601-
252 DUCT; AIR INT
FSS STD SGL CAB(FC**M*) 		8-98095-779-0 01 1 1601-
252 DUCT; AIR INT
FSS STD DBL CAB(FC**W*) 		8-98166-966-0 01 1 1601-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1601-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1601-
357 CLIP; RUBBER HOSE
(B) ID=77-99 		1-09707-141-0 01 1 1601-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1601-
357 CLIP; RUBBER HOSE
(C) ID=68-85 		8-98096-592-0 02 1 1601-
379 HOSE; RUBBER
FSS STD SGL CAB(FC**M*) (A) 		8-98126-532-0 01 1 1601-
379 HOSE; RUBBER
FSS STD DBL CAB(FC**W*) (B) 		8-98151-940-0 01 1 1601-
424 PIPE; AIR,INL
FSS STD SGL CAB(FC**M*) 		8-98127-875-0 01 1 1601-
450 CLAMP; HOSE 9-09915-504-1 01 1 1601-
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1601-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1601-

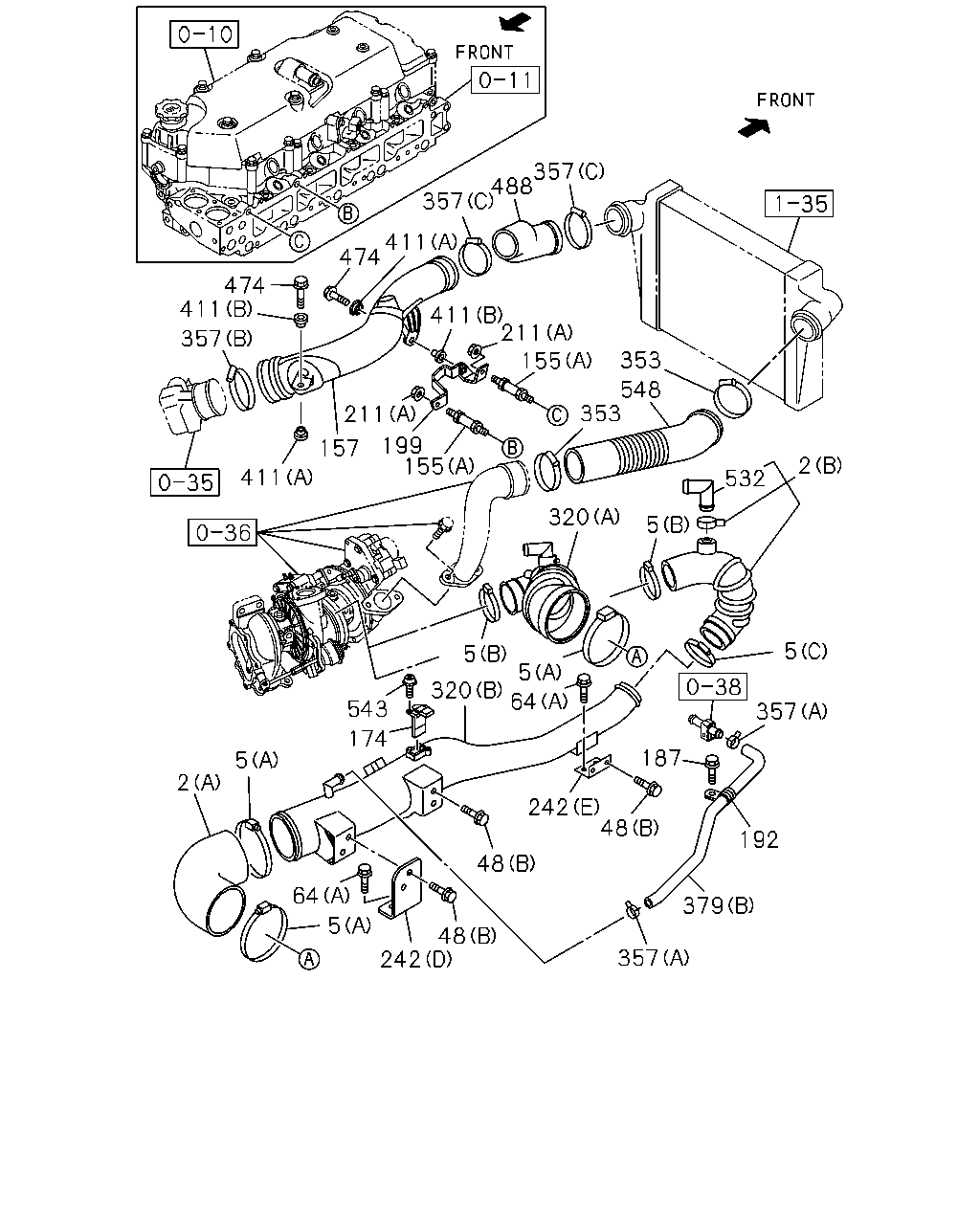

çizim 513412
474 411 357 411 157 211 199 155 155 211 411 474 411 357 488 357 353 548 353 532 2 5 320 5 320 543 174 5 2 64 5 242 48 242 48 187 192 379 357 48 357 5 64 5
BalonParca AdiParca NoAdetTipApplied Date
2 HOSE; ACL
FSS STD DBL CAB(FC**W*) (A) 		8-98058-691-1 01 1 1601-
2 HOSE; ACL
FSS STD DBL CAB(FC**W*) (B) 		8-98306-023-1 01 1 1601-
5 CLIP; AIR DUCT
(B) ID=75 		8-98206-613-0 01 1 1601-
5 CLIP; AIR DUCT
FSS STD SGL CAB(FC**M*) (A) ID=104-142 		1-09707-139-0 01 1 1601-
5 CLIP; AIR DUCT
FSS STD DBL CAB(FC**W*) (A) ID=104-142 		1-09707-139-0 02 1 1601-
5 CLIP; AIR DUCT
FSS STD DBL CAB(FC**W*) (C) ID=68-85 		8-98096-592-0 01 1 1601-
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1601-
48 BOLT; AIR DUCT
FSS STD DBL CAB(FC**W*) (B) M10X25 FLANGE 		0-28651-025-0 06 1 1601-
64 BOLT; BRKT,AIR DUCT
FSS STD DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 02 1 1601-
64 BOLT; BRKT,AIR DUCT
FSS STD DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 04 1 1601-
64 BOLT; BRKT,AIR DUCT
FSS STD DBL CAB(FC**W*) (B) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1601-
155 BOLT; BRKT
(A) 		8-98165-255-0 02 1 1601-
155 BOLT; BRKT
FSS STD DBL CAB(FC**W*) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1601-
155 BOLT; BRKT
FSS STD DBL CAB(FC**W*) (C) M10X35 FLANGE 		0-28651-035-0 01 1 1601-
157 PIPE; AIR 8-98107-744-2 01 1 1601-
174 SENSOR; AIR FLOW CONT 8-98113-202-1 01 1 1601-
187 BOLT; INL HOSE
FSS STD DBL CAB(FC**W*) M8X20 FLANGE 		0-28050-820-0 01 1 1601-
192 CLIP; HOSE
FSS STD DBL CAB(FC**W*) ID=26 L=26 		1-09701-236-0 01 1 1601-
199 BRACKET; PIPE 8-98166-709-0 01 1 1601-
211 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1601-
211 NUT; BRKT
FSS STD DBL CAB(FC**W*) (B) M8 FLANGE 		0-91180-108-0 02 1 1601-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD DBL CAB(FC**W*) (G) 		8-98050-679-1 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD DBL CAB(FC**W*) (D) 		8-98084-231-1 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD DBL CAB(FC**W*) (E) 		8-98157-109-0 01 1 1601-
320 HOSE; CONN,ACL
FSS STD SGL CAB(FC**M*) (A) 		8-98107-743-1 01 1 1601-
320 HOSE; CONN,ACL
FSS STD DBL CAB(FC**W*) (B) 		8-98306-022-0 01 1 1601-
353 CLIP; RUBBER HOSE
ID=68-85 		8-98096-592-0 02 1 1601-
357 CLIP; RUBBER HOSE
(B) ID=77-99 		1-09707-141-0 01 1 1601-
357 CLIP; RUBBER HOSE
(A) ID=24 		8-98025-921-0 02 1 1601-
357 CLIP; RUBBER HOSE
(C) ID=68-85 		8-98096-592-0 02 1 1601-
379 HOSE; RUBBER
FSS STD SGL CAB(FC**M*) (A) 		8-98126-532-0 01 1 1601-
379 HOSE; RUBBER
FSS STD DBL CAB(FC**W*) (B) 		8-98151-940-0 01 1 1601-
411 RUBBER; CUSHION
(A) OD=32 		8-94395-766-0 02 1 1601-
411 RUBBER; CUSHION
(B) OD=23 		8-97105-689-6 02 1 1601-
474 BOLT; PIPE
M8X40 FLANGE 		0-28650-840-0 02 1 1601-
488 HOSE; RUBBER,PIPE 8-98107-921-0 01 1 1601-
532 PIPE; INTAKE
FSS STD DBL CAB(FC**W*) 		8-98309-253-0 01 1 1601-
543 SCREW; SENSOR
M4X10 W/LK&PL WASHER 		0-36230-410-0 02 1 1601-
548 HOSE; RUBBER,TURBO TO INL PIPE 8-98270-040-0 01 1 1601-

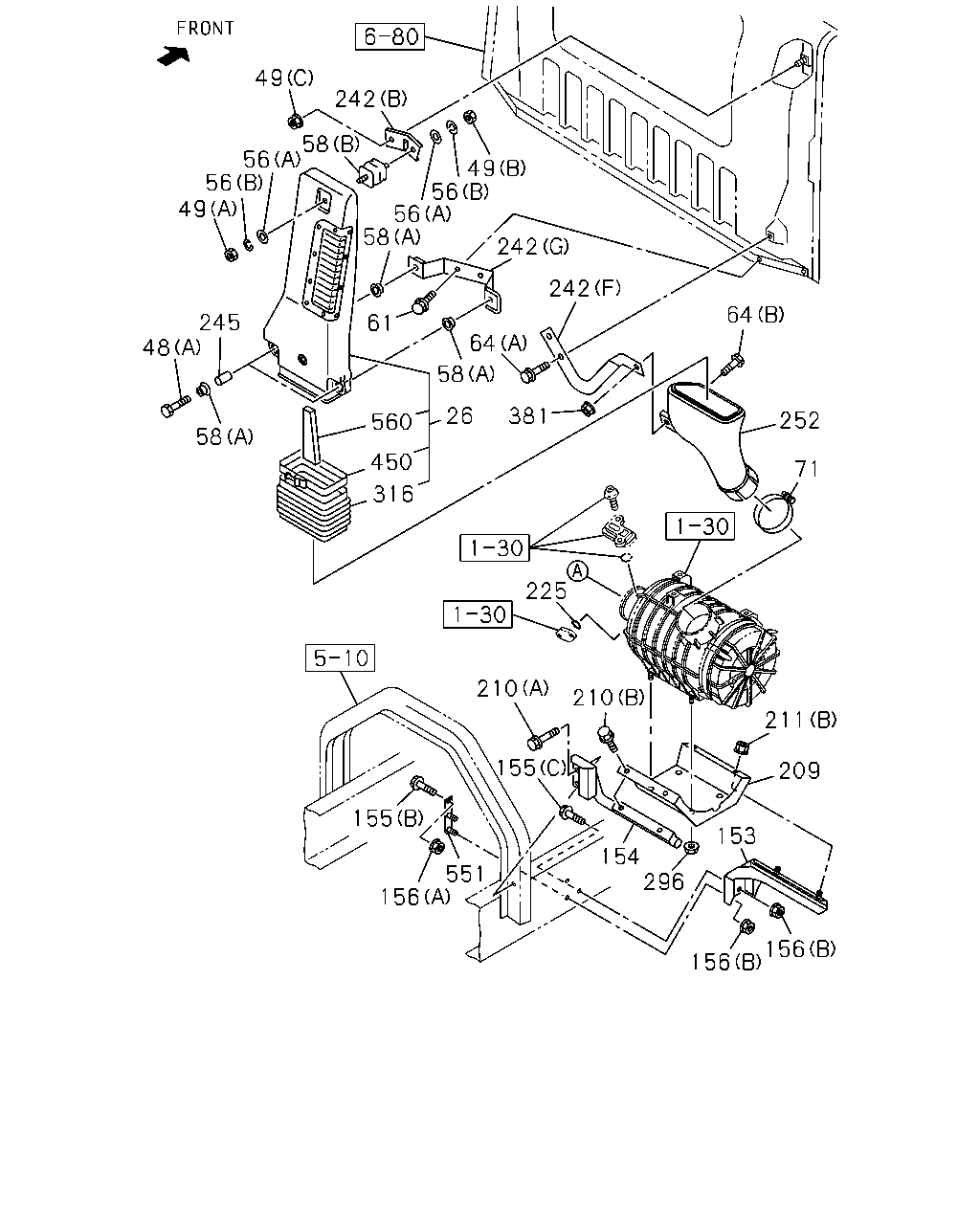

çizim 513495
49 56 56 49 245 48 58 560 450 316 210 155 210 211 209 153 296 154 156 156 156 155 551 225 71 252 64 242 381 26 58 64 61 58 56 56 49 242 242 58
BalonParca AdiParca NoAdetTipApplied Date
26 DUCT; AIR INT 8-98010-361-2 01 1 1601-
48 BOLT; AIR DUCT
(A) M10X60 		1-09030-044-1 02 1 1601-
48 BOLT; AIR DUCT
FSS STD DBL CAB(FC**W*) (B) M10X25 FLANGE 		0-28651-025-0 06 1 1601-
49 NUT; AIR DUCT
(B) M8 FLANGE 		1-09984-122-0 01 1 1601-
49 NUT; AIR DUCT
(A) M8 FLANGE 		1-09984-126-0 01 1 1601-
49 NUT; AIR DUCT
FSS STD SGL CAB(FC**M*) (C) M8 FLANGE 		8-94279-517-0 02 1 1601-
49 NUT; AIR DUCT
FSS STD DBL CAB(FC**W*) (C) M8 FLANGE 		8-94279-517-0 01 1 1601-
56 WASHER; LK,AIR INT DUCT
(A) ID=8.2 		1-09985-177-0 02 1 1601-
56 WASHER; LK,AIR INT DUCT
(B) ID=8.4 OD=22 		1-09985-188-0 02 1 1601-
58 SUPPORT; AIR INL DUCT
(A) OD=40 T=18.5 		1-14119-267-0 04 1 1601-
58 SUPPORT; AIR INL DUCT
(B) 		8-98125-944-1 01 1 1601-
61 BOLT; BRKT,AIR DUCT
M8X25 FLANGE 		8-98074-570-0 02 1 1601-
64 BOLT; BRKT,AIR DUCT
FSS STD DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 02 1 1601-
64 BOLT; BRKT,AIR DUCT
FSS STD DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 04 1 1601-
64 BOLT; BRKT,AIR DUCT
FSS STD DBL CAB(FC**W*) (B) M8X25 W/LK&PL WASHER 		1-09030-093-0 01 1 1601-
71 CLIP; AIR DUCT
ID=120-140 		8-98133-367-0 01 1 1601-
153 BRACKET; ACL,FRT
FSS STD DBL CAB(FC**W*) 		8-97640-446-1 01 1 1601-
154 BRACKET; ACL,RR
FSS STD DBL CAB(FC**W*) 		8-98058-688-1 01 1 1601-
155 BOLT; BRKT
(A) 		8-98165-255-0 02 1 1601-
155 BOLT; BRKT
FSS STD DBL CAB(FC**W*) (B) M8X30 FLANGE 		0-28650-830-0 01 1 1601-
155 BOLT; BRKT
FSS STD DBL CAB(FC**W*) (C) M10X35 FLANGE 		0-28651-035-0 01 1 1601-
156 NUT; BRKT
FSS STD DBL CAB(FC**W*) (A) M8 FLANGE 		0-91180-208-0 01 1 1601-
156 NUT; BRKT
FSS STD DBL CAB(FC**W*) (B) M10 FLANGE 		0-91180-210-0 03 1 1601-
209 BRACKET; ACL
FSS STD SGL CAB(FC**M*) 		8-98158-448-0 01 1 1601-
209 BRACKET; ACL
FSS STD DBL CAB(FC**W*) 		8-98058-687-0 01 1 1601-
210 BOLT; ACL BRKT
FSS STD SGL CAB(FC**M*) (A) M10X25 FLANGE 		0-28651-025-0 03 1 1601-
210 BOLT; ACL BRKT
FSS STD DBL CAB(FC**W*) (B) M8X25 FLANGE 		0-28650-825-0 02 1 1601-
210 BOLT; ACL BRKT
FSS STD DBL CAB(FC**W*) (A) M10X25 FLANGE 		0-28651-025-0 02 1 1601-
211 NUT; BRKT
(A) M10 FLANGE 		0-91180-210-0 02 1 1601-
211 NUT; BRKT
FSS STD DBL CAB(FC**W*) (B) M8 FLANGE 		0-91180-108-0 02 1 1601-
225 GASKET; AIR PIPE
ID=24.4 		1-09623-057-0 01 1 1601-
242 BRACKET; AIR DUCT
(B) 		8-98019-301-3 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD SGL CAB(FC**M*) (C) 		8-98019-302-1 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD SGL CAB(FC**M*) (A) 		8-98019-303-1 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD DBL CAB(FC**W*) (G) 		8-98050-679-1 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD DBL CAB(FC**W*) (D) 		8-98084-231-1 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD DBL CAB(FC**W*) (F) 		8-98092-771-0 01 1 1601-
242 BRACKET; AIR DUCT
FSS STD DBL CAB(FC**W*) (E) 		8-98157-109-0 01 1 1601-
245 PIECE; DIST,AIR DUCT 1-79998-228-0 02 1 1601-
252 DUCT; AIR INT
FSS STD SGL CAB(FC**M*) 		8-98095-779-0 01 1 1601-
252 DUCT; AIR INT
FSS STD DBL CAB(FC**W*) 		8-98166-966-0 01 1 1601-
296 NUT; ACL
M8 FLANGE 		0-91180-108-0 04 1 1601-
316 RUBBER; CUSHION,DUCT 8-98152-269-0 01 1 1601-
381 NUT; BRKT,AIR DUCT
FSS STD DBL CAB(FC**W*) M8 FLANGE 		0-91180-108-0 01 1 1601-
450 CLAMP; HOSE 9-09915-504-1 01 1 1601-
551 STUD; BRKT
FSS STD DBL CAB(FC**W*) 		8-97640-455-0 01 1 1601-
560 FILTER; VERTICAL DUCT 8-98061-675-0 01 1 1601-
