Isuzu WW
▶
TRUCKS
▶
FSS
▶
11722 - FSS AUST/NZ JNLT09
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-11 - RADIATOR HOSE AND SUB TANK
▶
1-11 — RADIATOR HOSE AND SUB TANK
(#175802) — 41 parça
◀

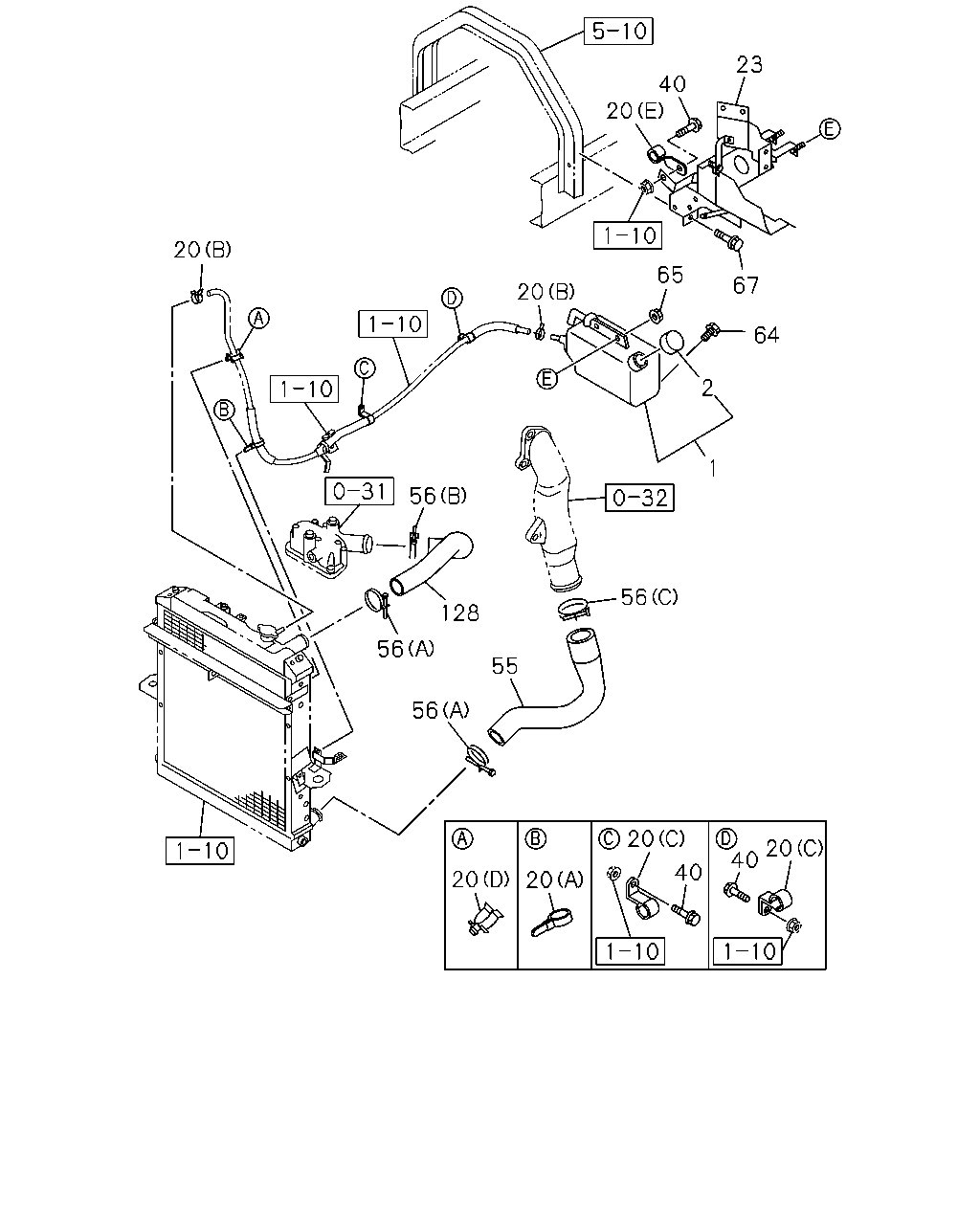

[111A] SGL CAB (22 parça)

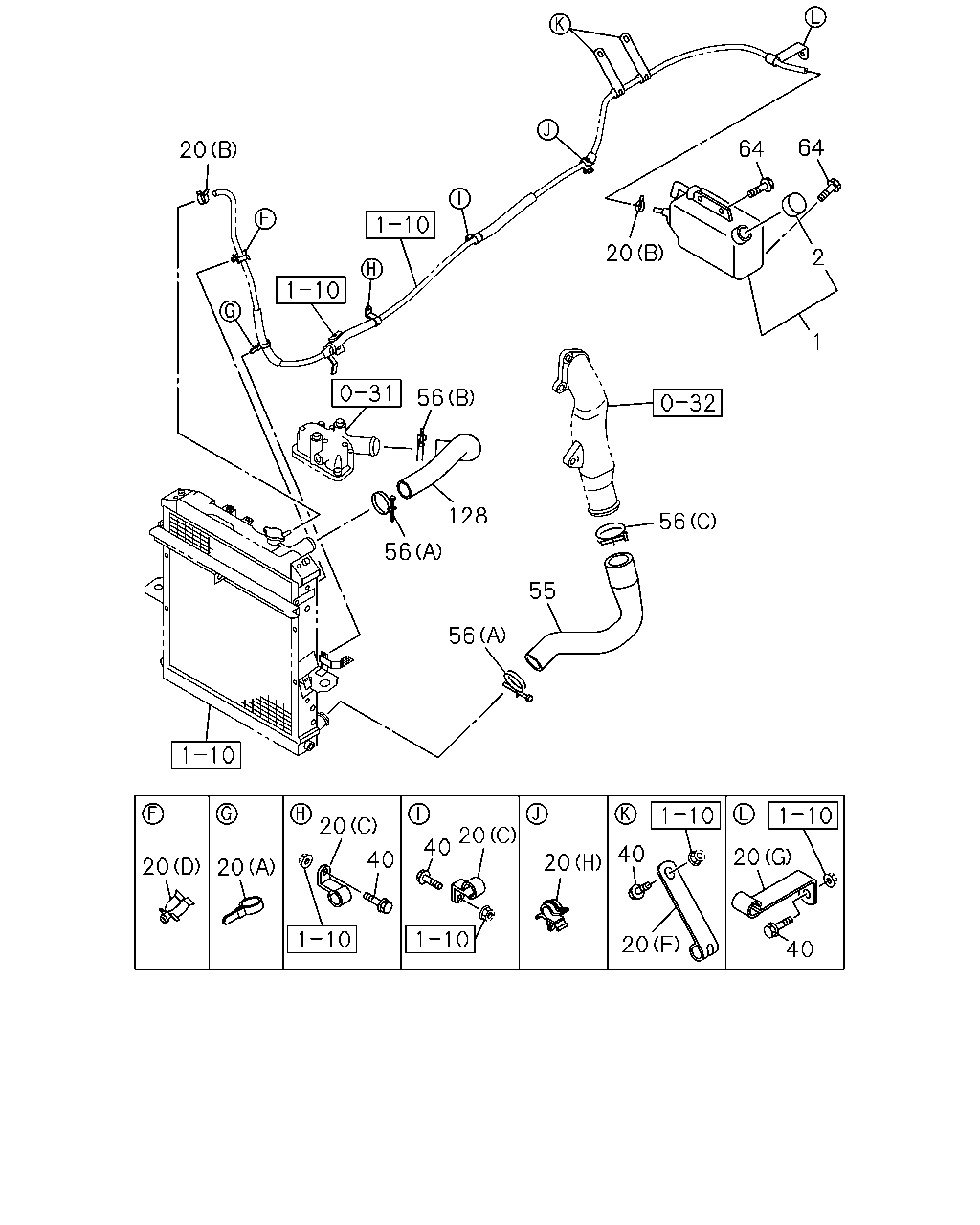

[111A] DBL CAB (19 parça)
▶
20
40
23
67
64
65
1
2
20
20
56
128
55
56
56
20
20
20
40
40
20
56
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1601-
2
CAP; SURGE TANK
8-98178-074-0
01
1
1601-
20
CLIP; HOSE,RAD
(C) ID=12 H=24 L=20
1-09700-605-0
02
1
1601-
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
02
1
1601-
20
CLIP; HOSE,RAD
(D) ID=12
8-98029-256-0
01
1
1601-
20
CLIP; HOSE,RAD
(A) ID=20 L=50
9-09917-430-0
01
1
1601-
20
CLIP; HOSE,RAD
FSS STD SGL CAB(FC**M*) (E) ID=13 L=50
1-09700-027-1
01
1
1601-
20
CLIP; HOSE,RAD
FSS STD DBL CAB(FC**W*) (F) ID=12 L=70
1-09700-097-1
02
1
1601-
20
CLIP; HOSE,RAD
FSS STD DBL CAB(FC**W*) (G) ID=13 H=75 L=25
1-09700-601-0
01
1
1601-
20
CLIP; HOSE,RAD
FSS STD DBL CAB(FC**W*) (H) ID=14-12
8-94379-592-0
01
1
1601-
23
BRACKET; RESERVE TANK
FSS STD SGL CAB(FC**M*)
8-98107-790-2
01
1
1601-
40
BOLT; CLIP
FSS STD SGL CAB(FC**M*) M8X20 FLANGE
0-28650-820-0
02
1
1601-
40
BOLT; CLIP
FSS STD DBL CAB(FC**W*) M8X20 FLANGE
0-28650-820-0
04
1
1601-
55
HOSE; WATER,RAD OUTLET
8-98107-612-4
01
1
1601-
56
CLIP; WATER HOSE,RAD
(B) ID=52
1-09704-057-0
01
1
1601-
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
02
1
1601-
56
CLIP; WATER HOSE,RAD
(C) ID=62
8-98133-957-0
01
1
1601-
64
BOLT; BRKT,SUB TANK
FSS STD SGL CAB(FC**M*) M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1601-
64
BOLT; BRKT,SUB TANK
FSS STD DBL CAB(FC**W*) M8X25 W/LK&PL WASHER
1-09030-093-0
03
1
1601-
65
NUT; BRKT,SUB TANK
FSS STD SGL CAB(FC**M*) M8 FLANGE
0-91180-108-0
03
1
1601-
67
BOLT; BRKT
FSS STD SGL CAB(FC**M*) M8X20 FLANGE
0-28650-820-0
03
1
1601-
128
HOSE; WATER,RAD INL
8-98107-609-0
01
1
1601-
20
56
128
56
55
56
56
20
64
64
20
20
20
40
40
20
20
40
20
20
40
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TANK; SURGE,RAD
8-98171-757-0
01
1
1601-
2
CAP; SURGE TANK
8-98178-074-0
01
1
1601-
20
CLIP; HOSE,RAD
(C) ID=12 H=24 L=20
1-09700-605-0
02
1
1601-
20
CLIP; HOSE,RAD
(B) ID=11.5
8-97375-638-0
02
1
1601-
20
CLIP; HOSE,RAD
(D) ID=12
8-98029-256-0
01
1
1601-
20
CLIP; HOSE,RAD
(A) ID=20 L=50
9-09917-430-0
01
1
1601-
20
CLIP; HOSE,RAD
FSS STD SGL CAB(FC**M*) (E) ID=13 L=50
1-09700-027-1
01
1
1601-
20
CLIP; HOSE,RAD
FSS STD DBL CAB(FC**W*) (F) ID=12 L=70
1-09700-097-1
02
1
1601-
20
CLIP; HOSE,RAD
FSS STD DBL CAB(FC**W*) (G) ID=13 H=75 L=25
1-09700-601-0
01
1
1601-
20
CLIP; HOSE,RAD
FSS STD DBL CAB(FC**W*) (H) ID=14-12
8-94379-592-0
01
1
1601-
40
BOLT; CLIP
FSS STD SGL CAB(FC**M*) M8X20 FLANGE
0-28650-820-0
02
1
1601-
40
BOLT; CLIP
FSS STD DBL CAB(FC**W*) M8X20 FLANGE
0-28650-820-0
04
1
1601-
55
HOSE; WATER,RAD OUTLET
8-98107-612-4
01
1
1601-
56
CLIP; WATER HOSE,RAD
(B) ID=52
1-09704-057-0
01
1
1601-
56
CLIP; WATER HOSE,RAD
(A) ID=48
8-98133-956-0
02
1
1601-
56
CLIP; WATER HOSE,RAD
(C) ID=62
8-98133-957-0
01
1
1601-
64
BOLT; BRKT,SUB TANK
FSS STD SGL CAB(FC**M*) M8X25 W/LK&PL WASHER
1-09030-093-0
01
1
1601-
64
BOLT; BRKT,SUB TANK
FSS STD DBL CAB(FC**W*) M8X25 W/LK&PL WASHER
1-09030-093-0
03
1
1601-
128
HOSE; WATER,RAD INL
8-98107-609-0
01
1
1601-
