◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVM ▶ 11168 - FVM(SOUTH AFRICA) ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-10 - WIRING HARNESS AND FUSE ▶
8-10 — WIRING HARNESS AND FUSE (#17580) — 200 parça

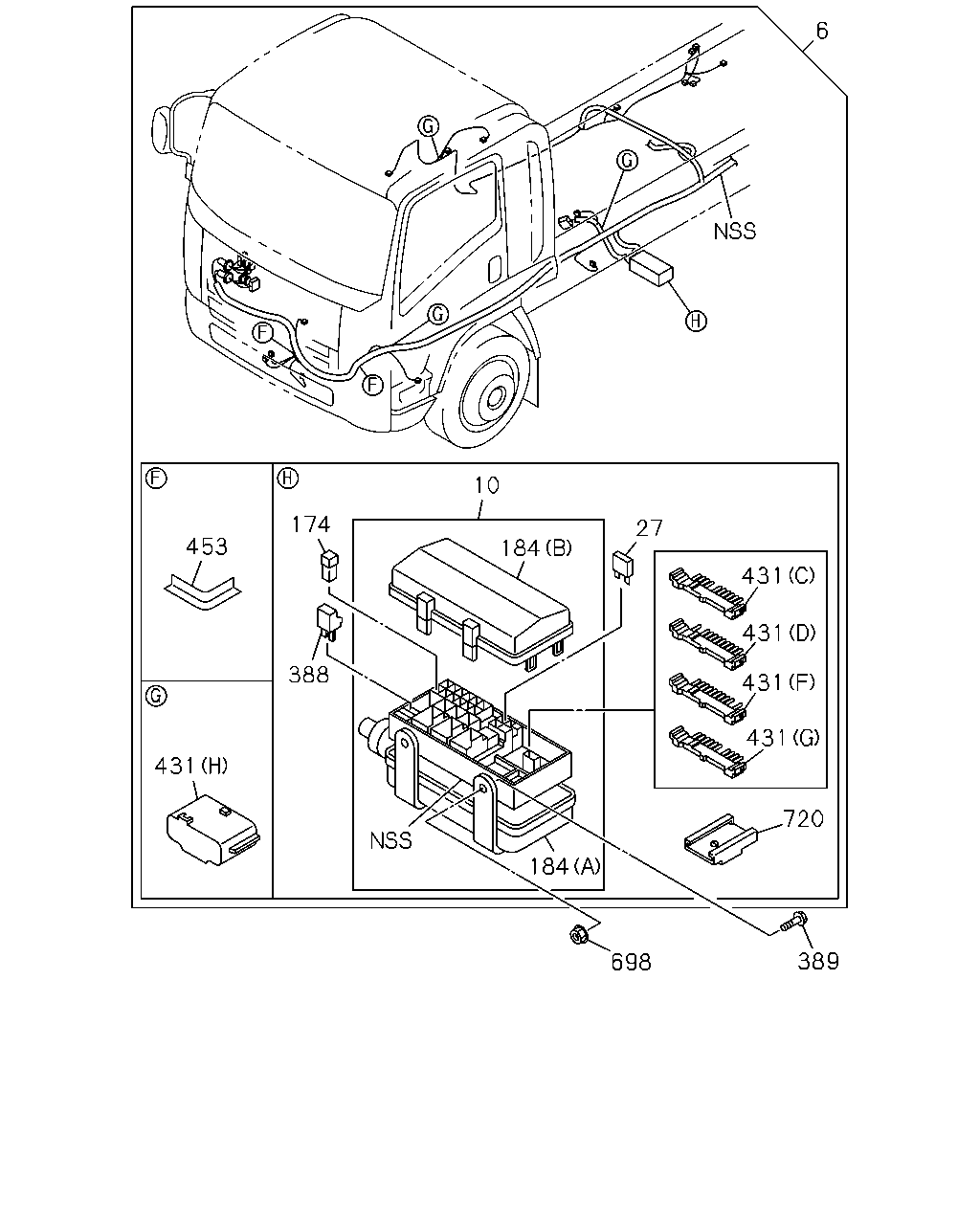

çizim 127897
6 10 174 27 453 184 431 431 388 431 431 431 720 184 389 698
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
VIN MODEL YEAR 2011<VZB> 		8-98173-978-1 01 1 1012-1102
6 HARNESS; FRAME 8-98173-978-1 01 1 1103-
6 HARNESS; FRAME 8-98113-614-3 01 1 1001-1011
6 HARNESS; FRAME
EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-614-3 01 1 1012-1102
10 BOX; FUSE,HARNESS 8-98030-762-0 01 1 1001-
27 FUSE UNIT
10A RED SOU 		8-98054-257-0 01 1 1001-
27 FUSE UNIT
15A BLUE SOU 		8-98054-258-0 02 1 1001-
174 FUSE; SLOW BLOW
60A YELLOW SOU 		8-97219-407-0 01 1 1107-
174 FUSE; SLOW BLOW
30A PINK SOU 		8-98079-191-0 01 1 1001-
174 FUSE; SLOW BLOW
40A GREEN SOU 		8-98079-192-0 01 1 1001-
174 FUSE; SLOW BLOW
50A RED SOU 		8-98079-193-0 03 1 1001-
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW SOU 		8-97219-407-0 03 1 1001-1106
174 FUSE; SLOW BLOW
60A YELLOW 60A YELLOW SOU 		8-97219-407-0 02 1 1107-
184 COVER; RELAY & FUSE BOX
(A) 		8-98030-766-0 01 1 1001-
184 COVER; RELAY & FUSE BOX
(B) 		8-98030-767-0 01 1 1001-
388 DIODE; RELAY BOX
BLACK 2P-1.5A SOU 		8-94422-639-1 01 1 1001-
389 BOLT; COVER,RELAY BOX
M8X35 W/LK&PL WASHER 		1-09030-073-0 03 1 1001-
431 CONNECTOR; JOINT
EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 04 1 1012-1102
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1001-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1001-1011
431 CONNECTOR; JOINT
VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 05 1 1012-1102
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1103-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1001-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 01 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 09 1 1001-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1001-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1001-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1001-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1001-
453 PROTECTOR; HARNESS 1-82699-709-0 01 1 1001-
698 NUT; COVER,RELAY BOX
M8 FLANGE SOU 		0-91180-108-0 02 1 1001-
720 ATTACHMENT; CONNECTOR 1-82699-688-0 03 1 1001-

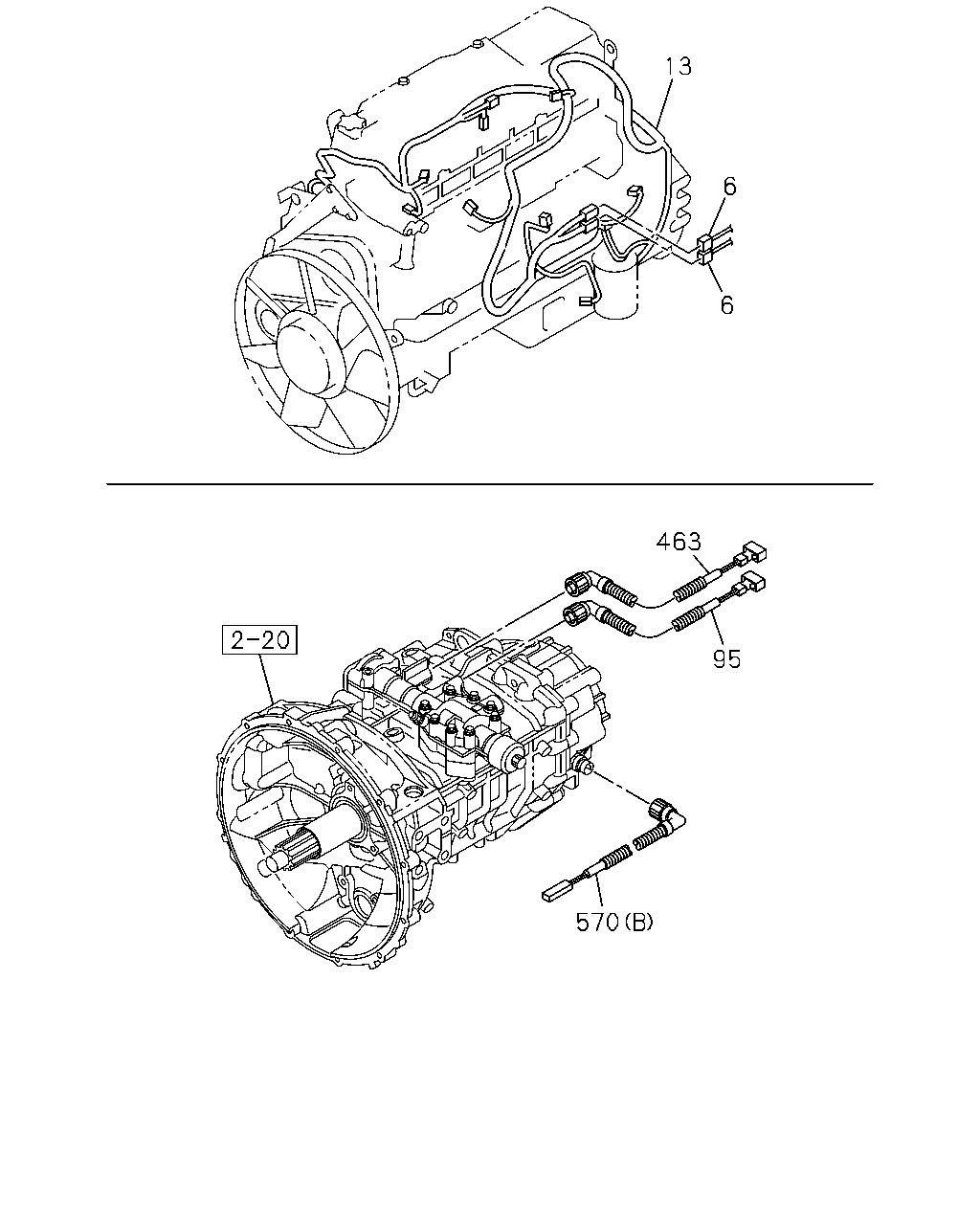

çizim 127899
13 6 6 463 95 570
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
VIN MODEL YEAR 2011<VZB> 		8-98173-978-1 01 1 1012-1102
6 HARNESS; FRAME 8-98173-978-1 01 1 1103-
6 HARNESS; FRAME 8-98113-614-3 01 1 1001-1011
6 HARNESS; FRAME
EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-614-3 01 1 1012-1102
13 HARNESS; ENG
GENERATOR 24V50A(K89) 		8-98075-774-5 01 1 1001-
13 HARNESS; ENG
GENERATOR 24V60A(KG2) 		8-98075-775-5 01 1 1001-
95 HARNESS; NEUTRAL SW
RED 		8-98145-855-0 01 1 1001-
463 HARNESS; SW,BACK UP
BLACK 		8-98145-856-0 01 1 1001-
570 HARNESS; SPEED SENSOR
(B) 		1-82659-230-0 01 1 1001-1004
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1005-
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1001-

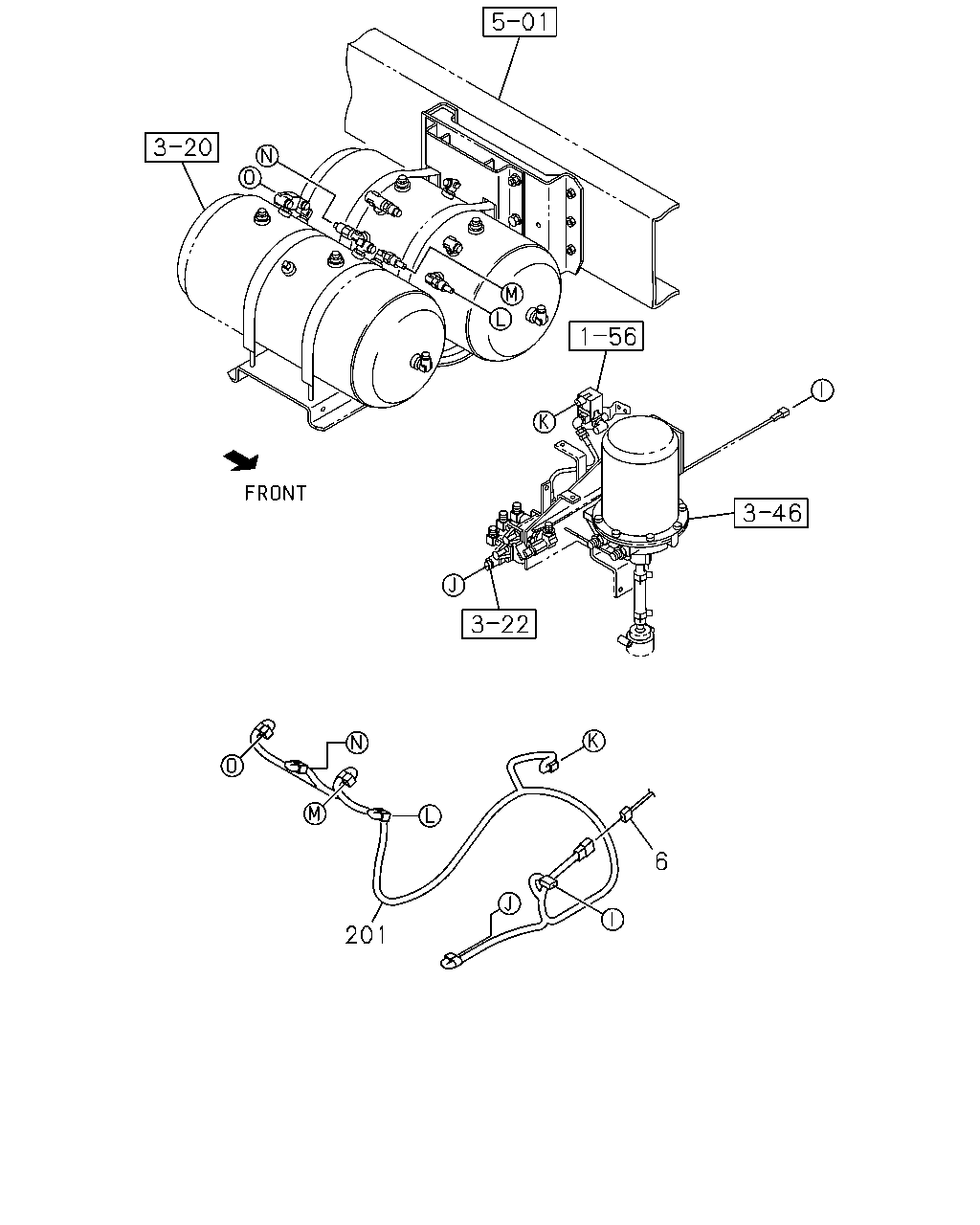

çizim 127905
6 201
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
VIN MODEL YEAR 2011<VZB> 		8-98173-978-1 01 1 1012-1102
6 HARNESS; FRAME 8-98173-978-1 01 1 1103-
6 HARNESS; FRAME 8-98113-614-3 01 1 1001-1011
6 HARNESS; FRAME
EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-614-3 01 1 1012-1102
201 HARNESS; AIR TANK
EXC. AIR DRYER<PS7> 		8-98240-716-0 01 1 1406-
201 HARNESS; AIR TANK
VIN MODEL YEAR 2011<VZB> 		8-98173-996-0 01 1 1012-1012
201 HARNESS; AIR TANK
VIN MODEL YEAR 2011<VZB> 		8-98184-703-0 01 1 1012-1102
201 HARNESS; AIR TANK 8-98184-703-0 01 1 1103-1405
201 HARNESS; AIR TANK
AIR DRYER<PS7> 		8-98184-703-0 01 1 1406-
201 HARNESS; AIR TANK 8-98069-170-1 01 1 1001-1011
201 HARNESS; AIR TANK
EXC. VIN MODEL YEAR 2011<VZB> 		8-98069-170-1 01 1 1012-1102

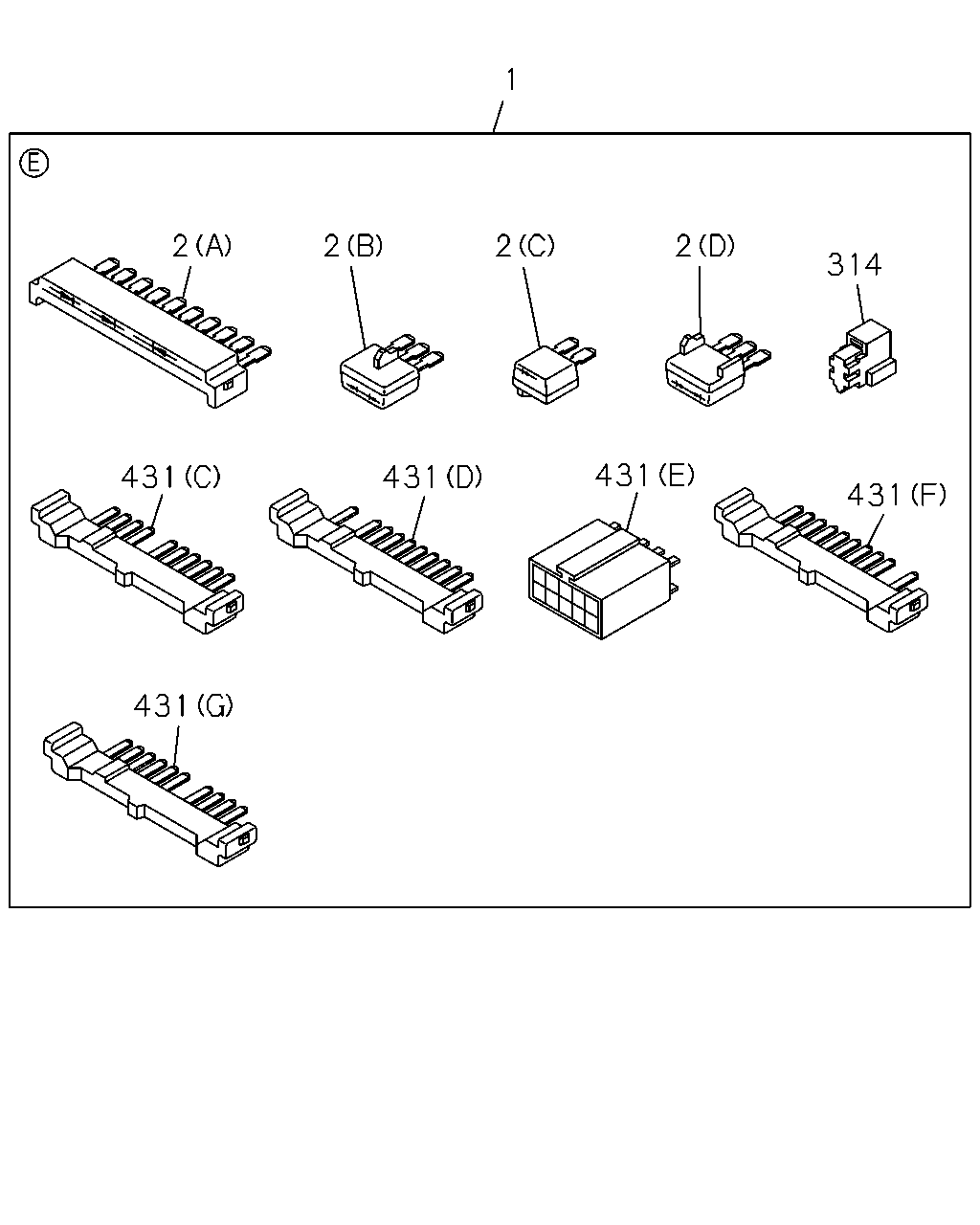

çizim 127906
1 2 2 2 2 314 431 431 431 431 431
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-952-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-952-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98084-936-2 01 1 1001-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-936-2 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98084-935-2 01 1 1001-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF> 		8-98084-935-2 01 1 1110-1209
2 DIODE; CABLE HARNESS
(A) BLACK 10P SOU 		1-82699-703-0 01 1 1001-
2 DIODE; CABLE HARNESS
(D) BLACK 3P-1.5A SOU 		8-94416-438-1 01 1 1001-
2 DIODE; CABLE HARNESS
(C) BLACK 2P-1.5A SOU 		8-94422-639-1 03 1 1001-
2 DIODE; CABLE HARNESS
(B) BLACK 3P-1.5A SOU 		8-94422-640-1 01 1 1001-
314 RESISTOR; HARNESS
BLUE 		1-82691-204-0 01 1 1001-
431 CONNECTOR; JOINT
EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 04 1 1012-1102
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1001-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1001-1011
431 CONNECTOR; JOINT
VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 05 1 1012-1102
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1103-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1001-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 01 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 09 1 1001-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1001-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1001-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1001-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1001-

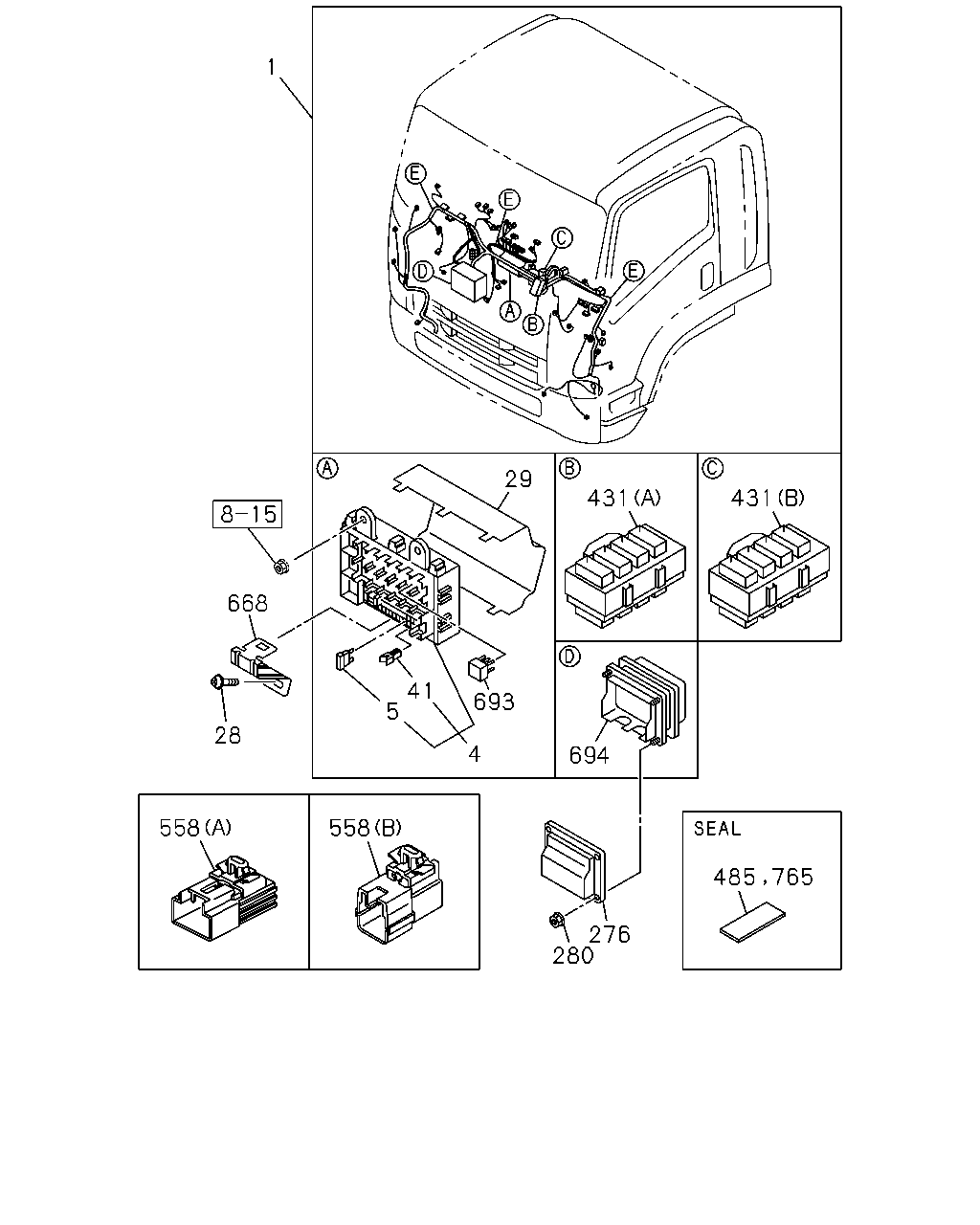

çizim 127909
1 29 693 41 5 4 431 694 431 485 765 276 280 558 558 28 668
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-952-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-952-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98084-936-2 01 1 1001-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-936-2 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98084-935-2 01 1 1001-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF> 		8-98084-935-2 01 1 1110-1209
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1001-
5 FUSE; FACIA HARNESS
10A RED SOU 		8-98054-257-0 AR 1 1001-
5 FUSE; FACIA HARNESS
15A BLUE SOU 		8-98054-258-0 AR 1 1001-
5 FUSE; FACIA HARNESS
20A YELLOW SOU 		8-98054-259-0 AR 1 1001-
5 FUSE; FACIA HARNESS
25A WHITE 		8-98062-982-0 02 1 1001-
28 SCREW; FUSE BOX
BOLT M6X16 FLANGE SOU 		0-28650-616-0 01 1 1001-
29 COVER; FUSE BOX 8-98056-968-0 01 1 1001-
41 PULLER; FUSE
SOU 		8-98054-260-0 01 1 1001-
276 COVER; BOX,FRAME HARNESS 8-98034-039-1 01 1 1001-
280 NUT; BOX ASM FIX
M6 FLANGE SOU 		0-91180-106-0 04 1 1001-
431 CONNECTOR; JOINT
EXC. VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 04 1 1012-1102
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 01 1 1001-
431 CONNECTOR; JOINT
(F) 10P GREEN 		1-82698-579-0 02 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 02 1 1001-
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 04 1 1001-1011
431 CONNECTOR; JOINT
VIN MODEL YEAR 2011<VZB> (C) 10P BLUE 		1-82699-598-0 05 1 1012-1102
431 CONNECTOR; JOINT
(C) 10P BLUE 		1-82699-598-0 05 1 1103-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 01 1 1001-
431 CONNECTOR; JOINT
(G) 10P GREEN 		1-82699-599-0 04 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 01 1 1001-
431 CONNECTOR; JOINT
(D) 10P BROWN SOU 		1-82699-601-0 09 1 1001-
431 CONNECTOR; JOINT
(E) 10P 		8-97077-943-0 02 1 1001-
431 CONNECTOR; JOINT
(H) 6P BLACK 		8-97616-194-0 01 1 1001-
431 CONNECTOR; JOINT
(A) WHITE 		8-98056-374-0 01 1 1001-
431 CONNECTOR; JOINT
(B) WHITE 		8-98056-375-0 01 1 1001-
485 SEAL; CONNECTOR
180X40 		1-72498-019-1 01 1 1001-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (A) 		8-98108-678-0 01 1 1001-
558 CONNECTOR; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUALCONTROL(C60),VENTILATOR & DEFROSTER WO/HEATER(SAZ) (B) 		8-98108-679-0 01 1 1001-
668 BRACKET; HARNESS 8-98095-653-2 01 1 1001-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1001-
694 BOX ASM; CONNECTOR 8-98063-269-1 01 1 1001-
765 TAPE
100X40 SOU 		1-72498-022-1 01 1 1409-

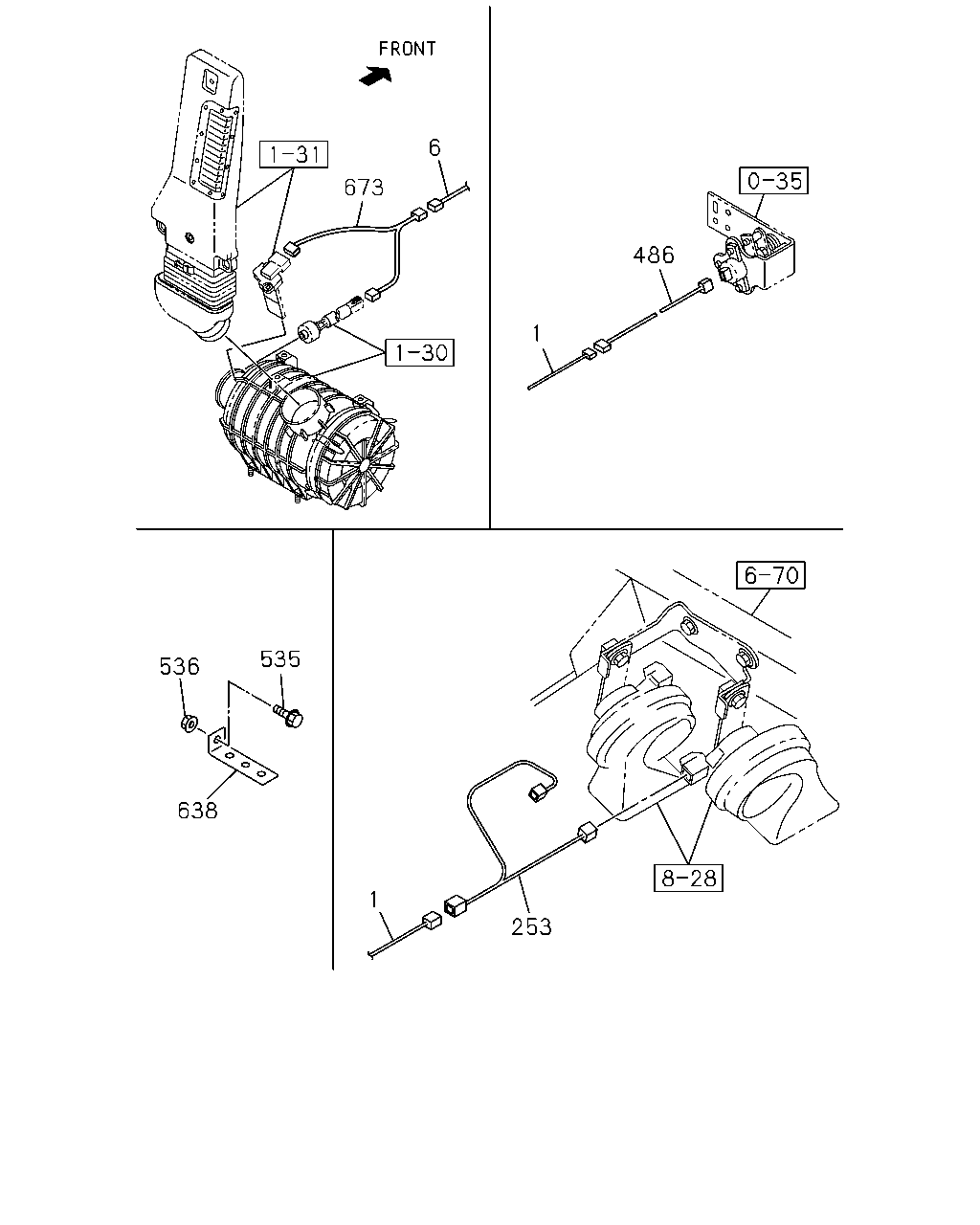

çizim 127914
6 673 486 1 535 536 638 1 253
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-952-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-952-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98084-936-2 01 1 1001-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-936-2 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98084-935-2 01 1 1001-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF> 		8-98084-935-2 01 1 1110-1209
6 HARNESS; FRAME
VIN MODEL YEAR 2011<VZB> 		8-98173-978-1 01 1 1012-1102
6 HARNESS; FRAME 8-98173-978-1 01 1 1103-
6 HARNESS; FRAME 8-98113-614-3 01 1 1001-1011
6 HARNESS; FRAME
EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-614-3 01 1 1012-1102
253 HARNESS; EXT,HORN 8-98074-080-3 01 1 1001-
486 HARNESS; ALL SPEED ACCEL
PTO ZF TRANS RR(BDM) 		1-82675-898-0 01 1 1001-
535 BOLT; BRKT FIX
M8X35 FLANGE SOU 		0-28650-835-0 01 1 1001-
536 NUT; BRKT FIX
M8 FLANGE SOU 		0-91180-108-0 01 1 1001-
638 BRACKET; SPD SENSOR 1-82698-167-0 01 1 1001-
673 HARNESS; EXT,SENSOR 8-98069-172-0 01 1 1001-

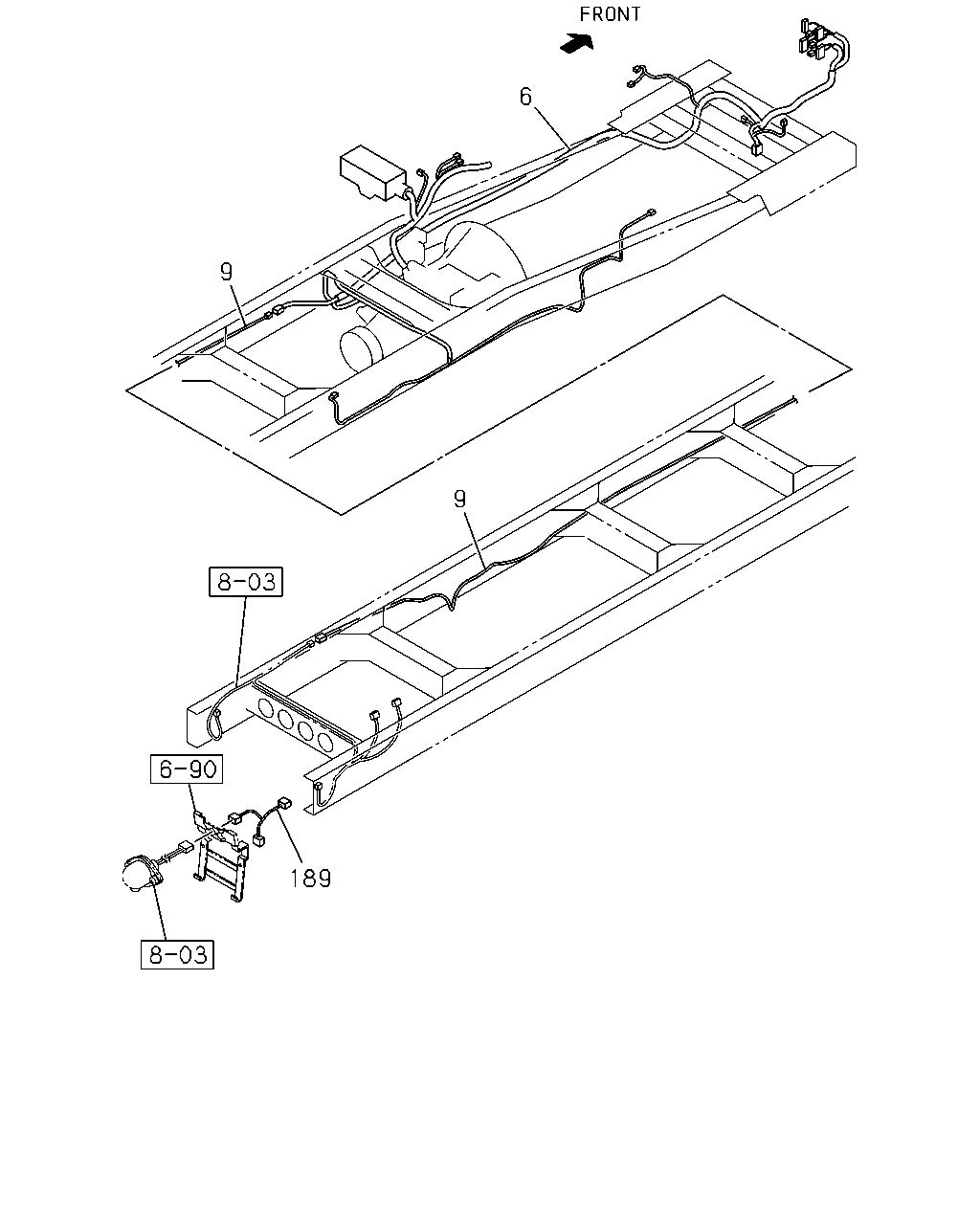

çizim 128201
6 9 9 189
BalonParca AdiParca NoAdetTipApplied Date
6 HARNESS; FRAME
VIN MODEL YEAR 2011<VZB> 		8-98173-978-1 01 1 1012-1102
6 HARNESS; FRAME 8-98173-978-1 01 1 1103-
6 HARNESS; FRAME 8-98113-614-3 01 1 1001-1011
6 HARNESS; FRAME
EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-614-3 01 1 1012-1102
9 HARNESS; FRAME,RR 8-98096-440-1 01 1 1001-1007
9 HARNESS; FRAME,RR 8-98168-627-0 01 1 1008-1109
9 HARNESS; FRAME,RR 8-98191-177-0 01 1 1110-
189 HARNESS; EXT 8-98131-066-0 01 1 1001-
çizim 128202
6 1 570 595
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-952-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-952-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98084-936-2 01 1 1001-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-936-2 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98084-935-2 01 1 1001-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF> 		8-98084-935-2 01 1 1110-1209
6 HARNESS; FRAME
VIN MODEL YEAR 2011<VZB> 		8-98173-978-1 01 1 1012-1102
6 HARNESS; FRAME 8-98173-978-1 01 1 1103-
6 HARNESS; FRAME 8-98113-614-3 01 1 1001-1011
6 HARNESS; FRAME
EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-614-3 01 1 1012-1102
570 HARNESS; SPEED SENSOR
(B) 		1-82659-230-0 01 1 1001-1004
570 HARNESS; SPEED SENSOR
(B) 		8-98148-602-0 01 1 1005-
570 HARNESS; SPEED SENSOR
(A) 		8-98058-327-1 01 1 1001-
595 HARNESS; WARNING,BRK 8-97620-487-1 01 1 1001-

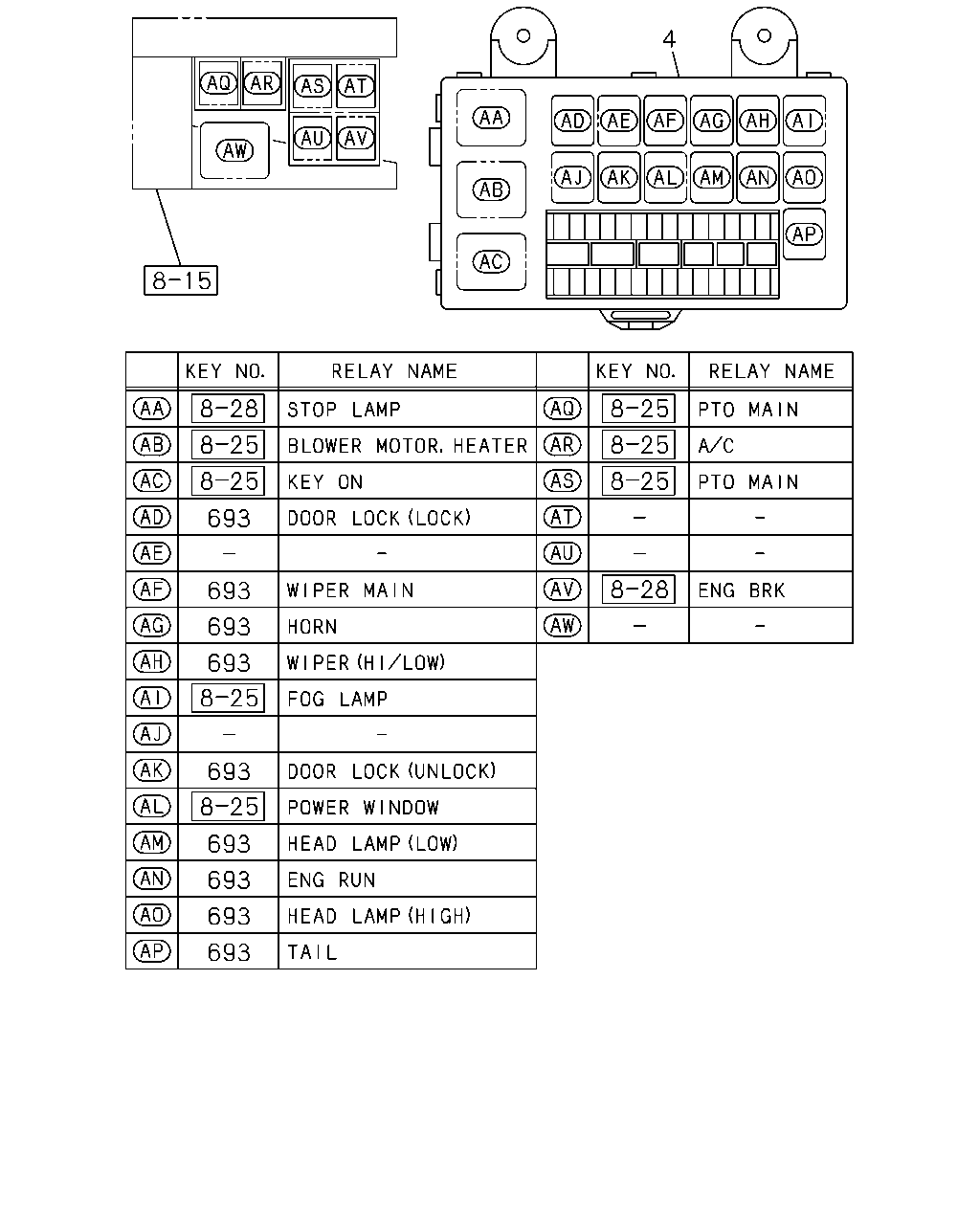

çizim 128204
4 693 693 693 693 693 693 693 693 693
BalonParca AdiParca NoAdetTipApplied Date
4 BOX ASM; FUSE,HARNESS 8-98065-666-0 01 1 1001-
693 RELAY; FUSE BOX
24V 10A PANASONIC 		8-97173-035-1 AR 1 1001-

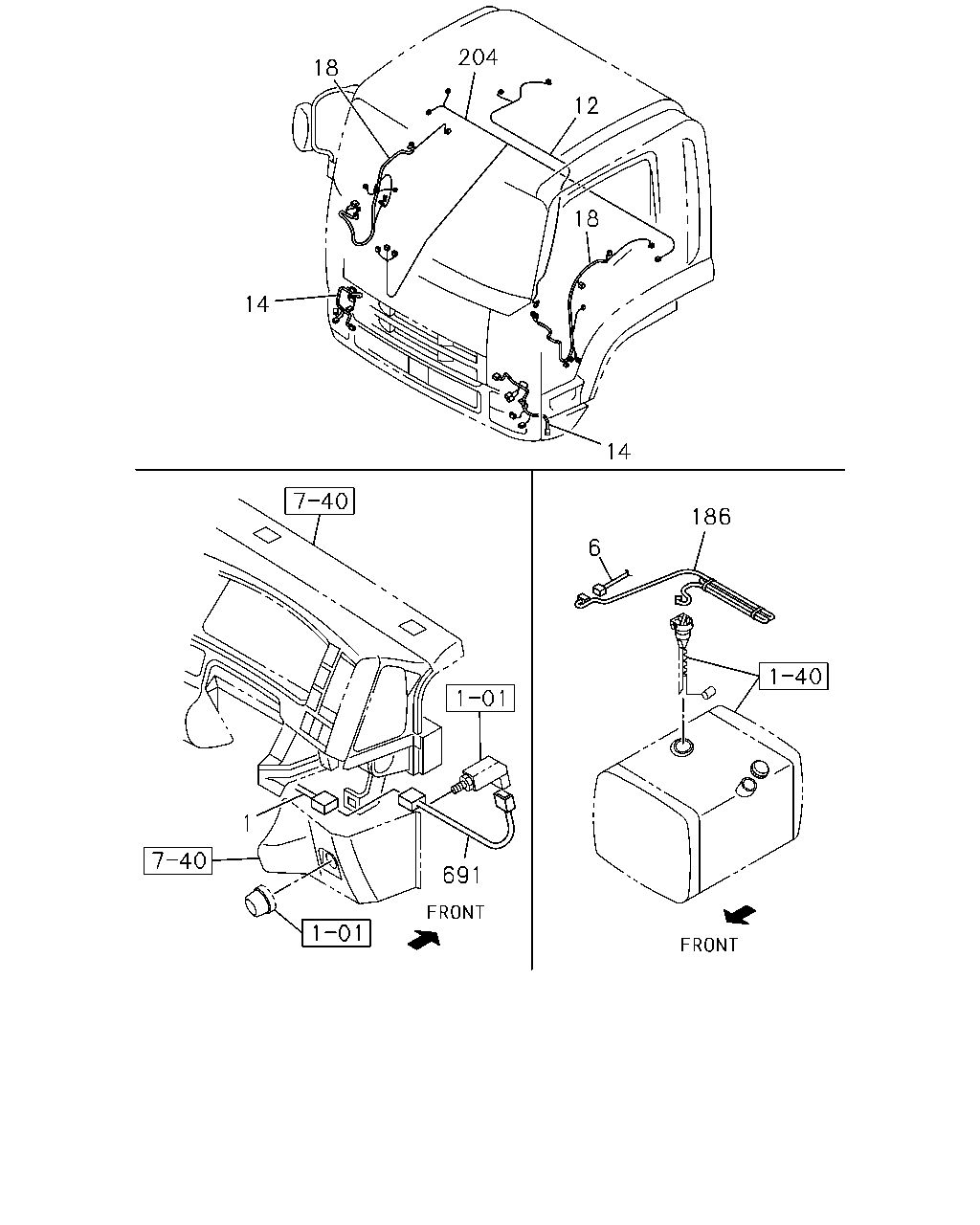

çizim 128205
204 18 12 18 14 14 186 6 691 1
BalonParca AdiParca NoAdetTipApplied Date
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) IN HOUSE PRODUCTION<TKF> 		8-98187-952-0 01 1 1110-1209
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98187-952-0 01 1 1210-
1 HARNESS; CAB
IN HOUSE PRODUCTION<TKF> EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98187-951-0 01 1 1210-
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) 		8-98084-936-2 01 1 1001-1109
1 HARNESS; CAB
AIR BAG DRIVER(AJ3) EXC. IN HOUSE PRODUCTION<TKF> 		8-98084-936-2 01 1 1110-1209
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3) 		8-98084-935-2 01 1 1001-1109
1 HARNESS; CAB
EXC. AIR BAG DRIVER(AJ3),IN HOUSE PRODUCTION<TKF> 		8-98084-935-2 01 1 1110-1209
6 HARNESS; FRAME
VIN MODEL YEAR 2011<VZB> 		8-98173-978-1 01 1 1012-1102
6 HARNESS; FRAME 8-98173-978-1 01 1 1103-
6 HARNESS; FRAME 8-98113-614-3 01 1 1001-1011
6 HARNESS; FRAME
EXC. VIN MODEL YEAR 2011<VZB> 		8-98113-614-3 01 1 1012-1102
12 HARNESS; ROOF
LAMPS TWO ROOF MARKER<TEC> 		8-98085-333-0 01 1 1001-
12 HARNESS; ROOF
EXC. LAMPS TWO ROOF MARKER<TEC> 		8-98041-949-2 01 1 1001-
14 HARNESS; HEADLAMP
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-94270-986-0 02 1 1307-
14 HARNESS; HEADLAMP 8-98069-166-0 02 1 1001-1306
14 HARNESS; HEADLAMP
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-98069-166-1 02 1 1307-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98084-288-3 01 1 1001-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-440-1 01 1 1203-
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98084-283-3 01 1 1001-1202
18 HARNESS; DOOR
AUTO DOOR LOCK<AU4> POWER WINDOW FRT DOOR<A32> 		8-98108-439-1 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-287-3 01 1 1001-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98076-305-3 01 1 1203-
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98084-282-3 01 1 1001-1202
18 HARNESS; DOOR
EXC. AUTO DOOR LOCK<AU4>,POWER WINDOW FRT DOOR<A32> 		8-98076-304-3 01 1 1203-
186 HARNESS; FUEL TANK 8-98099-650-0 01 1 1001-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> 		8-98085-279-1 01 1 1001-
204 HARNESS; CABLE,FLOOR
AIR BAG DRIVER(AJ3) DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> 		8-98085-280-1 01 1 1001-
204 HARNESS; CABLE,FLOOR
AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> EXC. AIR BAG DRIVER(AJ3) 		8-98085-274-0 01 1 1001-
204 HARNESS; CABLE,FLOOR
DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. AIR BAG DRIVER(AJ3) 		8-98085-275-1 01 1 1001-
691 HARNESS; IDLE CONT 8-98049-014-2 01 1 1001-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
