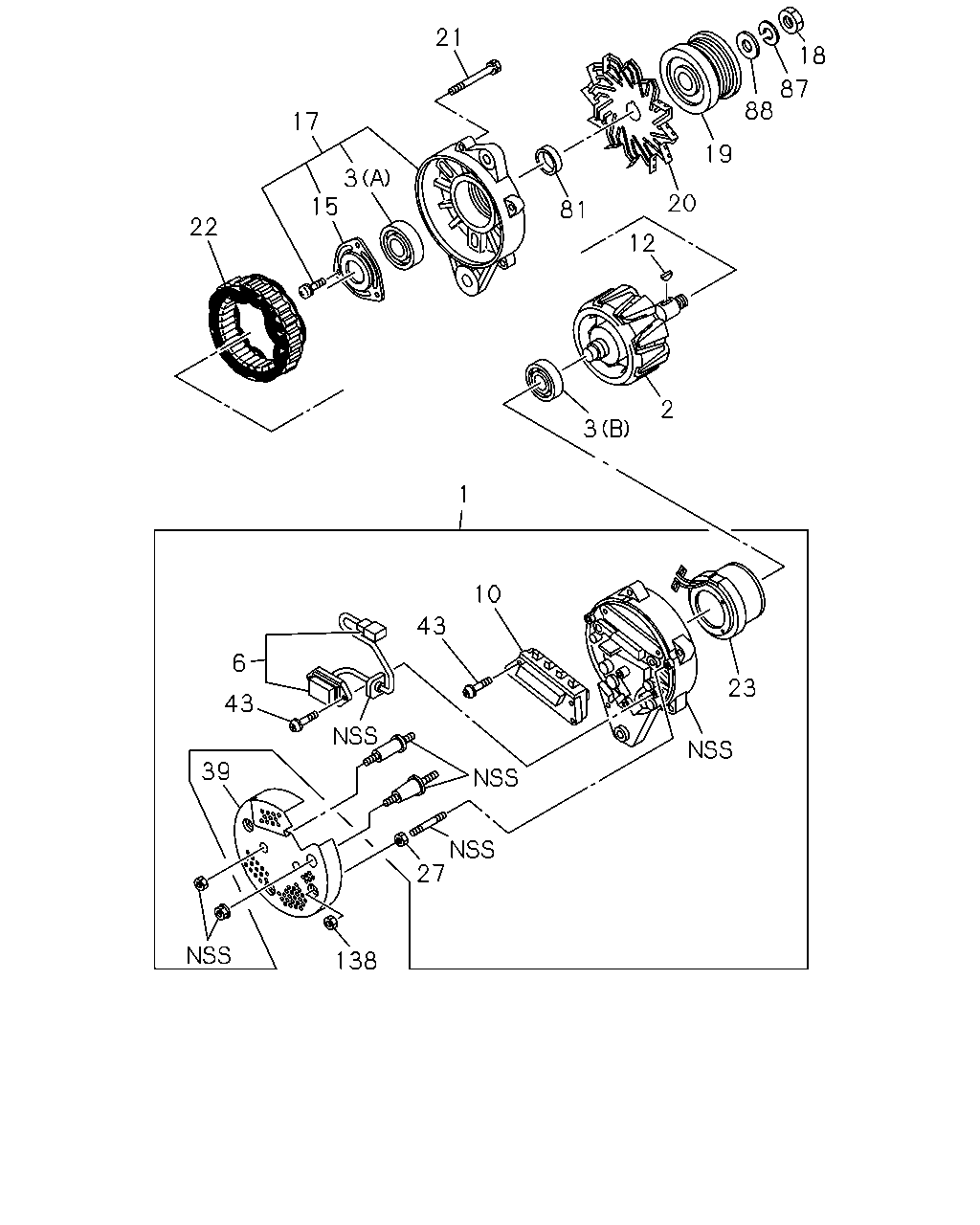

1 |
COVER ASM; RR,GEN
ASM PART: A = 8-98330-085-0
|
8-98048-009-0 |
01 |
1 |
- |
| |
2 |
ROTOR; GEN
ASM PART: A = 8-98330-085-0
|
8-98048-000-1 |
01 |
1 |
- |
| |
3 |
BEARING; ROTOR,GEN
(A) ASM PART: A = 8-98330-085-0
|
1-81229-631-0 |
01 |
1 |
- |
| |
3 |
BEARING; ROTOR,GEN
(B) ASM PART: A = 8-98330-085-0
|
8-98048-001-0 |
01 |
1 |
- |
| |
6 |
REGULATOR ASM; VOLTAGE,GEN
ASM PART: A = 8-98330-085-0
|
8-98040-688-0 |
01 |
1 |
- |
| |
10 |
RECTIFIER; GEN
ASM PART: A = 8-98330-085-0
|
8-98048-011-0 |
01 |
1 |
- |
| |
12 |
KEY; ROTOR,GEN
ASM PART: A = 8-98330-085-0
|
9-82215-867-0 |
01 |
1 |
- |
| |
15 |
RETAINER; ROTOR,GEN
ASM PART: A = 8-98330-085-0
|
8-98048-004-0 |
01 |
1 |
- |
| |
17 |
COVER ASM; FRT,GEN
ASM PART: A = 8-98330-085-0
|
8-98048-003-0 |
01 |
1 |
- |
| |
18 |
NUT; PULLEY,GEN
ASM PART: A = 8-98330-085-0
|
9-82216-098-0 |
01 |
1 |
- |
| |
19 |
PULLEY; GEN
ASM PART: A = 8-98330-085-0
|
8-98048-006-0 |
01 |
1 |
- |
| |
20 |
FAN; GEN
ASM PART: A = 8-98330-085-0
|
1-81223-003-1 |
01 |
1 |
- |
| |
21 |
BOLT; THROUGH,GEN
ASM PART: A = 8-98330-085-0
|
1-81229-661-0 |
04 |
1 |
- |
| |
22 |
STATOR; GEN
ASM PART: A = 8-98330-085-0
|
8-98048-002-0 |
01 |
1 |
- |
| |
23 |
COIL; ROTOR GEN
ASM PART: A = 8-98330-085-0
|
8-98048-008-1 |
01 |
1 |
- |
| |
27 |
NUT; RECTIFIER,GEN
ASM PART: A = 8-98330-085-0
|
8-98040-687-0 |
01 |
1 |
- |
| |
39 |
COVER; END,RR COVER,GEN
ASM PART: A = 8-98330-085-0
|
8-98330-489-0 |
01 |
1 |
- |
| |
43 |
SCREW; RR END COVER
ASM PART: A = 8-98330-085-0
|
8-98048-058-0 |
04 |
1 |
- |
| |
81 |
SPACER; ROTOR,GEN
ASM PART: A = 8-98330-085-0
|
1-81229-627-0 |
01 |
1 |
- |
| |
87 |
WASHER; PULLEY,GEN
ASM PART: A = 8-98330-085-0
|
1-81229-672-0 |
01 |
1 |
- |
| |
88 |
WASHER; PL,PULLEY GEN
ASM PART: A = 8-98330-085-0
|
1-81229-673-0 |
01 |
1 |
- |
| |
138 |
NUT; COVER,GENERATOR
ASM PART: A = 8-98330-085-0
|
8-98040-690-0 |
03 |
1 |
- |
