0-40 — FUEL INJECTION SYSTEM (#175785) — 76 parça

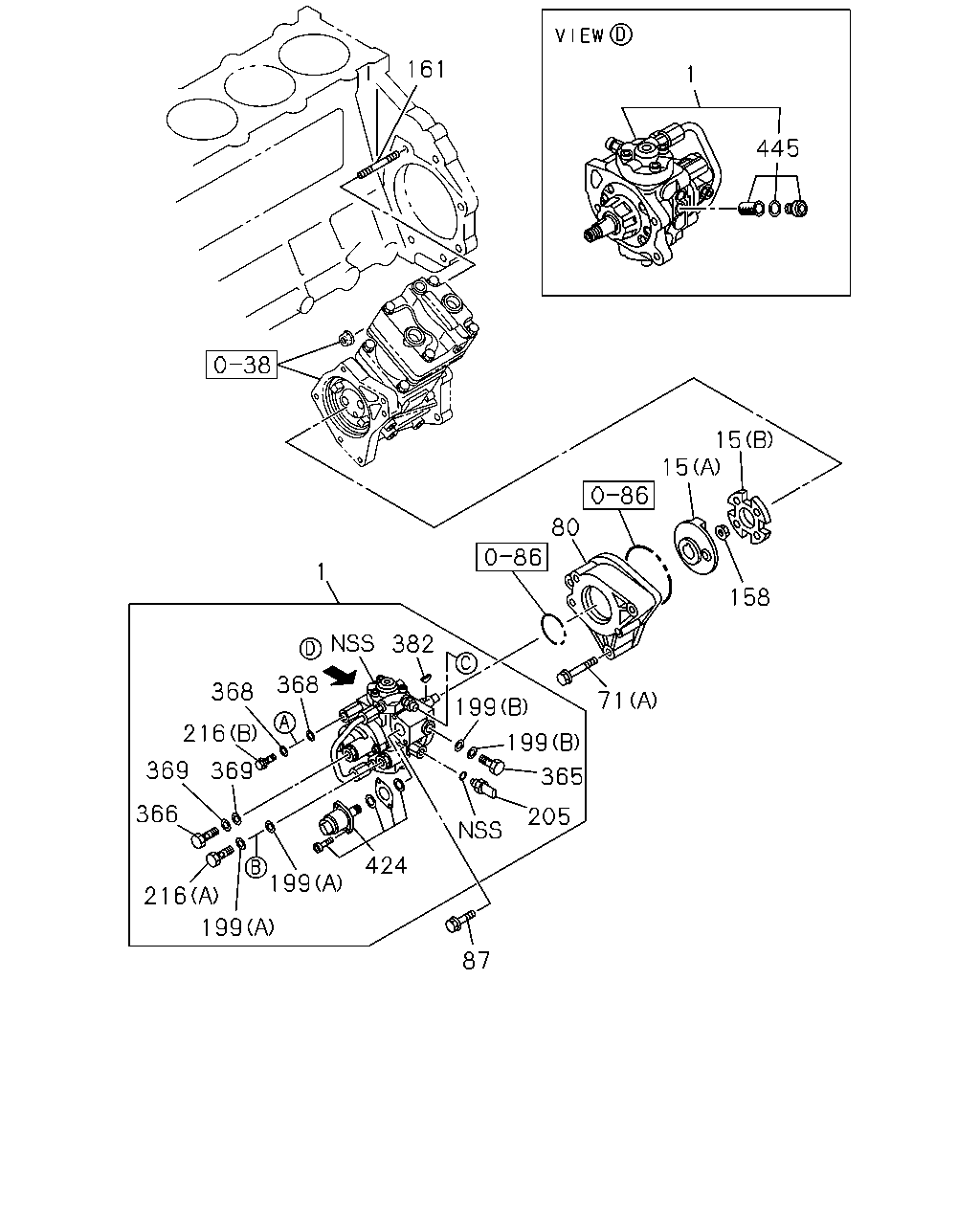

çizim 512252
161 1 445 15 15 80 158 71 382 199 199 365 205 87 424 199 199 216 366 369 369 216 368 368 1
BalonParca AdiParca NoAdetTipApplied Date
1 PUMP ASM; INJ
SEE FIG-NO 0-80 - 0-85 FOR COMPONENT. 		8-98081-772-3 01 1 1601-
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. (A) 		8-97306-054-0 01 1 1601-
15 COUPLING ASM; INJ PUMP
SEE FIG-NO 0-87 FOR COMPONENT. (B) 		8-97306-059-1 01 1 1601-
71 BOLT; BRKT
(C) M8X30 FLANGE 		0-28050-830-0 01 1 1601-
71 BOLT; BRKT
(D) M8X35 FLANGE 		0-28050-835-0 01 1 1601-
71 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 03 1 1601-
71 BOLT; BRKT
(B) M10X12 FLANGE 		0-28151-012-0 01 1 1601-
80 BRACKET; PUMP 8-98061-699-0 01 1 1601-
87 BOLT; PUMP
M8X30 FLANGE 		0-28650-830-0 03 1 1601-
158 NUT; INJ PUMP
M14 FLANGE 		0-91180-114-0 01 1 1601-
161 STUD; INJ PUMP
M10X46.5 L=58.5 		8-97066-386-1 02 1 1601-
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1601-
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1601-
205 SENSOR; FUEL TEMP 8-98023-581-0 01 1 1601-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1601-
216 BOLT; EYE
(C) 		8-98035-828-0 01 1 1601-
216 BOLT; EYE
(B) 		8-98207-288-0 01 1 1601-
365 BOLT; EYE,OIL INLET 8-98200-752-0 01 1 1601-
366 BOLT; EYE,OIL OUTLET 5-15759-003-0 01 1 1601-
368 GASKET; EYE BOLT,OIL INLET 1-15619-507-0 02 1 1601-
369 GASKET; EYE BOLT,OIL OUTLET 1-15619-507-0 02 1 1601-
382 KEY; DRIVE SHAFT 8-98161-995-0 01 1 1601-
424 OVERHAUL KIT; SUPPLY PUMP 8-98145-501-1 01 1 1601-
445 SCREW; FILTER,INLET 8-98204-986-0 01 1 1601-

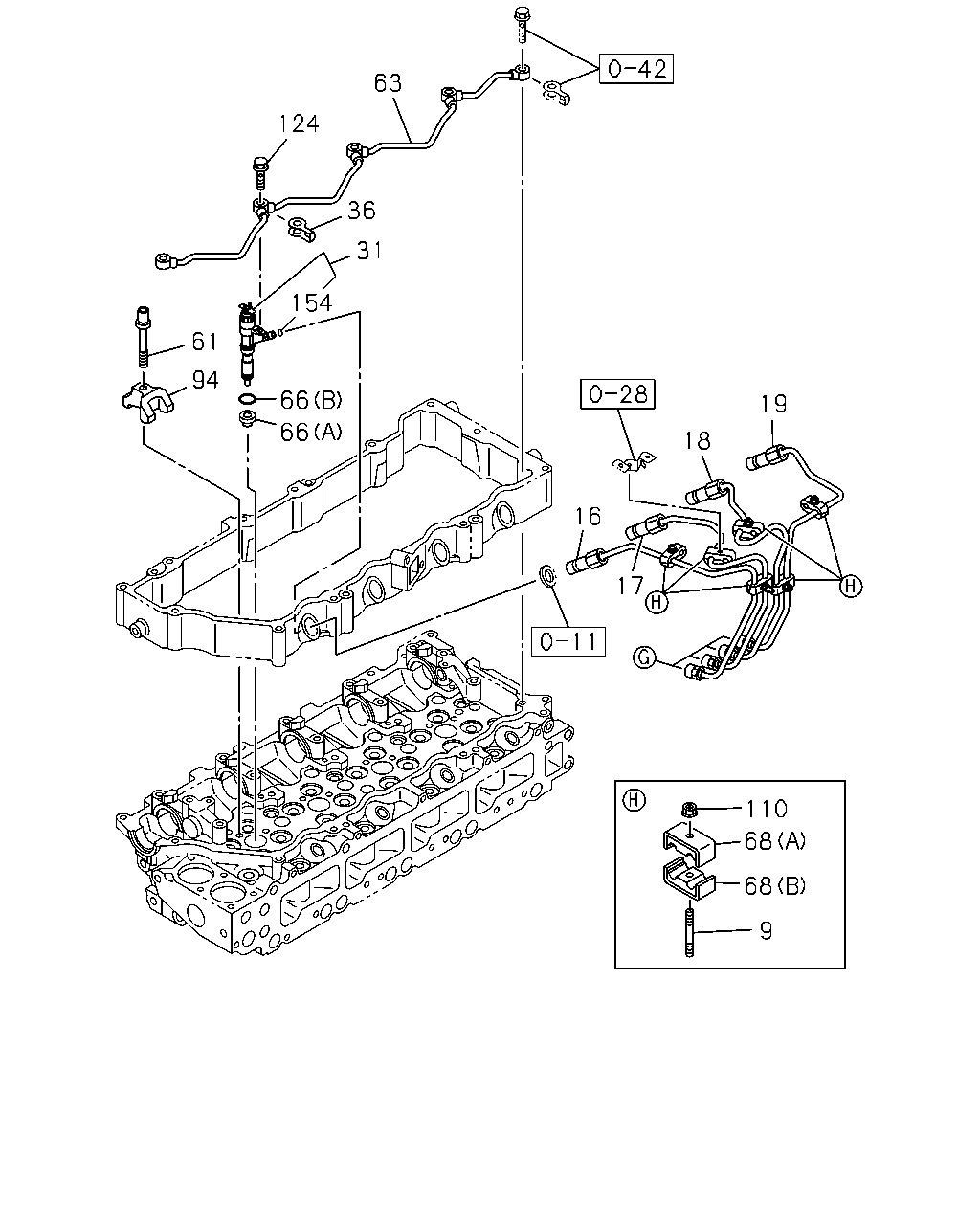

çizim 512274
124 63 36 31 154 61 94 66 66 18 16 17 19 110 68 68 9
BalonParca AdiParca NoAdetTipApplied Date
9 STUD; CLIP
M6X30 L=38 		0-41010-630-0 06 1 1601-
16 PIPE; INJ NO.1 8-98242-419-0 01 1 1601-
17 PIPE; INJ NO.2 8-98242-420-0 01 1 1601-
18 PIPE; INJ NO.3 8-98242-421-0 01 1 1601-
19 PIPE; INJ NO.4 8-98242-422-0 01 1 1601-
31 NOZZLE ASM; INJ 8-98197-185-1 04 1 1601-
36 GASKET; RETURN PIPE,NOZZLE HOLDER
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=8.3 OD=15.0 		8-98065-992-0 04 1 1601-
61 BOLT; CLAMP NOZZLE HOLDER
M8X54 		8-98008-895-0 04 1 1601-
63 PIPE; FUEL,NOZZLE LEAK OFF 8-98072-612-1 01 1 1601-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=23.3 		8-94173-412-0 04 1 1601-
66 GASKET; INJ NOZZLE
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10 		8-97216-082-0 04 1 1601-
68 CLIP; INJ PIPE
(A) ID=7 & 7 L=22 		8-97330-118-3 06 1 1601-
68 CLIP; INJ PIPE
(B) ID=7 & 7 L=22 		8-97330-119-3 06 1 1601-
94 BRACKET; INJ NOZZLE 8-98028-999-1 04 1 1601-
110 NUT; CLIP
M6 FLANGE 		0-91180-106-0 06 1 1601-
124 BOLT; EYE LEAK OFF PIPE
M8X18 EYE-BOLT 		1-09675-037-1 04 1 1601-
154 GASKET; CONNECTOR
ID=11.0 		0-95690-111-0 04 1 1601-

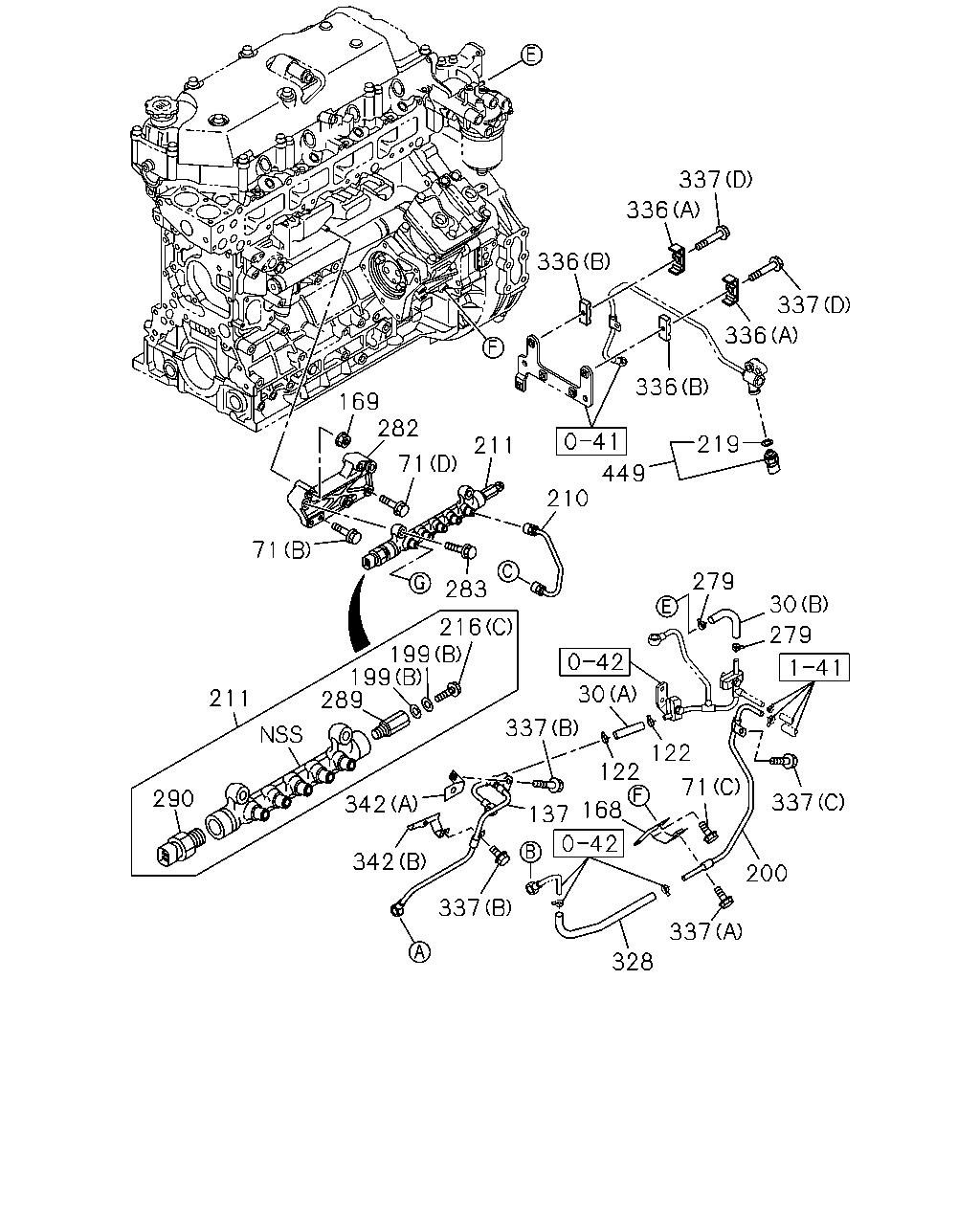

çizim 513309
336 336 337 337 336 219 449 210 211 71 282 169 336 283 71 211 290 289 199 199 216 279 30 279 30 337 342 342 337 328 200 337 337 122 122 168 137 71
BalonParca AdiParca NoAdetTipApplied Date
30 HOSE; RUBBER,FUEL LEAK
(A) L=60 SERVICED BY L=3000 		0-01558-300-0 01 1 1601-
30 HOSE; RUBBER,FUEL LEAK
(B) 		8-98128-912-0 01 1 1601-
71 BOLT; BRKT
(C) M8X30 FLANGE 		0-28050-830-0 01 1 1601-
71 BOLT; BRKT
(D) M8X35 FLANGE 		0-28050-835-0 01 1 1601-
71 BOLT; BRKT
(A) M10X60 FLANGE 		0-28051-060-0 03 1 1601-
71 BOLT; BRKT
(B) M10X12 FLANGE 		0-28151-012-0 01 1 1601-
122 CLIP; LEAK OFF PIPE
ID=11.5 		8-97375-638-0 02 1 1601-
137 PIPE ASM; LEAK OFF 8-98107-385-3 01 1 1601-
168 BRACKET; FUEL PIPE 8-98107-389-1 01 1 1601-
169 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1601-
199 GASKET; EYE BOLT
(A) 		1-15619-507-0 02 1 1601-
199 GASKET; EYE BOLT
(B) 		8-97602-218-0 04 1 1601-
200 PIPE; FUEL FEED
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98107-384-1 01 1 1601-
200 PIPE; FUEL FEED
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98169-373-0 01 1 1601-
210 PIPE; INJ,C/R 8-98106-195-1 01 1 1601-
211 RAIL ASM; COMMON 8-98077-001-1 01 1 1601-
216 BOLT; EYE
(A) 		5-15759-003-0 01 1 1601-
216 BOLT; EYE
(C) 		8-98035-828-0 01 1 1601-
216 BOLT; EYE
(B) 		8-98207-288-0 01 1 1601-
219 GASKET
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2 		8-98251-344-0 01 1 1601-
279 CLIP; FUEL HOSE
ID=11.5 		8-97375-638-0 02 1 1601-
282 BRACKET; COMMON RAIL 8-98092-440-1 01 1 1601-
283 BOLT; COMMON RAIL
M10X35 FLANGE 		0-28151-035-0 02 1 1601-
289 LIMITER; FUEL PRESS 8-98138-695-0 01 1 1601-
290 SENSOR; PRESS 8-98138-736-0 01 1 1601-
328 HOSE; RUBBER,FUEL 8-98134-375-3 01 1 1601-
336 CLIP; FUEL PIPE
POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=7 & 9 L=25 		1-09701-228-3 02 1 1601-
336 CLIP; FUEL PIPE
POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=7 & 9 L=25 		1-09701-229-2 02 1 1601-
337 BOLT; CLIP
(A) M6X12 FLANGE 		0-28050-612-0 01 1 1601-
337 BOLT; CLIP
(B) M6X16 FLANGE 		0-28050-616-0 02 1 1601-
337 BOLT; CLIP
(C) M8X16 FLANGE 		0-28050-816-0 01 1 1601-
337 BOLT; CLIP
POWER TAKE OFF-FLYWHEEL(6SZ) (D) M6X35 FLANGE 		0-28050-635-0 02 1 1601-
342 BRACKET; CLIP,LEAK OFF
(A) 		8-98107-392-2 01 1 1601-
342 BRACKET; CLIP,LEAK OFF
(B) 		8-98134-976-3 01 1 1601-
449 SENSOR KIT; FUEL FILTER PRESSURE 5-87311-231-0 01 1 1601-
