Isuzu WW
▶
TRUCKS
▶
FSS
▶
11722 - FSS AUST/NZ JNLT09
▶
0 - Engine, Emission, Engine Electrical
▶
0-36 - TURBOCHARGER SYSTEM
▶
0-36 — TURBOCHARGER SYSTEM
(#175781) — 89 parça
◀

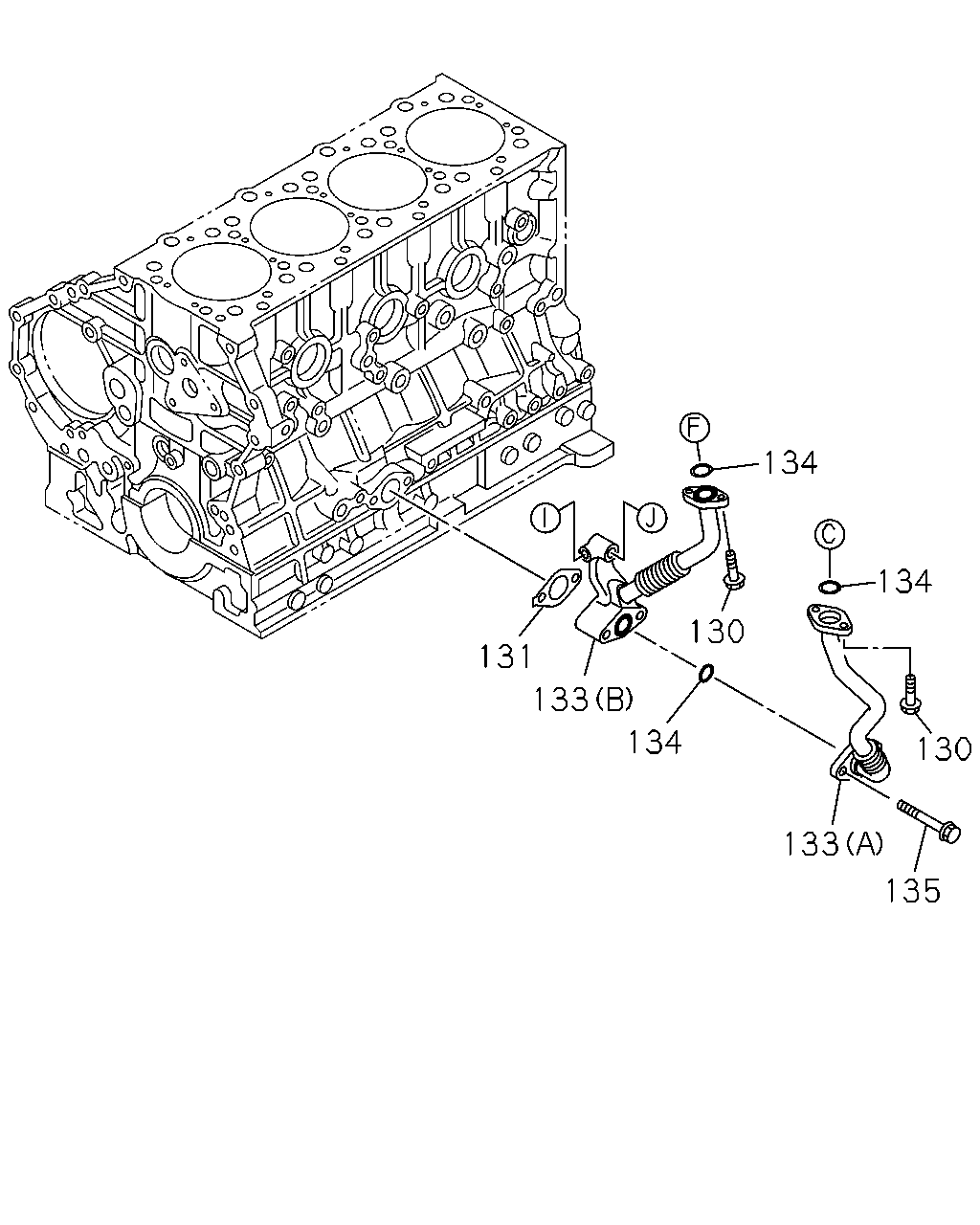

[036A] OIL DRAIN PIPE (6 parça)
[036A] BRACKET; TURBOCHARGER CONT UNIT (6 parça)

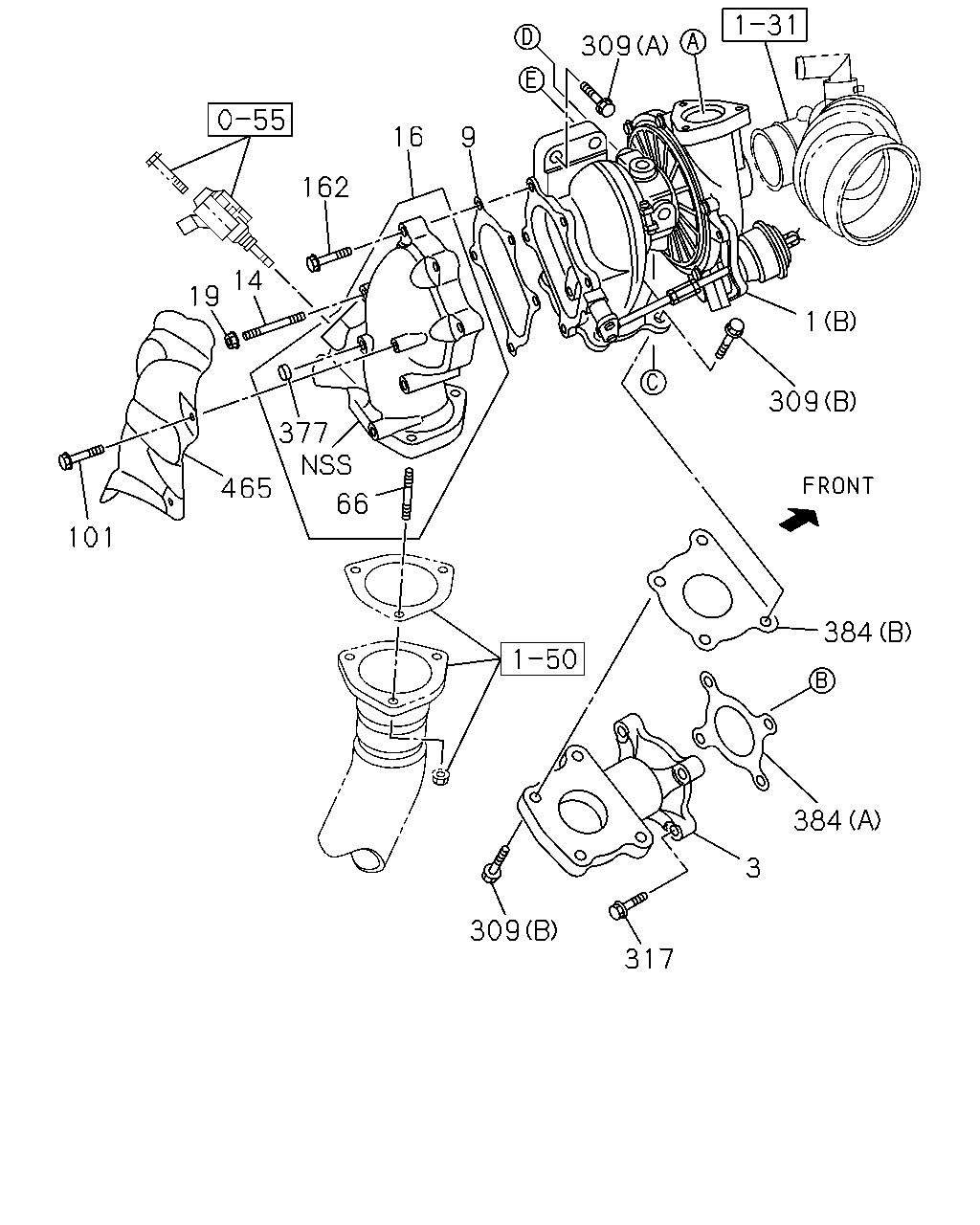

[036A] TURBOCHARGER ASM AND DUCT,LOW PRESSURE (19 parça)

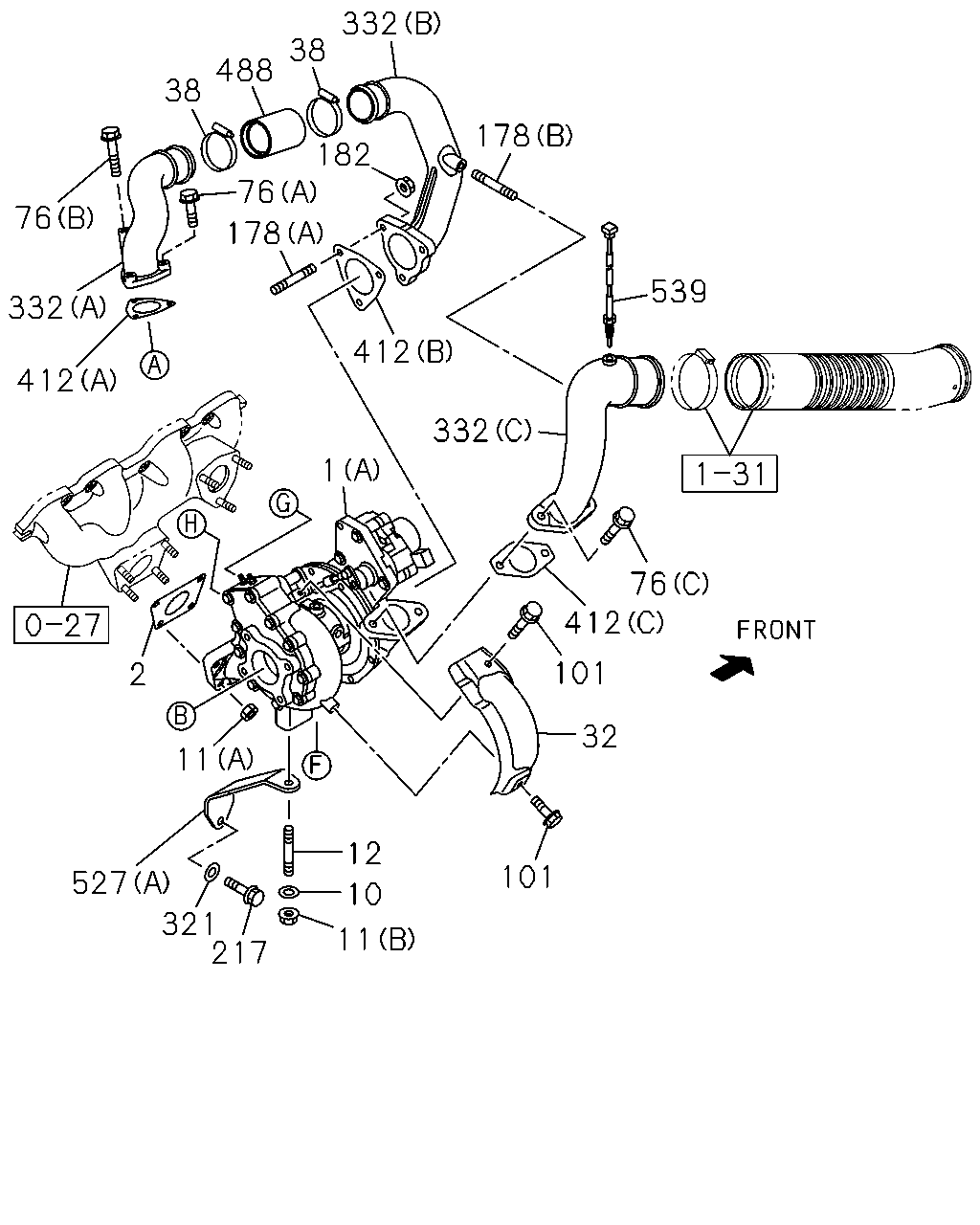

[036A] TURBOCHARGER ASM AND DUCT,HIGH PRESSURE (29 parça)

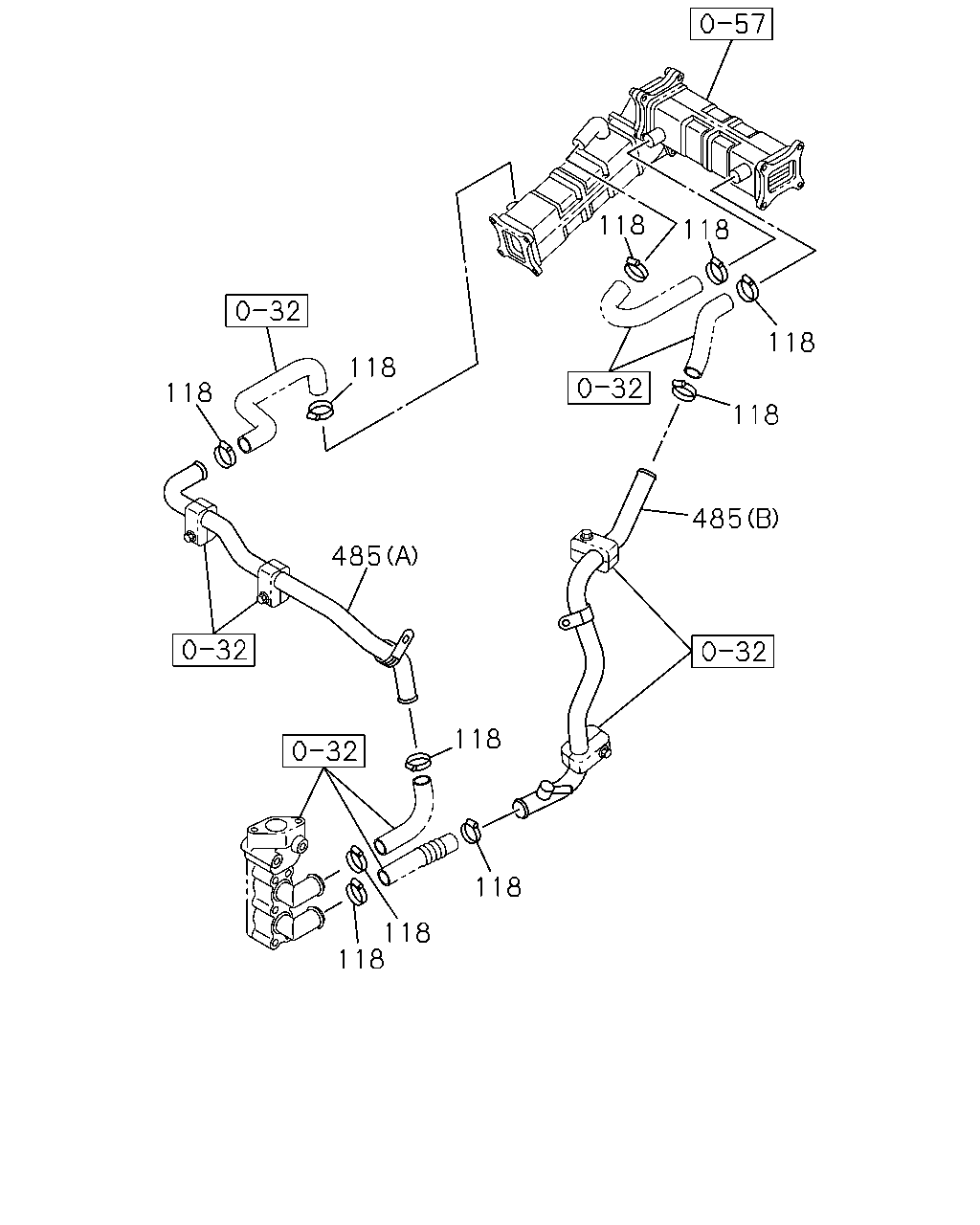

[036A] WATER PIPING NO.2 (9 parça)

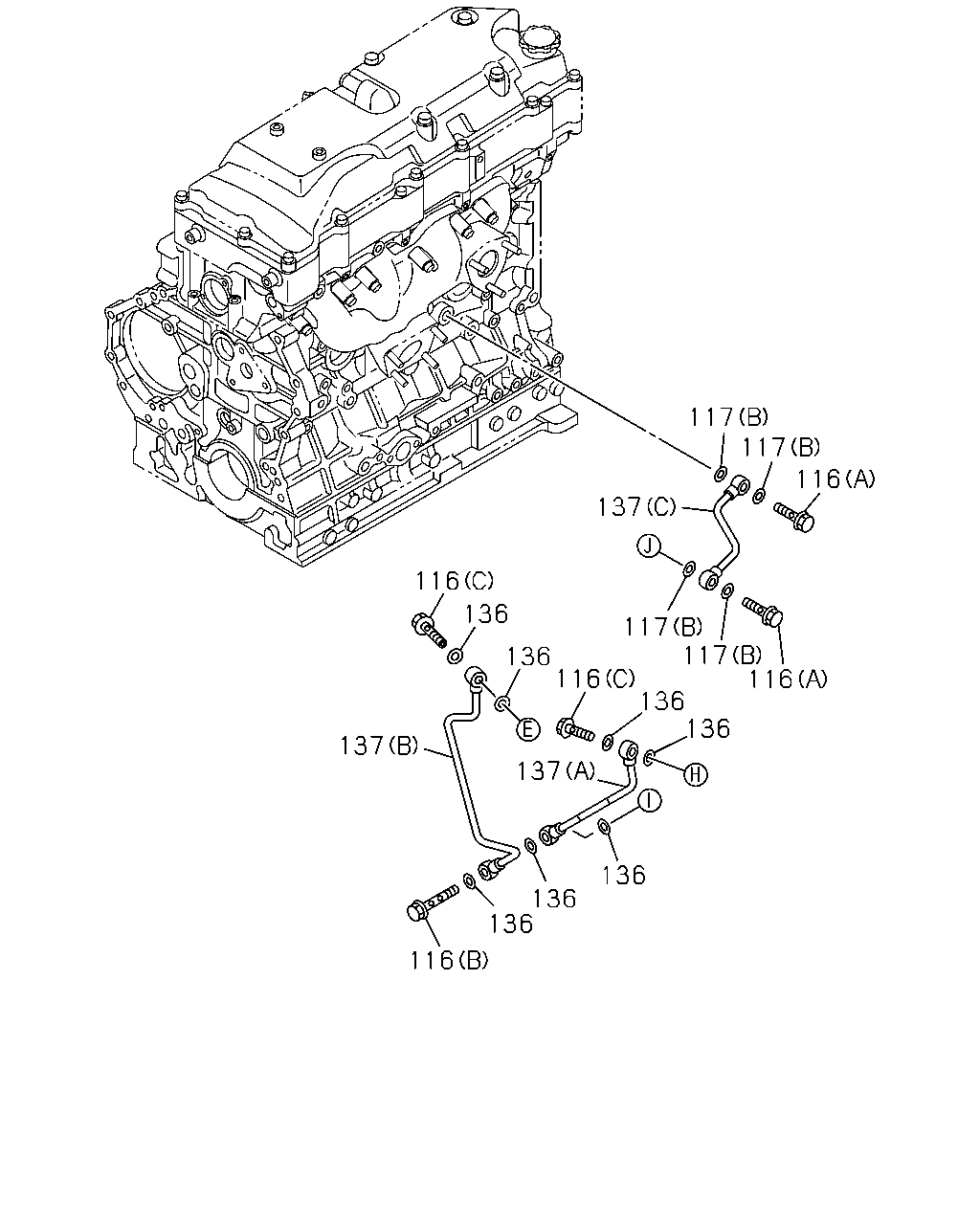

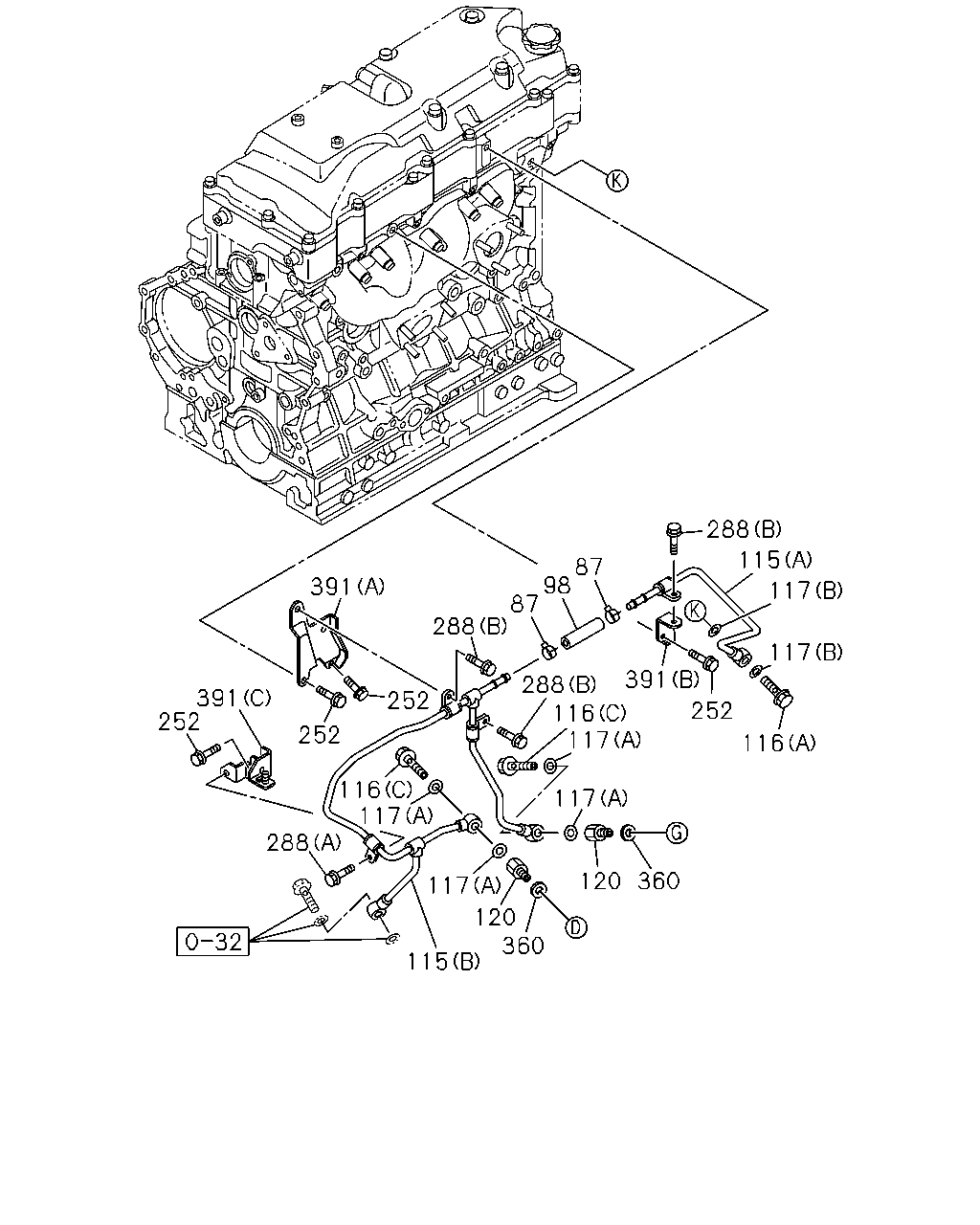

[036A] WATER PIPING NO.1 (17 parça)

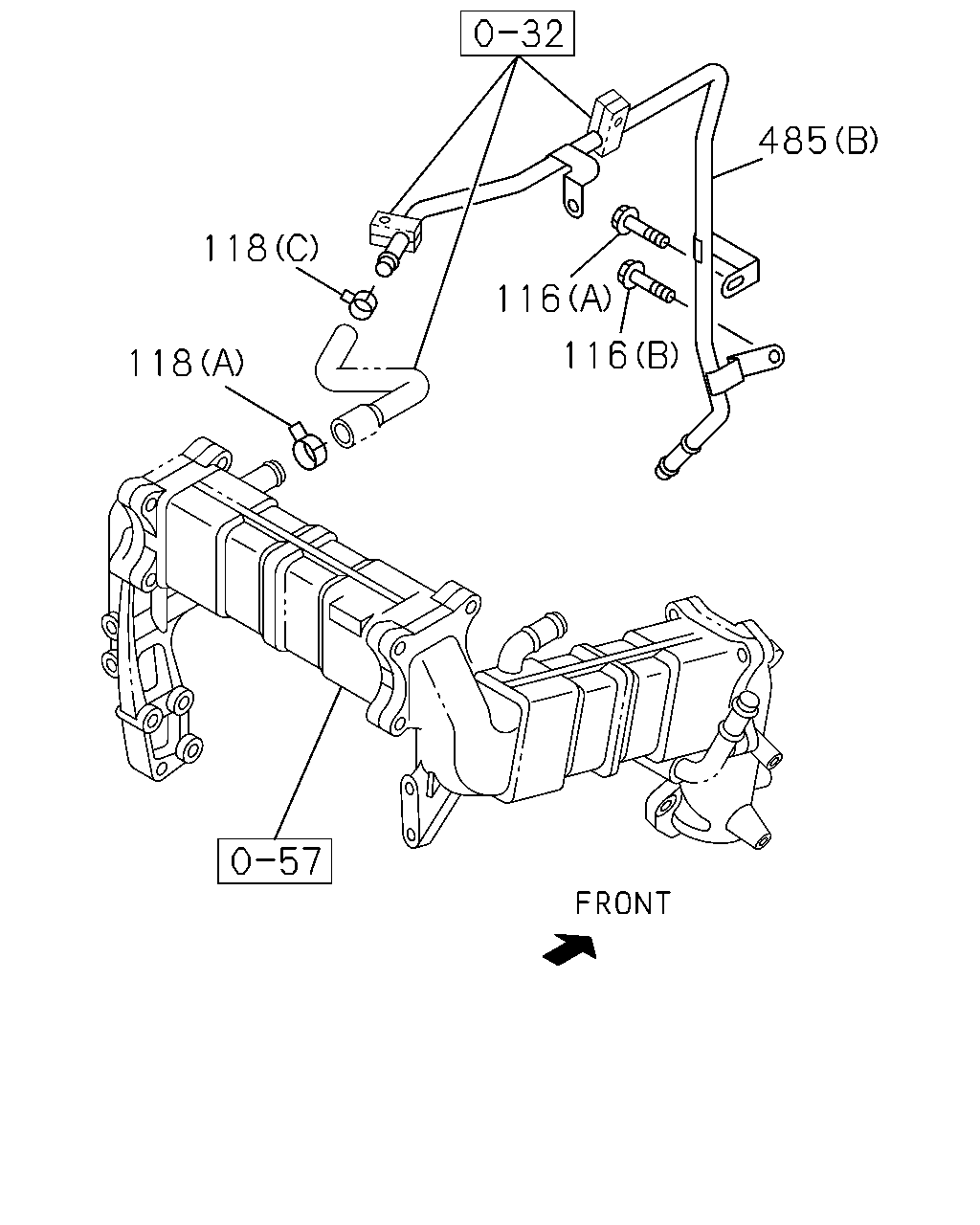

[036A] WATER PIPING; EGR (3 parça)
▶
134
134
130
131
133
134
130
133
135
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
130
BOLT; OIL PIPE TO TURBOCHARGER DRAIN
M6X20 W/LK WASHER
0-50540-620-0
04
1
1601-
131
GASKET; OIL PIPE,C/BL
ALSO INCLUDED IN GASKET SET(ENGINE). ID=30
8-94394-671-0
01
1
1601-
133
PIPE; OIL DRAIN,TURBOCHARGER
(A)
8-98165-229-0
01
1
1601-
133
PIPE; OIL DRAIN,TURBOCHARGER
(B)
8-98165-230-1
01
1
1601-
134
GASKET; OIL PIPE,TURBOCHARGER DRAIN
ALSO INCLUDED IN GASKET SET(ENGINE). ID=22.8
1-09623-462-0
03
1
1601-
135
BOLT; OIL PIPE TO C/BL
M8X60 FLANGE
0-28050-860-0
02
1
1601-
485
118
116
116
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
116
BOLT; WATER PIPE
(A) M14X27 FLANGE
1-09675-086-0
03
1
1601-
116
BOLT; WATER PIPE
(B) M12X41
1-09675-140-0
01
1
1601-
116
BOLT; WATER PIPE
(C) M12X27 EYE-BOLT W/FLANGE
8-98037-826-0
04
1
1601-
118
CLIP; WATER HOSE
ID=35
8-98253-522-0
10
1
1601-
485
PIPE; WATER EGR
(A)
8-98092-437-1
01
1
1601-
485
PIPE; WATER EGR
(B)
8-98106-637-1
01
1
1601-
66
465
101
377
19
14
162
16
9
309
1
309
384
384
3
317
309
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
(A) HIGH PRESSURE
8-98125-424-3
01
1
1601-
1
TURBOCHARGER ASM
(B) LOW PRESSURE SEE FIG-NO 0-37 FOR COMPONENT.
8-98125-425-4
01
1
1601-
3
PIPE; EXH,TURBOCHARGER
8-98111-421-1
01
1
1601-
9
GASKET; TURBOCHARGER TO EXH DUCT
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
8-98107-961-0
01
1
1601-
14
STUD; TURBOCHARGER TO EXH PIPE
M8X72 L=86
8-94155-869-0
02
1
1601-
16
ADAPTER; EXH PIPE
8-98113-214-2
01
1
1601-
19
NUT; EXH PIPE,TURBOCHARGER
M8 FLANGE
8-94170-486-0
02
1
1601-
66
STUD; EXH PIPE
M10X25 L=40
0-44011-025-0
03
1
1601-
101
BOLT; HEAT PROTECTOR
M6X10 FLANGE
0-28050-610-0
06
1
1601-
162
BOLT; ADAPTER
M8X35 FLANGE
8-98053-224-0
03
1
1601-
309
BOLT; TURBOCHARGER
(A) M10X30 FLANGE
0-28151-030-0
02
1
1601-
309
BOLT; TURBOCHARGER
(D) M6X20 FLANGE
0-28650-620-0
02
1
1601-
309
BOLT; TURBOCHARGER
(C) M8X25 FLANGE
0-28650-825-0
01
1
1601-
309
BOLT; TURBOCHARGER
(B) M10X30 FLANGE
8-98032-158-0
04
1
1601-
317
BOLT; EXH PIPE
M10X30 FLANGE
8-98032-158-0
04
1
1601-
377
PLUG; TAPER
OD=18
5-11219-008-0
02
1
1601-
384
GASKET; EXH PIPE
(A) ID=57
8-98107-963-1
01
1
1601-
384
GASKET; EXH PIPE
(B) ID=53
8-98107-964-1
01
1
1601-
465
PROTECTOR; HEAT,EXH ADAPTER
8-98072-600-0
01
1
1601-
412
332
76
38
76
178
488
38
332
182
178
412
539
332
76
412
101
32
101
11
10
12
217
321
527
11
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
TURBOCHARGER ASM
(A) HIGH PRESSURE
8-98125-424-3
01
1
1601-
1
TURBOCHARGER ASM
(B) LOW PRESSURE SEE FIG-NO 0-37 FOR COMPONENT.
8-98125-425-4
01
1
1601-
2
GASKET; TURBOCHARGER TO EXH MANIF
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=53
8-98107-959-1
01
1
1601-
10
WASHER; LK,TURBOCHARGER
ID=11 OD=24
8-94152-902-0
01
1
1601-
11
NUT; TURBOCHARGER
(C) M6 FLANGE
0-91180-106-0
02
1
1601-
11
NUT; TURBOCHARGER
(B) M10 FLANGE
0-91280-210-0
01
1
1601-
11
NUT; TURBOCHARGER
(A) M10 FLANGE
8-97381-617-0
04
1
1601-
12
STUD; TURBOCHARGER
M10X30 L=42
8-97378-070-0
01
1
1601-
32
PROTECTOR; HEAT,TURBOCHARGER
8-98108-540-2
01
1
1601-
38
CLIP; RUBBER HOSE
ID=60-65
8-98096-418-0
02
1
1601-
76
BOLT; AIR DUCT
(A) M6X35 FLANGE
0-28050-635-0
02
1
1601-
76
BOLT; AIR DUCT
(B) M6X80 FLANGE
0-28050-680-0
01
1
1601-
76
BOLT; AIR DUCT
(C) M10X30 FLANGE
0-28151-030-0
02
1
1601-
101
BOLT; HEAT PROTECTOR
M6X10 FLANGE
0-28050-610-0
06
1
1601-
178
STUD; DUCT
(A) M8X28 L=40
0-41010-828-0
03
1
1601-
178
STUD; DUCT
(B) M8X12,M8X30 L=50
8-98028-225-0
01
1
1601-
182
NUT; DUCT
M8 FLANGE
0-91180-108-0
03
1
1601-
217
BOLT; BRKT
M10X25 FLANGE
0-28151-025-0
01
1
1601-
321
WASHER; LK,BRKT
ID=11 OD=24
8-94152-902-0
01
1
1601-
332
DUCT; AIR,TURBOCHARGER
(A)
8-98110-773-2
01
1
1601-
332
DUCT; AIR,TURBOCHARGER
(B)
8-98110-774-1
01
1
1601-
332
DUCT; AIR,TURBOCHARGER
(C)
8-98110-775-3
01
1
1601-
412
GASKET; TURBOCHAGER
(A) ID=47
8-97202-328-1
01
1
1601-
412
GASKET; TURBOCHAGER
(B) ID=58
8-98107-958-0
01
1
1601-
412
GASKET; TURBOCHAGER
(C) ID=56
8-98107-962-0
01
1
1601-
488
HOSE; RUBBER
ID=47 L=73
8-98137-470-1
01
1
1601-
527
BRACKET; TURBOCHARGER
(A)
8-98133-448-0
01
1
1601-
527
BRACKET; TURBOCHARGER
(B)
8-98278-938-0
01
1
1601-
539
SENSOR; TURBOCHARGER
8-98028-398-0
01
1
1601-
117
117
116
137
117
117
116
136
136
116
136
136
116
137
137
136
136
136
116
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
116
BOLT; WATER PIPE
(A) M14X27 FLANGE
1-09675-086-0
03
1
1601-
116
BOLT; WATER PIPE
(B) M12X41
1-09675-140-0
01
1
1601-
116
BOLT; WATER PIPE
(C) M12X27 EYE-BOLT W/FLANGE
8-98037-826-0
04
1
1601-
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2
9-09571-412-0
04
1
1601-
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0
9-09571-414-0
06
1
1601-
136
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). ID=12.2
9-09571-412-0
07
1
1601-
137
PIPE; WATER,TURBOCHARGER IN
(A)
8-98142-518-0
01
1
1601-
137
PIPE; WATER,TURBOCHARGER IN
(B)
8-98142-519-0
01
1
1601-
137
PIPE; WATER,TURBOCHARGER IN
(C)
8-98144-273-0
01
1
1601-
391
288
87
98
87
288
115
117
117
391
252
116
288
116
117
252
252
391
252
288
116
117
117
120
115
360
117
120
360
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
87
CLIP; RUBBER HOSE FIX
ID=12.8
8-94367-943-0
02
1
1601-
98
HOSE; RUBBER,TURBOCHARGER OUTLET
L=100
0-03609-100-0
01
1
1601-
115
PIPE; WATER,TURBOCHARGER OUT
(B)
8-98142-520-0
01
1
1601-
115
PIPE; WATER,TURBOCHARGER OUT
(A)
8-98179-982-0
01
1
1601-
116
BOLT; WATER PIPE
(A) M14X27 FLANGE
1-09675-086-0
03
1
1601-
116
BOLT; WATER PIPE
(B) M12X41
1-09675-140-0
01
1
1601-
116
BOLT; WATER PIPE
(C) M12X27 EYE-BOLT W/FLANGE
8-98037-826-0
04
1
1601-
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=12.2
9-09571-412-0
04
1
1601-
117
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0
9-09571-414-0
06
1
1601-
120
ADAPTER; WATER
8-98151-834-0
02
1
1601-
252
BOLT; BRKT
M8X16 FLANGE
0-28050-816-0
04
1
1601-
288
BOLT; WATER PIPE CLIP
(A) M6X12 FLANGE
0-28050-612-0
01
1
1601-
288
BOLT; WATER PIPE CLIP
(B) M8X12 FLANGE
0-28050-812-0
03
1
1601-
360
GASKET; ADAPTER TO TURBOCHARGER
T=2.5
8-94472-584-1
02
1
1601-
391
BRACKET; WATER PIPE
(A)
8-98107-156-0
01
1
1601-
391
BRACKET; WATER PIPE
(B)
8-98107-157-0
01
1
1601-
391
BRACKET; WATER PIPE
(C)
8-98107-382-1
01
1
1601-
118
118
118
118
485
118
118
485
118
118
118
118
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
118
CLIP; WATER HOSE
ID=35
8-98253-522-0
10
1
1601-
485
PIPE; WATER EGR
(A)
8-98092-437-1
01
1
1601-
485
PIPE; WATER EGR
(B)
8-98106-637-1
01
1
1601-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
