Isuzu WW
▶
TRUCKS
▶
FSS
▶
11722 - FSS AUST/NZ JNLT09
▶
0 - Engine, Emission, Engine Electrical
▶
0-32 - WATER PIPING; ENGINE
▶
0-32 — WATER PIPING; ENGINE
(#175778) — 42 parça
◀

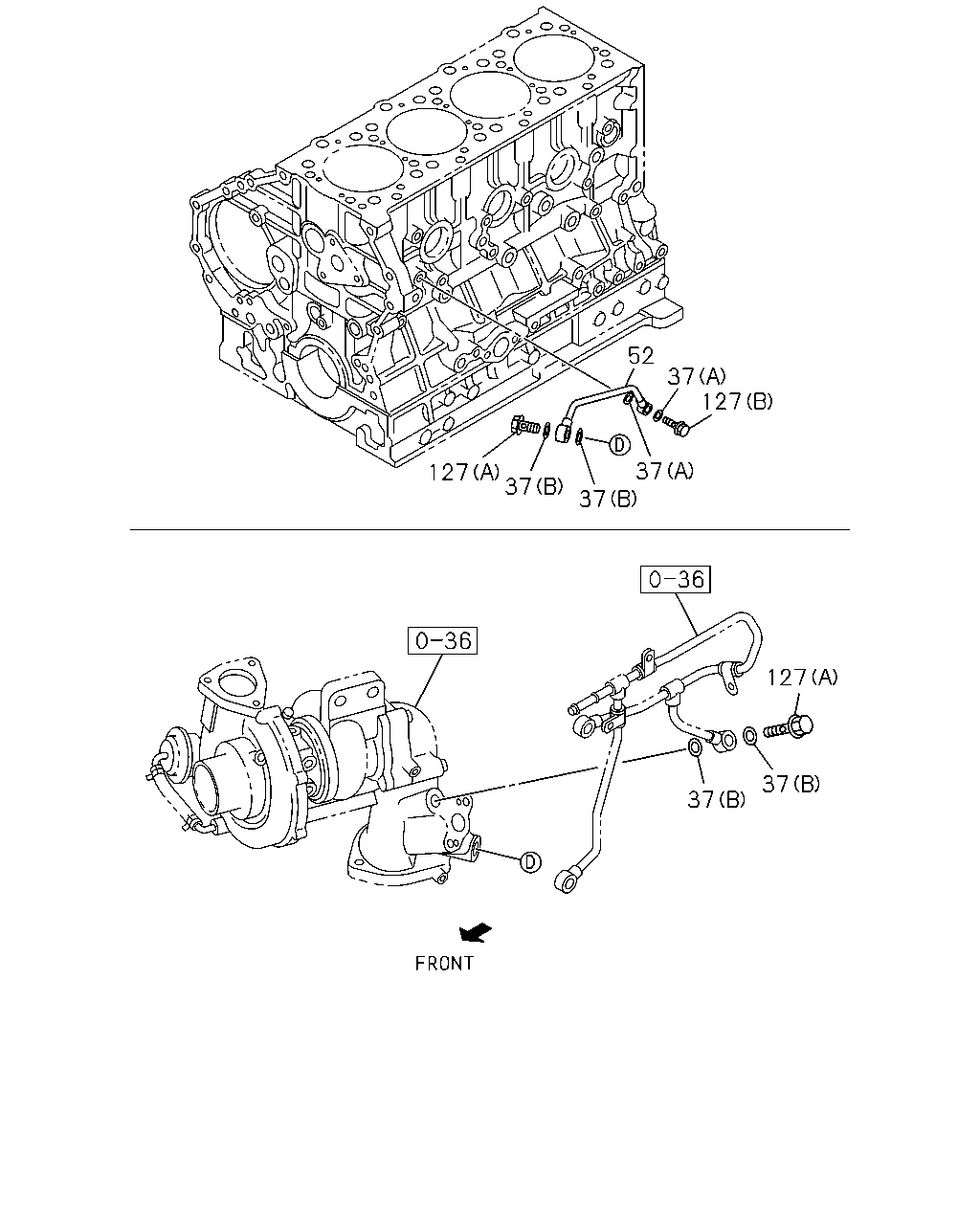

[032A] PIPING; WATER FEED (5 parça)

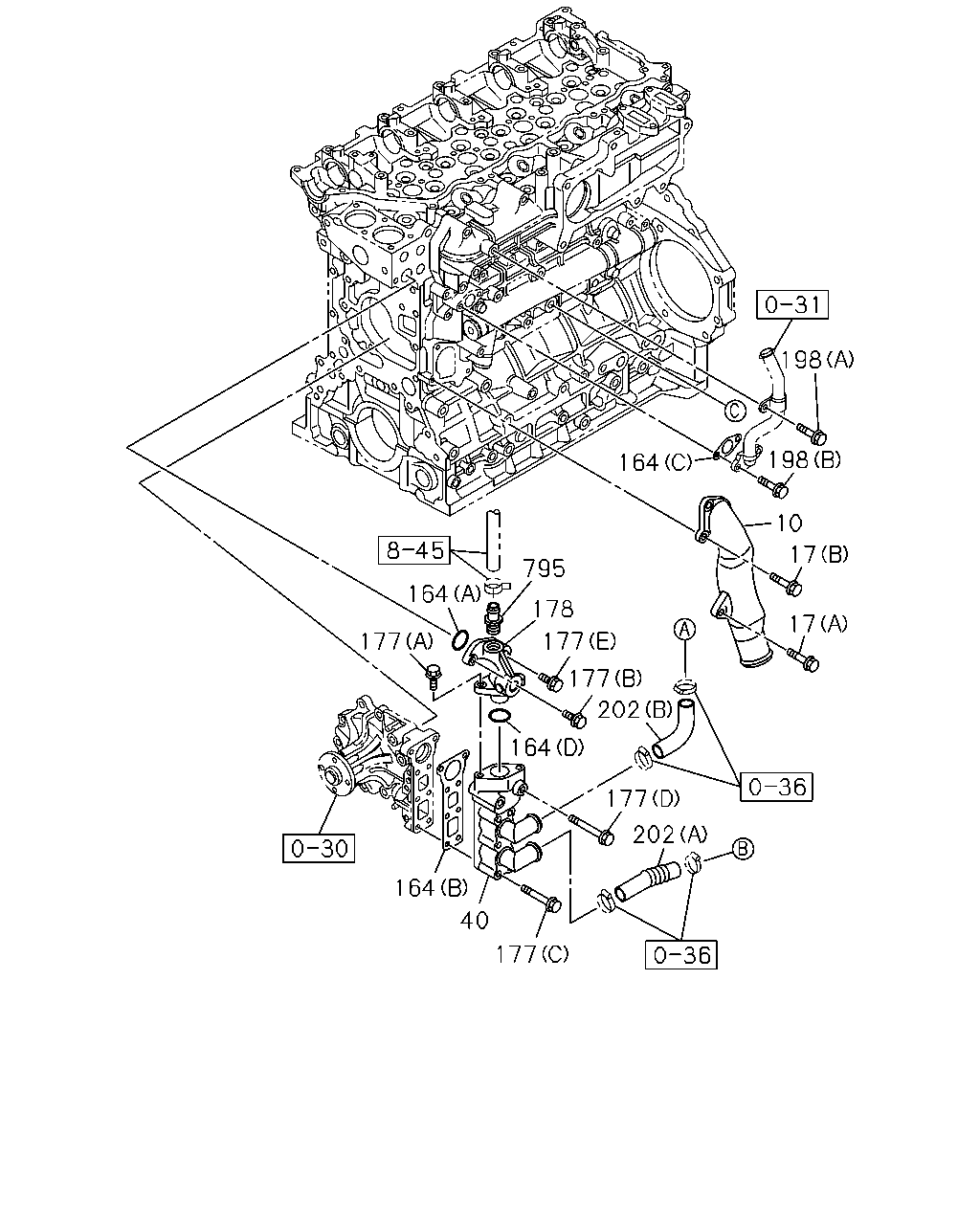

[032A] SUCTION PIPE AND WATER DUCT (22 parça)

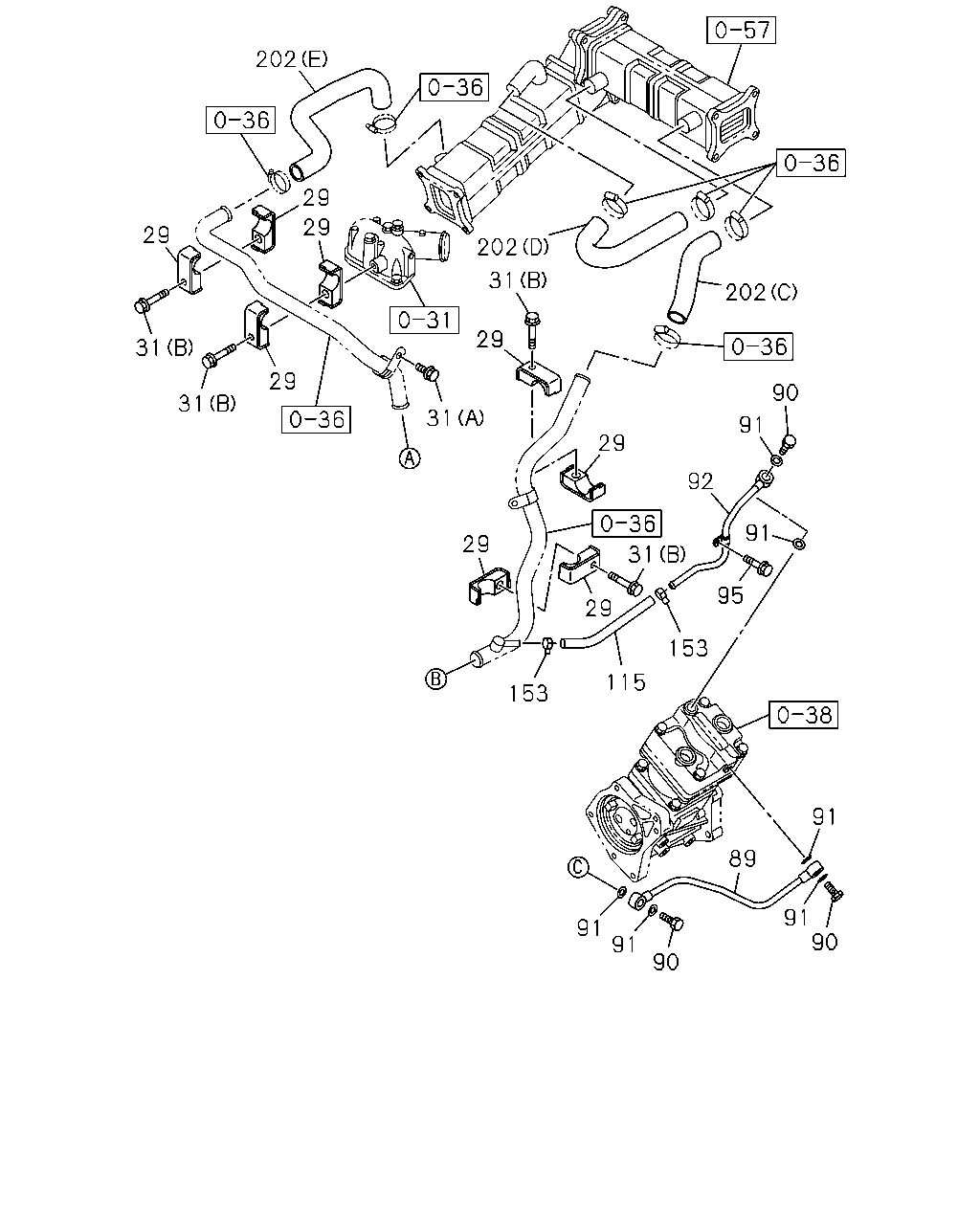

[032A] PIPING; AIR COMPRESSOR (15 parça)
▶
127
52
37
37
37
37
127
127
37
37
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
37
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=10.2 OD=16.0
9-09571-410-0
02
1
1601-
37
GASKET; WATER PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=14.2 OD=20.0
9-09571-414-0
04
1
1601-
52
PIPE; WATER FEED
8-98107-152-0
01
1
1601-
127
BOLT; EYE
(A) M14X27 FLANGE
1-09675-086-0
02
1
1601-
127
BOLT; EYE
(B) M10X23
8-98037-824-0
01
1
1601-
164
164
177
164
177
40
202
177
202
164
177
177
178
17
198
10
17
795
198
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
10
PIPE; SUCTION
8-98238-933-1
01
1
1601-
17
BOLT; SUCTION PIPE
(A) M10X25 FLANGE
0-28151-025-0
01
1
1601-
17
BOLT; SUCTION PIPE
(B) M8X48 FLANGE
8-94458-473-1
01
1
1601-
40
DUCT; WATER
8-98287-948-0
01
1
1601-
164
GASKET
(B)
8-98092-274-0
01
1
1601-
164
GASKET
(C) ID=23.2
8-98096-166-0
01
1
1601-
164
GASKET
(A) ID=31.2
8-98276-756-0
01
1
1601-
164
GASKET
(D) ID=35.2
8-98296-500-0
01
1
1601-
177
BOLT; WATER DUCT
(A) M8X20 FLANGE
0-28050-820-0
02
1
1601-
177
BOLT; WATER DUCT
(B) M8X25 FLANGE
0-28050-825-0
01
1
1601-
177
BOLT; WATER DUCT
(C) M8X60 FLANGE
0-28050-860-0
06
1
1601-
177
BOLT; WATER DUCT
(D) M8X80 FLANGE
0-28050-880-0
02
1
1601-
177
BOLT; WATER DUCT
(E) M16X40 FLANGE
8-97359-817-0
01
1
1601-
178
DUCT; WATER,BYPASS
8-98287-952-0
01
1
1601-
198
BOLT; PIPE
(A) M8X12 FLANGE
0-28050-812-0
01
1
1601-
198
BOLT; PIPE
(B) M8X20 FLANGE
0-28050-820-0
02
1
1601-
202
HOSE; RUBBER,EGR COOLER
(A)
8-98096-660-0
01
1
1601-
202
HOSE; RUBBER,EGR COOLER
(B)
8-98096-661-0
01
1
1601-
202
HOSE; RUBBER,EGR COOLER
(C)
8-98096-831-0
01
1
1601-
202
HOSE; RUBBER,EGR COOLER
(D)
8-98112-202-2
01
1
1601-
202
HOSE; RUBBER,EGR COOLER
(E)
8-98112-203-2
01
1
1601-
795
JOINT; PIPE,HEATER
8-94396-180-0
01
1
1601-
202
29
31
31
29
31
29
29
153
115
29
31
153
95
91
92
91
90
89
91
91
90
91
90
91
202
29
31
202
29
29
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
29
CLIP; PIPE
ID=24.5 L=22
8-97603-362-1
08
1
1601-
31
BOLT; CLIP
(A) M8X16 FLANGE
0-28050-816-0
01
1
1601-
31
BOLT; CLIP
(B) M8X50 FLANGE
0-28050-850-0
04
1
1601-
89
PIPE; WATER,AIR CMPR,IN
8-98106-330-0
01
1
1601-
90
BOLT; EYE,WATER PIPE,AIR CMPR
M14X27 EYE-BOLT
1-09675-193-0
03
1
1601-
91
GASKET; WATER PIPE,AIR CMPR
ALSO INCLUDED IN GASKET SET(ENG. & HEAD) ID=14.2 OD=19.2
8-98251-345-0
06
1
1601-
92
PIPE; WATER,AIR CMPR,OUT
8-98106-331-2
01
1
1601-
95
BOLT; CLIP
M6X16 FLANGE
0-28050-616-0
01
1
1601-
115
HOSE; RUBBER
8-98153-121-1
01
1
1601-
153
CLIP; RUBBER HOSE
ID=12.8
8-94367-943-0
02
1
1601-
202
HOSE; RUBBER,EGR COOLER
(A)
8-98096-660-0
01
1
1601-
202
HOSE; RUBBER,EGR COOLER
(B)
8-98096-661-0
01
1
1601-
202
HOSE; RUBBER,EGR COOLER
(C)
8-98096-831-0
01
1
1601-
202
HOSE; RUBBER,EGR COOLER
(D)
8-98112-202-2
01
1
1601-
202
HOSE; RUBBER,EGR COOLER
(E)
8-98112-203-2
01
1
1601-
