◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSS ▶ 11722 - FSS AUST/NZ JNLT09 ▶ 0 - Engine, Emission, Engine Electrical ▶ 0-15 - CRANKSHAFT,PISTON AND FLYWHEEL ▶
0-15 — CRANKSHAFT,PISTON AND FLYWHEEL (#175770) — 30 parça

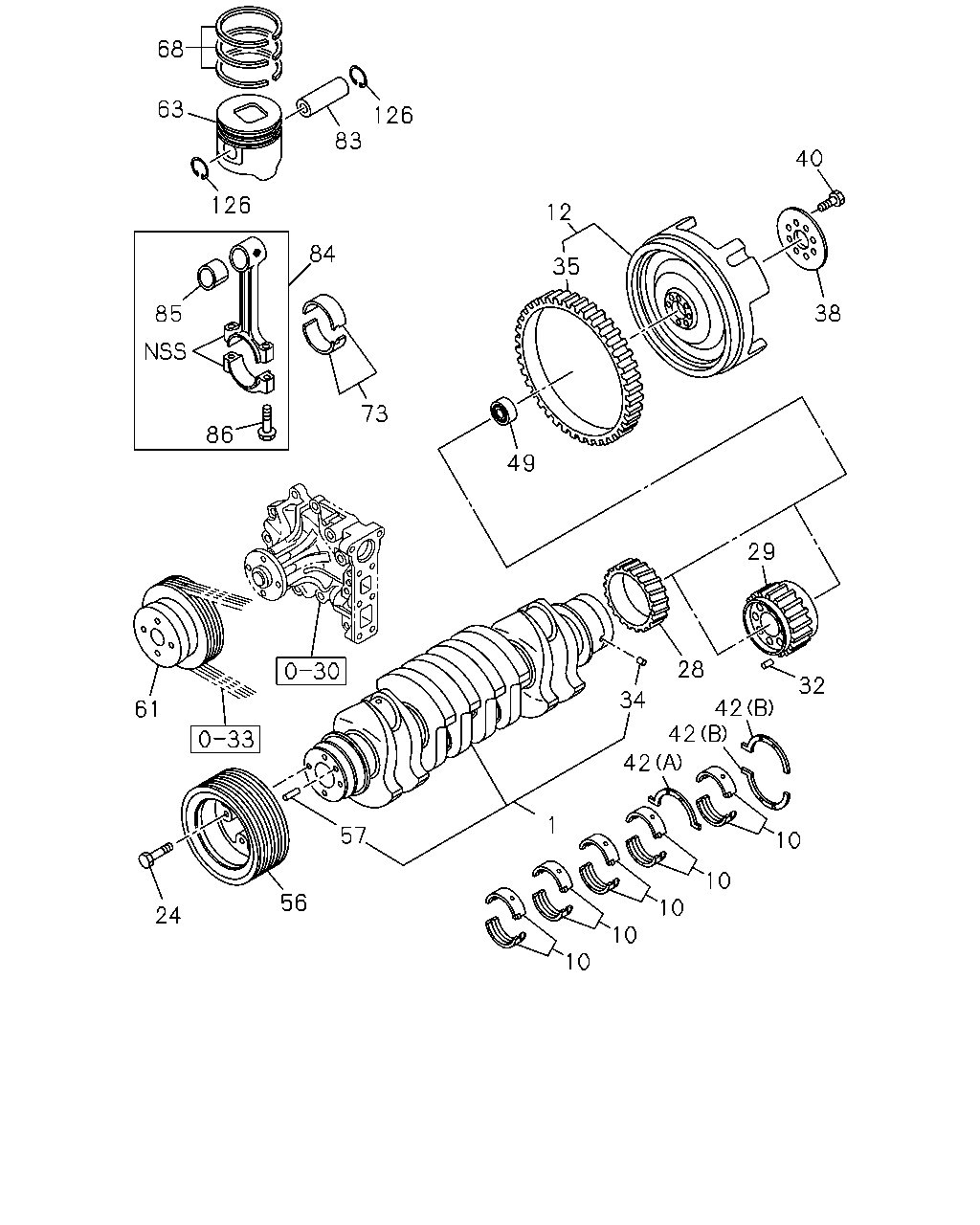

çizim 512097
68 63 126 85 86 84 73 61 24 56 57 83 126 49 12 35 1 42 34 28 42 42 29 32 10 10 10 10 10 38 40
BalonParca AdiParca NoAdetTipApplied Date
1 CRANKSHAFT 8-98182-542-2 01 1 1601-
10 METAL SET; CRANKSHAFT,STANDARD
RED 		8-98236-440-0 05 1 1601-
10 METAL SET; CRANKSHAFT,STANDARD
GREEN 		8-98236-441-0 05 1 1601-
10 METAL SET; CRANKSHAFT,STANDARD
YELLOW 		8-98236-442-0 05 1 1601-
12 FLYWHEEL 8-98225-389-1 01 1 1601-
24 BOLT; DAMPER
M16X42 		8-97028-733-0 04 1 1601-
28 GEAR; CR/SHF
Z=42 		8-94394-342-4 01 1 1601-
29 GEAR; CR/SHF,PTO
POWER TAKE OFF-FLYWHEEL(6SZ) Z=42 		8-98011-443-1 01 1 1601-
32 PIN; FLYWHEEL
POWER TAKE OFF-FLYWHEEL(6SZ) OD=8 L=20 		9-08150-820-0 01 1 1601-
34 PIN; GEAR SETTING
OD=5 L=6 		9-09878-626-0 01 1 1601-
35 GEAR; RING
Z=140 		8-98225-395-0 01 1 1601-
38 WASHER; FLYWHEEL
ID=55 OD=110 		8-94397-496-1 01 1 1601-
40 BOLT; FLYWHEEL
POWER TAKE OFF-FLYWHEEL(6SZ) M16X99 		8-97113-000-0 08 1 1601-
40 BOLT; FLYWHEEL
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) M16X42 		8-97178-013-0 08 1 1601-
42 WASHER; THRUST,CR/SHF
(A) 		8-97386-548-0 01 1 1601-
42 WASHER; THRUST,CR/SHF
(B) 		8-97386-549-0 02 1 1601-
49 BEARING; PILOT 8-97258-239-0 01 1 1601-
49 BEARING; PILOT
BEST VALUE PARTS 		5-87610-164-0 01 1 1601-
56 PULLEY; CR/SHF DAMPER
3-GROOVE 		8-98072-735-1 01 1 1601-
57 PIN; PULLEY
OD=8 L=20 		9-08150-820-0 02 1 1601-
61 PULLEY; FAN DRIVE
1-GROOVE 		8-98003-384-1 01 1 1601-
63 PISTON
NON GRADE 		8-98198-922-0 04 1 1601-
68 RING SET; PISTON,STANDARD 8-98167-539-0 04 1 1601-
73 METAL SET; CONN ROD,STANDARD
BLUE 		8-98244-718-0 04 1 1601-
73 METAL SET; CONN ROD,STANDARD
BLACK 		8-98244-719-0 04 1 1601-
83 PIN; PISTON 8-98043-431-0 04 1 1601-
84 ROD ASM; CONN 8-98228-271-1 04 1 1601-
85 BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING. 		8-98105-718-0 04 1 1601-
86 BOLT; CONNROD
M13X57 FLANGE 		8-98091-141-0 08 1 1601-
126 RING; SNAP,PISTON PIN 8-98063-132-0 08 1 1601-
