8-01 — LAMP; FRONT AND FRONT SIDE (#17577) — 108 parça

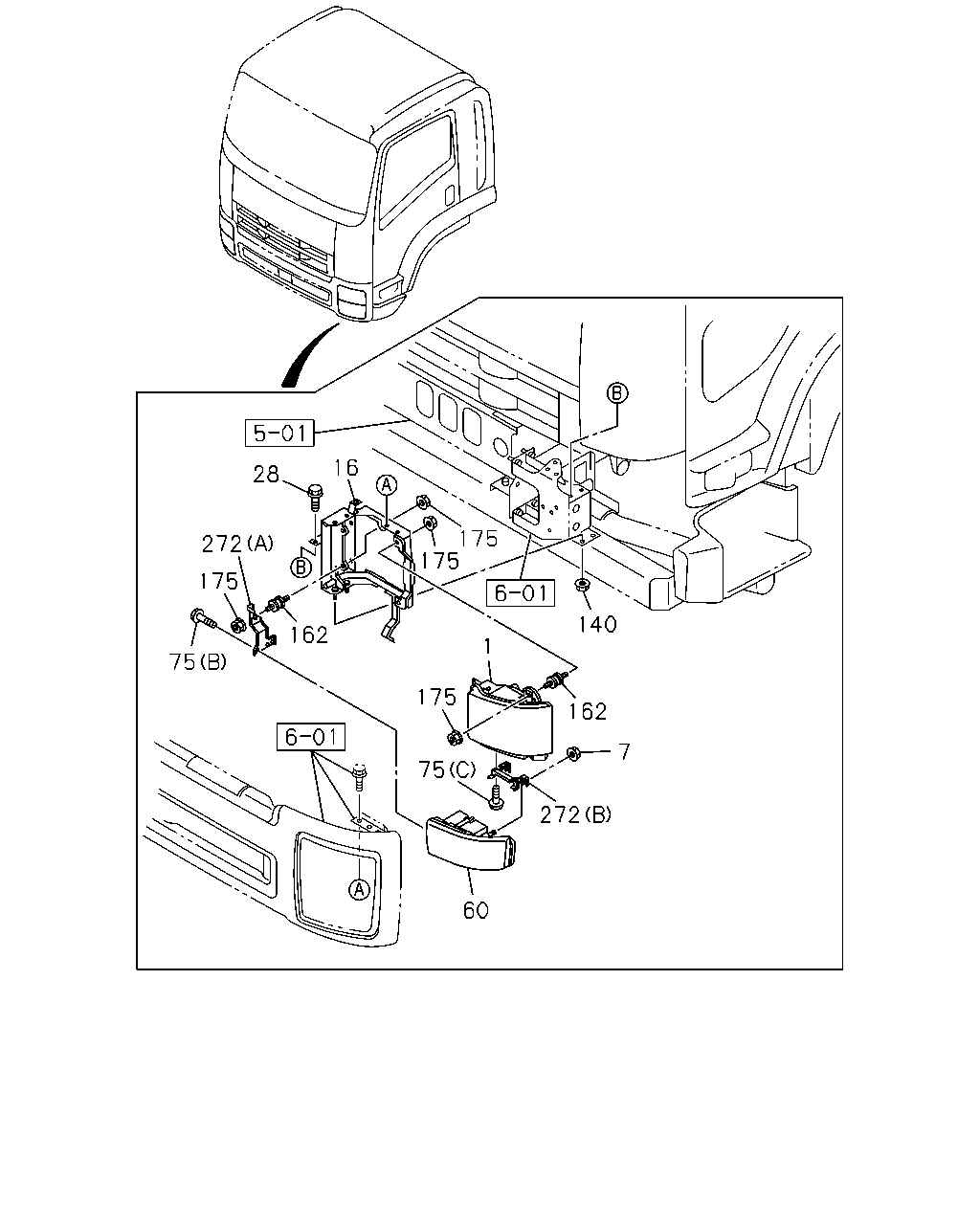

16 28 175 175 272 175 140 162 1 75 175 162 7 75 272 60

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-478-1	01	1	1001-1108
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-580-0	01	1	1109-1208
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1209-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-477-1	01	1	1001-1108
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-579-0	01	1	1109-1208
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1209-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	1001-1108
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-582-0	01	1	1109-1208
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1209-1305
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	1001-1108
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-581-0	01	1	1109-1208
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1209-1305
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-
7	NUT; FRT COMB LAMP M6 FLANGE SOU	0-91180-106-0	04	1	1001-
16	BRACKET; HEADLAMP	8-98013-015-2	01	1	1001-
16	BRACKET; HEADLAMP	8-98013-016-2	01	1	1001-
28	BOLT; HEADLAMP M10X25 FLANGE SOU	0-28651-025-0	04	1	1001-
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98047-053-2	01	1	1001-1302
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-631-0	01	1	1303-
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98047-052-2	01	1	1001-1302
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-630-0	01	1	1303-
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98146-231-1	01	1	1001-1302
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-633-0	01	1	1303-
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98146-230-1	01	1	1001-1302
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-632-0	01	1	1303-
75	SCREW; FRT COMB LAMP (B) M6X16 FLANGE SOU	0-28650-616-0	04	1	1001-
75	SCREW; FRT COMB LAMP (C) M5X16 TAPPING W/PL WASHER SOU	0-74360-516-0	06	1	1001-
75	SCREW; FRT COMB LAMP FOG LAMP<T96> (A)	8-98074-439-0	02	1	1001-
140	NUT M10 FLANGE SOU	0-91180-210-0	04	1	1001-
162	RUBBER; CUSHION UPR	1-82117-086-0	08	1	1001-
175	NUT; BRKT CUSHION RUBBER M8 FLANGE SOU	0-91180-108-0	16	1	1001-
272	BRACKET; FRT COMB LAMP (A)	8-98051-935-0	01	1	1001-
272	BRACKET; FRT COMB LAMP (B)	8-98051-938-0	01	1	1001-
272	BRACKET; FRT COMB LAMP (A)	8-98051-934-0	01	1	1001-
272	BRACKET; FRT COMB LAMP (B)	8-98051-937-0	01	1	1001-

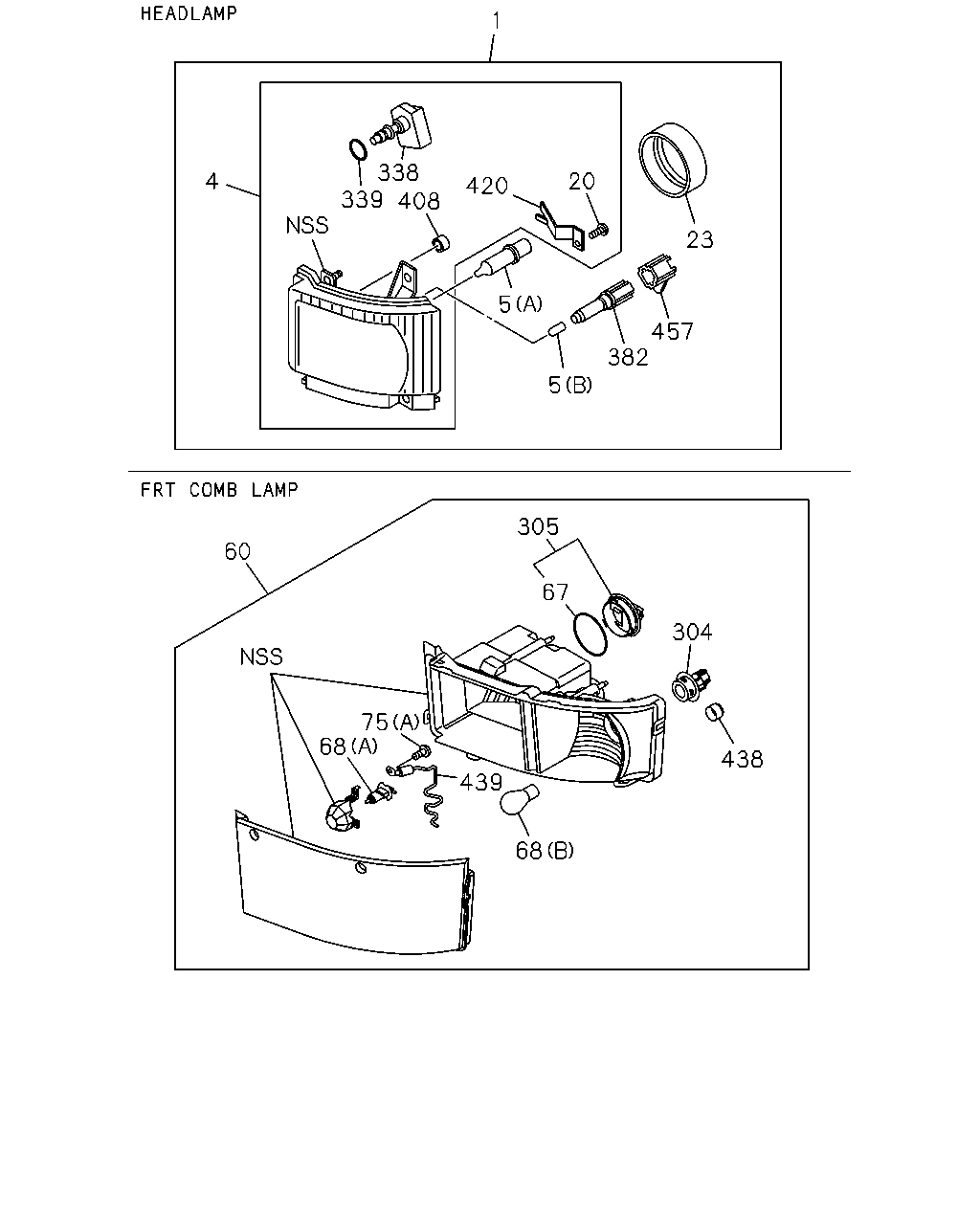

1 4 339 338 408 420 20 5 5 382 457 23 305 67 60 75 68 439 68 304 438

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-478-1	01	1	1001-1108
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-580-0	01	1	1109-1208
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-621-0	01	1	1209-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-313-0	01	1	1306-
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-477-1	01	1	1001-1108
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-579-0	01	1	1109-1208
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-620-0	01	1	1209-1305
1	LAMP ASM; HEAD HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-312-0	01	1	1306-
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-480-1	01	1	1001-1108
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-582-0	01	1	1109-1208
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-619-0	01	1	1209-1305
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-311-0	01	1	1306-
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98098-479-1	01	1	1001-1108
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98193-581-0	01	1	1109-1208
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98225-618-0	01	1	1209-1305
1	LAMP ASM; HEAD EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98241-310-0	01	1	1306-
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-399-0	01	1	1001-1108
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-567-0	01	1	1109-
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-398-0	01	1	1001-1108
4	HEADLAMP UNIT HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-566-0	01	1	1109-
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-401-0	01	1	1001-1108
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-565-0	01	1	1109-
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98051-400-0	01	1	1001-1108
4	HEADLAMP UNIT EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98199-564-0	01	1	1109-
5	BULB; HEADLAMP (B) 24V 5W SOU	1-82194-042-0	02	1	1001-
5	BULB; HEADLAMP (A) 24V 75/70W	1-82194-063-0	02	1	1001-
20	SCREW; HEADLAMP	8-97378-871-0	06	1	1001-
23	COVER; BULB,HEADLAMP	8-97232-491-0	02	1	1001-
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98047-053-2	01	1	1001-1302
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-631-0	01	1	1303-
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98047-052-2	01	1	1001-1302
60	LAMP ASM; FRT COMB FOG LAMP<T96>	8-98238-630-0	01	1	1303-
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98146-231-1	01	1	1001-1302
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-633-0	01	1	1303-
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98146-230-1	01	1	1001-1302
60	LAMP ASM; FRT COMB EXC. FOG LAMP<T96>	8-98238-632-0	01	1	1303-
67	GASKET; FRT COMB LAMP	8-98238-656-0	02	1	1303-
68	BULB; FRT COMB LAMP (B) 24V 21W	8-98051-495-0	02	1	1001-
68	BULB; FRT COMB LAMP FOG LAMP<T96> (A) 24V 70W	1-82194-106-0	02	1	1001-
75	SCREW; FRT COMB LAMP (B) M6X16 FLANGE SOU	0-28650-616-0	04	1	1001-
75	SCREW; FRT COMB LAMP (C) M5X16 TAPPING W/PL WASHER SOU	0-74360-516-0	06	1	1001-
75	SCREW; FRT COMB LAMP FOG LAMP<T96> (A)	8-98074-439-0	02	1	1001-
304	PLUG; SOCKET,FRT COMB LAMP	8-98051-390-0	02	1	1001-
305	COVER; FRT COMB LAMP FOG LAMP<T96>	8-98074-440-0	02	1	1001-1302
305	COVER; FRT COMB LAMP FOG LAMP<T96>	8-98240-559-0	02	1	1303-
305	COVER; FRT COMB LAMP EXC. FOG LAMP<T96>	8-98051-392-0	02	1	1001-1302
305	COVER; FRT COMB LAMP EXC. FOG LAMP<T96>	8-98240-560-0	02	1	1303-
338	LEVELING; HEADLAMP HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	8-98010-256-0	02	1	1109-
339	GASKET; LEVELING HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6>	1-86830-158-0	02	1	1109-
382	PLUG; SOCKET,HEADLAMP	8-98069-364-0	02	1	1001-1208
382	PLUG; SOCKET,HEADLAMP	8-98225-685-0	02	1	1209-
408	CAP; BREATHER,HEADLAMP	8-97378-874-0	02	1	1001-
420	SPRING; BULB,HEADLAMP	8-97378-875-0	02	1	1001-1208
420	SPRING; BULB,HEADLAMP	8-98218-601-0	02	1	1209-
438	CAP; BREATHER,FRT COMB LAMP	8-97378-874-0	04	1	1001-1302
438	CAP; BREATHER,FRT COMB LAMP	8-97378-874-0	02	1	1303-
439	SPRING SET; COMB LAMP FOG LAMP<T96>	8-98075-644-0	02	1	1001-
457	GRIP; HEADLAMP	8-98241-354-0	02	1	1306-

256 256 427 327 437 91 256 82 292 83 80 86

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
80	BULB; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> 24V 5W	8-94135-397-0	02	1	1001-
82	SCREW; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-011-0	04	1	1001-
83	LENS; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	8-98057-958-0	02	1	1001-
86	NUT; MARKER LAMP LAMPS TWO ROOF MARKER<TEC> M6 FLANGE SOU	0-91180-106-0	04	1	1001-
91	BULB; SIDE TURN SIGNAL 24V 21W	8-98051-495-0	02	1	1001-
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC>	8-98097-467-3	01	1	1001-
256	LAMP; MARKER LAMPS TWO ROOF MARKER<TEC>	8-98097-466-3	01	1	1001-
292	WASHER; MARKER LAMP LAMPS TWO ROOF MARKER<TEC>	1-82219-012-0	04	1	1001-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-181-3	01	1	1001-
327	LAMP ASM; SIDE TURN SIGNAL	8-97410-180-4	01	1	1001-
427	NUT; TURN SIGNAL LAMP M6 FLANGE SOU	0-91180-106-0	02	1	1001-
437	SOCKET; SIDE,TURN	8-98051-390-0	02	1	1001-
