9-01 — TOOLS (#175762) — 27 parça

1 9 12 13 29 29 29 17 20 21 22 23 163 115 126 163 192 227 237 230 208 193

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HANDLE; SPARE TIRE CARRIER SPARE WHEEL CARRIER FRAME REAR<P10>,SPARE TIRE CARRIER LIFTING TYPE VAR1<SY8>	9-23110-018-0	01	1	1601-
9	WRENCH; WHEEL PIN B=33X30 L=450	1-85111-033-1	01	1	1601-1601
9	WRENCH; WHEEL PIN B=33X30 L=450	8-98316-700-0	01	1	1602-
12	HANDLE; WRENCH,WHEEL PIN OD=25 L=480	8-98257-407-0	01	1	1601-
13	WRENCH; MONKEY L=255	8-98270-303-0	01	1	1601-
17	HAMMER	9-85121-406-0	01	1	1601-
20	WRENCH; 10X12 10X12	0-95902-510-0	01	1	1601-
21	WRENCH; 14X17 14X17	0-95902-514-0	01	1	1601-
22	WRENCH; 19X22 19X22	0-95902-519-0	01	1	1601-
23	WRENCH; 24X27 24X27	0-95902-524-0	01	1	1601-
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	1601-
29	DRIVER; SCREW (B) <-> L=275	8-98061-105-0	01	1	1601-
29	DRIVER; SCREW (A) <+> L=190	9-09595-522-0	01	1	1601-
115	PLIER	8-98282-845-0	01	1	1601-
126	WRENCH; FRT HUB BRG NUT L=350 B=75	1-85110-002-1	01	1	1601-
163	TOOL; SETTING (B) L=195	1-85221-162-1	01	1	1601-
163	TOOL; SETTING (A) L=150	1-85221-163-0	01	1	1601-
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1601-
193	JACK ASM 7TON	1-85510-005-2	01	1	1601-
208	HANDLE; JACK L=600	8-98181-437-0	01	1	1601-
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1601-
230	PUMP; GREASE	1-85556-007-5	01	1	1601-
237	BAG; TOOL	8-97130-902-1	01	1	1601-

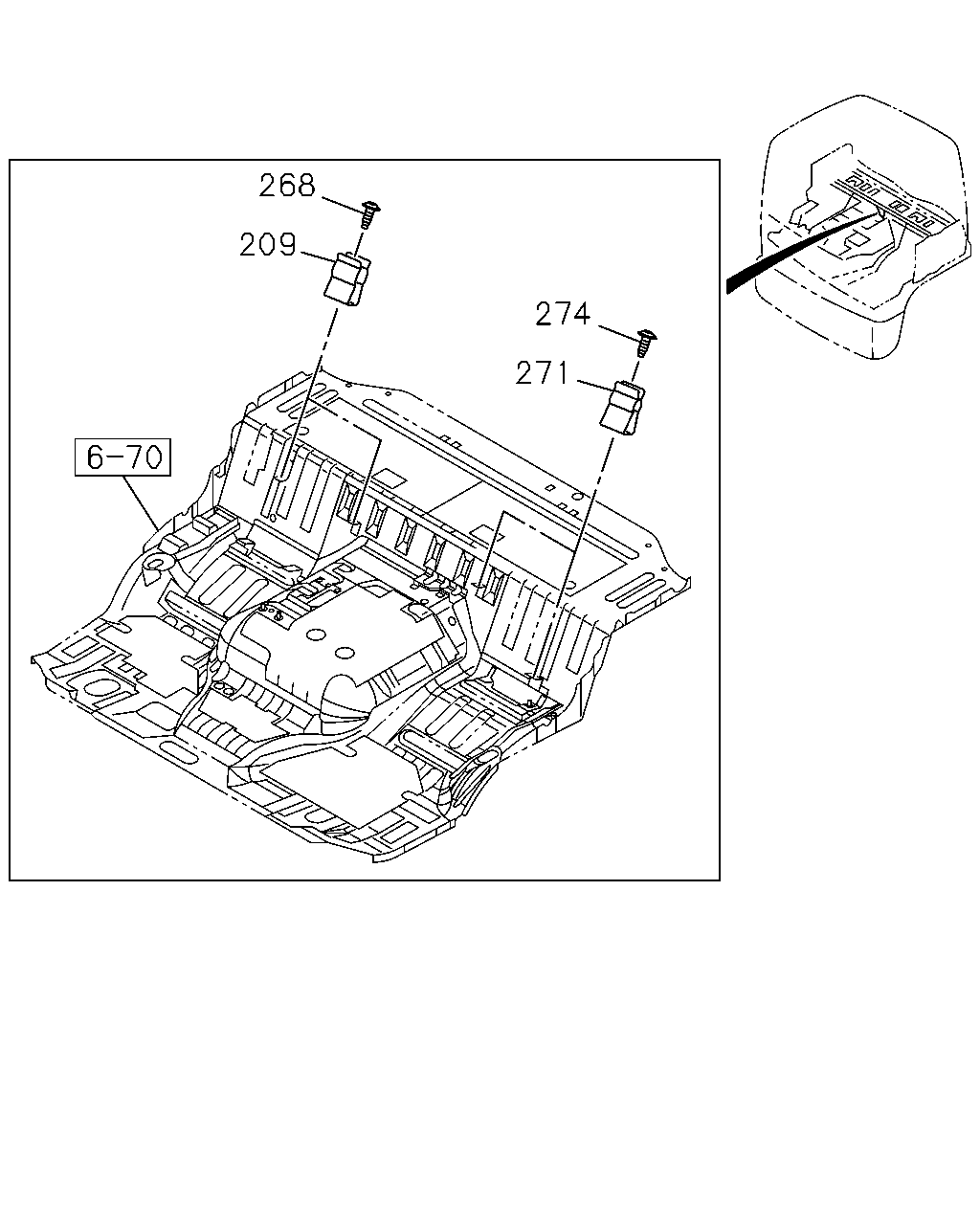

268 209 271 274

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	1601-
268	SCREW; CLIP T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	1601-
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	1601-
274	SCREW; CLIP T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	1601-
