Sayfa 8-60 - Isuzu EPC

8-60 — HEATER UNIT; FRONT (#175755) — 148 parça

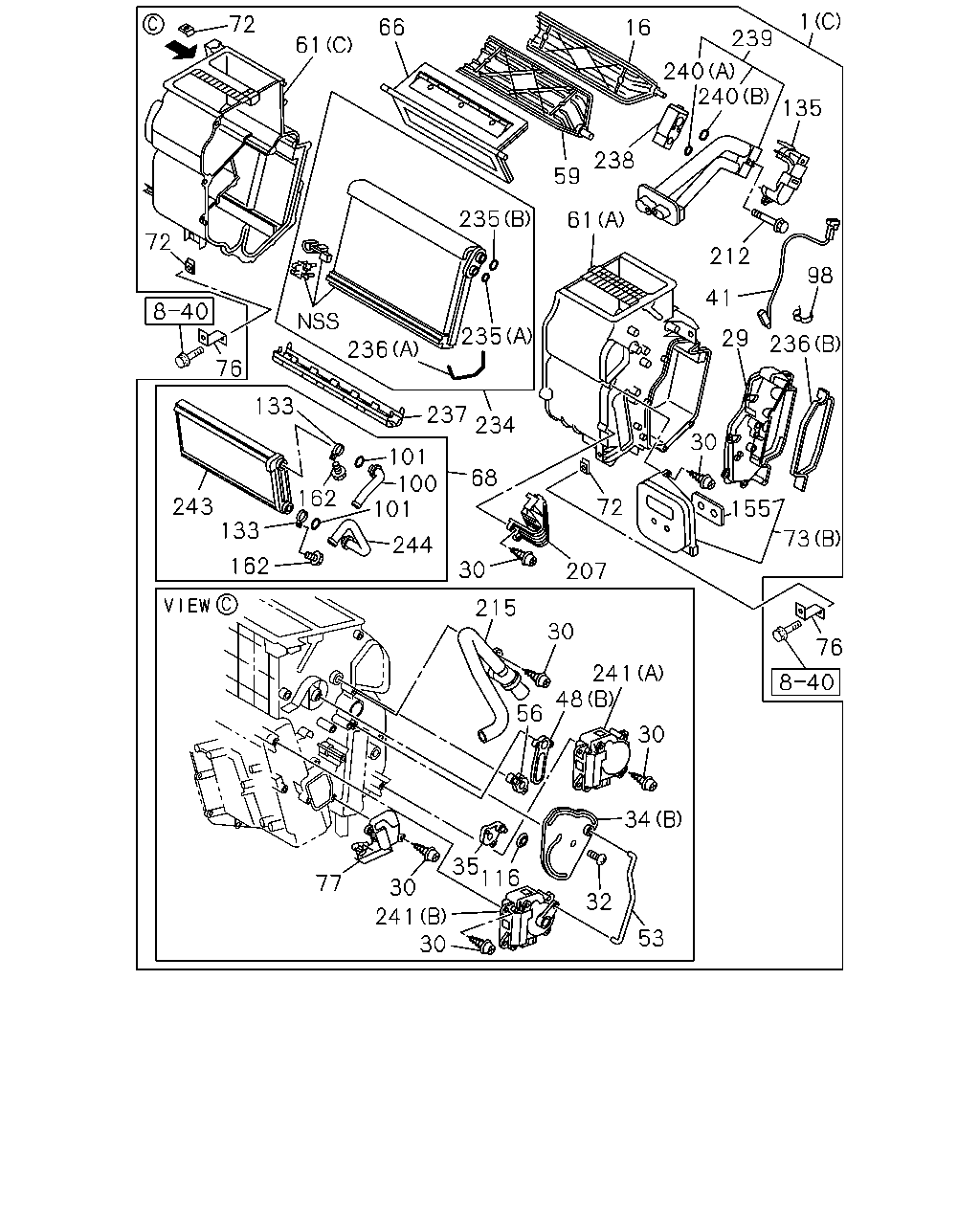

76 73 155 236 29 98 212 41 53 34 30 241 30 215 116 35 30 241 30 77 48 56 32 207 30 68 234 237 101 100 101 244 162 162 133 243 133 236 235 235 61 238 59 240 135 1 239 16 240 66 61 72 72 76 30 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	1601-
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98021-973-4	01	1	1601-
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	1601-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	1601-
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1601-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1601-
30	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	31	1	1601-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	1601-
32	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	1601-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	1601-
34	LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-467-0	01	1	1601-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-389-0	01	1	1601-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	1601-
41	THERMOSTAT; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-475-0	01	1	1601-
48	LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-468-0	01	1	1601-
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1601-
53	ROD; SHUTTER LEVER FULLAUTO AIR CONDITIONER(C68)	8-98047-469-0	01	1	1601-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	1601-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	1601-
61	CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98047-465-0	01	1	1601-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1601-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1601-
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	1601-
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	1601-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	1601-
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98074-118-0	01	1	1601-
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98072-542-0	01	1	1601-
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98009-742-1	02	1	1601-
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	1601-
98	CLIP; HTR UNIT FULLAUTO AIR CONDITIONER(C68)	8-98047-477-0	01	1	1601-
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	1601-
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	1601-
116	BUSHING; LEVER FULLAUTO AIR CONDITIONER(C68)	8-98045-897-0	01	1	1601-
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	1601-
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	1601-
155	GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-431-0	01	1	1601-
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	1601-
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1601-
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	1601-
215	DUCT ASM; SUB FULLAUTO AIR CONDITIONER(C68)	8-98047-476-0	01	1	1601-
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	1601-
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7	8-97095-907-0	01	1	1601-
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	1601-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	1601-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	1601-
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	1601-
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	1601-
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	1601-
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4	8-97095-906-0	01	1	1601-
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	1601-
241	MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-473-0	01	1	1601-
241	MOTOR ASM; SERVO FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-474-0	01	1	1601-
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-508-0	01	1	1601-
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	1601-

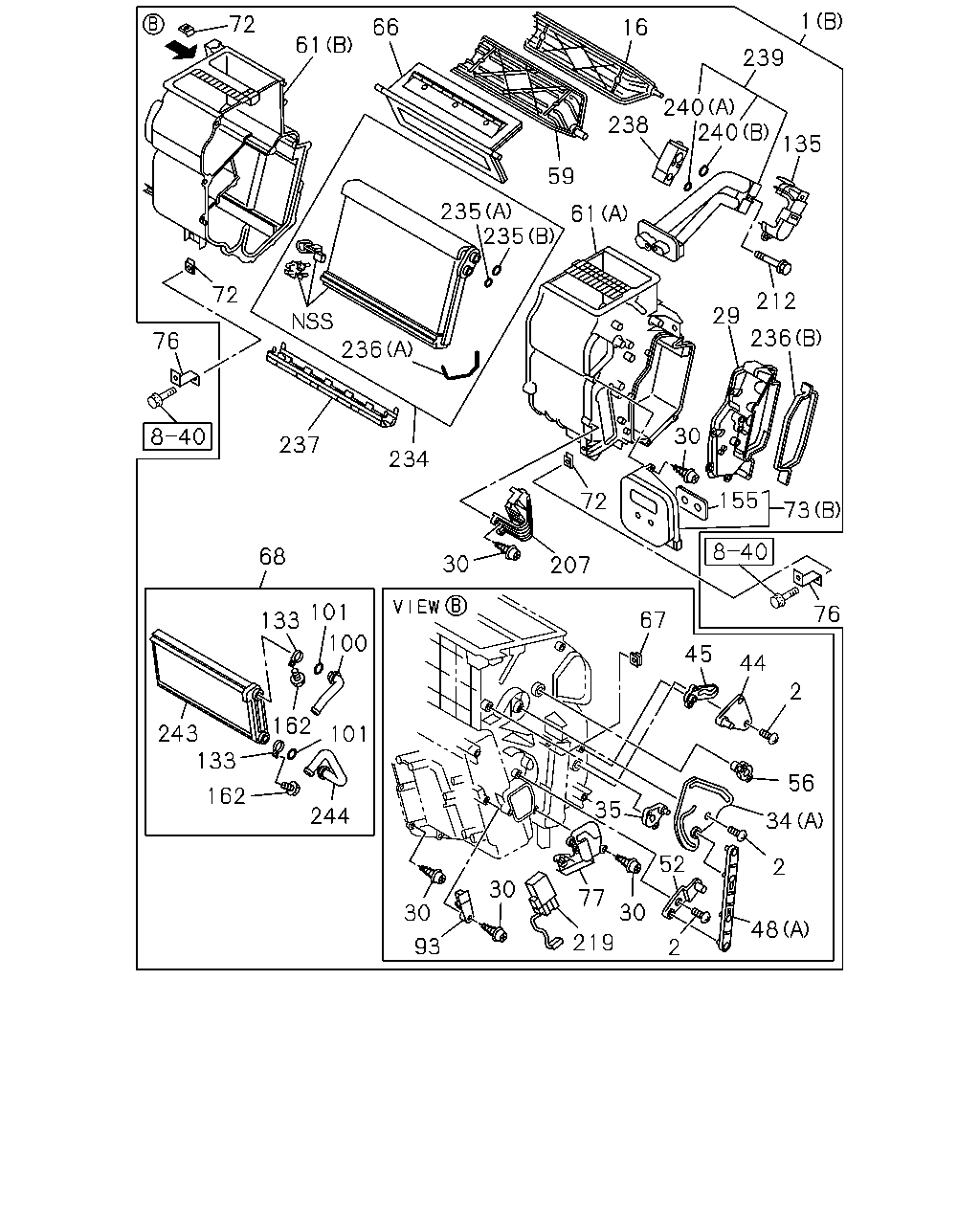

72 66 16 1 239 240 135 212 29 30 236 61 72 236 76 237 234 235 59 238 240 61 235 72 30 68 207 155 73 133 100 101 243 133 162 244 101 162 67 219 2 48 30 93 30 77 30 35 52 2 34 2 56 44 45 76

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	1601-
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98021-973-4	01	1	1601-
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	1601-
2	SCREW; LEVER AIR CONDITIONER MANUAL CONTROL(C60) M4X16	8-98047-416-0	03	1	1601-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	1601-
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1601-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1601-
30	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	31	1	1601-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	1601-
34	LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-467-0	01	1	1601-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-389-0	01	1	1601-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	1601-
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-394-0	01	1	1601-
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-395-0	01	1	1601-
48	LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-468-0	01	1	1601-
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1601-
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	1601-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	1601-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	1601-
61	CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98047-465-0	01	1	1601-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1601-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1601-
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	1601-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1601-
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	1601-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	1601-
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98074-118-0	01	1	1601-
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98072-542-0	01	1	1601-
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98009-742-1	02	1	1601-
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	1601-
93	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-427-0	01	1	1601-
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	1601-
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	1601-
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	1601-
135	COVER; HTR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-384-0	01	1	1601-
155	GROMMET; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-431-0	01	1	1601-
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	1601-
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1601-
212	BOLT; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5X61	8-98047-415-0	02	1	1601-
219	AMPLIFIER; HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-429-0	01	1	1601-
234	EVAPORATOR ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-116-1	01	1	1601-
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=11.7	8-97095-907-0	01	1	1601-
235	GASKET; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	1601-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	1601-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	1601-
237	INSULATOR; EVAPORATOR AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-382-0	01	1	1601-
238	VALVE; EXPANSION AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-383-0	01	1	1601-
239	TUBE ASM; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-115-0	01	1	1601-
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) ID=7.4	8-97095-906-0	01	1	1601-
240	GASKET; HEATER AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) ID=14.5	8-97095-908-0	01	1	1601-
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-508-0	01	1	1601-
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	1601-

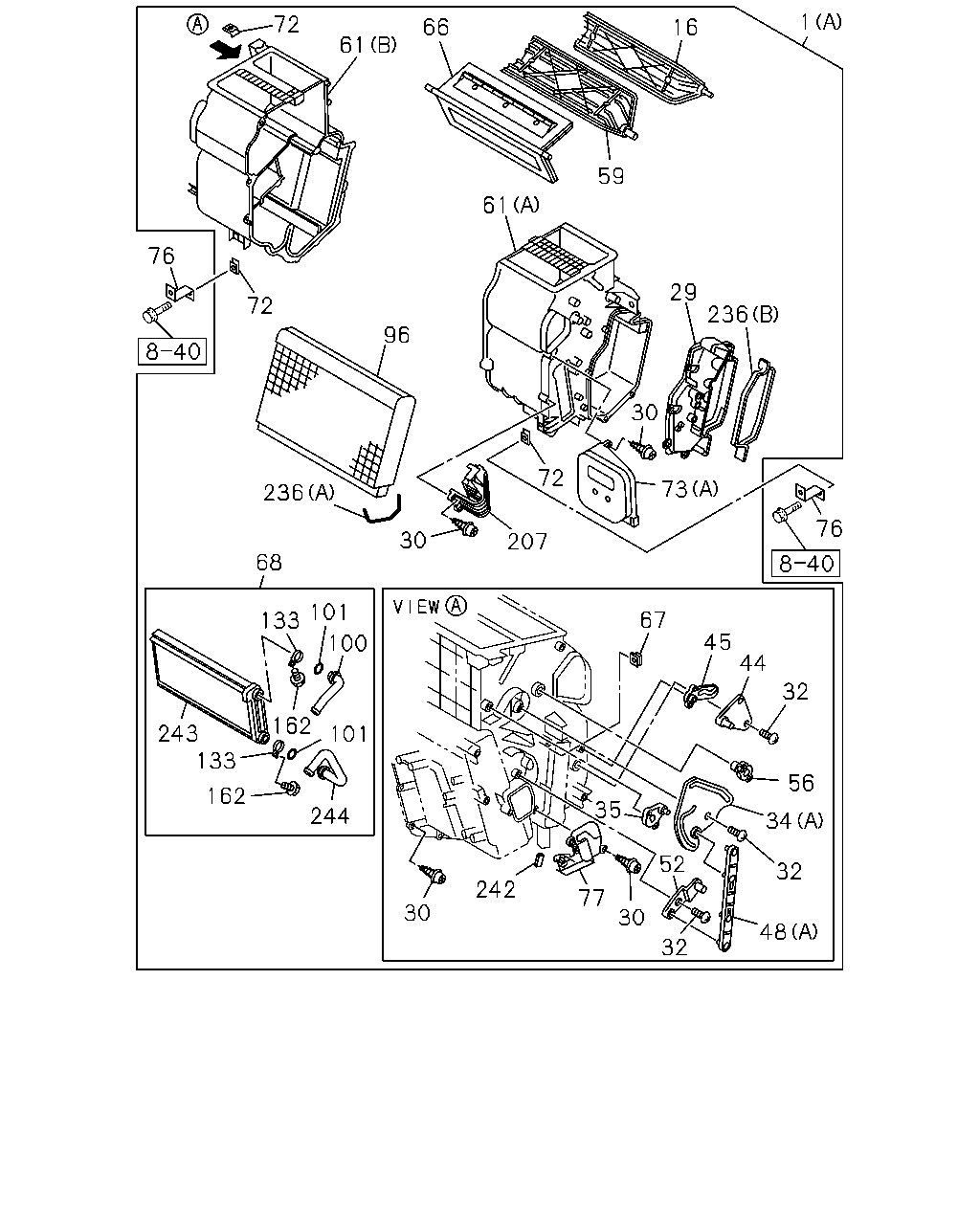

72 66 61 16 1 76 72 96 68 30 207 73 76 236 29 30 72 59 61 133 100 101 243 133 162 162 101 244 67 45 44 32 56 34 32 48 32 30 77 242 30 35 52

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HEATER UNIT AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98021-972-4	01	1	1601-
1	HEATER UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98021-973-4	01	1	1601-
1	HEATER UNIT HEATER & DEFROSTER(C41) (A)	8-98062-756-1	01	1	1601-
16	SHUTTER; HTR UNIT,CENTER UPR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-387-0	01	1	1601-
29	COVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98074-119-0	01	1	1601-
30	SCREW; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60) M4X16 TAPPING	8-97957-708-0	27	1	1601-
30	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16 TAPPING	8-97957-708-0	31	1	1601-
30	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16 TAPPING	8-97957-708-0	25	1	1601-
32	SCREW; HTR UNIT FULLAUTO AIR CONDITIONER(C68) M4X16	8-98047-416-0	01	1	1601-
32	SCREW; HTR UNIT HEATER & DEFROSTER(C41) M4X16	8-98047-416-0	03	1	1601-
34	LEVER; SHUTTER,HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-467-0	01	1	1601-
34	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-389-0	01	1	1601-
35	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-392-0	01	1	1601-
44	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-394-0	01	1	1601-
45	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-395-0	01	1	1601-
48	LEVER; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-468-0	01	1	1601-
48	LEVER; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (A)	8-98047-391-0	01	1	1601-
52	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-390-0	01	1	1601-
56	LEVER; SHUTTER,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-393-0	01	1	1601-
59	SHUTTER; HTR UNIT,SIDE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-386-0	01	1	1601-
61	CASE; HTR UNIT FULLAUTO AIR CONDITIONER(C68) (C)	8-98047-465-0	01	1	1601-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) (B)	8-98047-375-0	01	1	1601-
61	CASE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-376-0	01	1	1601-
66	SHUTTER; HTR UNIT,CENTER LWR HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-385-0	01	1	1601-
67	CLIP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60)	8-98047-417-0	02	1	1601-
68	CORE; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-380-0	01	1	1601-
72	NUT; CASE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6	8-98047-428-0	03	1	1601-
73	PLATE; HTR UNIT AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98074-118-0	01	1	1601-
73	PLATE; HTR UNIT HEATER & DEFROSTER(C41) (A)	8-98072-542-0	01	1	1601-
76	BRACKET; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98009-742-1	02	1	1601-
77	COVER; HTR CASE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-414-0	01	1	1601-
96	PLATE; HTR UNIT HEATER & DEFROSTER(C41)	8-98048-815-0	01	1	1601-
100	PIPE; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-528-0	01	1	1601-
101	GASKET; CORE,HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-531-0	02	1	1601-
133	CLIP; PIPE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-530-0	02	1	1601-
162	SCREW; CLIP FIX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98072-529-0	02	1	1601-
207	CLAMP; HTR UNIT HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98047-379-0	01	1	1601-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A)	8-98047-420-0	01	1	1601-
236	GASKET; HEATER HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98047-421-0	01	1	1601-
242	GASKET; CASE HEATER & DEFROSTER(C41)	8-98048-816-0	01	1	1601-
243	CORE HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-508-0	01	1	1601-
244	PIPE; INLET HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)	8-98048-510-0	01	1	1601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
