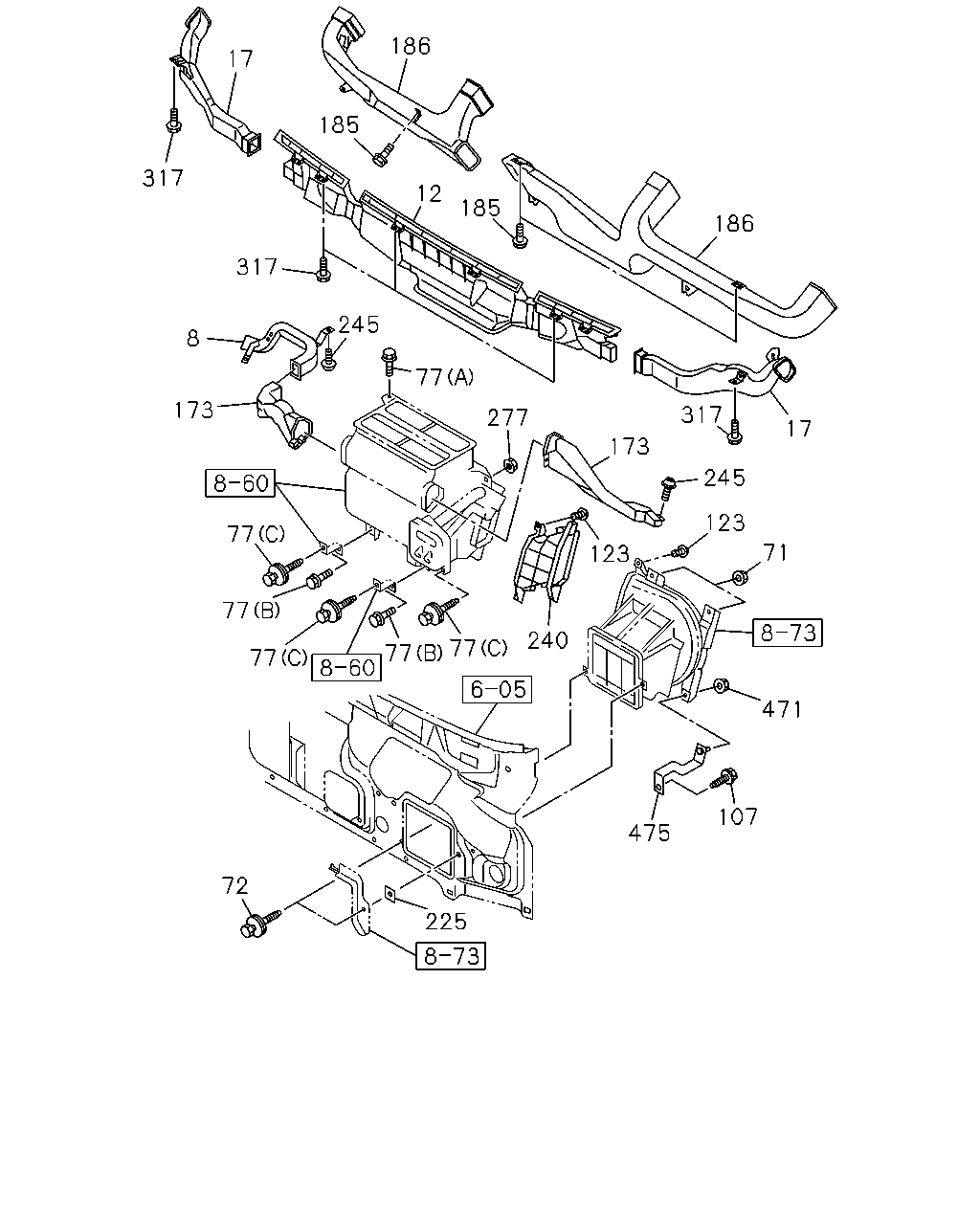

8 |
DUCT; HTR AIR,DRIVER FOOT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
|
8-98290-098-0 |
01 |
1 |
1601- |
| |
12 |
NOZZLE; DEFROSTER
|
8-98040-009-3 |
01 |
1 |
1601- |
| |
17 |
NOZZLE; DEFROSTER,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
|
8-98040-016-1 |
01 |
1 |
1601- |
| |
17 |
NOZZLE; DEFROSTER,SIDE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
|
8-98040-011-1 |
01 |
1 |
1601- |
| |
71 |
NUT; BLOWER UNIT TO DASH
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
M6 FLANGE
|
0-91180-106-0 |
02 |
1 |
1601- |
| |
72 |
BOLT; BLOWER UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
M6X20 W/LK&PL WASHER
|
8-98081-175-0 |
02 |
1 |
1601- |
| |
77 |
BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
(A)
M6X16 FLANGE
|
0-28650-616-0 |
01 |
1 |
1601- |
| |
77 |
BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
(B)
M6X20 FLANGE
|
0-28650-620-0 |
02 |
1 |
1601- |
| |
77 |
BOLT; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
(C)
M6X20 W/LK&PL WASHER
|
8-98081-175-0 |
03 |
1 |
1601- |
| |
107 |
BOLT; STAY,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
M8X25 W/LK&PL WASHER
|
8-98018-439-0 |
01 |
1 |
1601- |
| |
123 |
SCREW; DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
M5X16 TAPPING HEXALOBULAR
|
0-72180-516-0 |
04 |
1 |
1601- |
| |
173 |
DUCT; FOOT,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
|
8-97585-506-2 |
01 |
1 |
1601- |
| |
173 |
DUCT; FOOT,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
|
8-98290-096-0 |
01 |
1 |
1601- |
| |
185 |
SCREW; VENT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
M5X16 TAPPING HEXALOBULAR
|
0-72180-516-0 |
04 |
1 |
1601- |
| |
186 |
DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
|
8-98285-576-0 |
01 |
1 |
1601- |
| |
186 |
DUCT; VENTILATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
|
8-98285-571-0 |
01 |
1 |
1601- |
| |
225 |
SEAL; WATER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
|
8-97856-616-0 |
01 |
1 |
1601- |
| |
240 |
DUCT; AIR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
|
8-98041-402-1 |
01 |
1 |
1601- |
| |
245 |
CLIP; FOOT DUCT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
|
8-98056-059-0 |
04 |
1 |
1601- |
| |
277 |
NUT; HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
1601- |
| |
317 |
SCREW; DEFROSTER NOZZLE
M5X16 TAPPING HEXALOBULAR
|
0-72180-516-0 |
06 |
1 |
1601- |
| |
317 |
SCREW; DEFROSTER NOZZLE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
M5X16 TAPPING HEXALOBULAR
|
0-72180-516-0 |
02 |
1 |
1601- |
| |
471 |
NUT; BLOWER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
M6 FLANGE
|
0-91180-106-0 |
01 |
1 |
1601- |
| |
475 |
BRACKET; BLOWER
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL
CONTROL(C60),FULLAUTO AIR CONDITIONER(C68)
|
8-98043-500-1 |
01 |
1 |
1601- |
