8-21 — METER ASM (#175746) — 19 parça

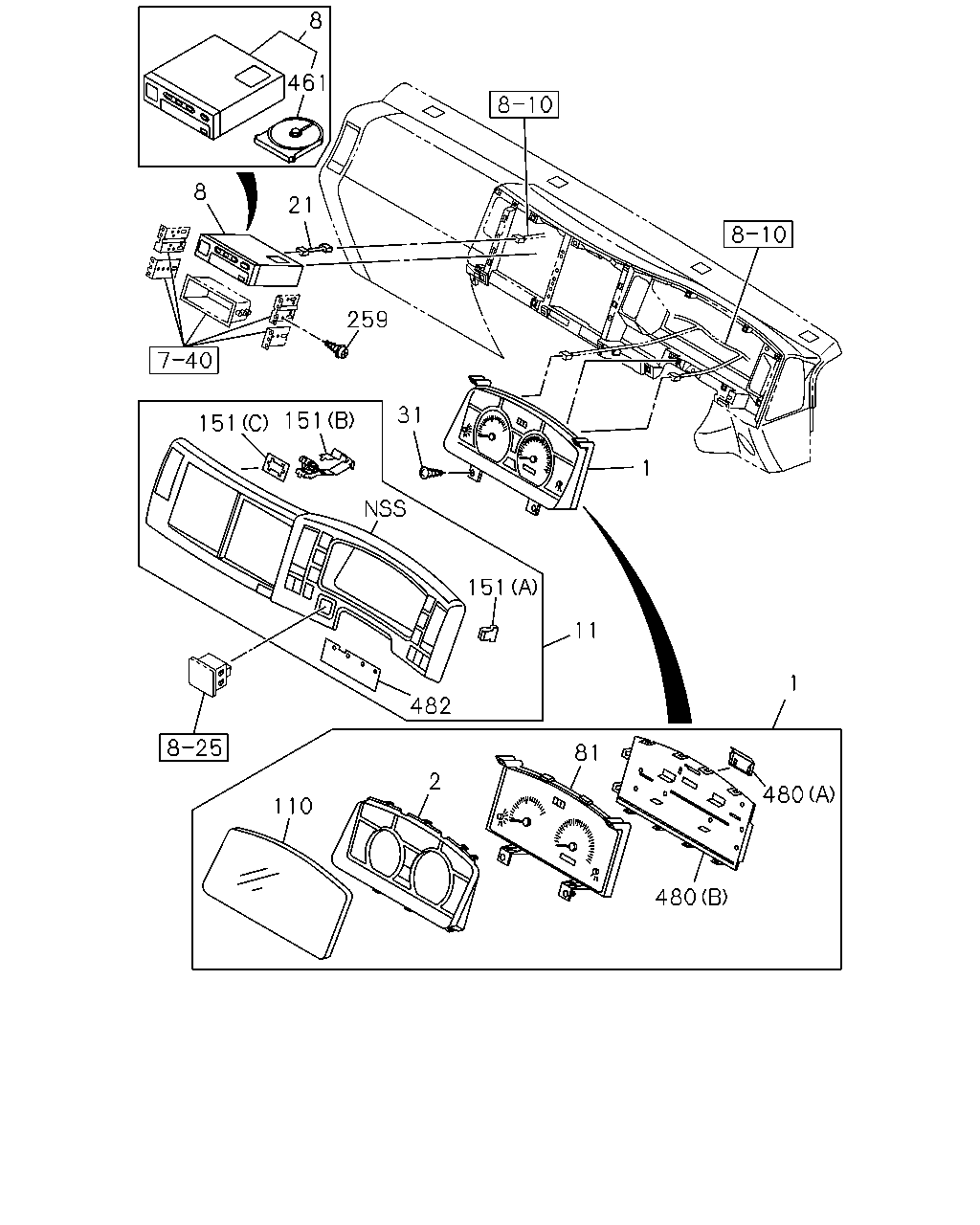

çizim 514763
8 461 21 8 259 151 151 31 151 11 482 110 2 81 1 480 480 1
BalonParca AdiParca NoAdetTipApplied Date
1 METER COMPL; CLUSTER
SMOOTHER-FX(TYPE2)(8NS) 		8-98299-440-0 01 1 1601-
1 METER COMPL; CLUSTER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98299-439-0 01 1 1601-
2 PANEL; CLUSTER 8-98054-638-0 01 1 1601-
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 1601-
11 CLUSTER ASM; METER
DARK GRAY 		8-97418-532-1 01 1 1601-
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98225-657-0 01 1 1601-
21 HARNESS; TACHOGRAPH
EXC. TACHOGRAPH 140KM/H<WC7> 		8-98204-881-1 01 1 1601-
31 SCREW; METER,INST PANEL
M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1601-
81 METER SUB ASM
SMOOTHER-FX(TYPE2)(8NS) 		8-98310-000-0 01 1 1601-
81 METER SUB ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98309-999-0 01 1 1601-
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 1601-
151 CLIP; METER CLUSTER
(A) 		8-98021-271-0 12 1 1601-
151 CLIP; METER CLUSTER
(B) 		8-98152-030-0 01 1 1601-
151 CLIP; METER CLUSTER
(C) 		8-98152-031-0 01 1 1601-
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 1601-
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 1601-
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 1601-
480 COVER; METER
(B) 		8-98151-362-0 01 1 1601-
482 SEAL; CLUSTER METER 8-98116-842-0 01 1 1601-
