Sayfa 8-10 - Isuzu EPC

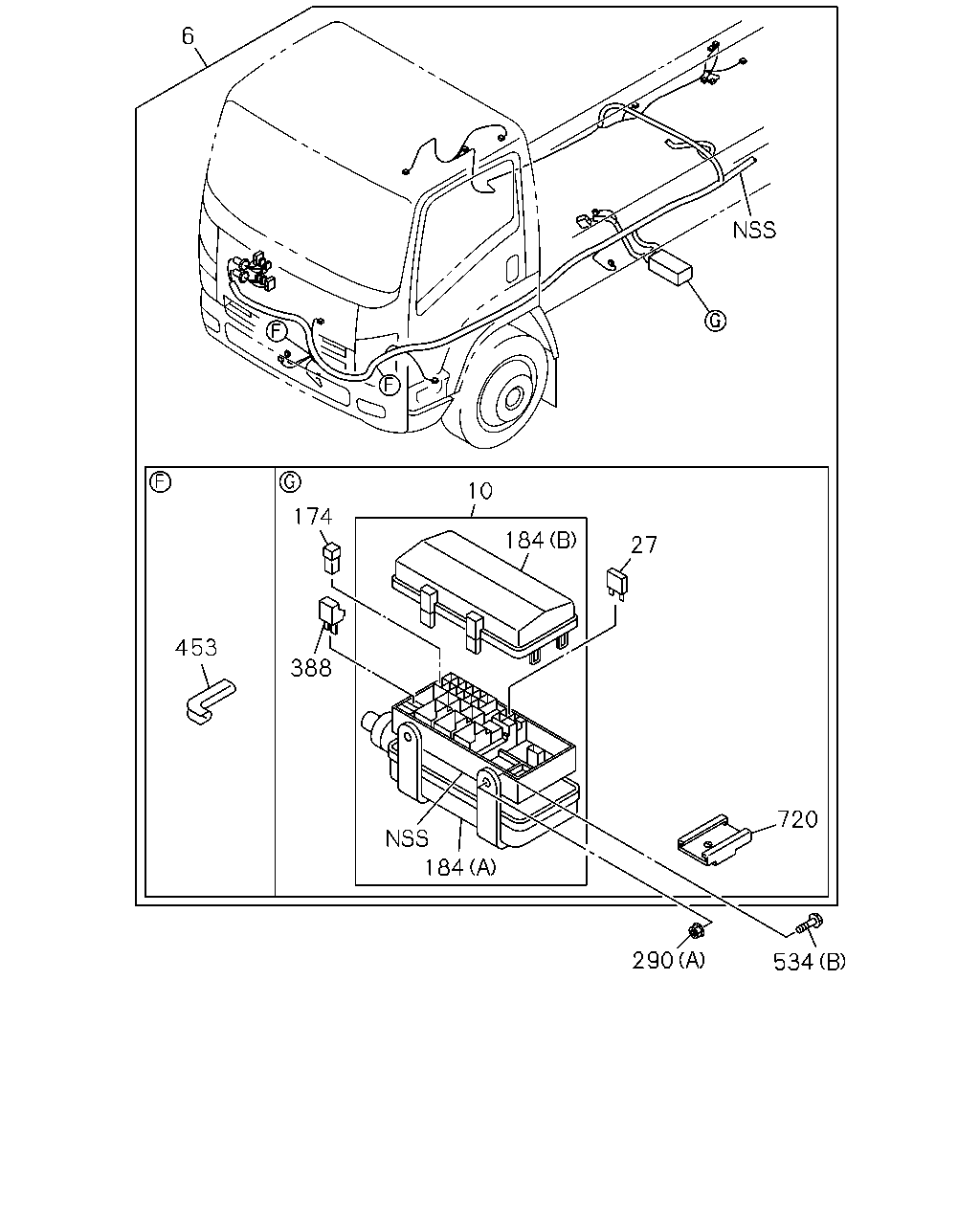

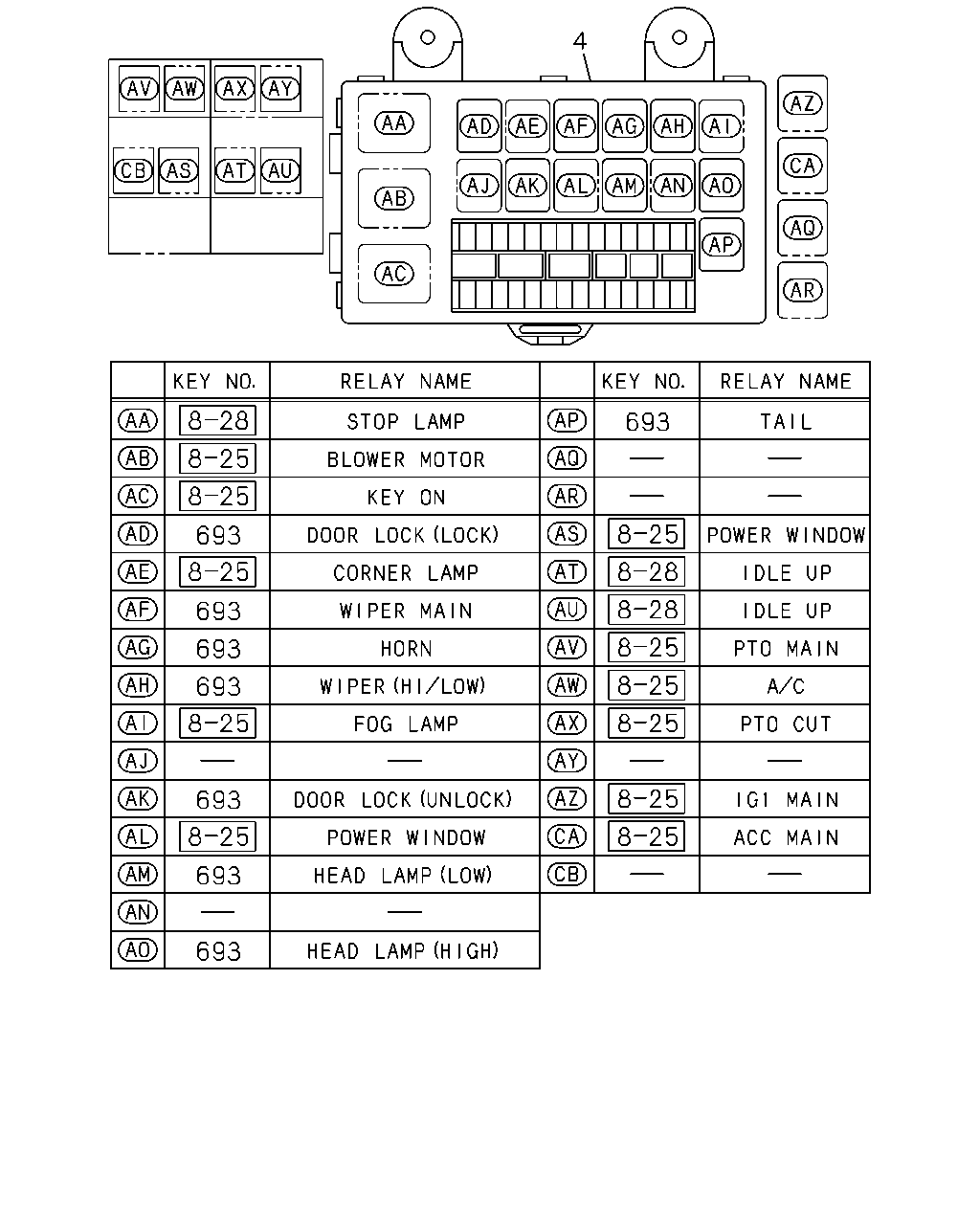

8-10 — WIRING HARNESS AND FUSE (#175743) — 410 parça

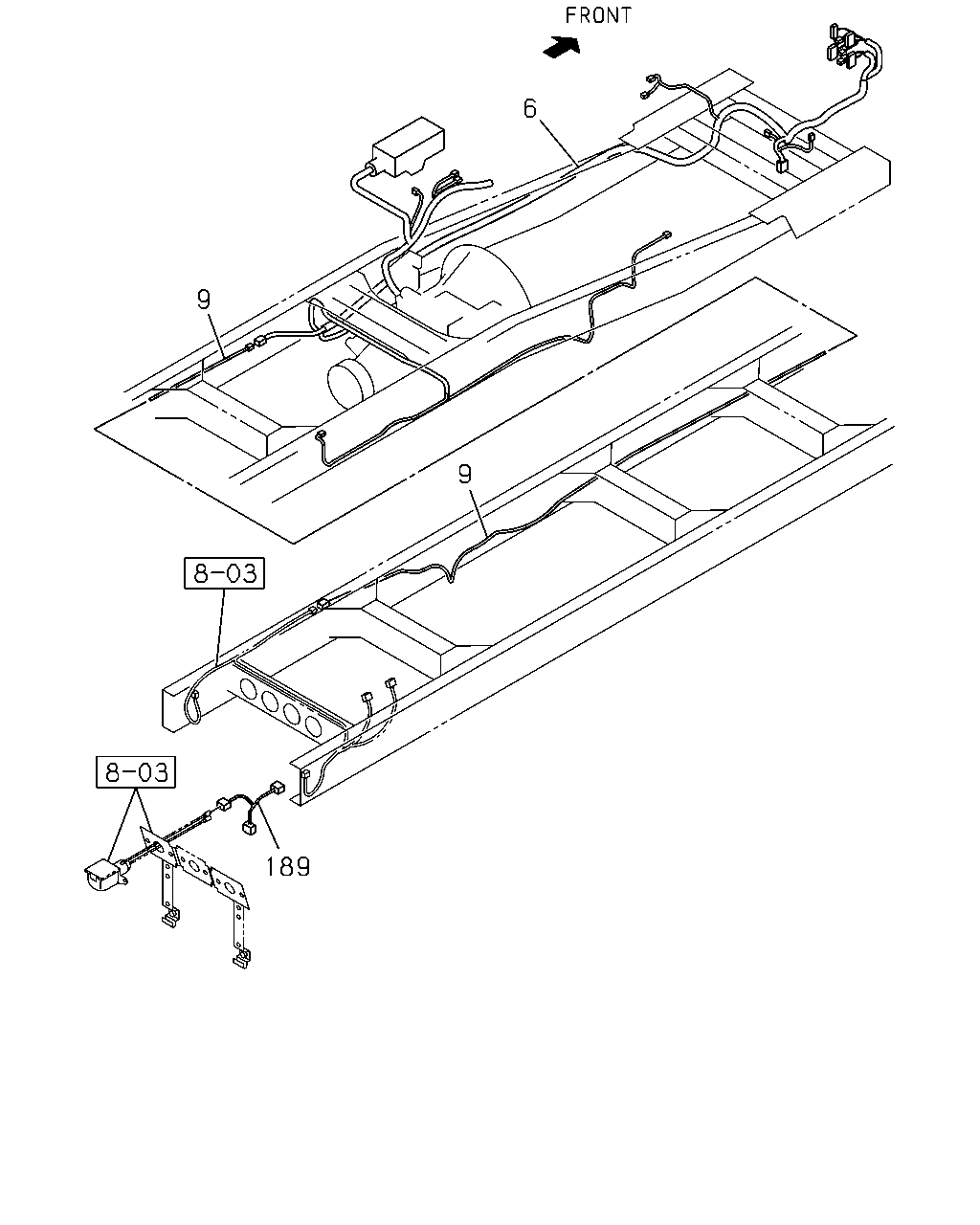

9 9 189 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-134-1	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-136-1	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-552-0	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-551-0	01	1	1601-
9	HARNESS; FRAME,RR WHEEL BASE 5300MM(53W)	8-98168-593-0	01	1	1601-
189	HARNESS; EXT	8-98131-066-0	01	1	1601-

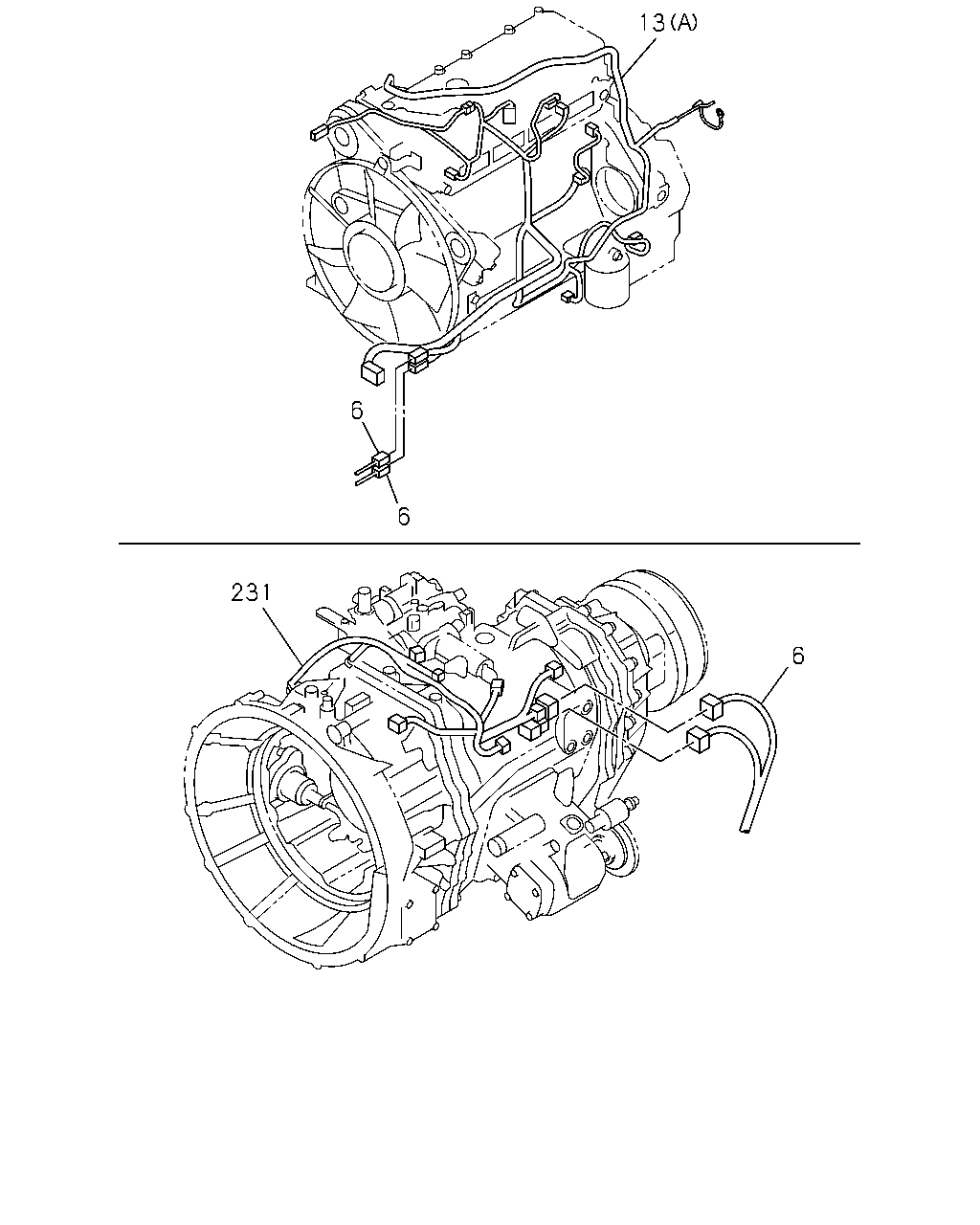

13 6 6 231 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-134-1	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-136-1	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-552-0	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-551-0	01	1	1601-

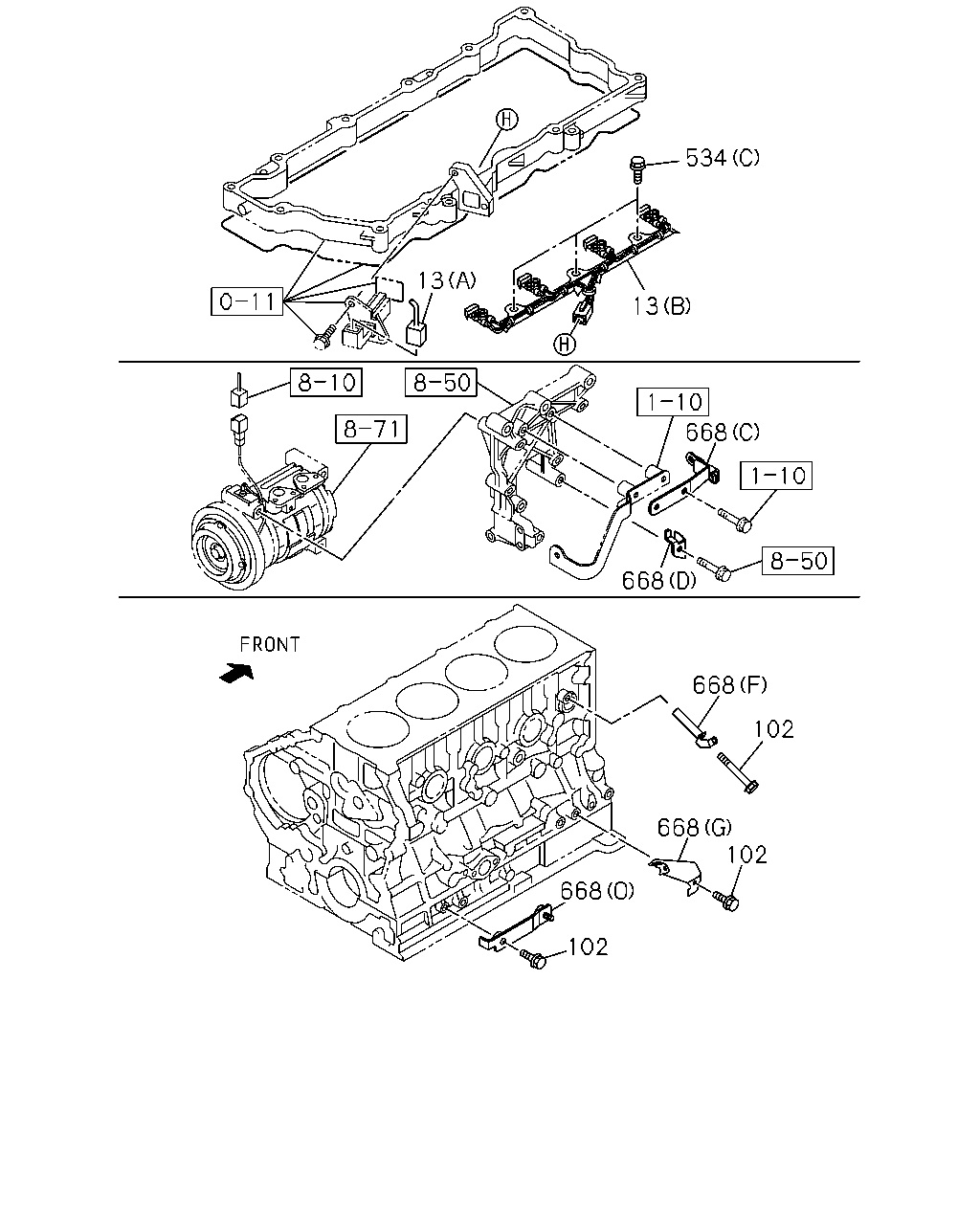

13	HARNESS; ENG (B)	8-98120-924-0	01	1	1601-
13	HARNESS; ENG GENERATOR 24V60A(KG2) (A)	8-98324-197-0	01	1	1601-
13	HARNESS; ENG GENERATOR 24V90A(K44) (A)	8-98324-198-0	01	1	1601-
231	HARNESS; TRANS SMOOTHER-FX(TYPE2)(8NS)	8-98234-229-1	01	1	1601-
231	HARNESS; TRANS TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98178-491-2	01	1	1601-

535 441 638

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
441	HARNESS; CABLE,SPEED SENSOR	8-98061-652-0	01	1	1601-
535	BOLT; BRKT FIX (D) M8X20 FLANGE	0-28650-820-0	02	1	1601-
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-
535	BOLT; BRKT FIX (C) M14X35 FLANGE	0-28851-435-0	01	1	1601-
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1601-
638	BRACKET; SPD SENSOR	8-98012-580-1	02	1	1601-

201 479 533

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
201	HARNESS; AIR TANK THROTTLE CONTROL SYSTEM(6XH)	8-98309-141-0	01	1	1601-
201	HARNESS; AIR TANK EXC. THROTTLE CONTROL SYSTEM(6XH)	8-98309-142-0	01	1	1601-
479	CAP; CONNECTOR EXC. H.S.A SYSTEM<6EP>	1-82691-191-0	01	1	1601-
533	CLIP (A) ID=11 L=41	1-09700-403-0	01	1	1601-
533	CLIP (B) L=600	1-09707-107-1	01	1	1601-
533	CLIP (C) L=250	1-09707-126-0	02	1	1601-
533	CLIP (N) L=180	1-09707-162-1	01	1	1601-
533	CLIP (D) L=350	1-09707-183-0	01	1	1601-
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1601-
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1601-
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1601-
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1601-
533	CLIP (H) ID=5-12 L=18	1-09709-287-0	01	1	1601-
533	CLIP (I) L=135	1-09987-143-1	01	1	1601-
533	CLIP (J) ID=5-12 L=14.5	1-09987-221-0	03	1	1601-
533	CLIP (K) L=250	5-09707-030-1	03	1	1601-
533	CLIP (K) L=250	5-09707-030-1	02	1	1601-
533	CLIP (K) L=250	5-09707-030-1	04	1	1601-
533	CLIP (K) L=250	5-09707-030-1	01	1	1601-
533	CLIP (K) L=250	5-09707-030-1	01	1	1601-
533	CLIP (G) L=140	5-09707-031-1	01	1	1601-
533	CLIP (T) L=112	8-94232-618-0	02	1	1601-
533	CLIP (F) OD=8.95 H=6.25	8-97375-754-0	01	1	1601-
533	CLIP (M) ID=14 L=44	9-09917-427-0	02	1	1601-
533	CLIP SMOOTHER-FX(TYPE2)(8NS) (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1601-
533	CLIP SMOOTHER-FX(TYPE2)(8NS) (R) ID=35 L=50	1-09701-214-0	01	1	1601-
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1601-
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1601-
533	CLIP WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	10	1	1601-
533	CLIP WHEEL BASE 5300MM(53W) (S) ID=13-18 L=22	1-09709-292-0	01	1	1601-
533	CLIP WHEEL BASE 5300MM(53W) (M) ID=14 L=44	9-09917-427-0	17	1	1601-

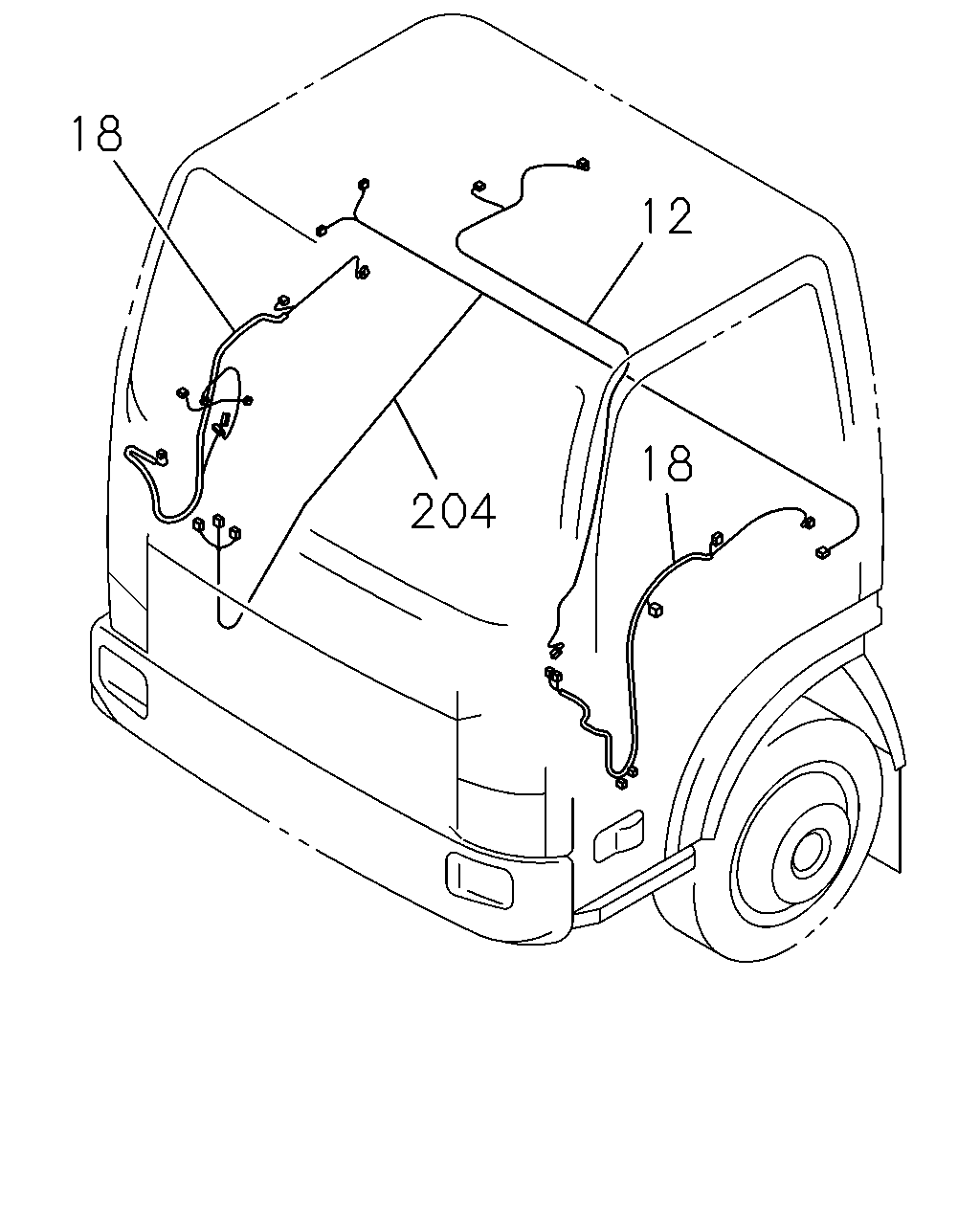

18 12 204 18

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
12	HARNESS; ROOF	8-98079-071-1	01	1	1601-
18	HARNESS; DOOR	8-98225-379-0	01	1	1601-
18	HARNESS; DOOR	8-98225-378-0	01	1	1601-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) SMOOTHER-FX(TYPE2)(8NS)	8-98084-214-1	01	1	1601-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER & PASSENGER(AK5) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-201-1	01	1	1601-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) SMOOTHER-FX(TYPE2)(8NS)	8-98084-210-2	01	1	1601-
204	HARNESS; CABLE,FLOOR AIR BAG DRIVER(AJ3) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98084-196-2	01	1	1601-

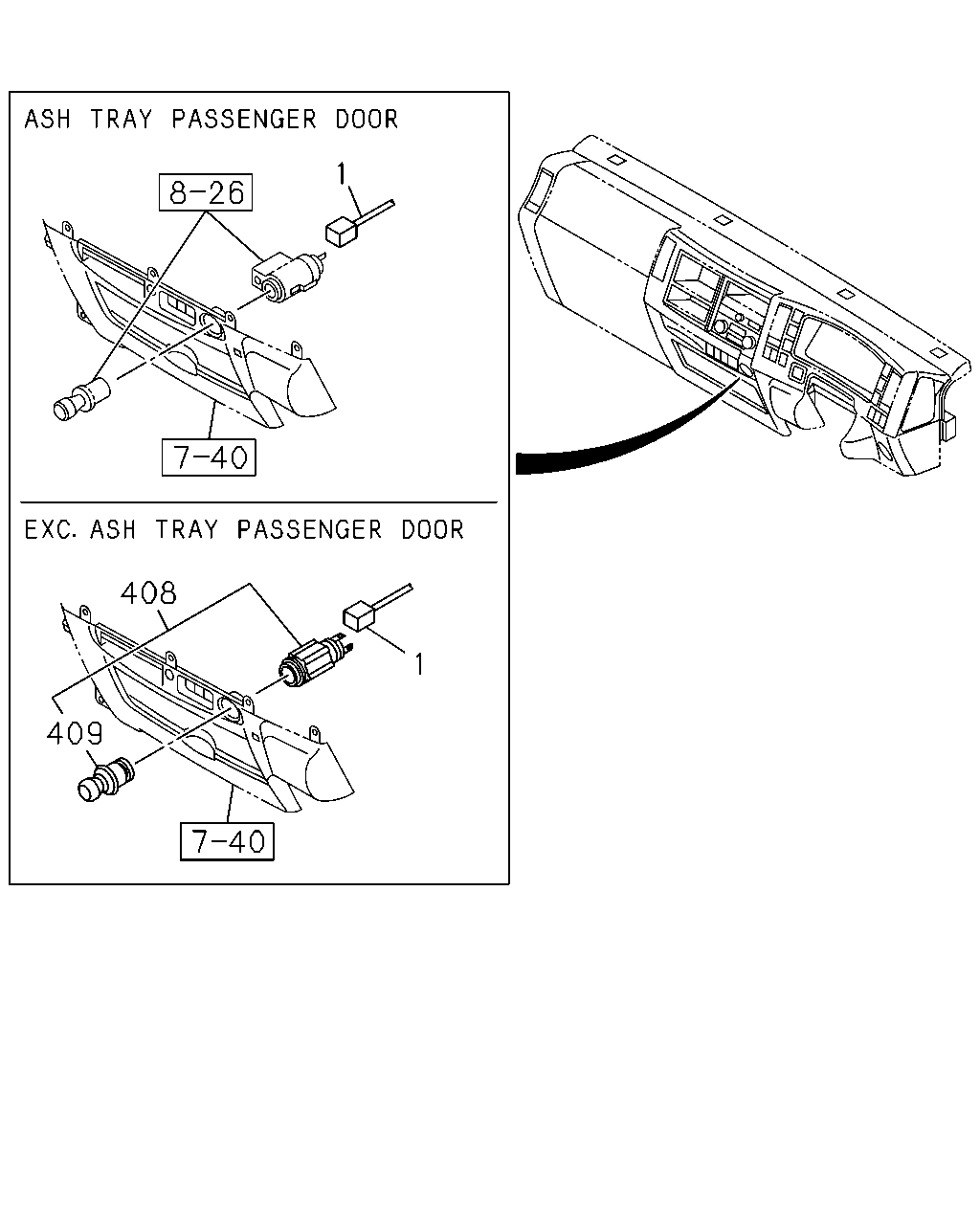

1 1 408 409

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-466-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-474-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-475-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-470-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-478-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-479-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-468-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-476-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-477-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-472-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-480-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-481-2	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-259-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-263-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-261-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-265-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-260-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-264-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-262-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-266-1	01	1	1601-
408	SOCKET ASM; ACCESSORY EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98169-757-0	01	1	1601-
409	CAP; ACCESSORY SOCKET EXC. ASH TRAY PASSENGER DOOR<8LX>	8-98183-771-0	01	1	1601-

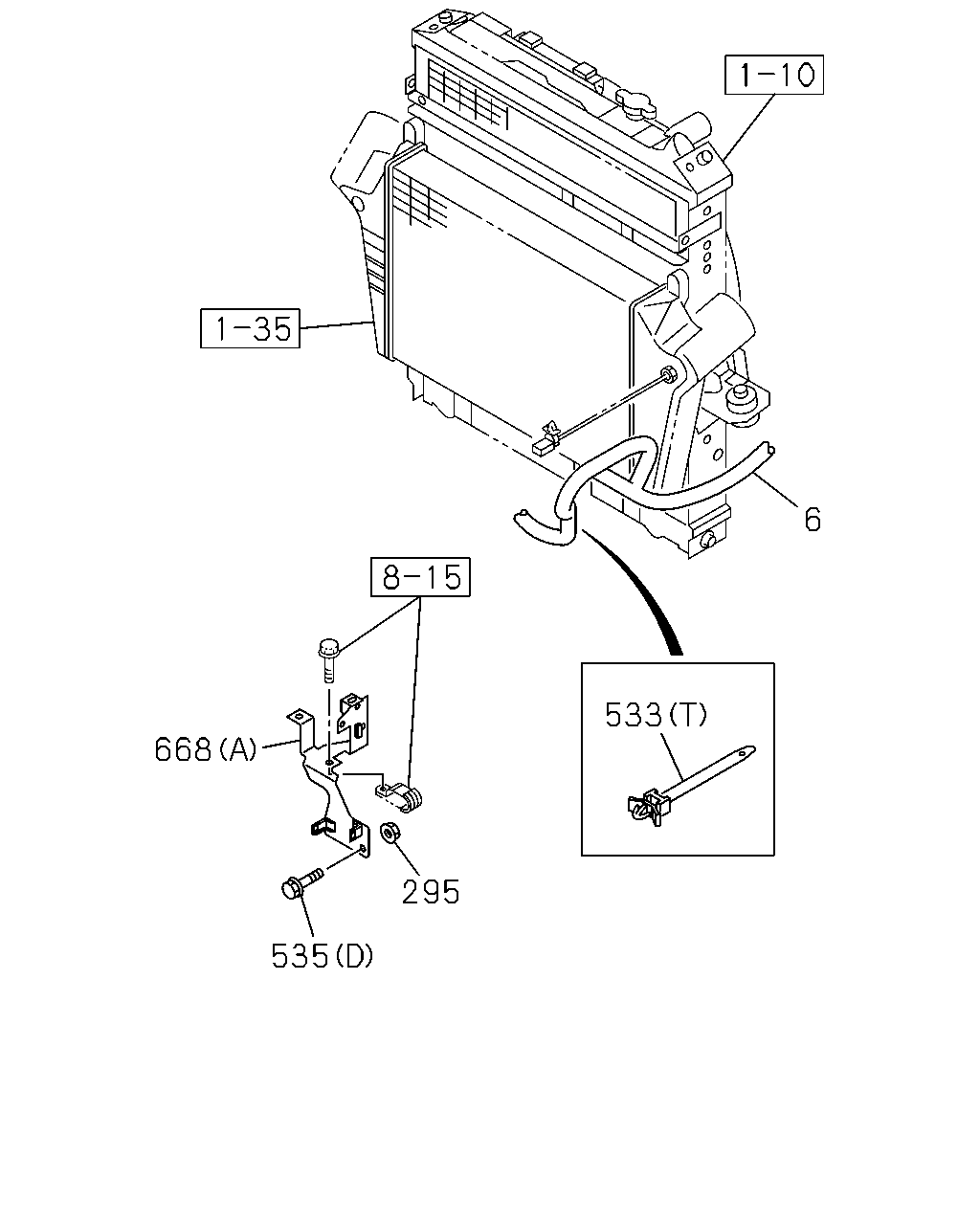

668 535 295 533 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-134-1	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-136-1	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-552-0	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-551-0	01	1	1601-
295	NUT; BRKT M8 FLANGE	0-91180-108-0	01	1	1601-
533	CLIP (A) ID=11 L=41	1-09700-403-0	01	1	1601-
533	CLIP (B) L=600	1-09707-107-1	01	1	1601-
533	CLIP (C) L=250	1-09707-126-0	02	1	1601-
533	CLIP (N) L=180	1-09707-162-1	01	1	1601-
533	CLIP (D) L=350	1-09707-183-0	01	1	1601-
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1601-
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1601-
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1601-
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1601-
533	CLIP (H) ID=5-12 L=18	1-09709-287-0	01	1	1601-
533	CLIP (I) L=135	1-09987-143-1	01	1	1601-
533	CLIP (J) ID=5-12 L=14.5	1-09987-221-0	03	1	1601-
533	CLIP (K) L=250	5-09707-030-1	03	1	1601-
533	CLIP (K) L=250	5-09707-030-1	02	1	1601-
533	CLIP (K) L=250	5-09707-030-1	04	1	1601-
533	CLIP (K) L=250	5-09707-030-1	01	1	1601-
533	CLIP (K) L=250	5-09707-030-1	01	1	1601-
533	CLIP (G) L=140	5-09707-031-1	01	1	1601-
533	CLIP (T) L=112	8-94232-618-0	02	1	1601-
533	CLIP (F) OD=8.95 H=6.25	8-97375-754-0	01	1	1601-
533	CLIP (M) ID=14 L=44	9-09917-427-0	02	1	1601-
533	CLIP SMOOTHER-FX(TYPE2)(8NS) (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1601-
533	CLIP SMOOTHER-FX(TYPE2)(8NS) (R) ID=35 L=50	1-09701-214-0	01	1	1601-
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1601-
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1601-
533	CLIP WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	10	1	1601-
533	CLIP WHEEL BASE 5300MM(53W) (S) ID=13-18 L=22	1-09709-292-0	01	1	1601-
533	CLIP WHEEL BASE 5300MM(53W) (M) ID=14 L=44	9-09917-427-0	17	1	1601-
535	BOLT; BRKT FIX (D) M8X20 FLANGE	0-28650-820-0	02	1	1601-
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-
535	BOLT; BRKT FIX (C) M14X35 FLANGE	0-28851-435-0	01	1	1601-
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1601-
668	BRACKET; HARNESS (H)	8-97619-533-0	01	1	1601-
668	BRACKET; HARNESS (C)	8-98126-634-2	01	1	1601-
668	BRACKET; HARNESS (D)	8-98126-635-2	01	1	1601-
668	BRACKET; HARNESS (F)	8-98126-636-1	01	1	1601-
668	BRACKET; HARNESS (G)	8-98126-637-2	01	1	1601-
668	BRACKET; HARNESS (O)	8-98126-638-2	01	1	1601-
668	BRACKET; HARNESS (I)	8-98147-490-0	01	1	1601-
668	BRACKET; HARNESS (J)	8-98147-491-2	01	1	1601-
668	BRACKET; HARNESS (K)	8-98150-334-0	01	1	1601-
668	BRACKET; HARNESS (L)	8-98150-855-1	01	1	1601-
668	BRACKET; HARNESS (S)	8-98151-455-3	01	1	1601-
668	BRACKET; HARNESS (N)	8-98161-100-0	02	1	1601-
668	BRACKET; HARNESS (E)	8-98164-831-0	01	1	1601-
668	BRACKET; HARNESS (M)	8-98219-133-0	01	1	1601-
668	BRACKET; HARNESS (T)	8-98221-079-1	01	1	1601-
668	BRACKET; HARNESS (P)	8-98254-592-0	01	1	1601-
668	BRACKET; HARNESS (U)	8-98268-411-0	01	1	1601-
668	BRACKET; HARNESS (A)	8-98309-152-1	01	1	1601-
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98095-653-2	01	1	1601-
668	BRACKET; HARNESS WHEEL BASE 5300MM(53W) (Q) L=170	1-47479-380-0	01	1	1601-
668	BRACKET; HARNESS WHEEL BASE 5300MM(53W) (R)	8-97619-097-1	01	1	1601-

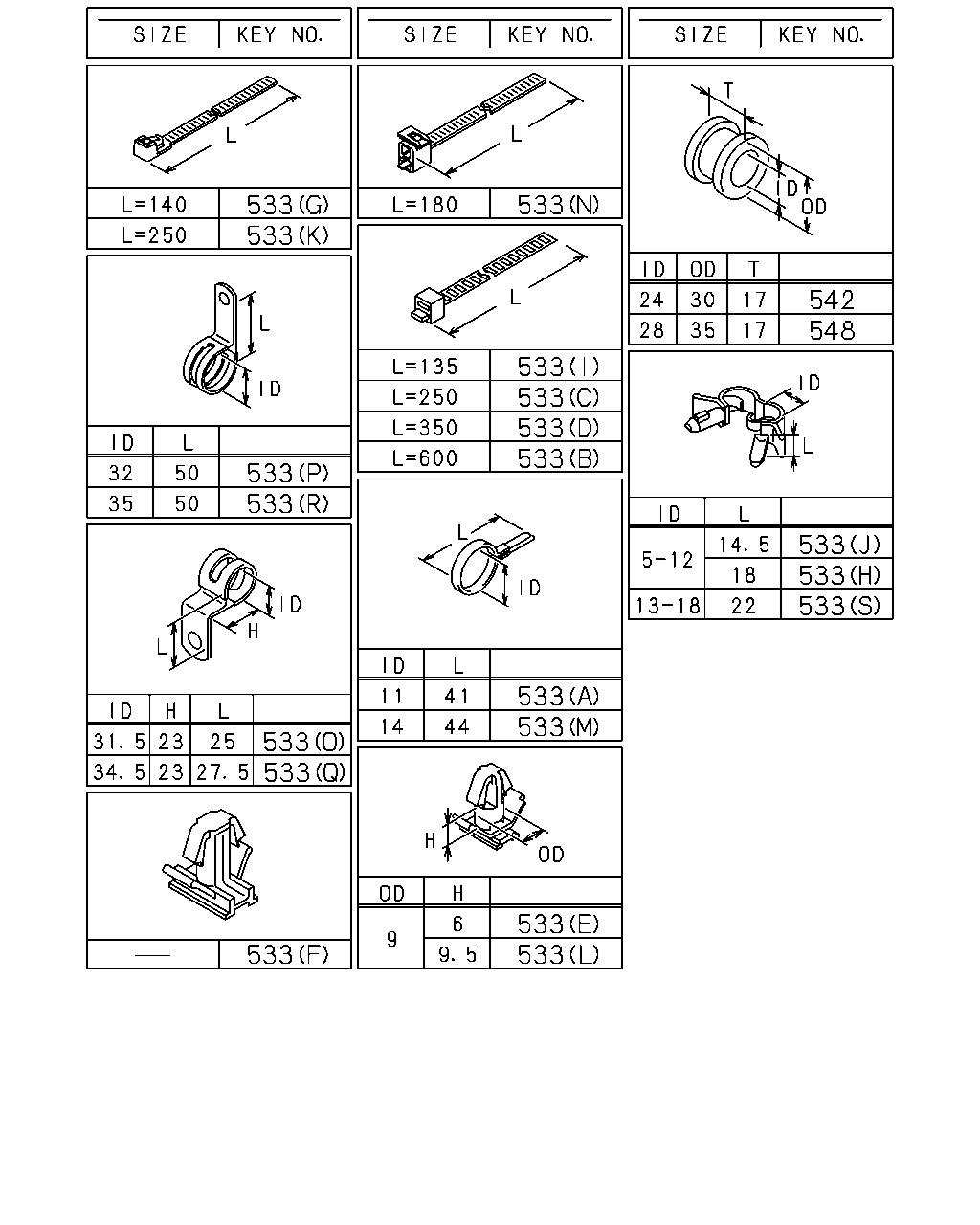

533 533 533 533 533 533 533 533 533 533 533 533 533 533 533 533 533 533 533 548 542

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
533	CLIP (A) ID=11 L=41	1-09700-403-0	01	1	1601-
533	CLIP (B) L=600	1-09707-107-1	01	1	1601-
533	CLIP (C) L=250	1-09707-126-0	02	1	1601-
533	CLIP (N) L=180	1-09707-162-1	01	1	1601-
533	CLIP (D) L=350	1-09707-183-0	01	1	1601-
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1601-
533	CLIP EXC. H.S.A SYSTEM<6EP> (E) OD=9 H=6	1-09709-178-0	01	1	1601-
533	CLIP (E) OD=9 H=6	1-09709-178-0	01	1	1601-
533	CLIP (L) OD=9 H=9.5	1-09709-179-0	01	1	1601-
533	CLIP (H) ID=5-12 L=18	1-09709-287-0	01	1	1601-
533	CLIP (I) L=135	1-09987-143-1	01	1	1601-
533	CLIP (J) ID=5-12 L=14.5	1-09987-221-0	03	1	1601-
533	CLIP (K) L=250	5-09707-030-1	03	1	1601-
533	CLIP (K) L=250	5-09707-030-1	02	1	1601-
533	CLIP (K) L=250	5-09707-030-1	04	1	1601-
533	CLIP (K) L=250	5-09707-030-1	01	1	1601-
533	CLIP (K) L=250	5-09707-030-1	01	1	1601-
533	CLIP (G) L=140	5-09707-031-1	01	1	1601-
533	CLIP (T) L=112	8-94232-618-0	02	1	1601-
533	CLIP (F) OD=8.95 H=6.25	8-97375-754-0	01	1	1601-
533	CLIP (M) ID=14 L=44	9-09917-427-0	02	1	1601-
533	CLIP SMOOTHER-FX(TYPE2)(8NS) (Q) ID=34.5 H=23 L=27.5	1-09700-905-0	01	1	1601-
533	CLIP SMOOTHER-FX(TYPE2)(8NS) (R) ID=35 L=50	1-09701-214-0	01	1	1601-
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (O) ID=31.5 H=23 L=25	1-09701-017-0	01	1	1601-
533	CLIP TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=32 L=50	1-09701-055-1	01	1	1601-
533	CLIP WHEEL BASE 3700MM(37W) (M) ID=14 L=44	9-09917-427-0	10	1	1601-
533	CLIP WHEEL BASE 5300MM(53W) (S) ID=13-18 L=22	1-09709-292-0	01	1	1601-
533	CLIP WHEEL BASE 5300MM(53W) (M) ID=14 L=44	9-09917-427-0	17	1	1601-
542	GROMMET; HARNESS ID=24 OD=30 T=17	9-09956-092-1	03	1	1601-
548	GROMMET ID=28 OD=35 T=17	9-09956-256-2	01	1	1601-

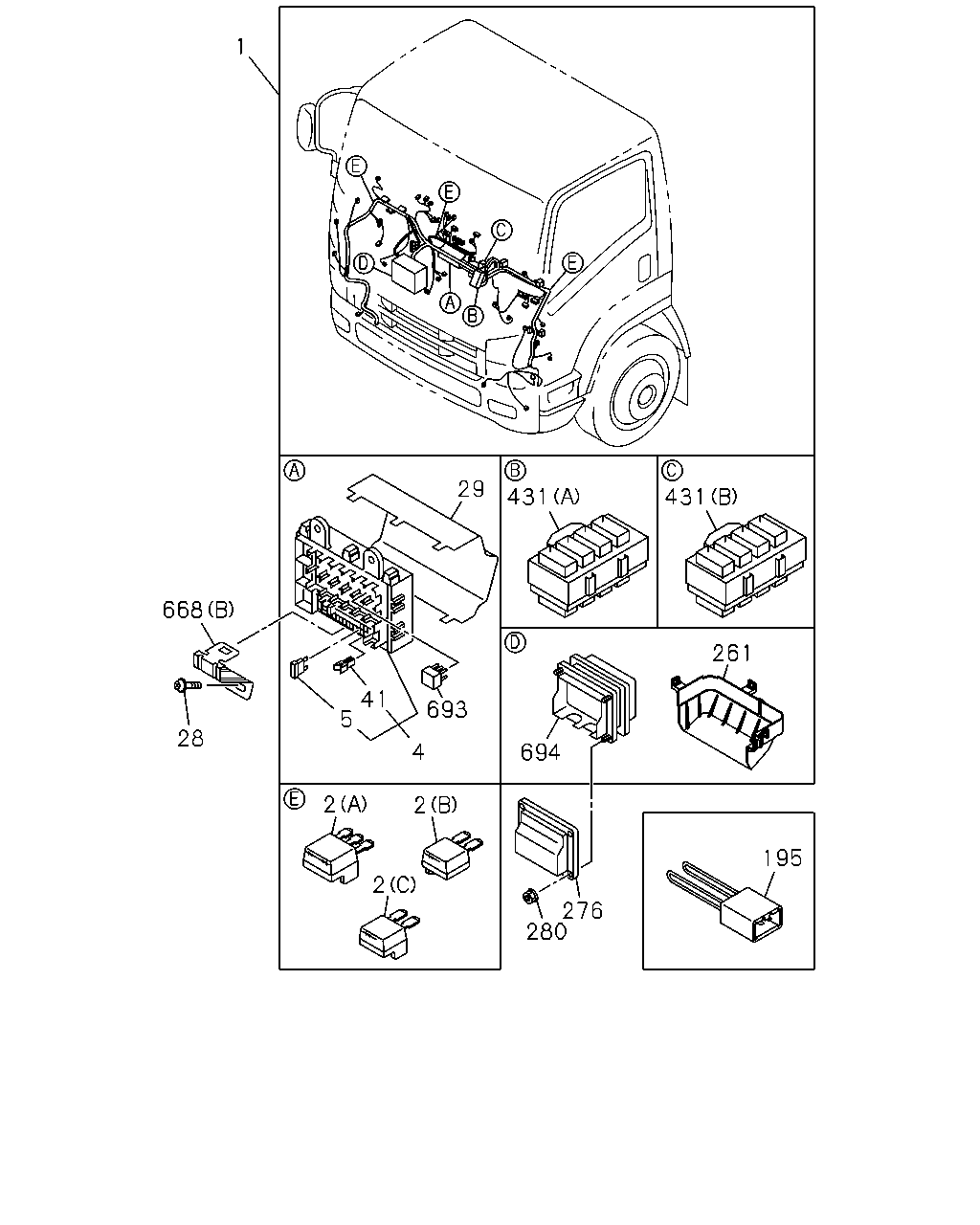

1 668 28 29 41 5 2 2 2 693 4 431 694 276 280 431 261 195

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-466-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-474-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-475-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-470-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-478-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-479-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-468-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-476-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-477-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-472-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-480-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-481-2	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-259-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-263-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-261-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-265-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-260-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-264-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-262-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-266-1	01	1	1601-
2	DIODE; CABLE HARNESS (A) BLACK 3P-1.5A	8-94416-438-1	AR	1	1601-
2	DIODE; CABLE HARNESS (B) BLACK 2P-1.5A	8-94422-639-1	AR	1	1601-
2	DIODE; CABLE HARNESS (C) 2P	8-98223-969-0	AR	1	1601-
4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1601-
5	FUSE; FACIA HARNESS 10A RED	8-98054-257-0	AR	1	1601-
5	FUSE; FACIA HARNESS 15A BLUE	8-98054-258-0	AR	1	1601-
5	FUSE; FACIA HARNESS 20A YELLOW	8-98054-259-0	AR	1	1601-
5	FUSE; FACIA HARNESS 25A WHITE	8-98062-982-0	AR	1	1601-
28	SCREW; FUSE BOX HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) T25 M5X12 TAPPING HEXALOBULAR	8-98081-722-0	01	1	1601-
29	COVER; FUSE BOX	8-98056-968-0	01	1	1601-
41	PULLER; FUSE	8-98054-260-0	01	1	1601-
195	HARNESS; EXT IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>	8-98253-887-0	01	1	1601-
261	COVER; CONNECTOR BOX	8-98065-986-1	01	1	1601-
276	COVER; BOX,FRAME HARNESS	8-98034-039-1	01	1	1601-
280	NUT; BOX ASM FIX M6 FLANGE	0-91180-106-0	04	1	1601-
431	CONNECTOR; JOINT (A) WHITE	8-98056-374-0	01	1	1601-
431	CONNECTOR; JOINT (B) WHITE	8-98056-375-0	01	1	1601-
668	BRACKET; HARNESS (H)	8-97619-533-0	01	1	1601-
668	BRACKET; HARNESS (C)	8-98126-634-2	01	1	1601-
668	BRACKET; HARNESS (D)	8-98126-635-2	01	1	1601-
668	BRACKET; HARNESS (F)	8-98126-636-1	01	1	1601-
668	BRACKET; HARNESS (G)	8-98126-637-2	01	1	1601-
668	BRACKET; HARNESS (O)	8-98126-638-2	01	1	1601-
668	BRACKET; HARNESS (I)	8-98147-490-0	01	1	1601-
668	BRACKET; HARNESS (J)	8-98147-491-2	01	1	1601-
668	BRACKET; HARNESS (K)	8-98150-334-0	01	1	1601-
668	BRACKET; HARNESS (L)	8-98150-855-1	01	1	1601-
668	BRACKET; HARNESS (S)	8-98151-455-3	01	1	1601-
668	BRACKET; HARNESS (N)	8-98161-100-0	02	1	1601-
668	BRACKET; HARNESS (E)	8-98164-831-0	01	1	1601-
668	BRACKET; HARNESS (M)	8-98219-133-0	01	1	1601-
668	BRACKET; HARNESS (T)	8-98221-079-1	01	1	1601-
668	BRACKET; HARNESS (P)	8-98254-592-0	01	1	1601-
668	BRACKET; HARNESS (U)	8-98268-411-0	01	1	1601-
668	BRACKET; HARNESS (A)	8-98309-152-1	01	1	1601-
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98095-653-2	01	1	1601-
668	BRACKET; HARNESS WHEEL BASE 5300MM(53W) (Q) L=170	1-47479-380-0	01	1	1601-
668	BRACKET; HARNESS WHEEL BASE 5300MM(53W) (R)	8-97619-097-1	01	1	1601-
693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1601-
694	BOX ASM; CONNECTOR	8-98057-771-0	01	1	1601-

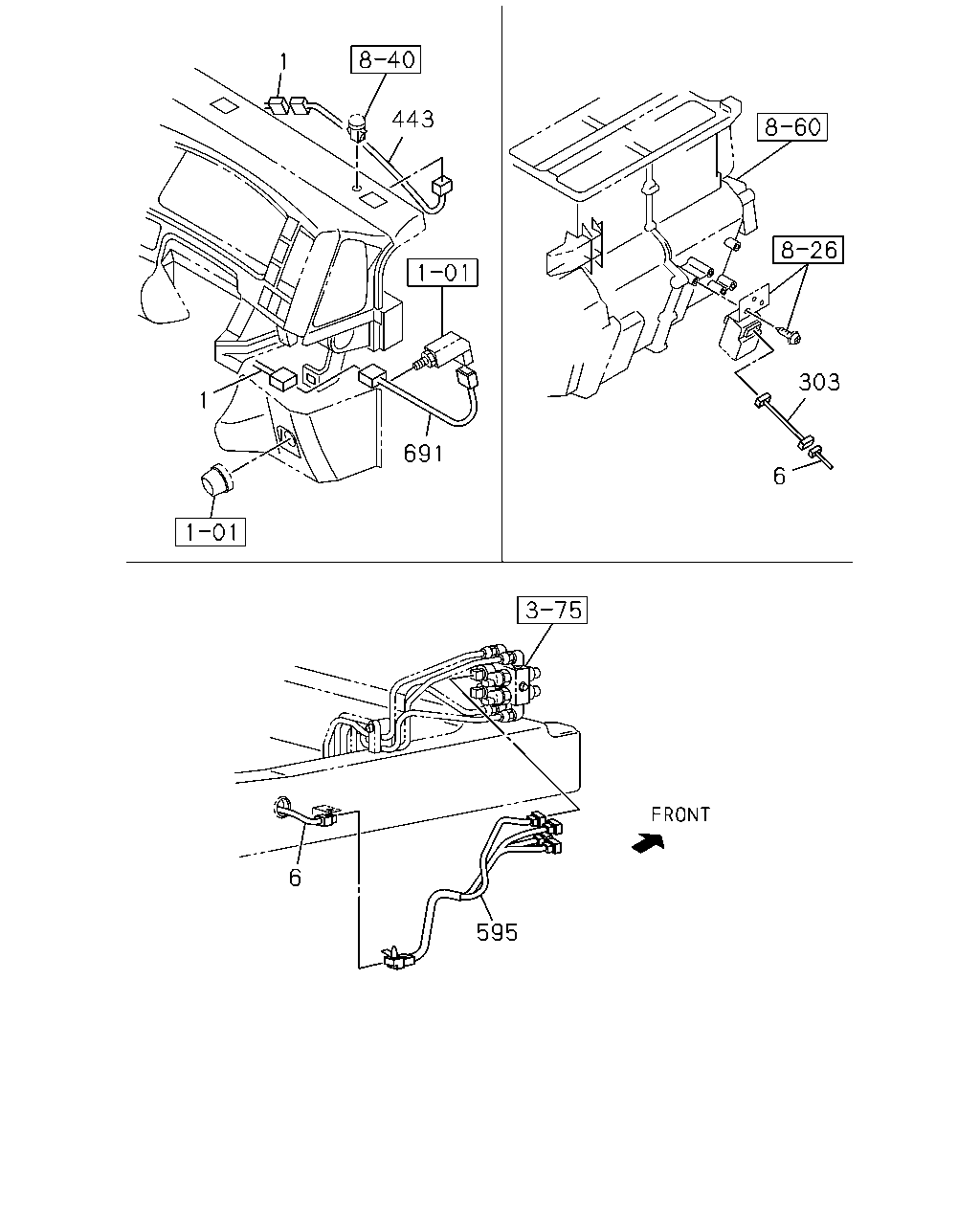

1 443 691 1 6 595 6 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-466-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-474-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-475-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-470-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-478-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-479-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-468-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-476-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-477-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-472-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-480-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-481-2	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-259-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-263-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-261-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-265-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-260-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-264-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-262-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-266-1	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-134-1	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-136-1	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-552-0	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-551-0	01	1	1601-
303	HARNESS; WATER LEVEL	8-98309-145-1	01	1	1601-
443	HARNESS; EXT,A/C FULLAUTO AIR CONDITIONER(C68)	8-98096-565-0	01	1	1601-
595	HARNESS; WARNING,BRK SMOOTHER-FX(TYPE2)(8NS)	8-98254-946-2	01	1	1601-
595	HARNESS; WARNING,BRK TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98328-473-0	01	1	1601-
691	HARNESS; IDLE CONT	8-98049-014-2	01	1	1601-

668 668 668 668 267 534 267 639 267 535 290 668 668 668 290 293 525

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
267	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	01	1	1601-
267	BOLT; BRKT (B) M8X30 FLANGE	0-28650-830-0	03	1	1601-
267	BOLT; BRKT (C) M10X25 FLANGE	0-28651-025-0	02	1	1601-
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1601-
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	05	1	1601-
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-
290	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE	0-91180-210-0	01	1	1601-
290	NUT; BRKT WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-
293	NUT M8 FLANGE	0-91180-108-0	01	1	1601-
525	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	1601-
534	BOLT (C) M10X70 FLANGE	0-28151-070-0	03	1	1601-
534	BOLT (A) M8X25 FLANGE	0-28650-825-0	01	1	1601-
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1601-
535	BOLT; BRKT FIX (D) M8X20 FLANGE	0-28650-820-0	02	1	1601-
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-
535	BOLT; BRKT FIX (C) M14X35 FLANGE	0-28851-435-0	01	1	1601-
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1601-
639	BOLT; CLIP M8X30 FLANGE	0-28650-830-0	01	1	1601-
668	BRACKET; HARNESS (H)	8-97619-533-0	01	1	1601-
668	BRACKET; HARNESS (C)	8-98126-634-2	01	1	1601-
668	BRACKET; HARNESS (D)	8-98126-635-2	01	1	1601-
668	BRACKET; HARNESS (F)	8-98126-636-1	01	1	1601-
668	BRACKET; HARNESS (G)	8-98126-637-2	01	1	1601-
668	BRACKET; HARNESS (O)	8-98126-638-2	01	1	1601-
668	BRACKET; HARNESS (I)	8-98147-490-0	01	1	1601-
668	BRACKET; HARNESS (J)	8-98147-491-2	01	1	1601-
668	BRACKET; HARNESS (K)	8-98150-334-0	01	1	1601-
668	BRACKET; HARNESS (L)	8-98150-855-1	01	1	1601-
668	BRACKET; HARNESS (S)	8-98151-455-3	01	1	1601-
668	BRACKET; HARNESS (N)	8-98161-100-0	02	1	1601-
668	BRACKET; HARNESS (E)	8-98164-831-0	01	1	1601-
668	BRACKET; HARNESS (M)	8-98219-133-0	01	1	1601-
668	BRACKET; HARNESS (T)	8-98221-079-1	01	1	1601-
668	BRACKET; HARNESS (P)	8-98254-592-0	01	1	1601-
668	BRACKET; HARNESS (U)	8-98268-411-0	01	1	1601-
668	BRACKET; HARNESS (A)	8-98309-152-1	01	1	1601-
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98095-653-2	01	1	1601-
668	BRACKET; HARNESS WHEEL BASE 5300MM(53W) (Q) L=170	1-47479-380-0	01	1	1601-
668	BRACKET; HARNESS WHEEL BASE 5300MM(53W) (R)	8-97619-097-1	01	1	1601-

180 339 486 1 570 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-466-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-474-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-475-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-470-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-478-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-479-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-468-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-476-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-477-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> SMOOTHER-FX(TYPE2)(8NS)	8-98309-472-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> IDLE STOP SYSTEM VAR2<8BM> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-480-2	01	1	1601-
1	HARNESS; CAB AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. H.S.A SYSTEM<6EP>,IDLE STOP SYSTEM VAR2<8BM>	8-98309-481-2	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-259-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-263-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-261-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER & PASSENGER(AK5) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-265-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-260-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) FULLAUTO AIR CONDITIONER(C68) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-264-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> SMOOTHER-FX(TYPE2)(8NS) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-262-1	01	1	1601-
1	HARNESS; CAB H.S.A SYSTEM<6EP> AIR BAG DRIVER(AJ3) HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60) O/SIDE MIRROR ELEC REM CONT,HEATED<DL8>,MIRROR - O/SIDE RR VIEW,HEATED<7SV> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. IDLE STOP SYSTEM VAR2<8BM>	8-98324-266-1	01	1	1601-
180	HARNESS; CABLE WHEEL BASE 3700MM(37W)	8-98268-857-1	01	1	1601-
180	HARNESS; CABLE WHEEL BASE 5300MM(53W)	8-98289-975-0	01	1	1601-
339	HARNESS; EXT,FUEL WHEEL BASE 5300MM(53W)	8-98247-534-0	01	1	1601-
486	HARNESS; ALL SPEED ACCEL TRANSMISSION SIDE PTO WO/LEVER(SH5) EXC. DUMP CONTROL LEVER<RC4>	1-82675-898-0	01	1	1601-
570	HARNESS; SPEED SENSOR SPEED LIMITER 100KM(NMU),SPEED LIMITER 95KM(NNT)	8-98172-313-0	01	1	1601-

4 693 693 693 693 693 693 693 693

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	4	BOX ASM; FUSE,HARNESS	8-98065-666-0	01	1	1601-
	693	RELAY; FUSE BOX 24V 10A PANASONIC	8-97173-035-1	AR	1	1601-

290 720 534 184 388 27 10 174 453 6 184

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) SMOOTHER-FX(TYPE2)(8NS)	8-98309-134-1	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 3700MM(37W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98309-136-1	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 5300MM(53W) SMOOTHER-FX(TYPE2)(8NS)	8-98330-552-0	01	1	1601-
6	HARNESS; FRAME WHEEL BASE 5300MM(53W) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98330-551-0	01	1	1601-
10	BOX; FUSE,HARNESS	8-98030-762-0	01	1	1601-
27	FUSE UNIT 10A RED	8-98054-257-0	01	1	1601-
27	FUSE UNIT 15A BLUE	8-98054-258-0	01	1	1601-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	01	1	1601-
174	FUSE; SLOW BLOW 60A YELLOW	8-97219-407-0	02	1	1601-
174	FUSE; SLOW BLOW 30A PINK	8-98079-191-0	02	1	1601-
174	FUSE; SLOW BLOW 40A GREEN	8-98079-192-0	02	1	1601-
174	FUSE; SLOW BLOW 50A RED	8-98079-193-0	03	1	1601-
184	COVER; RELAY & FUSE BOX (A)	8-98030-766-0	01	1	1601-
184	COVER; RELAY & FUSE BOX (B)	8-98030-767-1	01	1	1601-
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	02	1	1601-
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	05	1	1601-
290	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-
290	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-
290	NUT; BRKT TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) M10 FLANGE	0-91180-210-0	01	1	1601-
290	NUT; BRKT WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-
388	DIODE; RELAY BOX BLACK 2P-1.5A	8-94422-639-1	01	1	1601-
453	PROTECTOR; HARNESS	1-82699-709-0	02	1	1601-
534	BOLT (C) M10X70 FLANGE	0-28151-070-0	03	1	1601-
534	BOLT (A) M8X25 FLANGE	0-28650-825-0	01	1	1601-
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1601-
720	ATTACHMENT; CONNECTOR	1-82699-688-0	03	1	1601-

534 13 13 668 668 668 102 668 102 668 102

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	HARNESS; ENG (B)	8-98120-924-0	01	1	1601-
13	HARNESS; ENG GENERATOR 24V60A(KG2) (A)	8-98324-197-0	01	1	1601-
13	HARNESS; ENG GENERATOR 24V90A(K44) (A)	8-98324-198-0	01	1	1601-
102	BOLT; BRKT,HARNESS CONNECTOR M8X12 FLANGE	0-28050-812-0	01	1	1601-
102	BOLT; BRKT,HARNESS CONNECTOR M10X100 FLANGE	0-28151-000-0	01	1	1601-
102	BOLT; BRKT,HARNESS CONNECTOR M10X20 FLANGE	0-28151-020-0	02	1	1601-
534	BOLT (C) M10X70 FLANGE	0-28151-070-0	03	1	1601-
534	BOLT (A) M8X25 FLANGE	0-28650-825-0	01	1	1601-
534	BOLT (B) M8X35 W/LK&PL WASHER	1-09030-073-0	03	1	1601-
668	BRACKET; HARNESS (H)	8-97619-533-0	01	1	1601-
668	BRACKET; HARNESS (C)	8-98126-634-2	01	1	1601-
668	BRACKET; HARNESS (D)	8-98126-635-2	01	1	1601-
668	BRACKET; HARNESS (F)	8-98126-636-1	01	1	1601-
668	BRACKET; HARNESS (G)	8-98126-637-2	01	1	1601-
668	BRACKET; HARNESS (O)	8-98126-638-2	01	1	1601-
668	BRACKET; HARNESS (I)	8-98147-490-0	01	1	1601-
668	BRACKET; HARNESS (J)	8-98147-491-2	01	1	1601-
668	BRACKET; HARNESS (K)	8-98150-334-0	01	1	1601-
668	BRACKET; HARNESS (L)	8-98150-855-1	01	1	1601-
668	BRACKET; HARNESS (S)	8-98151-455-3	01	1	1601-
668	BRACKET; HARNESS (N)	8-98161-100-0	02	1	1601-
668	BRACKET; HARNESS (E)	8-98164-831-0	01	1	1601-
668	BRACKET; HARNESS (M)	8-98219-133-0	01	1	1601-
668	BRACKET; HARNESS (T)	8-98221-079-1	01	1	1601-
668	BRACKET; HARNESS (P)	8-98254-592-0	01	1	1601-
668	BRACKET; HARNESS (U)	8-98268-411-0	01	1	1601-
668	BRACKET; HARNESS (A)	8-98309-152-1	01	1	1601-
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98095-653-2	01	1	1601-
668	BRACKET; HARNESS WHEEL BASE 5300MM(53W) (Q) L=170	1-47479-380-0	01	1	1601-
668	BRACKET; HARNESS WHEEL BASE 5300MM(53W) (R)	8-97619-097-1	01	1	1601-

668 680 668 668 535 668 668 668 668 680 538

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
535	BOLT; BRKT FIX (D) M8X20 FLANGE	0-28650-820-0	02	1	1601-
535	BOLT; BRKT FIX (A) M10X30 FLANGE	0-28651-030-0	01	1	1601-
535	BOLT; BRKT FIX (C) M14X35 FLANGE	0-28851-435-0	01	1	1601-
535	BOLT; BRKT FIX (B) M8X10 W/LK WASHER	8-98029-928-0	02	1	1601-
538	NUT M8 FLANGE	0-91180-108-0	02	1	1601-
668	BRACKET; HARNESS (H)	8-97619-533-0	01	1	1601-
668	BRACKET; HARNESS (C)	8-98126-634-2	01	1	1601-
668	BRACKET; HARNESS (D)	8-98126-635-2	01	1	1601-
668	BRACKET; HARNESS (F)	8-98126-636-1	01	1	1601-
668	BRACKET; HARNESS (G)	8-98126-637-2	01	1	1601-
668	BRACKET; HARNESS (O)	8-98126-638-2	01	1	1601-
668	BRACKET; HARNESS (I)	8-98147-490-0	01	1	1601-
668	BRACKET; HARNESS (J)	8-98147-491-2	01	1	1601-
668	BRACKET; HARNESS (K)	8-98150-334-0	01	1	1601-
668	BRACKET; HARNESS (L)	8-98150-855-1	01	1	1601-
668	BRACKET; HARNESS (S)	8-98151-455-3	01	1	1601-
668	BRACKET; HARNESS (N)	8-98161-100-0	02	1	1601-
668	BRACKET; HARNESS (E)	8-98164-831-0	01	1	1601-
668	BRACKET; HARNESS (M)	8-98219-133-0	01	1	1601-
668	BRACKET; HARNESS (T)	8-98221-079-1	01	1	1601-
668	BRACKET; HARNESS (P)	8-98254-592-0	01	1	1601-
668	BRACKET; HARNESS (U)	8-98268-411-0	01	1	1601-
668	BRACKET; HARNESS (A)	8-98309-152-1	01	1	1601-
668	BRACKET; HARNESS HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B)	8-98095-653-2	01	1	1601-
668	BRACKET; HARNESS WHEEL BASE 5300MM(53W) (Q) L=170	1-47479-380-0	01	1	1601-
668	BRACKET; HARNESS WHEEL BASE 5300MM(53W) (R)	8-97619-097-1	01	1	1601-
680	BOLT; ENG HARNESS M8X16 FLANGE	0-28050-816-0	01	1	1601-
680	BOLT; ENG HARNESS GENERATOR 24V60A(KG2) M8X12 FLANGE	0-28050-812-0	02	1	1601-
680	BOLT; ENG HARNESS GENERATOR 24V90A(K44) M8X12 FLANGE	0-28050-812-0	01	1	1601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
