Sayfa 7-50 - Isuzu EPC

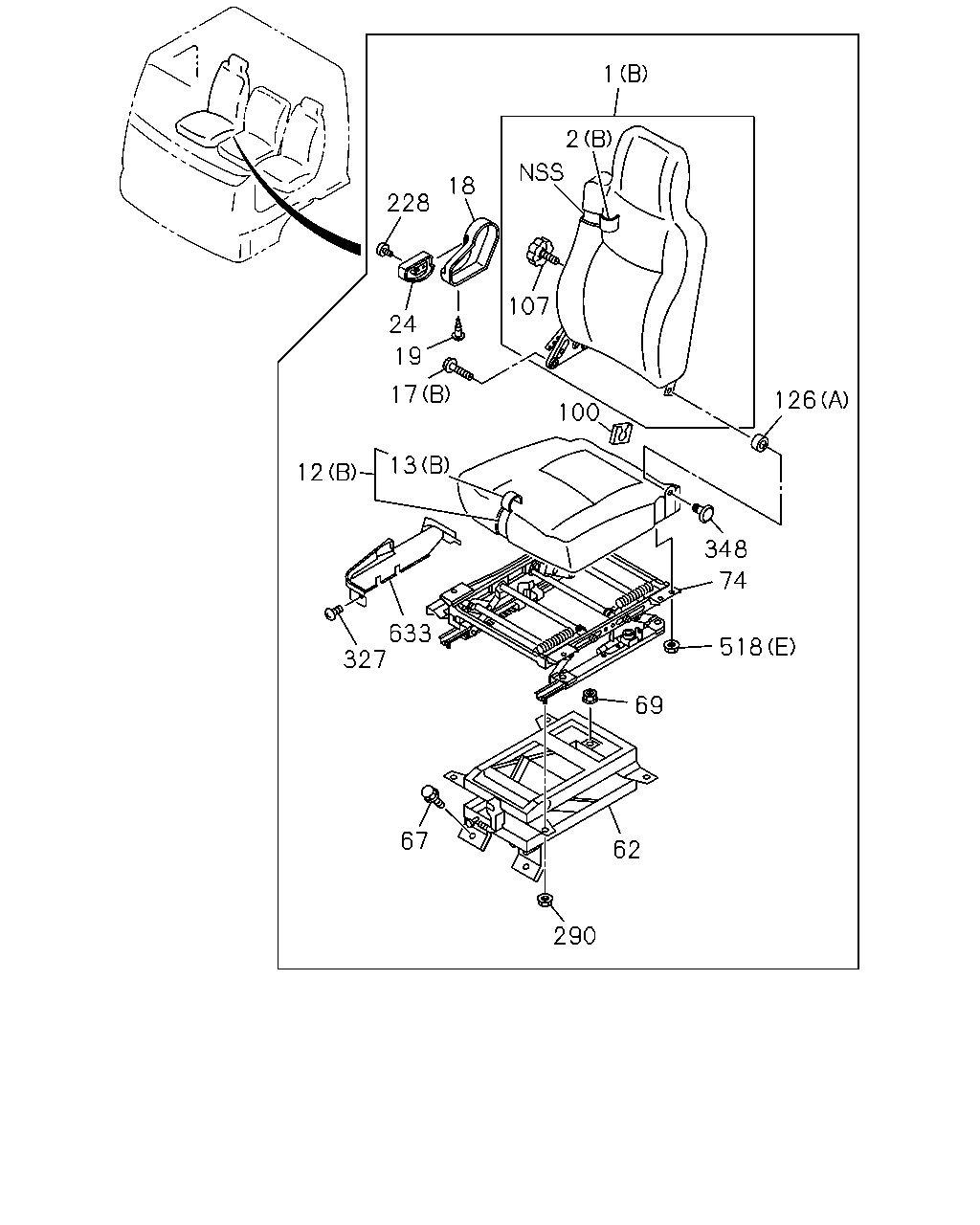

7-50 — FRONT SEAT (#17574) — 609 parça

1 2 18 228 107 24 19 17 12 13 100 126 348 74 518 633 327 69 67 62 290

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1010-1506
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1510-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97466-620-0	01	1	1601-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-202-0	01	1	1001-1009
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-407-1	01	1	1010-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97466-622-0	01	1	1601-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-5	01	1	1001-1502
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97466-618-0	01	1	1601-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	1001-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	1001-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1010-1506
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-207-0	01	1	1001-1009
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-412-0	01	1	1010-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-2	01	1	1001-1502
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-2	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-966-0	01	1	1001-1212
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98232-353-0	01	1	1301-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-212-1	01	1	1001-1009
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-1	01	1	1010-1506
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-398-2	01	1	1507-1509
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-2	01	1	1510-1512
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97466-611-0	01	1	1601-
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-123-2	01	1	1001-1502
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-123-2	01	1	1510-1512
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97466-608-0	01	1	1601-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-006-0	01	1	1001-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-216-0	01	1	1001-1009
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-1	01	1	1010-1506
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-402-2	01	1	1507-1509
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-2	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-1	01	1	1001-1502
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-1	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-007-0	01	1	1001-
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	1001-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1001-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1001-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1503-1506
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1510-
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	1001-1502
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1503-1506
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-332-0	01	1	1507-1509
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	1510-
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1001-1502
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1503-1506
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	1001-1502
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1503-1506
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-333-0	01	1	1507-1509
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	1510-

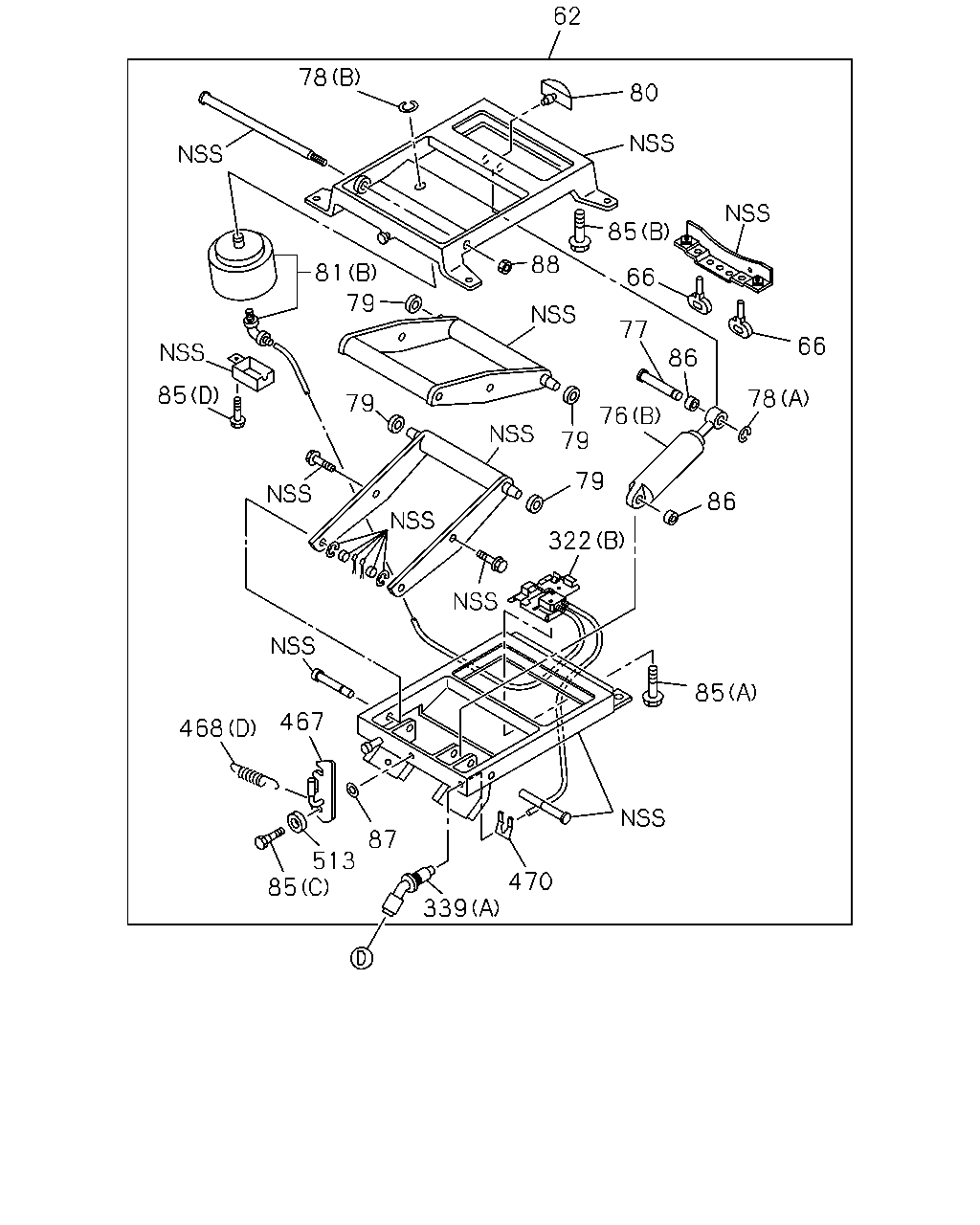

62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-183-8	01	1	1001-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1404-1506
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1510-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE SOU	0-28451-020-0	02	1	1001-
69	NUT; FRT SEAT M10 FLANGE SOU	0-91180-110-0	02	1	1001-

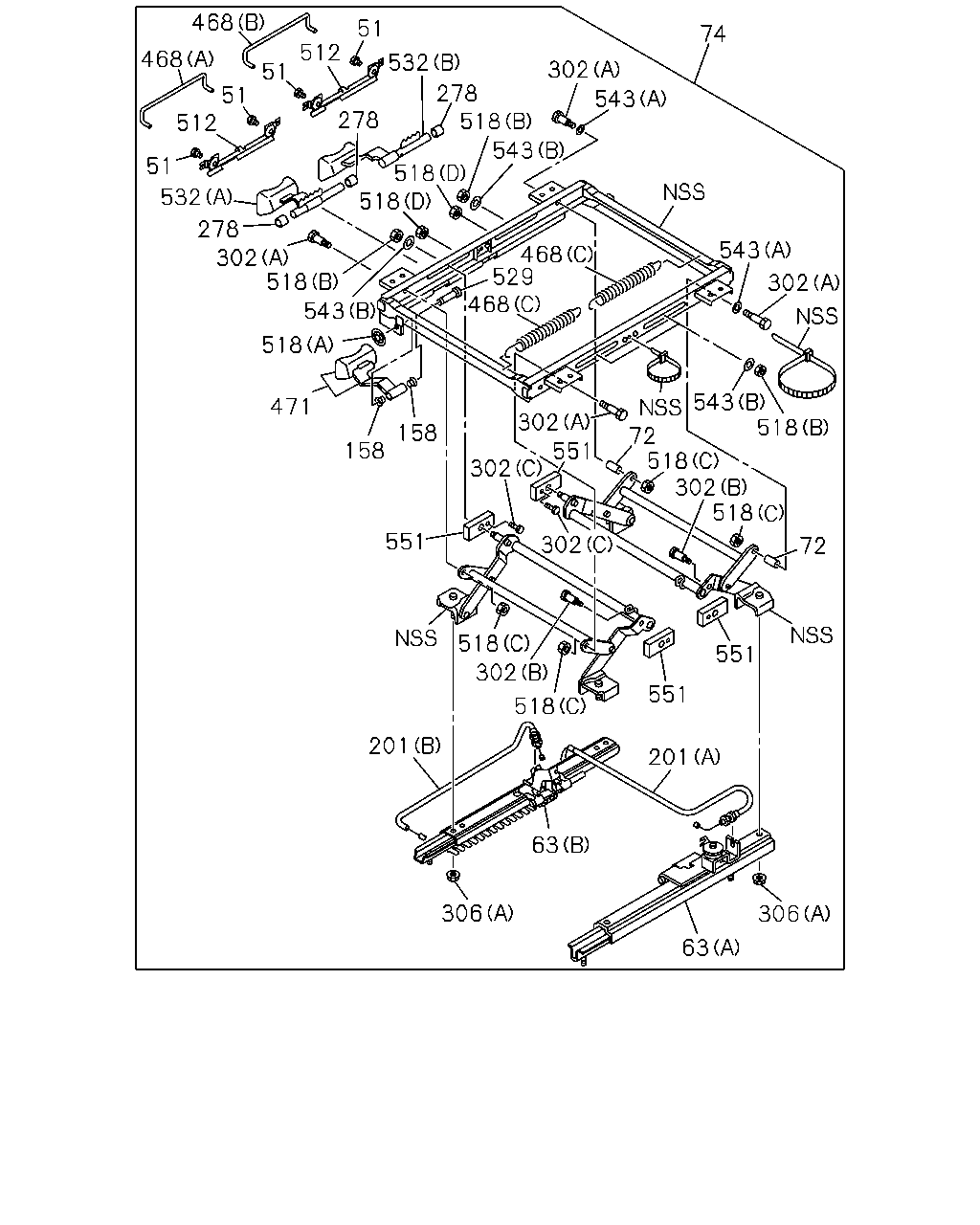

74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98003-678-0	01	1	1001-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1510-
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1110-1502
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1503-1506
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98286-009-0	01	1	1601-
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	1001-1506
107	DIAL; SEAT RECLINING AIR SUSP DRIVER SEAT<A56>	8-98063-174-0	01	1	1510-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1001-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1503-1506
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98286-007-0	01	1	1601-

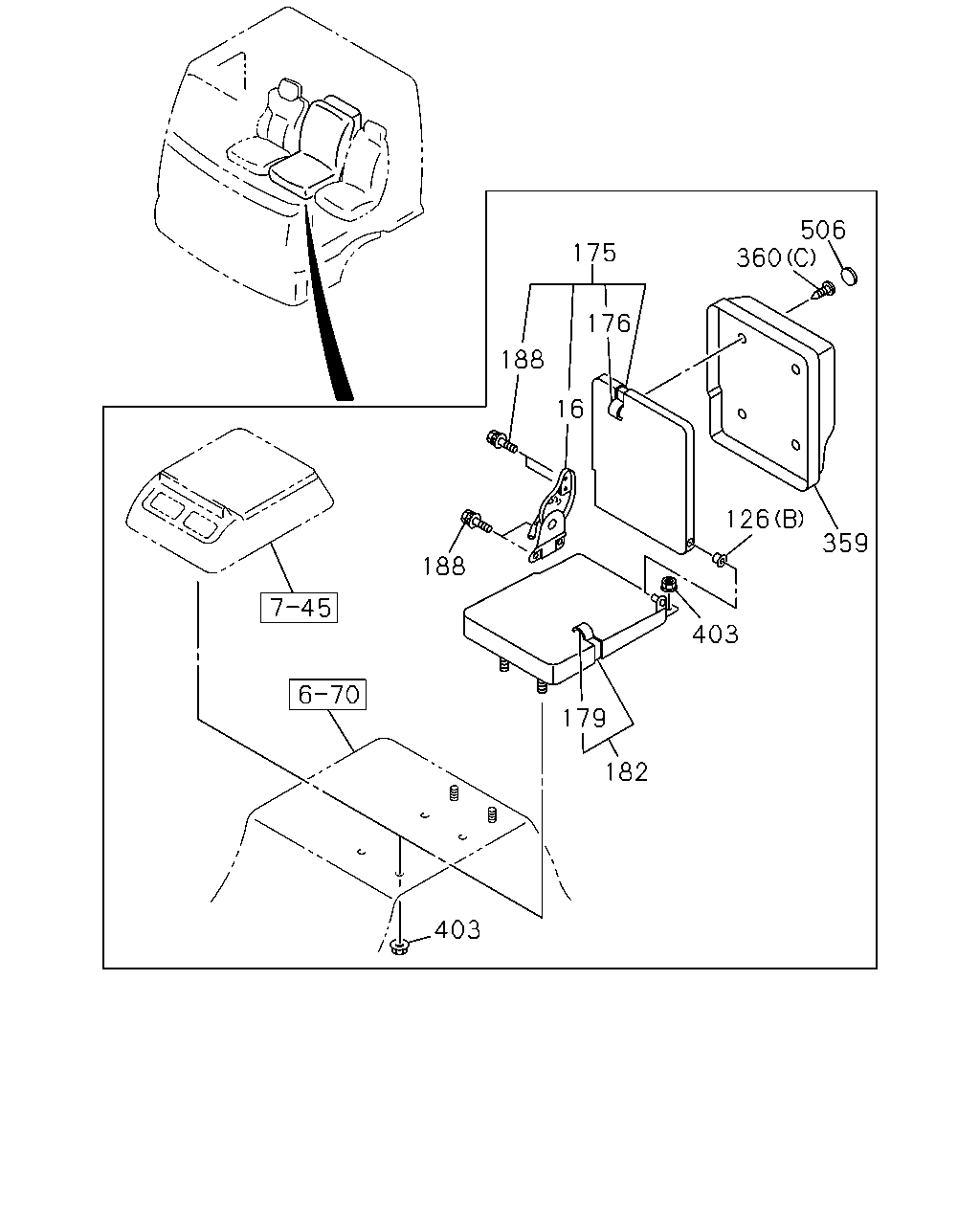

126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1001-1104
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1105-1109
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1110-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) SOU	8-97854-900-0	01	1	1105-1109
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1001-1502
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1503-1506
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1510-
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
290	NUT; ADJ TO SUSP AIR SUSP DRIVER SEAT<A56> M8 FLANGE SOU	1-75538-207-0	04	1	1510-
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-004-0	01	1	1001-
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> SOU	1-09987-273-0	01	1	1001-
348	BOLT; HINGE,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98286-008-0	01	1	1601-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8 SOU	1-75518-264-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8 SOU	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE SOU	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT SOU	5-09984-020-0	02	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT SOU	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE SOU	8-94152-886-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE SOU	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) SOU	1-75518-263-0	01	1	1001-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) SOU	1-75518-263-0	01	1	1503-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) SOU	1-75518-263-0	01	1	1510-
633	COVER; ADJ,TILT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-956-0	01	1	1001-

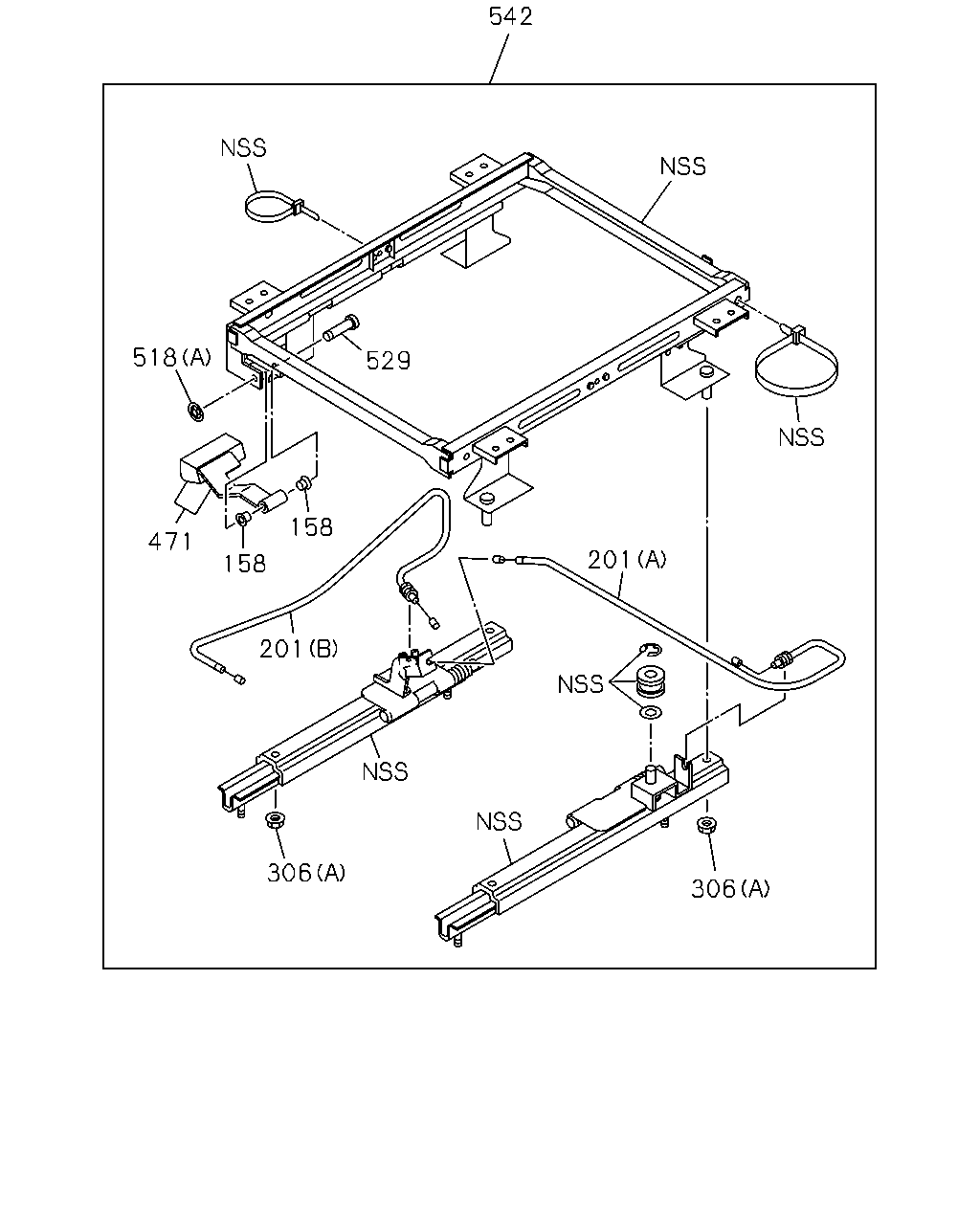

542 529 518 471 158 158 201 306 201 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-209-0	02	1	1001-1502
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-209-0	02	1	1503-1506
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-209-0	02	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) L=667 SOU	1-75518-288-0	01	1	1001-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) L=667 SOU	1-75518-288-0	01	1	1503-1506
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) L=667 SOU	1-75518-288-0	01	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) L=605 SOU	1-75518-289-1	01	1	1001-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) L=605 SOU	1-75518-289-1	01	1	1503-1506
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) L=605 SOU	1-75518-289-1	01	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE SOU	0-91180-110-0	02	1	1001-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1001-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1001-1502
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1510-
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	1001-1502
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98107-869-0	01	1	1503-1506
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8 SOU	1-75518-264-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8 SOU	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE SOU	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT SOU	5-09984-020-0	02	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT SOU	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE SOU	8-94152-886-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE SOU	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) SOU	1-75518-263-0	01	1	1001-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) SOU	1-75518-263-0	01	1	1503-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) SOU	1-75518-263-0	01	1	1510-
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-262-0	01	1	1001-1502
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-262-0	01	1	1503-1506
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-262-0	01	1	1510-

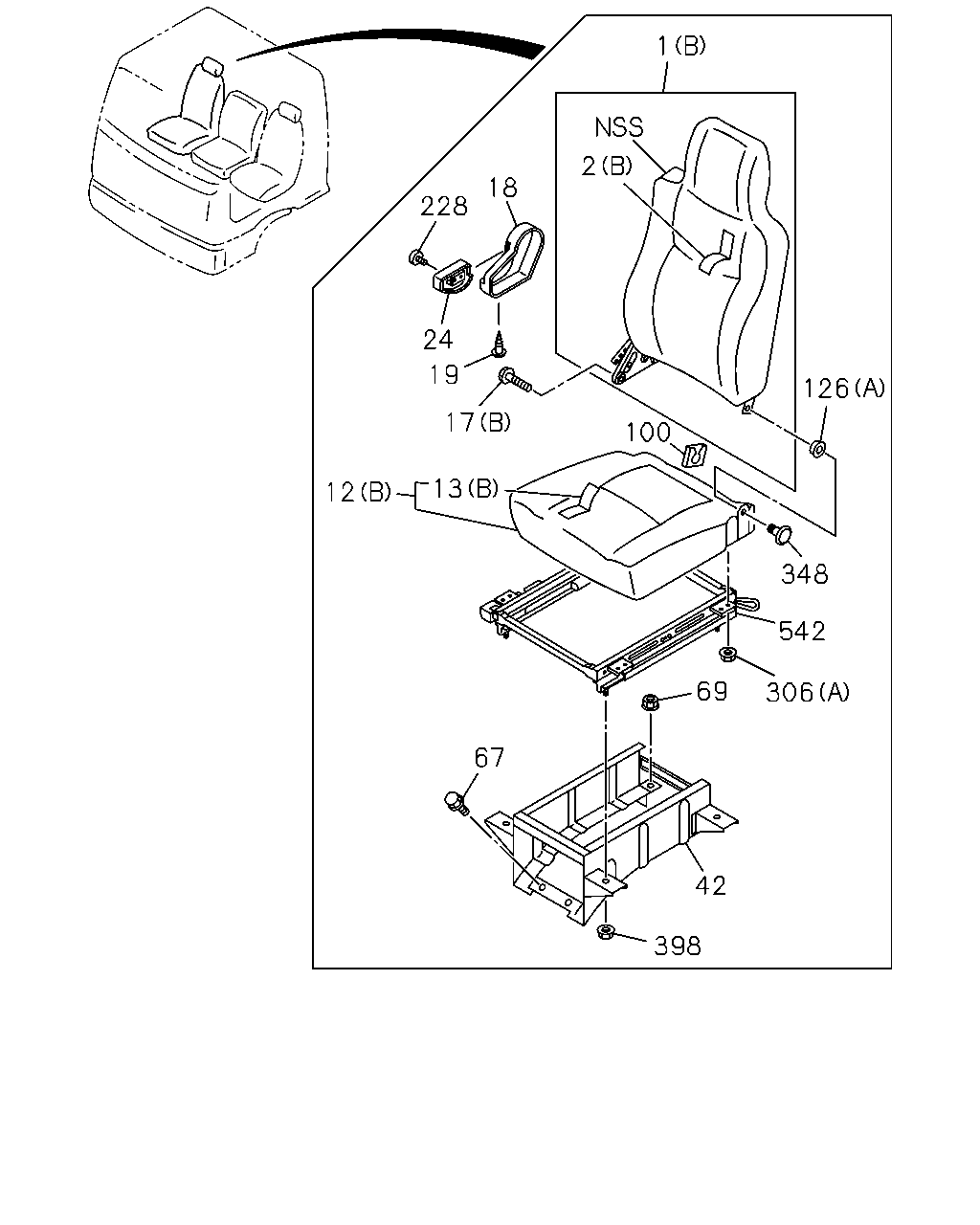

542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98093-310-0	01	1	1001-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98291-653-0	01	1	1503-1506
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-653-0	01	1	1510-

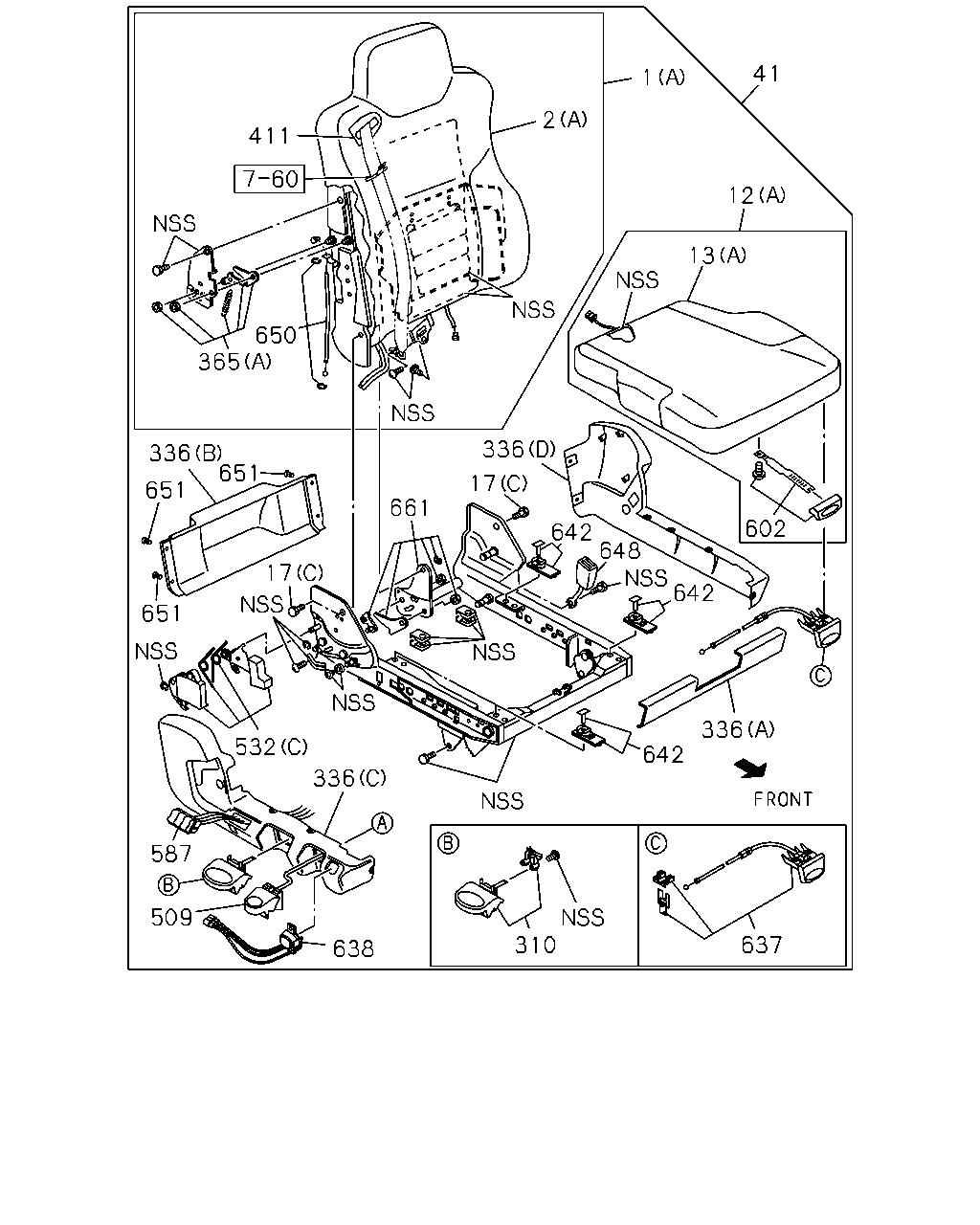

41 657 63 656 657 658 42 655 368 368 658 69 660 165 659 656 654 67 138 634 635 78 552 485 595 639 653 639 78 639 639

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

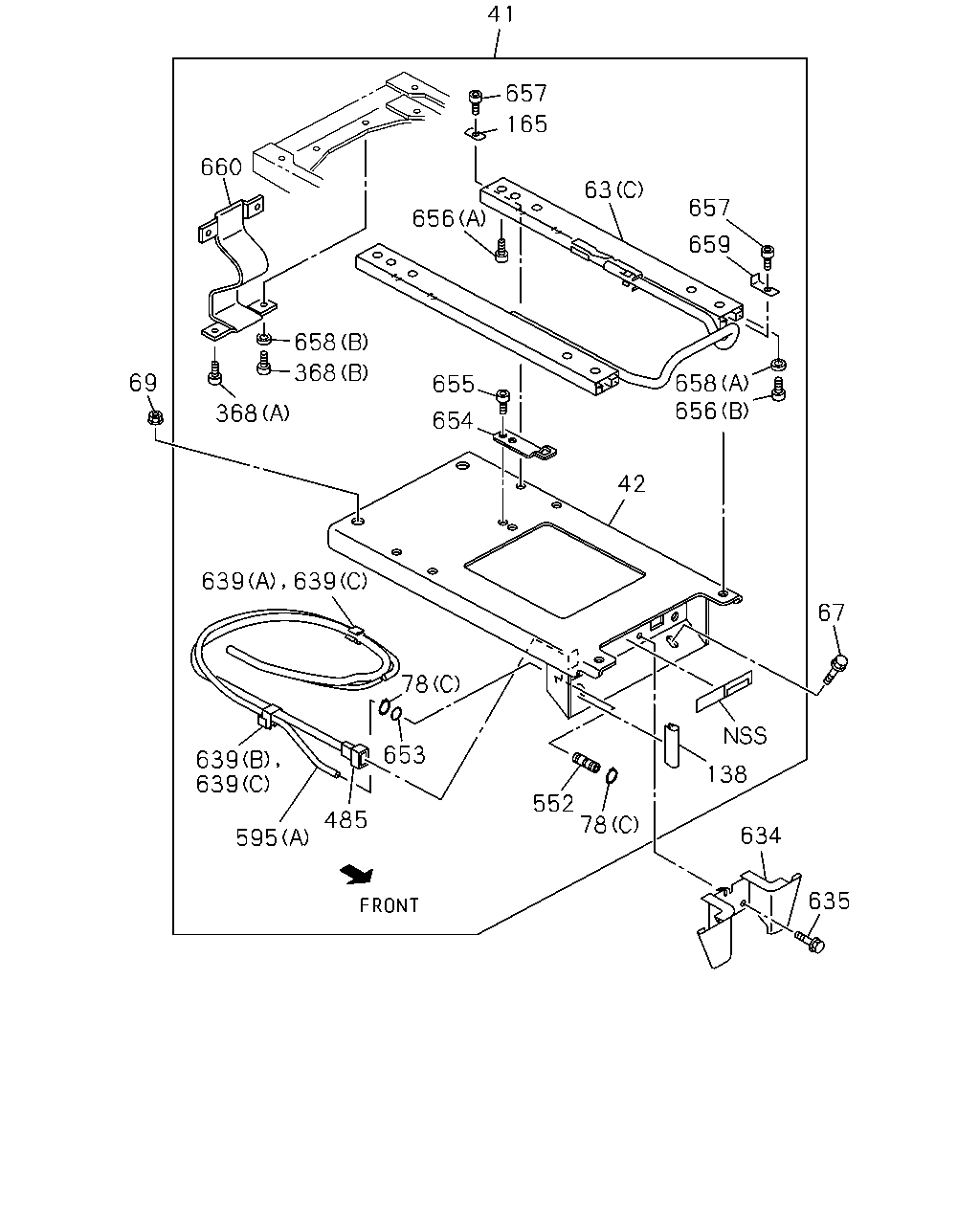

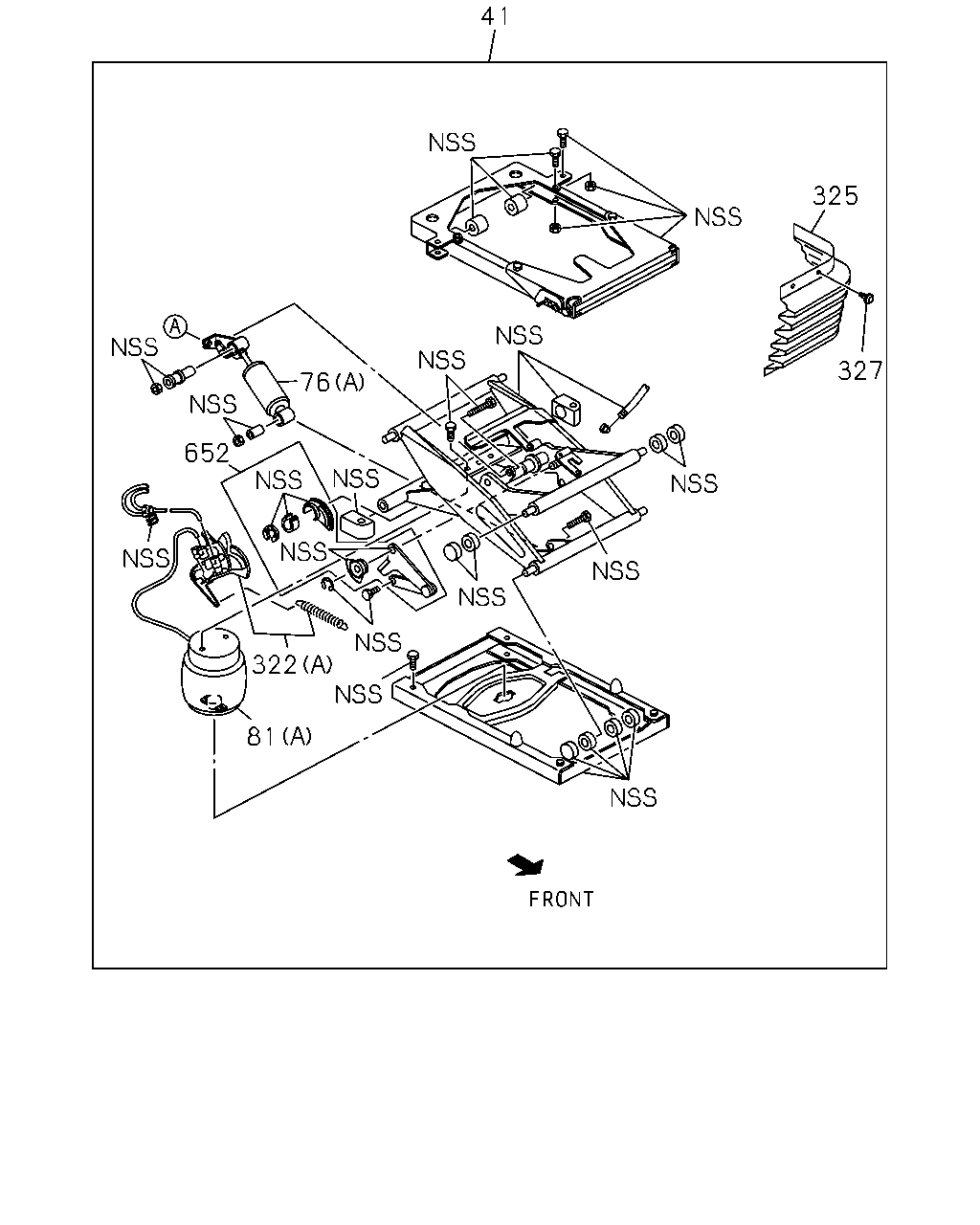

41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	1001-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-1	01	1	1301-
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	1001-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-1	01	1	1301-
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-346-0	01	1	1001-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-607-2	01	1	1001-1502
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	1-75558-607-2	01	1	1503-1506
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-607-2	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A) SOU	1-75518-199-1	01	1	1001-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A) SOU	1-75518-199-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75518-323-0	01	1	1001-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75518-323-0	01	1	1510-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98098-005-0	01	1	1001-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE SOU	0-28451-020-0	02	1	1001-
69	NUT; FRT SEAT M10 FLANGE SOU	0-91180-110-0	02	1	1001-
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98101-900-0	02	1	1001-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1001-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1001-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1510-
138	PROTECTOR; SEAT STAND DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-351-0	01	1	1001-
165	WASHER; PL DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	1-75590-086-0	04	1	1001-
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-353-0	03	1	1001-
368	BOLT; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-358-0	01	1	1001-
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-361-0	01	1	1001-
485	HARNESS; FRT SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98106-360-0	01	1	1001-
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98101-902-0	01	1	1001-1508
552	CONNECTOR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98308-101-0	01	1	1509-
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-348-0	01	1	1001-

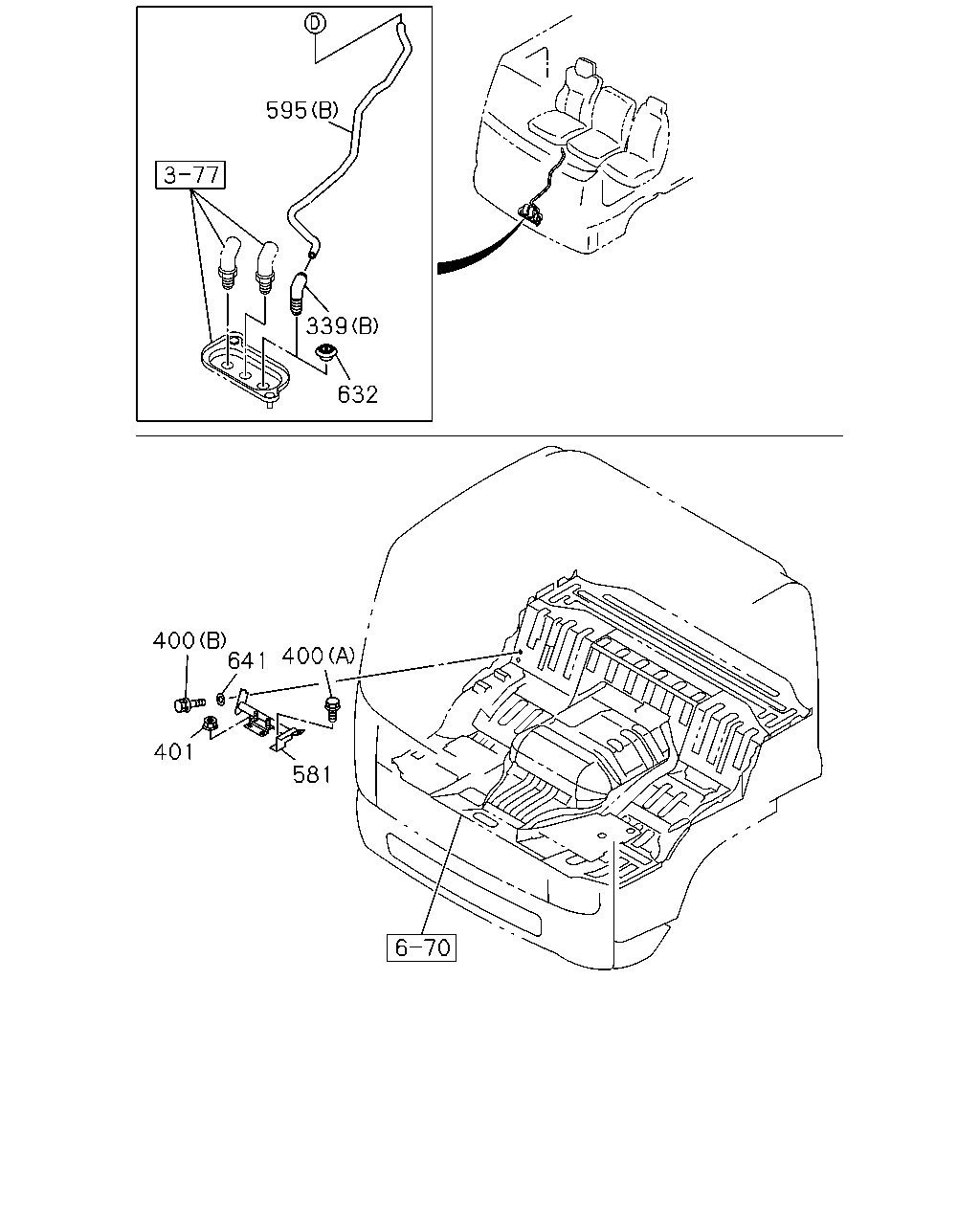

595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98041-300-0	01	1	1001-
634	COVER; CONNECTOR,SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98088-279-0	01	1	1001-
635	BOLT; COVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M6X16 SOU	0-52000-616-0	02	1	1001-
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-350-0	01	1	1001-1508
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-349-0	01	1	1001-1508
639	CLIP; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98308-100-0	02	1	1509-
653	GASKET DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98101-901-0	01	1	1001-
654	HOOK; STOPPER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-352-0	01	1	1001-
655	BOLT; HOOK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-353-0	02	1	1001-
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	1-75590-085-0	04	1	1001-
656	BOLT; SLIDER TO SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-354-0	02	1	1001-
657	BOLT; SLIDER TO STAND DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	1-75590-085-0	06	1	1001-
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-355-0	02	1	1001-
658	SPACER; BOLT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98106-359-0	01	1	1001-
659	STOPPER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-356-0	02	1	1001-
660	BELT; TETHER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-357-0	01	1	1001-

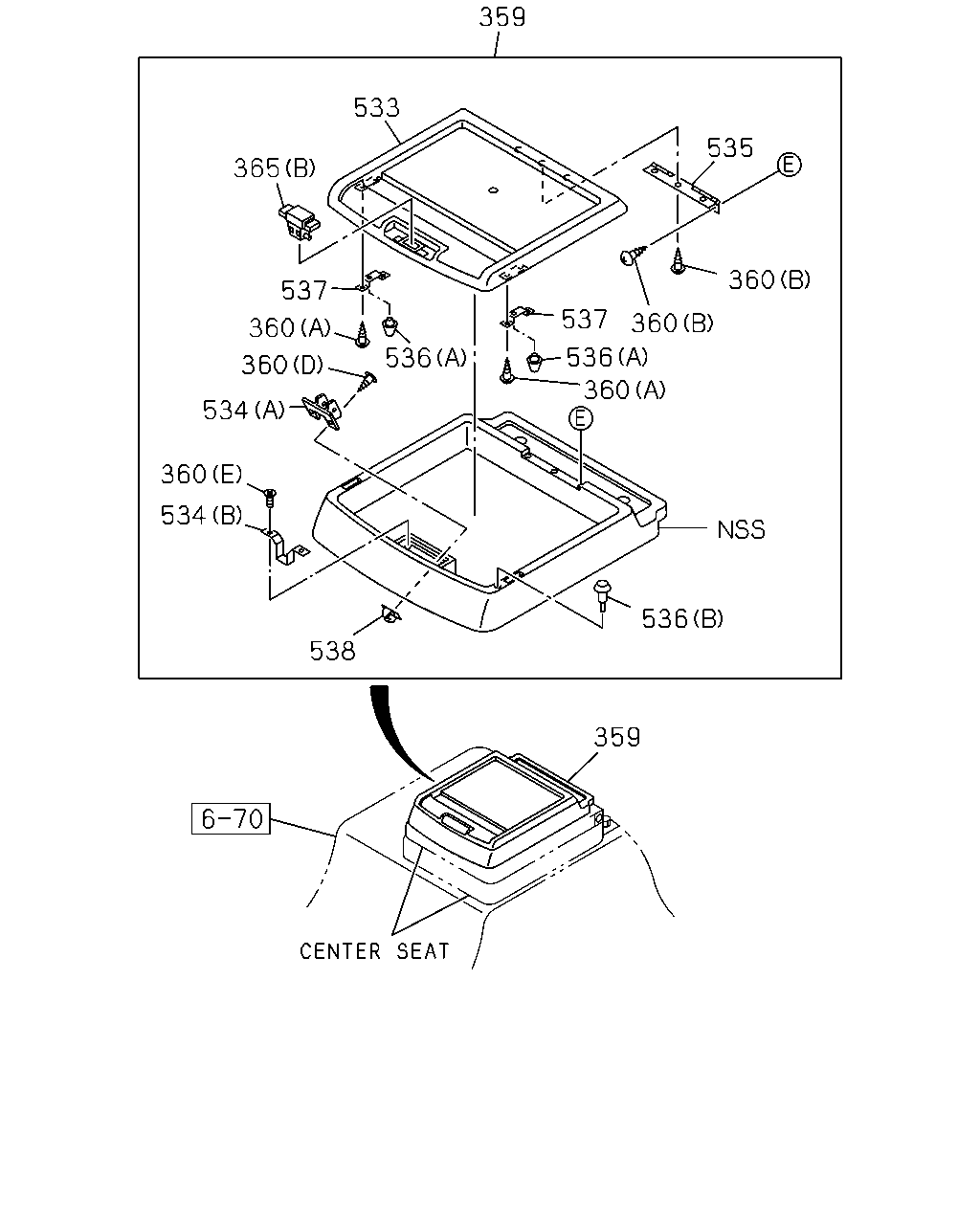

359 533 365 537 360 360 534 360 534 538 359 536 360 536 537 360 360 535 536

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	1001-1006
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1001-1009
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1010-1104
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1110-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1001-1104
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1110-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16	0-70040-416-0	06	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER SOU	0-74360-516-0	04	1	1001-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 SOU	9-09829-324-1	02	1	1001-1009
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-972-0	01	1	1001-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1001-1104
365	LOCK ASM; SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1105-1109
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1110-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	1-72538-312-0	01	1	1105-1109
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-979-1	01	1	1001-1006
533	LID; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-263-0	01	1	1007-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (A) SOU	1-72538-181-0	01	1	1001-1009
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	1-72538-190-0	01	1	1010-1104
534	STRIKER; PARCEL BOX VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	1-72538-190-0	01	1	1105-1109
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	1-72538-190-0	01	1	1110-
534	STRIKER; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) SOU	1-72538-190-0	01	1	1105-1109
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-72447-391-1	01	1	1001-1104
535	HINGE; PARCEL BOX VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-72447-391-1	01	1	1105-1109
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-72447-391-1	01	1	1110-
535	HINGE; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> SOU	1-72447-391-1	01	1	1105-1109
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (A) SOU	5-09983-002-1	02	1	1001-1009
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	1-72538-187-0	02	1	1010-1104
536	RUBBER; CUSHION VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	1-72538-187-0	02	1	1105-1109
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	1-72538-187-0	02	1	1110-
536	RUBBER; CUSHION SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) SOU	1-72538-187-0	02	1	1105-1109
537	BRACKET; RUBBER SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-72548-057-1	02	1	1001-1009
538	GROMMET; SCREW SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-09983-165-0	02	1	1001-1009

78 62 81 80 85 66 66 78 86 322 85 79 76 77 79 86 470 339 85 87 513 467 468 85 79 88 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	1-75538-183-8	01	1	1001-1403
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1404-1506
62	DAMPER ASM; SEAT SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-448-0	01	1	1510-
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> SOU	1-75538-145-0	02	1	1001-1506
66	RUBBER; LWR STOPPER AIR SUSP DRIVER SEAT<A56> SOU	1-75538-145-0	02	1	1510-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75538-139-0	01	1	1001-1506
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75538-139-0	01	1	1510-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-999-0	01	1	1001-
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> SOU	1-75538-138-2	01	1	1001-1506
77	PIN; DAMPER AIR SUSP DRIVER SEAT<A56> SOU	1-75538-138-2	01	1	1510-
78	RING; SNAP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98101-900-0	02	1	1001-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1001-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (A) ID=8	9-09185-408-0	01	1	1510-
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1001-1506
78	RING; SNAP AIR SUSP DRIVER SEAT<A56> (B) ID=15	9-09185-415-0	01	1	1510-
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56> SOU	1-75538-159-0	04	1	1001-1403
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1404-1506
79	ROLLER ASM; AIR SUSP AIR SUSP DRIVER SEAT<A56>	8-98261-489-0	04	1	1510-
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> SOU	1-09987-123-0	01	1	1001-1506
80	RUBBER; STOPPER AIR SUSP DRIVER SEAT<A56> SOU	1-09987-123-0	01	1	1510-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75538-151-2	01	1	1001-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-1506
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1510-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-000-0	01	1	1001-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1401-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (D) M8X25 W/LK&PL WASHER	8-98243-394-0	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1001-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (C)	1-09980-577-1	01	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1001-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (A) M6X12	1-75538-208-1	02	1	1510-
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER SOU	1-75538-209-0	03	1	1001-1312
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER SOU	1-75538-209-0	02	1	1401-1506
85	BOLT; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) M8X22 W/LK&PL WASHER SOU	1-75538-209-0	02	1	1510-
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY SOU	1-09983-173-1	02	1	1001-1506
86	BUSHING; GUIDE AIR SUSP DRIVER SEAT<A56> OD=6.2 LIGHT GRAY SOU	1-09983-173-1	02	1	1510-
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2 SOU	0-91510-508-0	01	1	1001-1506
87	WASHER; AIR SUSP AIR SUSP DRIVER SEAT<A56> ID=8.2 SOU	0-91510-508-0	01	1	1510-
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10 SOU	1-75537-273-1	01	1	1001-1506
88	NUT; AIR SUSP AIR SUSP DRIVER SEAT<A56> M10 SOU	1-75537-273-1	01	1	1510-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-186-3	01	1	1001-1506
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-186-3	01	1	1510-
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-001-0	01	1	1001-1508
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98331-314-0	01	1	1509-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1001-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98014-971-0	01	1	1001-
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> SOU	1-75538-134-0	01	1	1001-1506
467	LEVER; LOCK AIR SUSP DRIVER SEAT<A56> SOU	1-75538-134-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A) SOU	1-75518-206-0	01	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A) SOU	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75518-207-0	01	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C) SOU	1-75518-208-0	02	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C) SOU	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D) SOU	1-75538-132-0	01	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D) SOU	1-75538-132-0	01	1	1510-
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> SOU	1-75538-137-0	01	1	1001-1506
470	CLIP; HOSE AIR SUSP DRIVER SEAT<A56> SOU	1-75538-137-0	01	1	1510-
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> SOU	1-75538-133-0	01	1	1001-1506
513	SPACER; LEVER AIR SUSP DRIVER SEAT<A56> SOU	1-75538-133-0	01	1	1510-

12 13 17 19 24 228 18 1 2 126 100 348 542 306 69 67 398 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1010-1506
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1510-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97466-620-0	01	1	1601-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-202-0	01	1	1001-1009
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-407-1	01	1	1010-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97466-622-0	01	1	1601-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-5	01	1	1001-1502
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97466-618-0	01	1	1601-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	1001-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	1001-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1010-1506
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-207-0	01	1	1001-1009
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-412-0	01	1	1010-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-2	01	1	1001-1502
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-2	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-966-0	01	1	1001-1212
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98232-353-0	01	1	1301-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-212-1	01	1	1001-1009
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-1	01	1	1010-1506
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-398-2	01	1	1507-1509
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-2	01	1	1510-1512
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97466-611-0	01	1	1601-
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-123-2	01	1	1001-1502
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-123-2	01	1	1510-1512
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97466-608-0	01	1	1601-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-006-0	01	1	1001-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-216-0	01	1	1001-1009
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-1	01	1	1010-1506
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-402-2	01	1	1507-1509
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-2	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-1	01	1	1001-1502
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-1	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-007-0	01	1	1001-
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	1001-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1001-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1001-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1503-1506
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1510-
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	1001-1502
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-332-0	01	1	1503-1506
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-332-0	01	1	1507-1509
18	COVER; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-332-0	01	1	1510-
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1001-1502
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M5	8-98062-663-0	01	1	1503-1506
19	SCREW; COVER AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M5	8-98062-663-0	01	1	1510-
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	1001-1502
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> GRAY	8-97409-333-0	01	1	1503-1506
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56> GRAY	8-97409-333-0	01	1	1507-1509
24	KNOB; RECLINING,FRT,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> GRAY	8-97409-333-0	01	1	1510-
42	STAND; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98106-346-0	01	1	1001-
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-607-2	01	1	1001-1502
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	1-75558-607-2	01	1	1503-1506
42	STAND; DRIVER SEAT RIGID SEAT WO/ARM REST<TAZ>	1-75558-607-2	01	1	1510-
67	BOLT; FRT SEAT TO BODY M10X20 FLANGE SOU	0-28451-020-0	02	1	1001-
69	NUT; FRT SEAT M10 FLANGE SOU	0-91180-110-0	02	1	1001-
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1110-1502
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98203-070-0	01	1	1503-1506
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98203-070-0	01	1	1510-1512
100	COVER; HINGE AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98286-009-0	01	1	1601-
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1001-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1503-1506
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1001-1104
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1105-1109
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1110-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) SOU	8-97854-900-0	01	1	1105-1109
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1001-1502
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M4	8-98062-662-0	01	1	1503-1506
228	SCREW; KNOB AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> M4	8-98062-662-0	01	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE SOU	0-91180-110-0	02	1	1001-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1001-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1001-1502
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1510-
348	BOLT; HINGE,SEAT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98286-008-0	01	1	1601-
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU	1-75538-207-0	04	1	1001-1502
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> M8 FLANGE SOU	1-75538-207-0	04	1	1503-1506
398	NUT; STAND RIGID SEAT WO/ARM REST<TAZ> M8 FLANGE SOU	1-75538-207-0	04	1	1510-
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98093-310-0	01	1	1001-1502
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98291-653-0	01	1	1503-1506
542	ADJUSTER ASM; SEAT SLIDE RIGID SEAT WO/ARM REST<TAZ>	8-98291-653-0	01	1	1510-

41 652 81 322 76 327 325

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	1001-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-1	01	1	1301-
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	1001-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-1	01	1	1301-
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75538-139-0	01	1	1001-1506
76	DAMPER; AIR SUSP AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75538-139-0	01	1	1510-
76	DAMPER; AIR SUSP DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-999-0	01	1	1001-
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75538-151-2	01	1	1001-1312
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1401-1506
81	SPRING; AIR AIR SUSP DRIVER SEAT<A56> (B)	8-98242-816-0	01	1	1510-
81	SPRING; AIR DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-000-0	01	1	1001-
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-186-3	01	1	1001-1506
322	VALVE; AIR SPRING AIR SUSP DRIVER SEAT<A56> (B)	1-75538-186-3	01	1	1510-
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-001-0	01	1	1001-1508
322	VALVE; AIR SPRING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98331-314-0	01	1	1509-
325	COVER; SUSPENSION DEVICE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-003-0	01	1	1001-
327	CLIP; COVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-004-0	01	1	1001-
327	CLIP; COVER AIR SUSP DRIVER SEAT<A56> SOU	1-09987-273-0	01	1	1001-
652	LOCK ASM; HEIGHT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-002-0	01	1	1001-

468 468 512 51 51 512 51 51 532 532 278 278 278 518 302 518 518 518 302 543 543 74 543 468 529 468 543 518 471 158 158 551 302 302 543 72 551 518 518 518 72 302 518 302 518 551 201 551 302 302 201 63 306 63 306

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SOU	1-75518-325-1	04	1	1001-1506
51	SCREW; COVER AIR SUSP DRIVER SEAT<A56> SOU	1-75518-325-1	04	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A) SOU	1-75518-199-1	01	1	1001-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (A) SOU	1-75518-199-1	01	1	1510-
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75518-323-0	01	1	1001-1506
63	ADJUSTER; SEAT SLIDE AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75518-323-0	01	1	1510-
63	ADJUSTER; SEAT SLIDE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98098-005-0	01	1	1001-
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56> SOU	1-75518-334-1	02	1	1001-1502
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1503-1506
72	SPACER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>	8-98291-668-0	02	1	1510-
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98003-678-0	01	1	1001-1502
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1503-1506
74	ADJUSTER; FRT SEAT,HEIGHT CONT AIR SUSP DRIVER SEAT<A56>	8-98291-640-0	01	1	1510-
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-209-0	02	1	1001-1502
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-209-0	02	1	1503-1506
158	BUSHING; LINK ARM AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-209-0	02	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) L=667 SOU	1-75518-288-0	01	1	1001-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) L=667 SOU	1-75518-288-0	01	1	1503-1506
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) L=667 SOU	1-75518-288-0	01	1	1510-
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) L=605 SOU	1-75518-289-1	01	1	1001-1502
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) L=605 SOU	1-75518-289-1	01	1	1503-1506
201	CABLE; ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) L=605 SOU	1-75518-289-1	01	1	1510-
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56> SOU	1-75518-244-0	03	1	1001-1506
278	COLLAR; FRT SEAT AIR SUSP DRIVER SEAT<A56> SOU	1-75518-244-0	03	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75518-266-2	02	1	1001-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75518-266-2	02	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A) SOU	1-75518-270-1	04	1	1001-1502
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1503-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (A)	8-98291-667-0	04	1	1510-
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C) SOU	1-75518-336-1	02	1	1001-1506
302	BOLT; ADJ,HEIGHT CONT AIR SUSP DRIVER SEAT<A56> (C) SOU	1-75518-336-1	02	1	1510-
306	NUT; SEAT ADJ (B) M10 FLANGE SOU	0-91180-110-0	02	1	1001-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1001-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1001-1502
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A) SOU	1-75518-206-0	01	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (A) SOU	1-75518-206-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75518-207-0	01	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75518-207-0	01	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C) SOU	1-75518-208-0	02	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (C) SOU	1-75518-208-0	02	1	1510-
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D) SOU	1-75538-132-0	01	1	1001-1506
468	SPRING; RETURN AIR SUSP DRIVER SEAT<A56> (D) SOU	1-75538-132-0	01	1	1510-
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	1001-1502
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL>	8-98107-869-0	01	1	1503-1506
471	LEVER; SEAT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ>	8-98107-869-0	01	1	1510-
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56> SOU	1-75518-243-1	02	1	1001-1506
512	COVER; LEVER AIR SUSP DRIVER SEAT<A56> SOU	1-75518-243-1	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8 SOU	1-75518-264-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (C) M8 SOU	1-75518-264-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE SOU	1-75538-207-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (E) M8 FLANGE SOU	1-75538-207-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT SOU	5-09984-020-0	02	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (D) M6 LOCK NUT SOU	5-09984-020-0	02	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE SOU	8-94152-886-0	04	1	1001-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56> (B) M8 FLANGE SOU	8-94152-886-0	04	1	1510-
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) SOU	1-75518-263-0	01	1	1001-1502
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) SOU	1-75518-263-0	01	1	1503-1506
518	NUT; TILT ADJ AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A) SOU	1-75518-263-0	01	1	1510-
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-262-0	01	1	1001-1502
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> SOU	1-75518-262-0	01	1	1503-1506
529	PIN; LINK AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SOU	1-75518-262-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A) SOU	1-75518-203-0	01	1	1001-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A) SOU	1-75518-203-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75518-204-1	01	1	1001-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75518-204-1	01	1	1510-
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-982-0	01	1	1001-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) SOU	1-75518-335-0	02	1	1001-1502
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1503-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (A) ID=13 OD=19	8-98291-669-0	02	1	1510-
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1001-1506
543	WASHER; HEIGHT ADJUSTER AIR SUSP DRIVER SEAT<A56> (B) ID=8.4	9-09160-508-0	04	1	1510-
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56> SOU	1-75518-265-0	04	1	1001-1506
551	SLIDER; HEIGHT ADJ AIR SUSP DRIVER SEAT<A56> SOU	1-75518-265-0	04	1	1510-

637 310 638 509 587 532 336 642 336 651 17 661 17 336 642 648 642 602 651 336 651 365 650 13 12 1 41 2 411

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1010-1506
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-406-1	01	1	1510-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97466-620-0	01	1	1601-
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-202-0	01	1	1001-1009
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-407-1	01	1	1010-1512
1	BACK ASM; SEAT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97466-622-0	01	1	1601-
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-5	01	1	1001-1502
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97409-955-5	01	1	1510-1512
1	BACK ASM; SEAT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97466-618-0	01	1	1601-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-963-0	01	1	1001-
1	BACK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN> (A)	8-98097-964-0	01	1	1001-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1010-1506
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-411-0	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-207-0	01	1	1001-1009
2	COVER; TRIM,FRT SEAT,BACK AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-412-0	01	1	1010-
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-2	01	1	1001-1502
2	COVER; TRIM,FRT SEAT,BACK RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-910-2	01	1	1510-
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-966-0	01	1	1001-1212
2	COVER; TRIM,FRT SEAT,BACK DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98232-353-0	01	1	1301-
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-212-1	01	1	1001-1009
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-1	01	1	1010-1506
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-398-2	01	1	1507-1509
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-398-2	01	1	1510-1512
12	CUSHION; SEAT,FRT AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97466-611-0	01	1	1601-
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-123-2	01	1	1001-1502
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97414-123-2	01	1	1510-1512
12	CUSHION; SEAT,FRT RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97466-608-0	01	1	1601-
12	CUSHION; SEAT,FRT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-006-0	01	1	1001-
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97416-216-0	01	1	1001-1009
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-1	01	1	1010-1506
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56> (B) DARK GRAY	8-97421-402-2	01	1	1507-1509
13	COVER; TRIM,FRT SEAT,CUSHION AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) DARK GRAY	8-97421-402-2	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-1	01	1	1001-1502
13	COVER; TRIM,FRT SEAT,CUSHION RIGID SEAT WO/ARM REST<TAZ> (B) DARK GRAY	8-97411-909-1	01	1	1510-
13	COVER; TRIM,FRT SEAT,CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98098-007-0	01	1	1001-
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	1001-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1001-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1001-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1503-1506
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1510-
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98046-984-2	01	1	1001-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-063-1	01	1	1301-
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98000-536-2	01	1	1001-1212
41	SEAT ASM; DRIVER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> EXC. DRIVER SEAT BELT W/PRE TENSION REDUCER<TFN>	8-98195-062-1	01	1	1301-
310	LEVER ASM; HEIGHT ADJ DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-992-0	01	1	1001-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (D)	8-98097-978-0	01	1	1001-1508
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (D)	8-98331-313-0	01	1	1509-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-984-0	01	1	1001-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-995-0	01	1	1001-
336	COVER; DRIVER SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98097-996-0	01	1	1001-
365	LOCK ASM; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98097-972-0	01	1	1001-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1001-1104
365	LOCK ASM; SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1105-1109
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> (B)	1-72538-312-0	01	1	1110-
365	LOCK ASM; SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B)	1-72538-312-0	01	1	1105-1109
411	GUIDE; SEAT BELT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-967-0	01	1	1001-
509	LEVER; DAMPER DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-988-0	01	1	1001-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A) SOU	1-75518-203-0	01	1	1001-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (A) SOU	1-75518-203-0	01	1	1510-
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75518-204-1	01	1	1001-1506
532	LEVER ASM; TILT AIR SUSP DRIVER SEAT<A56> (B) SOU	1-75518-204-1	01	1	1510-
532	LEVER ASM; TILT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-982-0	01	1	1001-
587	VALVE; LUMBAR SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-986-0	01	1	1001-
602	KNOB; ADJ,SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98098-008-0	01	1	1001-
637	LEVER; SLOPE ADJ DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-989-0	01	1	1001-
638	VALVE; LOWERING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-994-0	01	1	1001-
642	SLIDER; CUSHION DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98192-932-0	04	1	1001-
648	BUCKLE; SEAT BELT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-976-0	01	1	1001-
650	CABLE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-973-0	01	1	1001-1212
650	CABLE DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98232-354-0	01	1	1301-
651	RIVET DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98194-075-0	04	1	1001-
661	LOCK ASM; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98097-980-0	01	1	1001-

113 114 122 99 630 627 306 627 116 115 46 17 123

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
17	BOLT; RECLINING DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (C)	8-98097-974-0	02	1	1001-
17	BOLT; RECLINING (A) M8X20	8-98092-334-0	02	1	1001-
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1001-1502
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (B) M10X20	8-98062-661-0	02	1	1503-1506
17	BOLT; RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (B) M10X20	8-98062-661-0	02	1	1510-
46	BOLT; STAND TO FLOOR M10X20 FLANGE SOU	0-28451-020-0	02	1	1001-
99	BUSHING; SEAT BACK	8-98063-219-0	01	1	1001-1009
99	BUSHING; SEAT BACK	8-98112-751-0	01	1	1010-
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-221-0	01	1	1001-1009
113	BACK ASM; SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-422-0	01	1	1010-
113	BACK ASM; SEAT VINYL SEAT<A83> DARK GRAY	8-97409-966-1	01	1	1001-
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97416-223-0	01	1	1001-1009
114	COVER; TRIM,PASSENGER SEAT,BACK SEAT CLOTH<7FL> DARK GRAY	8-97421-424-0	01	1	1010-
114	COVER; TRIM,PASSENGER SEAT,BACK VINYL SEAT<A83> DARK GRAY	8-97411-916-0	01	1	1001-
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97416-225-0	01	1	1001-1009
115	CUSHION ASM; PASSENGER SEAT SEAT CLOTH<7FL> DARK GRAY	8-97421-418-2	01	1	1010-
115	CUSHION ASM; PASSENGER SEAT VINYL SEAT<A83> DARK GRAY	8-97409-965-1	01	1	1001-
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97416-227-0	01	1	1001-1009
116	COVER; TRIM,PASSENGER SEAT,CUSHION SEAT CLOTH<7FL> DARK GRAY	8-97421-420-1	01	1	1010-
116	COVER; TRIM,PASSENGER SEAT,CUSHION VINYL SEAT<A83> DARK GRAY	8-97411-915-0	01	1	1001-
122	COVER; ADJ,RECLINING GRAY	8-97409-967-0	01	1	1001-
123	SCREW; COVER,RECLINING M5	8-98070-026-0	01	1	1001-
306	NUT; SEAT ADJ (B) M10 FLANGE SOU	0-91180-110-0	02	1	1001-
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1001-1506
306	NUT; SEAT ADJ AIR SUSP DRIVER SEAT<A56> (A) M8 FLANGE SOU	1-75538-207-0	06	1	1510-
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1001-1502
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1503-1506
306	NUT; SEAT ADJ RIGID SEAT WO/ARM REST<TAZ> (A) M8 FLANGE SOU	1-75538-207-0	08	1	1510-
627	WASHER; FRT SEAT (A)	8-98063-223-0	01	1	1001-
627	WASHER; FRT SEAT (B)	8-98063-224-0	01	1	1001-
630	NUT; CAP M8	8-98063-225-0	01	1	1001-

175 506 360 176 188 16 126 359 403 179 182 188 403

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-75418-062-1	01	1	1001-1104
16	ADJUSTER ASM; RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-75418-062-1	01	1	1105-1109
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SOU	1-75418-062-1	01	1	1110-
16	ADJUSTER ASM; RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> SOU	1-75418-062-1	01	1	1105-1109
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1001-1502
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> SEAT CLOTH<7FL> (A)	8-98063-218-0	01	1	1503-1506
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98063-218-0	01	1	1510-1512
126	BUSHING; HINGE,RECLINING AIR SUSP DRIVER SEAT<A56>,RIGID SEAT WO/ARM REST<TAZ> (A)	8-98286-007-0	01	1	1601-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1001-1104
126	BUSHING; HINGE,RECLINING VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1105-1109
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> (B) SOU	8-97854-900-0	01	1	1110-
126	BUSHING; HINGE,RECLINING SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) SOU	8-97854-900-0	01	1	1105-1109
175	BACK ASM; PASSENGER CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-975-1	01	1	1001-
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-233-0	01	1	1001-1009
175	BACK ASM; PASSENGER CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-434-1	01	1	1010-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-976-1	01	1	1001-
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-234-0	01	1	1001-1009
176	COVER; TRIM,PASSENGER SEAT CENTER,BACK SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-435-1	01	1	1010-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-974-1	01	1	1007-
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-237-0	01	1	1001-1009
179	COVER; TRIM,PASSENGER SEAT CENTER,CUSH SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-432-1	01	1	1010-
182	CUSHION ASM; CENTER SEAT VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> DARK GRAY	8-97409-973-3	01	1	1001-
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97416-235-0	01	1	1001-1009
182	CUSHION ASM; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> DARK GRAY	8-97421-430-3	01	1	1010-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE SOU	1-75198-053-0	04	1	1001-1104
188	BOLT; BACK TO CUSHION VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE SOU	1-75198-053-0	04	1	1105-1109
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> M10X16 FLANGE SOU	1-75198-053-0	04	1	1110-
188	BOLT; BACK TO CUSHION SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> M10X16 FLANGE SOU	1-75198-053-0	04	1	1105-1109
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-977-2	01	1	1001-1006
359	BOX; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97417-261-0	01	1	1007-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (A) M3X10 TAPPING CK-HEAD	0-70040-310-0	04	1	1001-1009
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1010-1104
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1110-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (E) M5X14 TAPPING CK-HEAD SOU	0-70040-514-0	02	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1001-1104
360	SCREW; PARCEL VINYL SEAT<A83> SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (B) M4X16	0-70040-416-0	06	1	1110-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> SEAT CLOTH<7FL> (B) M4X16	0-70040-416-0	06	1	1105-1109
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5X16 TAPPING W/PL WASHER SOU	0-74360-516-0	04	1	1001-1110
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (C) M5	8-98062-663-0	04	1	1111-
360	SCREW; PARCEL SEAT ASM - WITH CENTER SEAT<7BC> (D) M5X20 SOU	9-09829-324-1	02	1	1001-1009
403	NUT; CENTER SEAT SEAT ASM - WITH CENTER SEAT<7BC> M8 FLANGE SOU	0-91180-108-0	04	1	1001-
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	04	1	1001-1006
506	CAP; PARCEL BOX SEAT ASM - WITH CENTER SEAT<7BC> GRAY	8-97409-980-1	02	1	1007-

595 339 632 400 641 400 581 401

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1001-1506
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56> (A)	1-75538-131-3	01	1	1510-
339	UNION; DRIVER SEAT AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98014-971-0	01	1	1001-
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A) M8X20 FLANGE	0-28650-820-0	01	1	1001-
400	BOLT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98098-996-0	02	1	1001-
401	NUT; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> M10 FLANGE SOU	0-91180-110-0	02	1	1001-
581	PIPE; SEAT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-97589-693-3	01	1	1001-
595	TUBE; NYLON DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (A)	8-98106-348-0	01	1	1001-
595	TUBE; NYLON AIR SUSP DRIVER SEAT<A56>,DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA> (B)	8-98041-300-0	01	1	1001-
632	GROMMET RIGID SEAT WO/ARM REST<TAZ> OD=24	8-94119-796-0	01	1	1001-
641	WASHER; SUPPORT DRIVER ISRINGHAUSEN SEAT TYPE 6800<SJA>	8-98099-007-0	02	1	1001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
