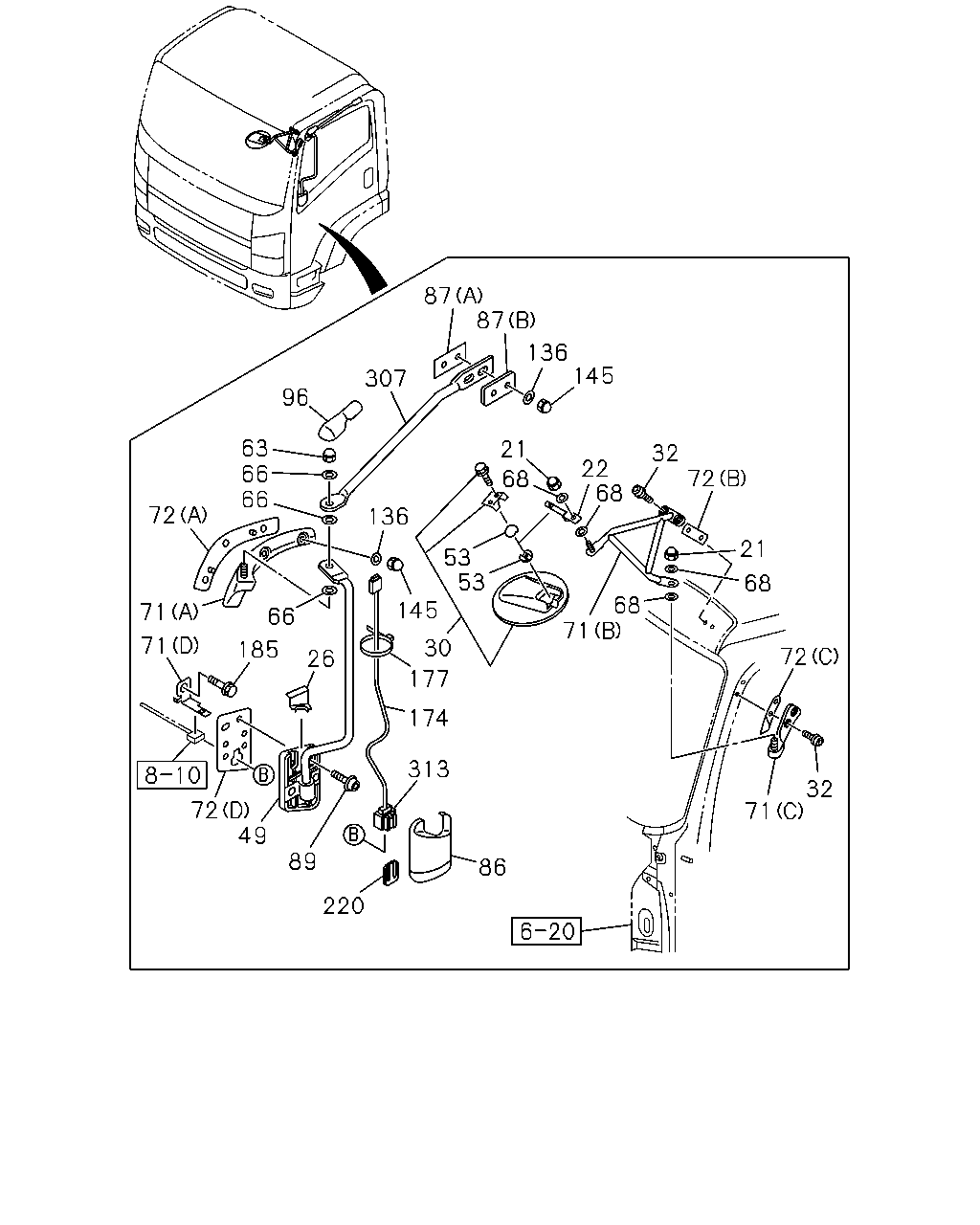

7-20 — MIRROR AND MIRROR STAY (#175731) — 86 parça

87 136 87 145 32 22 72 68 21 68 72 32 71 68 71 53 53 68 21 136 145 30 177 174 313 86 220 89 49 72 26 185 71 66 71 72 66 63 96 66 307

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
21	NUT; MIRROR MIRROR O/S UNDER VIEW<RR9> M10 CAP NUT	1-09984-134-0	02	1	1601-
22	STAY; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9>	8-98092-493-0	01	1	1601-
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	1601-
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	1601-
30	MIRROR; UNDER MIRROR O/S UNDER VIEW<RR9>	8-98309-725-0	01	1	1601-
32	SCREW; UNDER MIRROR MIRROR O/S UNDER VIEW<RR9> M8X26 W/PL WASHER	8-98067-249-2	04	1	1601-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2>	8-98166-185-0	01	1	1601-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2>	8-98166-184-0	01	1	1601-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-201-0	01	1	1601-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-200-0	01	1	1601-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-213-0	01	1	1601-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-212-0	01	1	1601-
53	PIVOT; SIDE MIRROR MIRROR O/S UNDER VIEW<RR9> ID=19.1	1-71737-633-2	02	1	1601-
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	1601-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1601-
68	WASHER; STAY MIRROR O/S UNDER VIEW<RR9> ID=10.5 OD=26 T=2.6	1-09985-204-0	04	1	1601-
71	BRACKET; OUTSIDE MIRROR (D)	8-98039-277-2	02	1	1601-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	1601-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	1601-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (C)	8-98060-240-0	01	1	1601-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (B)	8-98092-492-3	01	1	1601-
72	SHEET (A)	8-98031-797-0	01	1	1601-
72	SHEET (D)	8-98101-865-0	01	1	1601-
72	SHEET (A)	8-98031-796-0	01	1	1601-
72	SHEET (D)	8-98101-864-0	01	1	1601-
72	SHEET MIRROR O/S UNDER VIEW<RR9> (B)	8-98060-245-1	01	1	1601-
72	SHEET MIRROR O/S UNDER VIEW<RR9> (C)	8-98064-776-0	01	1	1601-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	1601-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	1601-
87	SPACER (A)	8-98063-786-0	02	1	1601-
87	SPACER (B)	8-98063-789-0	02	1	1601-
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	1601-
96	CAP; MIRROR STAY	8-98080-173-0	02	1	1601-
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1601-
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	1601-
174	HARNESS; MIRROR MIR O/S RR VIEW LONG ARM<DH2>	8-98136-172-0	02	1	1601-
174	HARNESS; MIRROR O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98137-139-0	02	1	1601-
177	CLIP; HARNESS L=140	5-09707-031-1	02	1	1601-
185	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	1601-
220	HOLDER; CONNECTOR	8-94479-375-0	02	1	1601-
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	1601-
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	1601-
313	CONNECTOR; MIRROR	8-94479-370-0	02	1	1601-

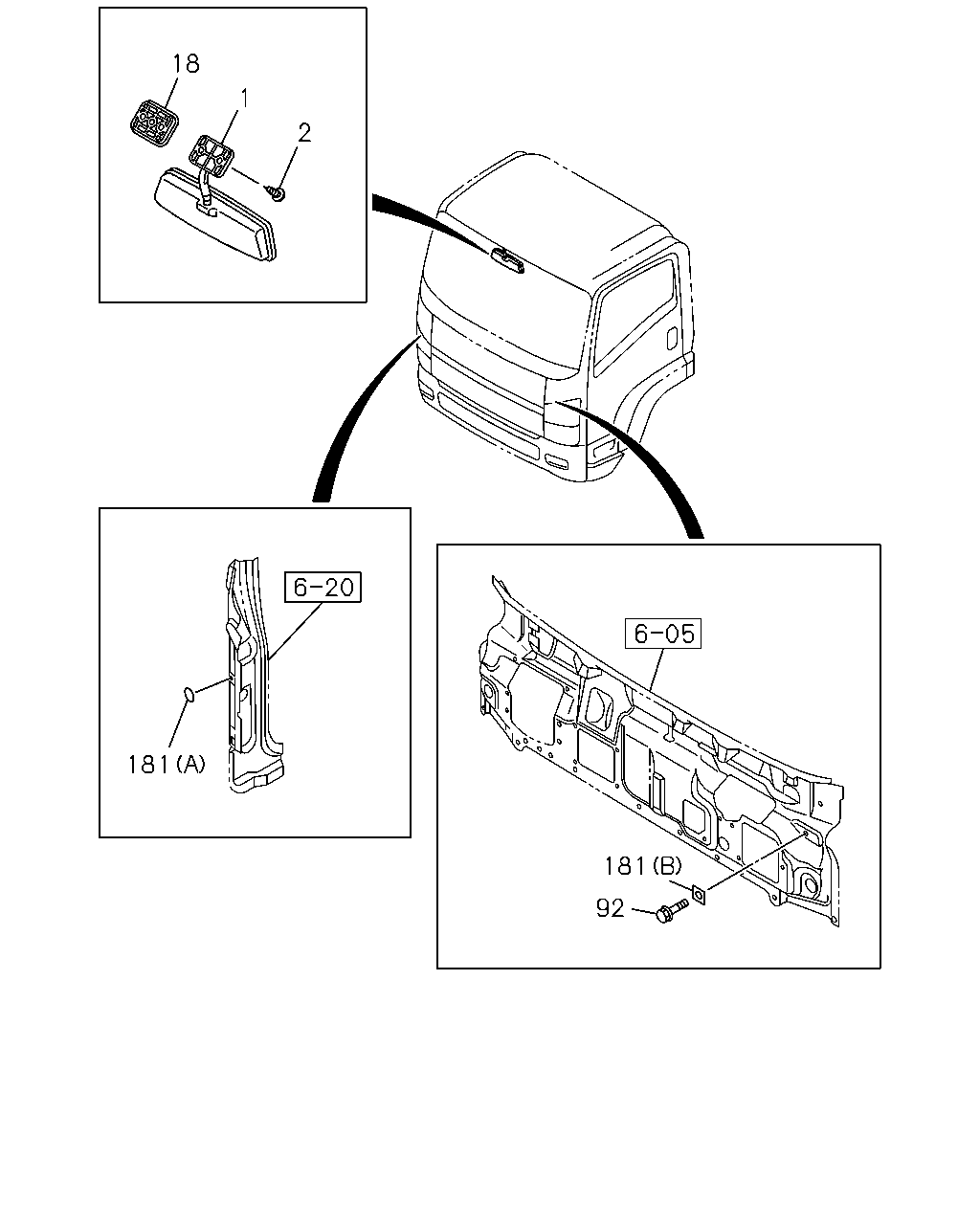

18 1 2 181 181 92

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	MIRROR; ROOM RR VIEW MIRROR<D31> DARK GRAY	8-98097-534-1	01	1	1601-
2	SCREW; MIRROR TO BODY RR VIEW MIRROR<D31> M6X26	8-98033-674-0	02	1	1601-
18	CLIP; MIRROR RR VIEW MIRROR<D31> DARK GRAY	8-97408-241-0	01	1	1601-
92	BOLT; STAY BRKT,MIRROR M8X16 FLANGE	8-98076-109-0	01	1	1601-
181	SEAL; BRKT (B) 25X25	8-94272-533-0	01	1	1601-
181	SEAL; BRKT (A) OD=25 BLACK	1-76798-019-0	01	1	1601-

145 136 87 87 307 63 96 66 66 72 71 71 136 145 177 174 313 86 89 220 49 26 185 66 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	COVER; OUTSIDE MIRROR	8-98031-806-0	01	1	1601-
26	COVER; OUTSIDE MIRROR	8-98031-805-0	01	1	1601-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2>	8-98166-185-0	01	1	1601-
49	STAY; MIRROR SIDE MIR O/S RR VIEW LONG ARM<DH2>	8-98166-184-0	01	1	1601-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-201-0	01	1	1601-
49	STAY; MIRROR SIDE O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>	8-98166-200-0	01	1	1601-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-213-0	01	1	1601-
49	STAY; MIRROR SIDE O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98166-212-0	01	1	1601-
63	NUT; STAY M10 CAP NUT	1-09984-134-0	02	1	1601-
66	WASHER; PL ID=10.5 OD=26 T=2.6	1-09985-204-0	06	1	1601-
71	BRACKET; OUTSIDE MIRROR (D)	8-98039-277-2	02	1	1601-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-794-2	01	1	1601-
71	BRACKET; OUTSIDE MIRROR (A)	8-98031-793-2	01	1	1601-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (C)	8-98060-240-0	01	1	1601-
71	BRACKET; OUTSIDE MIRROR MIRROR O/S UNDER VIEW<RR9> (B)	8-98092-492-3	01	1	1601-
72	SHEET (A)	8-98031-797-0	01	1	1601-
72	SHEET (D)	8-98101-865-0	01	1	1601-
72	SHEET (A)	8-98031-796-0	01	1	1601-
72	SHEET (D)	8-98101-864-0	01	1	1601-
72	SHEET MIRROR O/S UNDER VIEW<RR9> (B)	8-98060-245-1	01	1	1601-
72	SHEET MIRROR O/S UNDER VIEW<RR9> (C)	8-98064-776-0	01	1	1601-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-803-2	01	1	1601-
86	COVER; STAY,OUTSIDE MIRROR	8-98031-802-2	01	1	1601-
87	SPACER (A)	8-98063-786-0	02	1	1601-
87	SPACER (B)	8-98063-789-0	02	1	1601-
89	SCREW; BRKT,OUTSIDE MIRROR M8X23	8-97310-216-1	08	1	1601-
96	CAP; MIRROR STAY	8-98080-173-0	02	1	1601-
136	WASHER; LK,BRKT,MIRROR STAY ID=8.4 OD=16.0 T=1.6	1-09985-191-0	10	1	1601-
145	NUT; CAP,SUB STAY M8 CAP NUT	8-98059-914-0	10	1	1601-
174	HARNESS; MIRROR MIR O/S RR VIEW LONG ARM<DH2>	8-98136-172-0	02	1	1601-
174	HARNESS; MIRROR O/SIDE MIRROR DOOR MTG SHORT STAY<6VE>,O/SIDE MIRROR RR VIEW MIDDLE ARM<8ML>	8-98137-139-0	02	1	1601-
177	CLIP; HARNESS L=140	5-09707-031-1	02	1	1601-
185	BOLT; BRKT M8X16 FLANGE	0-28050-816-0	02	1	1601-
220	HOLDER; CONNECTOR	8-94479-375-0	02	1	1601-
307	STAY; MIRROR SUPPORT	8-98063-785-2	01	1	1601-
307	STAY; MIRROR SUPPORT	8-98063-784-2	01	1	1601-
313	CONNECTOR; MIRROR	8-94479-370-0	02	1	1601-
