◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11721 - FSR AUST/NZ JNLT09 SPACECAB ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-75 - MAT AND CARPET ▶
6-75 — MAT AND CARPET (#175722) — 7 parça

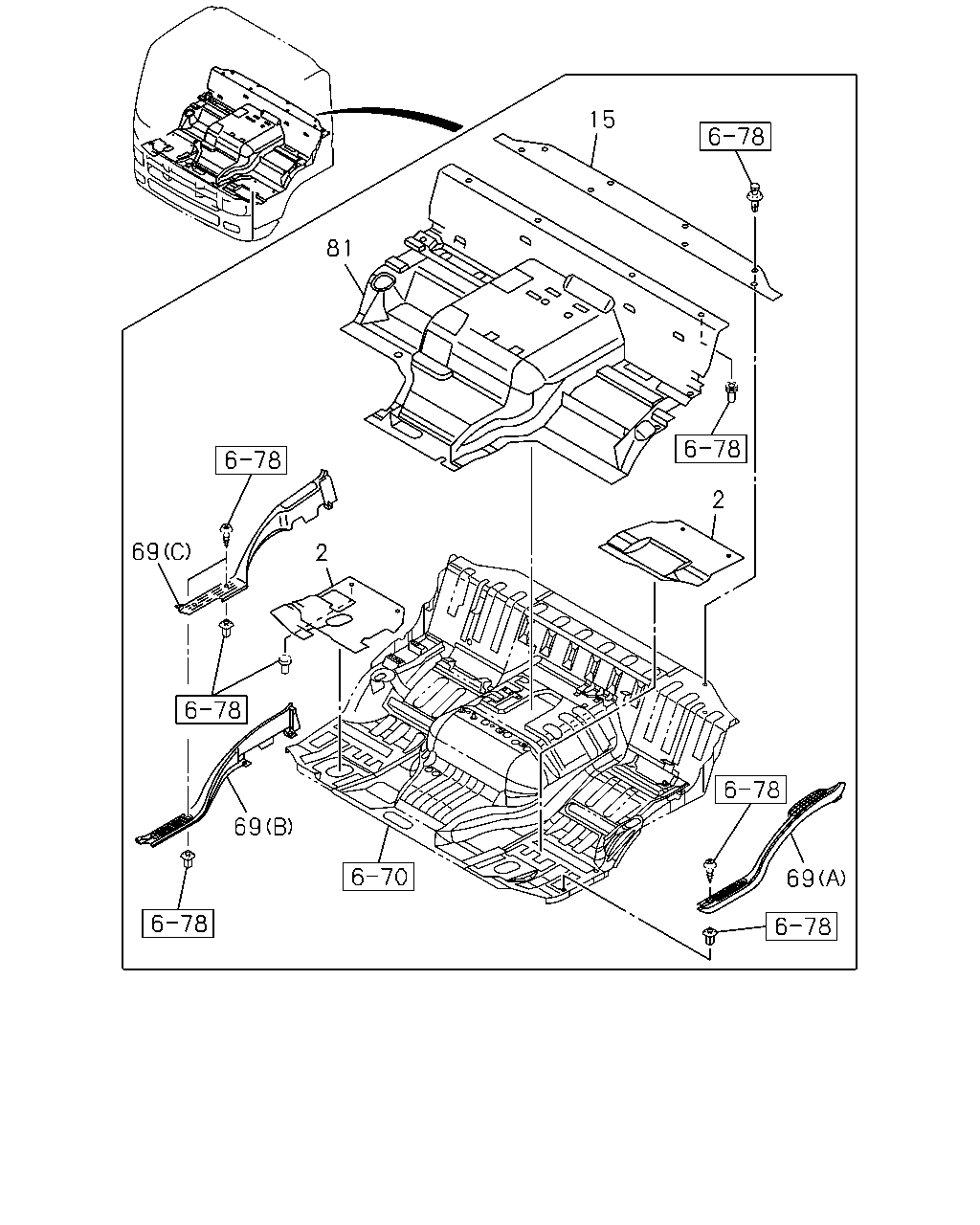

çizim 513520
81 15 2 2 69 69 69
BalonParca AdiParca NoAdetTipApplied Date
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-744-4 01 1 1601-
2 MAT; FLOOR
FLOOR COVER<6WX> GRAY 		8-97407-745-2 01 1 1601-
15 MAT; FLOOR REAR
FLOOR COVER<6WX> GRAY 		8-97407-517-1 01 1 1601-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
(A) GRAY 		8-97407-413-1 01 1 1601-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
DUMP CONTROL LEVER<RC4> (B) GRAY 		8-97465-138-0 01 1 1601-
69 COVER; TRIM,FLOOR MAT,DOOR SIDE
EXC. DUMP CONTROL LEVER<RC4> (C) GRAY 		8-97407-412-1 01 1 1601-
81 MAT; FLOOR,CENTER
FLOOR COVER<6WX> GRAY 		8-97411-791-3 01 1 1601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
