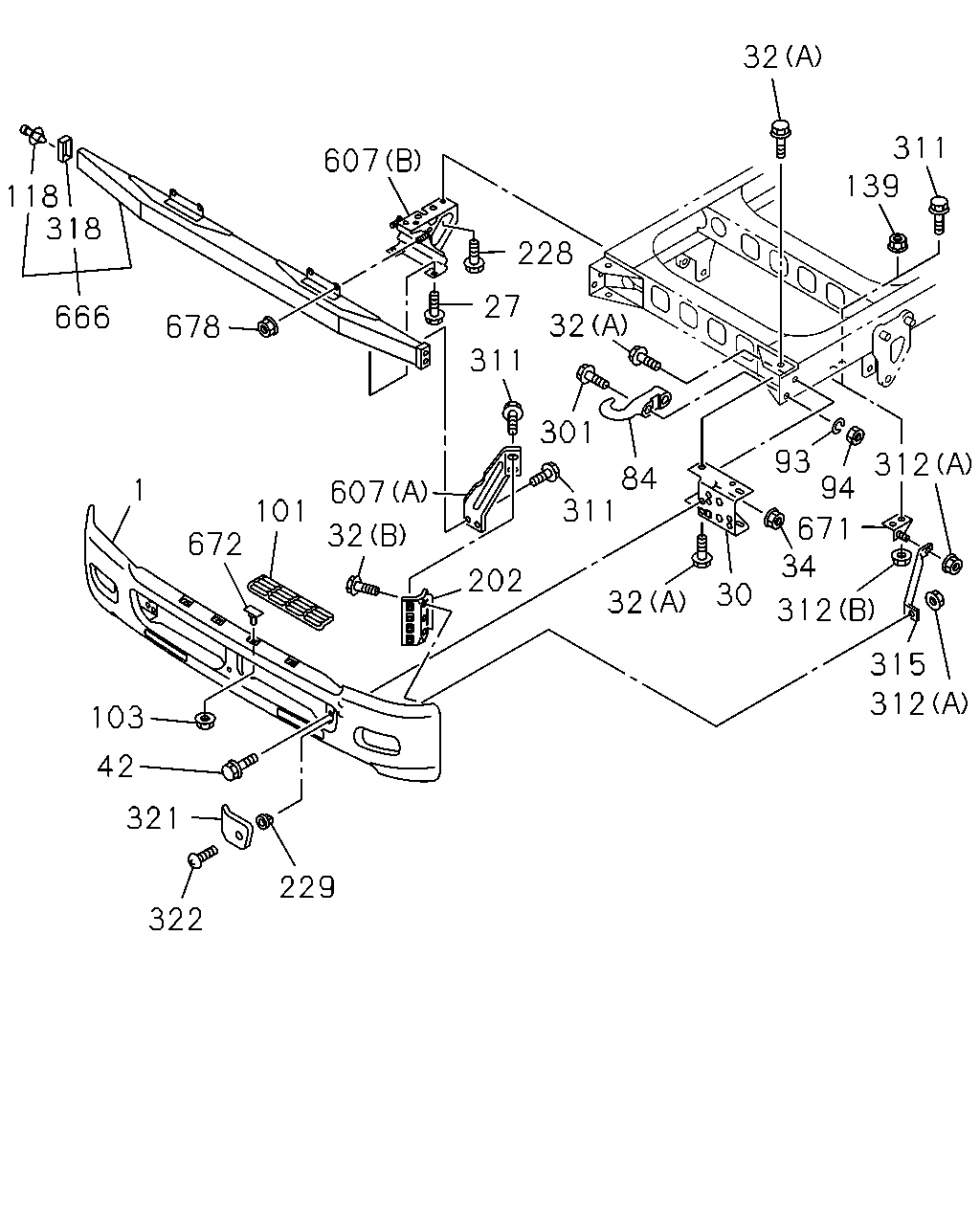

1 |
BUMPER ASM; FRT
FRONT SPOILER<VP1>
WHITE
|
8-97425-839-0 |
01 |
1 |
1601- |
| |
27 |
BOLT; BUMPER TO BACK BAR
FRONT UNDER RUN PROTECTOR<EBE>
M12X35 FLANGE
|
0-28651-235-0 |
04 |
1 |
1601- |
| |
30 |
BRACKET; FRT BUMPER
FRONT SPOILER<VP1>
|
8-97611-518-4 |
01 |
1 |
1601- |
| |
30 |
BRACKET; FRT BUMPER
FRONT SPOILER<VP1>
|
8-97611-517-5 |
01 |
1 |
1601- |
| |
32 |
BOLT; BRKT,BUMPER
FRONT UNDER RUN PROTECTOR<EBE>
(B)
M6X12 FLANGE
|
0-28050-612-0 |
06 |
1 |
1601- |
| |
32 |
BOLT; BRKT,BUMPER
(A)
M10X35 FLANGE
|
0-28651-035-0 |
06 |
1 |
1601- |
| |
34 |
NUT; BRKT,BUMPER
M10 FLANGE
|
0-91180-210-0 |
02 |
1 |
1601- |
| |
42 |
BOLT; BUMPER
FRONT SPOILER<VP1>
M10X30
|
8-94324-205-0 |
06 |
1 |
1601- |
| |
84 |
HOOK
FRONT SPOILER<VP1>
|
1-57181-003-5 |
01 |
1 |
1601- |
| |
93 |
WASHER; LK,HOOK
ID=14.2
|
0-91510-814-0 |
02 |
1 |
1601- |
| |
94 |
NUT; HOOK
M14
|
0-91110-514-0 |
02 |
1 |
1601- |
| |
101 |
STEP; BUMPER
|
8-97611-541-0 |
01 |
1 |
1601- |
| |
101 |
STEP; BUMPER
|
8-97611-540-0 |
01 |
1 |
1601- |
| |
103 |
NUT; BUMPER STEP
M6 FLANGE
|
0-91180-106-0 |
04 |
1 |
1601- |
| |
118 |
RETAINER; BUMPER SIDE
FRONT UNDER RUN PROTECTOR<EBE>
|
8-98232-279-0 |
04 |
1 |
1601- |
| |
139 |
NUT; BRKT FIX
FRONT UNDER RUN PROTECTOR<EBE>
M14 FLANGE
|
0-91180-214-0 |
04 |
1 |
1601- |
| |
202 |
BRACKET; BUMPER SIDE
FRONT UNDER RUN PROTECTOR<EBE>
|
8-97620-619-0 |
02 |
1 |
1601- |
| |
228 |
BOLT; BRKT
FRONT UNDER RUN PROTECTOR<EBE>
M14X45 FLANGE
|
0-28851-445-0 |
06 |
1 |
1601- |
| |
229 |
GROMMET
D=7X7 L=7.5
|
5-09983-007-0 |
02 |
1 |
1601- |
| |
301 |
BOLT; HOOK TO FRAME
M14X60
|
0-10861-460-0 |
02 |
1 |
1601- |
| |
311 |
BOLT; BRKT
FRONT UNDER RUN PROTECTOR<EBE>
M10X25 FLANGE
|
0-28651-025-0 |
08 |
1 |
1601- |
| |
311 |
BOLT; BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE>
M14X45 FLANGE
|
0-28851-445-0 |
04 |
1 |
1601- |
| |
312 |
NUT; BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE>
(A)
M10 FLANGE
|
0-91180-210-0 |
04 |
1 |
1601- |
| |
312 |
NUT; BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE>
(B)
M14 FLANGE
|
0-91180-214-0 |
04 |
1 |
1601- |
| |
315 |
STAY; BUMPER
FRONT SPOILER<VP1>
EXC. FRONT UNDER RUN PROTECTOR<EBE>
|
8-97611-500-2 |
01 |
1 |
1601- |
| |
315 |
STAY; BUMPER
FRONT SPOILER<VP1>
EXC. FRONT UNDER RUN PROTECTOR<EBE>
|
8-97611-499-2 |
01 |
1 |
1601- |
| |
318 |
CAP; BUMPER SIDE
FRONT UNDER RUN PROTECTOR<EBE>
|
8-98232-191-0 |
02 |
1 |
1601- |
| |
321 |
COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1>
|
8-97616-291-1 |
01 |
1 |
1601- |
| |
321 |
COVER; BUMPER FRT SIDE
FRONT SPOILER<VP1>
|
8-97616-290-1 |
01 |
1 |
1601- |
| |
322 |
SCREW; COVER FIX
M5X16 TAPPING HEXALOBULAR
|
0-72180-516-0 |
02 |
1 |
1601- |
| |
607 |
BRACKET
FRONT UNDER RUN PROTECTOR<EBE>
(A)
|
8-97620-615-0 |
01 |
1 |
1601- |
| |
607 |
BRACKET
FRONT UNDER RUN PROTECTOR<EBE>
(A)
|
8-97620-616-0 |
01 |
1 |
1601- |
| |
607 |
BRACKET
FRONT UNDER RUN PROTECTOR<EBE>
(B)
|
8-98045-836-3 |
01 |
1 |
1601- |
| |
607 |
BRACKET
FRONT UNDER RUN PROTECTOR<EBE>
(B)
|
8-98045-835-4 |
01 |
1 |
1601- |
| |
666 |
PROTECTOR; UNDER
FRONT UNDER RUN PROTECTOR<EBE>
|
8-98045-817-1 |
01 |
1 |
1601- |
| |
671 |
BRACKET; STAY
EXC. FRONT UNDER RUN PROTECTOR<EBE>
|
8-97614-063-0 |
01 |
1 |
1601- |
| |
671 |
BRACKET; STAY
EXC. FRONT UNDER RUN PROTECTOR<EBE>
|
8-97614-062-0 |
01 |
1 |
1601- |
| |
672 |
STUD; STEP
M6X20
|
8-97611-666-0 |
04 |
1 |
1601- |
| |
678 |
NUT; BUMPER TO BACK BAR
FRONT UNDER RUN PROTECTOR<EBE>
M12 FLANGE
|
0-91180-212-0 |
04 |
1 |
1601- |
