Isuzu WW
▶
TRUCKS
▶
FSR
▶
11721 - FSR AUST/NZ JNLT09 SPACECAB
▶
5 - Frame, Cab Mounting
▶
5-20 - BATTERY CARRIER
▶

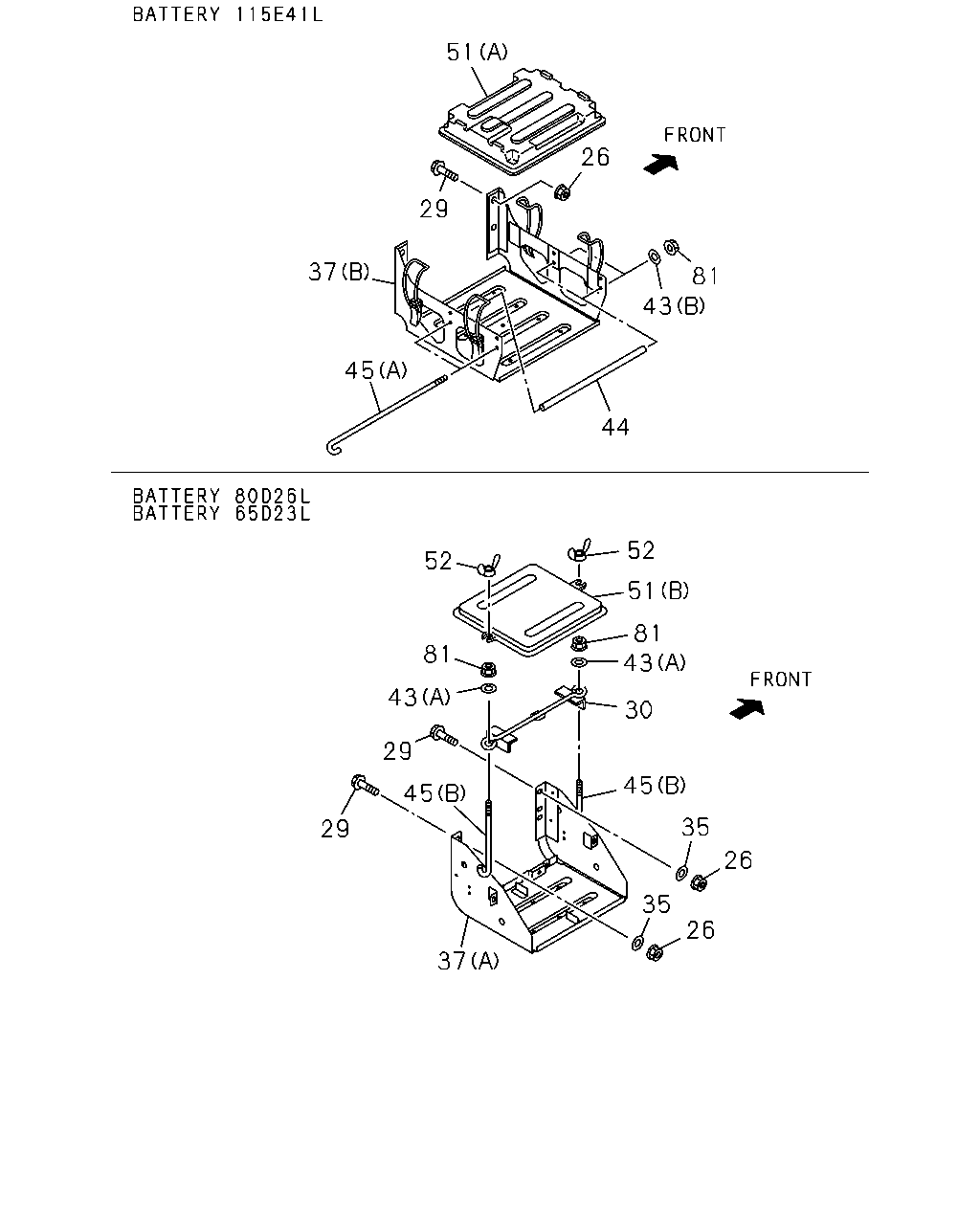

5-20 — BATTERY CARRIER
(#175705) — 16 parça
26
35
37
35
29
45
29
43
81
52
52
51
26
45
30
43
81
44
43
81
26
29
37
45
51
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
NUT; BRKT
M10 FLANGE
0-91180-210-0
04
1
1601-
29
BOLT; BRKT TO FRAME
M10X35 FLANGE
0-28651-035-0
04
1
1601-
30
PLATE; BATTERY
EXC. BATTERY 115E41L<8MA>
5-53615-004-1
01
1
1601-
35
WASHER; PL,BATTERY CARRIER
EXC. BATTERY 115E41L<8MA> ID=10.5 OD=22
0-91614-610-0
04
1
1601-
37
BRACKET; BATTERY
BATTERY 115E41L<8MA> (B)
8-98261-636-0
01
1
1601-
37
BRACKET; BATTERY
BATTERY 65D23L<8EJ> (A)
8-98096-097-0
01
1
1601-
37
BRACKET; BATTERY
BATTERY 80D26L<TM1> (A)
8-98096-098-0
01
1
1601-
43
WASHER; PL,CLAMP
BATTERY 115E41L<8MA> (B) ID=8.4 OD=16
0-91610-508-0
02
1
1601-
43
WASHER; PL,CLAMP
EXC. BATTERY 115E41L<8MA> (A) ID=8.4 OD=22
0-91614-708-0
02
1
1601-
44
SPACER; BATTERY
BATTERY 115E41L<8MA>
8-98261-682-0
02
1
1601-
45
ROD; TENSION,BATTERY
BATTERY 115E41L<8MA> (A) L=430
8-97134-740-0
02
1
1601-
45
ROD; TENSION,BATTERY
EXC. BATTERY 115E41L<8MA> (B) L=120
9-53616-615-0
02
1
1601-
51
COVER; BATTERY
BATTERY 115E41L<8MA> (A)
1-53612-037-2
01
1
1601-
51
COVER; BATTERY
EXC. BATTERY 115E41L<8MA> (B)
8-97120-747-0
01
1
1601-
52
NUT; WING,COVER FIX
EXC. BATTERY 115E41L<8MA> M8 WING NUT
0-91118-408-0
02
1
1601-
81
NUT; BATTERY
M8 FLANGE
0-91180-108-0
02
1
1601-
