Isuzu WW
▶
TRUCKS
▶
FSR
▶
11721 - FSR AUST/NZ JNLT09 SPACECAB
▶
5 - Frame, Cab Mounting
▶
5-10 - CAB MOUNTING; FRAME SIDE
▶

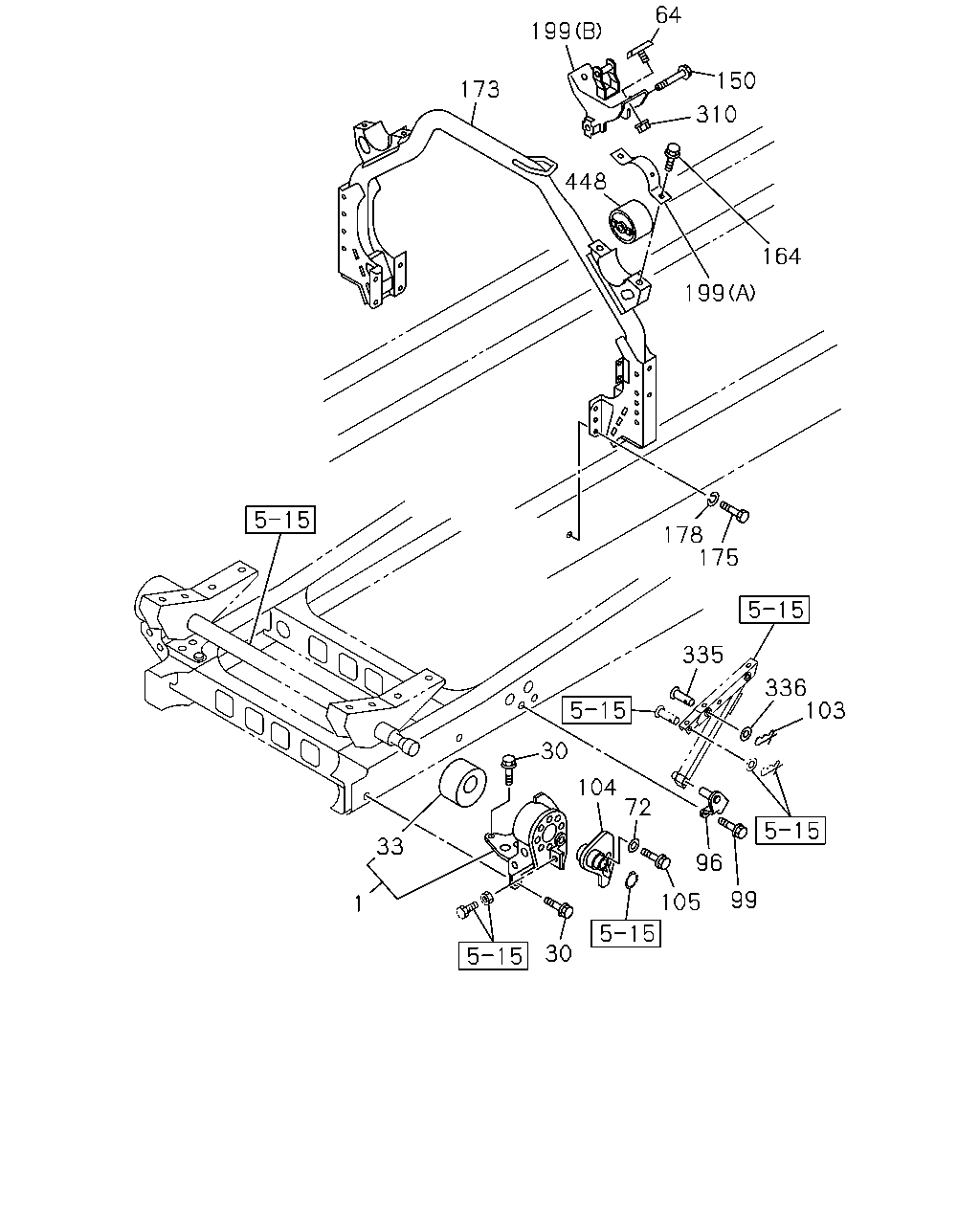

5-10 — CAB MOUNTING; FRAME SIDE
(#175703) — 23 parça
199
173
64
150
310
448
164
199
178
175
335
336
103
30
33
104
72
96
99
105
30
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
BRACKET; CAB MTG
8-98010-749-3
01
1
1601-
1
BRACKET; CAB MTG
8-98010-748-2
01
1
1601-
30
BOLT; CAB FRT FOOT
M14X45 FLANGE
0-28861-445-0
10
1
1601-
33
BUSHING; RUBBER,CAB MTG BRKT,FRT
8-98013-932-2
02
1
1601-
64
RUBBER; CUSHION
8-97113-340-0
04
1
1601-
72
WASHER; PL,BRKT TO FRAME
ID=15 OD=36
0-91614-714-0
01
1
1601-
96
BRACKET; CAB STAY
1-62500-628-0
01
1
1601-
99
BOLT; BRKT
M10X30 FLANGE
0-28661-030-0
02
1
1601-
103
PIN; SPLIT,CAB STAY
L=32.6
8-98062-280-0
01
1
1601-
104
BRACKET; CAB FRAME,CAB FRT MTG
8-98330-224-0
01
1
1601-
105
BOLT; BRKT TO CAB FRAME
M14X35 FLANGE
0-28661-435-0
01
1
1601-
150
BOLT; CAB MTG RR
M14X100
0-10956-400-0
02
1
1601-
164
BOLT; CUSHION RUBBER,CAB MTG
M12X25 FLANGE
0-28651-225-0
04
1
1601-
173
MEMBER; CAB MTG RR
8-98226-836-0
01
1
1601-
175
BOLT; MEMBER TO FRAME
M12X35
0-20951-235-0
08
1
1601-
178
WASHER; LK,MEMBER
ID=12.2
0-91510-612-0
08
1
1601-
199
BRACKET; CAB RR MTG
(A)
8-98158-426-0
02
1
1601-
199
BRACKET; CAB RR MTG
(B)
8-98297-105-0
01
1
1601-
199
BRACKET; CAB RR MTG
(B)
8-98099-068-0
01
1
1601-
310
NUT; CUSHION
M8 FLANGE
0-91180-108-0
04
1
1601-
335
PIN; ADJ,STAY LOCK
OD=10 L=48
1-09744-107-0
01
1
1601-
336
WASHER; PL,STAY LOCK
ID=10.5 T=2.0
1-09985-183-0
01
1
1601-
448
BUSHING; CAB MTG
8-98010-759-2
02
1
1601-
