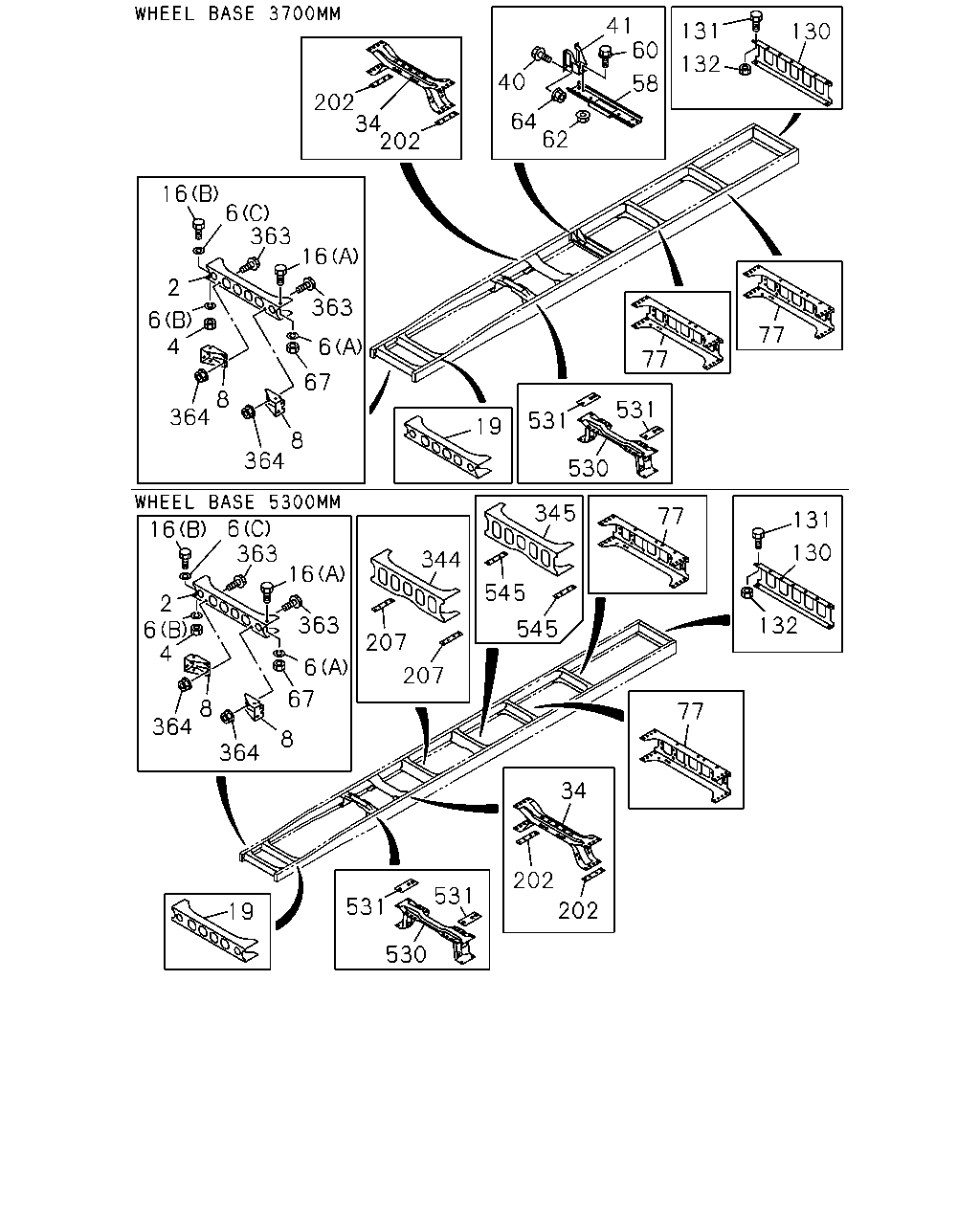

5-01 — FRAME AND OTHER PARTS (#175702) — 55 parça

202 34 202 40 64 62 60 41 58 131 132 130 16 6 363 16 363 6 67 2 6 4 364 8 8 364 16 6 363 363 16 2 6 364 364 8 67 8 6 19 531 531 77 77 530 345 545 545 344 77 131 130 132 77 207 207 34 202 202 531 530 531 19 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
2	MEMBER; CROSS,1ST FRONT UNDER RUN PROTECTOR<EBE>	8-97609-462-9	01	1	1601-	●	●
2	MEMBER; CROSS,1ST EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98312-669-0	01	1	1601-	●	●
4	NUT; 1ST C/MBR TO S/MBR EXC. FRONT UNDER RUN PROTECTOR<EBE> M14	0-91110-514-0	02	1	1601-	●	●
6	WASHER; LK,1ST C/MBR (A) ID=12.2	0-91510-512-0	02	1	1601-	●	●
6	WASHER; LK,1ST C/MBR EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) ID=14.2	0-91510-814-0	02	1	1601-	●	●
6	WASHER; LK,1ST C/MBR EXC. FRONT UNDER RUN PROTECTOR<EBE> (C) ID=15	8-98010-627-1	02	1	1601-	●	●
8	GUSSET; 1ST C/MBR	8-97609-759-2	01	1	1601-	●	●
8	GUSSET; 1ST C/MBR	8-97609-760-3	01	1	1601-	●	●
16	BOLT; 1ST C/MBR TO S/MBR (A) M12X30	0-20851-230-0	02	1	1601-	●	●
16	BOLT; 1ST C/MBR TO S/MBR EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X40	0-20851-440-0	02	1	1601-	●	●
19	MEMBER; CROSS,2ND FRONT UNDER RUN PROTECTOR<EBE>	8-97645-584-3	01	1	1601-	●	●
19	MEMBER; CROSS,2ND EXC. FRONT UNDER RUN PROTECTOR<EBE>	8-98312-670-0	01	1	1601-	●	●
34	MEMBER; CROSS,3RD	8-97609-501-2	01	1	1601-	●	●
40	BOLT; BRKT TO FRAME M10X30 FLANGE	0-28651-030-0	08	1	1601-	●
41	BRACKET; CENTER BRG,FRAME SIDE	8-97615-973-2	01	1	1601-	●
41	BRACKET; CENTER BRG,FRAME SIDE	8-97615-974-2	01	1	1601-	●
58	MEMBER; CENTER BRG	8-97638-924-0	01	1	1601-	●
60	BOLT; MBR M10X25 FLANGE	0-28651-025-0	08	1	1601-	●
62	NUT; MBR M10 FLANGE	0-91180-110-0	08	1	1601-	●
64	NUT; BRKT TO FRAME M10 FLANGE	0-91180-110-0	08	1	1601-	●
67	NUT; C/MBR M12	0-91110-512-0	02	1	1601-	●	●
77	MEMBER; CROSS,TRUNNION RR	8-97609-481-4	02	1	1601-	●	●
130	MEMBER; CROSS,END	8-97609-470-0	01	1	1601-	●	●
131	BOLT; END C/MBR M10X25 W/LK WASHER	0-50541-025-0	04	1	1601-	●	●
132	NUT; END C/MBR M10	0-91110-510-0	04	1	1601-	●	●
202	SPACER; 3RD C/MBR	8-97609-756-1	02	1	1601-	●	●
207	SPACER; 4TH C/MBR	8-97609-758-0	02	1	1601-		●
344	MEMBER; CROSS,4TH	8-97609-473-2	01	1	1601-		●
345	MEMBER; CROSS,5TH	8-97609-473-2	01	1	1601-		●
363	BOLT; GUSSET M12X25 FLANGE	0-28661-225-0	04	1	1601-	●	●
364	NUT; GUSSET M12 FLANGE	0-91180-212-0	04	1	1601-	●	●
530	MEMBER; CROSS,T/M	8-97609-809-3	01	1	1601-	●	●
531	SPACER; C/MBR,T/M	8-97616-461-1	02	1	1601-	●	●
545	SPACER; 5TH C/MBR	8-97609-758-0	02	1	1601-		●

11 13 18 118 98 103 117 82 138 105 106 101 26 27 46 31 39 25 26 25 23 23 25 25 26 24

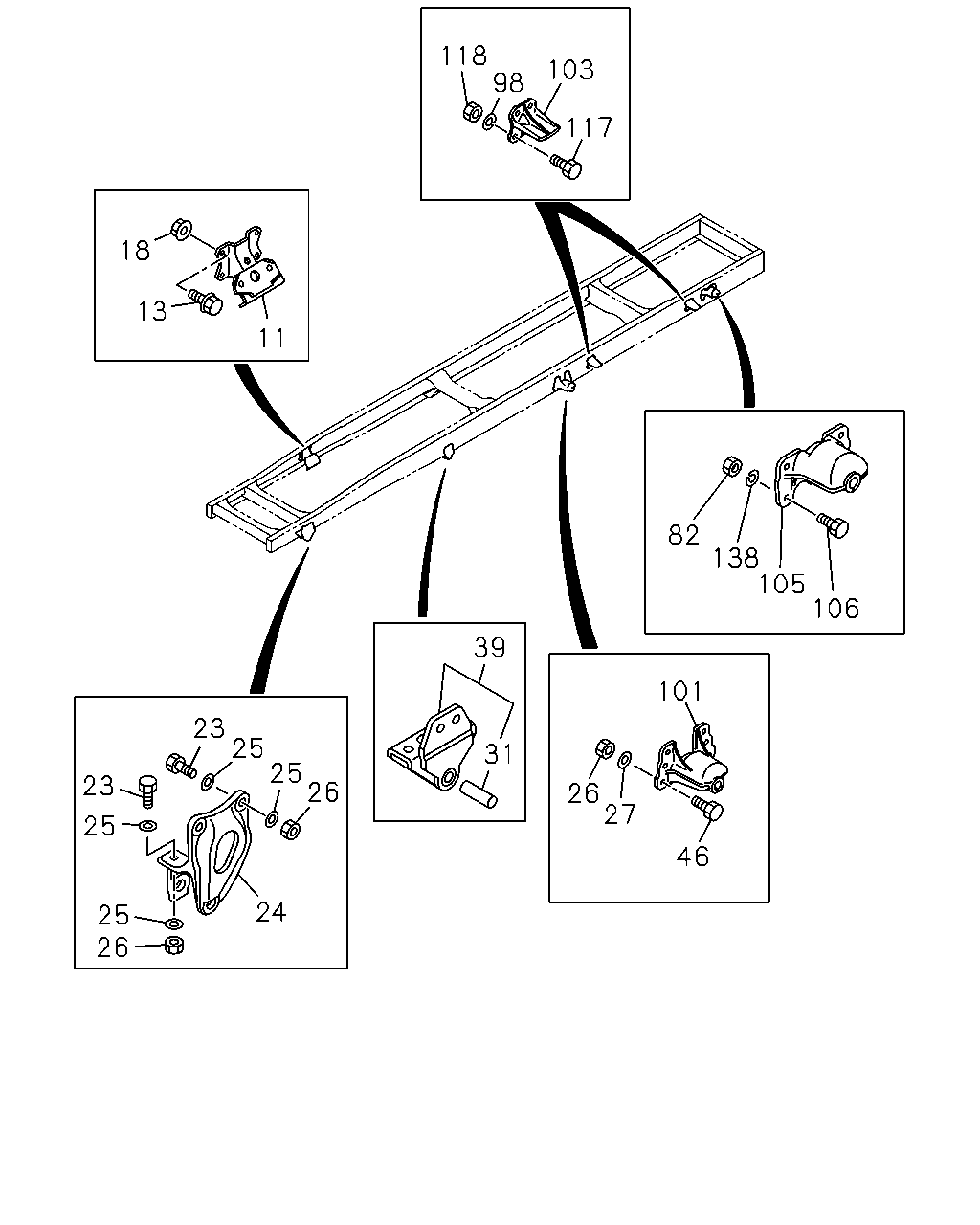

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
11	BRACKET; ENG MTG	8-98303-873-0	02	1	1601-	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	1601-	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	1601-	●	●
23	BOLT; BRKT,SPR M14X50	0-20951-450-0	08	1	1601-	●	●
24	BRACKET; FRT SPR,FRT	8-98018-983-0	01	1	1601-	●	●
24	BRACKET; FRT SPR,FRT	8-98018-984-0	01	1	1601-	●	●
25	WASHER; PL,BRKT ID=15	8-98010-627-1	16	1	1601-	●	●
26	NUT; BRKT,SPR M14	0-91110-514-0	20	1	1601-	●	●
27	WASHER; LK,BRKT,FRT SPR ID=14.2	0-91510-614-0	12	1	1601-	●	●
31	BUSHING; FRT SPR,RR ID=25	8-98082-176-0	02	1	1601-	●	●
39	BRACKET; FRT SPR,RR	1-53352-126-2	02	1	1601-	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	12	1	1601-	●	●
82	NUT; BRKT M14	0-91110-514-0	10	1	1601-	●	●
98	WASHER; LK,STOPPER ID=14.2	0-91510-614-0	16	1	1601-	●	●
101	BRACKET; RR SPR,FRT	1-53353-090-4	02	1	1601-	●	●
103	STOPPER; SUB SPR	1-53356-059-1	04	1	1601-	●	●
105	BRACKET; RR SPR,RR	1-53354-074-0	02	1	1601-	●	●
106	BOLT; BRKT M14X50	0-20951-450-0	10	1	1601-	●	●
117	BOLT; STOPPER M14X50	0-20951-450-0	16	1	1601-	●	●
118	NUT; STOPPER M14	0-91110-514-0	16	1	1601-	●	●
138	WASHER; LK,BRKT ID=14.2	0-91510-614-0	10	1	1601-	●	●
