◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11721 - FSR AUST/NZ JNLT09 SPACECAB ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-80 - ROAD WHEEL ▶
4-80 — ROAD WHEEL (#175701) — 10 parça

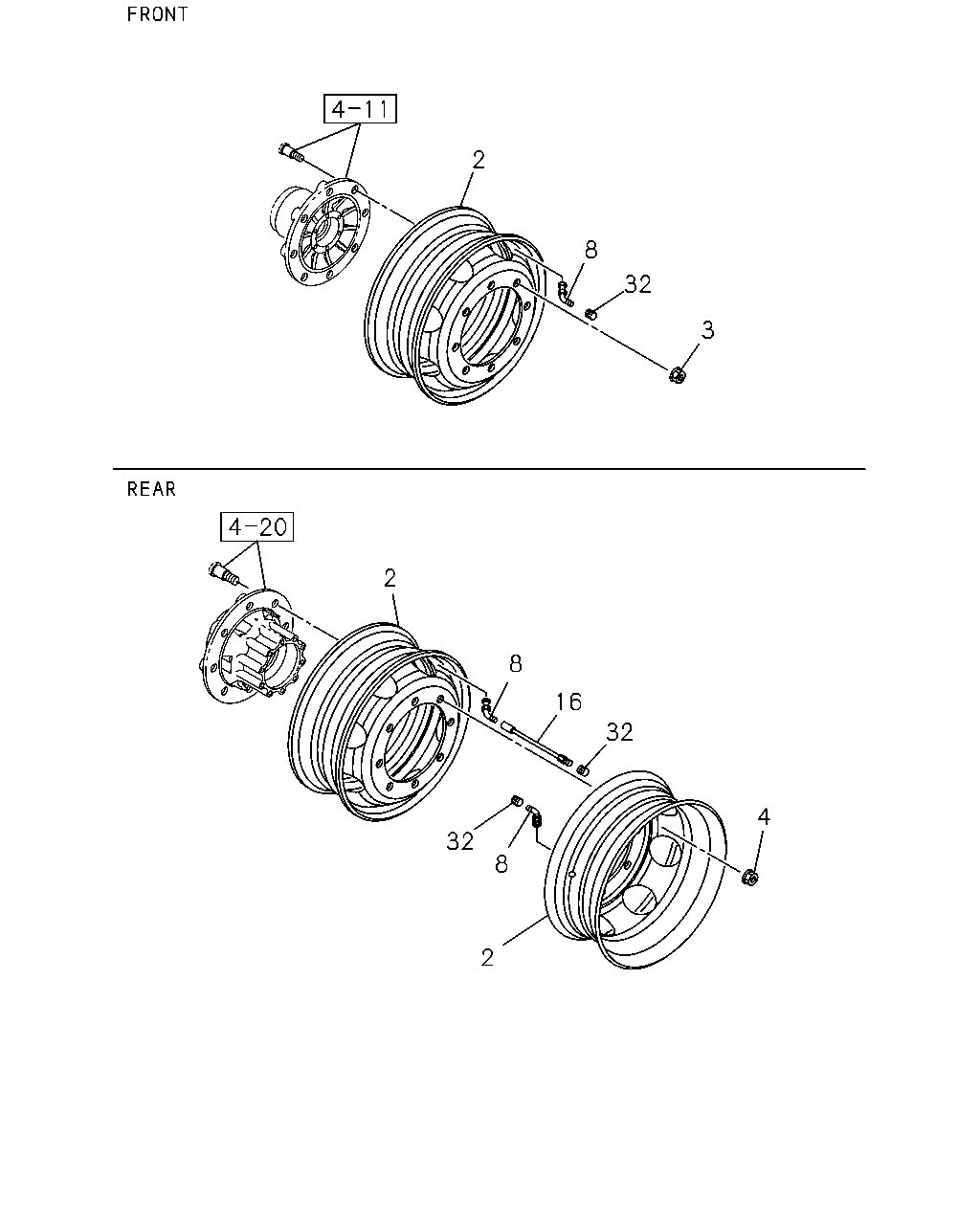

çizim 514308
2 8 3 32 32 4 16 8 2 32 8 2
BalonParca AdiParca NoAdetTipApplied Date
2 WHEEL; DISC
DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> FRONT,REAR 		8-98222-138-0 06 1 1601-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> DISC WHEEL SPECIAL PAINTED TOPY WHITE<W20> SPARE 		8-98222-138-0 01 1 1601-
2 WHEEL; DISC
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> WHEEL PAINTED LIGHT ARGENT<SKD> SPARE 		8-98222-137-0 01 1 1601-
2 WHEEL; DISC
WHEEL PAINTED LIGHT ARGENT<SKD> FRONT,REAR 		8-98222-137-0 06 1 1601-
3 NUT; WHEEL,FRT AXLE
M22X1.5 		1-42333-055-0 16 1 1601-
4 NUT; WHEEL,RR AXLE
M22X1.5 		1-42333-055-0 16 1 1601-
8 VALVE; TIRE
FRONT,REAR 		1-42370-048-0 06 1 1601-
8 VALVE; TIRE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> SPARE 		1-42370-048-0 01 1 1601-
16 HOLDER; TIRE VALVE,DISC WHEEL
L=115 		8-98167-051-0 02 1 1601-
32 CAP; VALVE
SPARE TIRE & DISC WHEEL RR<R46>,SPARE TIRE & DISC WHEEL FRONT TIRE ONE<WH2> 		1-42374-001-0 05 1 1601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
