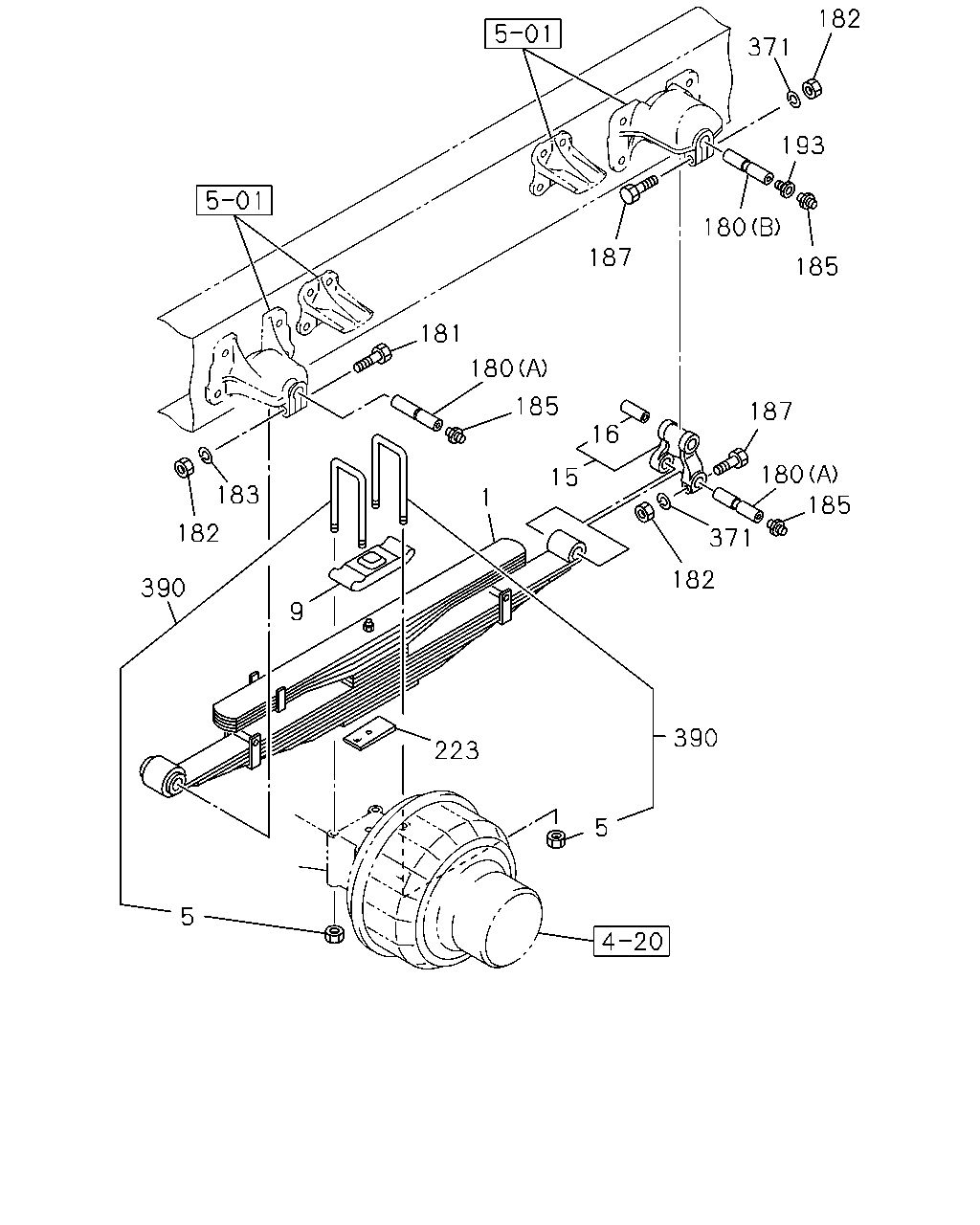

4-60 — REAR SUSPENSION
(#175699) — 18 parça
371
182
193
185
187
180
185
371
182
390
15
16
185
180
187
180
181
183
182
390
223
5
5
9
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. MULTI LEAF SUSP RR(SAS) 17-LEAF
8-98017-561-0
02
1
1601-
1
SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. TAPER LEAF SUS HELPER RR(SAU) 12-LEAF
8-98064-447-0
02
1
1601-
5
NUT; U-BOLT,RR SPR
M20 FLANGE
8-98010-415-0
08
1
1601-
9
PAD; U BOLT,RR SPR
1-51372-059-0
02
1
1601-
15
SHACKLE; RR SPR
1-51362-038-2
02
1
1601-
16
BUSHING; SHACKLE,RR SPR
ID=25
8-98082-176-0
02
1
1601-
180
PIN; RR SPR
(A) DO=25 L=115 PT1/8
1-51361-016-0
04
1
1601-
180
PIN; RR SPR
(B) DO=25 L=115 M12
1-51361-017-0
02
1
1601-
181
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
02
1
1601-
182
NUT; PIN,RR SPR
M12
0-91110-512-0
06
1
1601-
183
WASHER; LK,PIN,RR SPR
ID=12.2
0-91510-612-0
02
1
1601-
185
NIPPLE; GREASE,PIN,RR SPR
PT1/8 STRAIGHT
0-90301-410-0
06
1
1601-
187
BOLT; SPR & SHACKLE
M12X70
0-10961-270-0
04
1
1601-
193
ATTACHMENT; GREASE NIPPLE
9-43165-001-0
02
1
1601-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 3700MM(37W)
1-51377-333-1
02
1
1601-
223
SPACER; U BOLT,RR SPR
WHEEL BASE 5300MM(53W)
1-51377-329-1
02
1
1601-
371
WASHER; LK,SHACKLE
ID=12.2
0-91510-612-0
04
1
1601-
390
U-BOLT SET; RR SPRING
L=405
1-87870-472-0
04
1
1601-
