4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#175693) — 43 parça

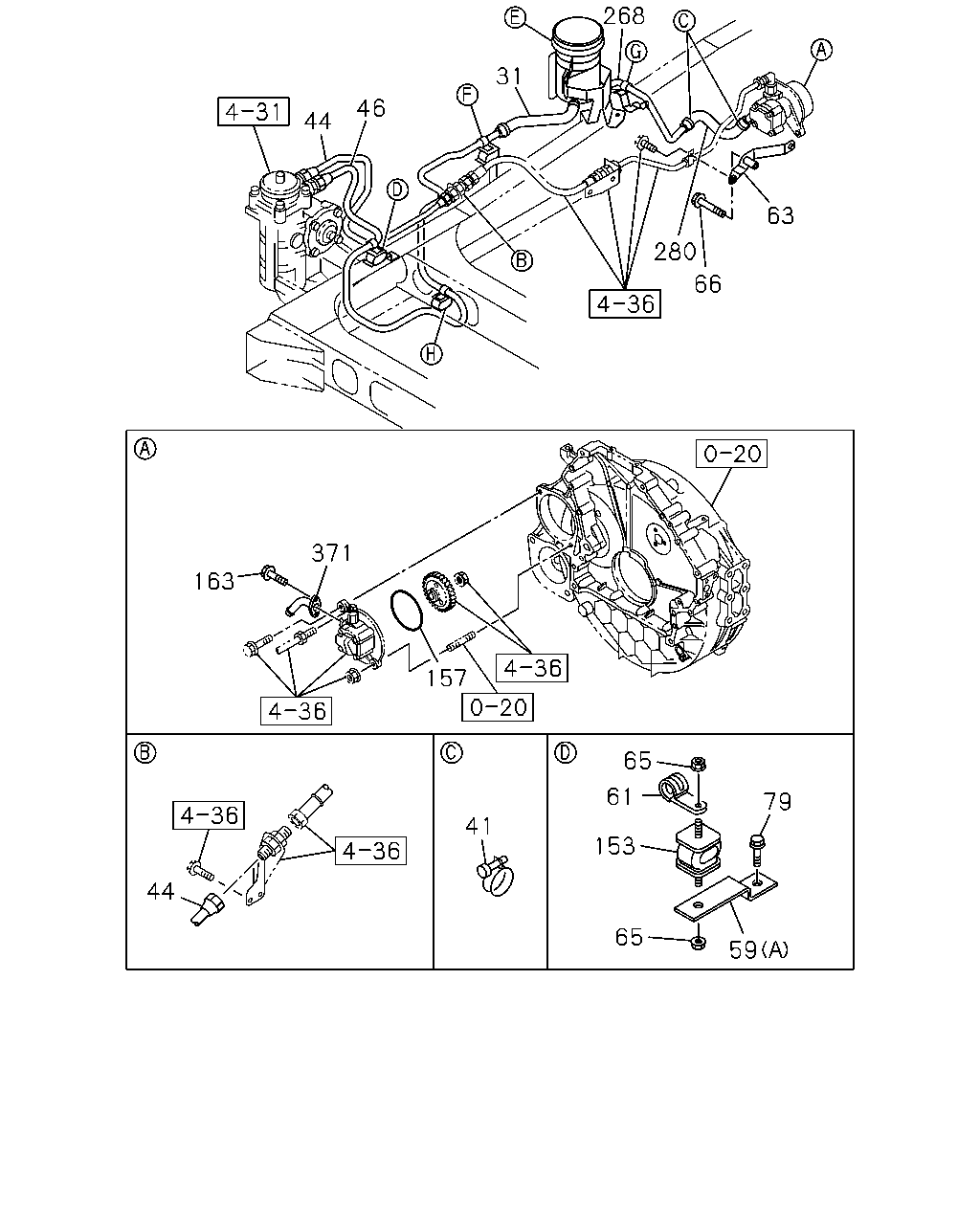

44 46 31 268 280 63 66 163 371 157 44 41 153 61 65 65 59 79

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
31	HOSE; P/S OIL TANK,INL L=220 SERVICED BY L=300	0-09814-300-0	01	1	1601-
41	CLIP; HOSE,P/S ID=32	1-09704-085-0	02	1	1601-
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V60A(KG2)	8-98319-307-0	01	1	1601-
44	PIPE; OIL,P/S UNIT TO NIPPLE GENERATOR 24V90A(K44)	8-98319-308-0	01	1	1601-
46	PIPE; OIL,P/S UNIT TO OIL TANK L=2062	8-98300-267-0	01	1	1601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-261-0	01	1	1601-
59	BRACKET; CLIP,OIL PIPE (B) L=95	1-82699-085-0	01	1	1601-
61	CLIP; OIL PIPE ID=16 L=20	0-95235-536-0	03	1	1601-
63	BRACKET; CLIP,P/S	8-98133-447-2	01	1	1601-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1601-
66	BOLT; BRKT,OIL PIPE M10X60 FLANGE	0-28151-060-0	01	1	1601-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1601-
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1601-
157	GASKET; P/S PUMP ALSO INCLUDED IN GASKET SET(ENGINE). ID=105.6	8-97386-295-0	01	1	1601-
163	BOLT; OIL PIPE M8X16 FLANGE	0-28050-816-0	02	1	1601-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98167-795-0	01	1	1601-
280	HOSE; P/S OIL PUMP,INL	8-98171-963-0	01	1	1601-
371	PIPE; OIL,INLET	8-94397-227-0	01	1	1601-

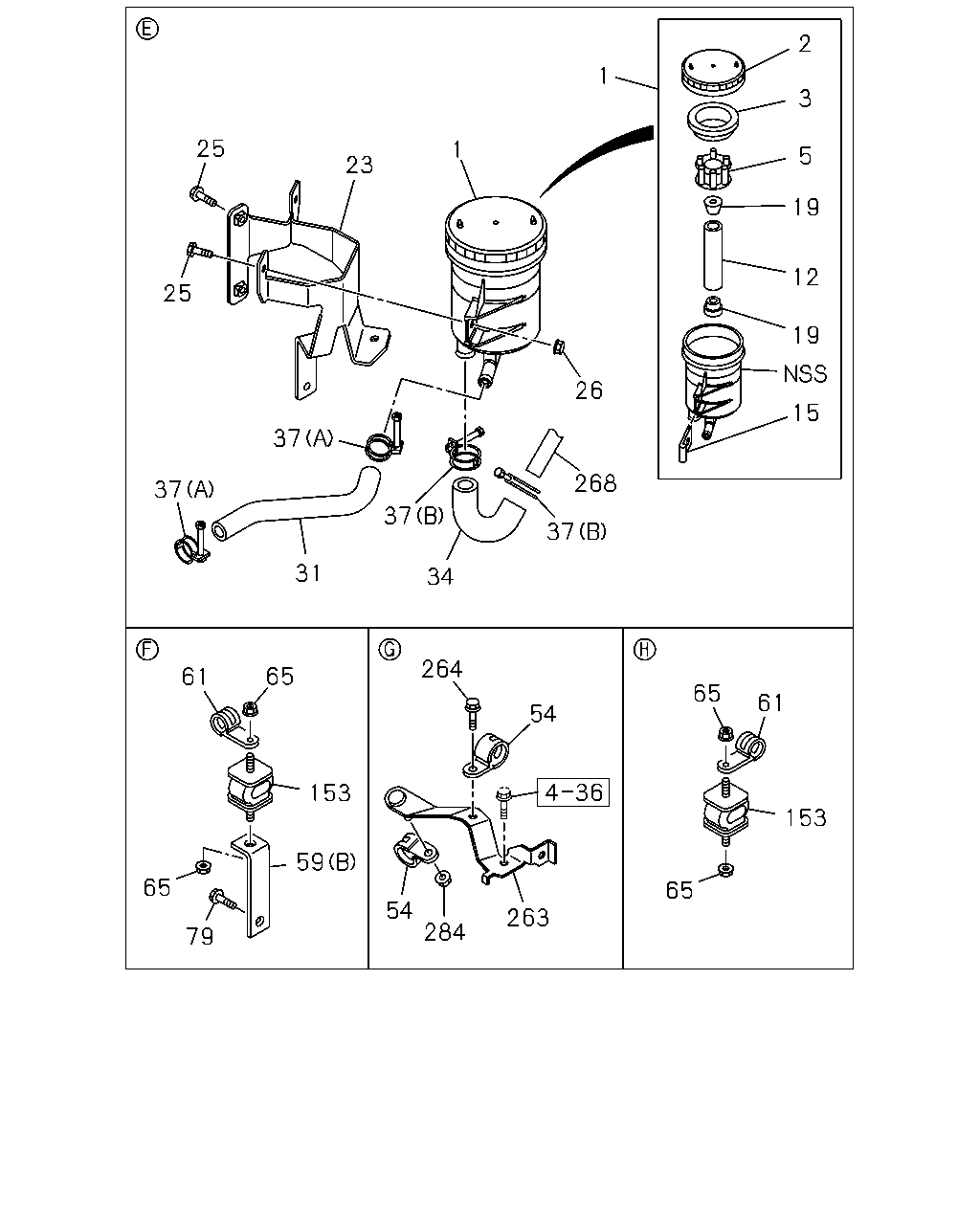

25 23 25 37 37 31 34 37 37 268 26 1 1 2 3 5 19 12 19 15 61 65 65 79 59 153 264 54 54 284 263 65 65 61 153

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK ASM; OIL,P/S	8-98166-928-0	01	1	1601-
2	CAP; OIL TANK,P/S	8-98166-876-0	01	1	1601-
3	GASKET; OIL TANK,P/S	1-21249-003-1	01	1	1601-
5	STRAINER; OIL TANK,P/S	1-21235-007-1	01	1	1601-
12	FILTER; MICROBON,OIL TANK,P/S	1-21235-011-0	01	1	1601-
15	PLATE; FILTER,OIL TANK	1-21249-016-0	02	1	1601-
19	SEAT; OIL TANK	1-21249-004-0	02	1	1601-
23	BRACKET; OIL TANK,P/S	8-98148-531-0	01	1	1601-
25	BOLT; OIL TANK BRKT M8X25 FLANGE	0-28650-825-0	04	1	1601-
26	NUT; OIL TANK TO BRKT M8 FLANGE	0-91180-108-0	02	1	1601-
31	HOSE; P/S OIL TANK,INL L=220 SERVICED BY L=300	0-09814-300-0	01	1	1601-
34	HOSE; P/S OIL TANK,OUTLET	8-98167-796-1	01	1	1601-
37	CLIP; HOSE,P/S (A) ID=26	1-09704-082-0	02	1	1601-
37	CLIP; HOSE,P/S (B) ID=32	1-09704-085-0	02	1	1601-
54	CLIP; OIL PIPE ID=19 L=20	0-95235-836-0	02	1	1601-
59	BRACKET; CLIP,OIL PIPE (A)	1-47477-261-0	01	1	1601-
59	BRACKET; CLIP,OIL PIPE (B) L=95	1-82699-085-0	01	1	1601-
61	CLIP; OIL PIPE ID=16 L=20	0-95235-536-0	03	1	1601-
65	NUT; BRKT M8 FLANGE	0-91180-108-0	06	1	1601-
79	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	1601-
153	RUBBER; CUSHION,POWER STRG PIPE	8-94158-156-1	03	1	1601-
263	BRACKET; P/S PIPE	8-98167-794-1	01	1	1601-
264	BOLT; PIPE BRKT M8X20 FLANGE	0-28650-820-0	01	1	1601-
268	PIPE; OIL,FLEX HOSE TO FLEX HOSE	8-98167-795-0	01	1	1601-
284	NUT; PIPE M8 FLANGE	0-91180-108-0	01	1	1601-
