Isuzu WW
▶
TRUCKS
▶
FVM
▶
11168 - FVM(SOUTH AFRICA)
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-30 - LOCK CYLINDER SET
▶

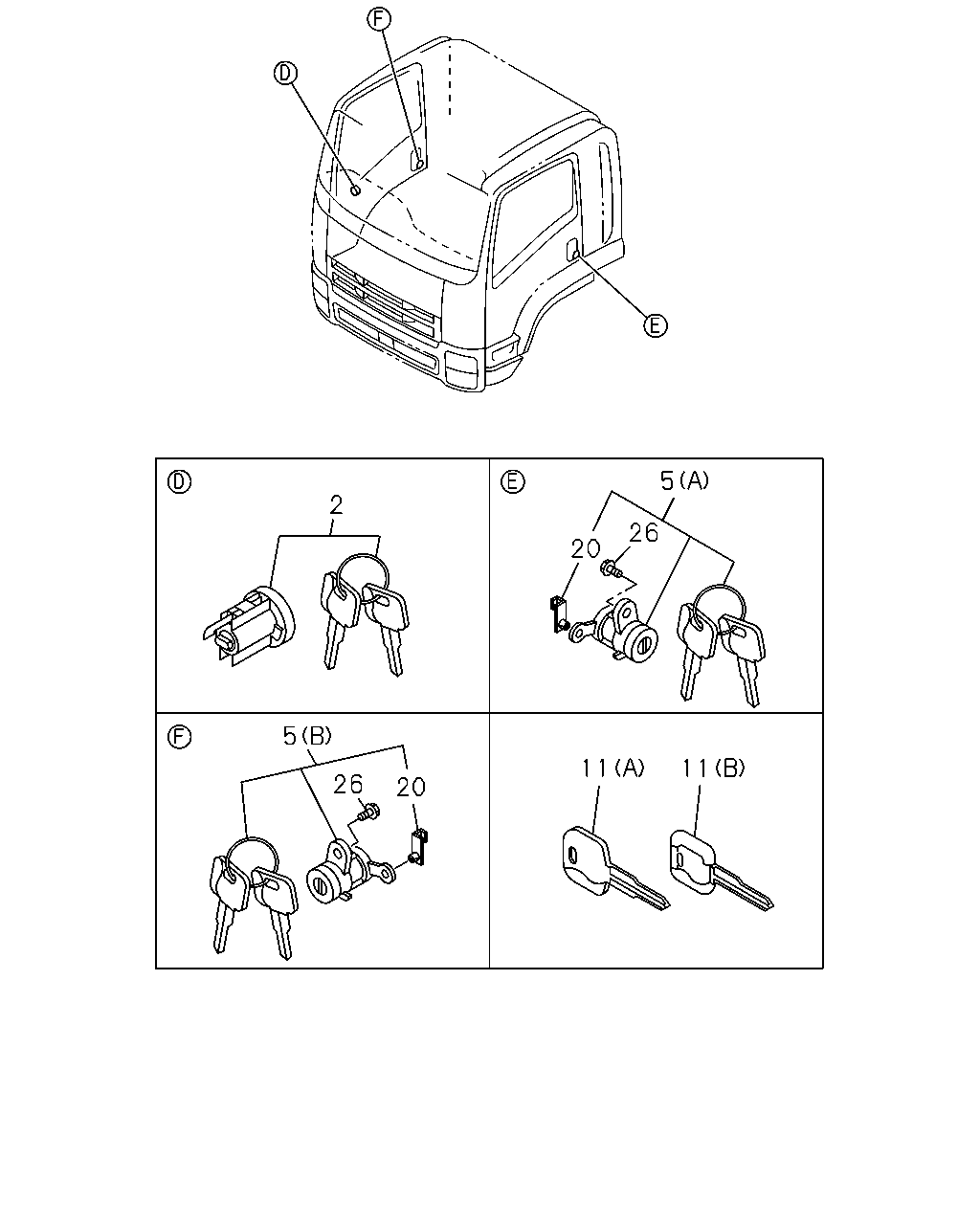

7-30 — LOCK CYLINDER SET
(#17569) — 13 parça
◀
[730A] NO.2 (9 parça)
[730A] NO.1 (4 parça)
▶
5
2
26
20
5
11
11
26
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
BARREL ASM; W/KEY,STRG LOCK
8-98055-147-0
01
1
1001-1203
2
BARREL ASM; W/KEY,STRG LOCK
8-98201-341-0
01
1
1204-
5
CYLINDER ASM; DOOR LOCK
(A)
8-98055-150-0
01
1
1001-
5
CYLINDER ASM; DOOR LOCK
(B)
8-98055-149-0
01
1
1001-
11
KEY; BLANK
(B) IMMOBILIZER
8-98055-168-0
AR
1
1001-
11
KEY; BLANK
(A)
8-98055-170-0
AR
1
1001-
20
SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1001-
20
SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1001-
26
BOLT; KEY CYL,DOOR
M6X8 FLANGE
8-98031-839-0
02
1
1001-
1
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CYLINDER SET; CAR LOCK
8-98041-686-1
01
1
1001-1203
1
CYLINDER SET; CAR LOCK
8-98201-160-0
01
1
1204-
20
SNAP; DOOR LOCK CYL
8-98055-181-0
01
1
1001-
20
SNAP; DOOR LOCK CYL
8-98055-182-0
01
1
1001-
