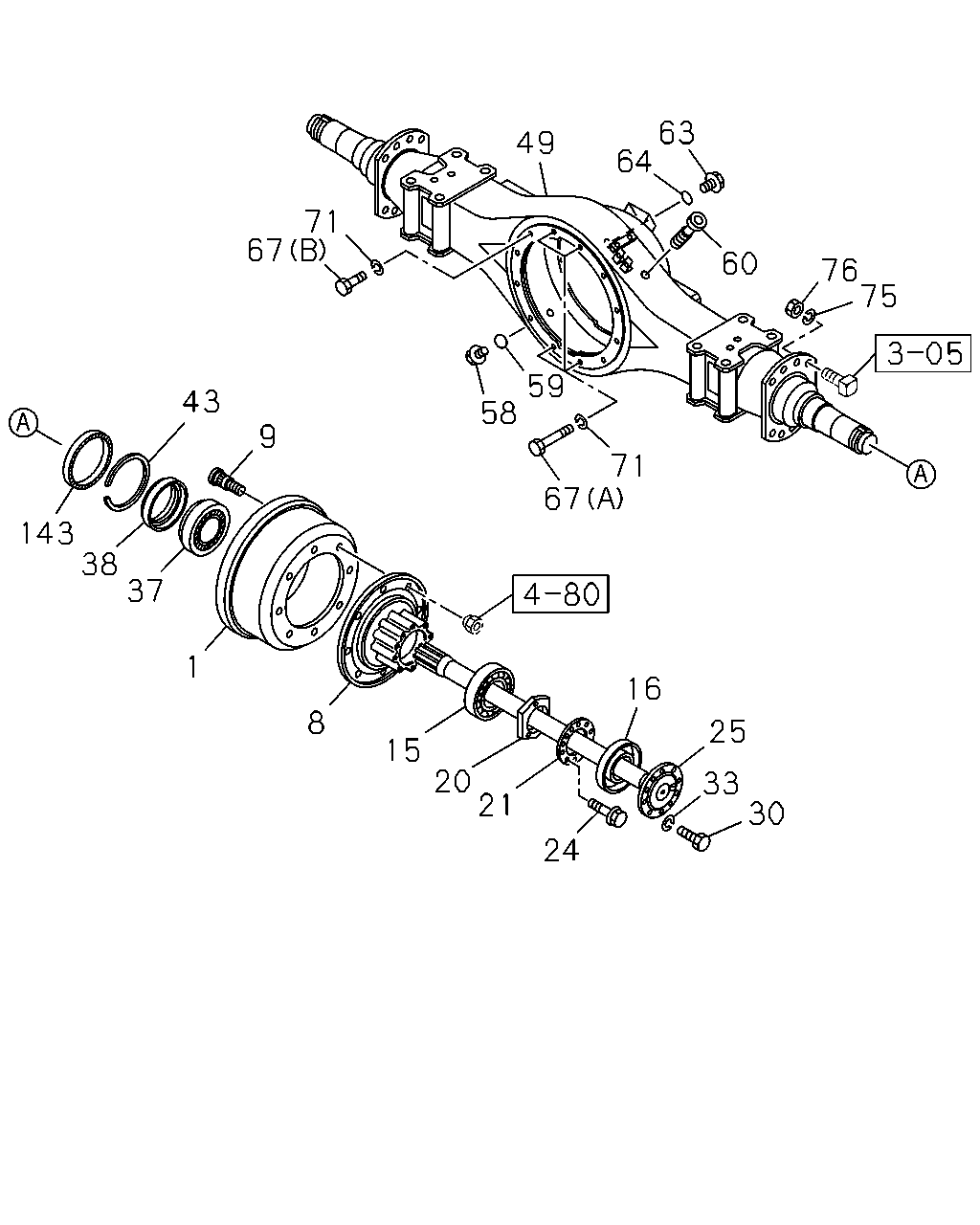

4-20 — REAR AXLE CASE AND SHAFT (#175688) — 26 parça

71 49 63 60 76 64 71 59 58 67 67 16 25 30 33 24 21 20 15 8 1 9 43 37 38 143 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DRUM; BRK,RR	8-98085-727-0	02	1	1601-
8	HUB; RR AXLE	8-98128-140-1	02	1	1601-
9	PIN; WHEEL,RR AXLE M22X98 RH THREAD	1-42337-095-1	16	1	1601-
15	BEARING; HUB OUTER,RR AXLE JTEKT	1-09812-222-0	02	1	1601-
16	SEAL; OIL,RR HUB,OUTER TKK	1-09625-331-1	02	1	1601-
20	NUT; BRG,RR HUB M64	9-09843-721-2	02	1	1601-
21	WASHER; LK,BRG NUT ID=64	9-09854-122-0	02	1	1601-
24	BOLT; LK WASHER M6X16 FLANGE	0-28650-616-0	06	1	1601-
25	SHAFT; AXLE,RR L=945	8-97380-684-0	02	1	1601-
30	BOLT; HUB TO AXLE SHAFT M12X45	9-09804-239-1	20	1	1601-
33	WASHER; AXLE SHAFT ID=12.2	0-91510-812-0	20	1	1601-
37	BEARING; HUB INNER,RR AXLE JTEKT	1-09812-221-0	02	1	1601-
38	SEAL; OIL,RR HUB,INNER TKK	1-09625-569-0	02	1	1601-
43	RING; SNAP,HUB SEAL,RR AXLE	9-09950-201-0	02	1	1601-
49	CASE; RR AXLE	8-98223-709-0	01	1	1601-
58	PLUG; DRAIN,AXLE CASE M24X17 FLANGE	1-09604-023-0	01	1	1601-
59	GASKET; DRAIN PLUG ID=26.8	9-09920-605-0	01	1	1601-
60	BREATHER; RR AXLE CASE	1-09893-003-0	01	1	1601-
63	PLUG; OIL FILLER,AXLE CASE M24X17 FLANGE	1-09604-022-0	01	1	1601-
64	GASKET; OIL FILLER,AXLE CASE ID=26.8	9-09920-605-0	01	1	1601-
67	BOLT; FINAL DRIVE SETTING (A) M12X60	0-10956-260-0	04	1	1601-
67	BOLT; FINAL DRIVE SETTING (B) M12X35	0-20951-235-0	08	1	1601-
71	WASHER; LK,FINAL DRIVE SETTING ID=12.2	0-91510-812-0	12	1	1601-
75	WASHER; LK,RR BRK ASM SETTING ID=14.2	0-91510-814-0	16	1	1601-
76	NUT; RR BRK ASM SETTING M14	0-91110-514-0	16	1	1601-
143	RING; EXCITER	1-42319-169-1	02	1	1601-
