Isuzu WW
▶
TRUCKS
▶
FSR
▶
11721 - FSR AUST/NZ JNLT09 SPACECAB
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-11 - FRONT HUB AND DRUM OR ROTOR
▶

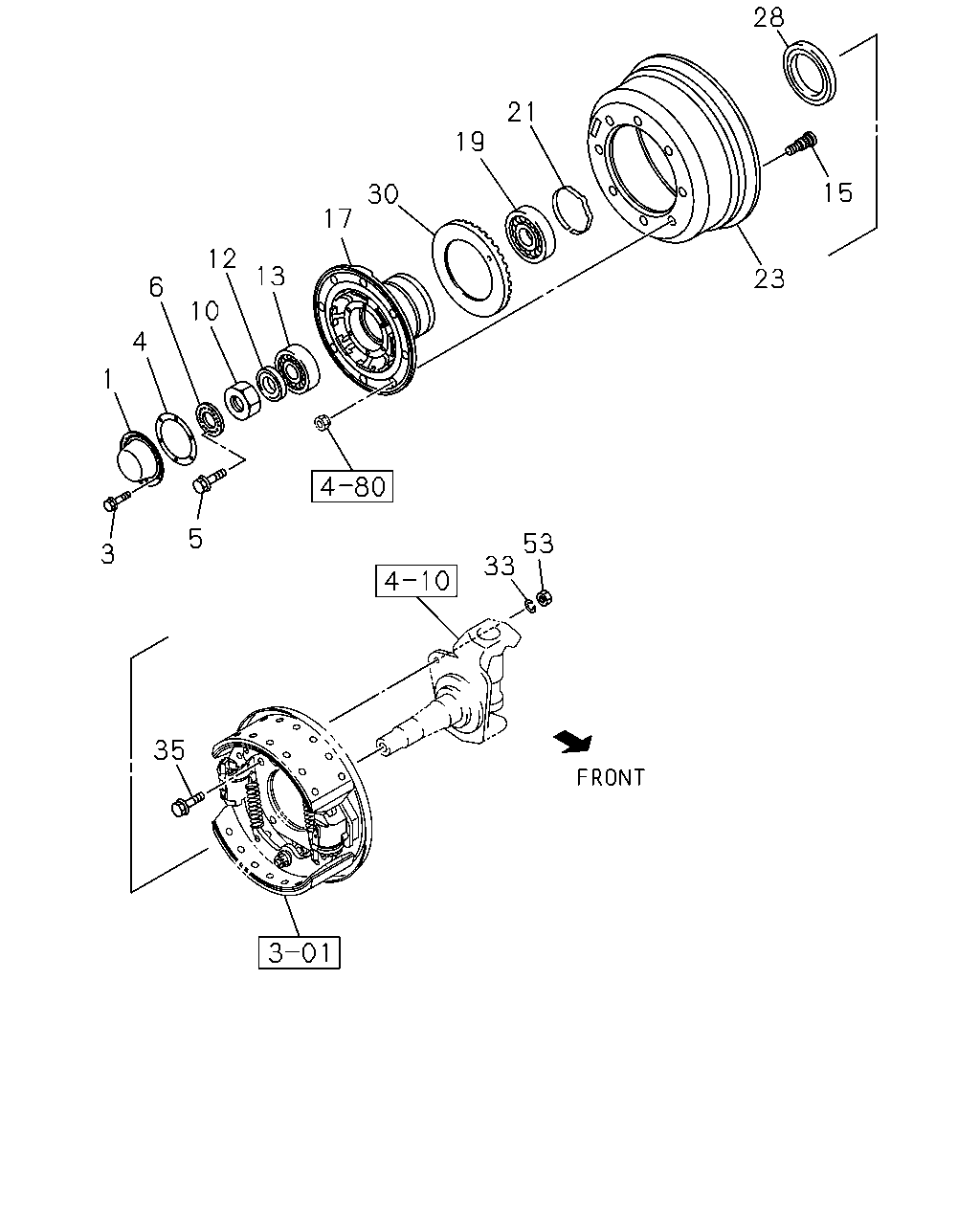

4-11 — FRONT HUB AND DRUM OR ROTOR
(#175687) — 18 parça
1
4
6
12
10
13
17
30
19
21
23
15
28
3
5
35
33
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CAP; HUB,FRT AXLE
OD=156
9-42313-123-2
02
1
1601-
3
BOLT; HUB CAP,FRT WHEEL
M8X12 FLANGE
0-28050-812-0
12
1
1601-
4
GASKET; HUB CAP,FRT WHEEL
1-42319-185-2
02
1
1601-
5
BOLT; LK WASHER
M6X16 HEX SOCKET
8-98200-943-0
04
1
1601-
6
WASHER; LK,FRT HUB
ID=48
8-98084-561-0
02
1
1601-
10
NUT; FRT HUB BRG
M48
1-09840-012-5
02
1
1601-
12
WASHER; LK,FRT HUB BRG
ID=48
8-98156-755-0
02
1
1601-
13
BEARING; HUB OUTER,FRT AXLE
JTEKT
1-09812-234-0
02
1
1601-
15
PIN; WHEEL,FRT AXLE
M22X82 RH THREAD
1-42337-093-1
16
1
1601-
17
HUB; FRT AXLE
8-98141-529-1
02
1
1601-
19
BEARING; HUB INNER,FRT AXLE
1-09812-217-0
02
1
1601-
21
RING; SNAP,HUB
OD=132
9-09950-164-0
02
1
1601-
23
DRUM; BRK,FRT
1-42315-415-0
02
1
1601-
28
SEAL; OIL,FRT HUB
OD=128
1-09625-129-0
02
1
1601-
30
RING; EXCITER,FRT HUB
1-42319-203-0
02
1
1601-
33
WASHER; LK,DRUM COVER
ID=14.2
0-91510-814-0
08
1
1601-
35
BOLT; DRUM COVER
M14X50
1-09040-066-0
08
1
1601-
53
NUT; DRUM COVER
M14
0-91110-514-0
08
1
1601-
