3-70 — BRAKE PIPING; AIR,AIR MASTER
(#175681) — 81 parça
◀

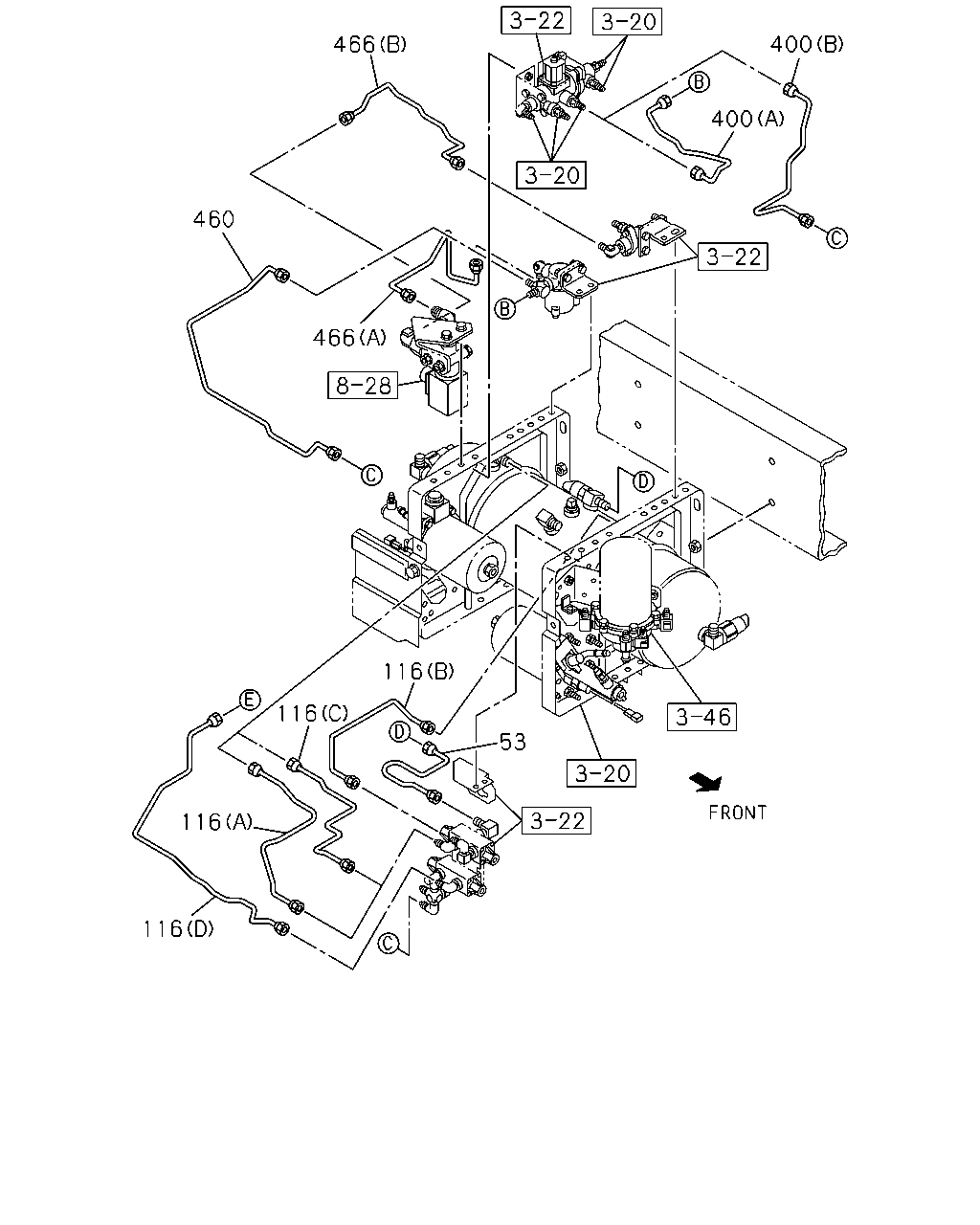

[370A] AIR TANK SIDE NO.2 (10 parça)

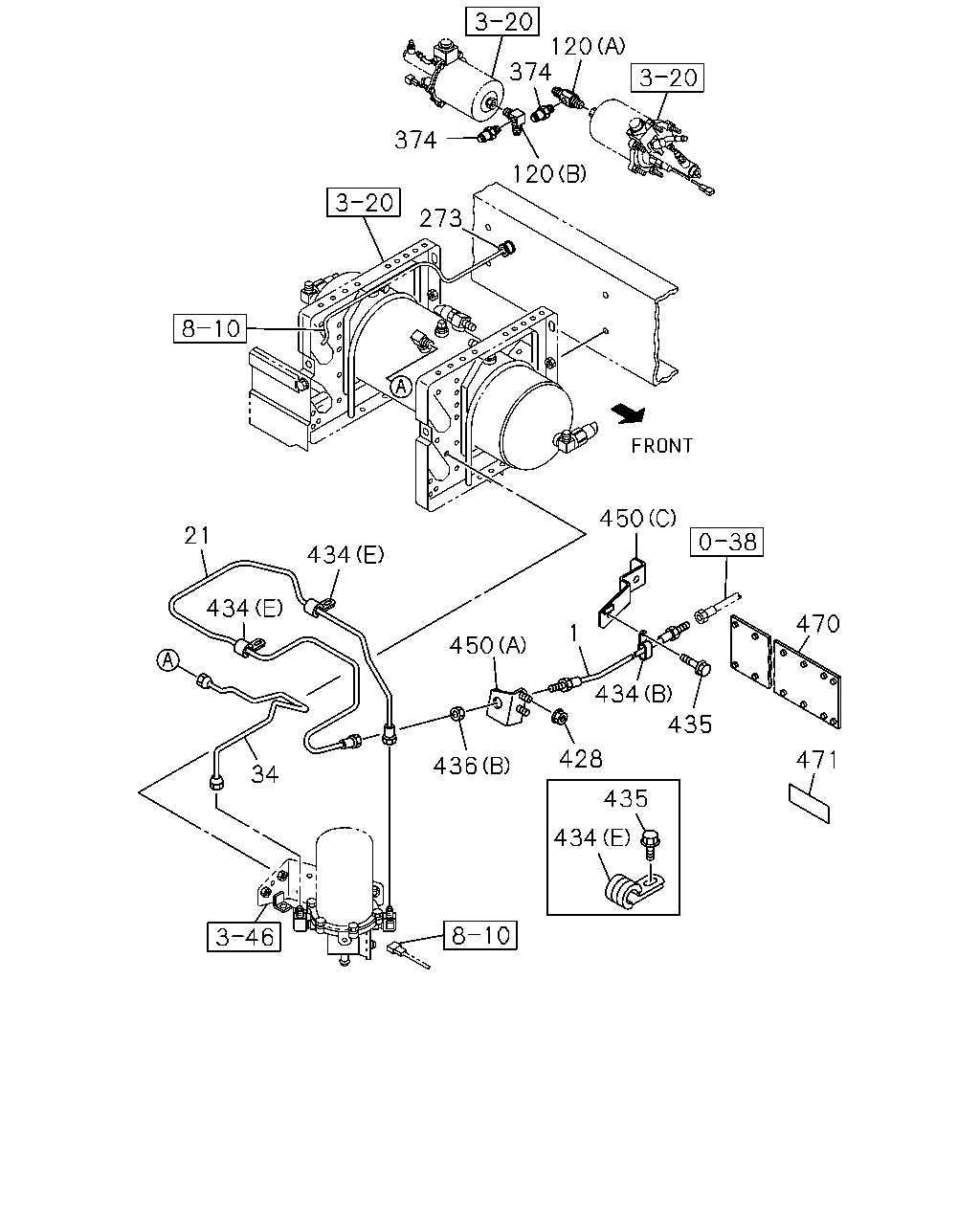

[370A] AIR TANK SIDE NO.1 (28 parça)

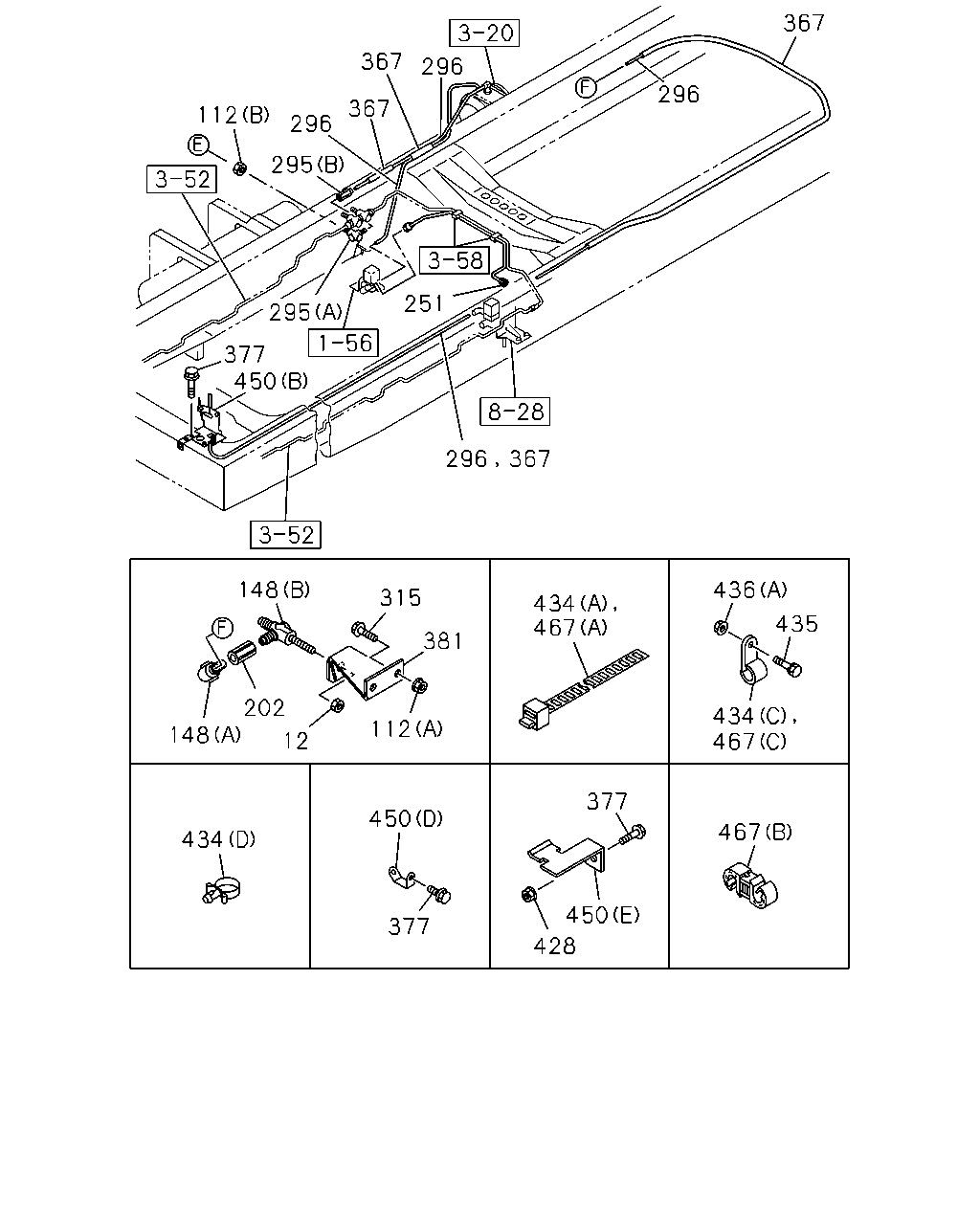

[370A] FRAME SIDE (43 parça)
▶
466
460
400
400
466
116
116
116
116
53
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
53
PIPE; AIR,AIR TANK TO VALVE
8-98276-838-0
01
1
1601-
116
PIPE; AIR,PROTECTION VLV
(D) L=1072 SERVICED BY L=1100
1-47428-815-0
01
1
1601-
116
PIPE; AIR,PROTECTION VLV
(B) L=382
8-98077-880-0
01
1
1601-
116
PIPE; AIR,PROTECTION VLV
THROTTLE CONTROL SYSTEM(6XH) (A) L=480
8-98213-332-0
01
1
1601-
116
PIPE; AIR,PROTECTION VLV
EXC. THROTTLE CONTROL SYSTEM(6XH) (C) L=504
8-98276-839-0
01
1
1601-
400
PIPE; AIR,HSA VLV
H.S.A SYSTEM<6EP> EXC. THROTTLE CONTROL SYSTEM(6XH) (B) L=585 SERVICED BY L=600
1-47428-809-0
01
1
1601-
400
PIPE; AIR,HSA VLV
THROTTLE CONTROL SYSTEM(6XH) (A) L=467
8-98066-848-0
01
1
1601-
460
PIPE; AIR,PROTECTION VALVE
THROTTLE CONTROL SYSTEM(6XH) L=1036
8-98225-793-0
01
1
1601-
466
PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (B) L=682 SERVICED BY L=700
1-47428-870-0
01
1
1601-
466
PIPE; AIR,ASR
THROTTLE CONTROL SYSTEM(6XH) (A) L=492
8-98077-879-0
01
1
1601-
374
120
120
374
273
434
21
434
450
450
436
34
428
1
434
435
471
470
435
434
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,AIR TANK
8-98171-661-0
01
1
1601-
21
PIPE; AIR,UNION TO AIR DRYER
L=1898
8-98187-597-0
01
1
1601-
34
PIPE; AIR
L=676 SERVICED BY L=700
1-49115-481-0
01
1
1601-
120
CONNECTOR; AIR PIPE
(A) M16 & PT3/8 STRAIGHT
1-09656-643-1
01
1
1601-
120
CONNECTOR; AIR PIPE
(B) M16 & PT1/4 & PT3/8 3WAY
1-09656-671-0
01
1
1601-
273
GROMMET
ID=28 OD=35 T=17
9-09956-256-2
02
1
1601-
374
CONNECTOR
R1/4 & M16 TEST CONNECTOR
1-47459-013-1
02
1
1601-
428
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1601-
428
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1601-
434
CLIP
(C) ID=7 L=20
0-95234-635-0
01
1
1601-
434
CLIP
(B) ID=16 L=20
0-95235-536-0
02
1
1601-
434
CLIP
(A) L=350
1-09707-183-0
09
1
1601-
434
CLIP
(D) ID=18-24 L=14.5
1-09709-298-0
02
1
1601-
434
CLIP
(E) ID=31 L=44
8-98170-379-0
01
1
1601-
434
CLIP
(E) ID=31 L=33
8-98190-830-1
02
1
1601-
435
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1601-
435
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1601-
435
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
02
1
1601-
436
NUT; CLIP
(B) M22
0-91111-522-0
01
1
1601-
436
NUT; CLIP
(A) M8 FLANGE
0-91180-108-0
01
1
1601-
436
NUT; CLIP
(A) M8 FLANGE
0-91180-108-0
01
1
1601-
450
BRACKET; CLIP
(B)
8-98070-479-0
01
1
1601-
450
BRACKET; CLIP
(D)
8-98117-686-0
01
1
1601-
450
BRACKET; CLIP
(C)
8-98125-582-0
01
1
1601-
450
BRACKET; CLIP
(E)
8-98157-748-0
01
1
1601-
450
BRACKET; CLIP
(A)
8-98162-110-0
01
1
1601-
470
INSULATOR; HOSE
8-98188-543-0
01
1
1601-
471
TAPE; COVER
18X185
8-98190-442-0
04
1
1601-
367
296
367
296
295
112
450
377
295
251
296
367
296
367
148
315
381
112
12
202
148
434
450
377
434
467
377
450
428
436
435
434
467
467
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
12
NUT; UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12
0-91111-512-0
01
1
1601-
112
NUT
(B) M12
9-09840-280-0
01
1
1601-
112
NUT
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) M10 FLANGE
0-91180-210-0
02
1
1601-
148
CONNECTOR; UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (B) M12 2WAY
1-09654-059-2
01
1
1601-
148
CONNECTOR; UNION
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) (A) DIN6 & R3/8 ELBOW
1-09661-234-0
01
1
1601-
202
ADAPTER
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M12 & RC3/8 STRAIGHT
1-09660-879-0
01
1
1601-
251
PIPE; AIR,UNION TO MAG VLV
L=830 SERVICED BY L=900
1-47428-813-0
01
1
1601-
295
CONNECTOR; NYLON TUBE
(A) M12 ELBOW
0-92125-206-0
01
1
1601-
295
CONNECTOR; NYLON TUBE
(B) DIN8 & M12 STRAIGHT
1-09660-873-0
01
1
1601-
296
TUBE; NYLON
SERVICED BY L=4000 OD=6
1-87411-002-0
AR
1
1601-
296
TUBE; NYLON
SERVICED BY L=2000 OD=8
1-87411-006-0
AR
1
1601-
296
TUBE; NYLON
SERVICED BY L=4000 OD=8
1-87411-007-0
AR
1
1601-
315
BOLT; CONNECTOR
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X30 FLANGE
0-28651-030-0
02
1
1601-
367
TUBE; CORRUGATE
SERVICED BY L=4000 ID=7
1-87411-017-0
AR
1
1601-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=10
1-87411-019-0
AR
1
1601-
367
TUBE; CORRUGATE
SERVICED BY L=2000 ID=15
1-87411-025-0
AR
1
1601-
377
BOLT; BRKT FIX
M8X20 FLANGE
0-28650-820-0
01
1
1601-
377
BOLT; BRKT FIX
M8X25 FLANGE
0-28650-825-0
03
1
1601-
377
BOLT; BRKT FIX
M10X30 FLANGE
0-28651-030-0
01
1
1601-
381
BRACKET
EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)
8-98128-396-0
01
1
1601-
428
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
1601-
428
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1601-
434
CLIP
(C) ID=7 L=20
0-95234-635-0
01
1
1601-
434
CLIP
(B) ID=16 L=20
0-95235-536-0
02
1
1601-
434
CLIP
(A) L=350
1-09707-183-0
09
1
1601-
434
CLIP
(D) ID=18-24 L=14.5
1-09709-298-0
02
1
1601-
434
CLIP
(E) ID=31 L=44
8-98170-379-0
01
1
1601-
434
CLIP
(E) ID=31 L=33
8-98190-830-1
02
1
1601-
435
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
01
1
1601-
435
BOLT; CLIP
M8X20 FLANGE
0-28650-820-0
02
1
1601-
435
BOLT; CLIP
M8X25 FLANGE
0-28650-825-0
02
1
1601-
436
NUT; CLIP
(B) M22
0-91111-522-0
01
1
1601-
436
NUT; CLIP
(A) M8 FLANGE
0-91180-108-0
01
1
1601-
436
NUT; CLIP
(A) M8 FLANGE
0-91180-108-0
01
1
1601-
450
BRACKET; CLIP
(B)
8-98070-479-0
01
1
1601-
450
BRACKET; CLIP
(D)
8-98117-686-0
01
1
1601-
450
BRACKET; CLIP
(C)
8-98125-582-0
01
1
1601-
450
BRACKET; CLIP
(E)
8-98157-748-0
01
1
1601-
450
BRACKET; CLIP
(A)
8-98162-110-0
01
1
1601-
467
CLIP; NYLON TUBE
WHEEL BASE 5300MM(53W) (A) L=350
1-09707-183-0
04
1
1601-
467
CLIP; NYLON TUBE
(B) ID=10 & 15
1-09709-279-1
01
1
1601-
467
CLIP; NYLON TUBE
WHEEL BASE 3700MM(37W) (C) ID=22 L=32
1-09700-126-1
01
1
1601-
467
CLIP; NYLON TUBE
WHEEL BASE 3700MM(37W) (A) L=350
1-09707-183-0
02
1
1601-
