Isuzu WW
▶
TRUCKS
▶
FSR
▶
11721 - FSR AUST/NZ JNLT09 SPACECAB
▶
3 - Brakes, Brake System
▶
3-55 - BRAKE PIPING; OIL,REAR
▶
3-55 — BRAKE PIPING; OIL,REAR
(#175679) — 27 parça
◀

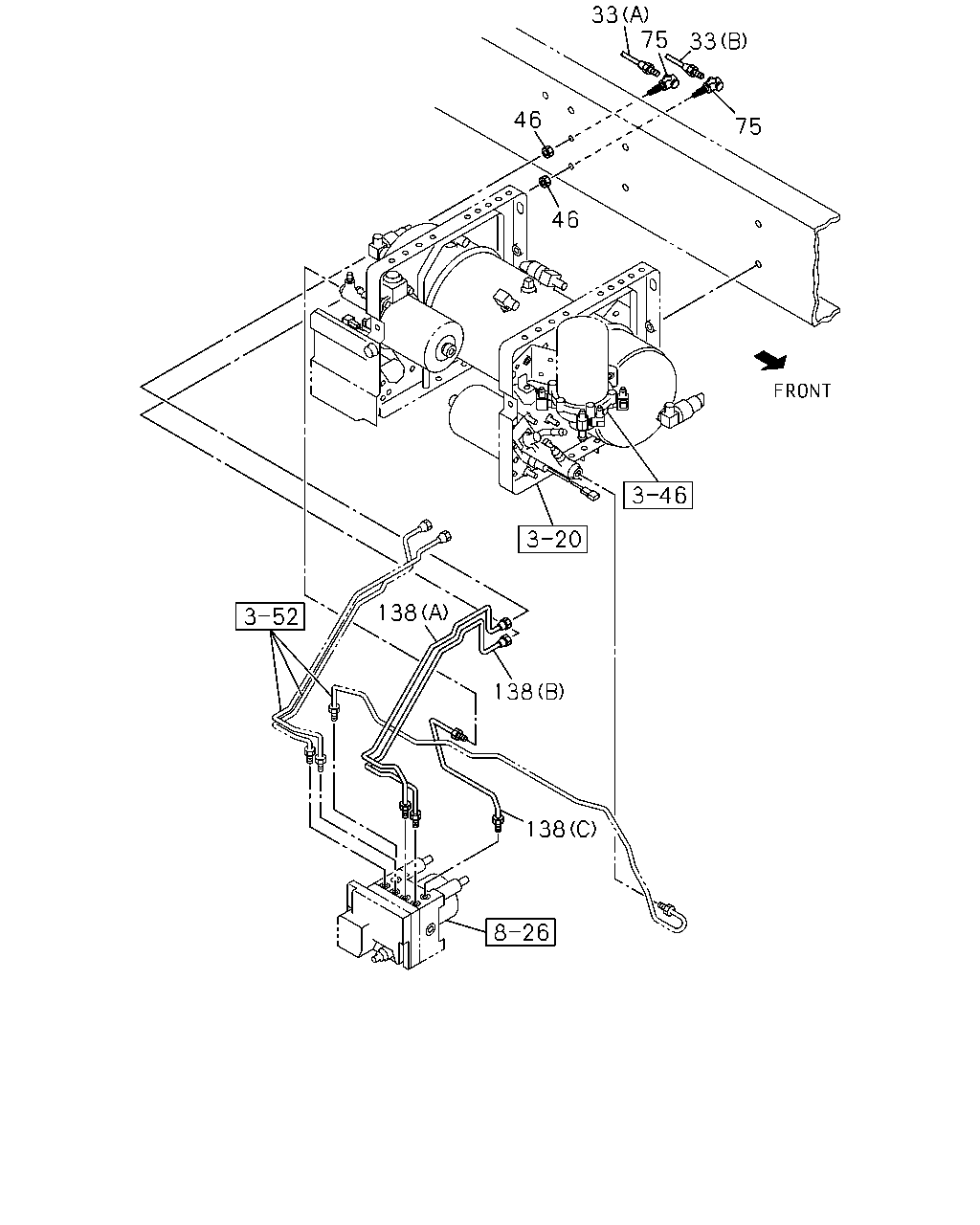

[355A] AIR TANK SIDE (9 parça)

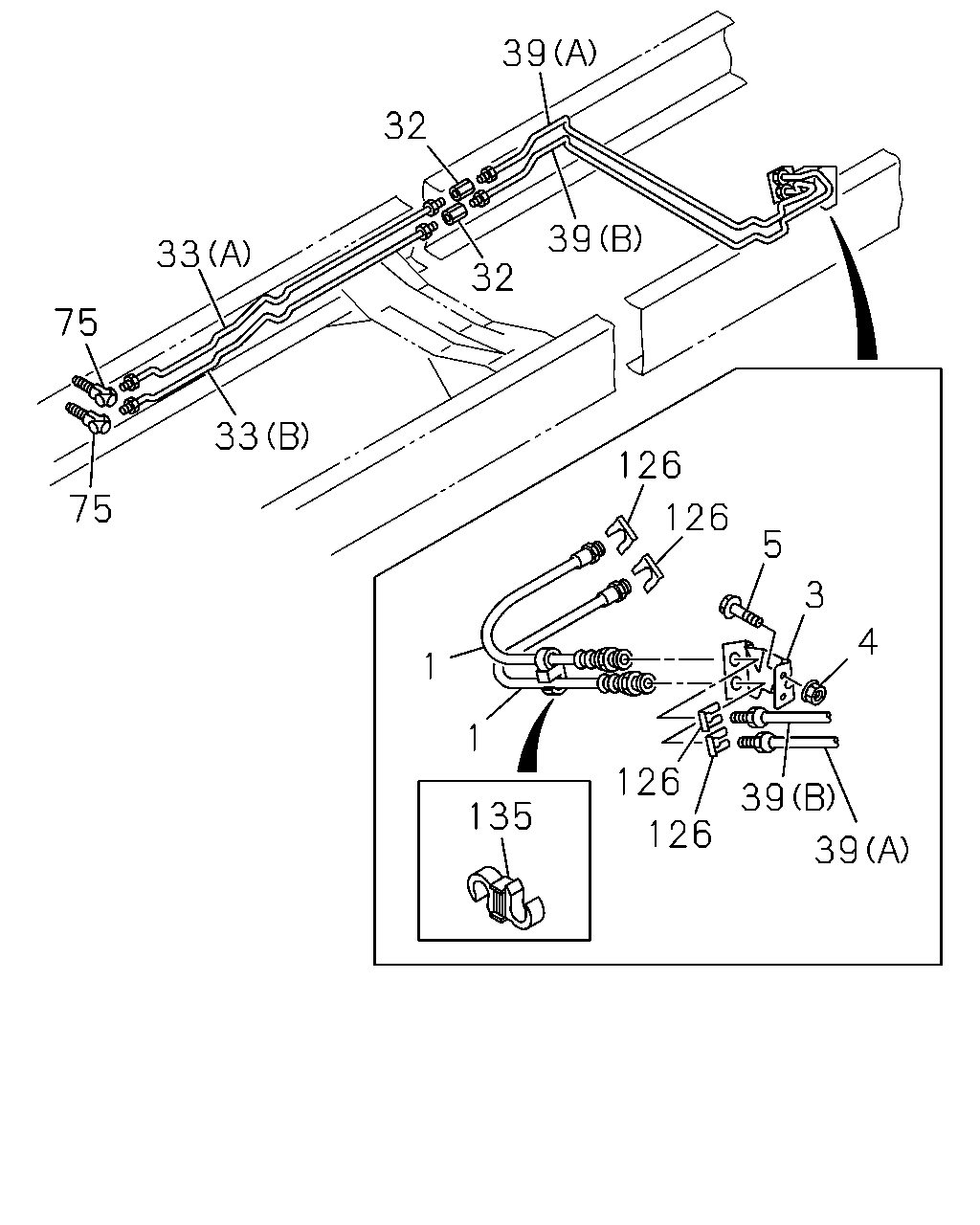

[355A] FRAME SIDE (14 parça)

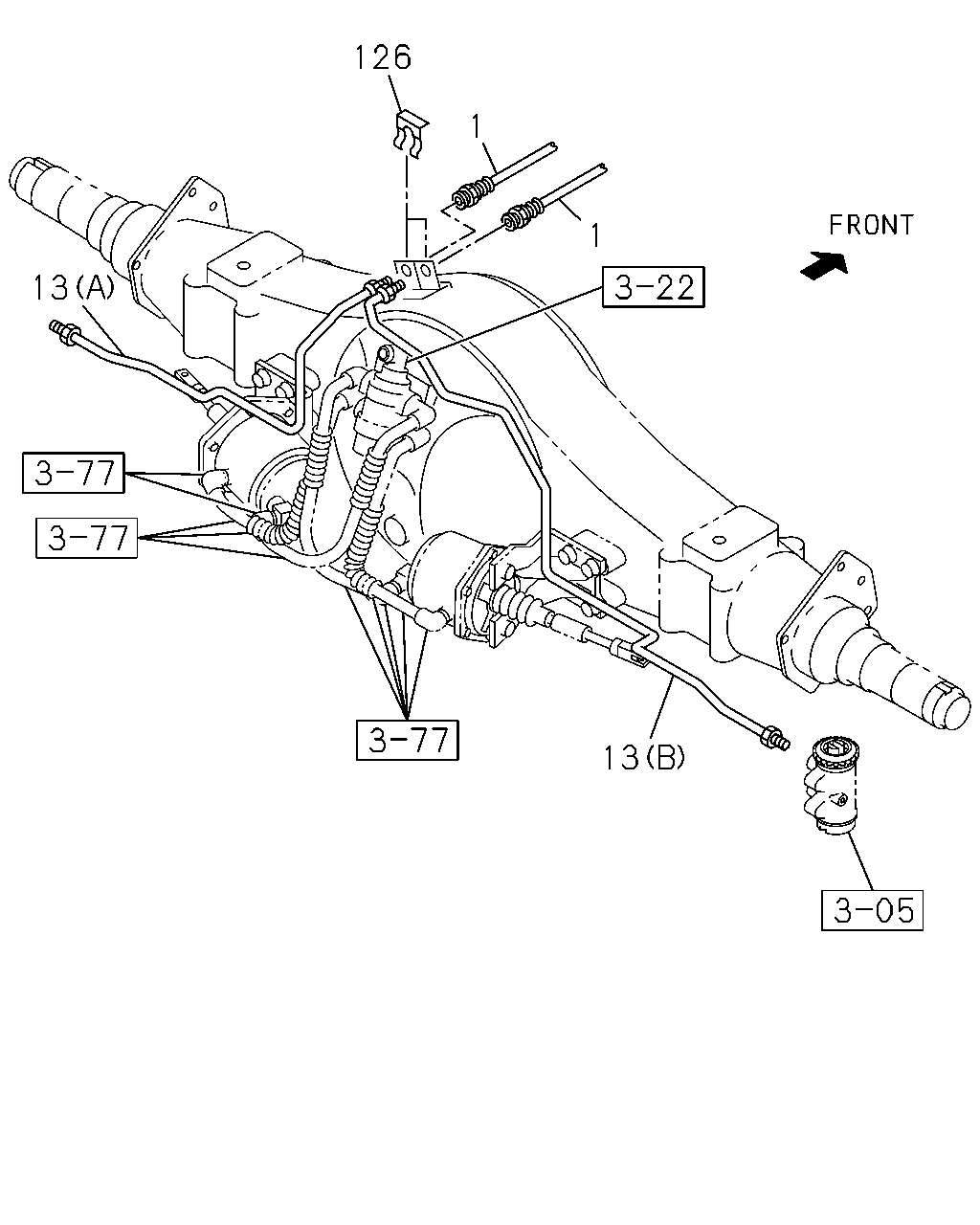

[355A] REAR AXLE SIDE (4 parça)
▶
33
33
75
46
46
75
138
138
138
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH LINE L=1366
8-98183-306-0
01
1
1601-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH LINE L=1324
8-98183-307-0
01
1
1601-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2923
8-98183-304-0
01
1
1601-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (B) RH LINE L=2863
8-98183-305-0
01
1
1601-
46
NUT; UNION,OIL PIPE
M10 H=8
1-09400-029-0
02
1
1601-
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
1601-
138
PIPE; HYDRAULIC UNIT
(A) L=657
8-98012-129-0
01
1
1601-
138
PIPE; HYDRAULIC UNIT
(B) L=703
8-98012-146-0
01
1
1601-
138
PIPE; HYDRAULIC UNIT
(C) L=296
8-98066-107-0
01
1
1601-
75
33
32
39
75
33
2
32
39
126
1
1
135
126
126
39
39
4
3
5
126
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=350
8-97138-885-0
02
1
1601-
3
BRACKET; FLEX HOSE,RR BRK
8-98065-999-2
01
1
1601-
4
NUT; BRKT,FLEX HOSE,RR BRK
M8 FLANGE
0-91180-108-0
02
1
1601-
5
BOLT; BRKT,FLEX HOSE,RR BRK
M8X30 FLANGE
0-28650-830-0
02
1
1601-
32
UNION; OIL PIPE
M10 STRAIGHT
0-92107-005-0
02
1
1601-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (A) LH LINE L=1366
8-98183-306-0
01
1
1601-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 3700MM(37W) (B) RH LINE L=1324
8-98183-307-0
01
1
1601-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (A) LH LINE L=2923
8-98183-304-0
01
1
1601-
33
PIPE; OIL,UNION TO UNION
WHEEL BASE 5300MM(53W) (B) RH LINE L=2863
8-98183-305-0
01
1
1601-
39
PIPE; OIL,UNION TO RR FLEX HOSE
(A) LH LINE L=1710
8-98106-485-0
01
1
1601-
39
PIPE; OIL,UNION TO RR FLEX HOSE
(B) RH LINE L=1772
8-98106-486-0
01
1
1601-
75
UNION; OIL PIPE
M10X2 ELBOW
8-98018-438-0
02
1
1601-
126
CLIP; FLEX HOSE
8-97360-054-0
04
1
1601-
135
CLIP; FLEX HOSE
ID=10 & 10
1-09709-277-1
01
1
1601-
126
13
13
1
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOSE; FLEX,RR BRK
L=350
8-97138-885-0
02
1
1601-
13
PIPE; BRK,RR AXLE
(B) RH SIDE
8-98207-113-0
01
1
1601-
13
PIPE; BRK,RR AXLE
(A) LH SIDE
8-98207-114-0
01
1
1601-
126
CLIP; FLEX HOSE
8-97360-054-0
04
1
1601-
