Isuzu WW
▶
TRUCKS
▶
FSR
▶
11721 - FSR AUST/NZ JNLT09 SPACECAB
▶
3 - Brakes, Brake System
▶
3-46 - AIR DRYER
▶
3-46 — AIR DRYER
(#175677) — 54 parça
◀

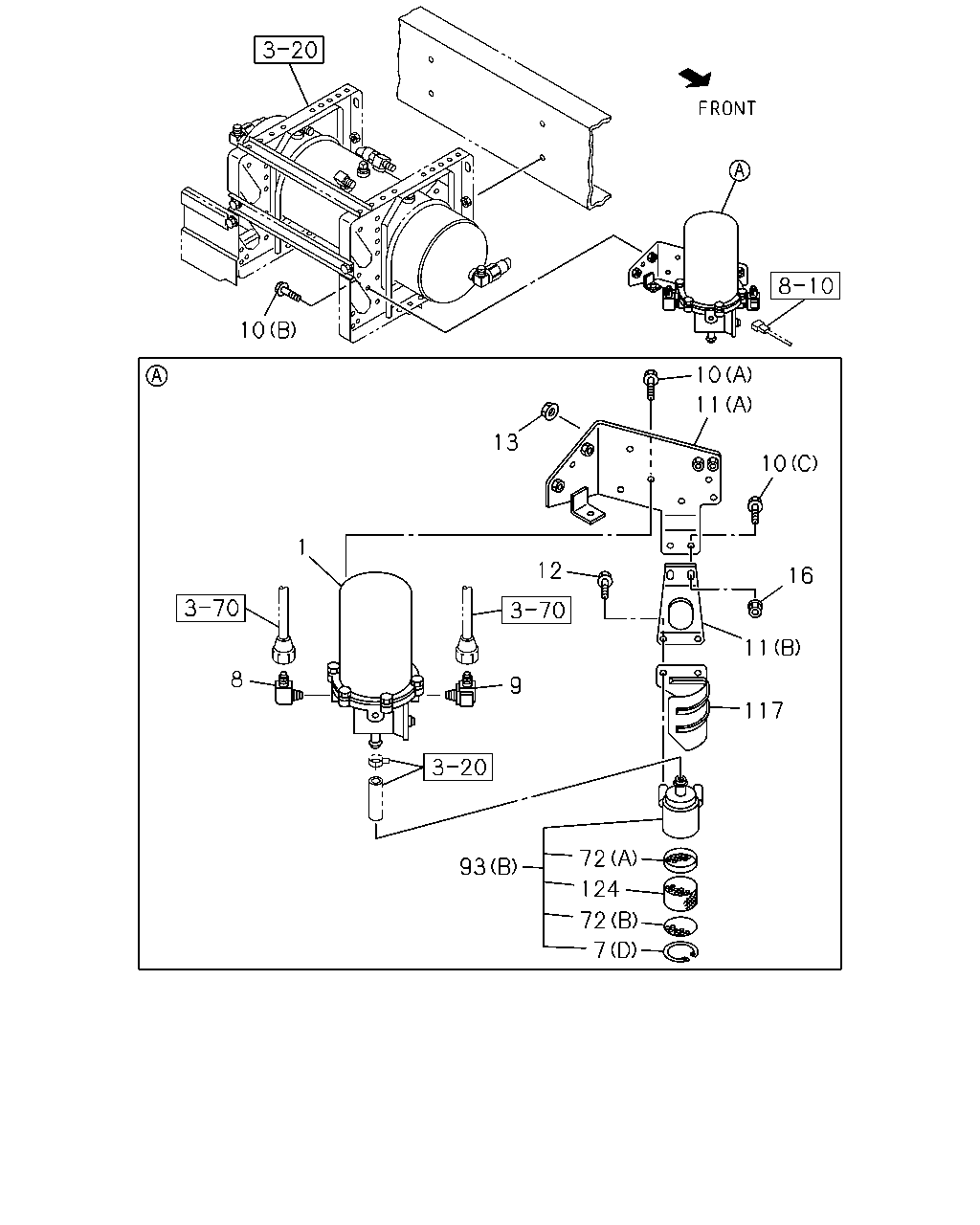

[346A] FIXING (21 parça)

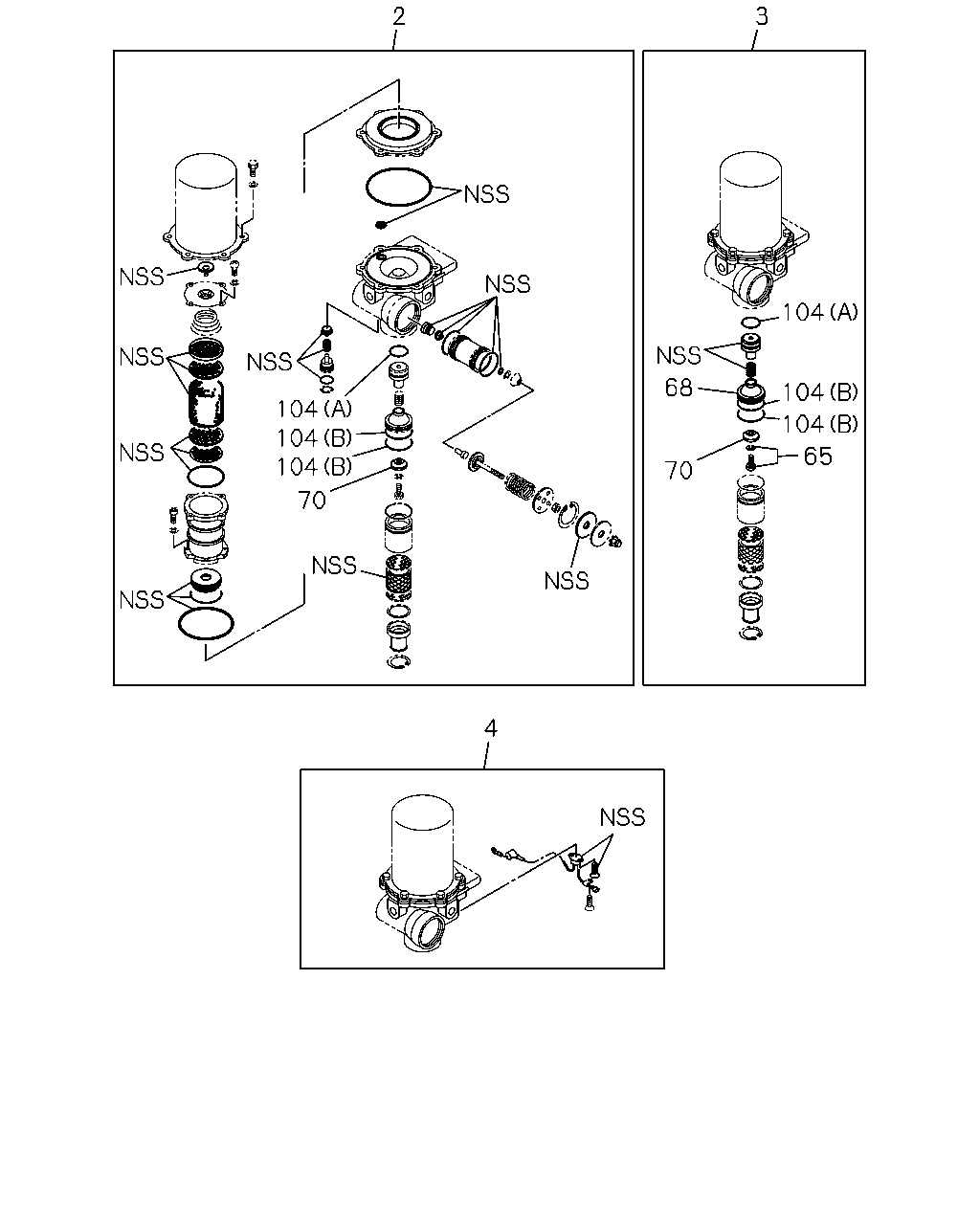

[346A] THERMOSTAT,PISTON AND REPAIR KIT (8 parça)

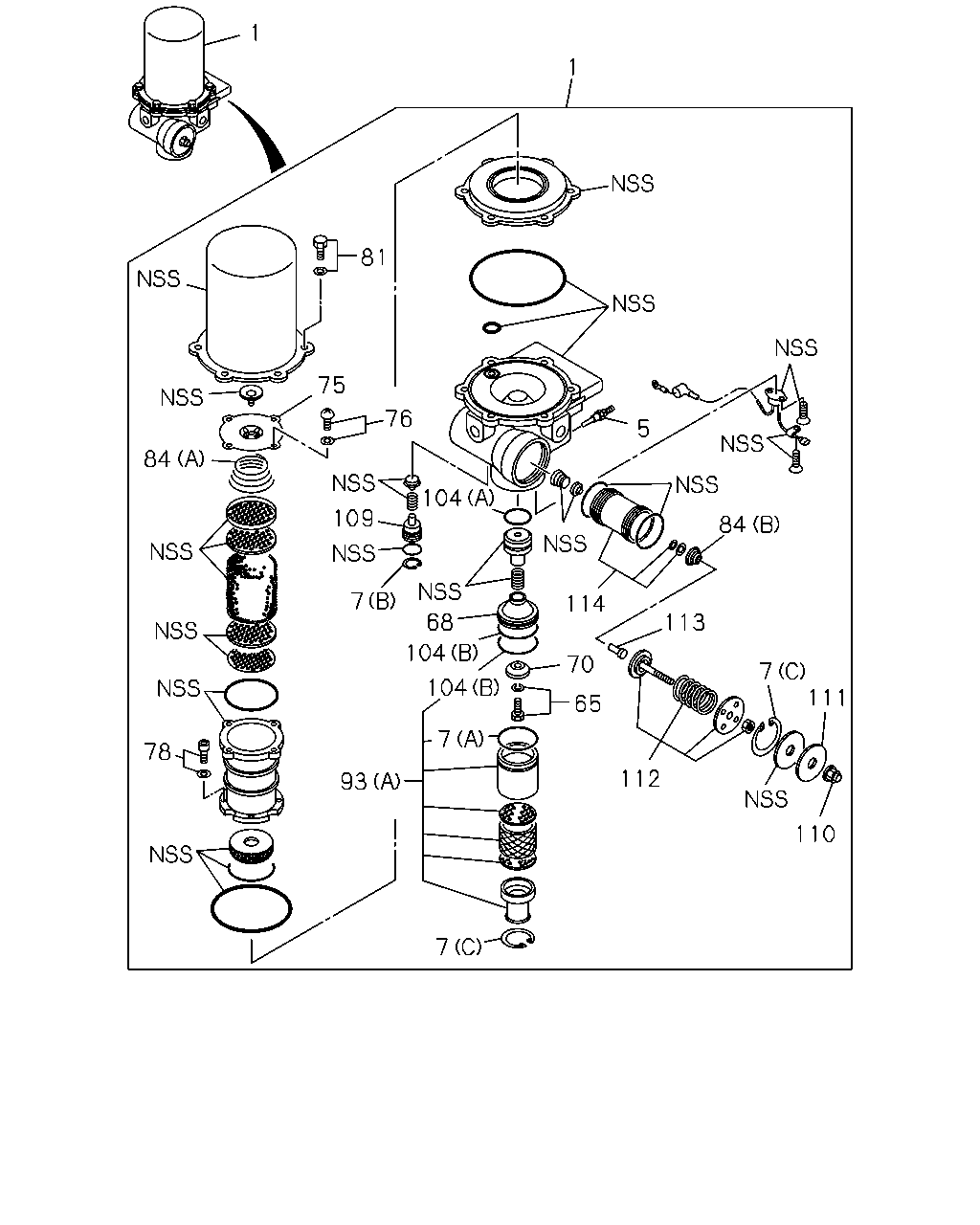

[346A] COMPONENT (25 parça)
▶
10
13
10
11
10
16
11
117
9
12
1
8
93
72
124
72
7
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98225-285-0
01
1
1601-
7
RING; SNAP,AIR DRYER
(D)
1-47769-017-0
01
1
1601-
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1601-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1601-
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1601-
8
CONNECTOR; OUT,AIR DRYER
M20 & PT1/2 ELBOW
1-09650-443-0
01
1
1601-
9
CONNECTOR; PIPE,AIR DRYER
M22 & PT1/2 ELBOW
0-92134-315-0
01
1
1601-
10
BOLT; AIR DRYER
(B) M8X20 FLANGE
0-28050-820-0
02
1
1601-
10
BOLT; AIR DRYER
(A) M10X25 FLANGE
0-28051-025-0
03
1
1601-
10
BOLT; AIR DRYER
(C) M8X25 W/LK&PL WASHER
1-09980-548-0
02
1
1601-
11
BRACKET; AIR DRYER
(B)
8-98039-092-0
01
1
1601-
11
BRACKET; AIR DRYER
(A)
8-98245-174-0
01
1
1601-
12
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
02
1
1601-
13
NUT; AIR DRYER
M8 FLANGE
0-91180-108-0
02
1
1601-
16
NUT; BRKT
M8 FLANGE
0-91180-108-0
02
1
1601-
72
PLATE; FILTER,AIR DRYER
(A)
1-48199-585-0
01
1
1601-
72
PLATE; FILTER,AIR DRYER
(B)
1-48199-602-0
01
1
1601-
93
SILENCER; AIR DRYER
(B)
1-48199-581-0
01
1
1601-
93
SILENCER; AIR DRYER
(A)
1-48199-619-0
01
1
1601-
117
COVER; SILENCER
8-98065-972-1
01
1
1601-
124
FILTER; SILENCER
1-48199-465-0
01
1
1601-
2
3
104
104
70
104
68
70
104
104
65
104
4
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
REPAIR KIT; AIR DRYER
8-98226-323-0
01
1
1601-
3
PISTON KIT; AIR DRYER
8-98226-322-0
01
1
1601-
4
THERMOSTAT KIT; AIR DRYER
1-85576-443-0
01
1
1601-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1601-
68
BODY; VALVE
1-48199-515-0
01
1
1601-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1601-
104
GASKET
(B)
1-48199-496-0
02
1
1601-
104
GASKET
(A)
8-98226-321-0
01
1
1601-
1
81
1
5
84
75
84
114
113
70
65
112
7
111
110
68
104
104
104
7
7
76
109
7
93
78
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DRYER; AIR
8-98225-285-0
01
1
1601-
5
HEATER ASM; AIR DRYER
1-48199-530-0
01
1
1601-
7
RING; SNAP,AIR DRYER
(D)
1-47769-017-0
01
1
1601-
7
RING; SNAP,AIR DRYER
(C)
1-48199-520-0
02
1
1601-
7
RING; SNAP,AIR DRYER
(B)
1-48199-529-0
01
1
1601-
7
RING; SNAP,AIR DRYER
(A)
1-48199-579-0
01
1
1601-
65
BOLT; PURGE VLV
1-48199-517-0
01
1
1601-
68
BODY; VALVE
1-48199-515-0
01
1
1601-
70
VALVE; AIR DRYER
1-48199-504-0
01
1
1601-
75
COVER; CASE,AIR DRYER
1-48199-427-0
01
1
1601-
76
BOLT; COVER,AIR DRYER
1-48199-412-0
04
1
1601-
78
BOLT; OIL FILTER,AIR DRYER
1-48199-417-0
04
1
1601-
81
BOLT; CASE,AIR DRYER
1-48199-436-0
06
1
1601-
84
SPRING; AIR DRYER
(A)
1-48199-425-0
01
1
1601-
84
SPRING; AIR DRYER
(B)
1-48199-523-0
01
1
1601-
93
SILENCER; AIR DRYER
(B)
1-48199-581-0
01
1
1601-
93
SILENCER; AIR DRYER
(A)
1-48199-619-0
01
1
1601-
104
GASKET
(B)
1-48199-496-0
02
1
1601-
104
GASKET
(A)
8-98226-321-0
01
1
1601-
109
STOPPER; CHECK VALVE
1-48199-539-0
01
1
1601-
110
NUT; CAP
1-48199-527-0
01
1
1601-
111
PLATE; GOVERNOR
1-48199-526-0
01
1
1601-
112
SCREW & SPRING ASM; AIR DRYER
1-48199-524-0
01
1
1601-
113
STEM; EXHAUST
1-48199-522-0
01
1
1601-
114
PISTON ASM; GOVERNOR
1-48199-521-0
01
1
1601-
