Isuzu WW
▶
TRUCKS
▶
FSR
▶
11721 - FSR AUST/NZ JNLT09 SPACECAB
▶
3 - Brakes, Brake System
▶
3-05 - REAR WHEEL BRAKE
▶
3-05 — REAR WHEEL BRAKE
(#175667) — 91 parça
◀

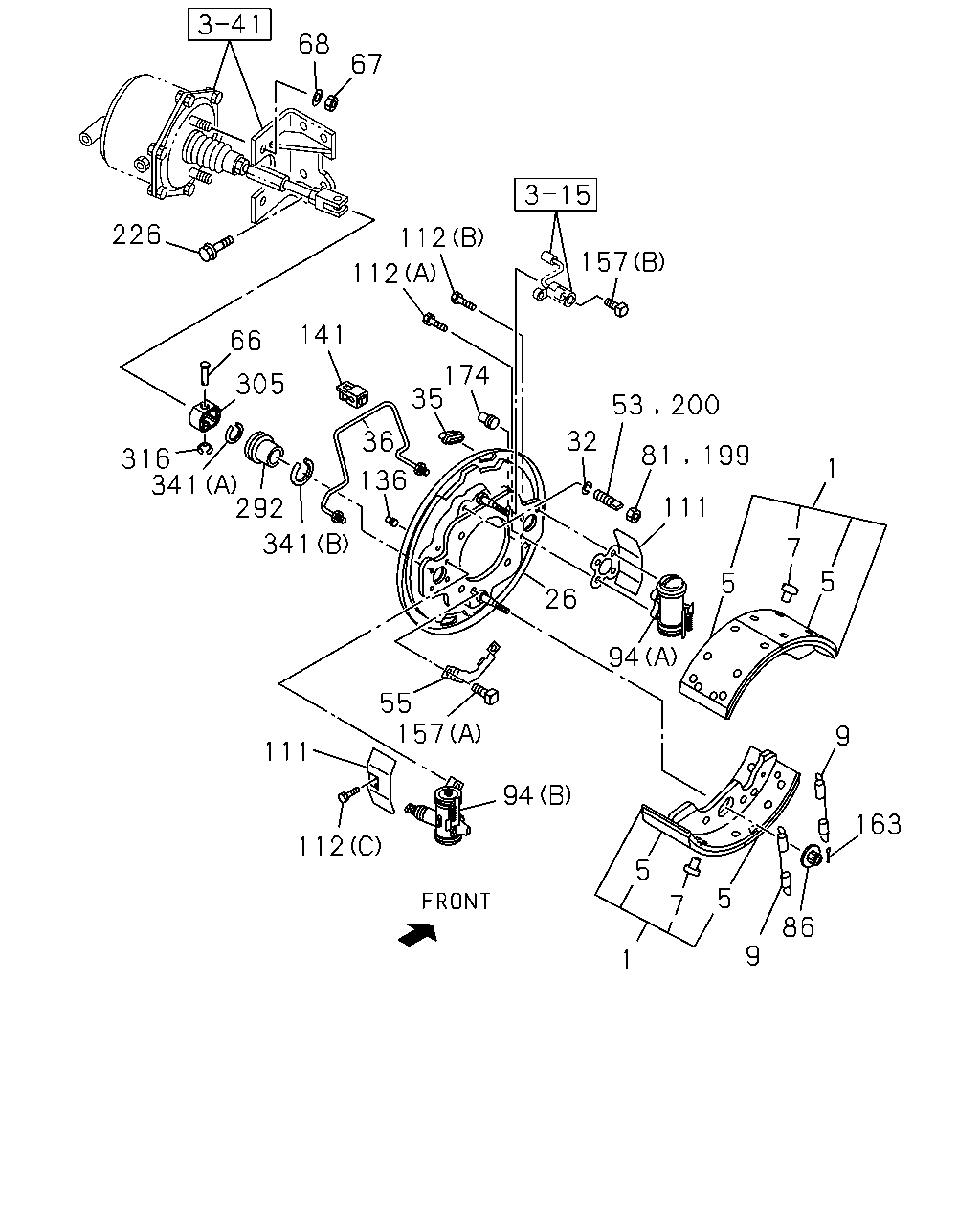

[305A] NO.1 (39 parça)

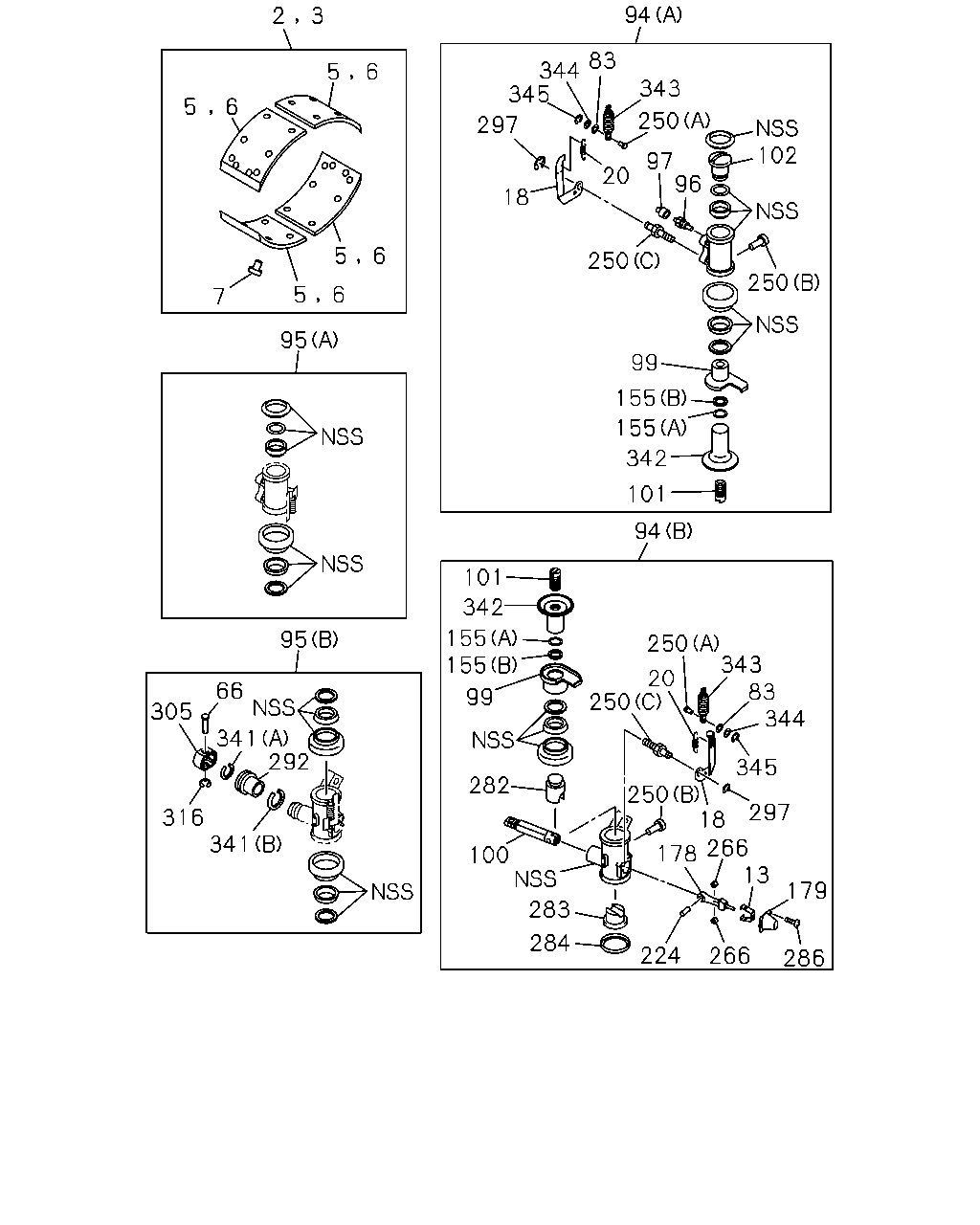

[305A] NO.2 (52 parça)
▶
68
112
67
226
316
305
66
141
112
35
174
36
341
292
341
136
157
53
200
199
81
32
111
1
94
26
5
5
7
9
163
86
9
1
7
5
5
94
157
55
111
112
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
SHOE; BRK,RR
1-47170-466-0
04
1
1601-
5
LINING; RR BRK SHOE,STANDARD
1-47126-161-0
08
1
1601-
7
RIVET; LINING,RR BRK
1-09732-029-0
96
1
1601-
9
SPRING; RETURN,BRK SHOE
1-09583-346-0
04
1
1601-
26
PLATE; BACK,RR BRK
1-47150-642-0
01
1
1601-
26
PLATE; BACK,RR BRK
1-47150-643-0
01
1
1601-
32
WASHER; LK
1-09985-346-0
04
1
1601-
35
GROMMET; CHECK HOLE
1-09333-033-0
04
1
1601-
36
PIPE; OIL,RR BRK
1-49167-875-0
01
1
1601-
36
PIPE; OIL,RR BRK
1-49167-876-0
01
1
1601-
53
BOLT; LOCK PLATE
1-47162-050-0
02
1
1601-
55
PLATE; LK,RR WHEEL CYL
1-47139-169-0
02
1
1601-
66
PIN; JAW JOINT
1-09744-128-0
02
1
1601-
67
NUT; POWER CHAMBER FIX
M16
0-91110-516-0
04
1
1601-
68
WASHER; LK,CHAMBER
ID=16.2
0-91510-816-0
04
1
1601-
81
NUT
1-09400-167-0
02
1
1601-
86
NUT; FLANGE
1-09440-102-0
04
1
1601-
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-184-0
01
1
1601-
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-185-0
01
1
1601-
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
8-98289-367-0
01
1
1601-
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
8-98289-368-0
01
1
1601-
111
COVER; WHEEL CYL
1-47159-233-0
04
1
1601-
112
BOLT; WHEEL CYL SETTING
(A)
1-47159-231-0
08
1
1601-
112
BOLT; WHEEL CYL SETTING
(B)
1-47159-232-0
06
1
1601-
112
BOLT; WHEEL CYL SETTING
(C) M6X10 FLANGE
8-94134-103-0
08
1
1601-
136
GROMMET
9-09956-640-0
04
1
1601-
141
PROTECTOR; RR BRK PIPE
1-47143-008-0
02
1
1601-
157
BOLT; RR BRK SET
(A)
1-09060-021-0
12
1
1601-
157
BOLT; RR BRK SET
(B)
1-09060-022-0
04
1
1601-
163
PIN; SPLIT,SHOE HOLD
1-09740-098-0
04
1
1601-
174
COVER; CYL,RR WHEEL CYL
1-47154-008-0
04
1
1601-
199
NUT
1-09400-167-0
02
1
1601-
200
BOLT
1-47162-050-0
02
1
1601-
226
BOLT; BRKT
M14X35 FLANGE
0-28651-435-0
08
1
1601-
292
BOOT; ROD
1-47616-107-0
02
1
1601-
305
GUIDE; SLACK ADJ
1-46346-023-0
02
1
1601-
316
RING; SNAP
ID=9
0-91805-509-0
02
1
1601-
341
SPRING; ASSIST,BOOT
(A)
1-47619-175-0
02
1
1601-
341
SPRING; ASSIST,BOOT
(B)
1-47619-176-0
02
1
1601-
2
3
5
6
5
6
7
5
6
5
6
95
95
66
305
341
316
341
292
94
83
344
345
297
18
250
99
155
155
101
342
94
343
250
20
97
96
102
250
101
342
155
155
99
282
100
283
284
224
266
286
179
266
13
178
250
250
250
343
83
344
345
297
18
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
LINING SET; RR BRK,STANDARD
1-88310-839-0
02
1
1601-
3
LINING SET; RR BRK,OVER SIZE
1-88310-840-0
02
1
1601-
5
LINING; RR BRK SHOE,STANDARD
1-47126-161-0
08
1
1601-
6
LINING; RR BRK SHOE,OVER SIZE
1-47126-162-0
08
1
1601-
7
RIVET; LINING,RR BRK
1-09732-029-0
96
1
1601-
13
CLIP; ROLLER PIN,BRK SHOE
1-47619-139-0
02
1
1601-
18
LEVER; AUTO ADJ
1-47629-164-0
02
1
1601-
18
LEVER; AUTO ADJ
1-47629-165-0
02
1
1601-
20
SPRING; ADJ LEVER
1-09583-345-0
04
1
1601-
66
PIN; JAW JOINT
1-09744-128-0
02
1
1601-
83
WASHER; PL
1-47619-108-0
04
1
1601-
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-184-0
01
1
1601-
94
CYLINDER; WHEEL,RR BRK
(A) FORWARD
1-47601-185-0
01
1
1601-
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
8-98289-367-0
01
1
1601-
94
CYLINDER; WHEEL,RR BRK
(B) BACKWARD
8-98289-368-0
01
1
1601-
95
CUP SET; RR WHEEL CYL
(A)
1-87830-933-0
02
1
1601-
95
CUP SET; RR WHEEL CYL
(B)
1-87831-246-1
02
1
1601-
96
SCREW; BLEEDER,RR BRK
8-98050-477-0
02
1
1601-
97
CAP; BLEEDER,RR WHEEL CYL
8-98050-479-0
02
1
1601-
99
PISTON; RR WHEEL CYL
FORWARD
1-47624-349-0
01
1
1601-
99
PISTON; RR WHEEL CYL
FORWARD
1-47624-350-0
01
1
1601-
99
PISTON; RR WHEEL CYL
BACKWARD
1-47624-351-0
01
1
1601-
99
PISTON; RR WHEEL CYL
BACKWARD
1-47624-352-0
01
1
1601-
100
ROD; PUSH,RR WHEEL CYL
8-98290-467-0
02
1
1601-
101
SCREW; ADJ,RR WHEEL CYL
1-47622-053-0
02
1
1601-
101
SCREW; ADJ,RR WHEEL CYL
1-47622-054-0
02
1
1601-
102
PISTON; REAR WHEEL CYL
1-47624-333-0
02
1
1601-
155
WASHER; PL,WHEEL CYL
(A)
1-47629-150-0
04
1
1601-
155
WASHER; PL,WHEEL CYL
(B)
1-47629-151-0
04
1
1601-
178
WEDGE; RR WHEEL CYL
1-47619-168-0
02
1
1601-
179
COVER; WEDGE,RR WHEEL CYL
1-47619-141-0
02
1
1601-
224
PIN; ROD
1-47619-130-0
02
1
1601-
250
PIN; RETAINING
(A)
1-47619-106-0
04
1
1601-
250
PIN; RETAINING
(B)
1-47629-112-0
04
1
1601-
250
PIN; RETAINING
(C)
1-47629-262-0
04
1
1601-
266
ROLLER; WEDGE
1-47619-138-0
04
1
1601-
282
PLUNGER; INNER
1-47629-255-0
02
1
1601-
283
PLUNGER; OUTER
1-47629-256-0
01
1
1601-
283
PLUNGER; OUTER
1-47629-257-0
01
1
1601-
284
BOOT; PISTON
1-47616-093-0
02
1
1601-
286
SCREW; COVER
1-47619-132-0
06
1
1601-
292
BOOT; ROD
1-47616-107-0
02
1
1601-
297
RING; SNAP
1-47629-263-0
04
1
1601-
305
GUIDE; SLACK ADJ
1-46346-023-0
02
1
1601-
316
RING; SNAP
ID=9
0-91805-509-0
02
1
1601-
341
SPRING; ASSIST,BOOT
(A)
1-47619-175-0
02
1
1601-
341
SPRING; ASSIST,BOOT
(B)
1-47619-176-0
02
1
1601-
342
GEAR; WHEEL CYL
1-47629-158-0
02
1
1601-
342
GEAR; WHEEL CYL
1-47629-159-0
02
1
1601-
343
SPRING; WHEEL CYL
1-47629-141-0
04
1
1601-
344
WASHER; WAVE
1-47619-107-0
04
1
1601-
345
RETAINER; LEVER
1-47619-109-0
04
1
1601-
