◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11721 - FSR AUST/NZ JNLT09 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-35 - MANUAL TRANSMISSION SHIFT CONTROL LEVER ▶
2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#175658) — 37 parça

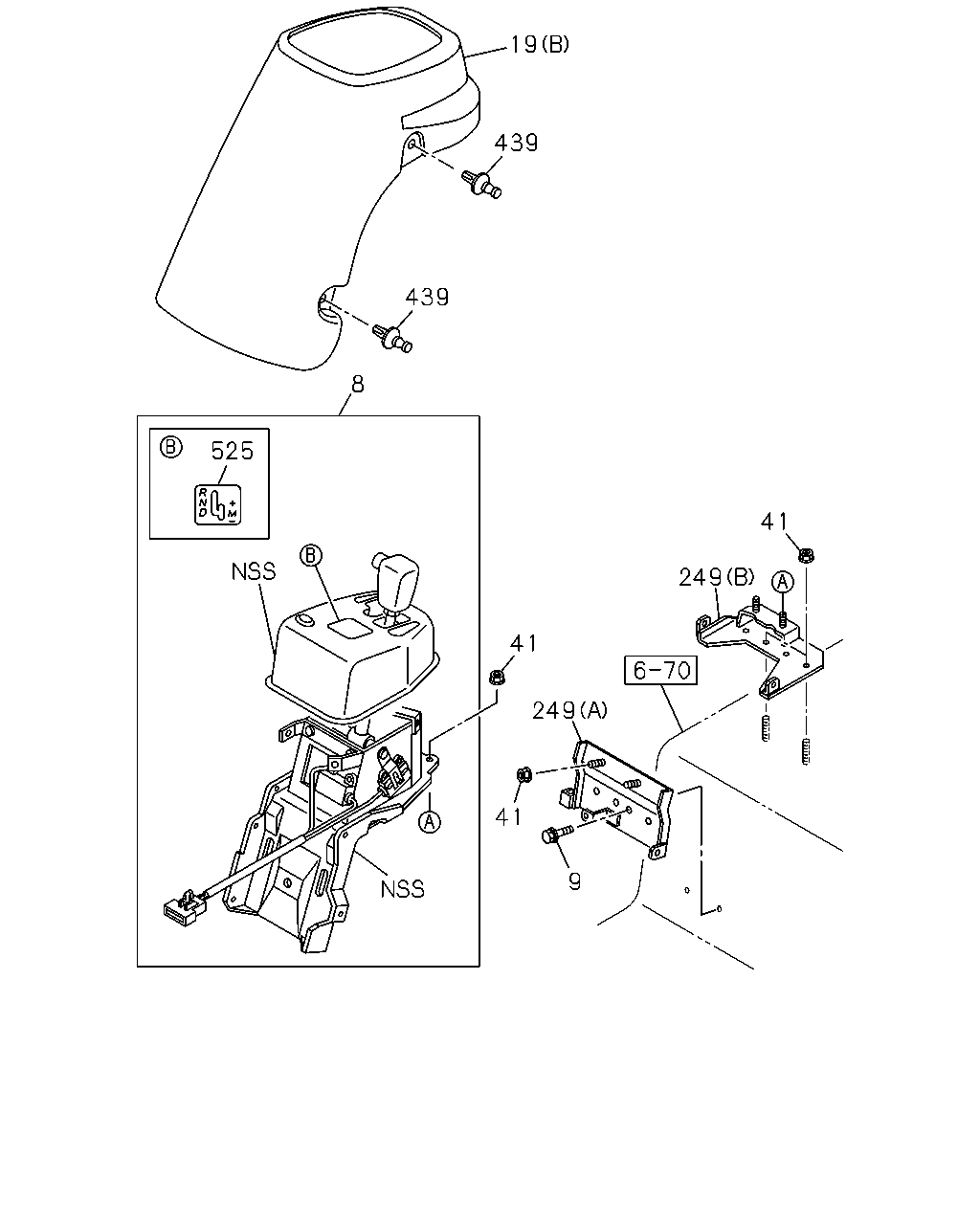

çizim 512589
19 439 439 8 525 41 249 41 9 249 41
BalonParca AdiParca NoAdetTipApplied Date
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		8-98071-282-0 01 1 1601-
8 LEVER; CHANGE
SMOOTHER-FX(TYPE2)(8NS) DARK GRAY 		8-97465-737-1 01 1 1601-
9 BOLT; CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1601-
9 BOLT; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE 		0-28650-820-0 02 1 1601-
19 COVER; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) (B) GRAY 		8-97407-501-0 01 1 1601-
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97407-953-0 01 1 1601-
41 NUT; CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> M8 W/DISHED WASHER 		8-97329-625-0 02 1 1601-
41 NUT; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) M8 W/DISHED WASHER 		8-97329-625-0 06 1 1601-
249 BRACKET; COVER
SMOOTHER-FX(TYPE2)(8NS) (A) 		8-98016-951-3 01 1 1601-
249 BRACKET; COVER
SMOOTHER-FX(TYPE2)(8NS) (B) 		8-98016-952-3 01 1 1601-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1601-
525 LABEL; SHIFT POSITION
SMOOTHER-FX(TYPE2)(8NS) 		8-98048-480-1 01 1 1601-

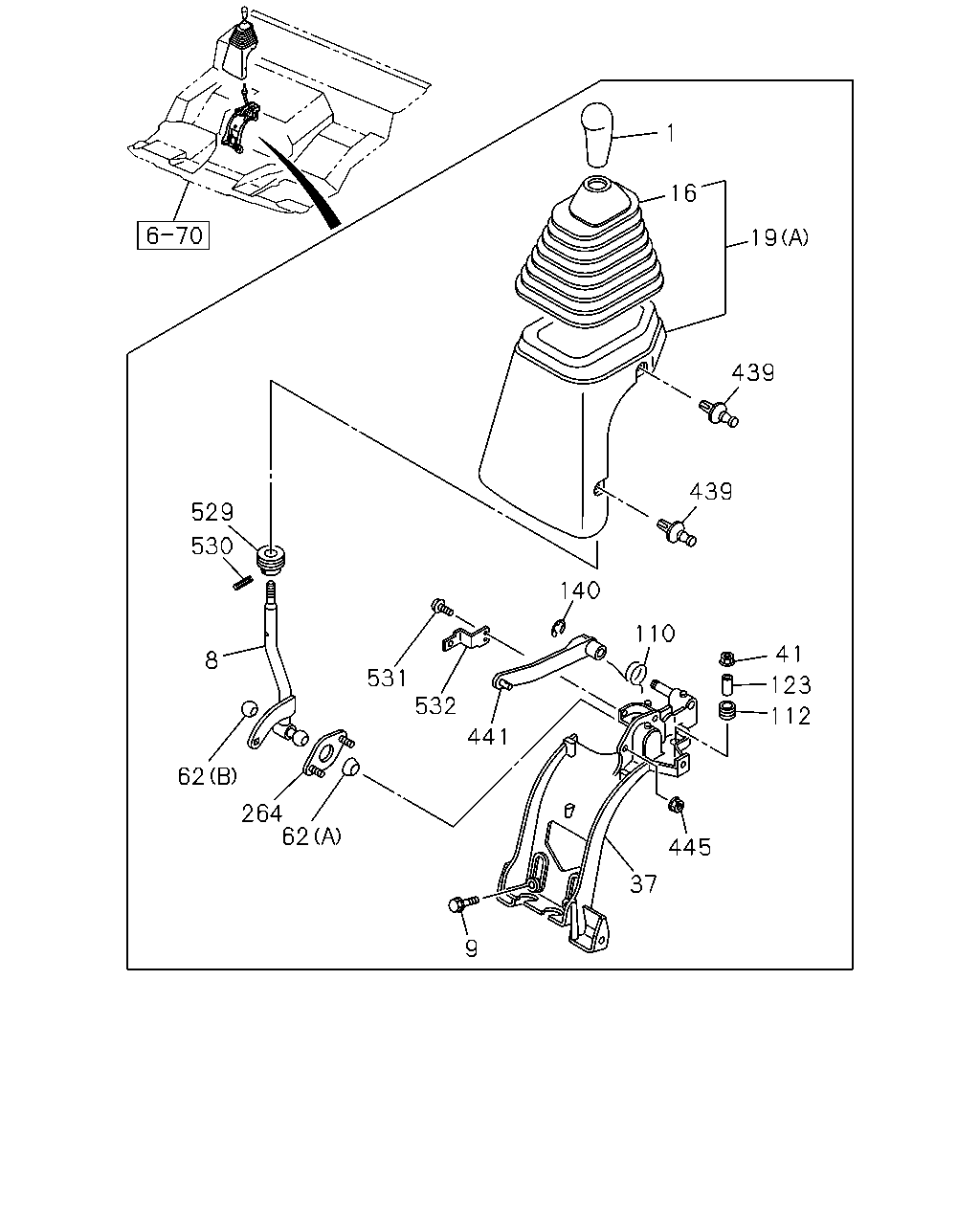

çizim 512814
529 530 8 62 264 62 531 532 441 140 110 41 123 112 445 37 9 1 16 19 439 439
BalonParca AdiParca NoAdetTipApplied Date
1 KNOB; CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33611-070-1 01 1 1601-
8 LEVER; CHANGE
ASSISTOR SHIFT CONTROL<WX8> 		8-98071-282-0 01 1 1601-
8 LEVER; CHANGE
SMOOTHER-FX(TYPE2)(8NS) DARK GRAY 		8-97465-737-1 01 1 1601-
9 BOLT; CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> M8X25 W/WAVE&PL WASHER 		8-94412-342-0 02 1 1601-
9 BOLT; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE 		0-28650-820-0 02 1 1601-
16 BOOT; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		1-79998-751-4 01 1 1601-
19 COVER; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) (B) GRAY 		8-97407-501-0 01 1 1601-
19 COVER; CHANGE LEVER
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) GRAY 		8-97407-953-0 01 1 1601-
37 BRACKET; CHANGE LEVER SUPPORT
ASSISTOR SHIFT CONTROL<WX8> 		8-98071-281-0 01 1 1601-
41 NUT; CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> M8 W/DISHED WASHER 		8-97329-625-0 02 1 1601-
41 NUT; CHANGE LEVER
SMOOTHER-FX(TYPE2)(8NS) M8 W/DISHED WASHER 		8-97329-625-0 06 1 1601-
62 SEAT; BALL,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> (A) 		1-33619-427-0 01 1 1601-
62 SEAT; BALL,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> (B) 		8-97049-147-0 01 1 1601-
110 SPRING; RETURN,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-586-0 01 1 1601-
112 RUBBER; CUSHION
ASSISTOR SHIFT CONTROL<WX8> 		8-97091-426-0 04 1 1601-
123 COLLAR; DIST,CHANGE LEVER
ASSISTOR SHIFT CONTROL<WX8> 		8-97091-427-0 04 1 1601-
140 RING; SNAP
ASSISTOR SHIFT CONTROL<WX8> ID=10 		0-91805-510-0 01 1 1601-
264 PLATE; COVER
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-430-0 01 1 1601-
439 FASTENER; COVER
GRAY 		8-97407-955-0 04 1 1601-
441 LEVER; SELECT
ASSISTOR SHIFT CONTROL<WX8> 		8-98071-283-0 01 1 1601-
445 NUT; PLATE
ASSISTOR SHIFT CONTROL<WX8> M6 FLANGE 		0-91180-106-0 02 1 1601-
529 RING; BOOT
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-504-0 01 1 1601-
530 PIN; SPRING
ASSISTOR SHIFT CONTROL<WX8> 		1-33619-505-0 01 1 1601-
531 SCREW; STAY
ASSISTOR SHIFT CONTROL<WX8> M5X10 W/PL WASHER 		9-03900-510-0 01 1 1601-
532 STAY
ASSISTOR SHIFT CONTROL<WX8> 		8-98071-284-0 01 1 1601-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
