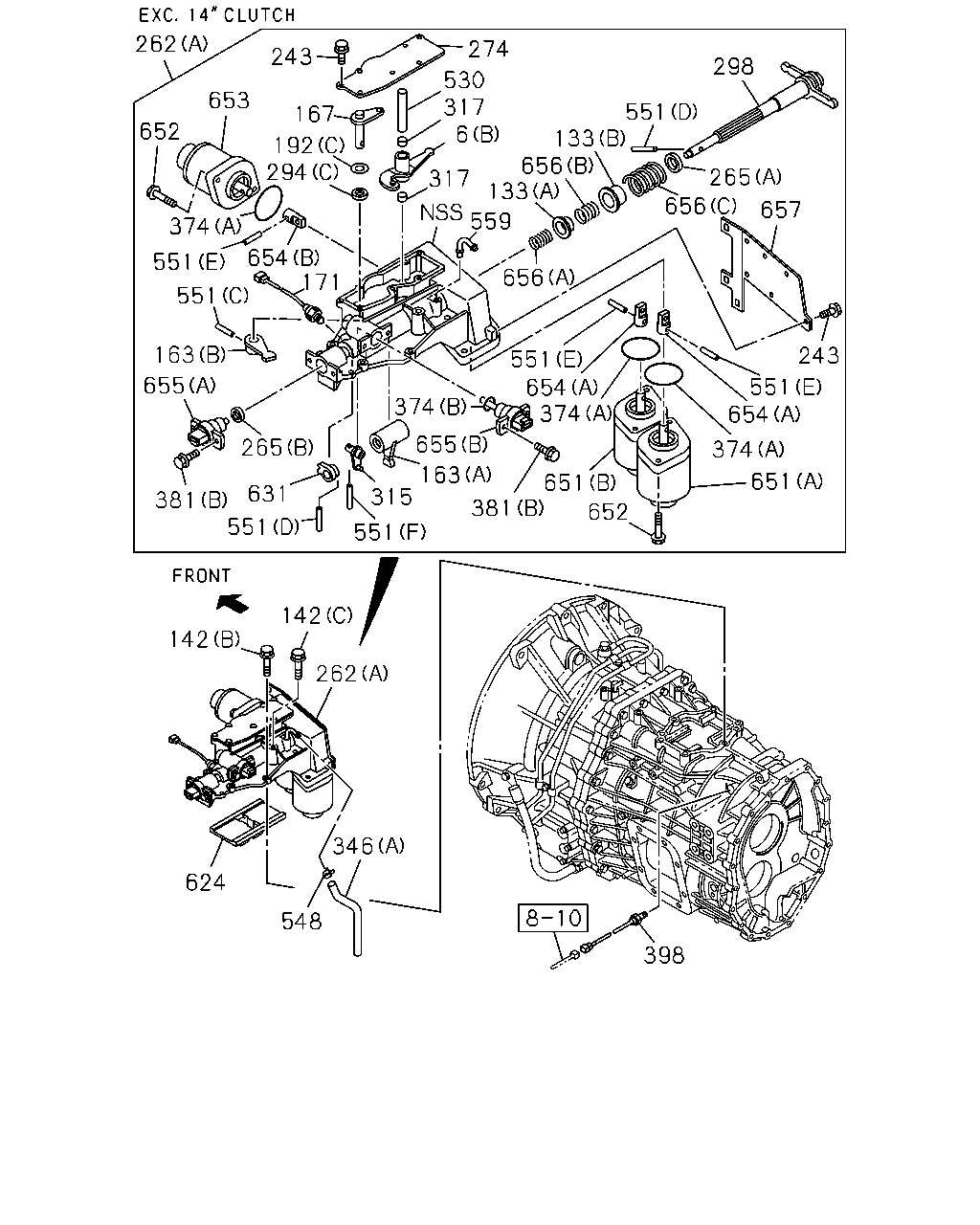

2-30 — GEAR SHIFTER AND QUADRANT BOX (#175657) — 169 parça

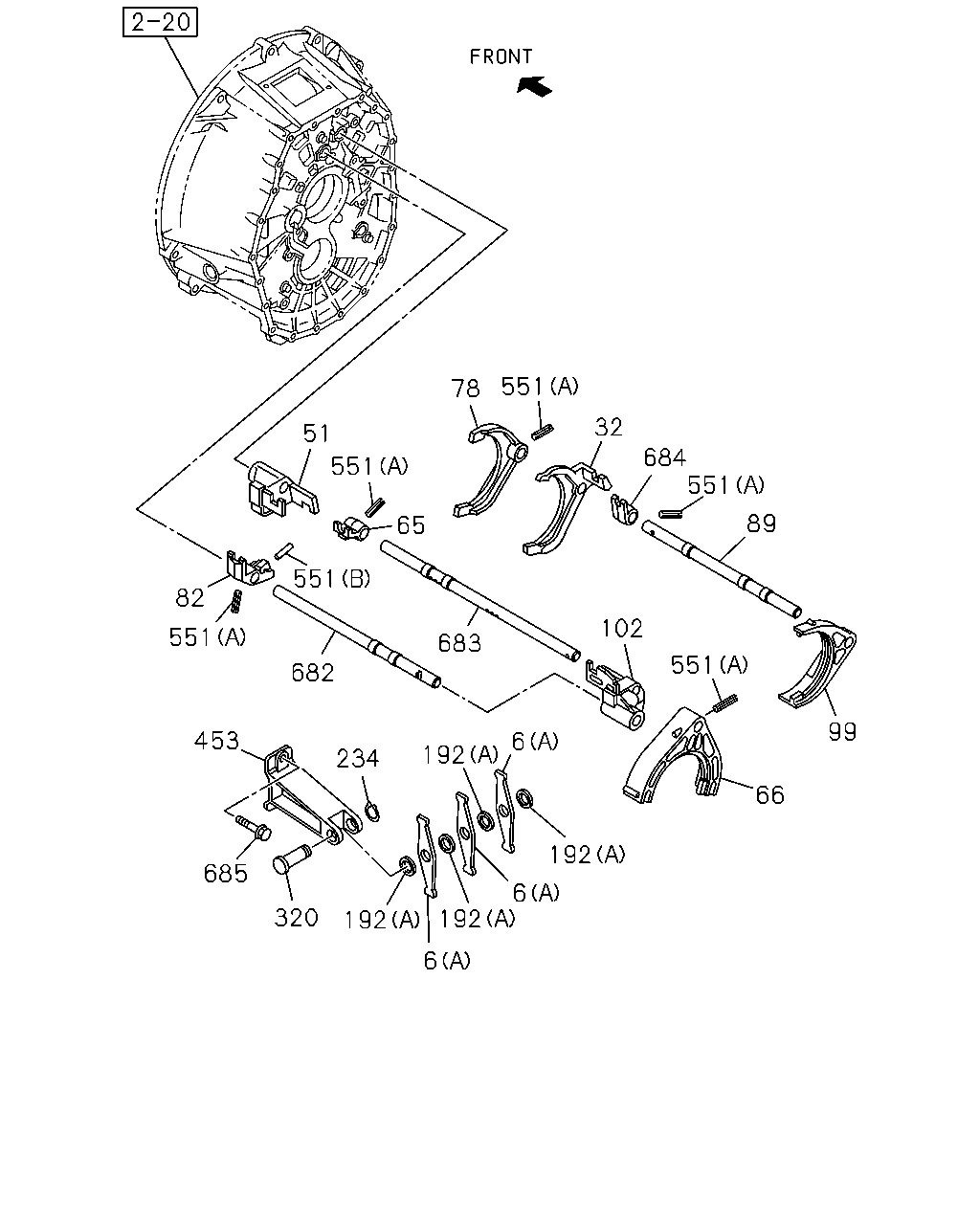

6 192 6 192 66 99 551 89 551 684 32 551 78 65 683 102 6 192 234 192 320 685 453 551 82 551 51 551 682

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1601-
6	LEVER; RELAY 14" CLUTCH(WF6) (C)	8-98022-855-0	01	1	1601-
6	LEVER; RELAY EXC. 14" CLUTCH(WF6) (B)	8-97379-995-0	01	1	1601-
32	ARM; SHIFT,1ST & 2ND	8-98236-424-1	01	1	1601-
51	BLOCK; SHIFT,1ST & 2ND	8-98074-457-1	01	1	1601-
65	BLOCK ASM; SHIFT,5TH & 6TH	8-97388-980-1	01	1	1601-
66	ARM; SHIFT,5TH & 6TH	8-97388-981-0	01	1	1601-
78	ARM; SHIFT,REV	8-97388-975-1	01	1	1601-
82	BLOCK; SHIFT,REV	8-97388-969-0	01	1	1601-
89	ROD; SHIFT,REV	8-98062-172-0	01	1	1601-
99	ARM; SHIFT,4TH & 3RD	8-98309-861-0	01	1	1601-
102	BLOCK; SHIFT,3RD & 4TH	8-97388-978-2	01	1	1601-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1601-
192	WASHER; PL 14" CLUTCH(WF6) (B)	8-97305-661-0	02	1	1601-
192	WASHER; PL EXC. 14" CLUTCH(WF6) (C)	1-09503-280-0	01	1	1601-
234	RING; SNAP ID=16.5	0-91800-618-0	01	1	1601-
320	SHAFT; LEVER	8-97377-928-0	01	1	1601-
453	BLOCK; RELAY LEVER	8-97377-927-1	01	1	1601-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1601-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1601-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1601-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (D) L=30 OD=4	1-09748-031-0	02	1	1601-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (E) OD=5	8-97184-905-0	03	1	1601-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (F)	8-97379-991-0	01	1	1601-
682	ROD; SHIFT,REV,SUB	8-97388-974-0	01	1	1601-
683	ROD; SHIFT,5TH & 6TH	8-98062-173-1	01	1	1601-
684	BLOCK; SHIFT,REV,SUB	8-97388-970-0	01	1	1601-
685	BOLT; BLOCK M8X30 FLANGE	8-98034-764-0	02	1	1601-

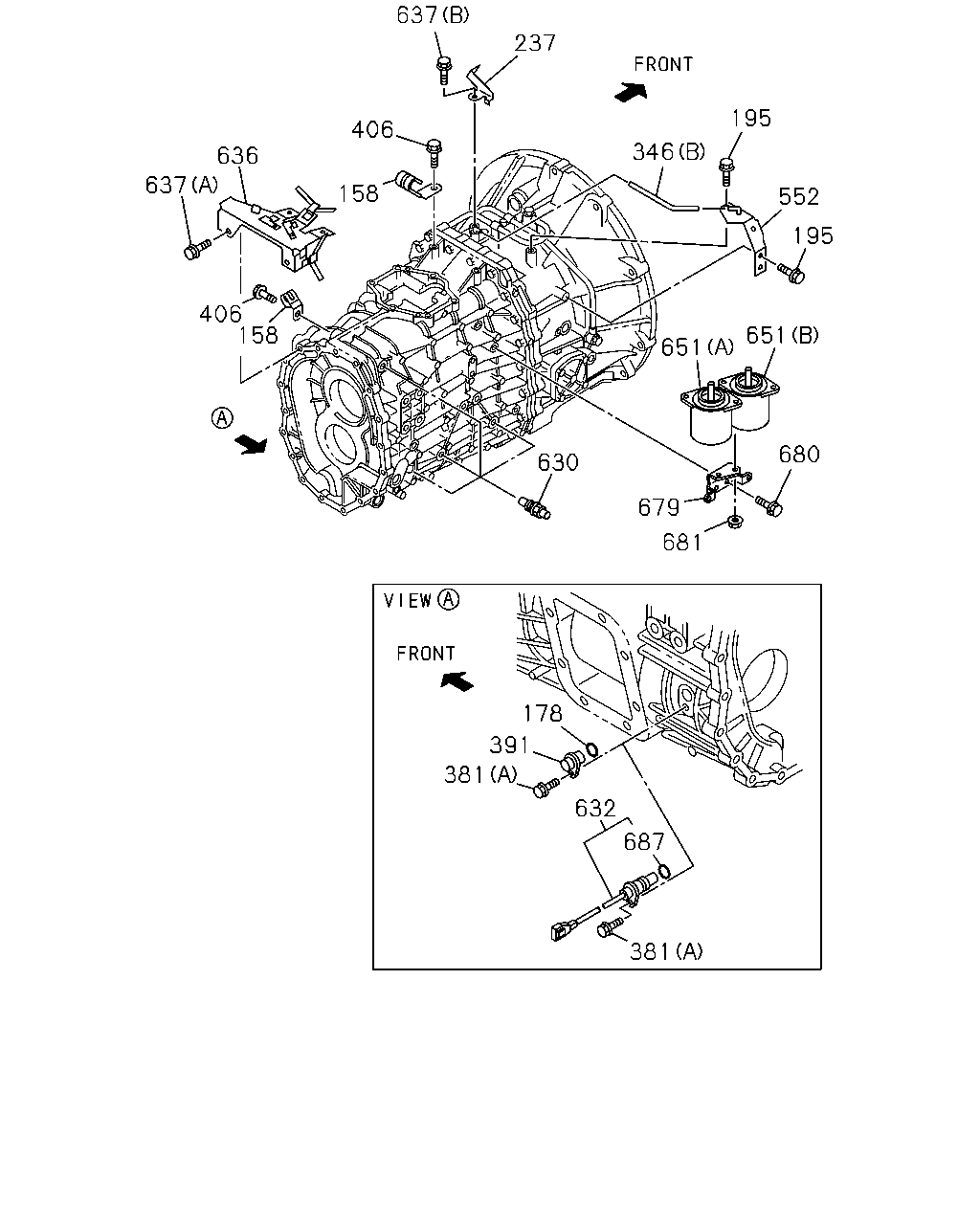

637 237 636 637 406 406 158 630 651 651 680 679 681 346 195 552 195 158 178 391 381 632 687 381

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
158	CLIP; HARNESS SMOOTHER-FX(TYPE2)(8NS) ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1601-
158	CLIP; HARNESS ID=12 VINYL CHLORIDE	8-97367-984-1	02	1	1601-
178	GASKET; PLUG ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6)	9-09567-113-0	01	1	1601-
195	BOLT EXC. 14" CLUTCH(WF6) M8X20 FLANGE	0-28650-820-0	02	1	1601-
237	BRACKET; CABLE,TRANS EXC. 14" CLUTCH(WF6)	8-98009-307-1	01	1	1601-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1601-
346	HOSE; AIR EXC. 14" CLUTCH(WF6) (B)	8-97373-381-0	01	1	1601-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1601-
381	BOLT EXC. 14" CLUTCH(WF6) (B) M6X12 FLANGE	1-33739-842-0	04	1	1601-
391	PLUG; SW HOLE 14" CLUTCH(WF6)	8-97300-273-1	01	1	1601-
406	BOLT; HARNESS CLIP SMOOTHER-FX(TYPE2)(8NS) M8X16 FLANGE	0-28050-816-0	02	1	1601-
406	BOLT; HARNESS CLIP M8X16 FLANGE	0-28050-816-0	02	1	1601-
552	BRACKET EXC. 14" CLUTCH(WF6)	8-98005-329-1	01	1	1601-
630	DETENT ASM	8-98019-536-0	04	1	1601-
632	SENSOR; TRANS,REV EXC. 14" CLUTCH(WF6)	8-97315-604-1	01	1	1601-
636	BRACKET; CLIP 14" CLUTCH(WF6)	8-98114-843-0	01	1	1601-
637	BOLT; BRACKET 14" CLUTCH(WF6) (A) M8X16 FLANGE	0-28050-816-0	02	1	1601-
637	BOLT; BRACKET EXC. 14" CLUTCH(WF6) (B) M8X20 FLANGE	0-28650-820-0	01	1	1601-
651	SOLENOID ASM; SHIFT EXC. 14" CLUTCH(WF6) (A)	8-98048-497-1	01	1	1601-
651	SOLENOID ASM; SHIFT EXC. 14" CLUTCH(WF6) (B)	8-98048-498-1	01	1	1601-
679	BRACKET; HEAT PROTECTOR EXC. 14" CLUTCH(WF6)	8-98005-332-0	01	1	1601-
680	BOLT; FLANGE EXC. 14" CLUTCH(WF6) M10X20 FLANGE	0-28761-020-0	02	1	1601-
681	NUT; FLANGE EXC. 14" CLUTCH(WF6) M10 FLANGE	0-91180-210-0	02	1	1601-
687	GASKET; SENSOR EXC. 14" CLUTCH(WF6)	9-09567-113-0	01	1	1601-

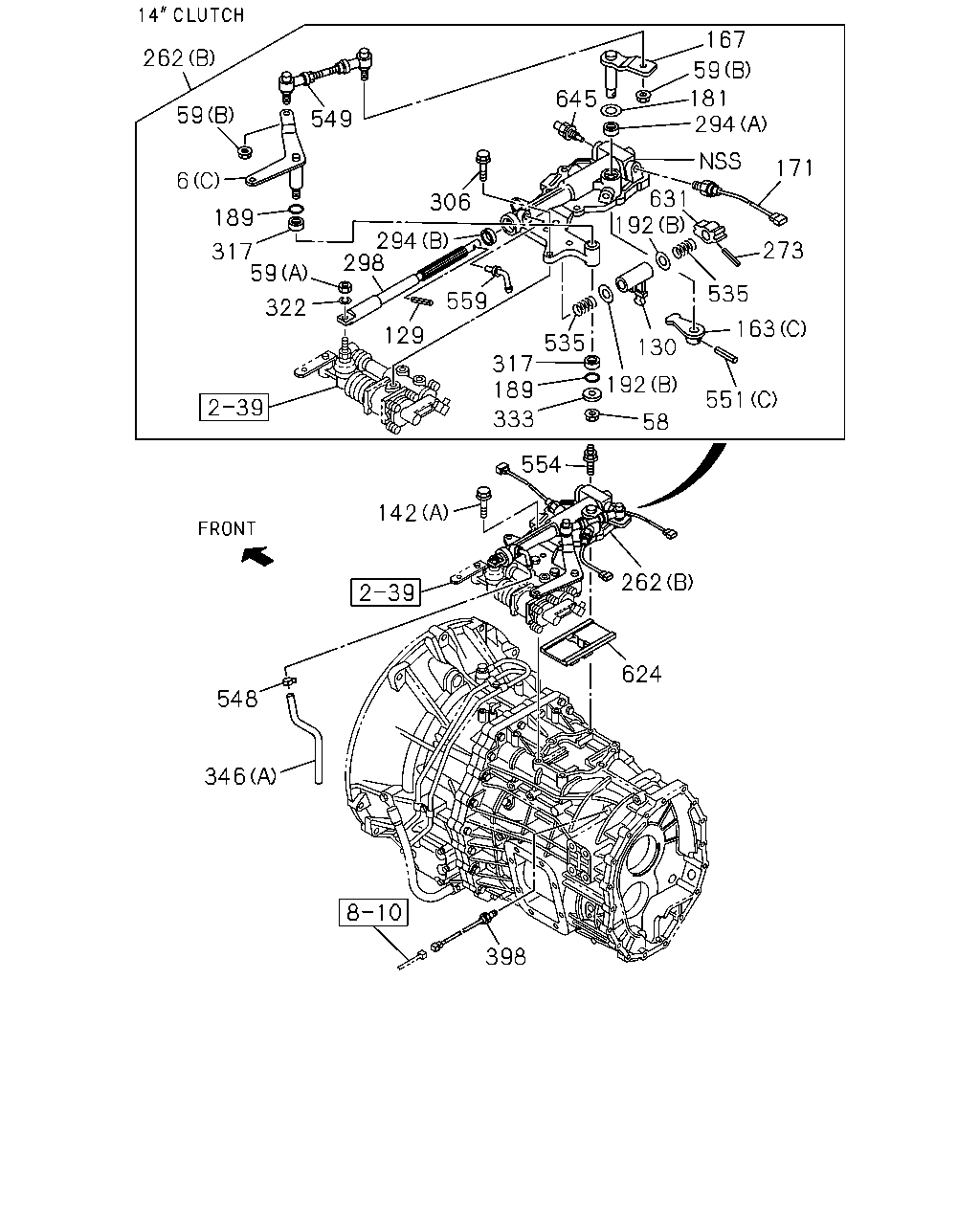

624 262 554 142 548 346 333 551 58 192 130 535 317 163 535 273 171 294 181 59 167 645 306 294 298 129 559 322 59 317 189 6 59 262 398 192 631 549 189

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1601-
6	LEVER; RELAY 14" CLUTCH(WF6) (C)	8-98022-855-0	01	1	1601-
6	LEVER; RELAY EXC. 14" CLUTCH(WF6) (B)	8-97379-995-0	01	1	1601-
58	NUT 14" CLUTCH(WF6) M10 FLANGE	0-91180-110-0	01	1	1601-
59	NUT 14" CLUTCH(WF6) (A) M12	0-91110-512-0	01	1	1601-
59	NUT 14" CLUTCH(WF6) (B) M8 FLANGE	0-91180-108-0	02	1	1601-
129	PIN; SPR,SHIFT 14" CLUTCH(WF6) L=30 OD=4	1-09748-031-0	01	1	1601-
130	LEVER; SHIFT,INTERNAL 14" CLUTCH(WF6)	8-97306-647-0	01	1	1601-
142	BOLT; QUAD BOX 14" CLUTCH(WF6) (A) M8X22 FLANGE	8-97365-376-0	04	1	1601-
142	BOLT; QUAD BOX EXC. 14" CLUTCH(WF6) (B) M8X35 FLANGE	8-98020-384-0	03	1	1601-
142	BOLT; QUAD BOX EXC. 14" CLUTCH(WF6) (C) M8X75 FLANGE	8-98020-385-0	03	1	1601-
163	LEVER; SELECT,INTERNAL 14" CLUTCH(WF6) (C)	8-97305-663-0	01	1	1601-
163	LEVER; SELECT,INTERNAL EXC. 14" CLUTCH(WF6) (A)	8-97379-979-0	01	1	1601-
163	LEVER; SELECT,INTERNAL EXC. 14" CLUTCH(WF6) (B)	8-97379-990-0	01	1	1601-
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98022-857-0	01	1	1601-
167	LEVER; SELECT,EXTERNAL EXC. 14" CLUTCH(WF6)	8-97379-994-0	01	1	1601-
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1601-
181	WASHER; PL,SELECT LEVER 14" CLUTCH(WF6)	8-97367-327-0	01	1	1601-
189	GASKET; SELECT LEVER,CONT BOX 14" CLUTCH(WF6)	1-09623-594-0	02	1	1601-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1601-
192	WASHER; PL 14" CLUTCH(WF6) (B)	8-97305-661-0	02	1	1601-
192	WASHER; PL EXC. 14" CLUTCH(WF6) (C)	1-09503-280-0	01	1	1601-
262	BOX ASM; SHIFT CONT EXC. 14" CLUTCH(WF6) (A)	8-98331-686-0	01	1	1601-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (B)	8-98305-335-1	01	1	1601-
273	PIN; SPR,STOPPER 14" CLUTCH(WF6) D=4.2 L=25	8-97103-142-0	01	1	1601-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (A)	8-97305-662-0	01	1	1601-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (B)	8-97363-225-0	01	1	1601-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (C)	1-09625-600-0	01	1	1601-
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6)	8-98305-342-0	01	1	1601-
298	SHAFT; SHIFT LEVER EXC. 14" CLUTCH(WF6)	8-97379-978-0	01	1	1601-
306	BOLT; SHIFT ASSISTOR 14" CLUTCH(WF6) M10X50 FLANGE	0-28051-050-0	03	1	1601-
317	BUSHING; LEVER 14" CLUTCH(WF6)	1-09330-119-0	02	1	1601-
317	BUSHING; LEVER EXC. 14" CLUTCH(WF6)	8-97379-997-0	02	1	1601-
322	WASHER; LK 14" CLUTCH(WF6)	8-98031-750-0	01	1	1601-
333	WASHER; PL,LEVER 14" CLUTCH(WF6) ID=10.5	0-91610-710-0	01	1	1601-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1601-
346	HOSE; AIR EXC. 14" CLUTCH(WF6) (B)	8-97373-381-0	01	1	1601-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1601-
535	SPRING; LEVER 14" CLUTCH(WF6)	8-97385-713-0	02	1	1601-
548	CLIP; HOSE	8-97031-674-0	01	1	1601-
549	ROD; LINK 14" CLUTCH(WF6)	8-98022-841-0	01	1	1601-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1601-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1601-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1601-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (D) L=30 OD=4	1-09748-031-0	02	1	1601-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (E) OD=5	8-97184-905-0	03	1	1601-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (F)	8-97379-991-0	01	1	1601-
554	STUD; CONT BOX 14" CLUTCH(WF6) M8X15,M8X25 L=49	8-97365-378-0	02	1	1601-
559	PIPE; BREATHER 14" CLUTCH(WF6)	8-97358-318-0	01	1	1601-
559	PIPE; BREATHER EXC. 14" CLUTCH(WF6)	8-98020-710-0	01	1	1601-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1601-
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-97305-666-0	01	1	1601-
631	STOPPER; SPRING EXC. 14" CLUTCH(WF6)	8-97379-984-0	01	1	1601-
645	DETENT ASM 14" CLUTCH(WF6)	8-98019-536-0	01	1	1601-

262 653 652 243 167 192 374 294 551 654 551 163 655 265 381 631 551 171 315 551 142 142 262 624 346 548 374 274 530 317 6 317 559 133 656 133 551 298 265 656 656 657 551 243 551 654 651 374 652 651 381 163 655 374 654 398

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	LEVER; RELAY (A)	8-97241-342-0	03	1	1601-
6	LEVER; RELAY 14" CLUTCH(WF6) (C)	8-98022-855-0	01	1	1601-
6	LEVER; RELAY EXC. 14" CLUTCH(WF6) (B)	8-97379-995-0	01	1	1601-
133	SEAT; SPR EXC. 14" CLUTCH(WF6) (A)	8-97379-988-0	01	1	1601-
133	SEAT; SPR EXC. 14" CLUTCH(WF6) (B)	8-97379-989-0	01	1	1601-
142	BOLT; QUAD BOX 14" CLUTCH(WF6) (A) M8X22 FLANGE	8-97365-376-0	04	1	1601-
142	BOLT; QUAD BOX EXC. 14" CLUTCH(WF6) (B) M8X35 FLANGE	8-98020-384-0	03	1	1601-
142	BOLT; QUAD BOX EXC. 14" CLUTCH(WF6) (C) M8X75 FLANGE	8-98020-385-0	03	1	1601-
163	LEVER; SELECT,INTERNAL 14" CLUTCH(WF6) (C)	8-97305-663-0	01	1	1601-
163	LEVER; SELECT,INTERNAL EXC. 14" CLUTCH(WF6) (A)	8-97379-979-0	01	1	1601-
163	LEVER; SELECT,INTERNAL EXC. 14" CLUTCH(WF6) (B)	8-97379-990-0	01	1	1601-
167	LEVER; SELECT,EXTERNAL 14" CLUTCH(WF6)	8-98022-857-0	01	1	1601-
167	LEVER; SELECT,EXTERNAL EXC. 14" CLUTCH(WF6)	8-97379-994-0	01	1	1601-
171	SWITCH; NEUTRAL	8-98324-878-0	01	1	1601-
192	WASHER; PL (A) ID=18.2 OD=29	1-09503-032-0	04	1	1601-
192	WASHER; PL 14" CLUTCH(WF6) (B)	8-97305-661-0	02	1	1601-
192	WASHER; PL EXC. 14" CLUTCH(WF6) (C)	1-09503-280-0	01	1	1601-
243	BOLT; COVER EXC. 14" CLUTCH(WF6) M6X12 FLANGE	1-33739-842-0	11	1	1601-
262	BOX ASM; SHIFT CONT EXC. 14" CLUTCH(WF6) (A)	8-98331-686-0	01	1	1601-
262	BOX ASM; SHIFT CONT 14" CLUTCH(WF6) (B)	8-98305-335-1	01	1	1601-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (A)	8-97363-225-0	01	1	1601-
265	SEAL; OIL,SHIFT ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (B)	8-97379-981-0	01	1	1601-
274	COVER; SHAFT,QUAD BOX EXC. 14" CLUTCH(WF6)	8-98020-711-0	01	1	1601-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (A)	8-97305-662-0	01	1	1601-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6) (B)	8-97363-225-0	01	1	1601-
294	SEAL; OIL,SELECT ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (C)	1-09625-600-0	01	1	1601-
298	SHAFT; SHIFT LEVER 14" CLUTCH(WF6)	8-98305-342-0	01	1	1601-
298	SHAFT; SHIFT LEVER EXC. 14" CLUTCH(WF6)	8-97379-978-0	01	1	1601-
315	LEVER; SELECT EXC. 14" CLUTCH(WF6)	8-98296-526-0	01	1	1601-
317	BUSHING; LEVER 14" CLUTCH(WF6)	1-09330-119-0	02	1	1601-
317	BUSHING; LEVER EXC. 14" CLUTCH(WF6)	8-97379-997-0	02	1	1601-
346	HOSE; AIR (A)	8-97309-855-0	01	1	1601-
346	HOSE; AIR EXC. 14" CLUTCH(WF6) (B)	8-97373-381-0	01	1	1601-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (A)	8-97349-571-0	03	1	1601-
374	GASKET ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (B)	8-97349-573-0	01	1	1601-
381	BOLT (A) M6X16 FLANGE	0-28650-616-0	01	1	1601-
381	BOLT EXC. 14" CLUTCH(WF6) (B) M6X12 FLANGE	1-33739-842-0	04	1	1601-
398	SWITCH; REV LAMP	8-98242-173-1	01	1	1601-
530	SHAFT; SELECT EXC. 14" CLUTCH(WF6)	8-97379-996-0	01	1	1601-
548	CLIP; HOSE	8-97031-674-0	01	1	1601-
551	PIN; SPRING (C) L=25 OD=5	1-09748-032-0	01	1	1601-
551	PIN; SPRING (A) L=32	8-97011-596-2	05	1	1601-
551	PIN; SPRING (B) L=20	8-97241-340-0	01	1	1601-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (D) L=30 OD=4	1-09748-031-0	02	1	1601-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (E) OD=5	8-97184-905-0	03	1	1601-
551	PIN; SPRING EXC. 14" CLUTCH(WF6) (F)	8-97379-991-0	01	1	1601-
559	PIPE; BREATHER 14" CLUTCH(WF6)	8-97358-318-0	01	1	1601-
559	PIPE; BREATHER EXC. 14" CLUTCH(WF6)	8-98020-710-0	01	1	1601-
624	PLATE; INTER LOCK	8-97241-317-3	01	1	1601-
631	STOPPER; SPRING 14" CLUTCH(WF6)	8-97305-666-0	01	1	1601-
631	STOPPER; SPRING EXC. 14" CLUTCH(WF6)	8-97379-984-0	01	1	1601-
651	SOLENOID ASM; SHIFT EXC. 14" CLUTCH(WF6) (A)	8-98048-497-1	01	1	1601-
651	SOLENOID ASM; SHIFT EXC. 14" CLUTCH(WF6) (B)	8-98048-498-1	01	1	1601-
652	BOLT; SORENOID EXC. 14" CLUTCH(WF6) M10X25 FLANGE	0-28151-025-0	06	1	1601-
653	SOLENOID ASM; SELECT EXC. 14" CLUTCH(WF6)	8-98002-761-0	01	1	1601-
654	JOINT; SOLENOID,CASE EXC. 14" CLUTCH(WF6) (A)	8-97349-473-0	02	1	1601-
654	JOINT; SOLENOID,CASE EXC. 14" CLUTCH(WF6) (B)	8-97380-419-0	01	1	1601-
655	SENSOR; STROKE EXC. 14" CLUTCH(WF6) (A)	8-98107-823-0	01	1	1601-
655	SENSOR; STROKE EXC. 14" CLUTCH(WF6) (B)	8-98107-824-0	01	1	1601-
656	SPRING; SHAFT EXC. 14" CLUTCH(WF6) (A)	8-97379-985-0	01	1	1601-
656	SPRING; SHAFT EXC. 14" CLUTCH(WF6) (B)	8-97379-986-0	01	1	1601-
656	SPRING; SHAFT EXC. 14" CLUTCH(WF6) (C)	8-97379-987-0	01	1	1601-
657	PLATE; SIDE EXC. 14" CLUTCH(WF6)	8-98020-712-0	01	1	1601-
