◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11721 - FSR AUST/NZ JNLT09 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-26 - MANUAL TRANSMISSION GEAR ▶
2-26 — MANUAL TRANSMISSION GEAR (#175656) — 116 parça

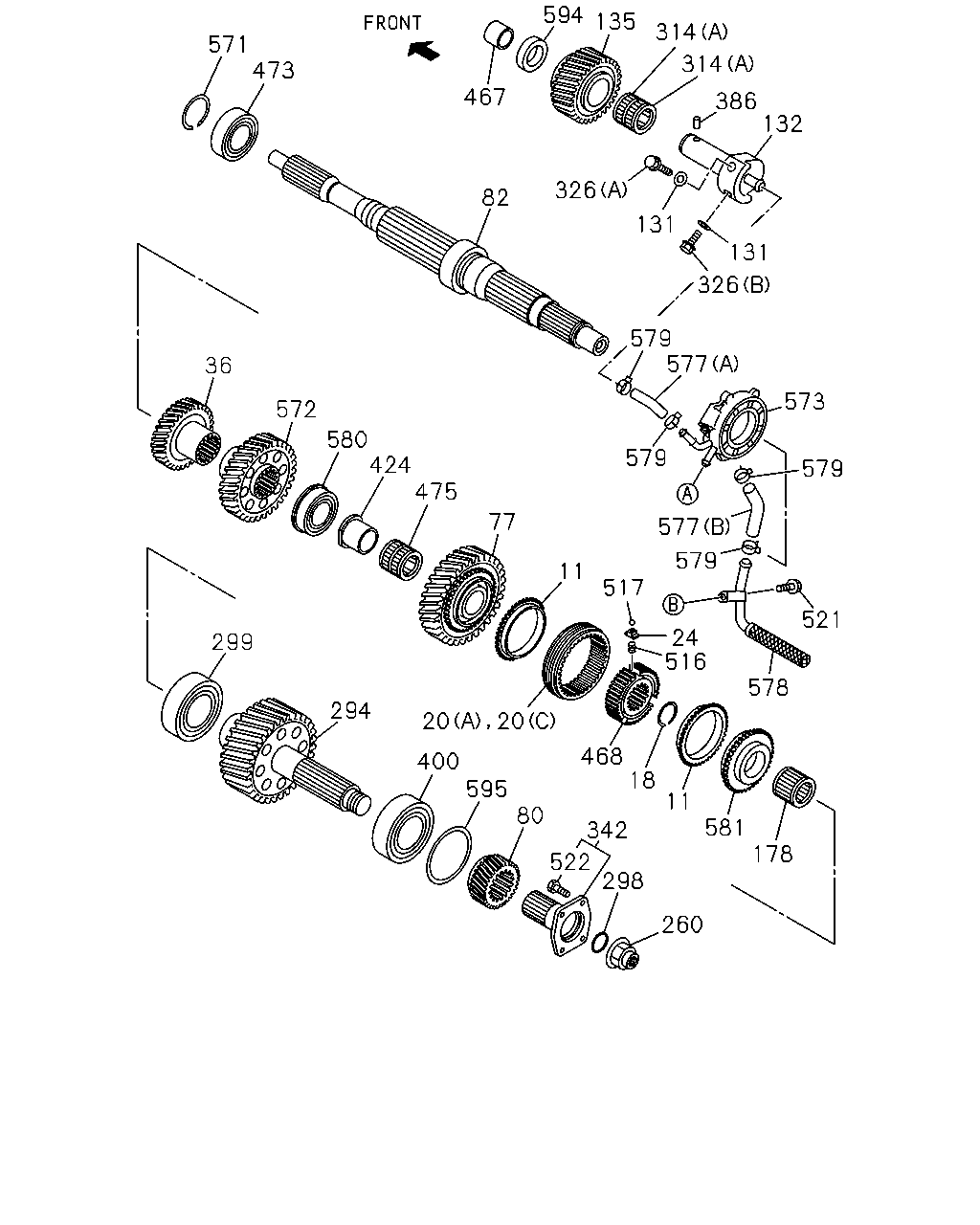

çizim 513416
571 467 473 82 326 135 594 314 314 386 131 131 326 579 573 577 579 579 577 521 579 578 178 581 11 18 468 20 20 400 595 80 342 522 298 260 516 517 24 11 77 475 424 580 572 36 299 294 132
BalonParca AdiParca NoAdetTipApplied Date
11 RING; BLOCK,5TH & 6TH
Z=45 		8-97241-306-1 02 1 1601-
18 RING; SNAP,CLU HUB
ID=35.7 T=1.8 		8-97256-855-0 01 1 1601-
20 SLEEVE
14" CLUTCH(WF6) (A) Z=45 		8-98258-279-0 03 1 1601-
20 SLEEVE
EXC. 14" CLUTCH(WF6) (B) Z=45 		8-98034-769-0 01 1 1601-
20 SLEEVE
EXC. 14" CLUTCH(WF6) (C) Z=45 		8-98258-279-0 02 1 1601-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1601-
36 GEAR; 3RD,MAINSHAFT
Z=29 		8-98168-499-0 01 1 1601-
77 GEAR; 6TH,MAINSHAFT
Z=46 		8-98137-256-0 01 1 1601-
80 GEAR; SPD DRIVE
Z=5 		8-97377-978-1 01 1 1601-
82 SHAFT; MAIN,TRANS
14" CLUTCH(WF6) Z=13-21-19-26 		8-98245-057-0 01 1 1601-
82 SHAFT; MAIN,TRANS
EXC. 14" CLUTCH(WF6) Z=14-13-21-19-26 		8-98292-396-0 01 1 1601-
131 GASKET; REV SHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=10.2 OD=16.0 		9-09571-410-0 02 1 1601-
132 SHAFT; REV 8-98009-372-0 01 1 1601-
135 GEAR; REV IDLER
Z=27 		8-98005-601-1 01 1 1601-
178 BEARING; NEEDLE,MAINSHAFT 8-97253-099-1 01 1 1601-
260 NUT; MAINSHAFT END
M36 FLANGE 		8-98014-140-0 01 1 1601-
294 SHAFT; OUTPUT
Z=43 		8-97380-571-0 01 1 1601-
298 GASKET; MAINSHAFT
ALSO INCLUDED IN GASKET SET(M/T). ID=47 T=5 		1-09623-380-0 01 1 1601-
299 BEARING; OUTPUT SHAFT FRT 8-97377-970-0 01 1 1601-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1601-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1601-
326 BOLT; REV SHAFT
(A) M10X50 FLANGE 		0-29261-050-0 01 1 1601-
326 BOLT; REV SHAFT
(B) M10X50 		8-98014-738-0 01 1 1601-
342 FLANGE; OUTPUT 8-98155-334-0 01 1 1601-
386 PIN; REV SHAFT
OD=4 L=8 		9-08150-408-0 01 1 1601-
400 BEARING; OUTPUT SHAFT RR 8-97377-977-0 01 1 1601-
424 COLLAR; 6TH GEAR 8-98125-318-0 01 1 1601-
467 COLLAR; SHAFT
EXC. 14" CLUTCH(WF6) 		8-97255-183-1 01 1 1601-
468 HUB; CLU,5TH & 6TH
Z=45 		8-98075-734-0 01 1 1601-
473 BEARING; INPUT SHAFT 8-97377-950-0 01 1 1601-
475 BEARING; 6TH
COLLAR OD=-49.999 		8-98101-505-0 01 1 1601-
475 BEARING; 6TH
COLLAR OD=50.000- 		8-98142-265-0 01 1 1601-
516 SPRING; SYNCHRO,INDEX
14" CLUTCH(WF6) 		8-98032-197-0 09 1 1601-
516 SPRING; SYNCHRO,INDEX
EXC. 14" CLUTCH(WF6) 		8-98054-981-0 09 1 1601-
517 BALL; SYNCHRO,INDEX
14" CLUTCH(WF6) 		8-97252-935-0 09 1 1601-
517 BALL; SYNCHRO,INDEX
EXC. 14" CLUTCH(WF6) 		8-97252-935-0 10 1 1601-
521 BOLT
M8X12 FLANGE 		0-28050-812-0 01 1 1601-
522 BOLT; FLANGE
M14X43 KNURL 		8-98014-003-0 04 1 1601-
571 RING; SNAP,BRG 8-97377-951-0 01 1 1601-
572 GEAR; 4TH,INPUT
Z=37 		8-98168-500-0 01 1 1601-
573 PUMP ASM; OIL 8-98212-241-0 01 1 1601-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1601-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1601-
578 SCREEN; OIL PUMP 8-98009-345-0 02 1 1601-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1601-
580 BEARING; MAINSHAFT RR 8-97377-953-0 01 1 1601-
581 CLUTCH; DOG,5TH GEAR 8-97377-956-0 01 1 1601-
594 WASHER; THRUST,REV IDLE 8-98005-633-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.44 		8-97377-984-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.50 		8-97377-985-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.56 		8-97377-986-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.62 		8-97377-987-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.68 		8-97377-988-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.74 		8-97377-989-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.80 		8-97377-990-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.86 		8-97377-991-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.38 		8-98009-379-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.26 		8-98022-221-0 01 1 1601-
595 SHIM; OUTPUT SHAFT
T=1.32 		8-98022-222-0 01 1 1601-

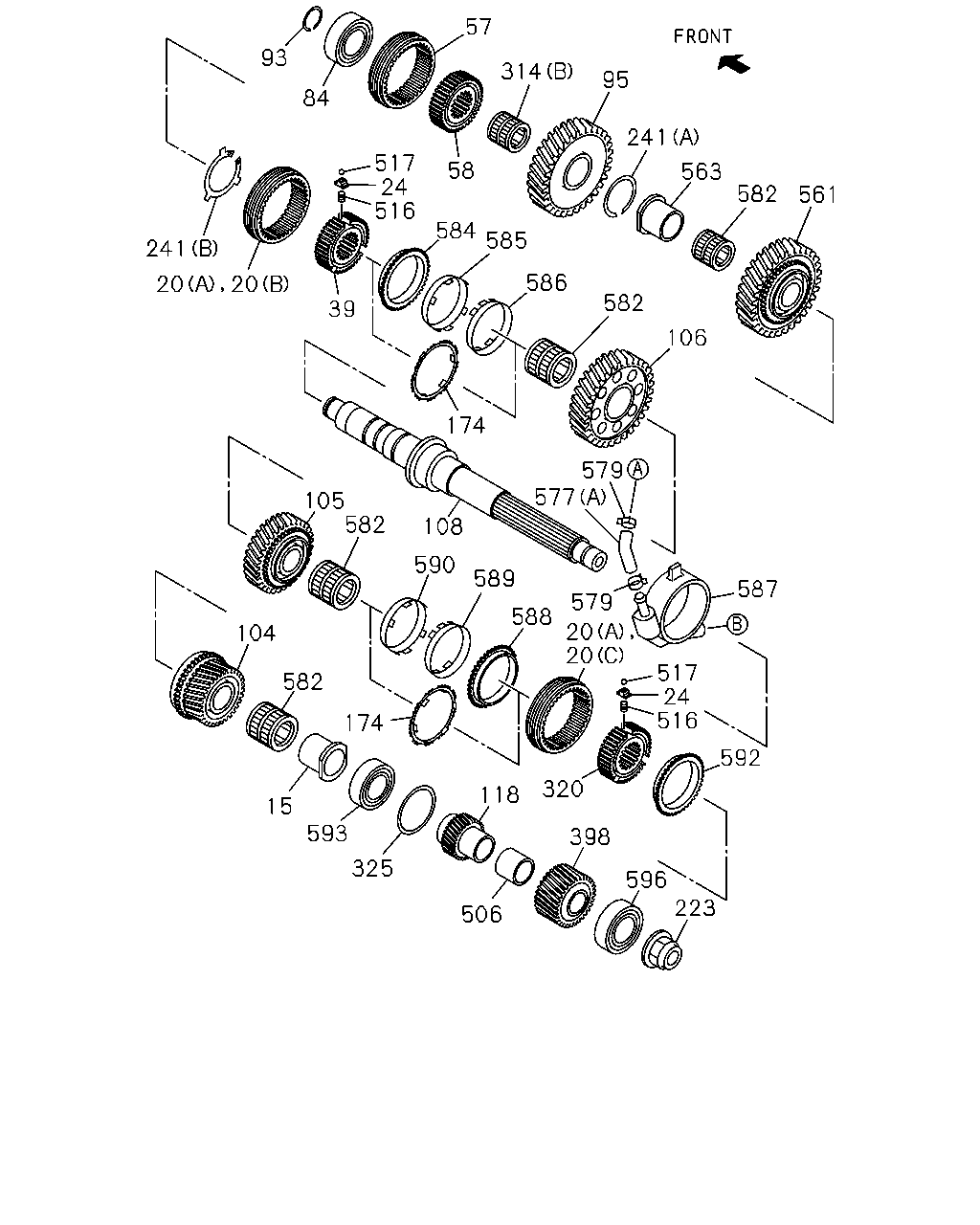

çizim 513874
57 314 95 241 582 563 561 106 582 586 585 584 516 58 24 517 20 20 241 39 174 577 579 579 20 20 588 589 108 590 582 105 104 582 174 15 593 325 506 118 320 398 596 223 592 516 517 24 587 84 93
BalonParca AdiParca NoAdetTipApplied Date
15 COLLAR; 4TH GEAR 8-98146-345-0 01 1 1601-
20 SLEEVE
14" CLUTCH(WF6) (A) Z=45 		8-98258-279-0 03 1 1601-
20 SLEEVE
EXC. 14" CLUTCH(WF6) (B) Z=45 		8-98034-769-0 01 1 1601-
20 SLEEVE
EXC. 14" CLUTCH(WF6) (C) Z=45 		8-98258-279-0 02 1 1601-
24 BLOCK; INDEX,SYN 8-97241-313-1 09 1 1601-
39 HUB; CLU,LOW & 2ND
Z=45 		8-98309-852-0 01 1 1601-
57 SLEEVE; REV
Z=45 		8-94421-871-1 01 1 1601-
58 HUB; CLU,REV
Z=45-27 		8-98005-296-0 01 1 1601-
84 BEARING; COUNTER SHAFT,FRT 8-97377-957-1 01 1 1601-
93 RING; SNAP,COUNTER FRT BRG 8-97377-958-0 01 1 1601-
95 GEAR; REV,COUNTER
Z=44 		8-98005-229-0 01 1 1601-
104 GEAR; 4TH,COUNTER
Z=29 		8-98198-297-0 01 1 1601-
105 GEAR; 3RD,COUNTER
Z=35 		8-98168-501-0 01 1 1601-
106 GEAR; 2ND,COUNTER
Z=44 		8-98140-884-0 01 1 1601-
108 SHAFT; COUNTER
Z=27-42-26 		8-98303-643-0 01 1 1601-
118 GEAR; 6TH,COUNTER
Z=17 		8-98005-292-1 01 1 1601-
174 SYNCHRONIZER ASM; 2ND-3RD
14" CLUTCH(WF6) 		8-98315-823-2 02 1 1601-
223 NUT; COUNTER SHAFT END
M34 FLANGE 		8-98005-894-0 01 1 1601-
241 RING; SNAP
(A) ID=46.5 T=1.8 		8-97254-743-0 01 1 1601-
241 RING; SNAP
(B) ID=96 T=2.5 		8-98009-391-0 01 1 1601-
314 BEARING; NEEDLE,REV GEAR
(A) JTEKT 		1-09811-017-0 02 1 1601-
314 BEARING; NEEDLE,REV GEAR
(B) NSK 		8-97253-111-0 01 1 1601-
320 HUB; CLU,4TH & 3RD
Z=45 		8-98309-859-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.56 		8-97377-994-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.62 		8-97377-995-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.68 		8-97377-996-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.74 		8-97377-997-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.80 		8-97377-998-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.26 		8-98009-373-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.32 		8-98009-374-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.38 		8-98009-375-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.44 		8-98009-376-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.50 		8-98009-377-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.14 		8-98022-218-0 01 1 1601-
325 SHIM; COUNTER SHAFT BRG
T=1.20 		8-98022-219-0 01 1 1601-
398 GEAR; COUNTER
Z=22 		8-97380-568-0 01 1 1601-
506 COLLAR; 6TH,COUNTER 8-97377-965-0 01 1 1601-
516 SPRING; SYNCHRO,INDEX
14" CLUTCH(WF6) 		8-98032-197-0 09 1 1601-
516 SPRING; SYNCHRO,INDEX
EXC. 14" CLUTCH(WF6) 		8-98054-981-0 09 1 1601-
517 BALL; SYNCHRO,INDEX
14" CLUTCH(WF6) 		8-97252-935-0 09 1 1601-
517 BALL; SYNCHRO,INDEX
EXC. 14" CLUTCH(WF6) 		8-97252-935-0 10 1 1601-
561 GEAR; LOW,COUNTER
Z=44 		8-98000-330-0 01 1 1601-
563 COLLAR; 1ST GEAR 8-98146-345-0 01 1 1601-
577 HOSE; OIL PUMP
(A) 		8-98033-981-0 02 1 1601-
577 HOSE; OIL PUMP
(B) 		8-98033-982-0 02 1 1601-
579 CLAMP; HOSE
ID=16 		8-97329-628-0 07 1 1601-
582 BEARING; NEEDLE,COUNTER GEAR 8-97253-110-0 04 1 1601-
584 RING; BLOCK,2ND
EXC. 14" CLUTCH(WF6) Z=45 		8-98034-770-0 01 1 1601-
585 RING; OUTSIDE,2ND
EXC. 14" CLUTCH(WF6) 		8-97241-309-1 01 1 1601-
586 RING; INSIDE,2ND
EXC. 14" CLUTCH(WF6) 		8-97241-312-1 01 1 1601-
587 CASE; PUMP,COUNTER 8-98303-650-0 01 1 1601-
588 RING; BLOCK,3RD
EXC. 14" CLUTCH(WF6) Z=45 		8-97241-306-1 01 1 1601-
589 RING; OUTSIDE,3RD
EXC. 14" CLUTCH(WF6) 		8-97241-309-1 01 1 1601-
590 RING; INSIDE,3RD
EXC. 14" CLUTCH(WF6) 		8-97241-312-1 01 1 1601-
592 RING; BLOCK,4TH
Z=45 		8-97241-306-1 01 1 1601-
593 BEARING; COUNTER MIDDLE 8-97377-976-0 01 1 1601-
596 BEARING; ROOLER,COUNTER END 8-97377-968-0 01 1 1601-
