2-20 — MANUAL TRANSMISSION ASM AND CASE (#175654) — 79 parça

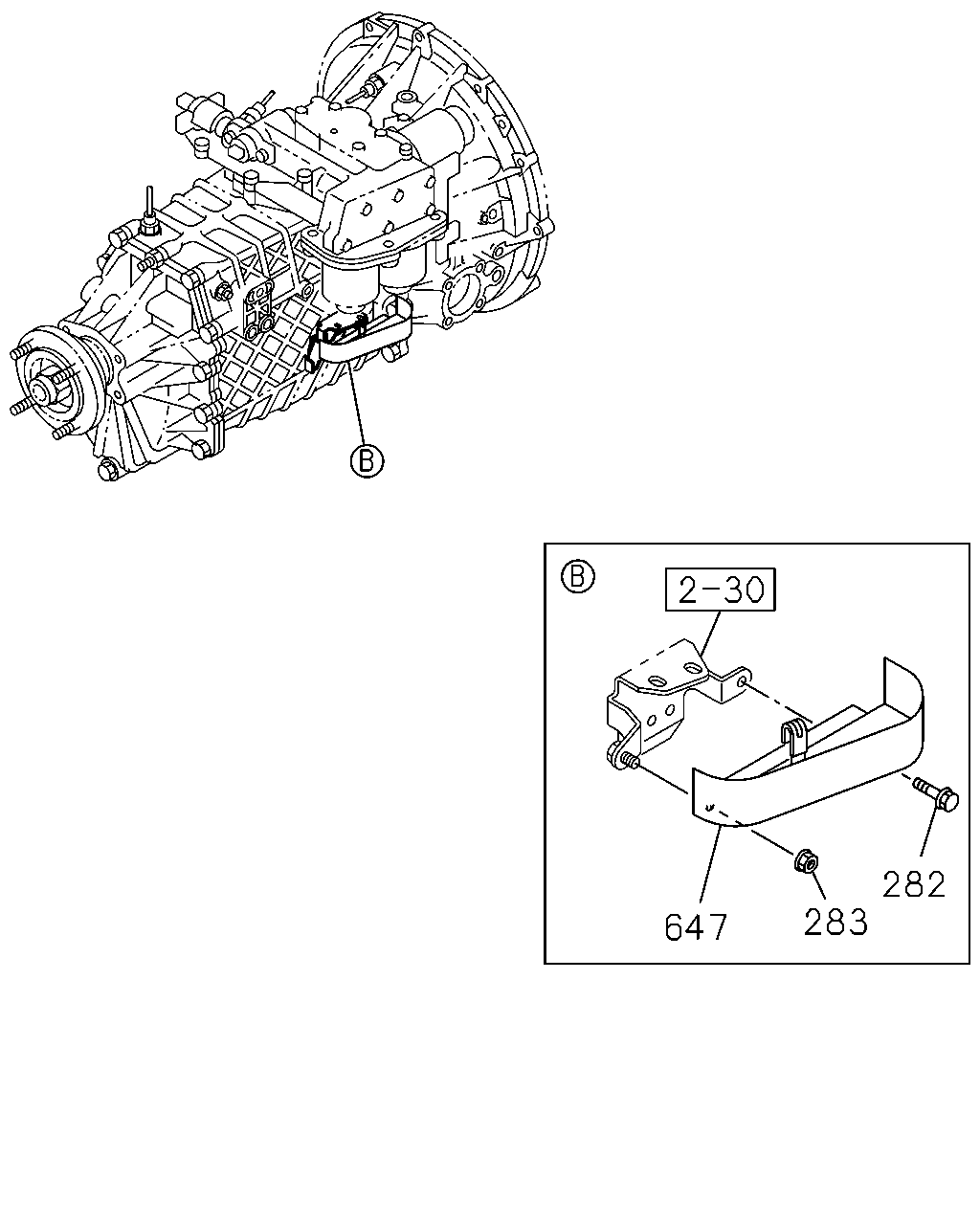

647 283 282

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
282	BOLT; PROTECTOR SMOOTHER-FX(TYPE2)(8NS) M8X20 FLANGE	0-28650-820-0	01	1	1601-
283	NUT; PROTECTOR SMOOTHER-FX(TYPE2)(8NS) M8 FLANGE	0-91180-108-0	01	1	1601-
647	PROTECTOR; HEAT SMOOTHER-FX(TYPE2)(8NS)	8-97329-465-0	01	1	1601-

1 1

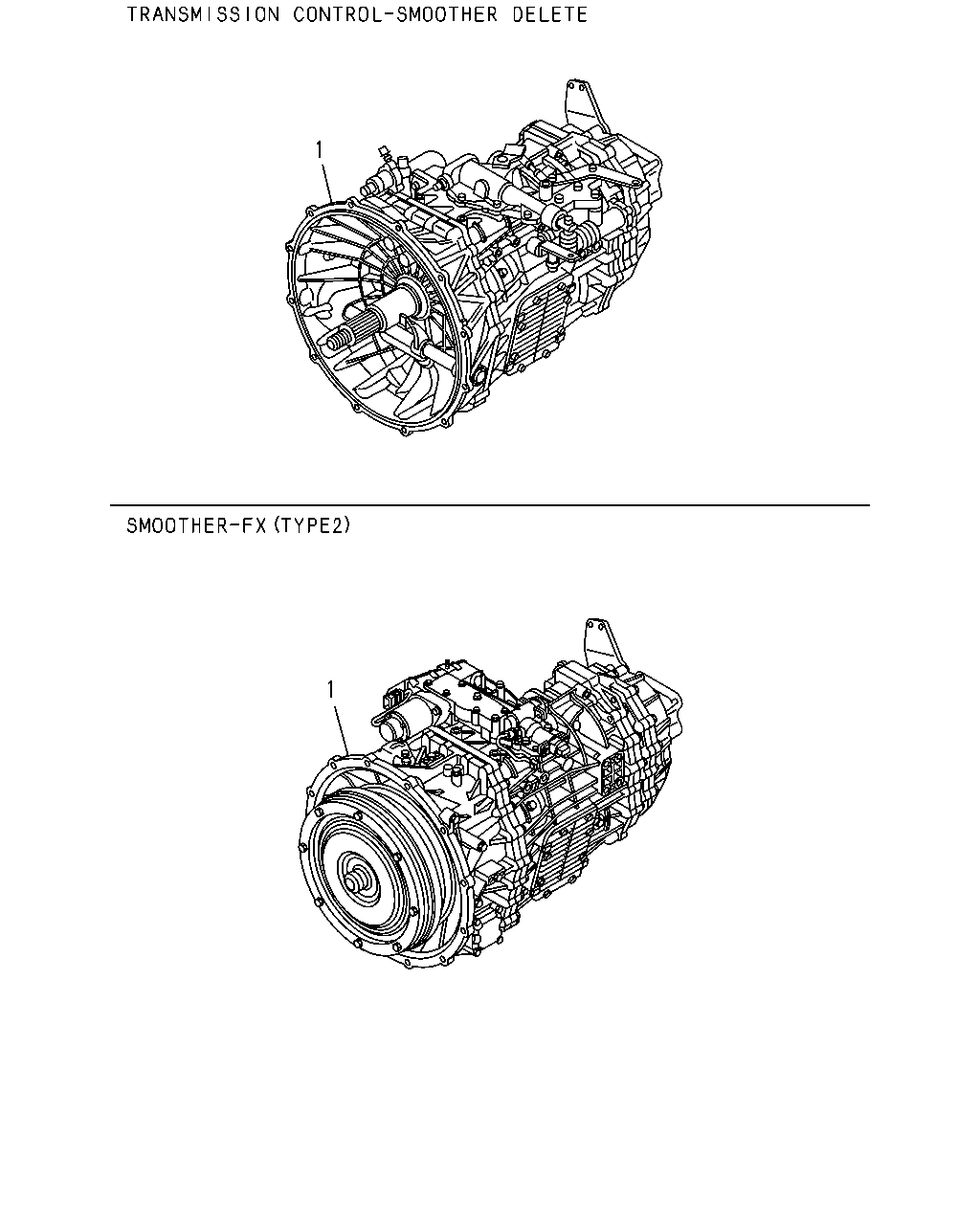

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TRANSMISSION ASM; MANUAL SMOOTHER-FX(TYPE2)(8NS) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>	8-98305-924-0	01	1	1601-
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) SMOOTHER-FX(TYPE2)(8NS) EXC. 14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8>	8-98305-924-0	01	1	1601-
1	TRANSMISSION ASM; MANUAL TRANSMISSION SIDE PTO WO/LEVER(SH5) 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)	8-98306-137-0	01	1	1601-
1	TRANSMISSION ASM; MANUAL 14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98306-137-0	01	1	1601-

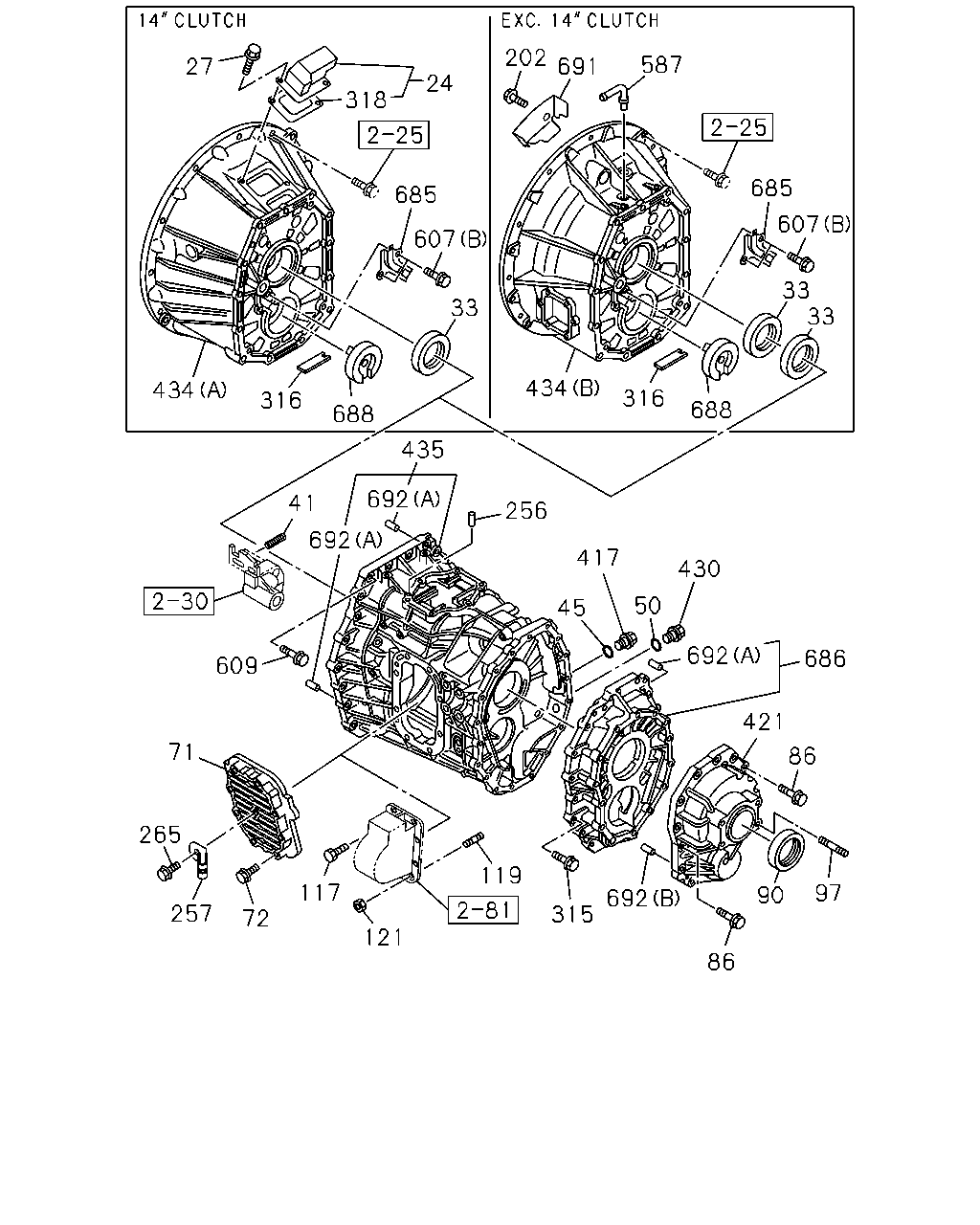

27 318 24 685 607 33 202 587 685 691 607 33 33 688 316 434 435 688 316 434 41 692 256 417 45 430 692 421 686 86 97 692 609 71 265 257 72 117 121 119 315 692 86 90 50

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	COVER; CHECK HOLE,DUST 14" CLUTCH(WF6)	8-98283-062-0	01	1	1601-
27	BOLT; COVER TO CLU HSG 14" CLUTCH(WF6) M8X16 FLANGE	0-28050-816-0	02	1	1601-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6)	8-97377-947-0	01	1	1601-
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6)	8-97255-187-0	02	1	1601-
41	SPRING; DETENT BALL EXC. 14" CLUTCH(WF6)	8-98071-140-0	01	1	1601-
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	1601-
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	02	1	1601-
71	COVER; SIDE,TRANS CASE EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5)	8-98270-265-1	01	1	1601-
72	BOLT; SIDE COVER EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X50 FLANGE	1-09044-081-0	08	1	1601-
86	BOLT; RR COVER M10X40 FLANGE	8-98045-397-0	14	1	1601-
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97377-948-0	01	1	1601-
97	STUD; PARKING BRK M14X22 W/DRY-ROCK	8-98014-138-0	01	1	1601-
117	BOLT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X40 FLANGE	0-28151-040-0	02	1	1601-
119	STUD; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10X35 L=50	0-44011-035-0	06	1	1601-
121	NUT; PTO FIX TRANSMISSION SIDE PTO WO/LEVER(SH5) M10 FLANGE	0-91180-210-0	06	1	1601-
202	BOLT; PLATE EXC. 14" CLUTCH(WF6) M8X20 FLANGE	0-28650-820-0	01	1	1601-
256	PIN; KNOCK OD=6 L=12	9-08150-612-0	02	1	1601-
257	CLIP; HARNESS SMOOTHER-FX(TYPE2)(8NS) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8> ID=8	8-97329-633-0	01	1	1601-
265	BOLT; CLIP SMOOTHER-FX(TYPE2)(8NS) EXC. TRANSMISSION SIDE PTO WO/LEVER(SH5),14" CLUTCH(WF6),ASSISTOR SHIFT CONTROL<WX8> M10X16 FLANGE	0-28151-016-0	01	1	1601-
315	BOLT; CASE M8X40 FLANGE	0-28050-840-0	18	1	1601-
316	MAGNET; TRANS CASE	8-94249-524-2	01	1	1601-
318	GASKET; COVER 14" CLUTCH(WF6)	1-31139-023-0	01	1	1601-
417	PLUG; OIL FILLER,TRANS M20X10.5	8-98009-333-0	01	1	1601-
421	COVER; RR,TRANS	8-98004-790-1	01	1	1601-
430	PLUG; OIL DRAIN	8-97365-374-0	02	1	1601-
434	HOUSING; CLU 14" CLUTCH(WF6) (A)	8-98004-506-2	01	1	1601-
434	HOUSING; CLU EXC. 14" CLUTCH(WF6) (B)	8-98100-982-1	01	1	1601-
435	CASE; TRANS	8-98236-421-1	01	1	1601-
587	PIPE; BREATHER EXC. 14" CLUTCH(WF6)	8-97358-318-0	01	1	1601-
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1601-
607	BOLT; COVER EXC. 14" CLUTCH(WF6) (A) M8X30 FLANGE	0-28650-830-0	04	1	1601-
609	BOLT; HSG TO CASE M8X40 FLANGE	0-28050-840-0	22	1	1601-
685	COVER; OIL PORT	8-98018-864-1	01	1	1601-
686	CASE; RR,TRANS	8-97388-873-1	01	1	1601-
688	NOZZLE; OIL,COUNTER	8-98309-860-0	01	1	1601-
691	PLATE; BREATHER EXC. 14" CLUTCH(WF6)	8-98044-428-0	01	1	1601-
692	PIN; DOWEL (A) OD=11 L=8	9-11229-058-1	04	1	1601-
692	PIN; DOWEL (B) OD=14 L=10	9-11319-065-3	02	1	1601-

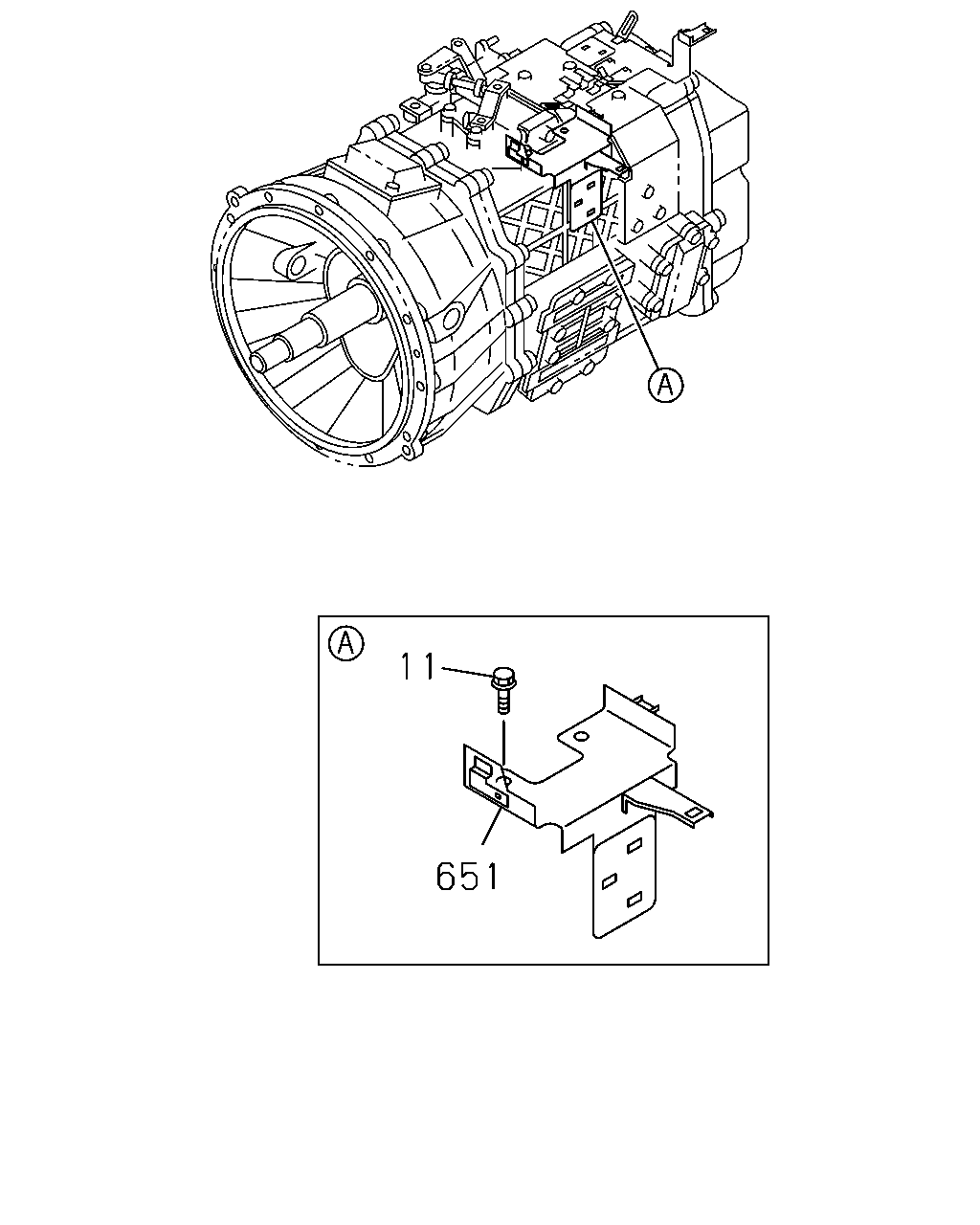

11 651

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	11	BOLT; BRKT SMOOTHER-FX(TYPE2)(8NS) M8X35 FLANGE	0-28650-835-0	02	1	1601-
	651	BRACKET; T/M HARNESS SMOOTHER-FX(TYPE2)(8NS)	8-97610-090-3	01	1	1601-

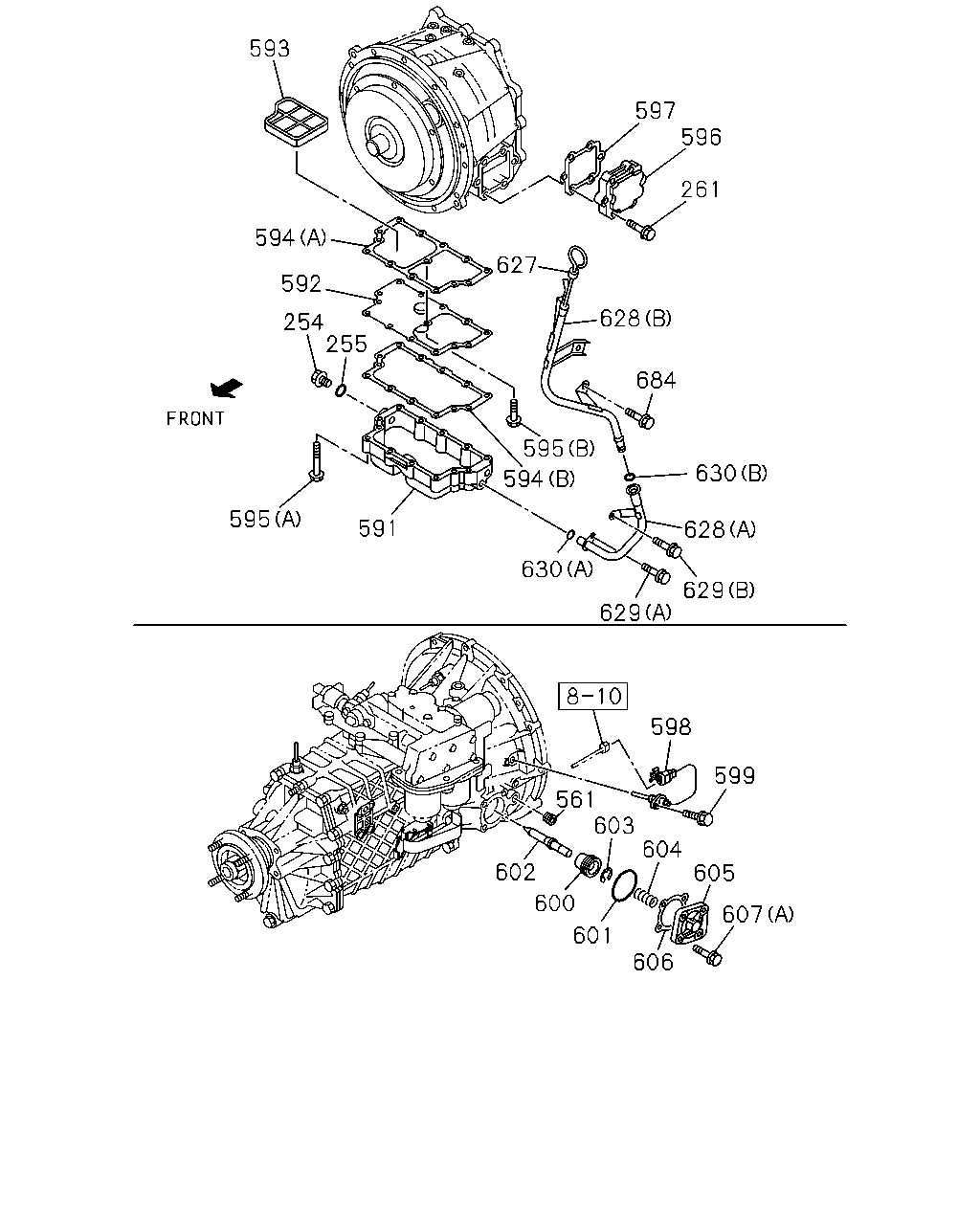

593 594 592 254 255 595 591 597 261 627 628 684 595 594 630 629 629 628 630 598 599 561 603 604 605 607 606 601 600 602 596

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
254	PLUG; DRAIN,OIL EXC. 14" CLUTCH(WF6)	8-97365-374-0	01	1	1601-
255	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) ID=17	8-97115-712-0	01	1	1601-
261	BOLT; COVER EXC. 14" CLUTCH(WF6) M6X35 FLANGE	0-28650-635-0	06	1	1601-
561	PLUG EXC. 14" CLUTCH(WF6)	8-97320-204-0	01	1	1601-
591	PAN; OIL EXC. 14" CLUTCH(WF6)	8-97256-429-2	01	1	1601-
592	COVER; STRAINER ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6)	8-97289-771-1	01	1	1601-
593	FILTER; STRAINER EXC. 14" CLUTCH(WF6)	8-97256-438-1	01	1	1601-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (A)	8-97256-430-1	01	1	1601-
594	GASKET; OIL PAN ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (B)	8-97289-772-0	01	1	1601-
595	BOLT; OIL PAN EXC. 14" CLUTCH(WF6) (B) M6X16 FLANGE	0-28650-616-0	01	1	1601-
595	BOLT; OIL PAN EXC. 14" CLUTCH(WF6) (A) M6X35 FLANGE	0-28650-635-0	13	1	1601-
596	COVER; OIL PAN EXC. 14" CLUTCH(WF6)	8-97289-773-0	01	1	1601-
597	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6)	8-97289-774-0	01	1	1601-
598	SENSOR; TURBINE EXC. 14" CLUTCH(WF6)	8-97316-495-1	01	1	1601-
599	BOLT; SENSOR EXC. 14" CLUTCH(WF6) M6X16 FLANGE	0-28650-616-0	01	1	1601-
600	PISTON; BRAKE EXC. 14" CLUTCH(WF6)	8-97254-652-1	01	1	1601-
601	SEAL; PISTON ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6)	8-97254-755-0	01	1	1601-
602	PLUNGER; BRAKE EXC. 14" CLUTCH(WF6)	8-98009-306-1	01	1	1601-
603	RING; SNAP EXC. 14" CLUTCH(WF6) ID=8	9-09185-008-0	01	1	1601-
604	SPRING; PISTON EXC. 14" CLUTCH(WF6)	8-97371-467-0	01	1	1601-
605	COVER; CYLINDER EXC. 14" CLUTCH(WF6)	8-97254-756-0	01	1	1601-
606	GASKET; COVER ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6)	8-97254-757-0	01	1	1601-
607	BOLT; COVER (B) M8X16 FLANGE	0-28050-816-0	02	1	1601-
607	BOLT; COVER EXC. 14" CLUTCH(WF6) (A) M8X30 FLANGE	0-28650-830-0	04	1	1601-
627	GAUGE; OIL LEVEL EXC. 14" CLUTCH(WF6)	8-98296-926-0	01	1	1601-
628	TUBE; OIL FILLER EXC. 14" CLUTCH(WF6) (A)	8-98003-673-0	01	1	1601-
628	TUBE; OIL FILLER EXC. 14" CLUTCH(WF6) (B)	8-98107-821-0	01	1	1601-
629	BOLT; OIL FILLER EXC. 14" CLUTCH(WF6) (B) M10X16 FLANGE	0-28151-016-0	01	1	1601-
629	BOLT; OIL FILLER EXC. 14" CLUTCH(WF6) (A) M6X16 FLANGE	0-28650-616-0	01	1	1601-
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (A) ID=15.8	8-97305-656-0	01	1	1601-
630	GASKET; OIL FILLER TUBE,T/M ALSO INCLUDED IN GASKET SET(M/T). EXC. 14" CLUTCH(WF6) (B) ID=12.3	8-97313-558-0	01	1	1601-
684	BOLT; OIL FILLER TUBE EXC. 14" CLUTCH(WF6) M10X16 FLANGE	0-28151-016-0	02	1	1601-
