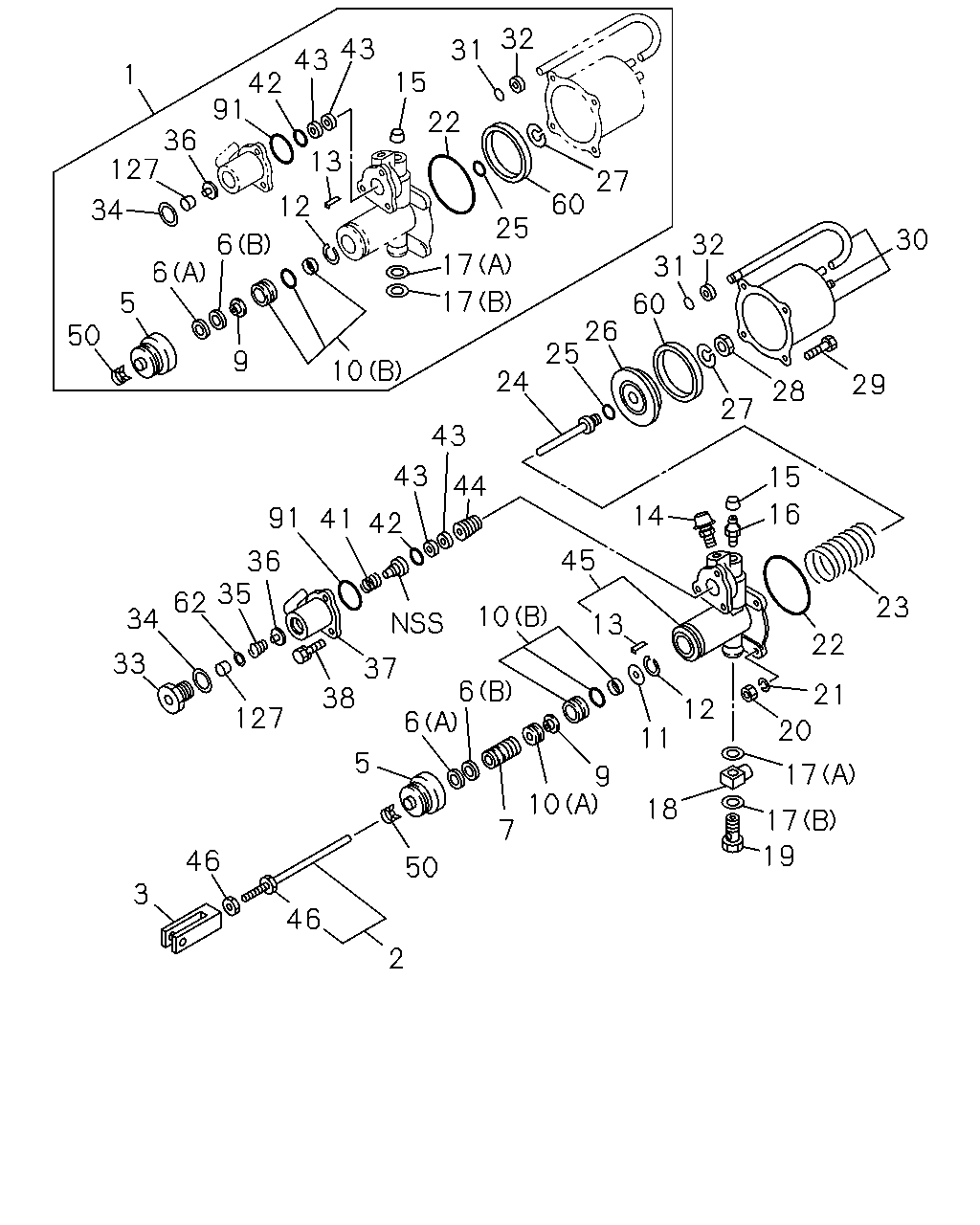

2-07 — CLUTCH BOOSTER; MINIPACK (#175651) — 50 parça

1 34 127 36 91 42 43 43 50 5 6 6 12 13 15 31 32 22 9 10 17 17 25 60 27 33 62 34 36 35 91 41 43 42 43 44 24 25 26 60 31 32 30 29 28 27 127 3 46 46 5 38 6 37 2 50 10 7 18 6 10 14 45 9 19 11 13 12 15 23 16 22 21 20 17 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	REPAIR KIT; CLU BOOSTER 14" CLUTCH(WF6)	1-31829-603-0	01	1	1601-
2	ROD; PUSH,CLU BOOSTER 14" CLUTCH(WF6)	1-31824-240-0	01	1	1601-
3	CLEVIS; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-186-1	01	1	1601-
5	GUARD; PISTON,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-503-0	01	1	1601-
6	GASKET; PISTON CUP,CLU BOOSTER 14" CLUTCH(WF6) (B)	1-31829-498-0	01	1	1601-
6	GASKET; PISTON CUP,CLU BOOSTER 14" CLUTCH(WF6) (A)	1-31829-499-0	01	1	1601-
7	PISTON; CLU BOOSTER 14" CLUTCH(WF6)	1-31821-047-0	01	1	1601-
9	GASKET; PISTON CUP,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-003-0	01	1	1601-
10	RETAINER; PISTON,CLU BOOSTER 14" CLUTCH(WF6) (B)	1-31829-107-0	01	1	1601-
10	RETAINER; PISTON,CLU BOOSTER 14" CLUTCH(WF6) (A)	1-31829-108-0	01	1	1601-
11	WASHER; PISTON,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-105-0	01	1	1601-
12	RING; RET,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-142-0	01	1	1601-
13	PIN; SPR 14" CLUTCH(WF6)	1-31829-109-0	01	1	1601-
14	COVER; EXH,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-564-0	01	1	1601-
15	PROTECTOR; END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83335-044-0	01	1	1601-
16	PLUG; END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83331-704-0	01	1	1601-
17	GASKET; CONN,CLU BOOSTER 14" CLUTCH(WF6) (A)	9-09920-267-0	01	1	1601-
17	GASKET; CONN,CLU BOOSTER 14" CLUTCH(WF6) (B)	9-09920-268-0	01	1	1601-
18	CONNECTOR; END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-248-0	01	1	1601-
19	BOLT; EYE,END PLATE,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-047-0	01	1	1601-
20	NUT; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6) M10	9-09111-410-0	04	1	1601-
21	WASHER; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6) ID=10.2	9-09150-510-0	04	1	1601-
22	GASKET; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-09623-322-0	01	1	1601-
23	SPRING; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-358-0	01	1	1601-
24	ROD; PUSH,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-112-0	01	1	1601-
25	GASKET; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6)	1-09623-321-0	01	1	1601-
26	PISTON; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31821-084-0	01	1	1601-
27	SPRING; CLU BOOSTER 14" CLUTCH(WF6)	1-31829-111-0	01	1	1601-
28	NUT; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6)	9-88510-365-0	01	1	1601-
29	BOLT; END PLATE TO SHELL,CLU BOOSTER 14" CLUTCH(WF6)	9-83315-099-0	04	1	1601-
30	SHELL; CYL,CLU BOOSTER 14" CLUTCH(WF6)	1-31811-124-0	01	1	1601-
31	GASKET; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-279-0	01	1	1601-
32	BUSHING; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-280-0	01	1	1601-
33	CONNECTOR; UPR,VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-214-0	01	1	1601-
34	GASKET; CONN,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-053-0	01	1	1601-
35	SPRING; POPPET VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-537-0	01	1	1601-
36	VALVE; POPPET,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-536-0	01	1	1601-
37	BODY; UPR,VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31811-147-0	01	1	1601-
38	SCREW; UPR VLV TO END PLATE,CLU BOOSTE 14" CLUTCH(WF6)	9-83315-113-0	03	1	1601-
41	SPRING; DIAPH,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-420-0	01	1	1601-
42	GASKET; FITTING,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-143-0	01	1	1601-
43	GASKET; UPR VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-060-0	02	1	1601-
44	PISTON; UPR VLV,CLU BOOSTER 14" CLUTCH(WF6)	1-31821-087-0	01	1	1601-
45	PLATE; END,CLU BOOSTER 14" CLUTCH(WF6)	1-31811-143-0	01	1	1601-
46	NUT; PUSH ROD,CLU BOOSTER 14" CLUTCH(WF6) M10	9-09111-410-0	02	1	1601-
50	CLAMP; PISTON GUARD,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-504-0	01	1	1601-
60	GASKET; SHELL,CLU BOOSTER 14" CLUTCH(WF6)	1-31829-544-0	01	1	1601-
62	RETAINER; POPPET 14" CLUTCH(WF6)	1-31829-489-0	01	1	1601-
91	GASKET; CLU BOOSTER 14" CLUTCH(WF6)	1-31829-103-0	01	1	1601-
127	FILTER; POPPET 14" CLUTCH(WF6)	1-31829-495-0	01	1	1601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
