◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FSR ▶ 11721 - FSR AUST/NZ JNLT09 SPACECAB ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-05 - CLUTCH PIPING ▶
2-05 — CLUTCH PIPING (#175650) — 35 parça
çizim 512533
48 101 50 239 104 23 50 104 106 184
BalonParca AdiParca NoAdetTipApplied Date
23 GROMMET; CLU PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=15 OD=20 T=17.5 		1-09332-130-0 01 1 1601-
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1601-
50 NUT; UNION
IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> (B) M12 		0-91111-512-0 01 1 1601-
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1601-
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1601-
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=500 		8-98072-350-0 01 1 1601-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2038 SERVICED BY L=2200 		1-47428-740-0 01 1 1601-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1601-
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> (B) M12 3WAY 		8-98051-113-0 01 1 1601-
106 UNION; OIL PIPE
IDLE STOP SYSTEM VAR2<8BM> EXC. H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 1601-
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 ELBOW 		0-92125-206-0 01 1 1601-
184 UNION; FLEX HOSE
IDLE STOP SYSTEM DELETE<Q3Q> EXC. H.S.A SYSTEM<6EP> 		8-98150-865-0 01 1 1601-
239 UNION; CLU HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 L=66.5 		0-92113-306-0 01 1 1601-

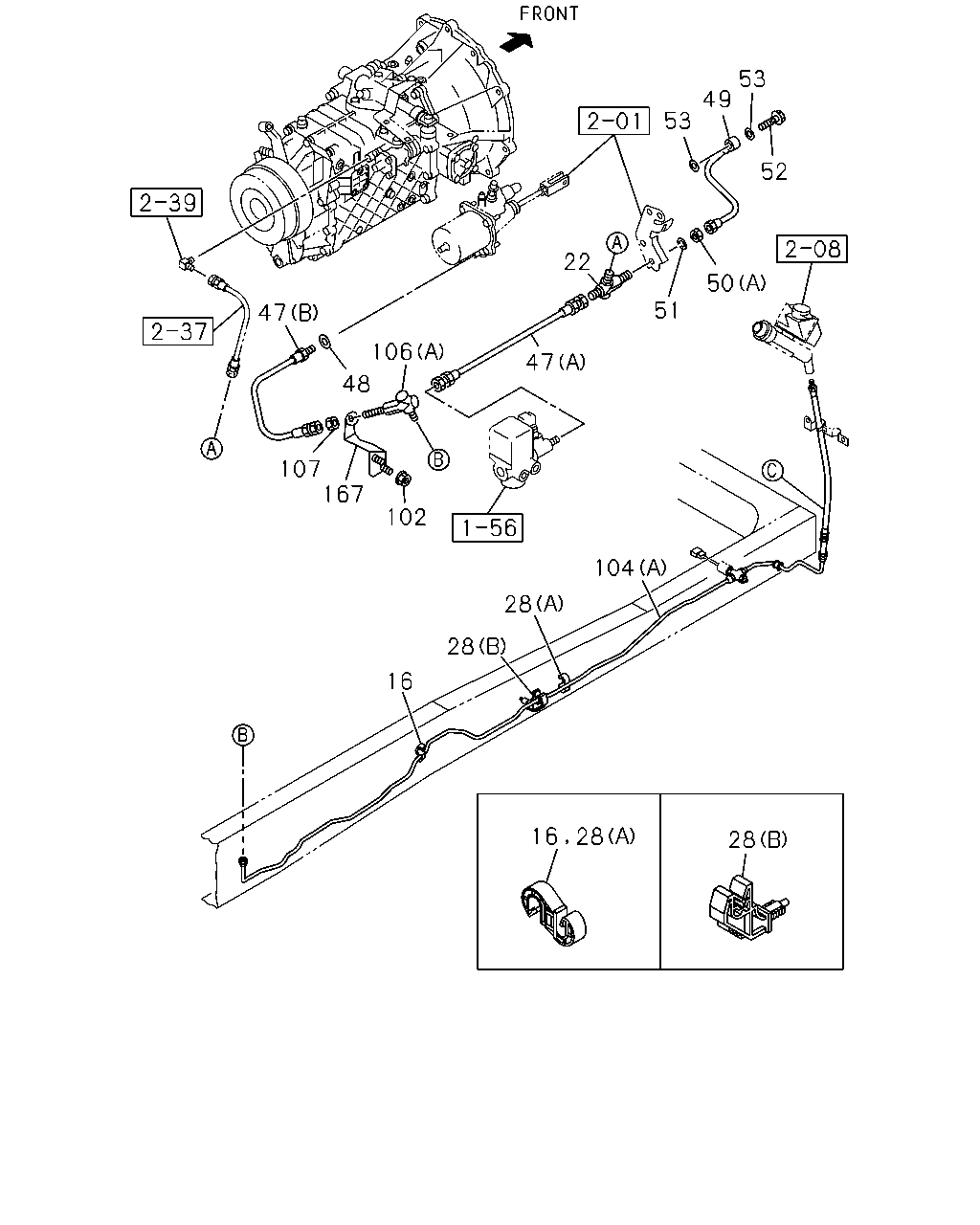

çizim 512700
47 106 48 107 102 16 28 28 104 16 28 28 51 50 53 49 53 52 22 47 167
BalonParca AdiParca NoAdetTipApplied Date
16 CLIP; FLEX HOSE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10 & 12 		1-09709-278-1 01 1 1601-
22 UNION; CLU PIPE
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> M12 3WAY 		0-92138-706-0 01 1 1601-
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) ID=6.35 		1-09701-247-1 01 1 1601-
28 CLIP; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) ID=6.35 & 10.0 		1-09709-274-1 04 1 1601-
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=620 		1-09363-705-0 01 1 1601-
47 HOSE; FLEX,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=390 		8-98080-980-0 01 1 1601-
48 GASKET; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=10.2 OD=16.0 		9-09571-410-0 02 1 1601-
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
14" CLUTCH(WF6) L=239 		1-49117-401-0 01 1 1601-
50 NUT; UNION
IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> (B) M12 		0-91111-512-0 01 1 1601-
50 NUT; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 		9-09840-280-0 01 1 1601-
50 NUT; UNION
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> (A) M12 		9-09840-280-0 01 1 1601-
51 WASHER; LK
14" CLUTCH(WF6) ASSISTOR SHIFT CONTROL<WX8> ID=12.2 		0-91510-812-0 01 1 1601-
52 BOLT; EYE,AIR PIPE
14" CLUTCH(WF6) M14X27 FLANGE 		1-09675-086-0 01 1 1601-
53 GASKET; JOINT BOLT
14" CLUTCH(WF6) ID=14.2 OD=19.2 		8-98251-345-0 02 1 1601-
102 NUT; FLEX HOSE,CLU CONT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M10 FLANGE 		0-91180-210-0 02 1 1601-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) L=2038 SERVICED BY L=2200 		1-47428-740-0 01 1 1601-
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B) L=336 		8-98067-058-0 01 1 1601-
106 UNION; OIL PIPE
H.S.A SYSTEM<6EP> IDLE STOP SYSTEM DELETE<Q3Q>,IDLE STOP SYSTEM VAR2<8BM> (B) M12 3WAY 		8-98051-113-0 01 1 1601-
106 UNION; OIL PIPE
IDLE STOP SYSTEM VAR2<8BM> EXC. H.S.A SYSTEM<6EP> (B) M12 3WAY 		8-98051-113-0 01 1 1601-
106 UNION; OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M12 ELBOW 		0-92125-206-0 01 1 1601-
107 NUT; UNION,OIL PIPE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) M12 		9-09840-280-0 01 1 1601-
167 BRACKET; UNION
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98078-147-0 01 1 1601-
