2-01 — CLUTCH (#175648) — 66 parça

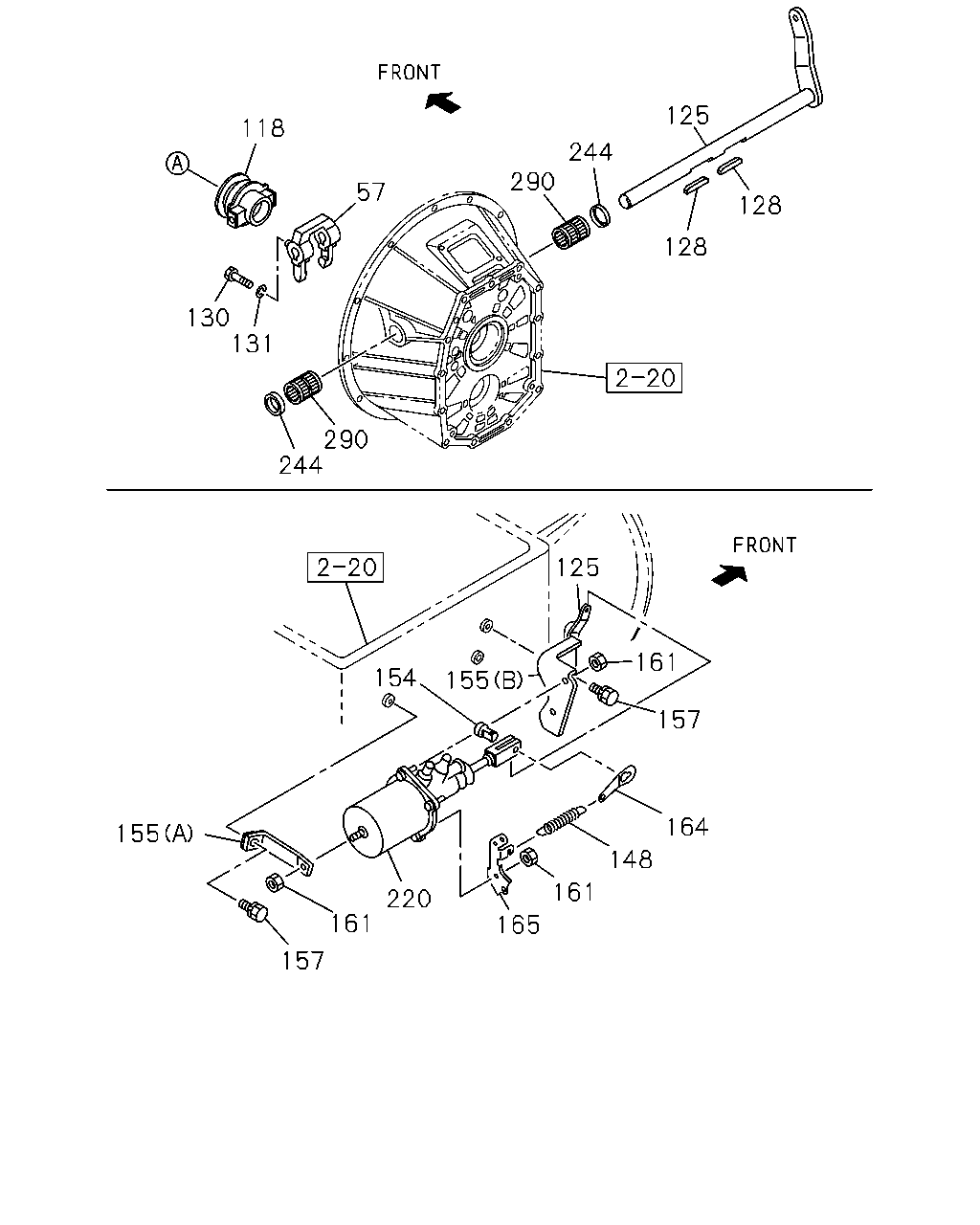

118 130 131 290 244 128 244 290 125 128 125 161 157 164 148 161 165 220 161 157 155 154 155 57

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
57	FORK; SHIFT,CLU 14" CLUTCH(WF6)	1-31341-048-2	01	1	1601-
118	BEARING; CLU RELEASE 14" CLUTCH(WF6)	1-31310-026-0	01	1	1601-
118	BEARING; CLU RELEASE 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-109-0	01	1	1601-
125	SHAFT; CLU 14" CLUTCH(WF6)	1-31342-335-0	01	1	1601-
128	KEY; FEATHER,CLU SHAFT 14" CLUTCH(WF6)	9-09867-008-0	02	1	1601-
130	SCREW; SHIFT FORK 14" CLUTCH(WF6) M8X14	0-61200-814-0	01	1	1601-
131	WASHER; LK,SHIFT FORK 14" CLUTCH(WF6) ID=8.2	0-91510-508-0	01	1	1601-
148	SPRING; CLU RETURN 14" CLUTCH(WF6) L=135	1-09583-305-0	01	1	1601-
154	PIN; JAW JOINT 14" CLUTCH(WF6)	1-31424-009-0	01	1	1601-
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (A)	1-31429-475-1	01	1	1601-
155	BRACKET; MINIPACK 14" CLUTCH(WF6) (B)	1-31429-478-0	01	1	1601-
157	BOLT; BRKT 14" CLUTCH(WF6) M10X25 FLANGE	0-28751-025-0	03	1	1601-
161	NUT; BRKT 14" CLUTCH(WF6) M10 FLANGE	0-91180-210-0	05	1	1601-
164	EYE; SPRING 14" CLUTCH(WF6)	1-31426-041-0	01	1	1601-
165	BRACKET; SPR EYE,MINIPACK,FLEX TUBE 14" CLUTCH(WF6)	1-47477-789-0	01	1	1601-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6)	1-31800-511-2	01	1	1601-
220	BOOSTER ASM; CLU SEE FIG-NO 2-07 FOR COMPONENT. 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-089-0	01	1	1601-
244	SEAL; DUST ALSO INCLUDED IN GASKET SET(M/T). 14" CLUTCH(WF6)	1-09625-002-0	02	1	1601-
290	BEARING; NEEDLE 14" CLUTCH(WF6) NTN	1-09811-002-1	02	1	1601-

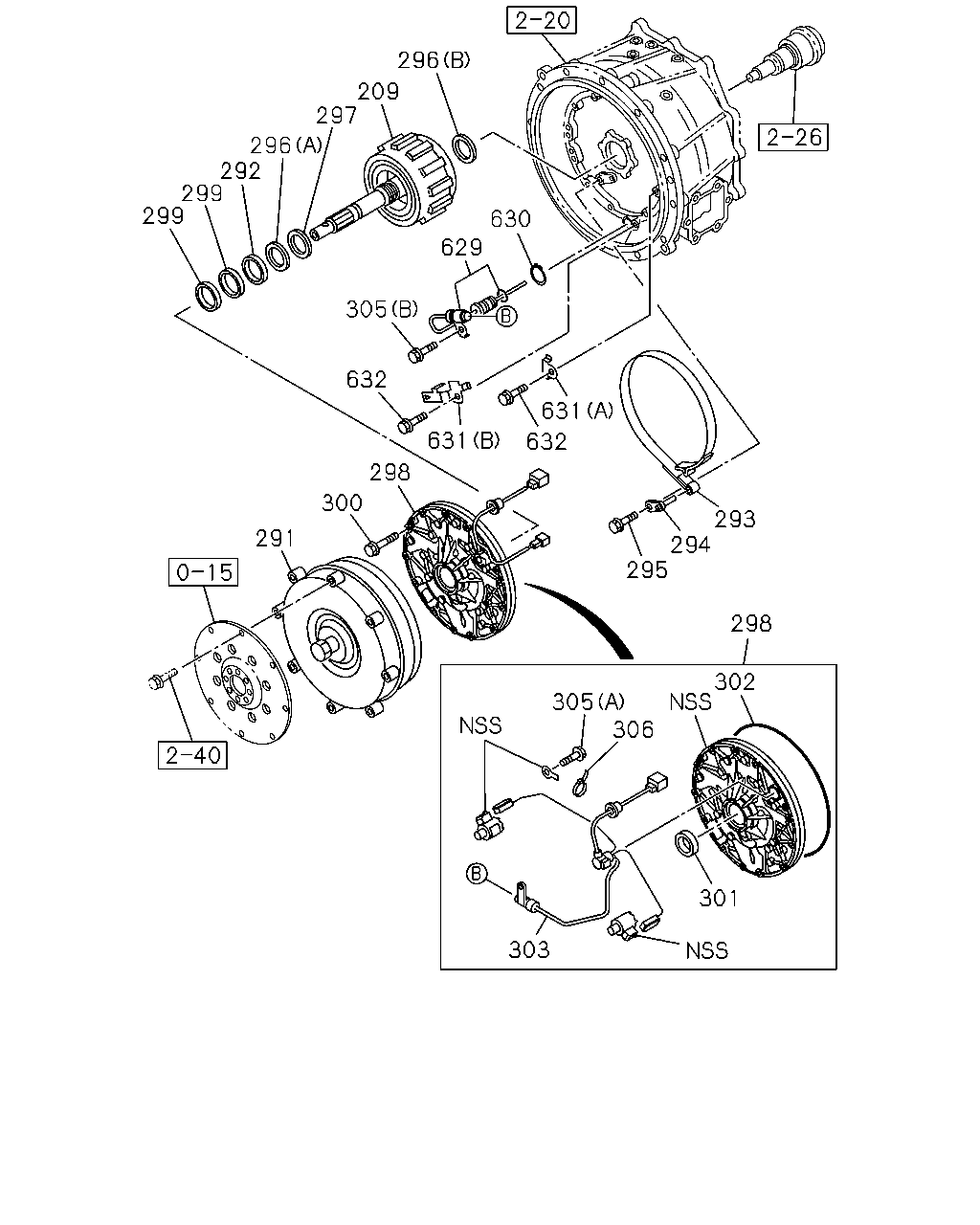

296 209 297 296 292 299 299 305 629 630 631 632 631 632 298 294 293 295 298 302 306 305 301 303 291 300

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
209	CLUTCH ASM EXC. 14" CLUTCH(WF6)	8-98275-317-0	01	1	1601-
291	COUPLING; FLUID EXC. 14" CLUTCH(WF6)	8-98292-306-1	01	1	1601-
292	RING; SEAL EXC. 14" CLUTCH(WF6)	8-97255-329-0	01	1	1601-
293	BAND; BRAKE EXC. 14" CLUTCH(WF6)	8-97254-651-0	01	1	1601-
294	PIN; ANCHOR EXC. 14" CLUTCH(WF6)	8-97255-703-0	01	1	1601-
295	BOLT; ANCHOR PIN EXC. 14" CLUTCH(WF6) M8X20 FLANGE	0-28650-820-0	01	1	1601-
296	BEARING; THRUST EXC. 14" CLUTCH(WF6) (A)	8-97255-688-0	01	1	1601-
296	BEARING; THRUST EXC. 14" CLUTCH(WF6) (B)	8-97255-689-0	01	1	1601-
297	WASHER; THRUST EXC. 14" CLUTCH(WF6)	8-97300-070-0	01	1	1601-
298	PUMP ASM; OIL EXC. 14" CLUTCH(WF6)	8-98254-134-0	01	1	1601-
299	RING; SEAL EXC. 14" CLUTCH(WF6)	8-97255-330-0	02	1	1601-
300	BOLT; OIL PUMP EXC. 14" CLUTCH(WF6) M8X45 FLANGE	0-28050-845-0	11	1	1601-
301	SEAL; OIL PUMP EXC. 14" CLUTCH(WF6)	8-97289-811-0	01	1	1601-
302	RING; OIL PUMP EXC. 14" CLUTCH(WF6)	8-97255-188-0	01	1	1601-
303	HARNESS ASM; OIL PUMP EXC. 14" CLUTCH(WF6)	8-98020-613-1	01	1	1601-
305	BOLT; BRACKET EXC. 14" CLUTCH(WF6) (A) M6X12 FLANGE	0-28050-612-0	01	1	1601-
305	BOLT; BRACKET EXC. 14" CLUTCH(WF6) (B) M6X16 FLANGE	0-28650-616-0	01	1	1601-
306	CLIP; BAND EXC. 14" CLUTCH(WF6) L=100	8-94279-939-0	02	1	1601-
629	SENSOR; OIL TEMP EXC. 14" CLUTCH(WF6)	8-98021-895-0	01	1	1601-
630	RING; SNAP EXC. 14" CLUTCH(WF6) ID=17.5	9-09180-019-0	01	1	1601-
631	PLATE; HARNESS EXC. 14" CLUTCH(WF6) (A)	8-98021-285-0	02	1	1601-
631	PLATE; HARNESS EXC. 14" CLUTCH(WF6) (B)	8-98023-254-0	01	1	1601-
632	BOLT; HARNESS EXC. 14" CLUTCH(WF6) M8X20 FLANGE	0-28650-820-0	03	1	1601-

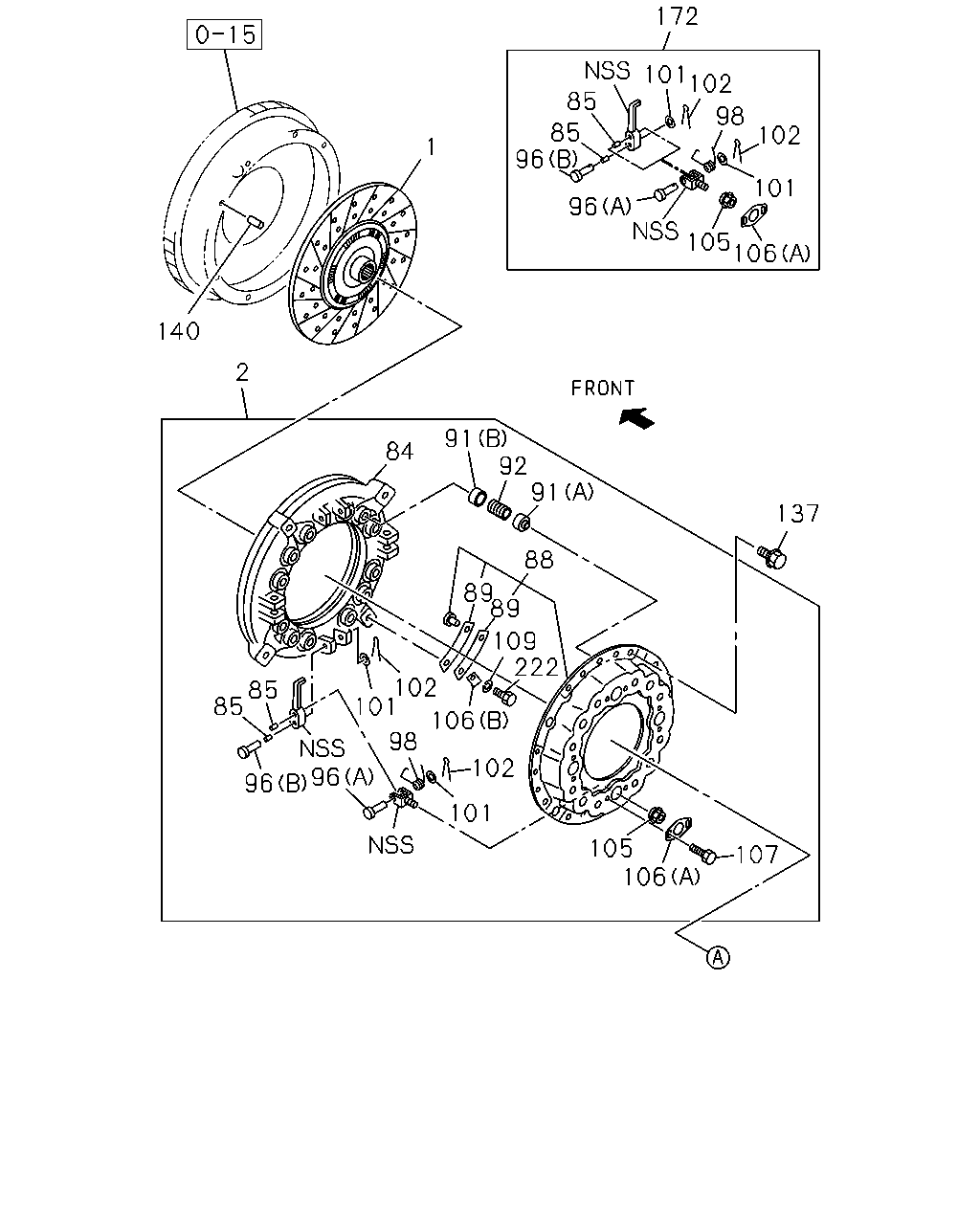

1 2 140 91 84 91 92 96 85 85 101 172 102 102 101 106 105 96 98 137 107 106 105 102 101 106 222 109 89 89 88 98 101 102 96 96 85 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	DISC; CLUTCH 14" CLUTCH(WF6) 14"	1-31260-040-1	01	1	1601-
1	DISC; CLUTCH 14" CLUTCH(WF6) BEST VALUE PARTS	1-87610-140-0	01	1	1601-
2	PLATE ASM; PRESSURE,CLU 14" CLUTCH(WF6)	1-31220-451-0	01	1	1601-
84	PLATE; PRESSURE 14" CLUTCH(WF6) 14"	1-31221-136-0	01	1	1601-
85	BUSHING; RELEASE LEVER 14" CLUTCH(WF6)	9-31239-116-0	08	1	1601-
88	COVER SUB ASM; CLU 14" CLUTCH(WF6)	1-31211-038-0	01	1	1601-
89	PLATE; STRAP 14" CLUTCH(WF6)	1-31229-001-0	08	1	1601-
91	SEAT; SPR 14" CLUTCH(WF6) (A) ID=37 H=25	1-31219-012-0	12	1	1601-
91	SEAT; SPR 14" CLUTCH(WF6) (B) ID=37 H=15	1-31219-013-0	12	1	1601-
92	SPRING; CLU 14" CLUTCH(WF6)	1-31214-092-0	12	1	1601-
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (A) L=49.0	1-31232-005-0	04	1	1601-
96	PIN; RELEASE LEVER 14" CLUTCH(WF6) (B) L=57.0	1-31232-014-0	04	1	1601-
98	SPRING; RETURN 14" CLUTCH(WF6)	1-31233-003-0	04	1	1601-
101	WASHER; RELEASE LEVER 14" CLUTCH(WF6)	1-31239-058-0	08	1	1601-
102	PIN; SPLIT,RELEASE LEVER 14" CLUTCH(WF6) OD=2.7 L=22	9-08113-022-0	08	1	1601-
105	NUT; SUPPORT 14" CLUTCH(WF6)	1-31235-014-0	04	1	1601-
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (B)	1-31235-008-0	04	1	1601-
106	PLATE; LK,LEVER SUPPORT 14" CLUTCH(WF6) (A)	1-31239-019-0	04	1	1601-
107	BOLT; LK PLATE 14" CLUTCH(WF6)	1-31239-061-0	08	1	1601-
109	WASHER; LK,STRAP 14" CLUTCH(WF6) ID=10.2	0-91510-510-0	04	1	1601-
137	BOLT; CLU COVER 14" CLUTCH(WF6) M10X20 FLANGE	0-28151-020-0	12	1	1601-
140	PIN; STRAIGHT L=25	8-94410-361-0	02	1	1601-
172	LEVER KIT; RELEASE,CLU 14" CLUTCH(WF6)	1-87831-170-1	01	1	1601-
222	BOLT; STRAP 14" CLUTCH(WF6)	1-31239-059-0	04	1	1601-
