Sayfa 1-41 - Isuzu EPC

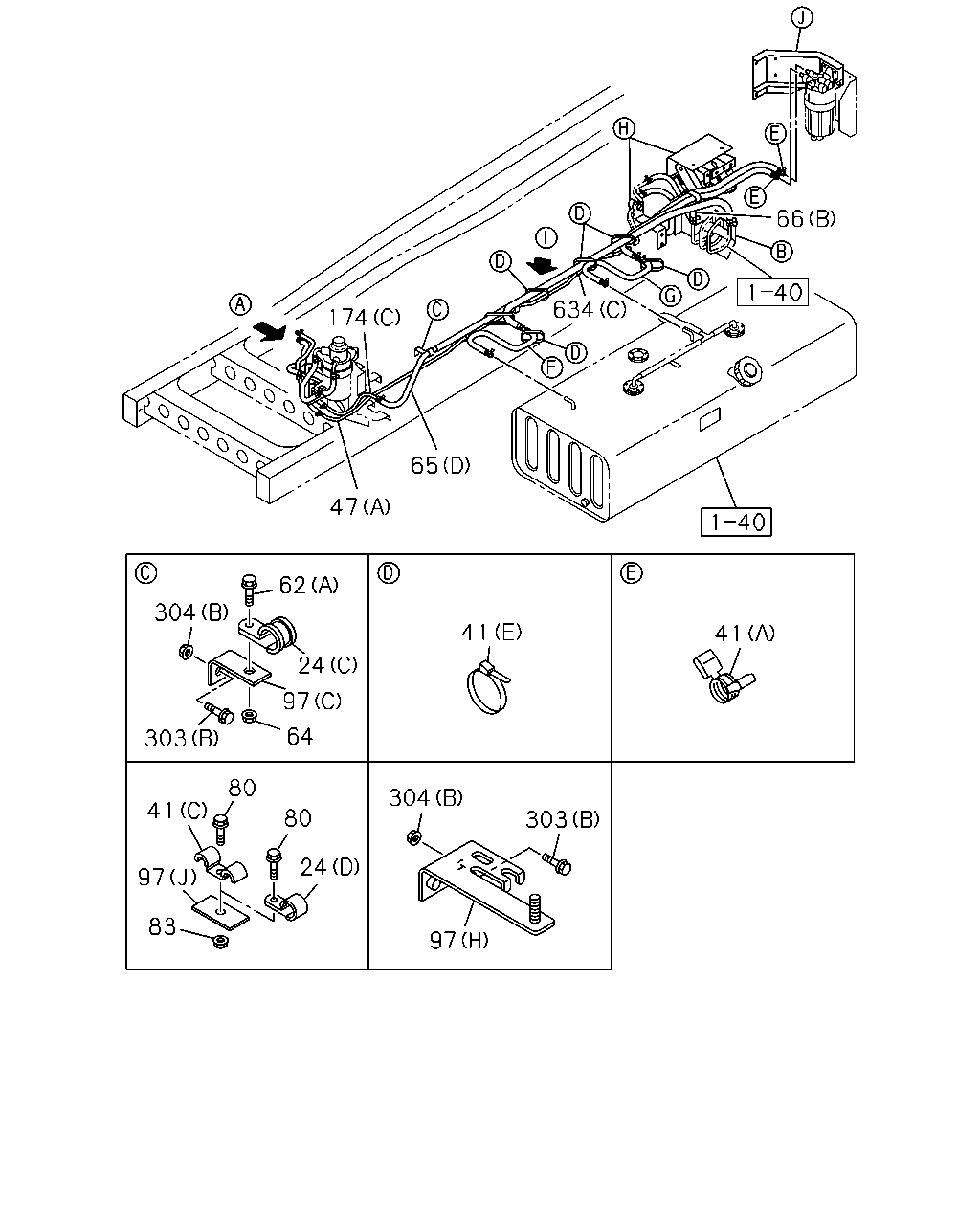

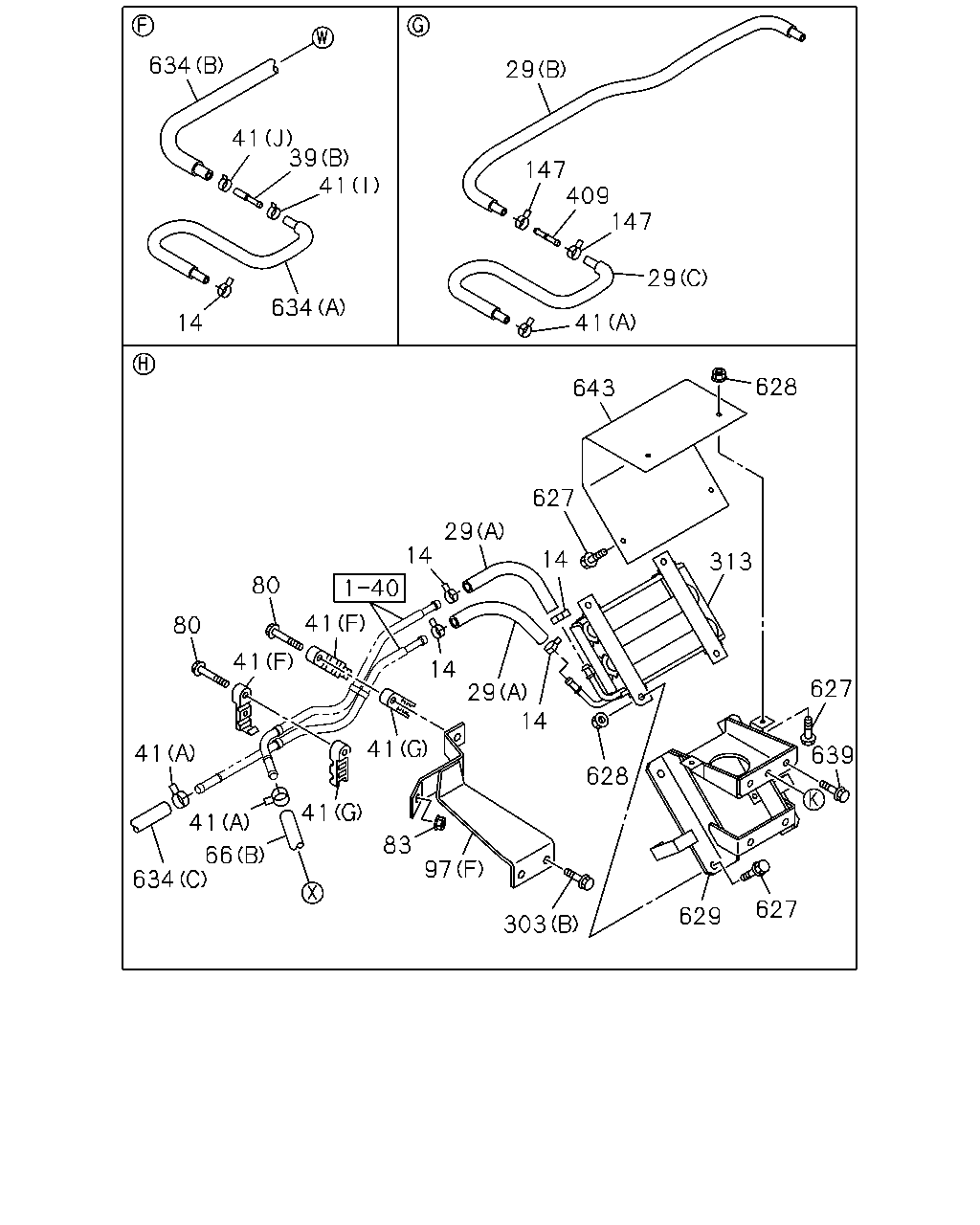

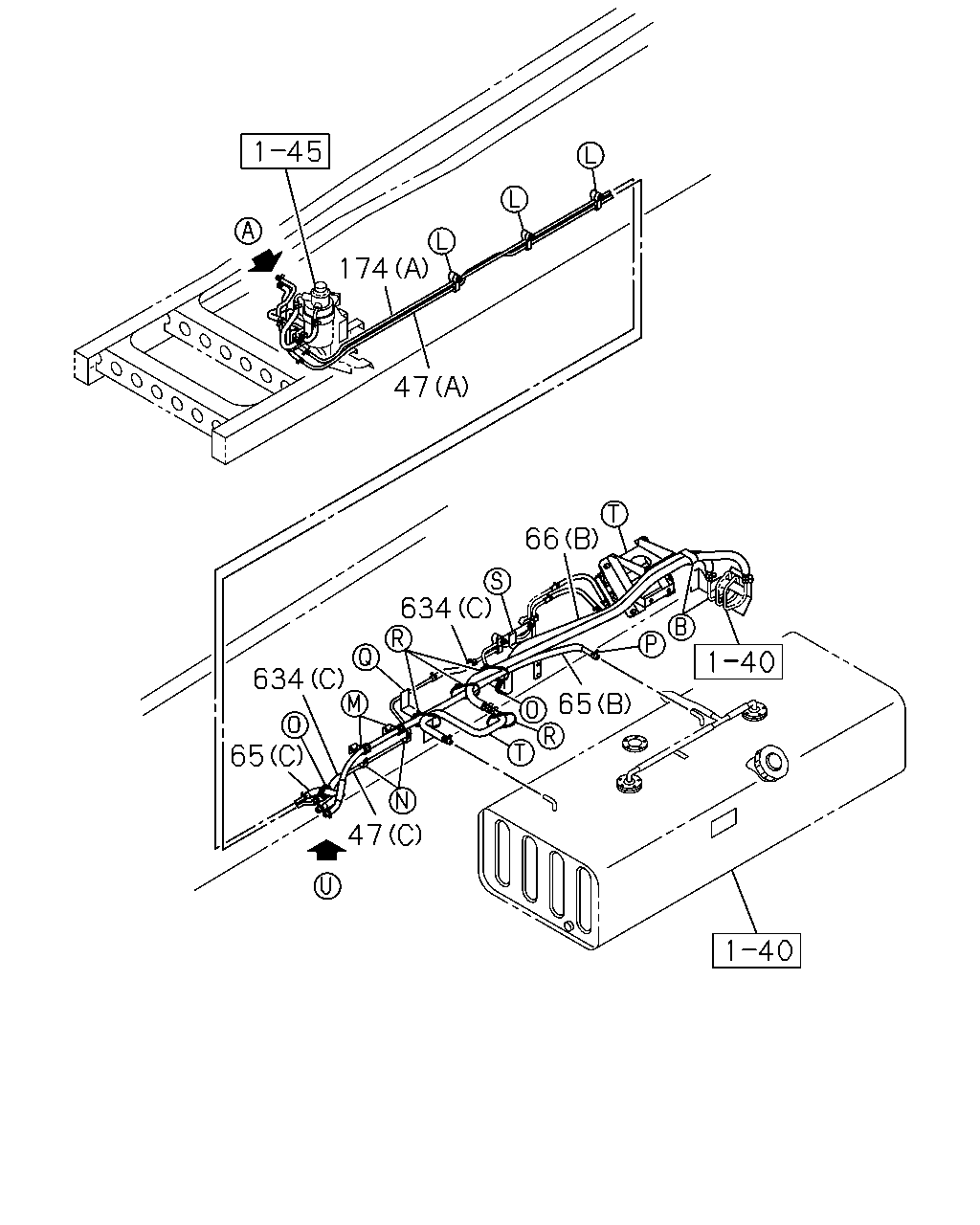

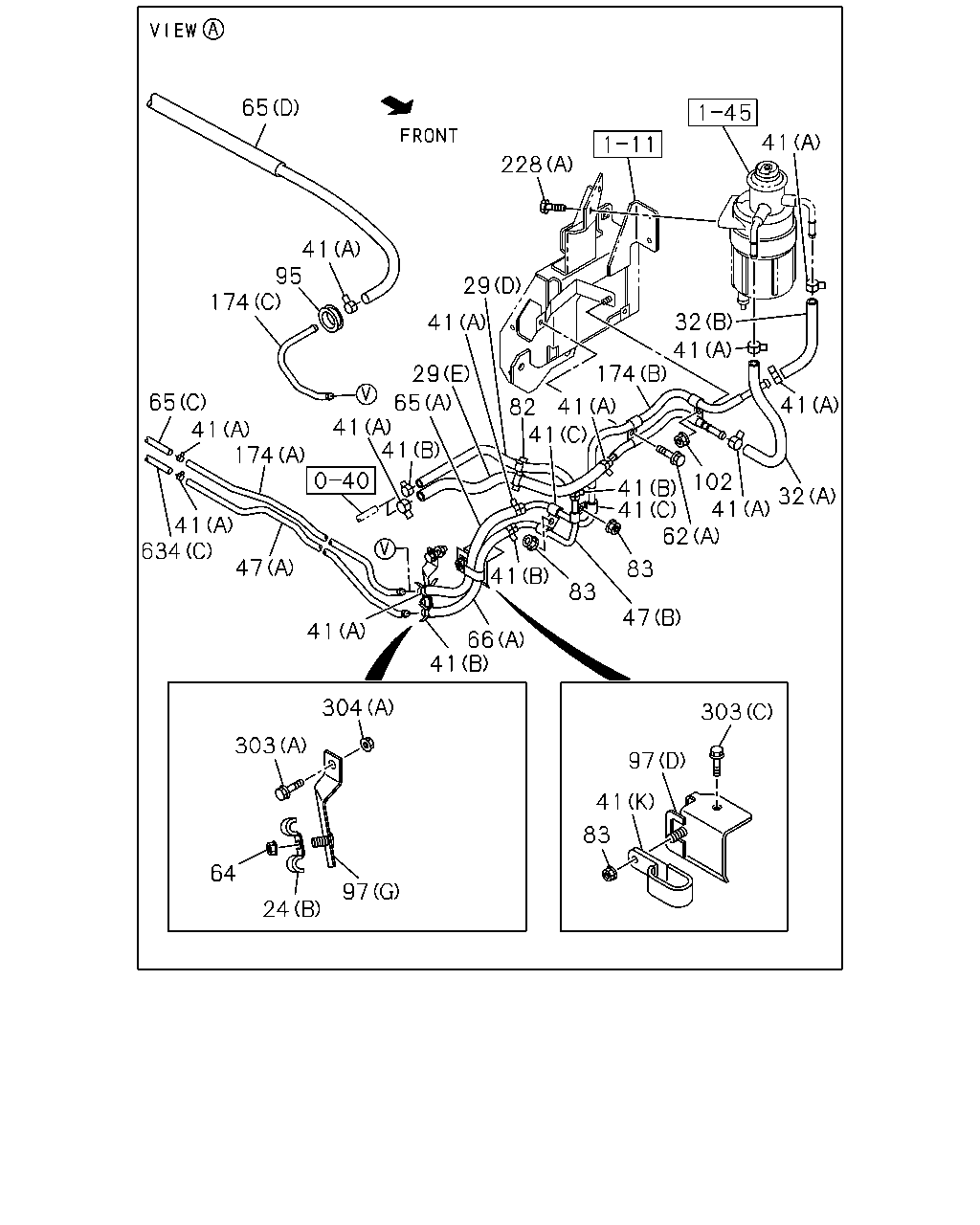

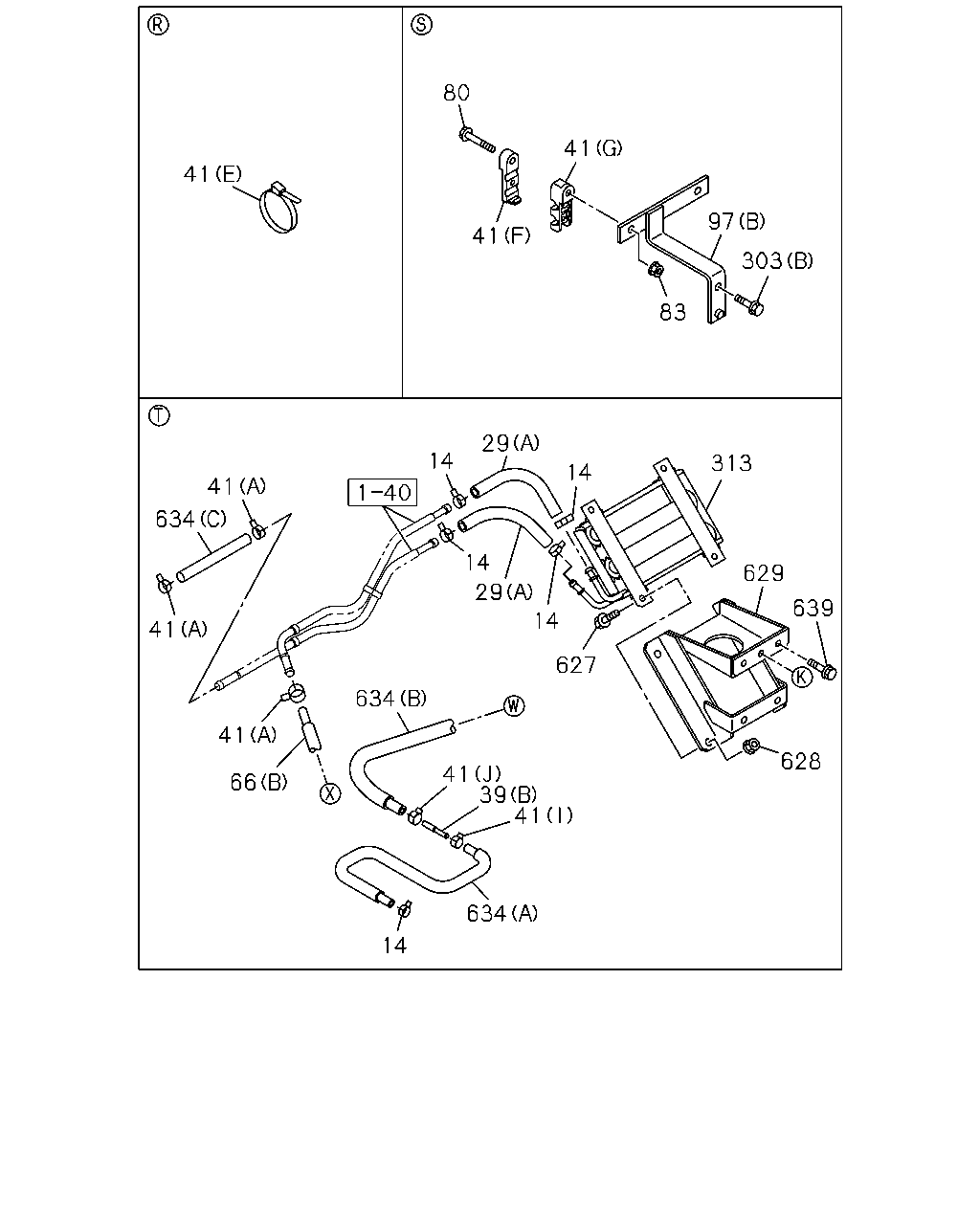

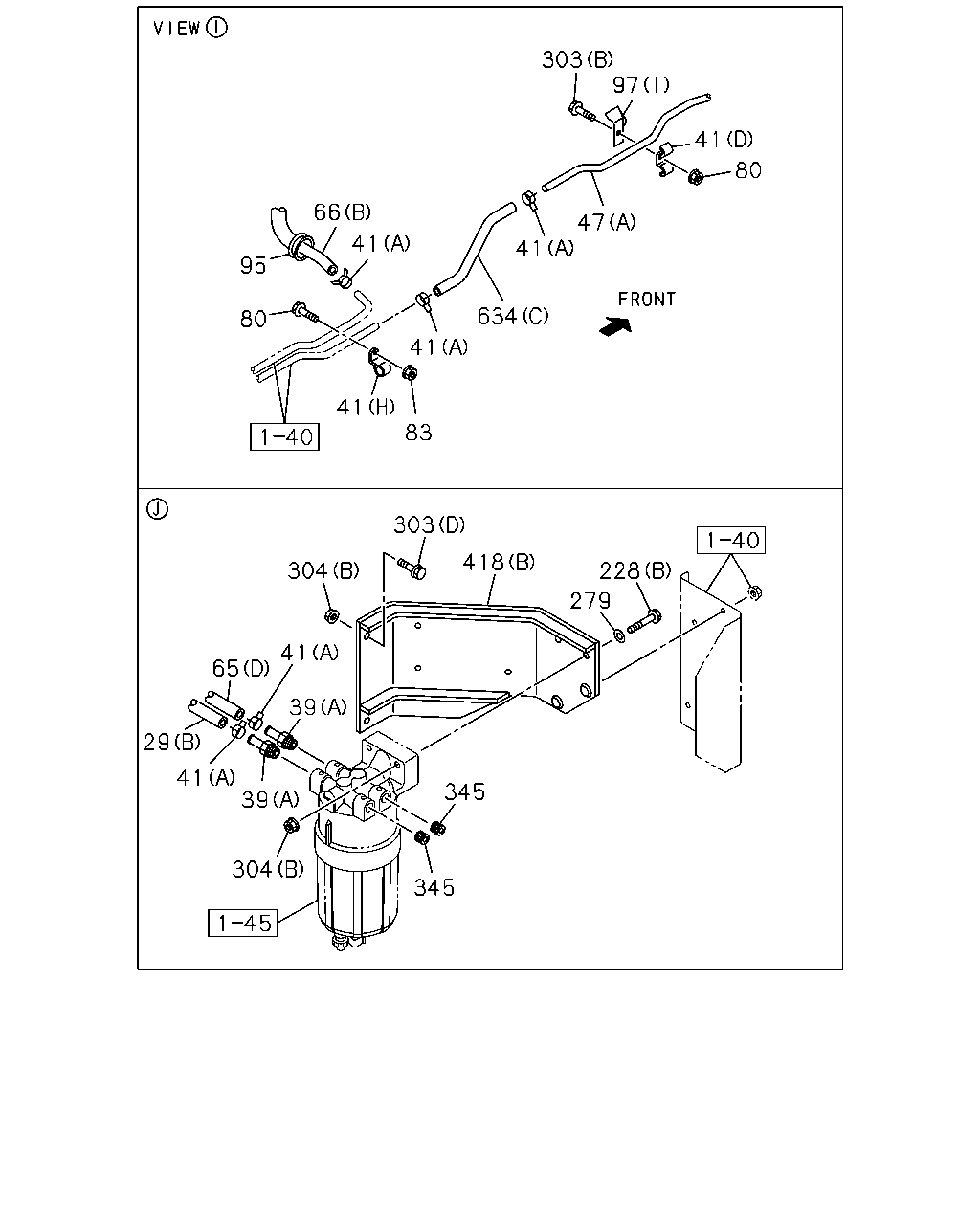

1-41 — FUEL PIPING; CHASSIS (#175643) — 537 parça

174 47 634 65 634 66 65 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) (A) L=848	8-98331-406-0	01	1	1601-
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1601-
47	PIPE; FUEL,RETURN WHEEL BASE 5300MM(53W) (A) L=1561	8-98312-249-0	01	1	1601-
47	PIPE; FUEL,RETURN WHEEL BASE 5300MM(53W) (C) L=945	8-98312-262-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (D)	8-98332-361-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) (B)	8-98333-842-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) (C)	8-98333-843-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE (A) L=320 SERVICED BY L=3000	0-01859-300-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B)	8-98332-359-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 5300MM(53W) (B)	8-98333-214-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01558-300-0	01	1	1601-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) (C)	8-98331-405-0	01	1	1601-
174	PIPE; FUEL,FEED,FRT (B)	8-98209-083-0	01	1	1601-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5300MM(53W) (A)	8-98312-248-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (B)	8-98332-370-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) (B)	8-98333-217-0	01	1	1601-
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1601-

174 47 65 634 66 41 41 303 304 97 24 80 80 41 97 83 303 304 62 24 97 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (D) ID=11 L=20	0-95235-036-0	01	1	1601-
24	CLIP; FUEL HOSE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1601-
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (C) ID=21 L=24	8-98019-191-0	01	1	1601-
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (A) ID=24 & 24 L=49	1-09701-018-0	01	1	1601-
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (A) ID=16	8-94238-568-0	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) (A) L=848	8-98331-406-0	01	1	1601-
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1601-
47	PIPE; FUEL,RETURN WHEEL BASE 5300MM(53W) (A) L=1561	8-98312-249-0	01	1	1601-
47	PIPE; FUEL,RETURN WHEEL BASE 5300MM(53W) (C) L=945	8-98312-262-0	01	1	1601-
62	BOLT; CLIP FIX WHEEL BASE 3700MM(37W) (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-
62	BOLT; CLIP FIX WHEEL BASE 5300MM(53W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1601-
62	BOLT; CLIP FIX WHEEL BASE 5300MM(53W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1601-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1601-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (D)	8-98332-361-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) (B)	8-98333-842-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) (C)	8-98333-843-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE (A) L=320 SERVICED BY L=3000	0-01859-300-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B)	8-98332-359-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 5300MM(53W) (B)	8-98333-214-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01558-300-0	01	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	03	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	05	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	03	1	1601-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1601-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1601-
83	NUT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	08	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (J) L=50	1-47475-299-2	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (H)	8-98332-559-0	01	1	1601-
97	BRACKET; CLIP (G)	8-98159-584-0	01	1	1601-
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1601-
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (C) L=55	1-47476-177-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (I)	8-98117-691-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (C) L=55	1-47476-177-0	02	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (E)	8-98304-248-0	01	1	1601-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) (C)	8-98331-405-0	01	1	1601-
174	PIPE; FUEL,FEED,FRT (B)	8-98209-083-0	01	1	1601-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5300MM(53W) (A)	8-98312-248-0	01	1	1601-
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-
304	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-
304	NUT; BRKT WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (B)	8-98332-370-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) (B)	8-98333-217-0	01	1	1601-
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1601-

303 97 41 80 47 41 66 41 634 41 95 80 41 83 303 304 418 228 279 41 65 39 29 41 39 304 345 345

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C)	8-98332-316-0	01	1	1601-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B)	8-98332-338-0	01	1	1601-
29	HOSE; FUEL (A) L=180 SERVICED BY L=3000	0-01558-300-0	02	1	1601-
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1601-
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1601-
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1601-
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (A) ID=16	8-94238-568-0	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) (A) L=848	8-98331-406-0	01	1	1601-
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1601-
47	PIPE; FUEL,RETURN WHEEL BASE 5300MM(53W) (A) L=1561	8-98312-249-0	01	1	1601-
47	PIPE; FUEL,RETURN WHEEL BASE 5300MM(53W) (C) L=945	8-98312-262-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (D)	8-98332-361-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) (B)	8-98333-842-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) (C)	8-98333-843-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE (A) L=320 SERVICED BY L=3000	0-01859-300-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B)	8-98332-359-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 5300MM(53W) (B)	8-98333-214-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01558-300-0	01	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	03	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	05	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	03	1	1601-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1601-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1601-
83	NUT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	08	1	1601-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (J) L=50	1-47475-299-2	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (H)	8-98332-559-0	01	1	1601-
97	BRACKET; CLIP (G)	8-98159-584-0	01	1	1601-
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1601-
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (C) L=55	1-47476-177-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (I)	8-98117-691-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (C) L=55	1-47476-177-0	02	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (E)	8-98304-248-0	01	1	1601-
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1601-
228	BOLT; BRKT,SEDIMENTER (A) M10X20 FLANGE	0-28651-020-0	02	1	1601-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1601-
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-
304	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-
304	NUT; BRKT WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1601-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1601-
418	BRACKET; PRE FUEL FILTER WHEEL BASE 3700MM(37W) (B)	8-98306-550-1	01	1	1601-
418	BRACKET; PRE FUEL FILTER WHEEL BASE 5300MM(53W) (A)	8-98114-787-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (B)	8-98332-370-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) (B)	8-98333-217-0	01	1	1601-
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1601-

80 41 41 83 304 62 24 64 97 303 41 95 83 41 80 83 80 41 303 97

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (D) ID=11 L=20	0-95235-036-0	01	1	1601-
24	CLIP; FUEL HOSE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1601-
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (C) ID=21 L=24	8-98019-191-0	01	1	1601-
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (A) ID=24 & 24 L=49	1-09701-018-0	01	1	1601-
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (A) ID=16	8-94238-568-0	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-
62	BOLT; CLIP FIX WHEEL BASE 3700MM(37W) (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-
62	BOLT; CLIP FIX WHEEL BASE 5300MM(53W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1601-
62	BOLT; CLIP FIX WHEEL BASE 5300MM(53W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1601-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	03	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	05	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	03	1	1601-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1601-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1601-
83	NUT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	08	1	1601-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (J) L=50	1-47475-299-2	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (H)	8-98332-559-0	01	1	1601-
97	BRACKET; CLIP (G)	8-98159-584-0	01	1	1601-
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1601-
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (C) L=55	1-47476-177-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (I)	8-98117-691-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (C) L=55	1-47476-177-0	02	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (E)	8-98304-248-0	01	1	1601-
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-
304	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-
304	NUT; BRKT WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1601-

304 418 304 303 345 345 228 279 39 41 65 39 41 41 65

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1601-
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (A) ID=16	8-94238-568-0	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (D)	8-98332-361-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) (B)	8-98333-842-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) (C)	8-98333-843-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE (A) L=320 SERVICED BY L=3000	0-01859-300-0	01	1	1601-
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1601-
228	BOLT; BRKT,SEDIMENTER (A) M10X20 FLANGE	0-28651-020-0	02	1	1601-
279	WASHER ID=10.5 OD=26	0-91614-710-0	02	1	1601-
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-
304	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-
304	NUT; BRKT WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1601-
345	PLUG NPTF3/8-18	8-97329-623-0	02	1	1601-
418	BRACKET; PRE FUEL FILTER WHEEL BASE 3700MM(37W) (B)	8-98306-550-1	01	1	1601-
418	BRACKET; PRE FUEL FILTER WHEEL BASE 5300MM(53W) (A)	8-98114-787-0	01	1	1601-

24 66 634 304 97 303 294 171 98 294 171 41 308 106 41 62

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (D) ID=11 L=20	0-95235-036-0	01	1	1601-
24	CLIP; FUEL HOSE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1601-
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (C) ID=21 L=24	8-98019-191-0	01	1	1601-
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (A) ID=24 & 24 L=49	1-09701-018-0	01	1	1601-
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (A) ID=16	8-94238-568-0	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-
62	BOLT; CLIP FIX WHEEL BASE 3700MM(37W) (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-
62	BOLT; CLIP FIX WHEEL BASE 5300MM(53W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1601-
62	BOLT; CLIP FIX WHEEL BASE 5300MM(53W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B)	8-98332-359-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 5300MM(53W) (B)	8-98333-214-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01558-300-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (J) L=50	1-47475-299-2	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (H)	8-98332-559-0	01	1	1601-
97	BRACKET; CLIP (G)	8-98159-584-0	01	1	1601-
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1601-
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (C) L=55	1-47476-177-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (I)	8-98117-691-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (C) L=55	1-47476-177-0	02	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (E)	8-98304-248-0	01	1	1601-
98	BOLT; BRKT,FUEL PIPE M8X20 FLANGE	0-28650-820-0	01	1	1601-
106	NUT; FUEL PIPE M8 FLANGE	0-91180-108-0	01	1	1601-
171	BOLT; CLIP M8X20 FLANGE	0-28650-820-0	02	1	1601-
294	CLIP; FUEL PIPE (A) ID=11 L=16	0-95235-025-0	01	1	1601-
294	CLIP; FUEL PIPE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1601-
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-
304	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-
304	NUT; BRKT WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1601-
308	BRACKET; FUEL PIPE	8-98249-019-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (B)	8-98332-370-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) (B)	8-98333-217-0	01	1	1601-
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1601-

41 41 41 80 97 83 303 313 629 639 628 627 14 29 14 14 14 29 41 39 41 634 41 66 14 634 41 634 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; HOSE ID=13	8-94238-571-0	05	1	1601-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C)	8-98332-316-0	01	1	1601-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B)	8-98332-338-0	01	1	1601-
29	HOSE; FUEL (A) L=180 SERVICED BY L=3000	0-01558-300-0	02	1	1601-
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1601-
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1601-
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1601-
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (A) ID=16	8-94238-568-0	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B)	8-98332-359-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 5300MM(53W) (B)	8-98333-214-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01558-300-0	01	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	03	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	05	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	03	1	1601-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1601-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1601-
83	NUT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	08	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (J) L=50	1-47475-299-2	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (H)	8-98332-559-0	01	1	1601-
97	BRACKET; CLIP (G)	8-98159-584-0	01	1	1601-
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1601-
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (C) L=55	1-47476-177-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (I)	8-98117-691-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (C) L=55	1-47476-177-0	02	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (E)	8-98304-248-0	01	1	1601-
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-
313	COOLER ASM; FUEL	8-98227-679-1	01	1	1601-
627	BOLT; FUEL CLR M6X25 FLANGE	0-28650-625-0	04	1	1601-
627	BOLT; FUEL CLR WHEEL BASE 3700MM(37W) M6X25 FLANGE	0-28650-625-0	04	1	1601-
628	NUT; FUEL CLR M6 FLANGE	0-91180-106-0	04	1	1601-
628	NUT; FUEL CLR WHEEL BASE 3700MM(37W) M6 FLANGE	0-91180-106-0	04	1	1601-
629	BRACKET; FUEL CLR WHEEL BASE 3700MM(37W)	8-98306-633-0	01	1	1601-
629	BRACKET; FUEL CLR WHEEL BASE 5300MM(53W)	8-98224-320-1	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (B)	8-98332-370-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) (B)	8-98333-217-0	01	1	1601-
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1601-
639	BOLT; BRKT,FUEL CLR M10X35 FLANGE	0-28651-035-0	04	1	1601-

634 41 39 14 634 41 29 147 409 147 29 41 643 628 627 313 29 14 14 14 29 14 628 627 639 629 627 303 97 83 41 41 41 80 80 41 41 41 634 66

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
14	CLIP; HOSE ID=13	8-94238-571-0	05	1	1601-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C)	8-98332-316-0	01	1	1601-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B)	8-98332-338-0	01	1	1601-
29	HOSE; FUEL (A) L=180 SERVICED BY L=3000	0-01558-300-0	02	1	1601-
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1601-
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1601-
39	PIPE; FUEL (B)	8-98009-438-1	01	1	1601-
39	PIPE; FUEL (A) NPTF3/8-18 OD=10	8-98122-953-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (A) ID=16	8-94238-568-0	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B)	8-98332-359-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 5300MM(53W) (B)	8-98333-214-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01558-300-0	01	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X50 FLANGE	0-28050-850-0	03	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8X20 FLANGE	0-28650-820-0	02	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8X50 FLANGE	0-28050-850-0	05	1	1601-
80	BOLT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8X25 FLANGE	0-28650-825-0	03	1	1601-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1601-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1601-
83	NUT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	08	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (J) L=50	1-47475-299-2	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (H)	8-98332-559-0	01	1	1601-
97	BRACKET; CLIP (G)	8-98159-584-0	01	1	1601-
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1601-
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (C) L=55	1-47476-177-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (I)	8-98117-691-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (C) L=55	1-47476-177-0	02	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (E)	8-98304-248-0	01	1	1601-
147	CLIP; FUEL PIPE TO HOSE WHEEL BASE 3700MM(37W) ID=16	8-98008-098-0	02	1	1601-
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-
313	COOLER ASM; FUEL	8-98227-679-1	01	1	1601-
409	JOINT; PIPE WHEEL BASE 3700MM(37W)	8-98333-093-0	01	1	1601-
627	BOLT; FUEL CLR M6X25 FLANGE	0-28650-625-0	04	1	1601-
627	BOLT; FUEL CLR WHEEL BASE 3700MM(37W) M6X25 FLANGE	0-28650-625-0	04	1	1601-
628	NUT; FUEL CLR M6 FLANGE	0-91180-106-0	04	1	1601-
628	NUT; FUEL CLR WHEEL BASE 3700MM(37W) M6 FLANGE	0-91180-106-0	04	1	1601-
629	BRACKET; FUEL CLR WHEEL BASE 3700MM(37W)	8-98306-633-0	01	1	1601-
629	BRACKET; FUEL CLR WHEEL BASE 5300MM(53W)	8-98224-320-1	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (B)	8-98332-370-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) (B)	8-98333-217-0	01	1	1601-
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1601-
639	BOLT; BRKT,FUEL CLR M10X35 FLANGE	0-28651-035-0	04	1	1601-
643	COVER; FUEL COOLER WHEEL BASE 3700MM(37W)	8-98306-623-0	01	1	1601-

65 41 95 174 65 41 174 41 634 47 41 41 41 65 29 41 29 228 41 32 41 174 41 82 41 41 32 41 102 41 41 62 83 83 41 66 41 47 304 303 64 24 97 303 97 41 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (D) ID=11 L=20	0-95235-036-0	01	1	1601-
24	CLIP; FUEL HOSE (B) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	01	1	1601-
24	CLIP; FUEL HOSE WHEEL BASE 3700MM(37W) (C) ID=21 L=24	8-98019-191-0	01	1	1601-
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (A) ID=24 & 24 L=49	1-09701-018-0	01	1	1601-
24	CLIP; FUEL HOSE WHEEL BASE 5300MM(53W) (C) ID=21 L=24	8-98019-191-0	02	1	1601-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (C)	8-98332-316-0	01	1	1601-
29	HOSE; FUEL WHEEL BASE 3700MM(37W) (B)	8-98332-338-0	01	1	1601-
29	HOSE; FUEL (A) L=180 SERVICED BY L=3000	0-01558-300-0	02	1	1601-
29	HOSE; FUEL (D)	8-98165-972-0	01	1	1601-
29	HOSE; FUEL (E)	8-98204-103-0	01	1	1601-
32	PIPE; DELIVERY,FUEL TANK (B) L=140 SERVICED BY L=3000	0-01859-300-0	01	1	1601-
32	PIPE; DELIVERY,FUEL TANK (A)	8-98204-102-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (D) ID=11 & 11 L=17.5 & 17.5	1-09700-739-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (F) ID=10 & 10	1-09709-241-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (G) ID=10 & 10	1-09709-243-0	03	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (E) L=250	5-09707-030-1	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=16	8-94238-568-0	08	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=13	8-94238-571-0	04	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (I) ID=13	8-97173-220-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (J) ID=16	8-98008-098-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK (K)	8-98203-791-0	01	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 3700MM(37W) (A) ID=16	8-94238-568-0	09	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (F) ID=10 & 10	1-09709-241-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (G) ID=10 & 10	1-09709-243-0	05	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (E) L=250	5-09707-030-1	07	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (A) ID=16	8-94238-568-0	11	1	1601-
41	CLIP; FUEL PIPE,FUEL TANK WHEEL BASE 5300MM(53W) (H) ID=11 H=20 L=20	8-98033-780-0	03	1	1601-
47	PIPE; FUEL,RETURN WHEEL BASE 3700MM(37W) (A) L=848	8-98331-406-0	01	1	1601-
47	PIPE; FUEL,RETURN (B) L=284	8-98209-084-0	01	1	1601-
47	PIPE; FUEL,RETURN WHEEL BASE 5300MM(53W) (A) L=1561	8-98312-249-0	01	1	1601-
47	PIPE; FUEL,RETURN WHEEL BASE 5300MM(53W) (C) L=945	8-98312-262-0	01	1	1601-
62	BOLT; CLIP FIX WHEEL BASE 3700MM(37W) (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-
62	BOLT; CLIP FIX (A) M8X20 FLANGE	0-28650-820-0	01	1	1601-
62	BOLT; CLIP FIX WHEEL BASE 5300MM(53W) (A) M8X20 FLANGE	0-28650-820-0	02	1	1601-
62	BOLT; CLIP FIX WHEEL BASE 5300MM(53W) (B) M8X30 FLANGE	0-28650-830-0	01	1	1601-
64	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	1601-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 3700MM(37W) (D)	8-98332-361-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) (B)	8-98333-842-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE WHEEL BASE 5300MM(53W) (C)	8-98333-843-0	01	1	1601-
65	HOSE; FUEL,DELIVERY PIPE (A) L=320 SERVICED BY L=3000	0-01859-300-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 3700MM(37W) (B)	8-98332-359-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE WHEEL BASE 5300MM(53W) (B)	8-98333-214-0	01	1	1601-
66	HOSE; FUEL,RETURN PIPE (A) L=300 SERVICED BY L=3000	0-01558-300-0	01	1	1601-
82	CLIP; FUEL HOSE ID=13 & 16.5	8-94169-028-0	01	1	1601-
83	NUT; CLIP,FUEL TANK WHEEL BASE 3700MM(37W) M8 FLANGE	0-91180-108-0	04	1	1601-
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	03	1	1601-
83	NUT; CLIP,FUEL TANK WHEEL BASE 5300MM(53W) M8 FLANGE	0-91180-108-0	08	1	1601-
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (J) L=50	1-47475-299-2	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (H)	8-98332-559-0	01	1	1601-
97	BRACKET; CLIP (G)	8-98159-584-0	01	1	1601-
97	BRACKET; CLIP (D)	8-98209-082-0	01	1	1601-
97	BRACKET; CLIP (A)	8-98249-018-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (C) L=55	1-47476-177-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (I)	8-98117-691-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 3700MM(37W) (F)	8-98284-913-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (C) L=55	1-47476-177-0	02	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (B)	8-98239-701-0	01	1	1601-
97	BRACKET; CLIP WHEEL BASE 5300MM(53W) (E)	8-98304-248-0	01	1	1601-
102	NUT; CLIP,FUEL PIPE M8 FLANGE	0-91180-108-0	02	1	1601-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 3700MM(37W) (C)	8-98331-405-0	01	1	1601-
174	PIPE; FUEL,FEED,FRT (B)	8-98209-083-0	01	1	1601-
174	PIPE; FUEL,FEED,FRT WHEEL BASE 5300MM(53W) (A)	8-98312-248-0	01	1	1601-
228	BOLT; BRKT,SEDIMENTER (B) M10X60 FLANGE	0-28051-060-0	02	1	1601-
228	BOLT; BRKT,SEDIMENTER (A) M10X20 FLANGE	0-28651-020-0	02	1	1601-
303	BOLT; BRKT (C) M8X20 FLANGE	0-28050-820-0	01	1	1601-
303	BOLT; BRKT (A) M8X30 FLANGE	0-28650-830-0	01	1	1601-
303	BOLT; BRKT (D) M10X35 FLANGE	0-28651-035-0	02	1	1601-
303	BOLT; BRKT WHEEL BASE 3700MM(37W) (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT (B) M10X30 FLANGE	0-28651-030-0	03	1	1601-
303	BOLT; BRKT WHEEL BASE 5300MM(53W) (B) M10X30 FLANGE	0-28651-030-0	02	1	1601-
304	NUT; BRKT (A) M8 FLANGE	0-91180-108-0	01	1	1601-
304	NUT; BRKT WHEEL BASE 3700MM(37W) (B) M10 FLANGE	0-91180-210-0	01	1	1601-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-
304	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	1601-
304	NUT; BRKT WHEEL BASE 5300MM(53W) (B) M10 FLANGE	0-91180-210-0	02	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 3700MM(37W) (B)	8-98332-370-0	01	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) (C) L=210 SERVICED BY L=3000	0-01859-300-0	02	1	1601-
634	HOSE; RUBBER RETURN WHEEL BASE 5300MM(53W) (B)	8-98333-217-0	01	1	1601-
634	HOSE; RUBBER RETURN (A)	8-98312-408-0	01	1	1601-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
