1-10 — RADIATOR (#175637) — 131 parça

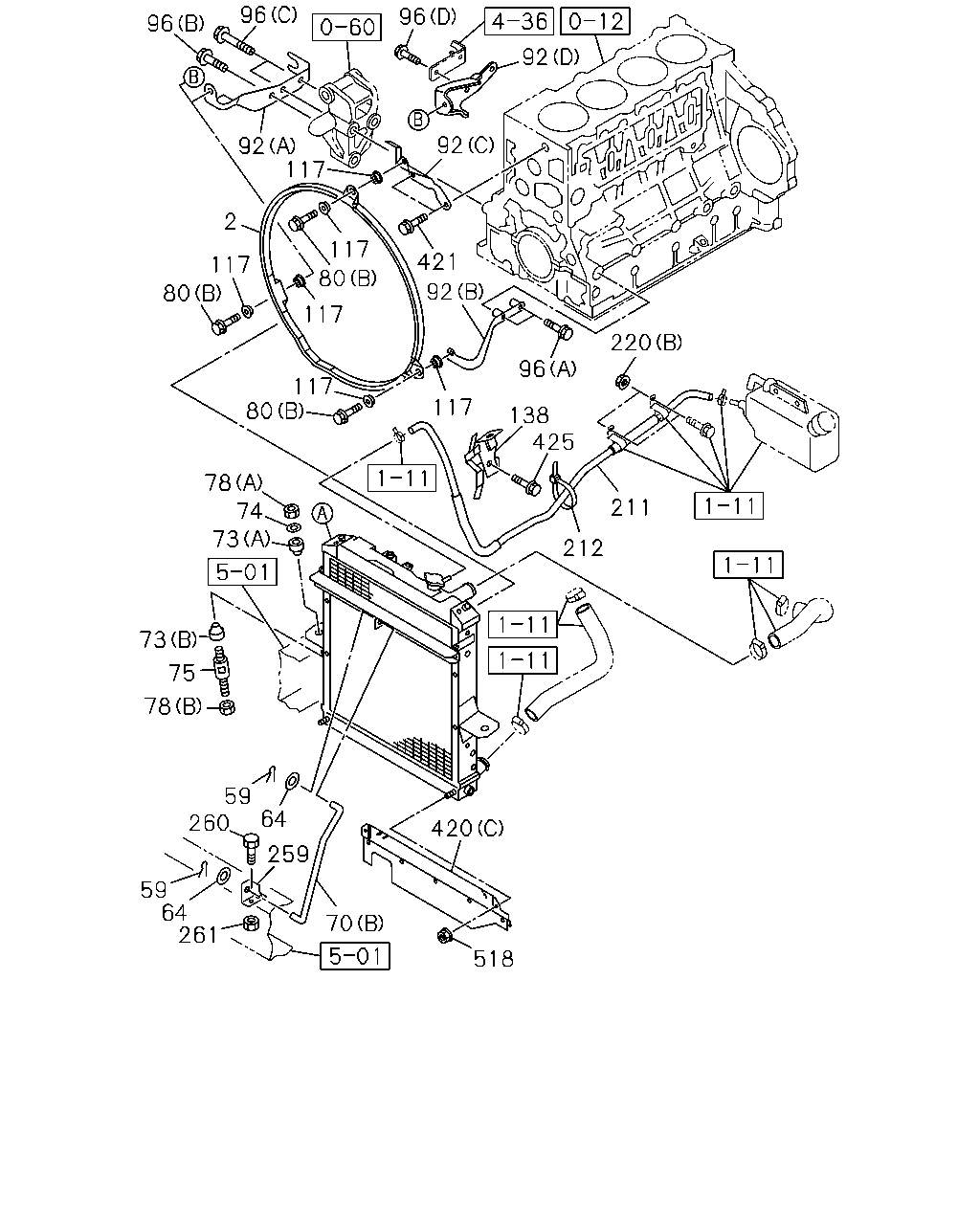

çizim 512368
96 96 92 2 117 80 80 78 73 73 78 74 75 96 92 117 117 80 117 117 421 92 96 220 117 425 138 211 212 420 70 59 260 59 64 261 64 259 518 92
BalonParca AdiParca NoAdetTipApplied Date
2 GUIDE; FAN 8-97350-995-0 01 1 1601-
59 PIN; SNAP,STAY
L=32.6 		8-97359-052-0 02 1 1601-
64 WASHER; STAY TO RAD
ID=10.5 		0-91610-510-0 02 1 1601-
70 STAY; RAD
(A) 		8-98324-399-0 01 1 1601-
70 STAY; RAD
(B) 		8-98333-704-0 01 1 1601-
73 RUBBER; CUSHION,RAD MTG
(A) T=14 		1-21467-004-0 02 1 1601-
73 RUBBER; CUSHION,RAD MTG
(B) T=24 		1-21467-011-1 02 1 1601-
74 WASHER; PL,CUSHION RUBBER
ID=11 OD=54 		1-09503-154-2 02 1 1601-
75 BOLT; CUSHION RUBBER,RAD MTG
M12X26.5,M10X19 L=86.5 		1-21466-007-3 02 1 1601-
78 NUT; CUSHION RUBBER
(A) M10 FLANGE 		0-91180-210-0 02 1 1601-
78 NUT; CUSHION RUBBER
(B) M12 FLANGE 		0-91180-212-0 02 1 1601-
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 06 1 1601-
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1601-
92 BRACKET; FAN GUIDE
(B) 		8-98084-484-2 01 1 1601-
92 BRACKET; FAN GUIDE
(C) 		8-98097-128-2 01 1 1601-
92 BRACKET; FAN GUIDE
GENERATOR 24V60A(KG2) (A) 		8-98124-167-0 01 1 1601-
92 BRACKET; FAN GUIDE
GENERATOR 24V90A(K44) (D) 		8-98134-201-0 01 1 1601-
96 BOLT; STAY FIX
(A) M8X50 FLANGE 		0-28050-850-0 02 1 1601-
96 BOLT; STAY FIX
GENERATOR 24V60A(KG2) (B) M10X20 FLANGE 		0-28151-020-0 01 1 1601-
96 BOLT; STAY FIX
GENERATOR 24V60A(KG2) (C) M10X75 FLANGE 		8-94399-669-1 02 1 1601-
96 BOLT; STAY FIX
GENERATOR 24V90A(K44) (D) M10X25 FLANGE 		0-28751-025-0 02 1 1601-
117 RUBBER; MTG,FAN GUIDE 1-09337-027-0 06 1 1601-
138 BRACKET; CLIP 8-98167-841-1 01 1 1601-
211 HOSE; RAD TO PIPE 8-98304-598-0 01 1 1601-
212 CLIP; HOSE
L=250 		5-09707-030-1 01 1 1601-
220 NUT; CLIP
(A) M8 		8-98040-792-0 02 1 1601-
220 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 02 1 1601-
259 BRACKET; RAD STAY 8-98158-429-0 01 1 1601-
260 BOLT; BRKT
M8X20 FLANGE 		0-28650-820-0 02 1 1601-
261 NUT; BRKT
M8 FLANGE 		0-91180-108-0 02 1 1601-
420 GUIDE; AIR,RAD
(C) 		8-98307-114-1 01 1 1601-
420 GUIDE; AIR,RAD
(B) 		8-98333-122-1 01 1 1601-
420 GUIDE; AIR,RAD
FRONT UNDER RUN PROTECTOR<EBE> (F) 		8-98251-563-0 01 1 1601-
420 GUIDE; AIR,RAD
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98311-128-0 01 1 1601-
420 GUIDE; AIR,RAD
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98307-377-2 01 1 1601-
420 GUIDE; AIR,RAD
EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98309-076-1 01 1 1601-
421 BOLT; BRKT FAN GUIDE
M10X16 FLANGE 		0-28151-016-0 02 1 1601-
425 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 1601-
518 NUT
M8 FLANGE 		0-91180-108-0 02 1 1601-

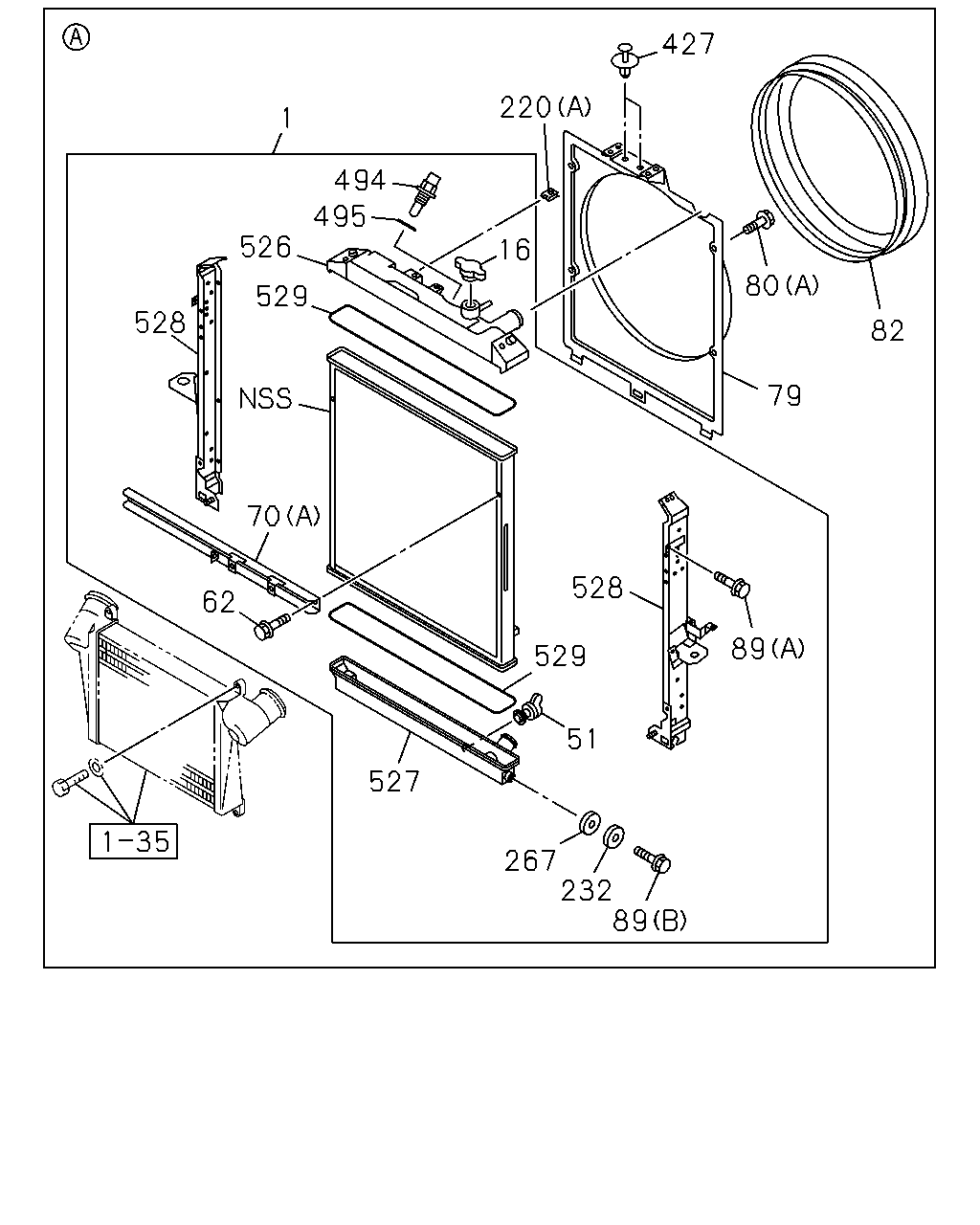

çizim 512454
89 79 82 80 427 220 16 494 495 526 529 528 70 62 527 267 232 89 529 528 51 1
BalonParca AdiParca NoAdetTipApplied Date
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98300-844-0 01 1 1601-
1 RADIATOR ASM
SMOOTHER-FX(TYPE2)(8NS) 		8-98300-845-0 01 1 1601-
16 CAP; RAD 8-98096-226-0 01 1 1601-
51 PLUG; DRAIN
W/GASKET 		8-97171-437-0 01 1 1601-
62 BOLT; STAY
M8X12 FLANGE 		0-28050-812-0 02 1 1601-
70 STAY; RAD
(A) 		8-98324-399-0 01 1 1601-
70 STAY; RAD
(B) 		8-98333-704-0 01 1 1601-
79 GUIDE; FAN,RAD 8-98303-545-0 01 1 1601-
80 BOLT; FAN GUIDE
(A) M6X16 		1-21559-481-0 06 1 1601-
80 BOLT; FAN GUIDE
(B) M8X30 FLANGE 		0-28650-830-0 03 1 1601-
82 COVER; FAN,RAD 8-98006-478-0 01 1 1601-
89 BOLT
(A) M8X12 FLANGE 		0-28050-812-0 02 1 1601-
89 BOLT
(B) M8X25 W/PL WASHER 		1-21469-153-0 02 1 1601-
220 NUT; CLIP
(A) M8 		8-98040-792-0 02 1 1601-
220 NUT; CLIP
(B) M8 FLANGE 		0-91180-108-0 02 1 1601-
232 COLLAR; DIST,CUSHION RUBBER 8-98141-232-0 02 1 1601-
267 RUBBER; CUSHION 1-21467-023-0 02 1 1601-
427 CLIP; FAN GUIDE 1-09470-009-0 02 1 1601-
494 SENSOR; LEVEL 8-98306-967-0 01 1 1601-
495 GASKET; SENSOR 1-09623-185-0 01 1 1601-
526 TANK; UPR,RADIATOR CORE 8-98300-867-0 01 1 1601-
527 TANK; LWR,RADIATOR CORE
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98032-433-1 01 1 1601-
527 TANK; LWR,RADIATOR CORE
SMOOTHER-FX(TYPE2)(8NS) 		8-98010-279-0 01 1 1601-
528 PLATE; SIDE,RADIATOR CORE 8-98234-936-1 01 1 1601-
528 PLATE; SIDE,RADIATOR CORE 8-98234-937-0 01 1 1601-
529 GASKET; CORE,RADIATOR 8-98032-435-0 02 1 1601-

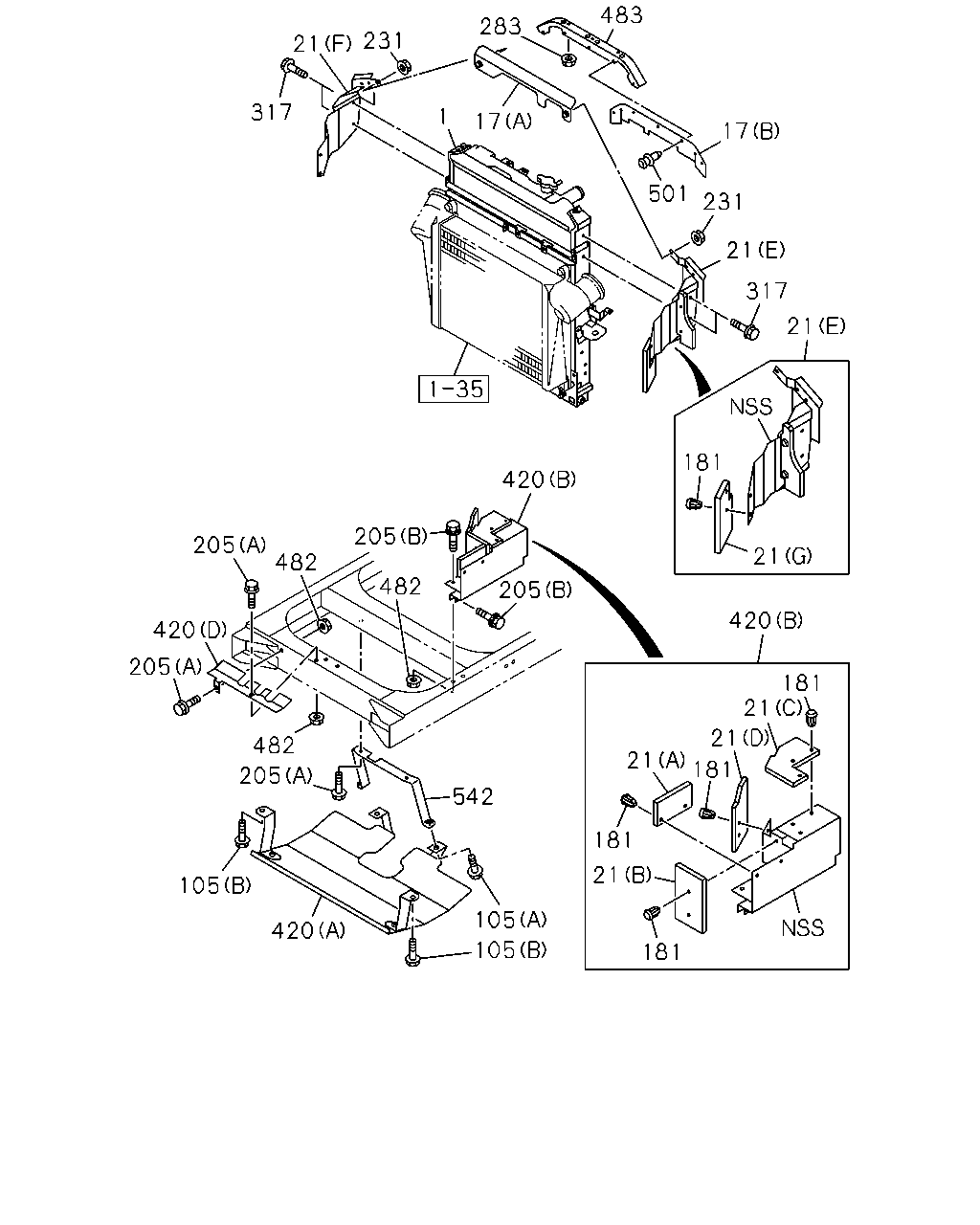

çizim 513256
21 231 1 317 17 283 483 17 501 231 21 317 21 181 21 420 181 21 21 21 181 181 21 181 105 105 542 420 105 205 482 205 420 205 482 205 482 420 205
BalonParca AdiParca NoAdetTipApplied Date
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98300-844-0 01 1 1601-
1 RADIATOR ASM
SMOOTHER-FX(TYPE2)(8NS) 		8-98300-845-0 01 1 1601-
17 SEAL; RAD,UPR
(B) 		8-98236-558-0 01 1 1601-
17 SEAL; RAD,UPR
(A) 		8-98317-352-0 01 1 1601-
21 SEAL; RAD
(A) 		8-98233-137-0 01 1 1601-
21 SEAL; RAD
(B) 		8-98233-138-0 01 1 1601-
21 SEAL; RAD
(D) 		8-98243-562-0 01 1 1601-
21 SEAL; RAD
(C) 		8-98333-126-0 01 1 1601-
21 SEAL; RAD
(G) 		8-98233-158-1 01 1 1601-
21 SEAL; RAD
(E) 		8-98286-107-0 01 1 1601-
21 SEAL; RAD
(F) 		8-98286-108-0 01 1 1601-
105 BOLT; BRKT
FRONT UNDER RUN PROTECTOR<EBE> (A) M8X25 FLANGE 		0-28650-825-0 04 1 1601-
105 BOLT; BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1601-
105 BOLT; BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X35 FLANGE 		0-28851-435-0 02 1 1601-
181 CLIP; SEAL PLATE 8-97228-568-0 11 1 1601-
205 BOLT; AIR GUIDE
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1601-
205 BOLT; AIR GUIDE
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1601-
205 BOLT; AIR GUIDE
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1601-
231 NUT; SEAL RUBBER
M8 FLANGE 		0-91180-108-0 02 1 1601-
283 NUT; BRKT
M6 FLANGE 		0-91180-106-0 03 1 1601-
317 BOLT; SEAL
M8X16 W/LK&PL WASHER 		1-09980-498-0 04 1 1601-
420 GUIDE; AIR,RAD
(C) 		8-98307-114-1 01 1 1601-
420 GUIDE; AIR,RAD
(B) 		8-98333-122-1 01 1 1601-
420 GUIDE; AIR,RAD
FRONT UNDER RUN PROTECTOR<EBE> (F) 		8-98251-563-0 01 1 1601-
420 GUIDE; AIR,RAD
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98311-128-0 01 1 1601-
420 GUIDE; AIR,RAD
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98307-377-2 01 1 1601-
420 GUIDE; AIR,RAD
EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98309-076-1 01 1 1601-
482 NUT; AIR GUIDE
M8 FLANGE 		0-91180-108-0 02 1 1601-
482 NUT; AIR GUIDE
M8 FLANGE 		0-91180-108-0 02 1 1601-
483 BRACKET; SEAL 8-98207-480-1 01 1 1601-
501 SCREW
D6X16 PUSH RIVET 		1-09983-105-0 05 1 1601-
542 BRACKET; AIR GUIDE
FRONT UNDER RUN PROTECTOR<EBE> 		8-98223-098-2 01 1 1601-
542 BRACKET; AIR GUIDE
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98309-075-0 01 1 1601-

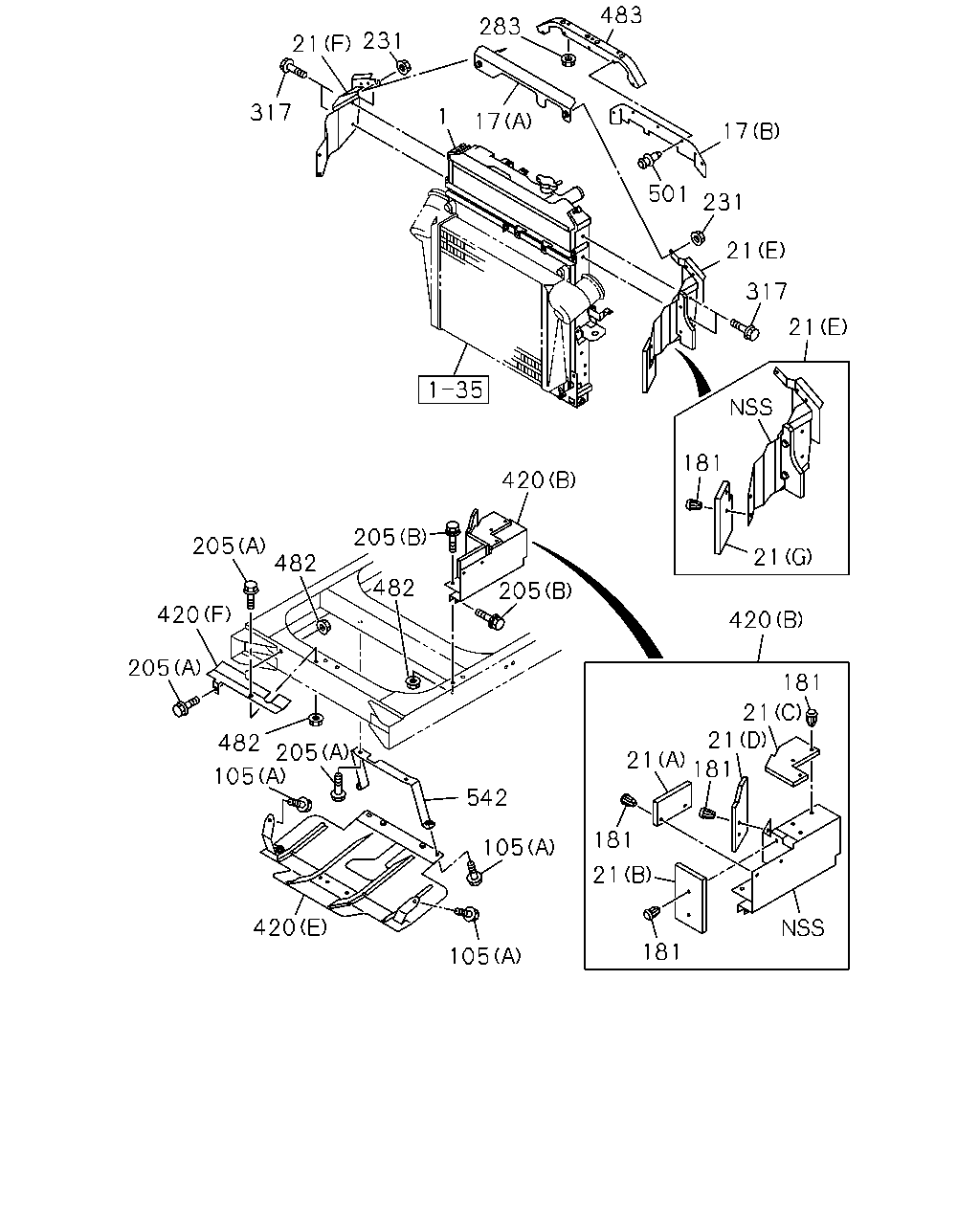

çizim 513369
21 317 231 283 483 17 501 17 1 231 21 317 21 181 21 420 181 21 21 21 181 181 21 181 420 205 542 105 105 420 105 482 205 205 420 205 482 482 205
BalonParca AdiParca NoAdetTipApplied Date
1 RADIATOR ASM
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-98300-844-0 01 1 1601-
1 RADIATOR ASM
SMOOTHER-FX(TYPE2)(8NS) 		8-98300-845-0 01 1 1601-
17 SEAL; RAD,UPR
(B) 		8-98236-558-0 01 1 1601-
17 SEAL; RAD,UPR
(A) 		8-98317-352-0 01 1 1601-
21 SEAL; RAD
(A) 		8-98233-137-0 01 1 1601-
21 SEAL; RAD
(B) 		8-98233-138-0 01 1 1601-
21 SEAL; RAD
(D) 		8-98243-562-0 01 1 1601-
21 SEAL; RAD
(C) 		8-98333-126-0 01 1 1601-
21 SEAL; RAD
(G) 		8-98233-158-1 01 1 1601-
21 SEAL; RAD
(E) 		8-98286-107-0 01 1 1601-
21 SEAL; RAD
(F) 		8-98286-108-0 01 1 1601-
105 BOLT; BRKT
FRONT UNDER RUN PROTECTOR<EBE> (A) M8X25 FLANGE 		0-28650-825-0 04 1 1601-
105 BOLT; BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) M8X25 FLANGE 		0-28650-825-0 02 1 1601-
105 BOLT; BRKT
EXC. FRONT UNDER RUN PROTECTOR<EBE> (B) M14X35 FLANGE 		0-28851-435-0 02 1 1601-
181 CLIP; SEAL PLATE 8-97228-568-0 11 1 1601-
205 BOLT; AIR GUIDE
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1601-
205 BOLT; AIR GUIDE
(A) M8X25 FLANGE 		0-28650-825-0 02 1 1601-
205 BOLT; AIR GUIDE
(B) M8X25 W/LK&PL WASHER 		1-09030-093-0 04 1 1601-
231 NUT; SEAL RUBBER
M8 FLANGE 		0-91180-108-0 02 1 1601-
283 NUT; BRKT
M6 FLANGE 		0-91180-106-0 03 1 1601-
317 BOLT; SEAL
M8X16 W/LK&PL WASHER 		1-09980-498-0 04 1 1601-
420 GUIDE; AIR,RAD
(C) 		8-98307-114-1 01 1 1601-
420 GUIDE; AIR,RAD
(B) 		8-98333-122-1 01 1 1601-
420 GUIDE; AIR,RAD
FRONT UNDER RUN PROTECTOR<EBE> (F) 		8-98251-563-0 01 1 1601-
420 GUIDE; AIR,RAD
FRONT UNDER RUN PROTECTOR<EBE> (E) 		8-98311-128-0 01 1 1601-
420 GUIDE; AIR,RAD
EXC. FRONT UNDER RUN PROTECTOR<EBE> (A) 		8-98307-377-2 01 1 1601-
420 GUIDE; AIR,RAD
EXC. FRONT UNDER RUN PROTECTOR<EBE> (D) 		8-98309-076-1 01 1 1601-
482 NUT; AIR GUIDE
M8 FLANGE 		0-91180-108-0 02 1 1601-
482 NUT; AIR GUIDE
M8 FLANGE 		0-91180-108-0 02 1 1601-
483 BRACKET; SEAL 8-98207-480-1 01 1 1601-
501 SCREW
D6X16 PUSH RIVET 		1-09983-105-0 05 1 1601-
542 BRACKET; AIR GUIDE
FRONT UNDER RUN PROTECTOR<EBE> 		8-98223-098-2 01 1 1601-
542 BRACKET; AIR GUIDE
EXC. FRONT UNDER RUN PROTECTOR<EBE> 		8-98309-075-0 01 1 1601-
