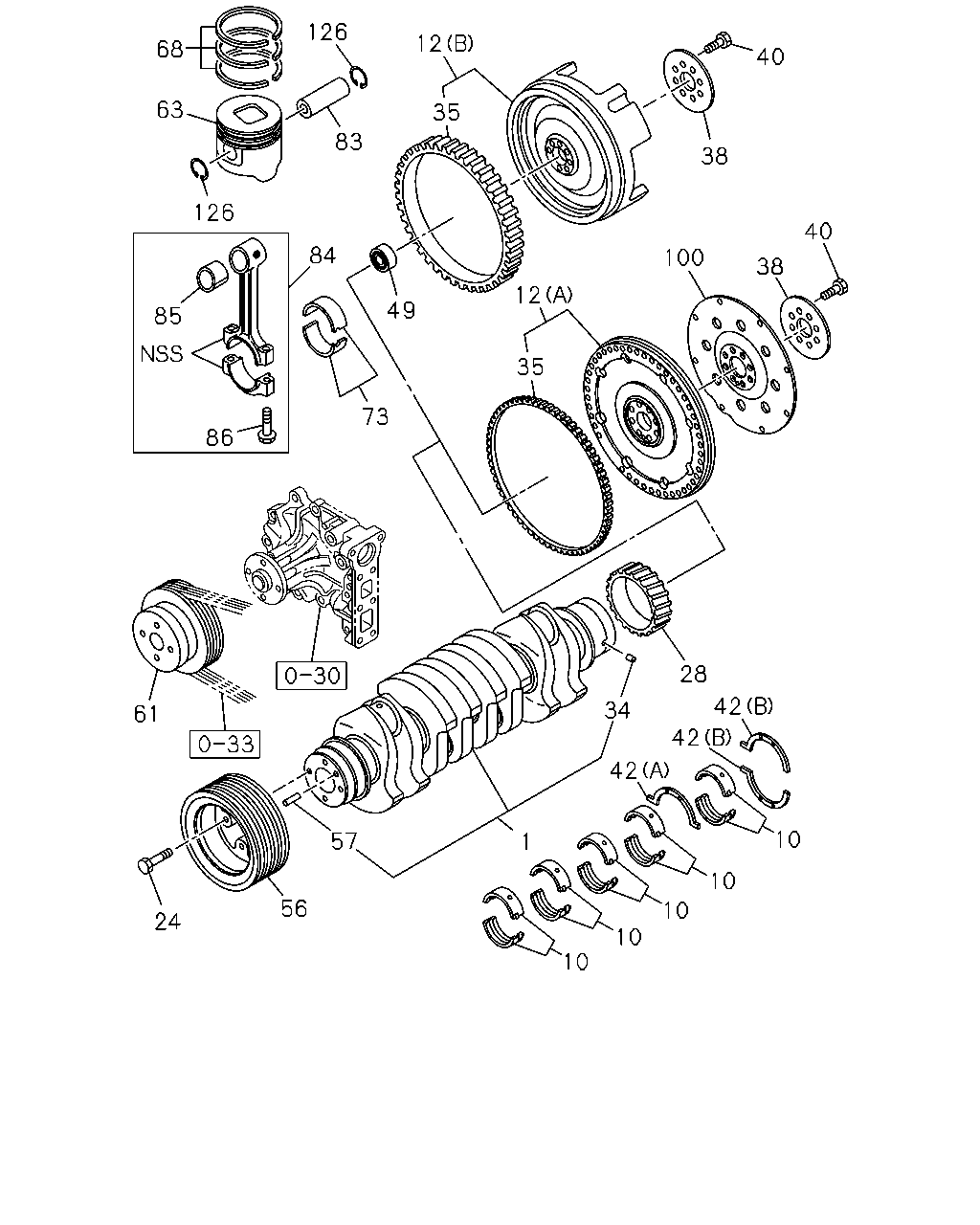

0-15 — CRANKSHAFT,PISTON AND FLYWHEEL
(#175607) — 31 parça
24
56
57
61
1
10
10
10
10
10
42
42
42
28
34
73
86
85
84
126
49
12
35
100
38
40
38
40
35
12
83
126
63
68
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CRANKSHAFT
8-98182-542-2
01
1
1601-
10
METAL SET; CRANKSHAFT,STANDARD
RED
8-98236-440-0
05
1
1601-
10
METAL SET; CRANKSHAFT,STANDARD
GREEN
8-98236-441-0
05
1
1601-
10
METAL SET; CRANKSHAFT,STANDARD
YELLOW
8-98236-442-0
05
1
1601-
12
FLYWHEEL
SMOOTHER-FX(TYPE2)(8NS) (A)
8-98197-730-0
01
1
1601-
12
FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (B)
8-98225-389-1
01
1
1601-
24
BOLT; DAMPER
M16X42
8-97028-733-0
04
1
1601-
28
GEAR; CR/SHF
Z=42
8-94394-342-4
01
1
1601-
34
PIN; GEAR SETTING
OD=5 L=6
9-09878-626-0
01
1
1601-
35
GEAR; RING
SMOOTHER-FX(TYPE2)(8NS) Z=140
8-98172-288-0
01
1
1601-
35
GEAR; RING
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) Z=140
8-98225-395-0
01
1
1601-
38
WASHER; FLYWHEEL
SMOOTHER-FX(TYPE2)(8NS) ID=50 OD=120
8-98176-500-0
01
1
1601-
38
WASHER; FLYWHEEL
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) ID=55 OD=110
8-94397-496-1
01
1
1601-
40
BOLT; FLYWHEEL
M16X42
8-97178-013-0
08
1
1601-
42
WASHER; THRUST,CR/SHF
(A)
8-97386-548-0
01
1
1601-
42
WASHER; THRUST,CR/SHF
(B)
8-97386-549-0
02
1
1601-
49
BEARING; PILOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ)
8-97258-239-0
01
1
1601-
49
BEARING; PILOT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) BEST VALUE PARTS
5-87610-164-0
01
1
1601-
56
PULLEY; CR/SHF DAMPER
3-GROOVE
8-98072-735-1
01
1
1601-
57
PIN; PULLEY
OD=8 L=20
9-08150-820-0
02
1
1601-
61
PULLEY; FAN DRIVE
1-GROOVE
8-98164-798-0
01
1
1601-
63
PISTON
NON GRADE
8-98198-922-0
04
1
1601-
68
RING SET; PISTON,STANDARD
8-98167-539-0
04
1
1601-
73
METAL SET; CONN ROD,STANDARD
BLUE
8-98244-718-0
04
1
1601-
73
METAL SET; CONN ROD,STANDARD
BLACK
8-98244-719-0
04
1
1601-
83
PIN; PISTON
8-98043-431-0
04
1
1601-
84
ROD ASM; CONN
8-98228-271-1
04
1
1601-
85
BUSHING; CONNROD
AFTER PRESS FITTING,SHAPE THE BUSHING.
8-98105-718-0
04
1
1601-
86
BOLT; CONNROD
M13X57 FLANGE
8-98091-141-0
08
1
1601-
100
PLATE; FLEX
SMOOTHER-FX(TYPE2)(8NS)
8-98148-782-1
01
1
1601-
126
RING; SNAP,PISTON PIN
8-98063-132-0
08
1
1601-
