4-01 — PROPELLER SHAFT (#1756) — 128 parça

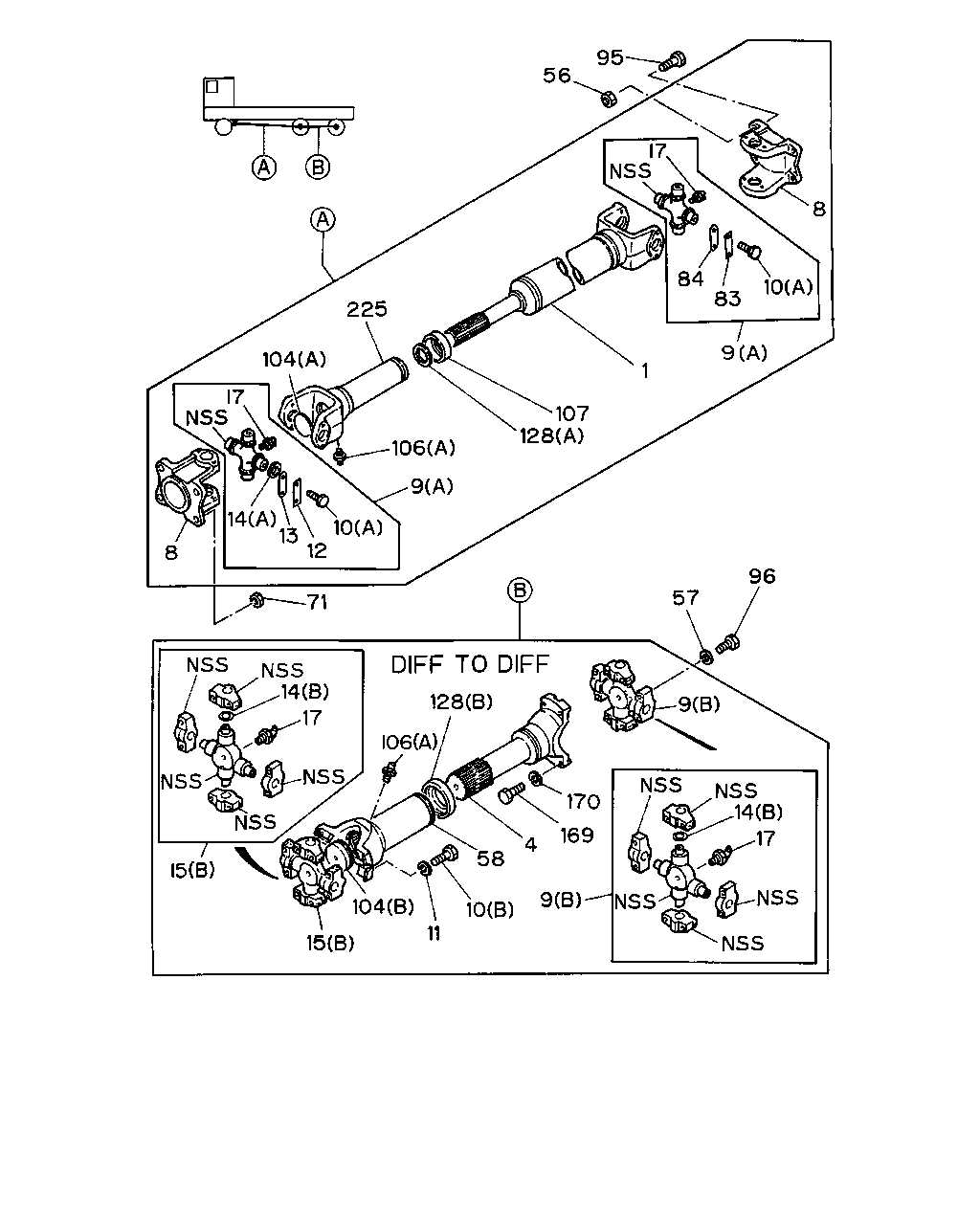

56 95 17 8 84 83 9 10 1 225 128 107 106 104 9 10 12 13 14 17 8 71 57 96 9 14 17 170 169 4 9 10 11 58 128 106 104 15 15 17 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP P90 PROP SHAFT<C5T> L=957	1-37117-362-0	01	1	9307-
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> L TYPE ENG<90L> L=644	1-37117-607-0	01	1	9002-9306
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> L TYPE ENG<90L> L=769	1-37116-961-0	01	1	9307-
1	SHAFT; PROP 10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> L=929	1-37117-608-0	01	1	9002-9306
1	SHAFT; PROP 10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> L=1049	1-37123-077-0	01	1	9307-
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> L=837	1-37117-592-0	01	1	9002-9306
1	SHAFT; PROP 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> L=874	1-37123-165-0	01	1	9002-9306
1	SHAFT; PROP 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> L=994	1-37123-728-0	01	1	9307-
1	SHAFT; PROP 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z), RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> L=954	1-37117-609-0	01	1	9002-9306
1	SHAFT; PROP 12PD1 STD ENG(42L) MJA7 M/T<X9Q> P115 PROP SHAFT<C5X> L=684	1-37117-610-0	01	1	9002-9306
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> L=727	1-37117-294-0	01	1	9002-9306
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> L=794	1-37117-292-2	01	1	9107-9201
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> L=612	1-37117-587-0	01	1	9002-9306
1	SHAFT; PROP 6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z), RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> L=724	1-37117-606-0	01	1	9002-9306
1	SHAFT; PROP 6RB1TC ENG(30L) RTO14613 M/T FULLER(MRU) P115 PROP SHAFT<C5X> L=609	1-37117-633-0	01	1	9002-9306
1	SHAFT; PROP 6RB1TC ENG(30L) RTO14613 M/T FULLER(MRU) P115 PROP SHAFT<C5X> L=724	1-37117-606-0	01	1	9307-
1	SHAFT; PROP 6RB1TC ENG(30L) RT14715 M/T FULLER(X8L) P115 PROP SHAFT<C5X> L=579	1-37123-164-0	01	1	9002-9306
1	SHAFT; PROP 8PD1 STD ENG(38L),10PD1 STD ENG(40L) RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> L=1069	1-37123-439-0	01	1	9307-
4	SHAFT; PROP L=348	1-37171-058-0	01	1	9002-
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT<C5X>	1-37211-047-2	02	1	9002-
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-050-1	02	1	9002-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-074-0	01	1	9002-9009
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-079-0	01	1	9010-9306
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-079-0	01	1	9307-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X> (A)	1-37300-062-0	01	1	9002-
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (A)	1-37300-082-0	02	1	9002-
10	BOLT; UJT (B) M12X45	9-91066-245-0	04	1	9002-
10	BOLT; UJT P115 PROP SHAFT<C5X> (A)	1-37359-001-0	16	1	9307-
10	BOLT; UJT P90 PROP SHAFT<C5T> (A) M8X20	9-09802-702-0	16	1	9002-
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	9-09150-612-0	04	1	9002-
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37356-007-0	08	1	9307-
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	9-37356-006-1	04	1	9002-
13	COVER; FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-003-1	04	1	9002-
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	9002-
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (A)	1-37249-130-0	08	1	9002-
15	UNIVERSAL CENTER (B)	1-37300-074-0	01	1	9002-9009
15	UNIVERSAL CENTER (B)	1-37300-079-0	01	1	9010-
15	UNIVERSAL CENTER P115 PROP SHAFT<C5X> (A)	1-37300-062-0	01	1	9002-
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT<C5X>	1-37319-005-0	04	1	9307-
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-
56	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	08	1	9002-
56	NUT; YOKE P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9002-
57	WASHER; LK,YOKE ID=12.2	9-09150-612-0	08	1	9002-
58	FLANGE; SPLINED L=264	1-37245-157-1	01	1	9002-
71	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	08	1	9002-
71	NUT; YOKE P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9002-
83	PLATE; LK,UJT,PROP SHAFT P90 PROP SHAFT<C5T>	9-37356-006-1	04	1	9002-
84	COVER; UJT,PROP SHAFT P90 PROP SHAFT<C5T>	1-37355-003-1	04	1	9002-
95	BOLT; YOKE,FINAL P115 PROP SHAFT<C5X> M16X48	1-09000-383-0	08	1	9002-
95	BOLT; YOKE,FINAL P90 PROP SHAFT<C5T> M16X48	1-09000-383-0	04	1	9002-
96	BOLT; PROP SHAFT M12X45	9-91066-245-0	08	1	9002-
104	PLUG; SLEEVE YOKE (B)	1-09600-049-0	01	1	9002-
104	PLUG; SLEEVE YOKE P115 PROP SHAFT<C5X> (A)	1-37248-011-0	01	1	9002-
104	PLUG; SLEEVE YOKE P90 PROP SHAFT<C5T> (A)	1-09600-067-0	01	1	9002-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> (B)	1-37248-010-0	01	1	9002-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT<C5T> (A)	9-09031-010-0	01	1	9002-
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A)	9-09031-010-0	01	1	9002-
107	COVER; RET,SLEEVE P90 PROP SHAFT<C5T>	1-37249-039-1	01	1	9002-
128	SEAL; SLEEVE (B)	1-37247-006-0	01	1	9002-
128	SEAL; SLEEVE P115 PROP SHAFT<C5X> (A)	1-37247-013-0	01	1	9002-
128	SEAL; SLEEVE P90 PROP SHAFT<C5T> (A)	1-37247-016-0	01	1	9002-
169	BOLT; YOKE,SLEEVE M12X45	9-91066-245-0	04	1	9002-
170	WASHER; LK,YOKE,SLEEVE ID=12.2	9-09150-612-0	04	1	9002-
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37241-090-1	01	1	9002-9106
225	YOKE; SLEEVE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37241-097-0	01	1	9107-

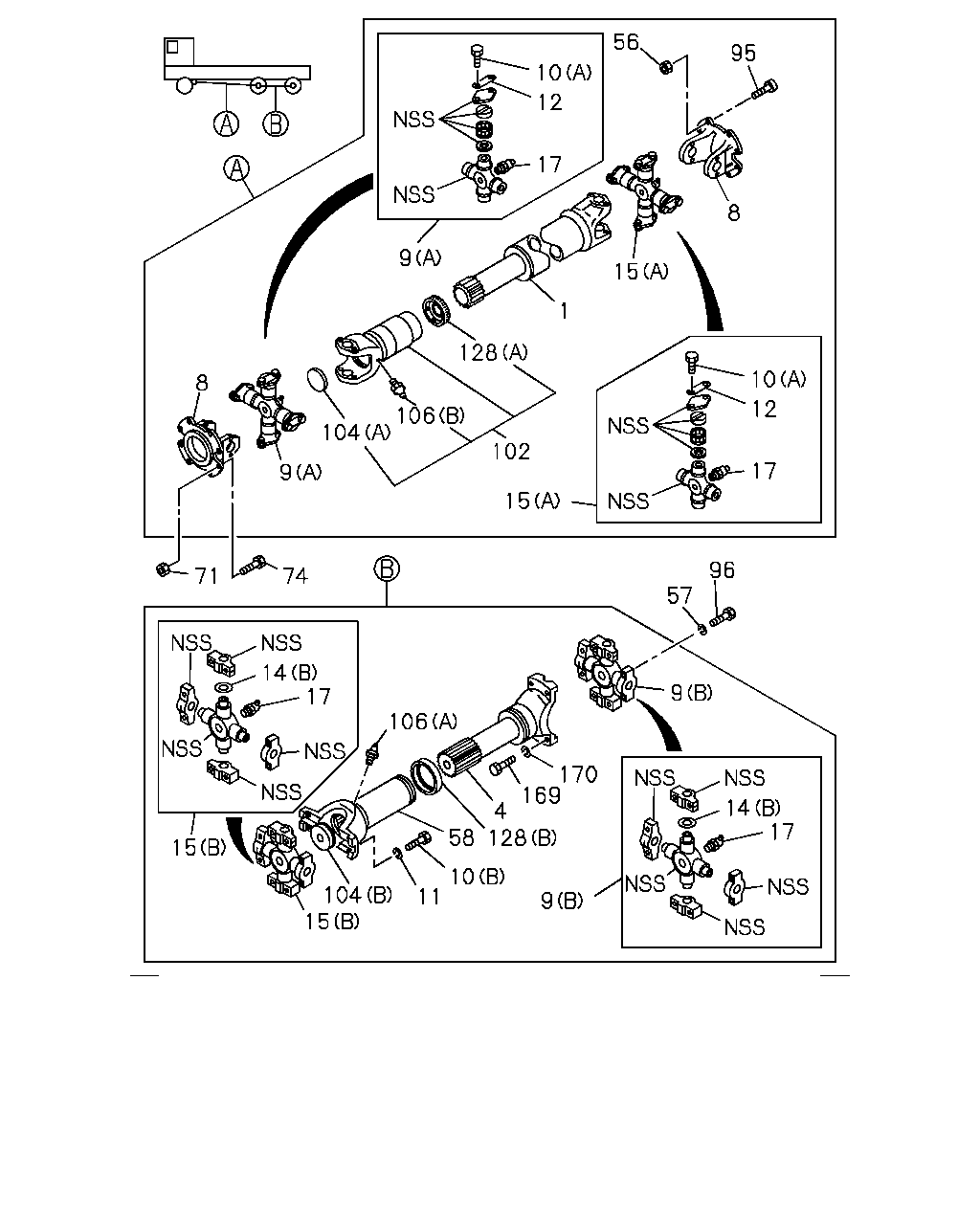

10 12 56 95 8 15 17 9 1 106 128 102 10 17 12 15 104 9 8 71 74 57 96 9 170 169 4 106 17 14 15 15 11 104 10 58 128 9 14 17

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHAFT; PROP P90 PROP SHAFT<C5T> L=957	1-37117-362-0	01	1	9307-
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> L TYPE ENG<90L> L=644	1-37117-607-0	01	1	9002-9306
1	SHAFT; PROP RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> L TYPE ENG<90L> L=769	1-37116-961-0	01	1	9307-
1	SHAFT; PROP 10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> L=929	1-37117-608-0	01	1	9002-9306
1	SHAFT; PROP 10PD1 STD ENG(40L) P115 PROP SHAFT<C5X> MJA6 M/T<X9S> L=1049	1-37123-077-0	01	1	9307-
1	SHAFT; PROP 10PD1 STD ENG(40L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> L=837	1-37117-592-0	01	1	9002-9306
1	SHAFT; PROP 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> L=874	1-37123-165-0	01	1	9002-9306
1	SHAFT; PROP 10PD1 STD ENG(40L) RTO11613 M/T FULLER(MV6) P115 PROP SHAFT<C5X> L=994	1-37123-728-0	01	1	9307-
1	SHAFT; PROP 10PD1 STD ENG(40L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z), RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> L=954	1-37117-609-0	01	1	9002-9306
1	SHAFT; PROP 12PD1 STD ENG(42L) MJA7 M/T<X9Q> P115 PROP SHAFT<C5X> L=684	1-37117-610-0	01	1	9002-9306
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> L=727	1-37117-294-0	01	1	9002-9306
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA6 M/T<X9S> L=794	1-37117-292-2	01	1	9107-9201
1	SHAFT; PROP 6RB1 STD ENG(07L) P90 PROP SHAFT<C5T> MJA7 M/T<X9Q> L=612	1-37117-587-0	01	1	9002-9306
1	SHAFT; PROP 6RB1 STD ENG(07L) RT11609A M/T FULLER(PQ4),RTO11609B M/T FULLER(X4Z), RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> L=724	1-37117-606-0	01	1	9002-9306
1	SHAFT; PROP 6RB1TC ENG(30L) RTO14613 M/T FULLER(MRU) P115 PROP SHAFT<C5X> L=609	1-37117-633-0	01	1	9002-9306
1	SHAFT; PROP 6RB1TC ENG(30L) RTO14613 M/T FULLER(MRU) P115 PROP SHAFT<C5X> L=724	1-37117-606-0	01	1	9307-
1	SHAFT; PROP 6RB1TC ENG(30L) RT14715 M/T FULLER(X8L) P115 PROP SHAFT<C5X> L=579	1-37123-164-0	01	1	9002-9306
1	SHAFT; PROP 8PD1 STD ENG(38L),10PD1 STD ENG(40L) RTX11609B M/T FULLER(X8W) P115 PROP SHAFT<C5X> L=1069	1-37123-439-0	01	1	9307-
4	SHAFT; PROP L=348	1-37171-058-0	01	1	9002-
8	YOKE; FLANGE,PROP SHAFT P115 PROP SHAFT<C5X>	1-37211-047-2	02	1	9002-
8	YOKE; FLANGE,PROP SHAFT P90 PROP SHAFT<C5T>	1-37211-050-1	02	1	9002-
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-074-0	01	1	9002-9009
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-079-0	01	1	9010-9306
9	JOURNAL ASM; PROP SHAFT (B)	1-37300-079-0	01	1	9307-
9	JOURNAL ASM; PROP SHAFT P115 PROP SHAFT<C5X> (A)	1-37300-062-0	01	1	9002-
9	JOURNAL ASM; PROP SHAFT P90 PROP SHAFT<C5T> (A)	1-37300-082-0	02	1	9002-
10	BOLT; UJT (B) M12X45	9-91066-245-0	04	1	9002-
10	BOLT; UJT P115 PROP SHAFT<C5X> (A)	1-37359-001-0	16	1	9307-
10	BOLT; UJT P90 PROP SHAFT<C5T> (A) M8X20	9-09802-702-0	16	1	9002-
11	WASHER; LK,UNIVERSAL,PROP SHAFT ID=12.2	9-09150-612-0	04	1	9002-
12	PLATE; LK,FRT UJT,PROP SHAFT P115 PROP SHAFT<C5X>	1-37356-007-0	08	1	9307-
12	PLATE; LK,FRT UJT,PROP SHAFT P90 PROP SHAFT<C5T>	9-37356-006-1	04	1	9002-
14	COVER; DUST,SPIDER (B)	1-37319-004-0	08	1	9002-
14	COVER; DUST,SPIDER P90 PROP SHAFT<C5T> (A)	1-37249-130-0	08	1	9002-
15	UNIVERSAL CENTER (B)	1-37300-074-0	01	1	9002-9009
15	UNIVERSAL CENTER (B)	1-37300-079-0	01	1	9010-
15	UNIVERSAL CENTER P115 PROP SHAFT<C5X> (A)	1-37300-062-0	01	1	9002-
17	NIPPLE; GREASE,PROP SHAFT P115 PROP SHAFT<C5X>	1-37319-005-0	04	1	9307-
17	NIPPLE; GREASE,PROP SHAFT P90 PROP SHAFT<C5T> PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-
17	NIPPLE; GREASE,PROP SHAFT PT1/8 ELBOW 67.5?	9-09031-110-0	02	1	9002-
56	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	08	1	9002-
56	NUT; YOKE P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9002-
57	WASHER; LK,YOKE ID=12.2	9-09150-612-0	08	1	9002-
58	FLANGE; SPLINED L=264	1-37245-157-1	01	1	9002-
71	NUT; YOKE P115 PROP SHAFT<C5X> M16 FLANGE	1-09449-065-0	08	1	9002-
71	NUT; YOKE P90 PROP SHAFT<C5T> M16 FLANGE	1-09449-065-0	04	1	9002-
74	BOLT; YOKE,TRANS P115 PROP SHAFT<C5X> M16X48	1-09000-383-0	08	1	9002-
95	BOLT; YOKE,FINAL P115 PROP SHAFT<C5X> M16X48	1-09000-383-0	08	1	9002-
95	BOLT; YOKE,FINAL P90 PROP SHAFT<C5T> M16X48	1-09000-383-0	04	1	9002-
96	BOLT; PROP SHAFT M12X45	9-91066-245-0	08	1	9002-
102	YOKE; TRANSFER TO AXLE P115 PROP SHAFT<C5X>	1-37240-086-0	01	1	9002-
104	PLUG; SLEEVE YOKE (B)	1-09600-049-0	01	1	9002-
104	PLUG; SLEEVE YOKE P115 PROP SHAFT<C5X> (A)	1-37248-011-0	01	1	9002-
104	PLUG; SLEEVE YOKE P90 PROP SHAFT<C5T> (A)	1-09600-067-0	01	1	9002-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P115 PROP SHAFT<C5X> (B)	1-37248-010-0	01	1	9002-
106	NIPPLE; GREASE,YOKE,PROP SHAFT P90 PROP SHAFT<C5T> (A)	9-09031-010-0	01	1	9002-
106	NIPPLE; GREASE,YOKE,PROP SHAFT (A)	9-09031-010-0	01	1	9002-
128	SEAL; SLEEVE (B)	1-37247-006-0	01	1	9002-
128	SEAL; SLEEVE P115 PROP SHAFT<C5X> (A)	1-37247-013-0	01	1	9002-
128	SEAL; SLEEVE P90 PROP SHAFT<C5T> (A)	1-37247-016-0	01	1	9002-
169	BOLT; YOKE,SLEEVE M12X45	9-91066-245-0	04	1	9002-
170	WASHER; LK,YOKE,SLEEVE ID=12.2	9-09150-612-0	04	1	9002-
