9-01 — TOOLS (#175599) — 26 parça

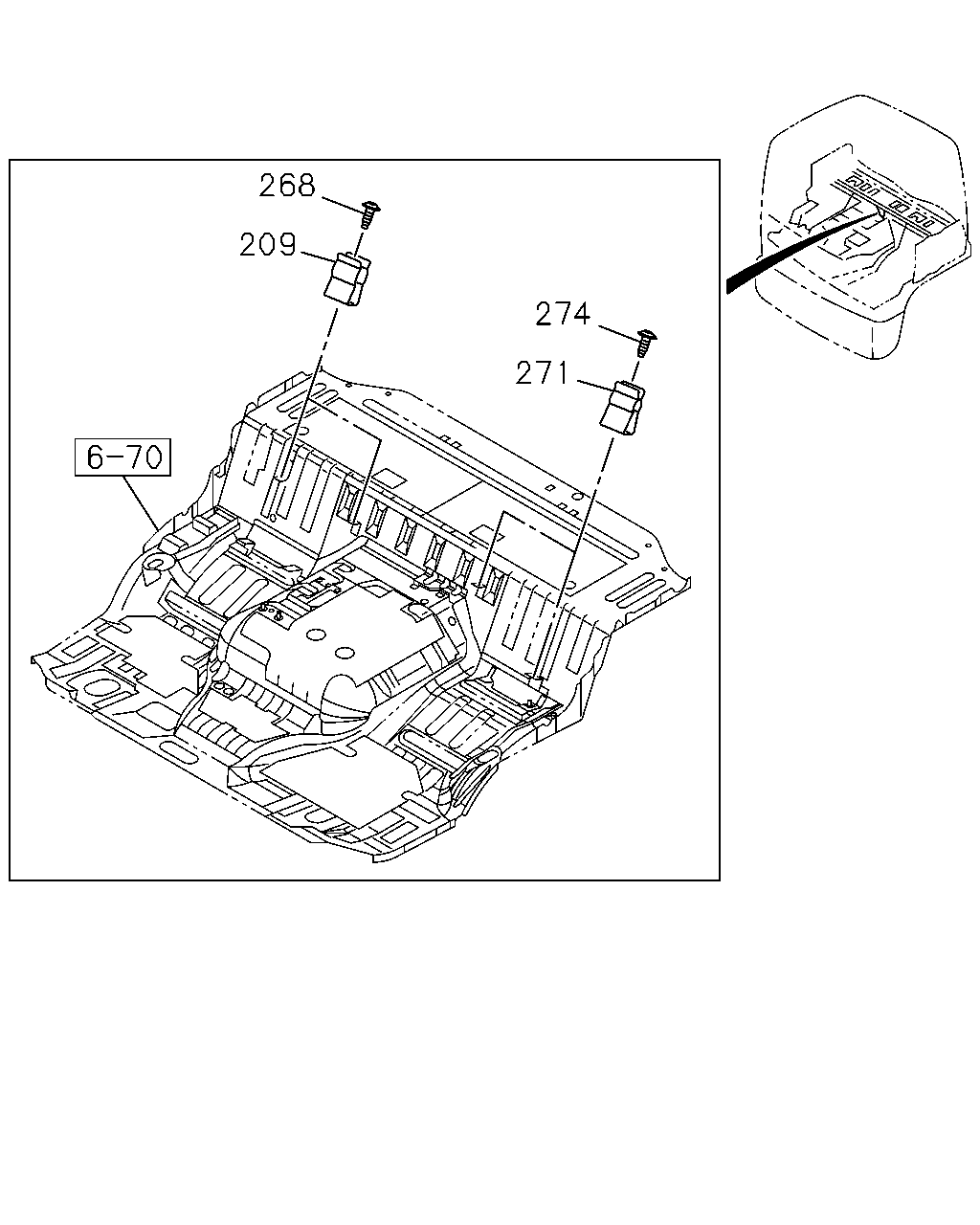

268 209 274 271

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
209	CLIP; JACK HANDLE	8-98053-799-0	02	1	1601-	●	●
268	SCREW; CLIP T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	1601-	●	●
271	CLIP; TIRE HANGER	8-98053-800-0	02	1	1601-	●	●
274	SCREW; CLIP T25 M6X12 HEXALOBULAR SOCKET	0-38050-612-0	02	1	1601-	●	●

1 9 17 13 20 21 22 23 29 29 29 192 163 163 115 166 237 227 208 193 230

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	HANDLE; SPARE TIRE CARRIER L=280	8-98181-251-0	01	1	1601-	●	●
9	WRENCH; WHEEL PIN B=41X21 L=440	1-85113-015-1	01	1	1601-1601	●	●
9	WRENCH; WHEEL PIN B=41X21 L=445	8-98316-703-0	01	1	1602-	●	●
13	WRENCH; MONKEY L=255	8-98270-303-0	01	1	1601-	●	●
17	HAMMER	9-85121-406-0	01	1	1601-	●	●
20	WRENCH; 10X12 10X12	0-95902-510-0	01	1	1601-	●	●
21	WRENCH; 14X17 14X17	0-95902-514-0	01	1	1601-	●	●
22	WRENCH; 19X22 19X22	0-95902-519-0	01	1	1601-	●	●
23	WRENCH; 24X27 24X27	0-95902-524-0	01	1	1601-	●	●
29	DRIVER; SCREW (C) <+>,<-> L=160	8-94242-798-1	01	1	1601-	●	●
29	DRIVER; SCREW (B) <-> L=275	8-98061-105-0	01	1	1601-	●	●
29	DRIVER; SCREW (A) <+> L=190	9-09595-522-0	01	1	1601-	●	●
115	PLIER	8-98282-845-0	01	1	1601-	●	●
163	TOOL; SETTING (B) L=195	1-85221-162-1	01	1	1601-	●	●
163	TOOL; SETTING (A) L=150	1-85221-163-0	01	1	1601-	●	●
166	ALIGNER; CLU RELEASE LEVER 4HK1-TCS ENG(RJS) 14" CLUTCH(WF6)	1-85253-026-0	01	1	1601-	●	●
192	GAUGE; TIRE PRESSURE	1-85315-002-0	01	1	1601-	●	●
193	JACK ASM 7TON	1-85510-005-2	01	1	1601-	●	●
208	HANDLE; JACK L=580	8-98181-249-0	01	1	1601-	●	●
227	PUMP ASM; TIRE	9-85521-132-0	01	1	1601-	●	●
230	PUMP; GREASE	1-85556-007-5	01	1	1601-	●	●
237	BAG; TOOL	8-97130-902-1	01	1	1601-	●	●
