◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FRR ▶ 11720 - FRR AUST/NZ JNLT09 SPACECAB ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-75 - CONDENSER ▶
8-75 — CONDENSER (#175596) — 21 parça

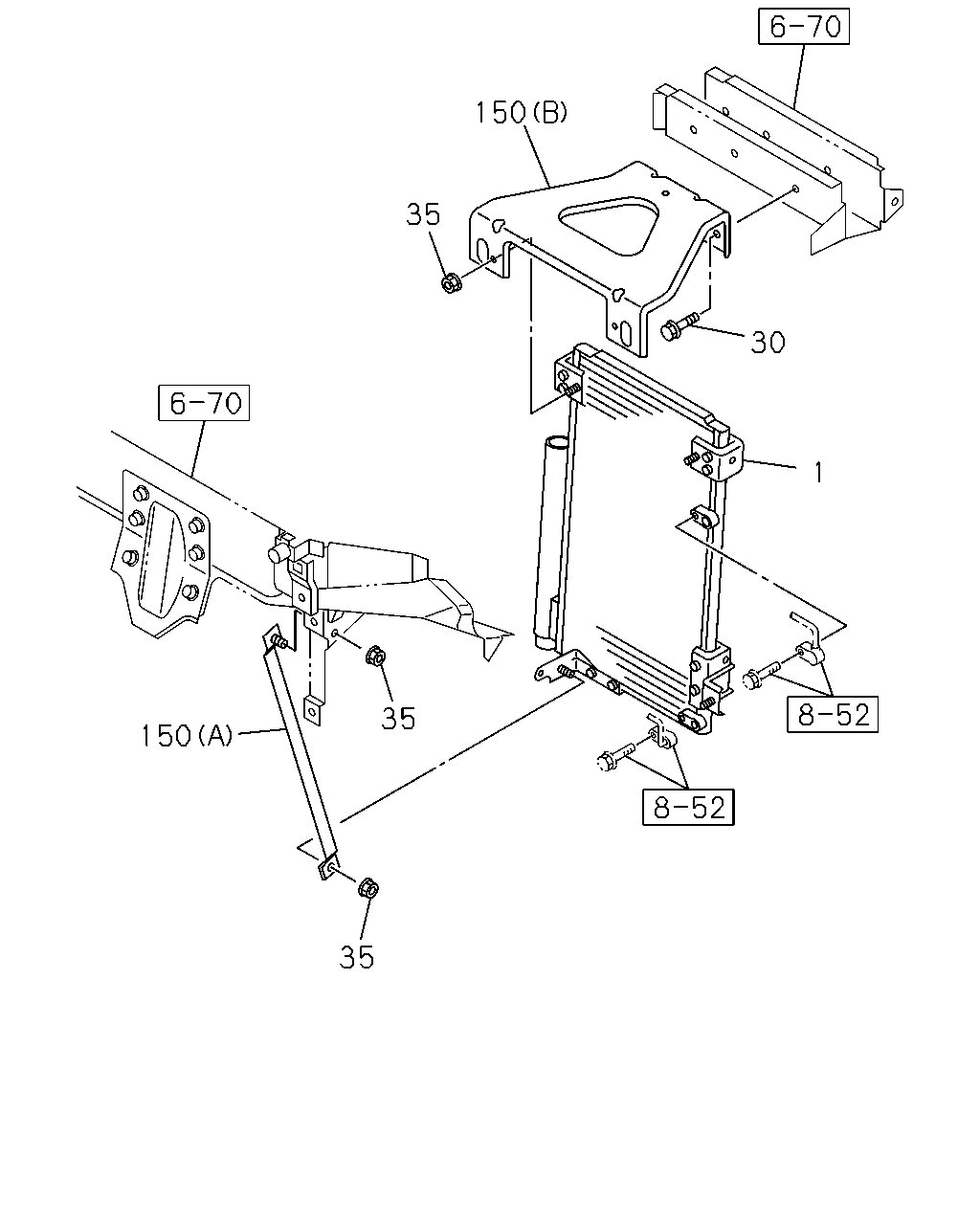

çizim 515077
150 35 35 35 150 30 1
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98235-911-2 01 1 1601- ● ●
30 BOLT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X20 FLANGE 		0-28650-820-0 02 1 1601- ● ●
35 NUT; CONDENSER,A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8 FLANGE 		0-91180-108-0 05 1 1601- ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98242-412-0 01 1 1601- ● ●
150 BRACKET; CONDENSER,MTG
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98270-947-0 01 1 1601- ● ●

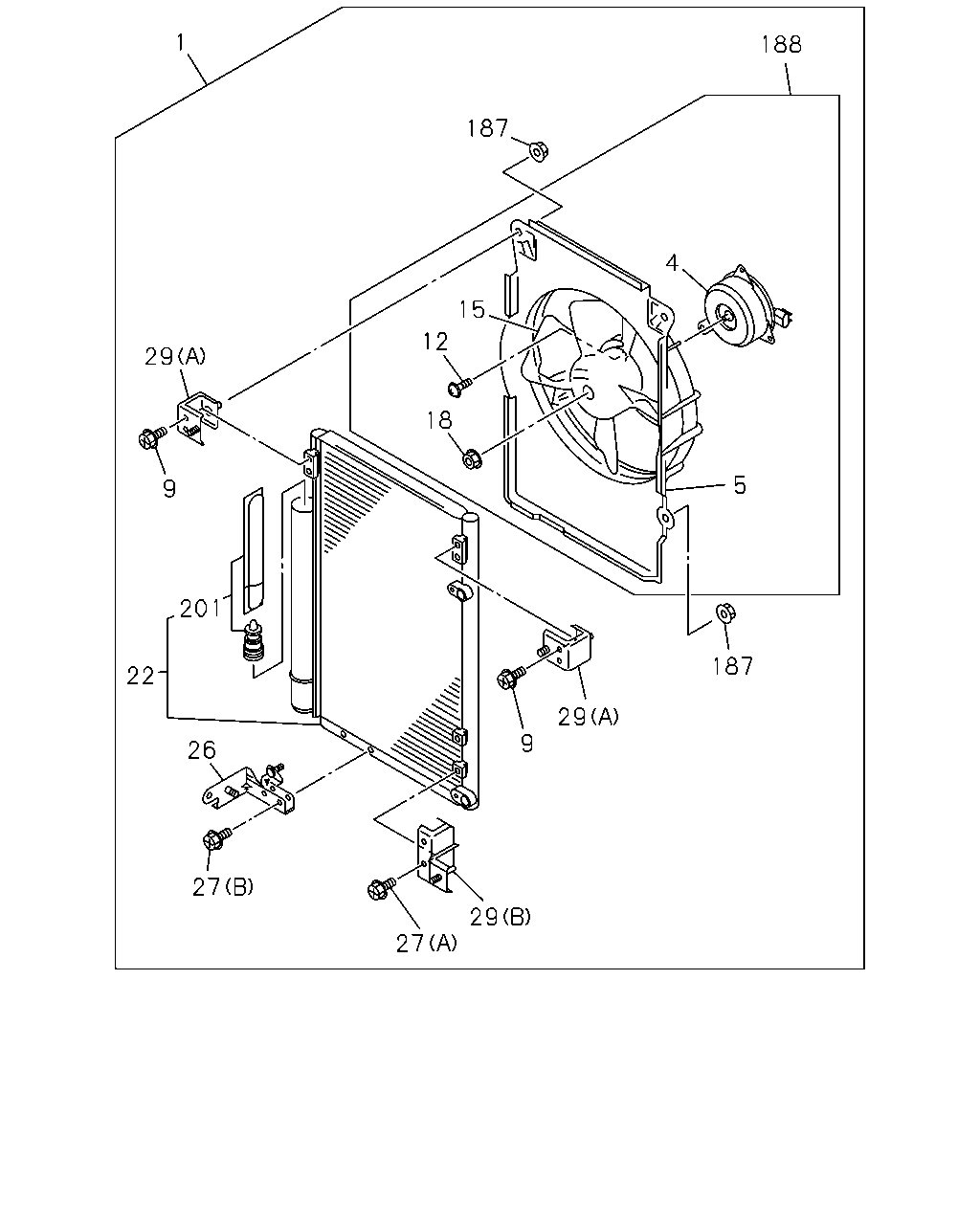

çizim 515170
1 29 9 201 22 26 27 27 29 9 29 187 5 18 12 15 4 187 188
BalonParca AdiParca NoAdetTipApplied Date A B
1 CONDENSER; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98235-911-2 01 1 1601- ● ●
4 MOTOR ASM; FAN
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98076-091-0 01 1 1601- ● ●
5 SHROUD; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98076-093-0 01 1 1601- ● ●
9 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6X14 		1-83539-382-0 04 1 1601- ● ●
12 BOLT; FAN MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-97180-269-0 03 1 1601- ● ●
15 FAN; MOTOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98152-860-0 01 1 1601- ● ●
18 NUT; FAN,CENTER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M5 FLANGE 		8-94157-075-0 01 1 1601- ● ●
22 CONDENSER ASM; A/C
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98275-189-0 01 1 1601- ● ●
26 BRACKET; LOW
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		1-83573-281-0 01 1 1601- ● ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) M6X14 		1-83539-382-0 02 1 1601- ● ●
27 BOLT; BRKT,LOW SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) M5X25 		8-97178-770-0 02 1 1601- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98065-914-0 02 1 1601- ● ●
29 BRACKET; SIDE
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98065-915-0 01 1 1601- ● ●
187 NUT; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M6 		1-83539-354-0 04 1 1601- ● ●
188 BLOWER ASM; SHROUD
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98235-916-1 01 1 1601- ● ●
201 DRYER ASM; CONDENSER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98282-482-0 01 1 1601- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
