8-50 — AIR CONDITIONING SYSTEM; FRONT (#175590) — 7 parça

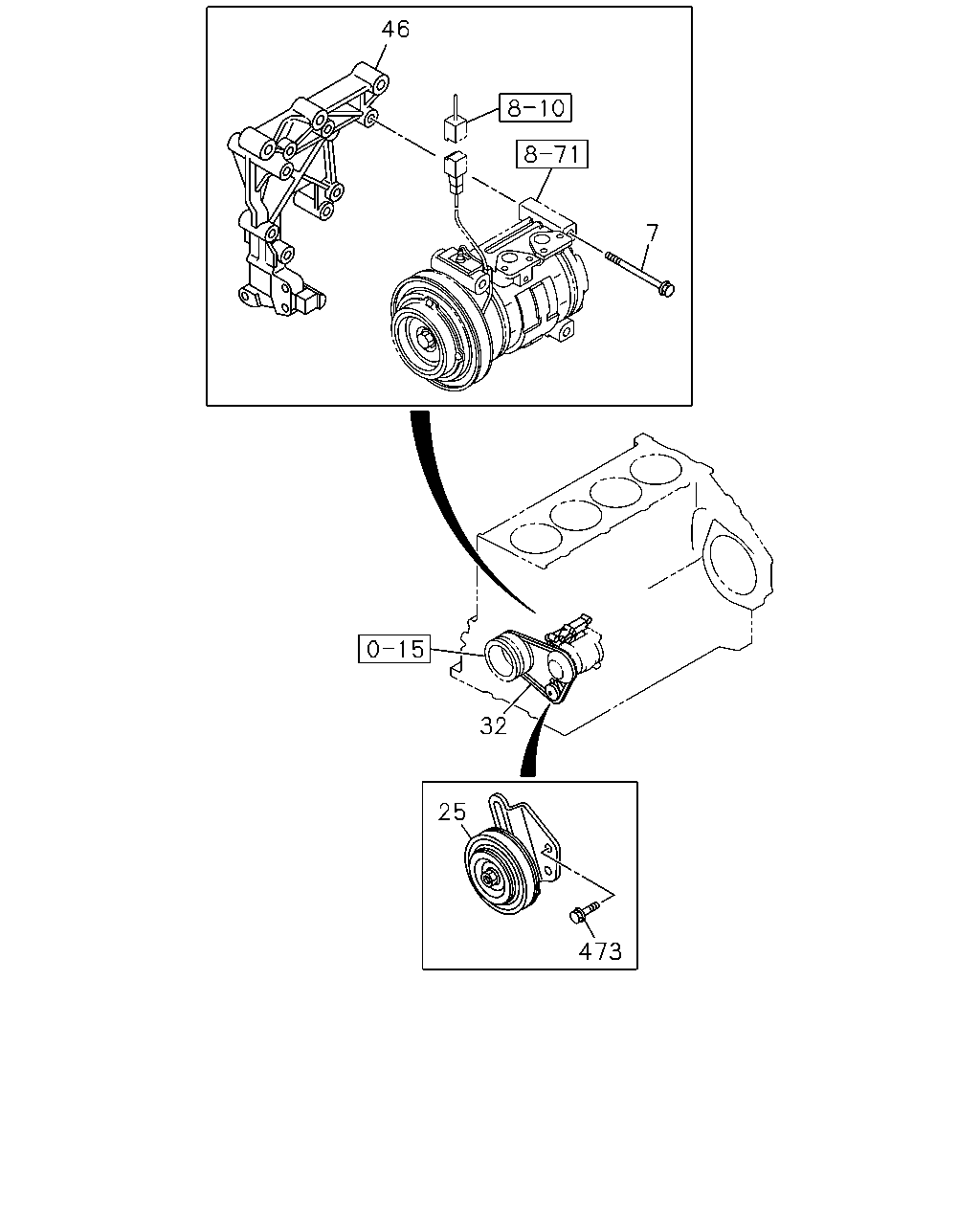

çizim 514919
46 32 25 473 7
BalonParca AdiParca NoAdetTipApplied Date A B
7 BOLT; BRKT
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M10X80 FLANGE 		0-28151-080-0 04 1 1601- ● ●
25 PULLEY ASM; IDLER,CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98083-026-1 01 1 1601- ● ●
32 BELT; A/C CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) L=1054 		8-98083-671-0 01 1 1601- ● ●
46 BRACKET; CMPR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 		8-98194-091-0 01 1 1601- ● ●
473 BOLT; TENSIONER
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) M8X16 FLANGE 		0-28050-816-0 03 1 1601- ● ●
çizim 514981
378 378
BalonParca AdiParca NoAdetTipApplied Date A B
378 HOSE; DRAIN,EVAPORATOR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 		8-98041-428-0 01 1 1601- ● ●
378 HOSE; DRAIN,EVAPORATOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 		8-98204-846-0 01 1 1601- ● ●
